CAT7 RJ45 8P8C STP shielded Modular plug

    Descriptions

A CAT7 RJ45 8P8C STP shielded modular plug is a type of connector used for terminating CAT7 Ethernet cables.

Here's what each part of the term typically means:

CAT7: This refers to Category 7 Ethernet cable, which is designed to support up to 10 Gigabit Ethernet speeds over distances of up to 100 meters. CAT7 cables are shielded and typically use twisted pair wiring.

RJ45: This is a standard connector used for Ethernet connections. It has 8 pins (8P) arranged in 8 positions (8C). RJ45 connectors are common for Ethernet networking.

8P8C: This stands for 8 position, 8 contact. It refers to the number of positions and contacts in the connector, which matches the standard RJ45 configuration used in Ethernet networking.

STP: This stands for Shielded Twisted Pair. CAT7 cables are typically shielded to reduce electromagnetic interference (EMI) and crosstalk between wires, which can degrade signal quality. The shielded design helps to maintain higher performance over longer distances and in environments with high electrical noise.

Modular plug: This refers to the connector that terminates the Ethernet cable. In this context, a modular plug specifically designed for CAT7 cables ensures proper compatibility and performance with CAT7 specifications.

In summary, a CAT7 RJ45 8P8C STP shielded modular plug is a connector designed to be used with CAT7 Ethernet cables. It ensures that the cable maintains its shielding integrity, which is crucial for achieving and maintaining high-speed data transmission without interference.

    Main Features

The main features of a CAT7 RJ45 8P8C STP shielded modular plug include


Support for CAT7 Cable: Designed specifically for use with CAT7 Ethernet cables, which are capable of transmitting data at speeds up to 10 Gigabits per second (Gbps) over distances of up to 100 meters.

STP (Shielded Twisted Pair): Provides shielding to the twisted pairs of wires inside the cable. This shielding helps to minimize electromagnetic interference (EMI) and crosstalk, ensuring reliable data transmission even in electrically noisy environments.

RJ45 Standard: Adheres to the RJ45 standard, which is widely used for Ethernet connections. The 8P8C configuration ensures compatibility with standard Ethernet ports and devices.

Modular Plug Design: The modular plug design allows for easy termination of the CAT7 cable, providing a reliable connection that maintains the cable's performance characteristics.

Reliability and Performance: By using STP shielding, these plugs maintain signal integrity and reduce the risk of signal degradation, thereby supporting higher bandwidths and longer distances compared to unshielded cables.

Durability: Typically designed to be durable and long-lasting, capable of withstanding multiple insertions and removals without compromising the connection quality.

In essence, the main feature of a CAT7 RJ45 8P8C STP shielded modular plug is its ability to facilitate high-speed, reliable Ethernet connections suitable for demanding networking environments where minimizing interference and maintaining performance are critical.

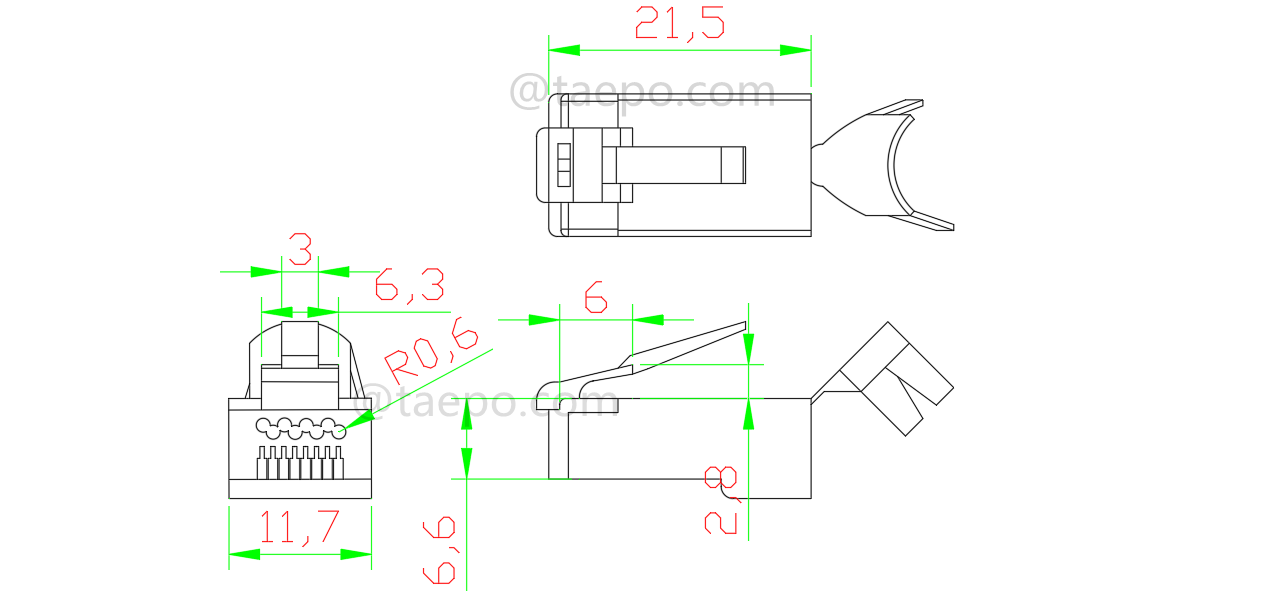

    Schematic Diagrams

    Packing Pictures

    Order Data
