What is a Modular Plug?
DESCRIPTIONS

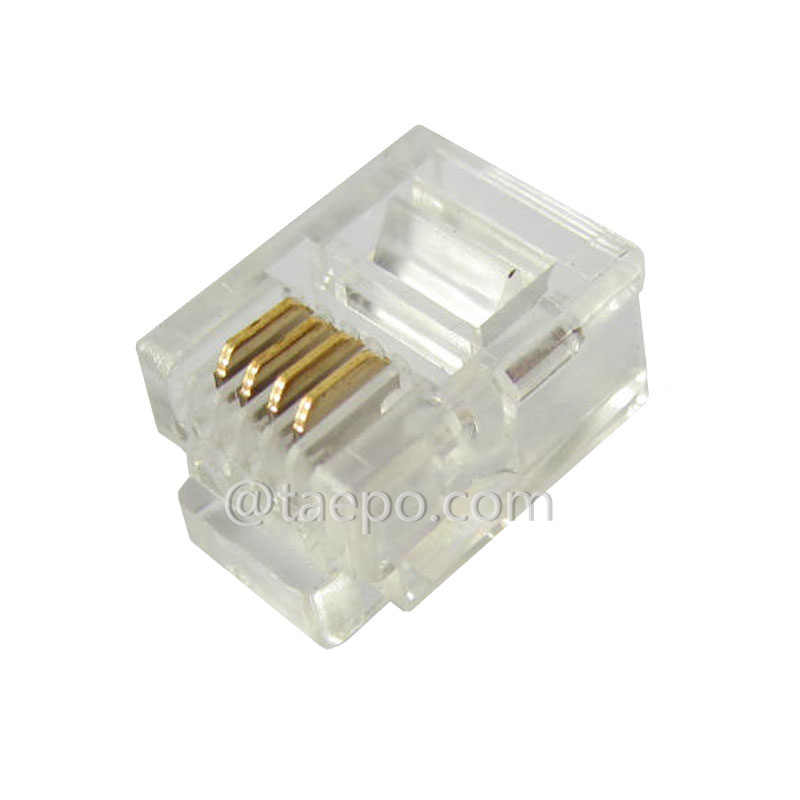

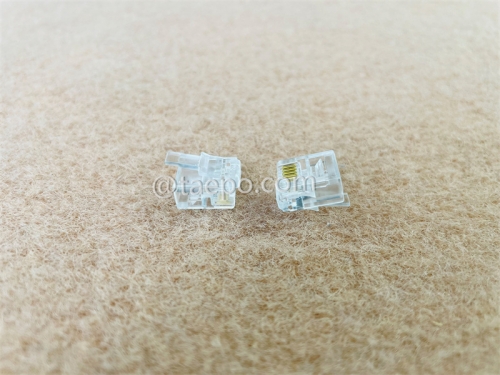

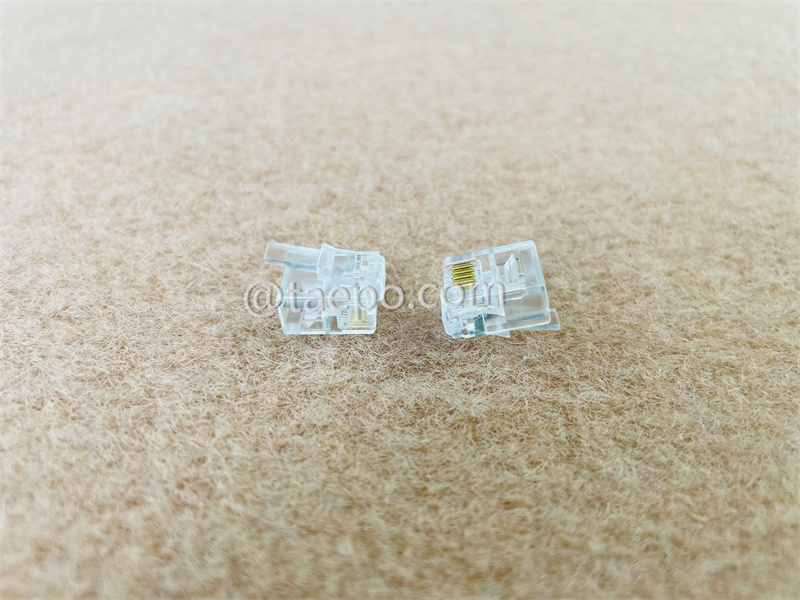

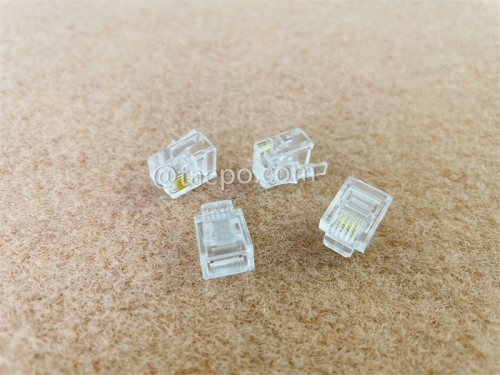

The CAT3 modular plug (TP-5503-C3U4) is a 6P4C unshielded twisted pair (UTP) connector designed for low-speed voice and data communications. This modular plug is primarily used in telephone line installations, legacy networks, and some early Ethernet setups. With its durable construction, the plug ensures reliable performance in analog and digital voice systems, making it ideal for both residential and commercial use.
Designed for easy crimping onto CAT3 cables, the 6P4C modular plug is widely compatible with telephone jacks and legacy network hardware. The plug’s contacts are made of high-quality metal for optimal signal transmission, ensuring clear voice communication with minimal interference. Its UTP configuration minimizes external interference, though it is designed for low-speed data rather than modern high-speed applications.
The plug's compact design and ease of use make it perfect for installers and technicians working on telephone systems, fax machines, and low-speed data connections. Whether you're repairing existing systems or setting up new connections, this CAT3 modular plug offers a cost-effective and reliable solution.
MAIN FEATURES
- 6P4C Configuration: 6 positions and 4 conductors for voice and data transmission.
- CAT3 Standard: Compatible with low-speed data and voice communication systems.
- UTP Design: Unshielded twisted pair for basic electromagnetic interference reduction.
- Durable Contacts: High-quality metal contacts for reliable signal transmission.
- Easy Installation: Designed for quick and secure crimping onto CAT3 cables.
- Telephone System Compatibility: Ideal for telephone and fax line installations.
- Clear Voice Transmission: Ensures low noise and interference for analog voice signals.
- Low Data Rate Support: Suitable for data rates of up to 10 Mbps.
- Compact Design: Small and easy to handle, making it convenient for tight installation spaces.
- Versatile Use: Can be used in both residential and commercial telephone line setups.
- Gold-Plated Contacts: Enhances conductivity and resists corrosion for long-term performance.
- Reliable Connection: Ensures a stable and secure connection for communication systems.
- Flexible Application: Works with standard telephone jacks, adapters, and wall plates.
- Non-Specialized Tools Required: Can be crimped using standard modular plug crimping tools.
- Standard Dimensions: Designed to meet industry standards for plug size and compatibility.

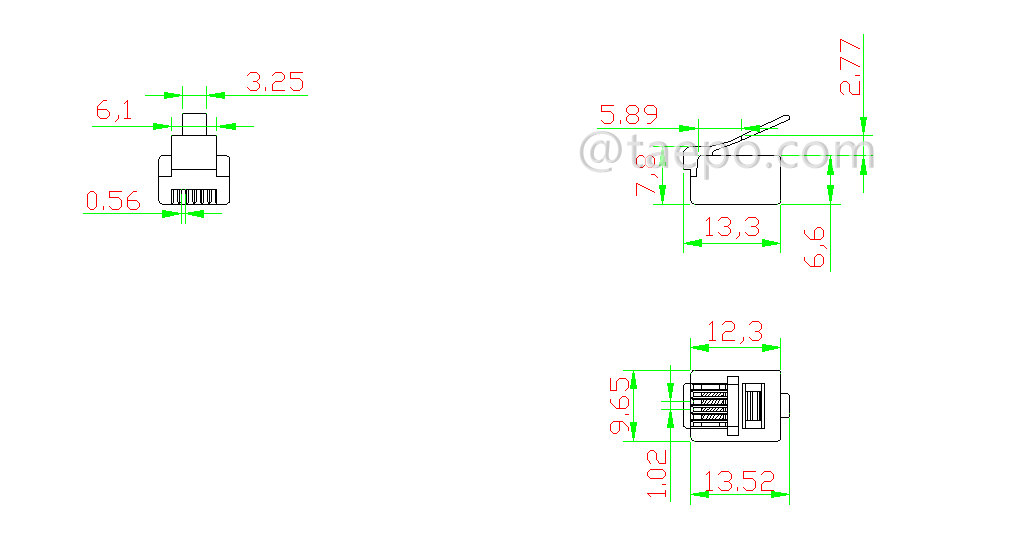

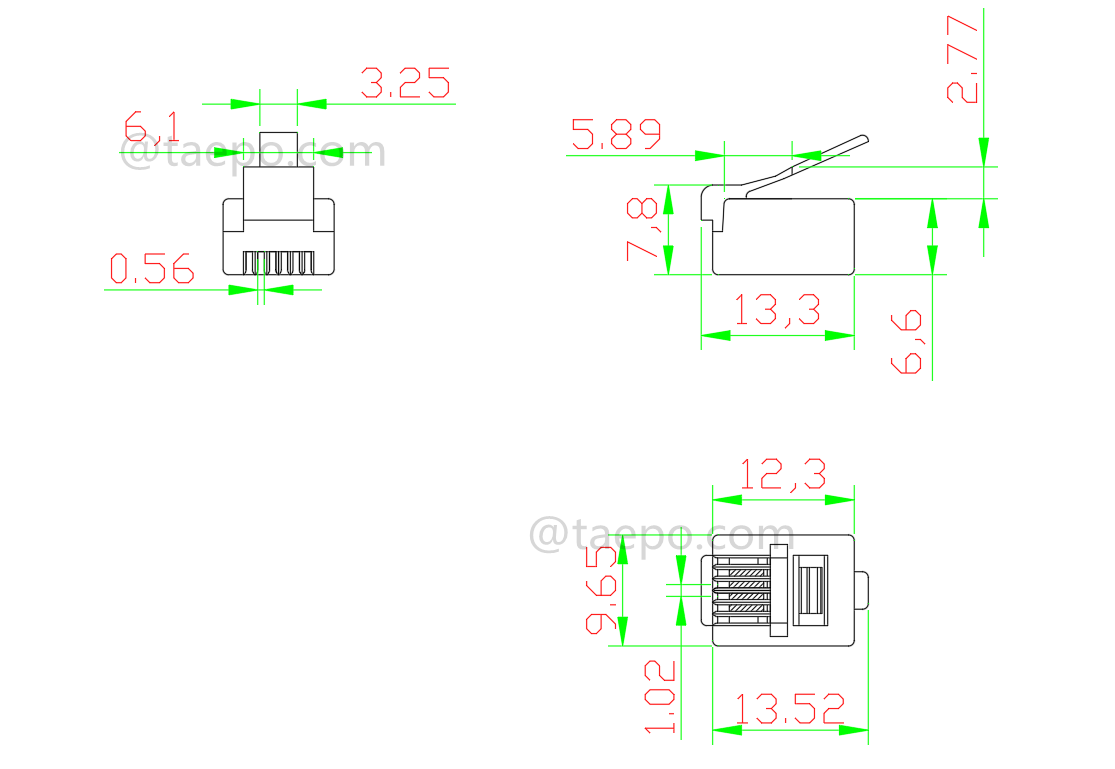

SCHEMATIC DIAGRAMS

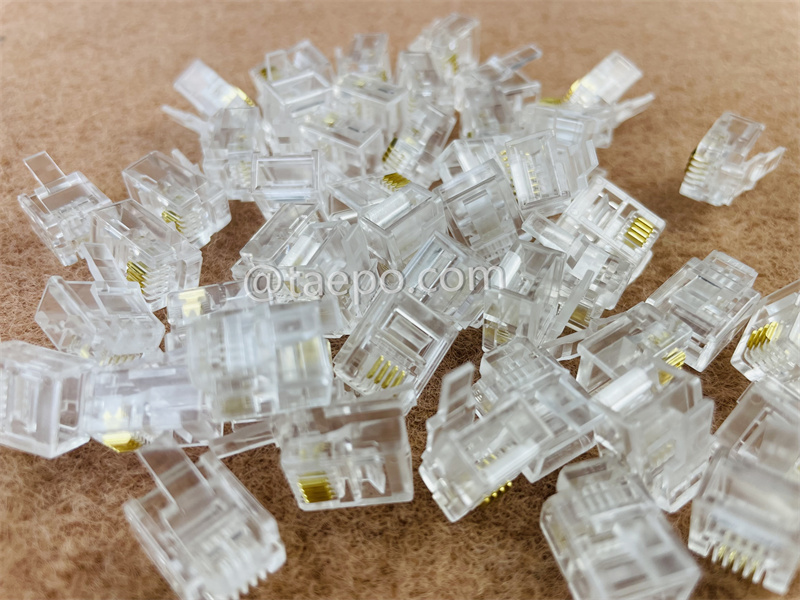

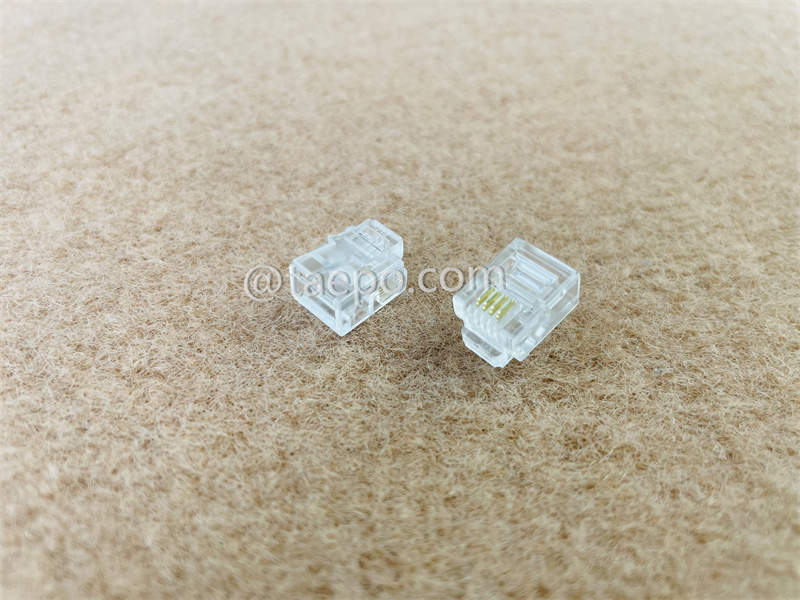

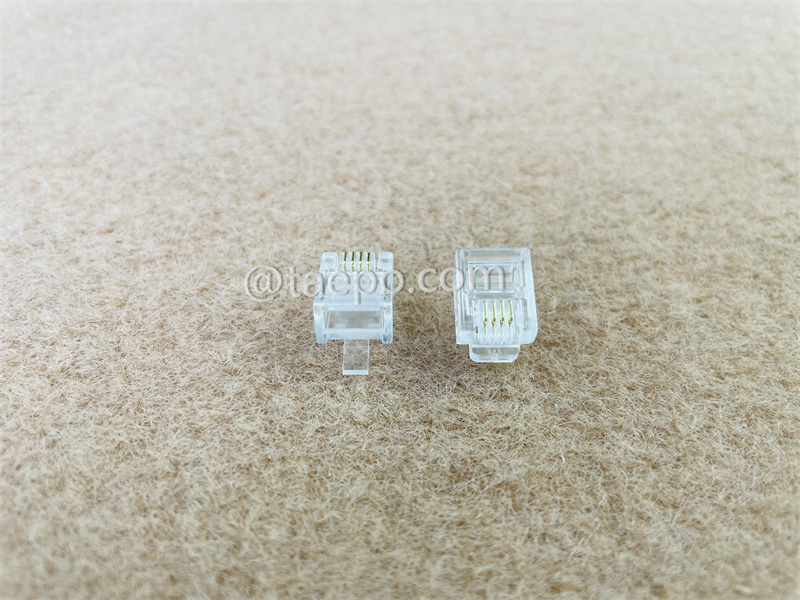

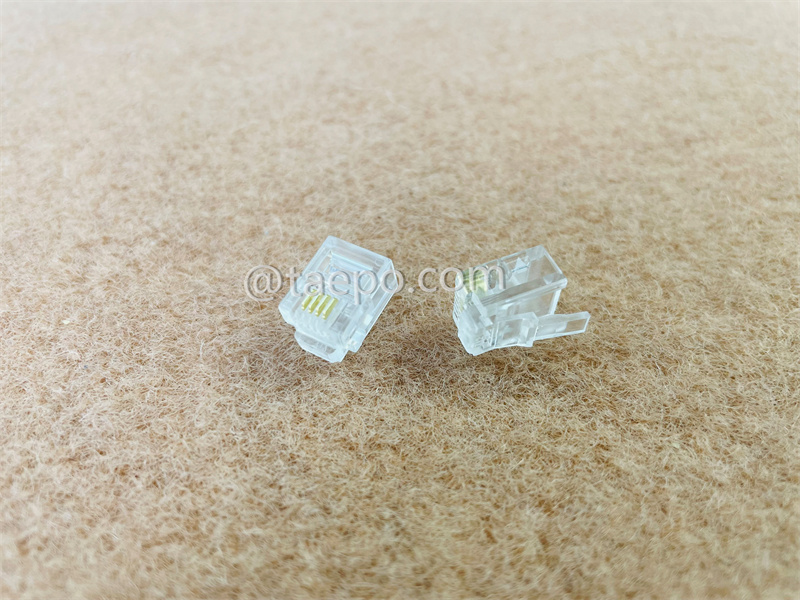

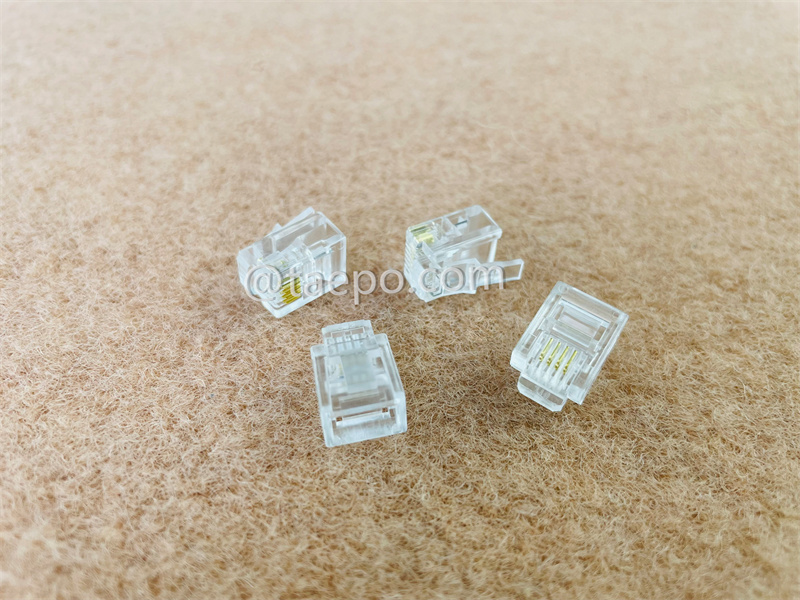

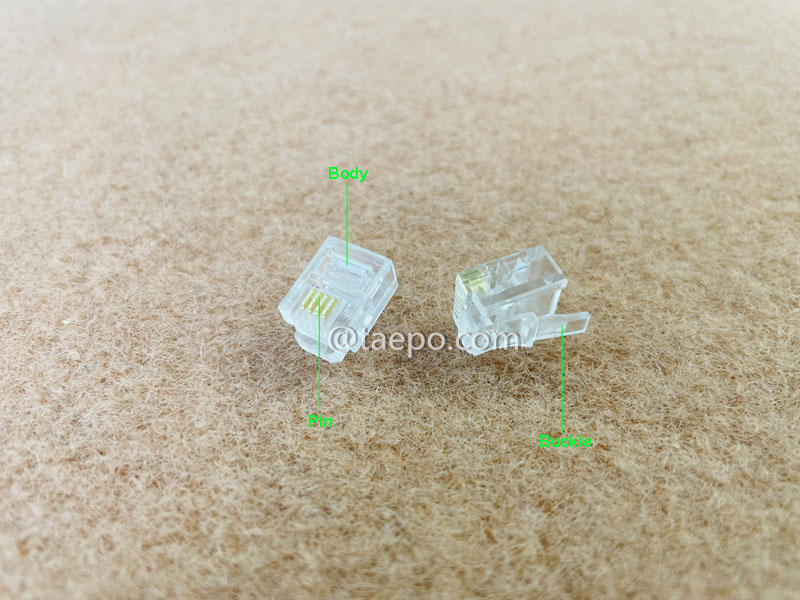

ILLUSTRATION PICTURES

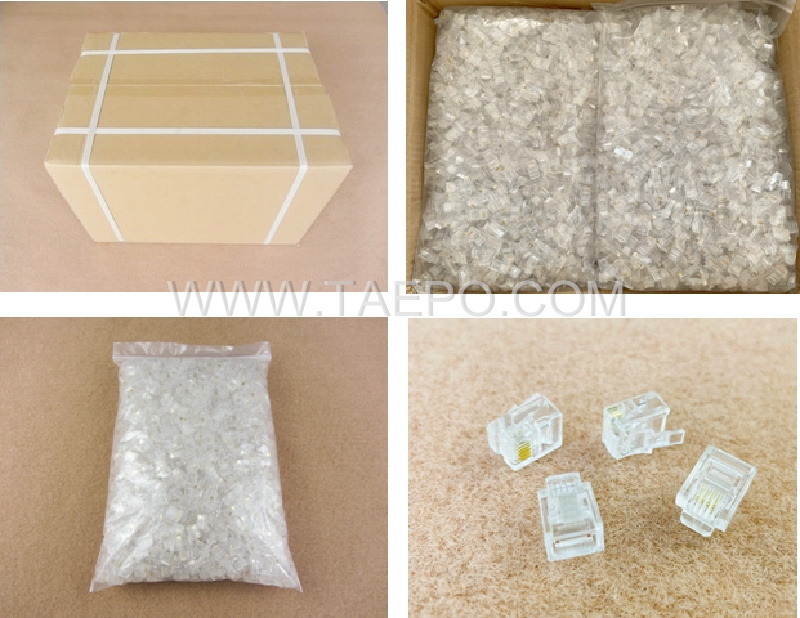

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5503-C3U4 |
Modular plug, CAT3, 6P4C, UTP |
RELATED PRODUCTS

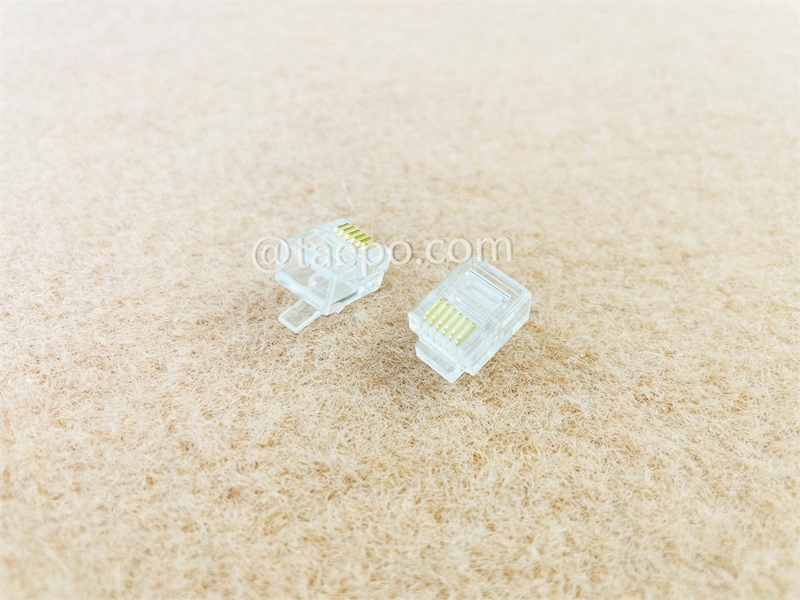

TP-5503-C3U6 Modular plug, CAT3, 6P6C, UTP
TP-5501-C5EU-0010 LAN patch cord, CAT5E, UTP, RJ45-RJ45, 1m, bare copper

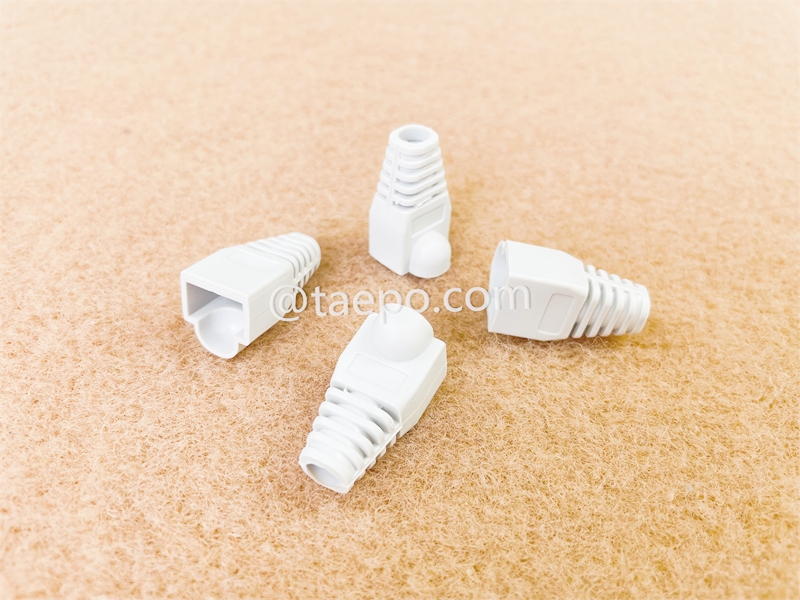

TP-5504 Modular plug boots, grey color
