Descriptions

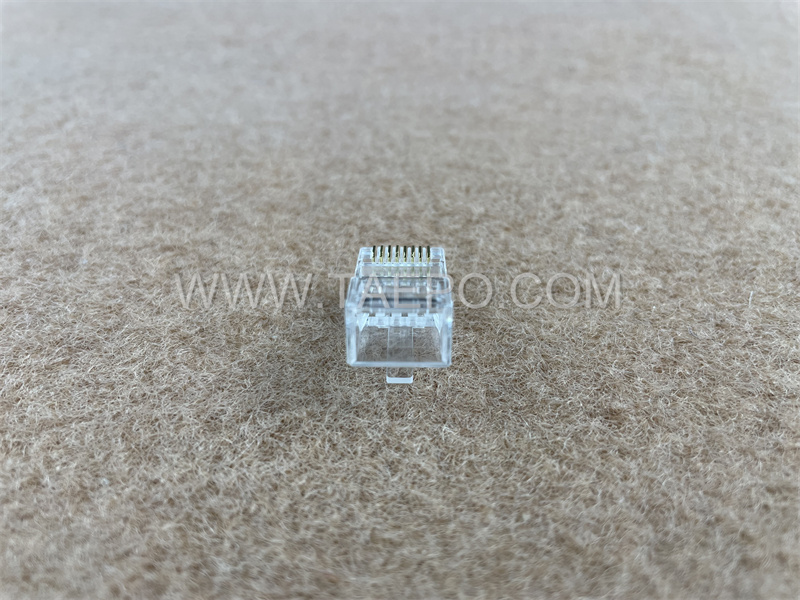

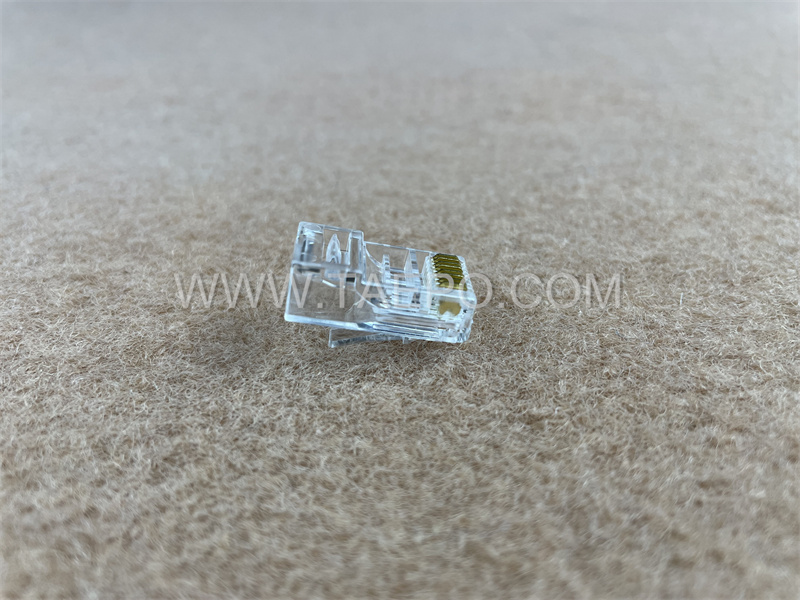

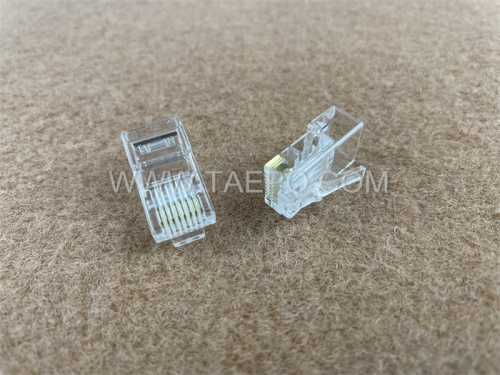

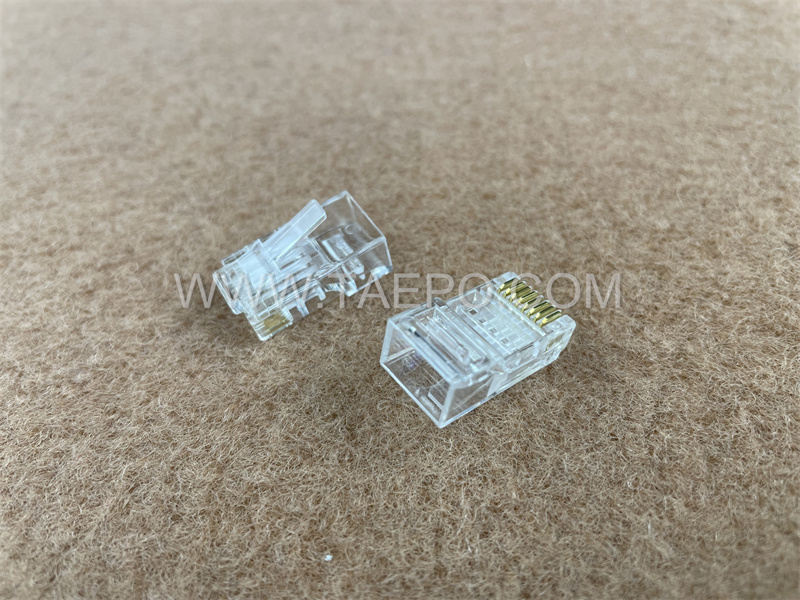

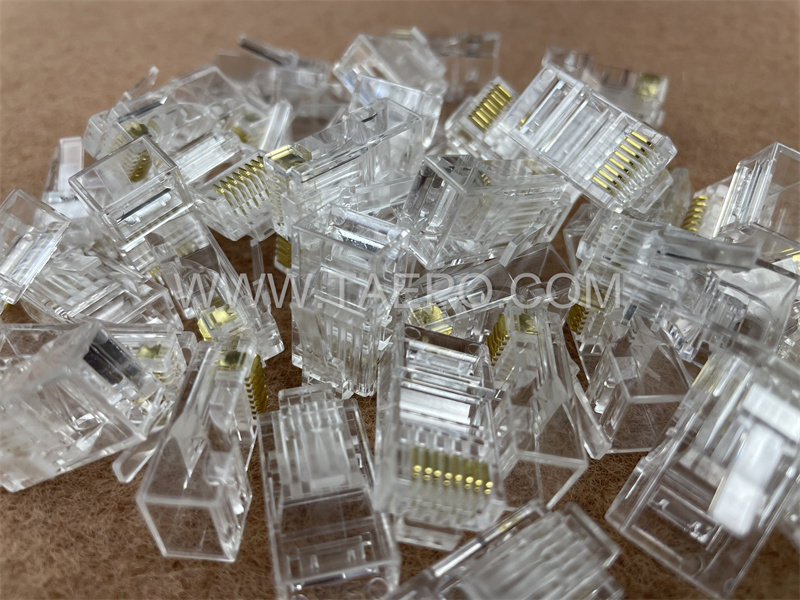

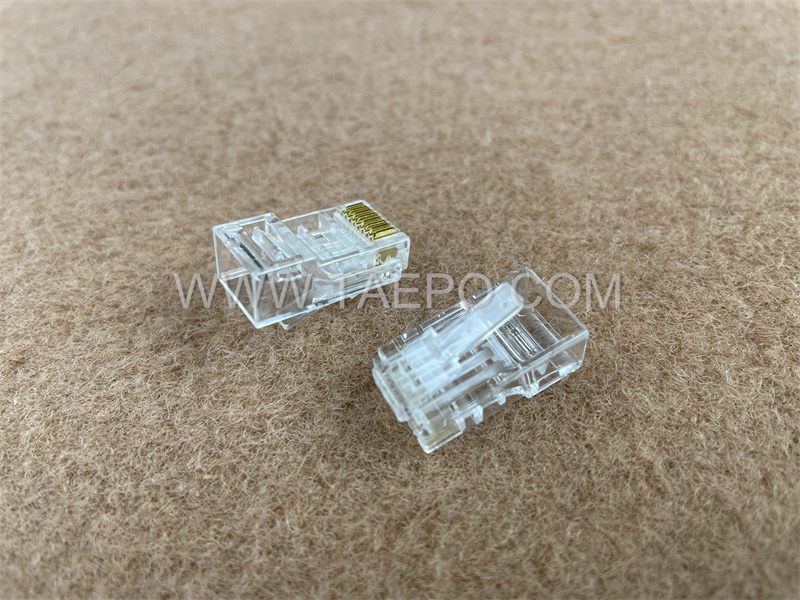

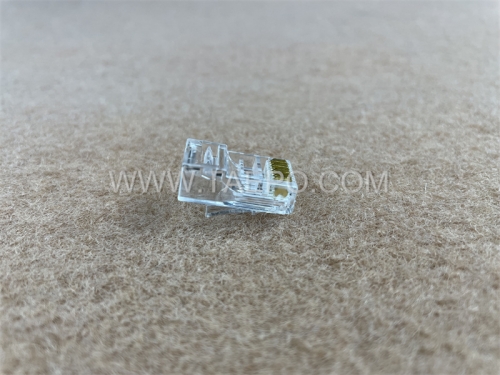

A CAT6A RJ45 8P8C UTP modular plug refers to a type of connector commonly used in networking applications, especially in Ethernet networks.
Let's break down the terms:
CAT6A: This refers to the category of Ethernet cable. CAT6A (Category 6 Augmented) cables are designed to support higher bandwidths and faster data rates compared to previous categories like CAT5e. CAT6A cables are capable of supporting data rates of up to 10 Gbps over longer distances than CAT6 cables.
RJ45: This stands for Registered Jack 45. It's a standard type of connector used for Ethernet networking. RJ45 connectors have eight pins and are commonly used to connect computers, routers, switches, and other networking devices to Ethernet networks.
8P8C: This stands for 8 positions, 8 contacts. It indicates the configuration of the connector. In an 8P8C connector, there are eight positions where the wires can be inserted, and all eight positions have contacts. RJ45 connectors are often incorrectly referred to as "8P8C" connectors because they share the same physical design, but technically RJ45 refers specifically to the wiring pattern used for Ethernet.
UTP: This stands for Unshielded Twisted Pair. It refers to the type of cable used in the connector. UTP cables consist of pairs of insulated wires twisted together to reduce electromagnetic interference.
Modular plug: This refers to the design of the connector, which allows it to be easily inserted and removed from a compatible jack without soldering. Modular plugs are commonly used in telecommunications and networking applications.
So, a CAT6A RJ45 8P8C UTP modular plug is a connector designed for use with CAT6A Ethernet cables. It has eight positions and eight contacts, and it's used for connecting devices to Ethernet networks using unshielded twisted pair cables.
Main Features
The main features of a CAT6A RJ45 8P8C UTP modular plug include:
High-Speed Data Transmission: CAT6A cables and connectors are designed to support high-speed data transmission, with data rates of up to 10 Gbps over longer distances compared to previous categories like CAT6.
Augmented Performance: CAT6A cables offer augmented performance and bandwidth, making them suitable for demanding applications such as data centers, high-speed LANs, and video streaming.
Backward Compatibility: CAT6A RJ45 connectors are backward compatible with lower category cables (CAT5e, CAT6), ensuring compatibility with existing network infrastructure.
Enhanced Crosstalk Performance: CAT6A cables and connectors feature improved crosstalk performance, reducing interference between adjacent wires and improving signal integrity.
Shielding Options: While UTP (Unshielded Twisted Pair) is the most common type of CAT6A cable, there are also options for shielded (STP/FTP) cables and connectors, which provide additional protection against electromagnetic interference.
Easy Installation: Modular plugs are designed for easy installation, allowing for quick termination of cables without the need for soldering. This facilitates the installation and maintenance of network connections.
Durability: CAT6A RJ45 connectors are built to withstand the rigors of networking environments, with durable construction and reliable performance.
Overall, CAT6A RJ45 8P8C UTP modular plugs offer high performance, reliability, and compatibility, making them suitable for a wide range of Ethernet networking applications.

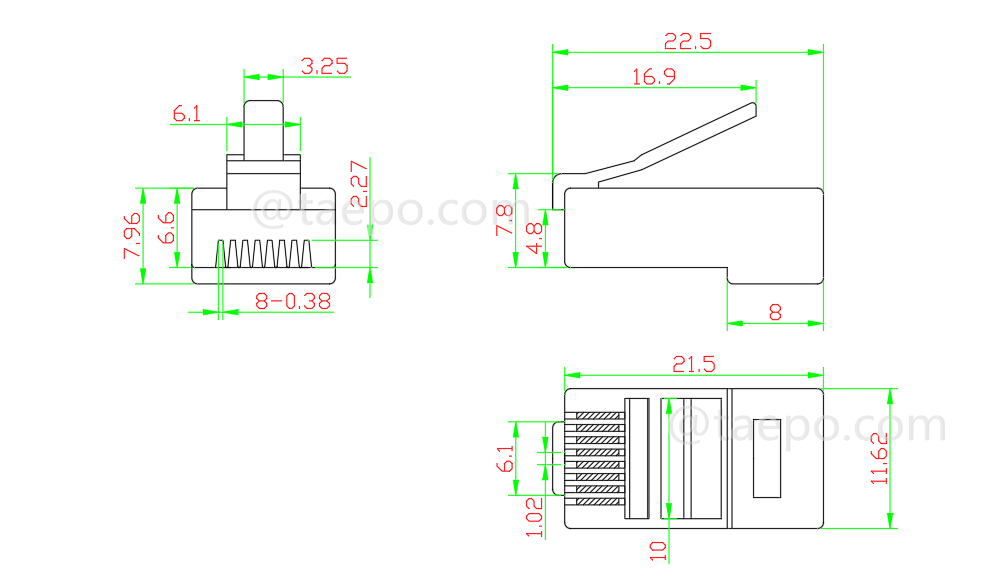

Schematic Diagrams

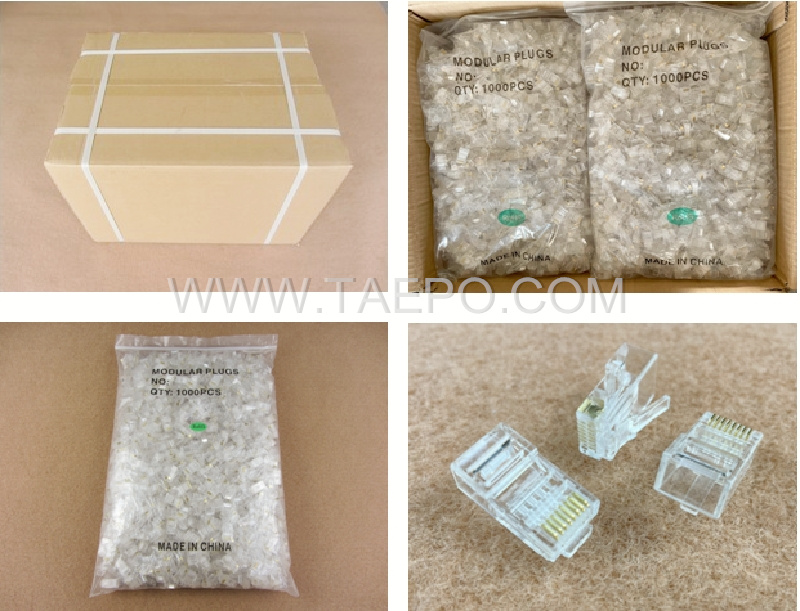

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-5503-C6AU8 |
Modular plug, CAT6A, RJ45, 8P8C, UTP |
