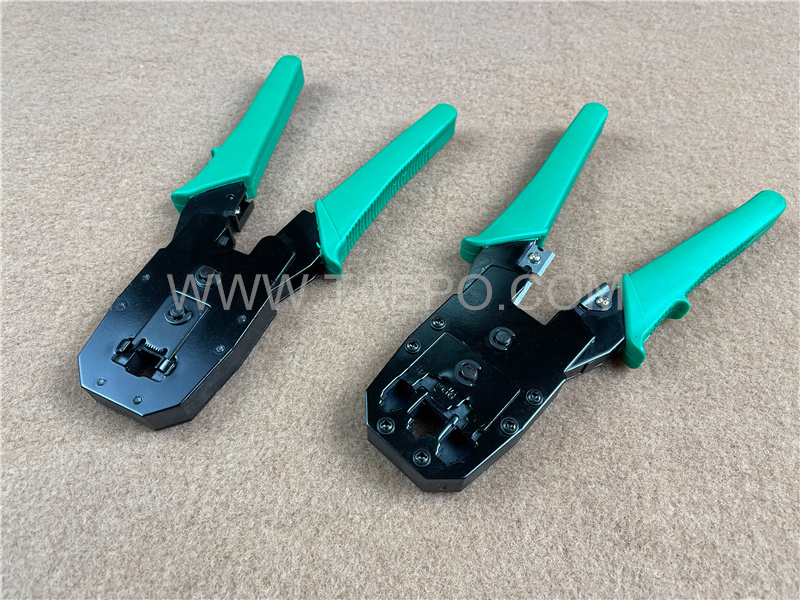

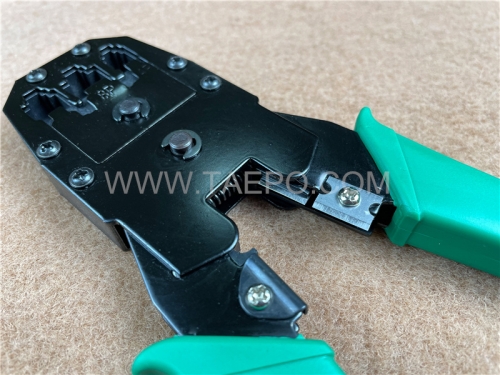

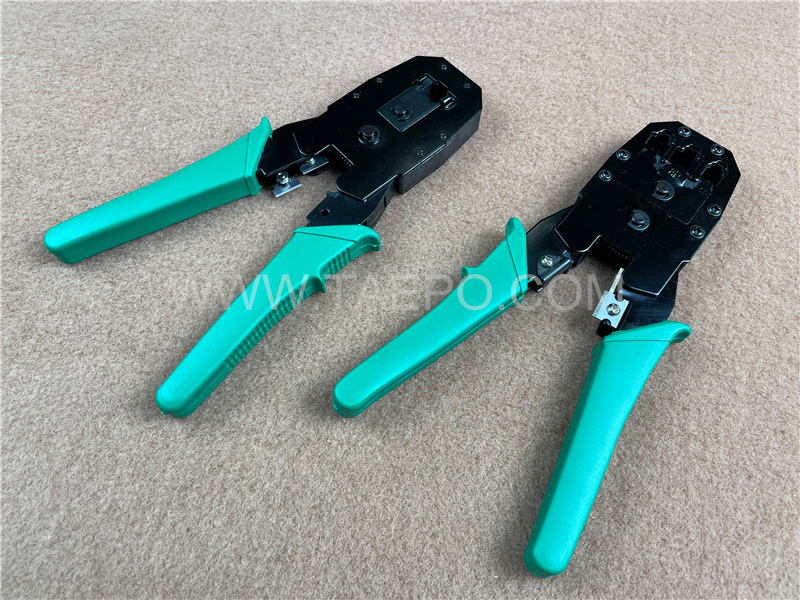

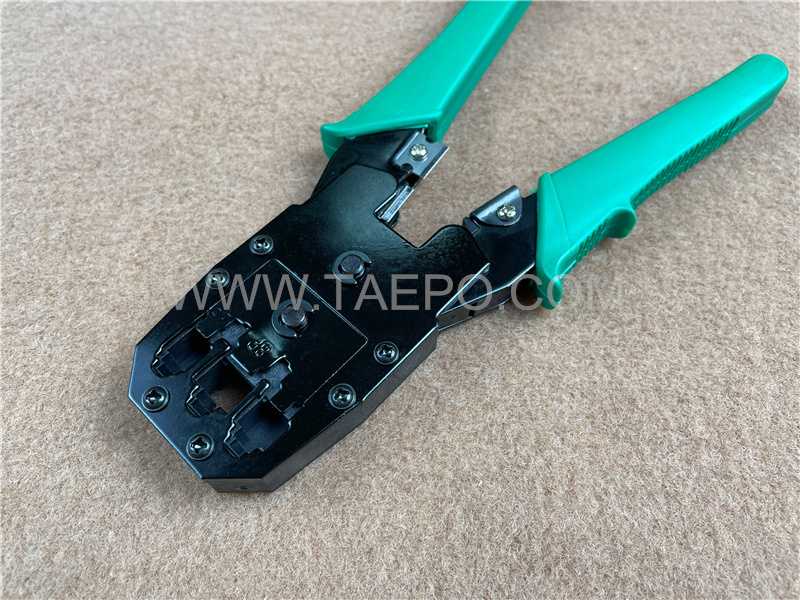

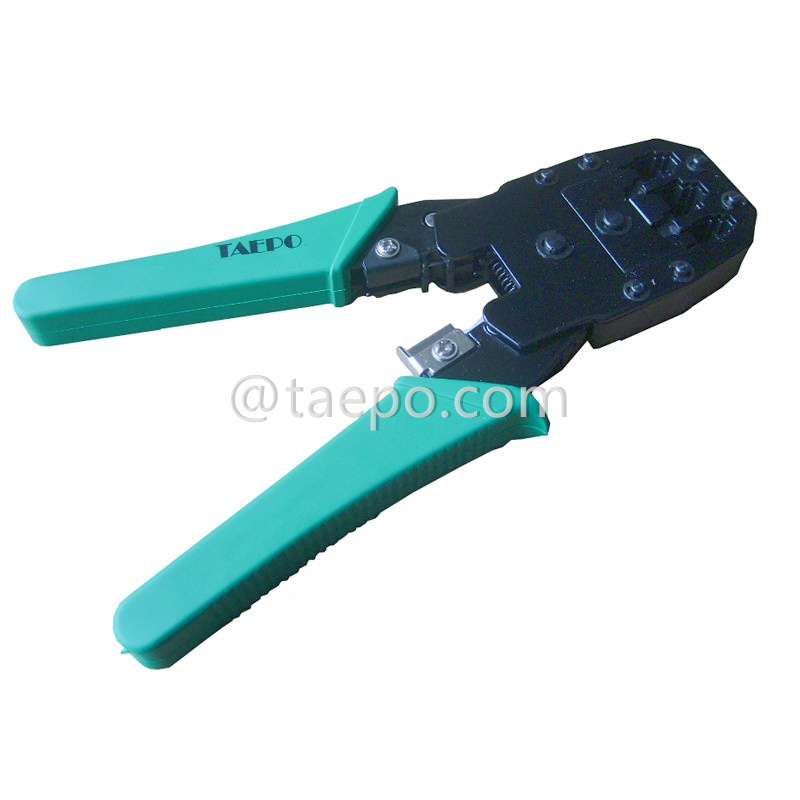

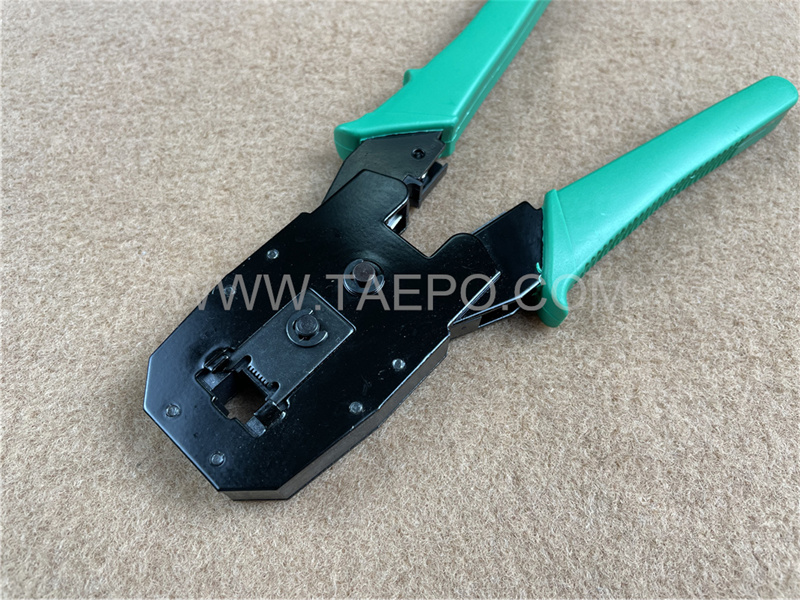

RJ11 RJ12 RJ45 network Crimping tool for crimp 4P 6P 8P modular connectors onto lan cables

    Descriptions

An RJ11/RJ12/RJ45 network crimping tool is a tool designed specifically for crimping modular connectors onto LAN cables. These connectors include RJ11 (4P), RJ12 (6P), and RJ45 (8P), each of which has a different number of positions or pins.


An RJ11/RJ12/RJ45 network crimping tool is essential for technicians and installers working with LAN cables and telephone cables, allowing them to create custom-length cables or repair existing cables by securely attaching modular connectors. It ensures both electrical continuity and mechanical strength in the connections, vital for maintaining reliable network and communication infrastructure.

    Main Features

Modular Connector Compatibility: The crimping tool is capable of crimping RJ11 (4P), RJ12 (6P), and RJ45 (8P) connectors onto the ends of Ethernet cables (LAN cables) and telephone cables.

Interchangeable Die or Crimping Jaws: These tools often come with interchangeable dies or crimping jaws that correspond to each type of modular connector. The die or jaw is selected based on the connector type being crimped.
Crimping Function: The main function of the tool is to crimp the metal pins of the modular connector securely onto the individual wires within the LAN cable. This ensures a reliable electrical connection between the cable's conductors and the connector's contacts.

Stripper and Cutter Functions: Some crimping tools may include built-in wire strippers and cable cutters. These additional functions help prepare the cable by stripping off the outer insulation and trimming the wires to the correct length before crimping.

Durability and Ergonomics: Good quality crimping tools are made from durable materials (such as hardened steel) and feature ergonomic handles for comfortable use over extended periods.

Industry Standards Compliance: These tools are designed to meet industry standards for crimping modular connectors, ensuring compatibility and reliability in networking and telecommunications applications.

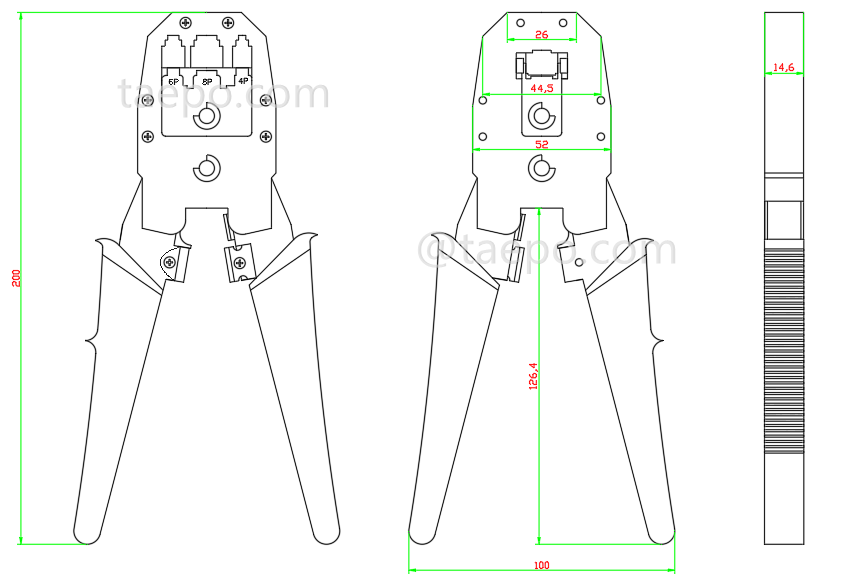

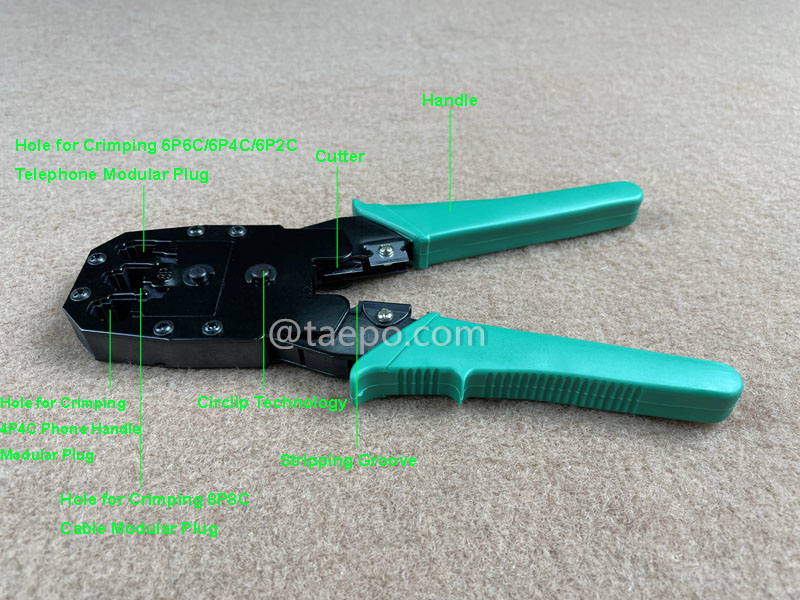

    Schematic Diagrams

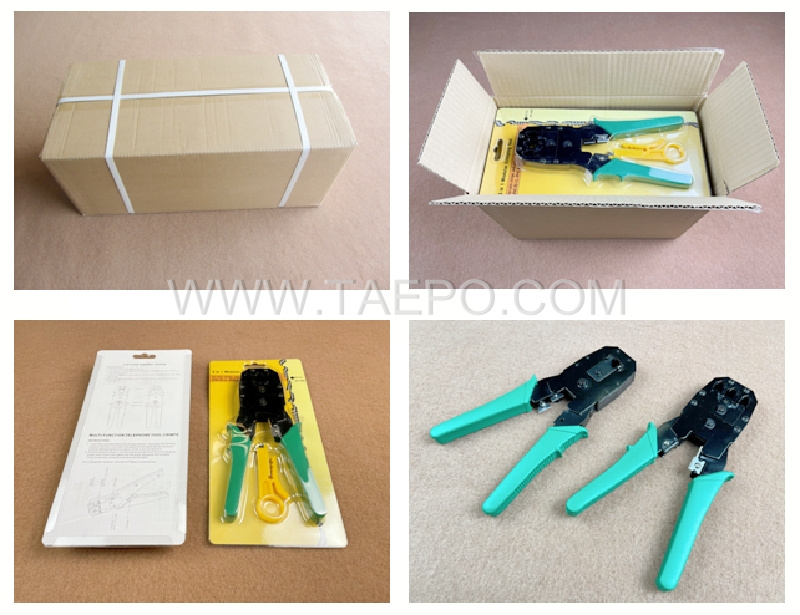

    Packing Pictures

    Order Data
