What's the definition of Modular Plug?
DESCRIPTIONS

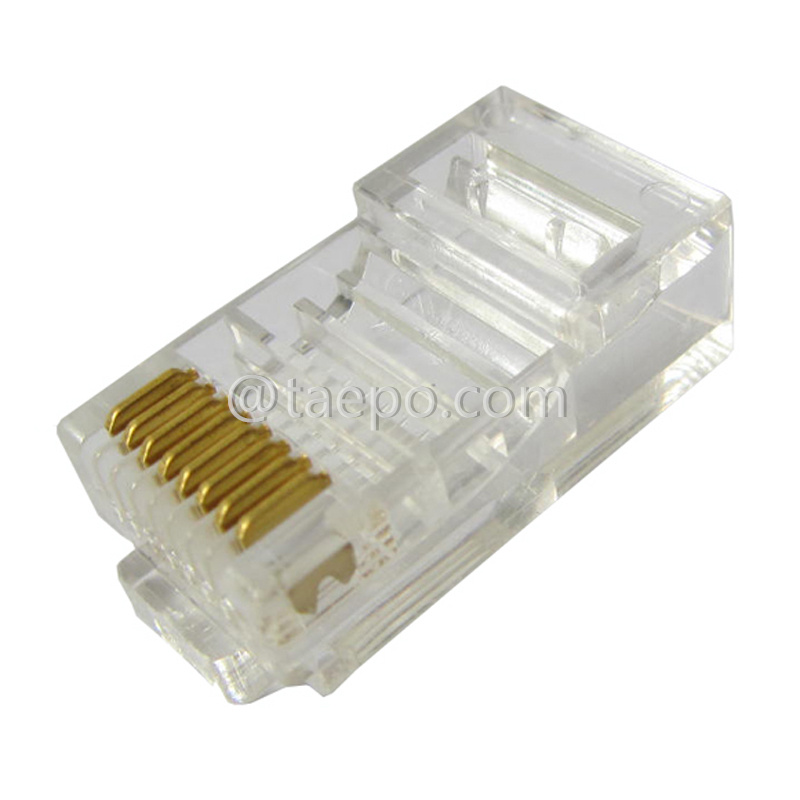

The CAT6 RJ45 8P8C UTP modular plug (TP-5503-C6U8) is a type of connector used in computer networking to terminate Ethernet cables. The plug has eight pins (8P8C) arranged in a specific configuration to match the wiring pattern of the corresponding Ethernet cable. It is designed for use with Category 6 (CAT6) cables, which are commonly used for Gigabit Ethernet networks.
The plug is typically made of clear plastic and has a small metal connector inside. The metal connector is used to make contact with the pins of the cable, allowing data to be transmitted through the cable. The plug is designed to be crimped onto the end of an Ethernet cable, with the pins making contact with the individual wires inside the cable.
The UTP (unshielded twisted pair) designation means that the cable uses twisted pairs of wires to transmit data, but does not have any additional shielding to protect against interference. This is different from shielded twisted pair (STP) cables, which have a metal shield around each pair of wires.
Overall, the CAT6 RJ45 8P8C UTP modular plug is an important component in building a reliable Ethernet network, and is widely used in both residential and commercial settings.
MAIN FEATURES
- Eight pins: The plug has eight pins (8P8C) that are arranged in a specific configuration to match the wiring pattern of the corresponding Ethernet cable.
- Category 6 (CAT6) compatibility: The plug is designed to be used with Category 6 cables, which are commonly used for Gigabit Ethernet networks. CAT6 cables have a higher bandwidth capacity than CAT5e cables, making them ideal for high-speed data transmission.
- Clear plastic construction: The plug is typically made of clear plastic, allowing the user to see the metal connector inside. This can help ensure that the wires are properly aligned before crimping.
- Metal connector: The plug has a small metal connector inside that makes contact with the pins of the cable, allowing data to be transmitted through the cable.
- UTP design: The plug is designed for use with unshielded twisted pair (UTP) cables, which use twisted pairs of wires to transmit data but do not have any additional shielding to protect against interference.
- Crimping design: The plug is designed to be crimped onto the end of an Ethernet cable, with the pins making contact with the individual wires inside the cable.

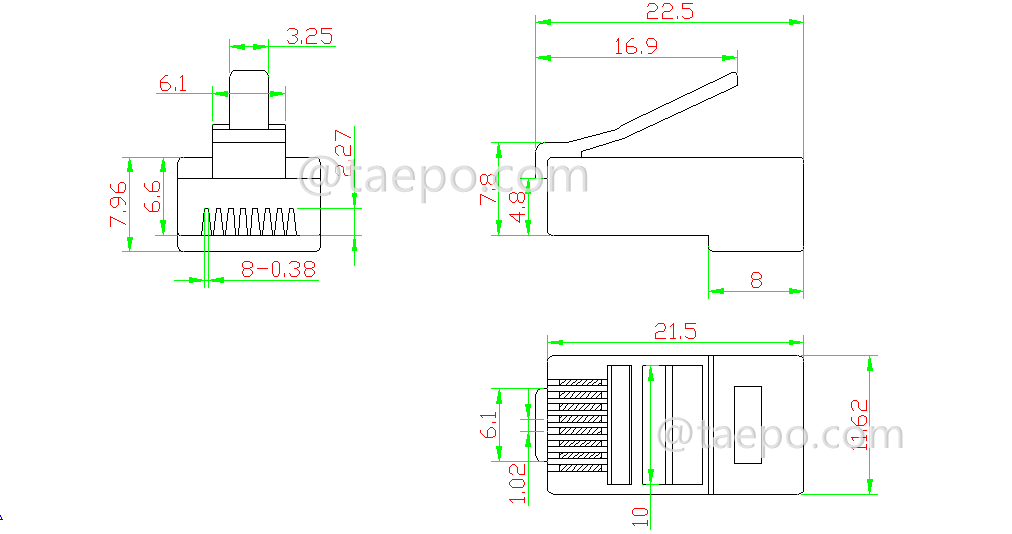

SCHEMATIC DIAGRAMS

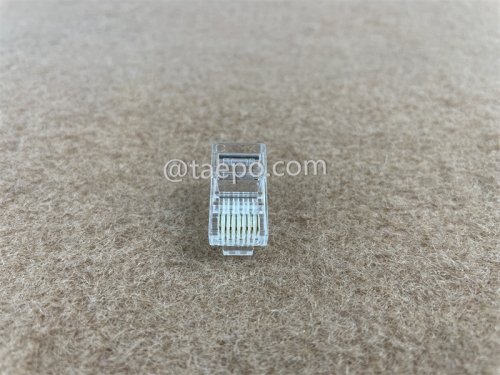

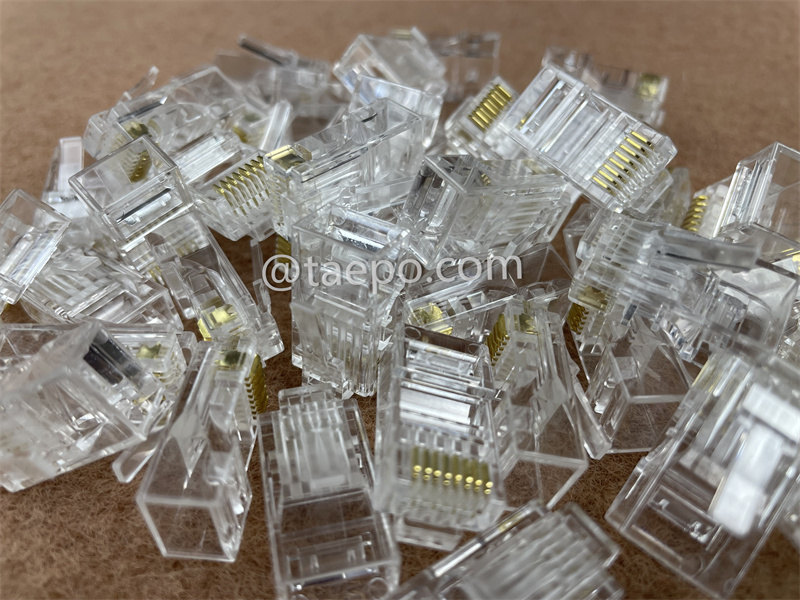

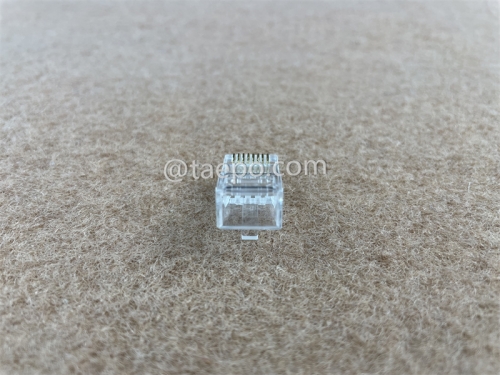

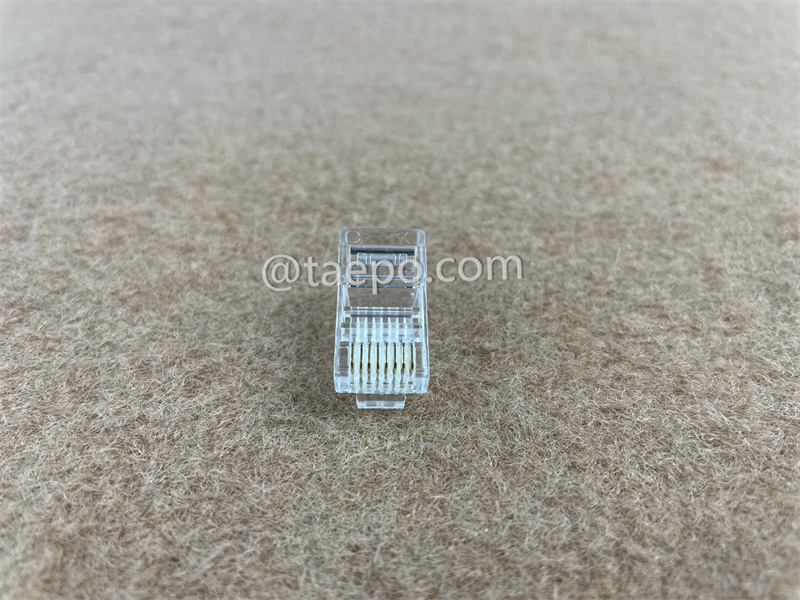

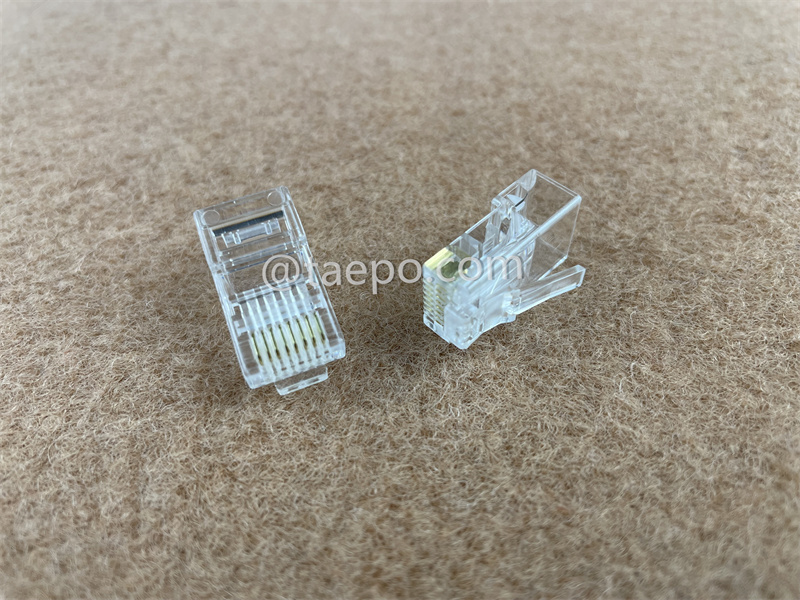

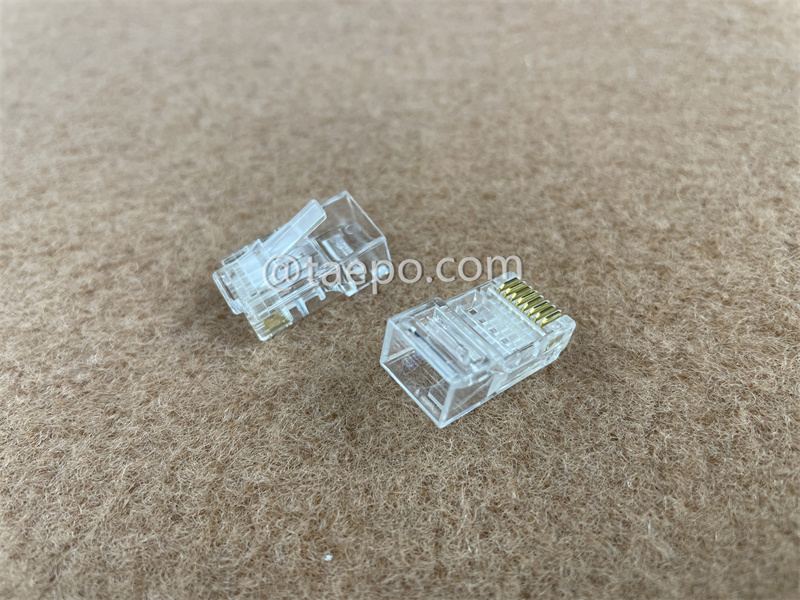

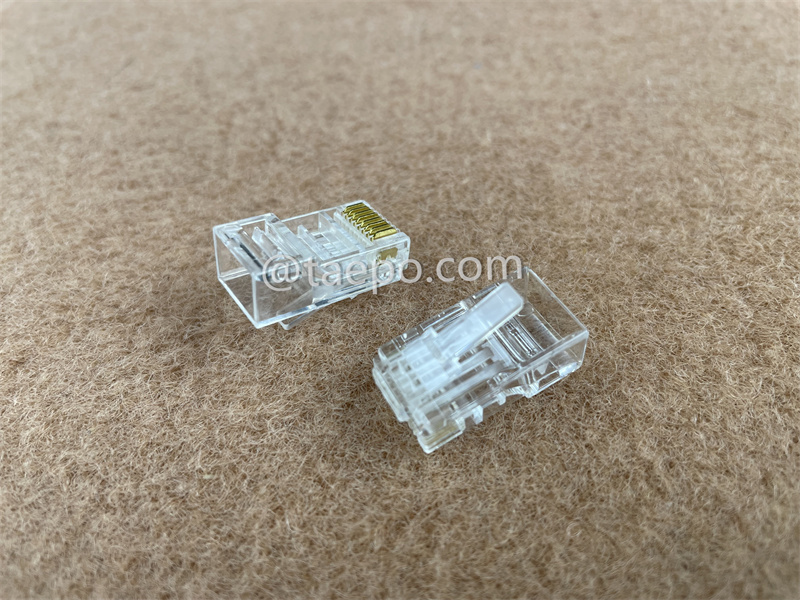

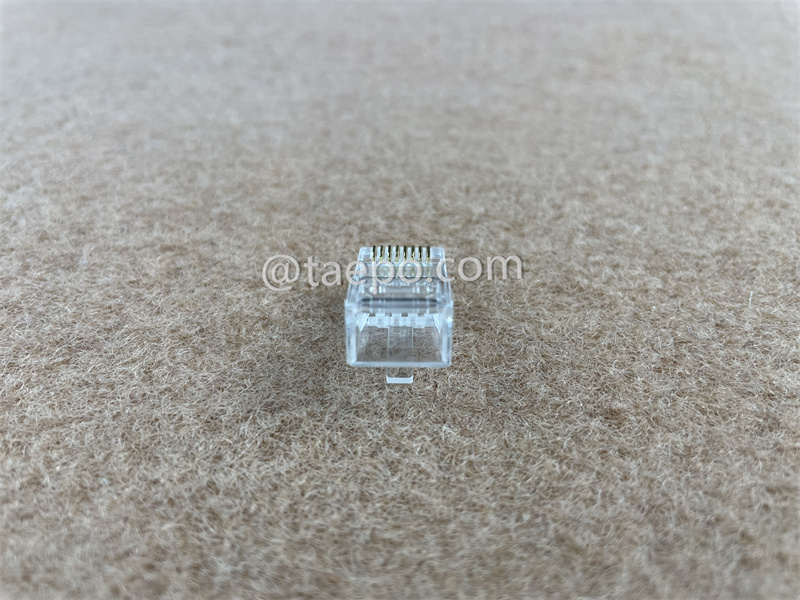

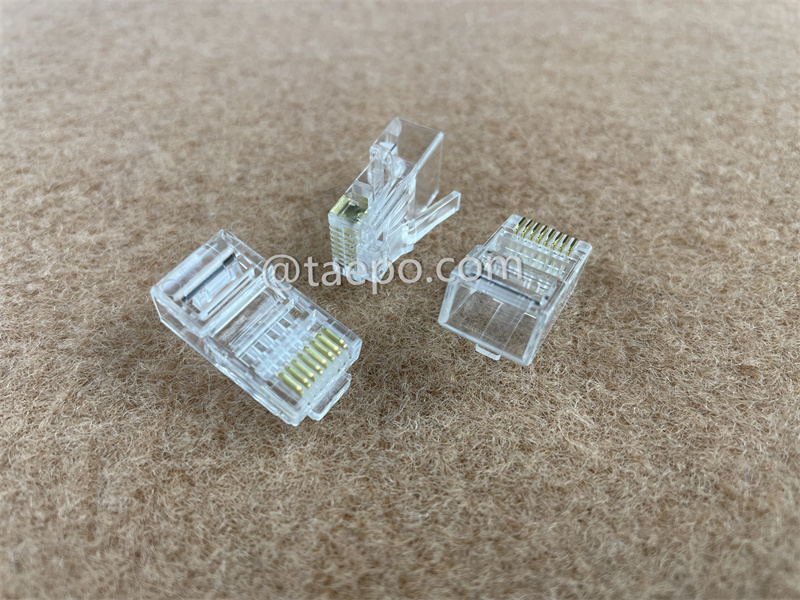

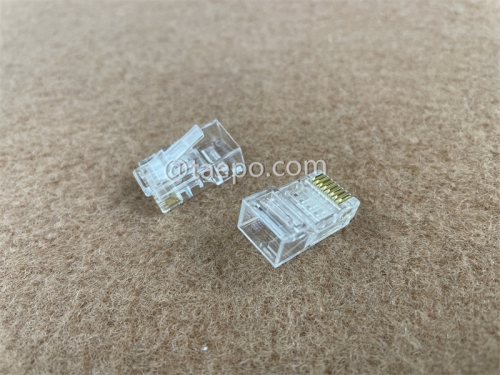

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5503-C6U8 |
Modular plug, CAT5E, RJ45, 8P8C, UTP |
RELATED PRODUCTS

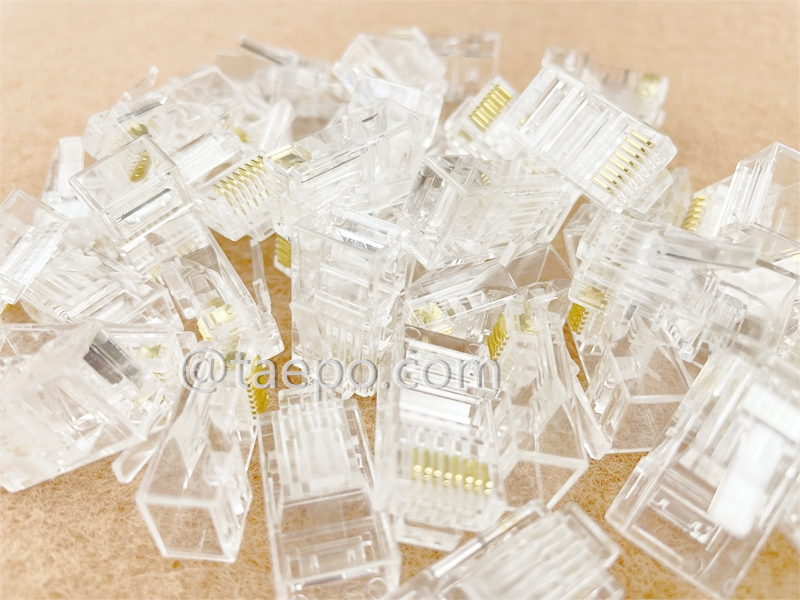

TP-5503-C6AU8 Modular plug, CAT6A, RJ45, 8P8C, UTP
TP-5501-C6U-0010 LAN patch cord, CAT6, UTP, RJ45-RJ45, 1m
TP-5504 Modular plug boots, grey color
TP-5921-315 Crimping tool, 4P/6P/8P
