What does Modular Plug mean?
DESCRIPTIONS

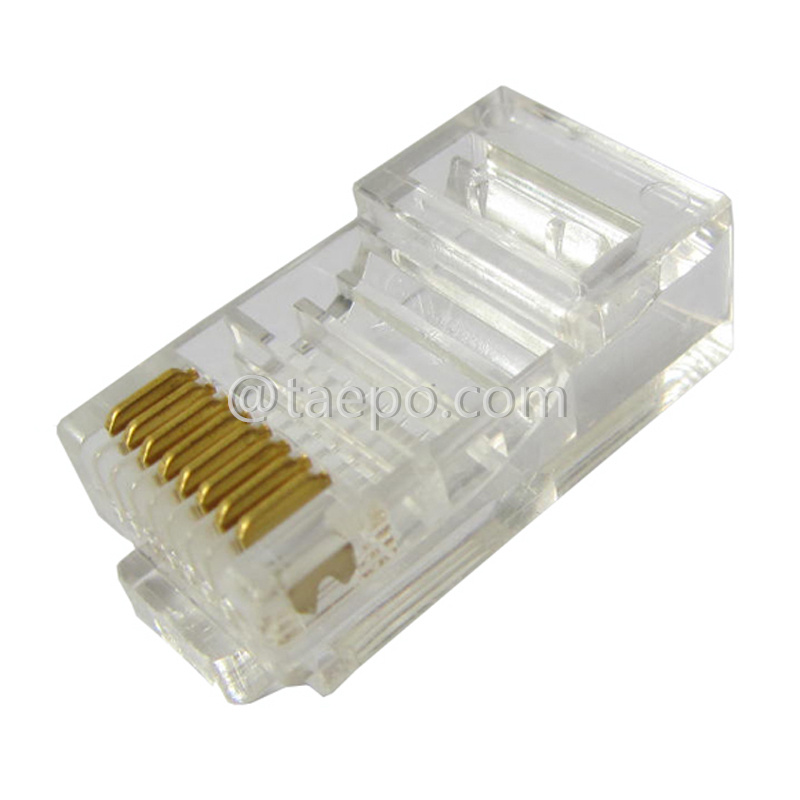

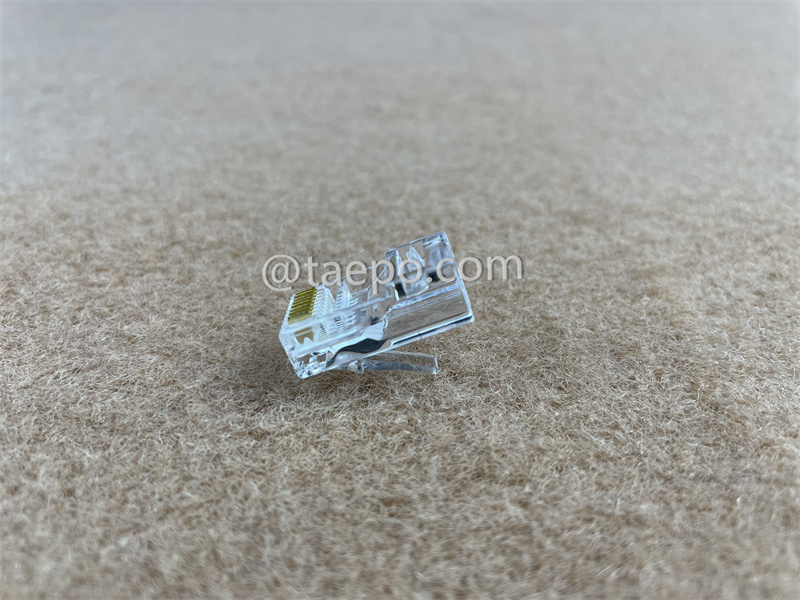

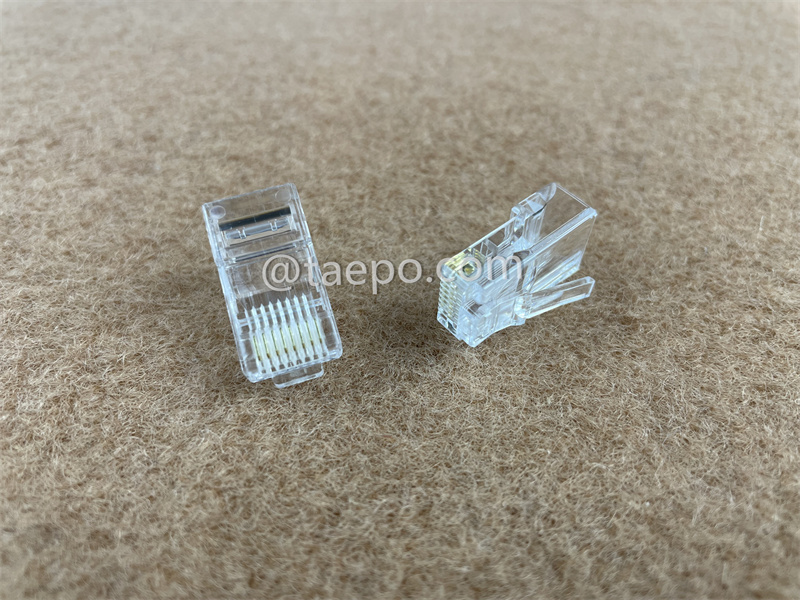

The modular RJ45 plug (TP-5503-C5EU8) for CAT5E is an essential component in networking infrastructure, designed for terminating unshielded twisted pair (UTP) cables. It supports high-speed data transfer, making it an ideal choice for modern networking applications, such as Ethernet, telecommunications, and data transmission. This 8P8C (8 positions, 8 contacts) connector is constructed to meet or exceed industry standards for Category 5E performance, ensuring reliable connectivity at speeds up to 1 Gigabit per second (Gbps).
Crafted for ease of use, the modular design of this plug allows for quick installation and termination of cables, providing flexibility for both field technicians and installers. The clear plastic housing provides visible alignment of wires, helping ensure proper termination, while the gold-plated contacts guarantee durability and long-term conductivity. This plug is compatible with both solid and stranded UTP CAT5E cables, commonly found in home, office, and commercial network systems.
The modular RJ45 CAT5E plug is an economical solution for Ethernet cabling and ensures high performance for Gigabit Ethernet applications. It’s widely utilized in computer networking, VoIP, IP cameras, and other networking hardware that requires reliable, fast connectivity.
MAIN FEATURES
- RJ45 Standard: Industry-standard RJ45 connector for Ethernet applications.
- 8P8C Configuration: 8 positions, 8 contact points, suitable for Gigabit Ethernet.
- CAT5E Compatibility: Designed for use with Category 5 Enhanced cables.
- Unshielded Twisted Pair (UTP): Supports UTP cables, ideal for environments with minimal EMI.
- Gold-Plated Contacts: Ensures superior conductivity and resistance to corrosion.
- Clear Plastic Housing: Allows for easy visibility during cable termination.
- Supports Speeds Up to 1 Gbps: Provides fast, reliable network connections.
- Tool Compatible: Works with standard RJ45 crimping tools for fast installation.
- Solid and Stranded Cable Compatibility: Suitable for both types of CAT5E cables.
- Durable Construction: Made from high-quality materials for long-lasting use.
- Compact Design: Low-profile connector ideal for tight spaces.
- Easy Installation: Modular design allows quick assembly and disassembly.
- Meets TIA/EIA Standards: Compliant with industry-standard specifications for performance.
- Precision Wire Alignment: For clear and accurate placement during termination.
- Versatile Use: Suitable for data networking, telecoms, and security systems.
- Low Crosstalk: Designed to minimize interference between wire pairs.
- High-Performance Insulation: Provides protection against signal loss.
- Affordable: Cost-effective solution for network installations and upgrades.

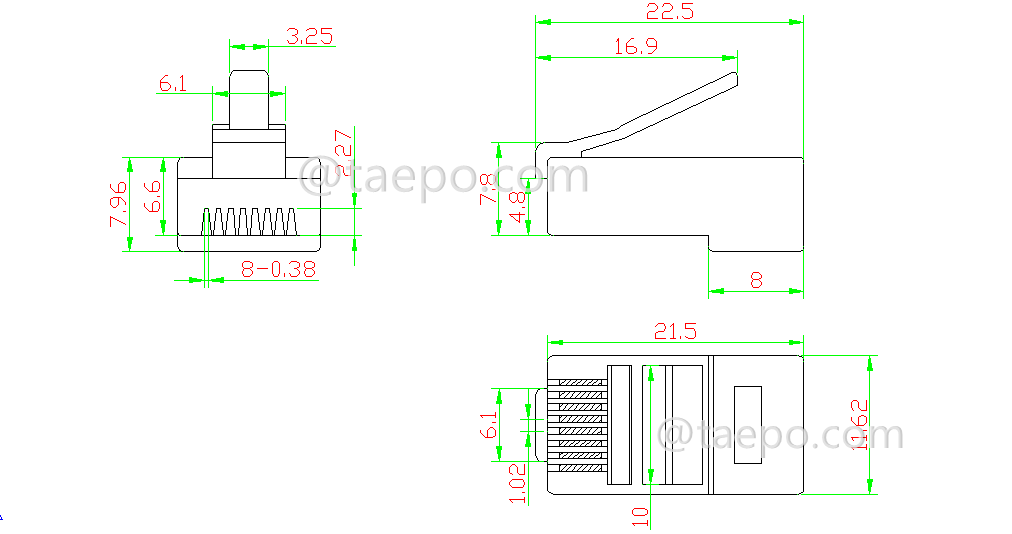

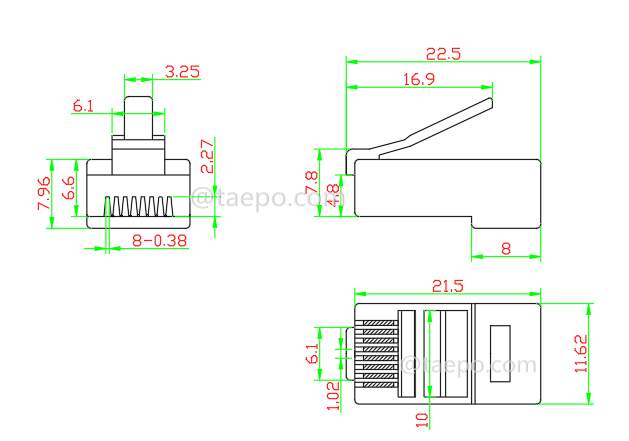

SCHEMATIC DIAGRAMS

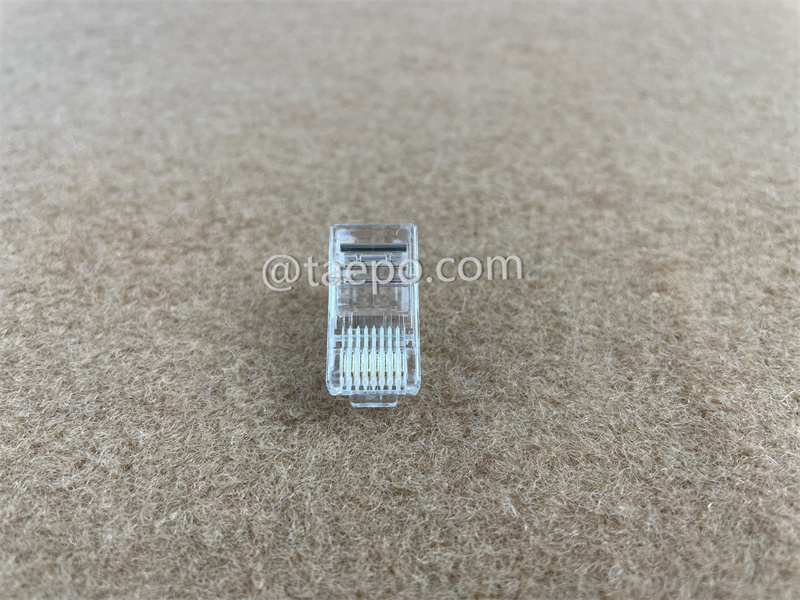

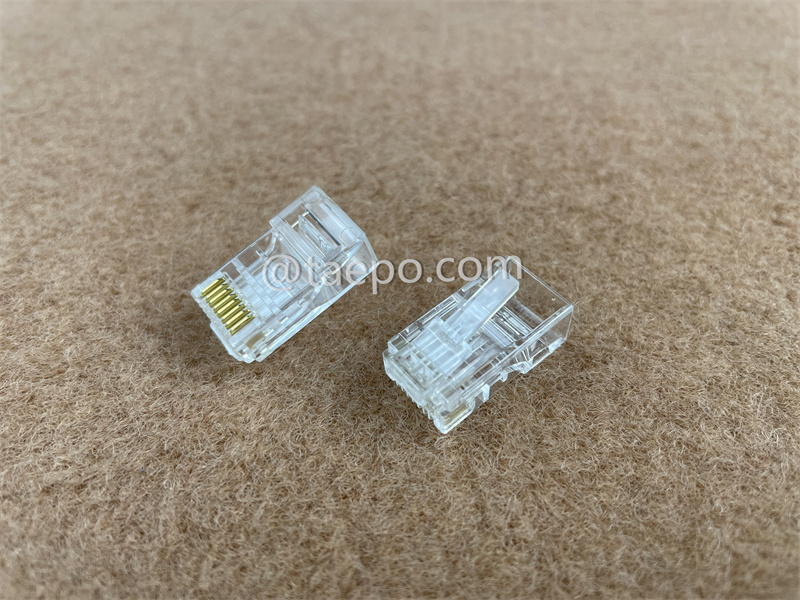

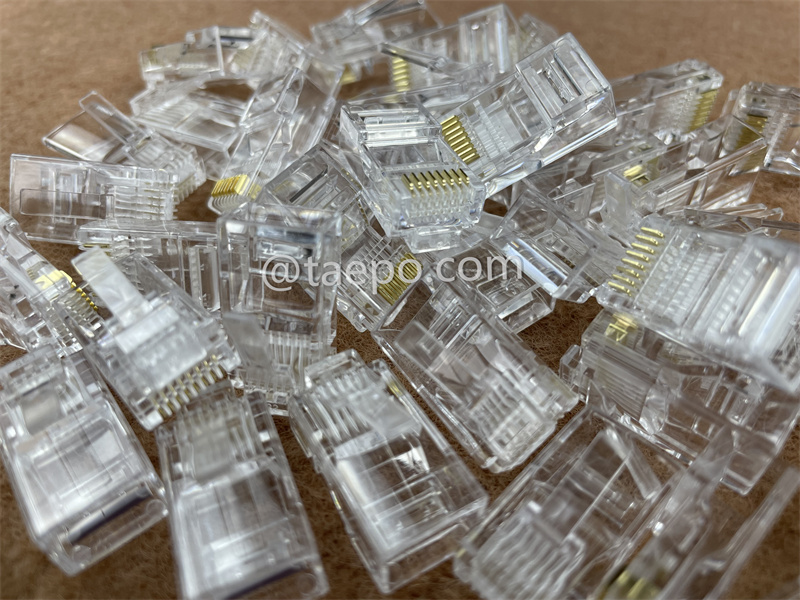

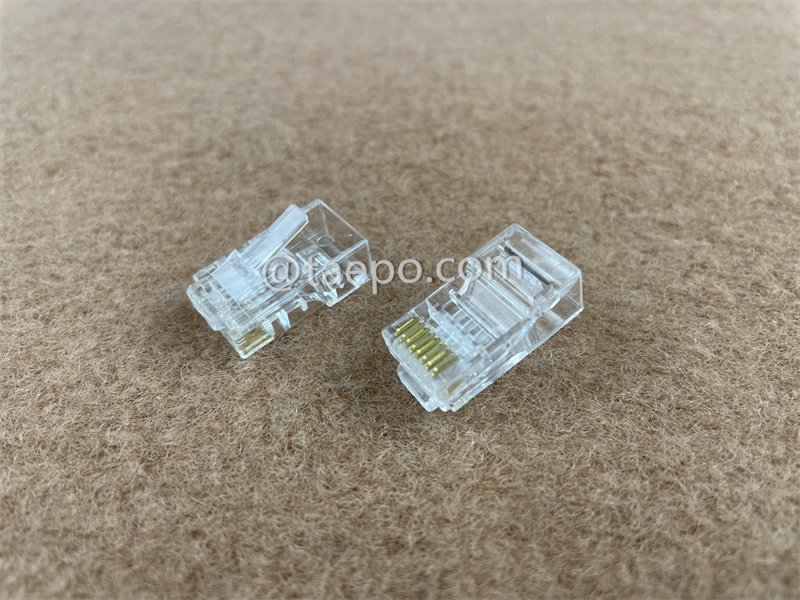

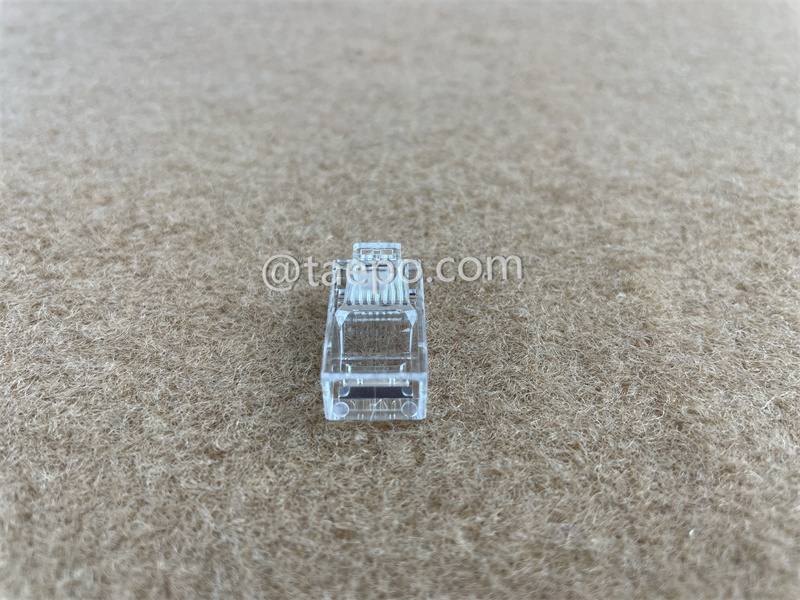

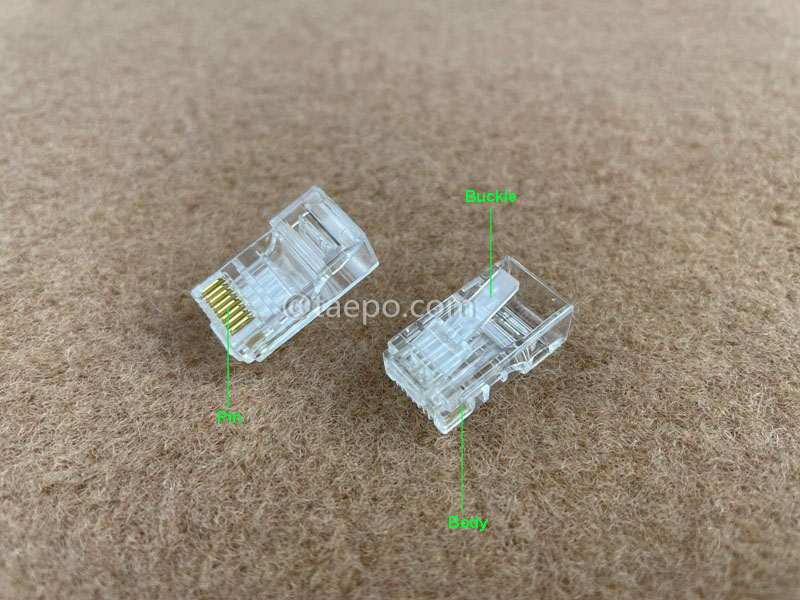

ILLUSTRATION PICTURES

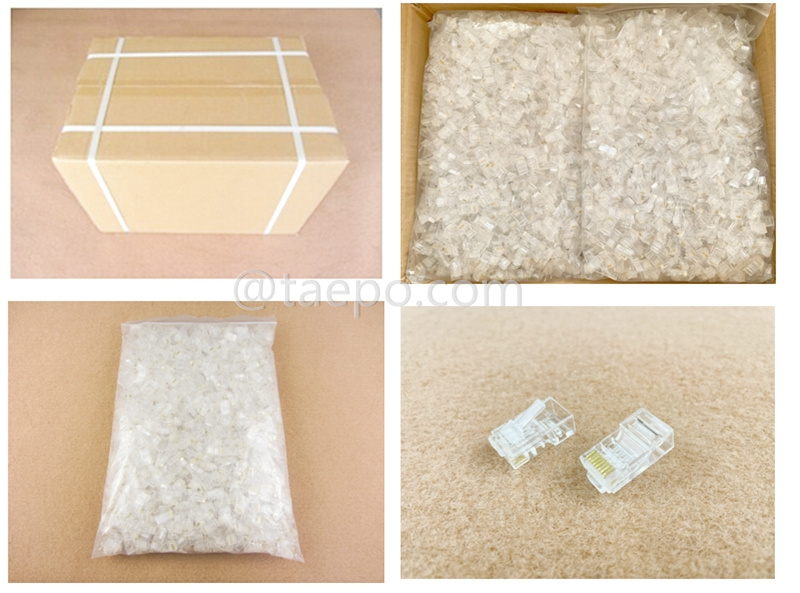

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5503-C5EU8 |
Modular plug, CAT5E, RJ45, 8P8C, UTP |
