Descriptions
A "CAT3 6P6C UTP modular plug" is a type of connector commonly used in telecommunications and networking applications, particularly for terminating twisted pair cables.
Here's a breakdown of its components and specifications:
CAT3: CAT3 stands for Category 3, which is a standard defined by the Telecommunications Industry Association (TIA) for twisted pair cables. CAT3 cables are capable of transmitting data at speeds up to 10 Mbps and are often used for voice and data applications in older telephone systems and some Ethernet networks.
6P6C: This refers to the connector's configuration. "6P6C" stands for 6 positions and 6 conductors. In this configuration, there are six positions (or slots) for inserting conductors, and all six conductors are used. Each conductor is typically connected to one of the pins in the connector.
UTP: UTP stands for Unshielded Twisted Pair. It describes the type of cable the plug is designed to terminate. UTP cables consist of pairs of insulated copper wires twisted together, with no additional shielding around the pairs.
Modular Plug: A modular plug is a type of connector that is attached to the end of a cable. It typically features pins or contacts that make electrical connections with corresponding contacts in a jack or socket. Modular plugs are commonly used in telecommunications and networking for terminating cables and connecting them to devices or equipment.
In summary, a CAT3 6P6C UTP modular plug is a connector designed for terminating CAT3 UTP cables with six conductors. It's commonly used in telecommunications and networking applications for connecting devices such as telephones, modems, and networking equipment to twisted pair cables.
Main Features
The main features of a CAT3 6P6C UTP modular plug include:
Compatibility: Designed to terminate CAT3 UTP cables, making it suitable for use in telecommunications and networking applications that require Category 3 performance.
6P6C Configuration: Configured with six positions and six conductors, allowing for the termination of all six conductors in the cable. This configuration is commonly used in telephone and data applications.
Unshielded Twisted Pair (UTP): Designed for use with UTP cables, which consist of twisted pairs of insulated copper wires. UTP cables are widely used in telecommunications and networking due to their cost-effectiveness and ease of installation.
Reliable Connectivity: Provides reliable electrical connections between the conductors in the cable and the corresponding contacts in jacks or sockets. This ensures stable communication between devices connected via the cable.
Modular Design: Features a modular design that allows for easy termination of cables. Modular plugs are typically attached to the end of cables using crimping tools, making installation straightforward and efficient.
Durable Construction: Constructed with high-quality materials to ensure durability and longevity, even in demanding environments. This helps to maintain the integrity of connections over time, reducing the risk of signal degradation or loss.
Versatility: Suitable for a variety of applications, including telephone systems, Ethernet networks (particularly those operating at lower speeds), and other data communication systems that require CAT3 performance.
Standards Compliance: Manufactured to meet industry standards for CAT3 performance and modular plug specifications, ensuring compatibility and interoperability with other components and equipment in telecommunications and networking systems.
Overall, these features make CAT3 6P6C UTP modular plugs reliable and versatile components for terminating CAT3 UTP cables in telecommunications and networking applications.

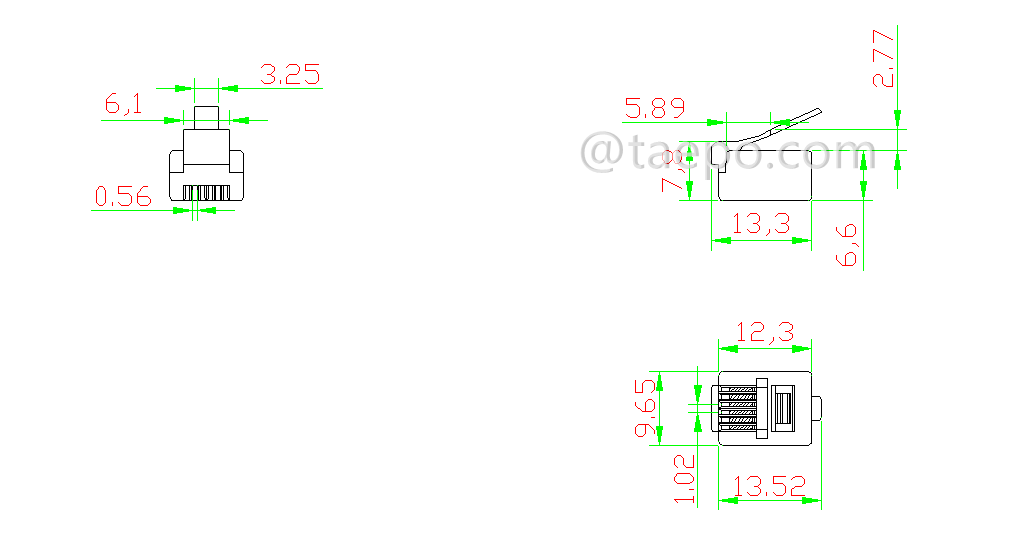

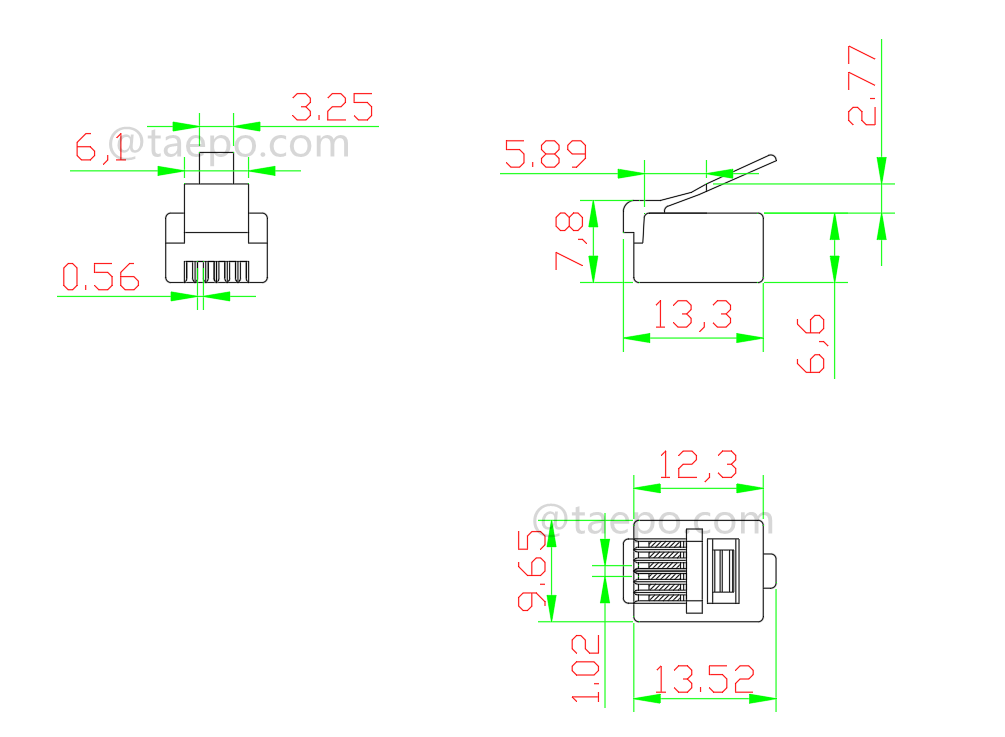

Schematic Diagrams

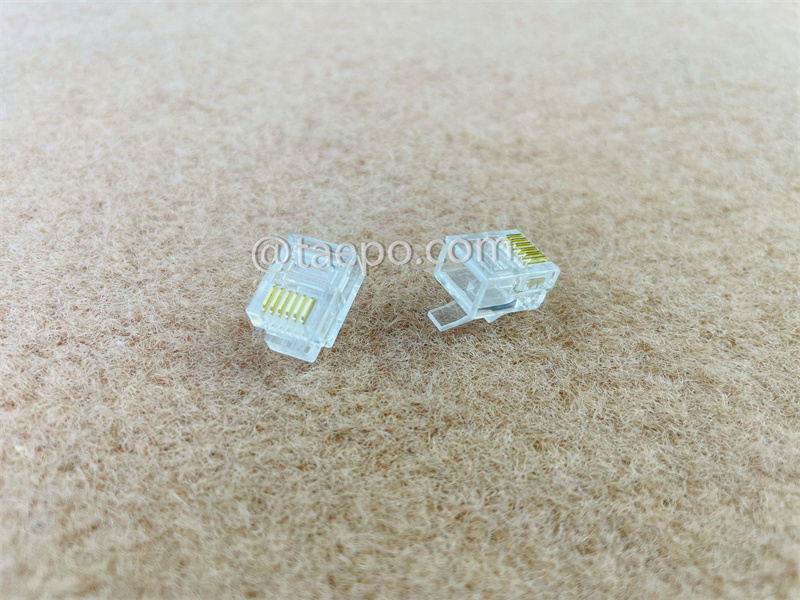

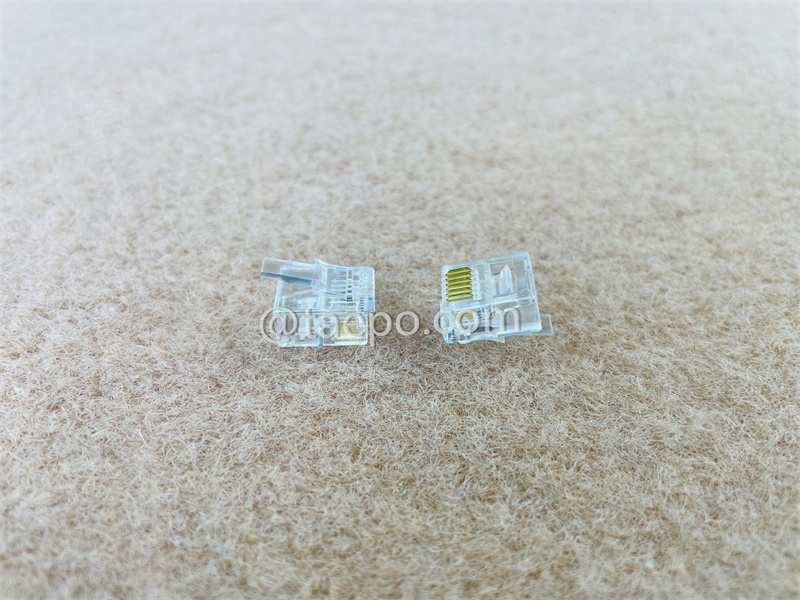

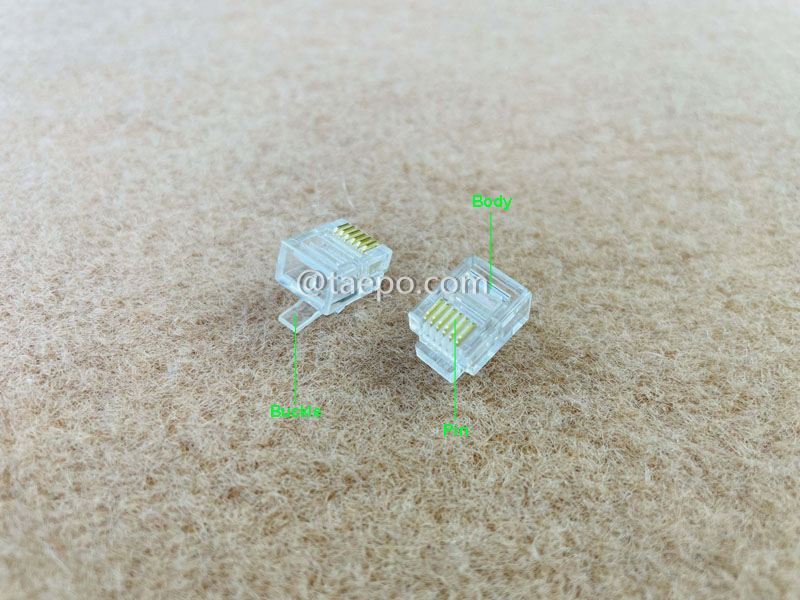

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-5503-C3U6 |
Modular plug, CAT3, 6P6C, UTP |
