What does Modular Plug do?
DESCRIPTIONS

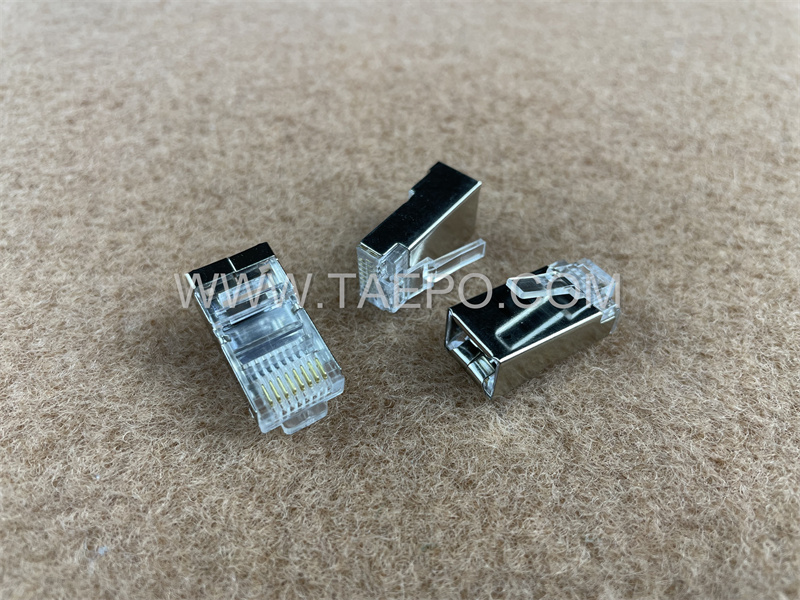

The modular RJ45 plug (TP-5503-C6AS8) for CAT6A Shielded Twisted Pair (STP) cables is a high-performance networking connector designed to meet the needs of modern, high-speed Ethernet networks. This 8P8C (8 Position, 8 Contact) connector supports up to 10 Gigabits per second (Gbps) data transfer rates, making it ideal for demanding applications, including data centers, enterprise networking, and high-frequency data transmission environments.
With its shielded construction, this plug offers superior protection against electromagnetic interference (EMI) and crosstalk, ensuring optimal signal integrity over longer distances. The plug is compatible with CAT6A STP cables, which are enhanced to handle higher bandwidth and reduce noise interference in environments with significant external electrical noise.
Built for durability, this modular plug features gold-plated contacts for enhanced conductivity and resistance to corrosion, and its sturdy housing ensures reliable performance in both commercial and industrial networking setups. The modular design makes it easy to terminate shielded cables, whether you’re using solid or stranded wires.
MAIN FEATURES
- RJ45 Standard: 8P8C connector designed for high-speed Ethernet applications.
- CAT6A Compatibility: Optimized for Category 6A cables, supporting up to 10 Gbps.
- Shielded Twisted Pair (STP): Shielded design to reduce EMI and crosstalk, ideal for noisy environments.
- Gold-Plated Contacts: Ensures optimal electrical conductivity and protection against corrosion.
- 8P8C Configuration: 8 positions, 8 contacts for Gigabit and 10 Gigabit Ethernet.
- Compatible with Solid and Stranded Cables: Can be used with both types of CAT6A STP cables.
- High Bandwidth Support: Capable of handling frequencies up to 500 MHz.
- Improved Noise Resistance: Shielding helps maintain signal integrity in high-noise environments.
- Durable Design: Built to withstand repeated connections and disconnections.
- Clear Plastic Housing: Provides a view of the internal wire layout during assembly.
- Supports Power over Ethernet (PoE): Compatible with PoE and PoE+ applications.
- Low Insertion Loss: Ensures minimal signal degradation over long distances.
- Tool Compatibility: Requires an RJ45 crimping tool for secure installation.
- Cost-Effective Solution: High performance at an affordable price point.
- Meets Industry Standards: Complies with TIA/EIA-568-C.2 and ISO/IEC 11801 for CAT6A performance.

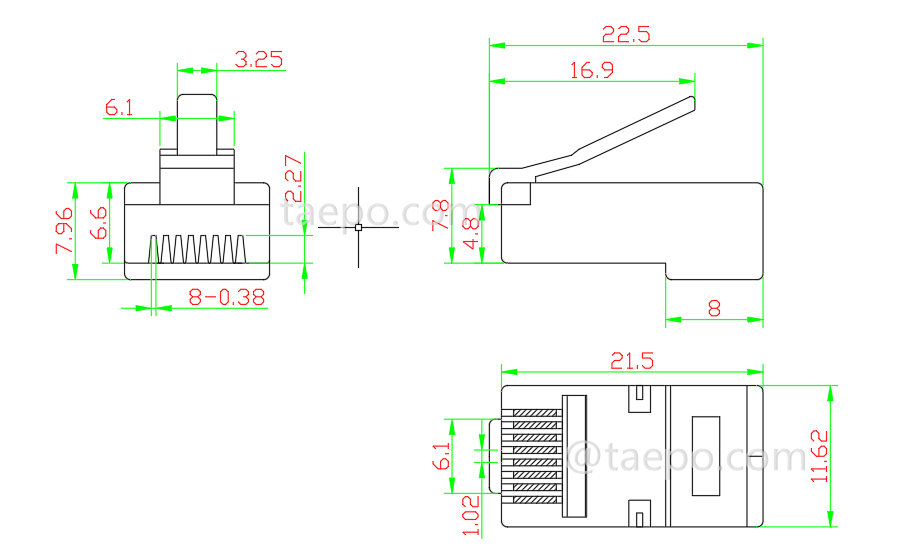

SCHEMATIC DIAGRAMS

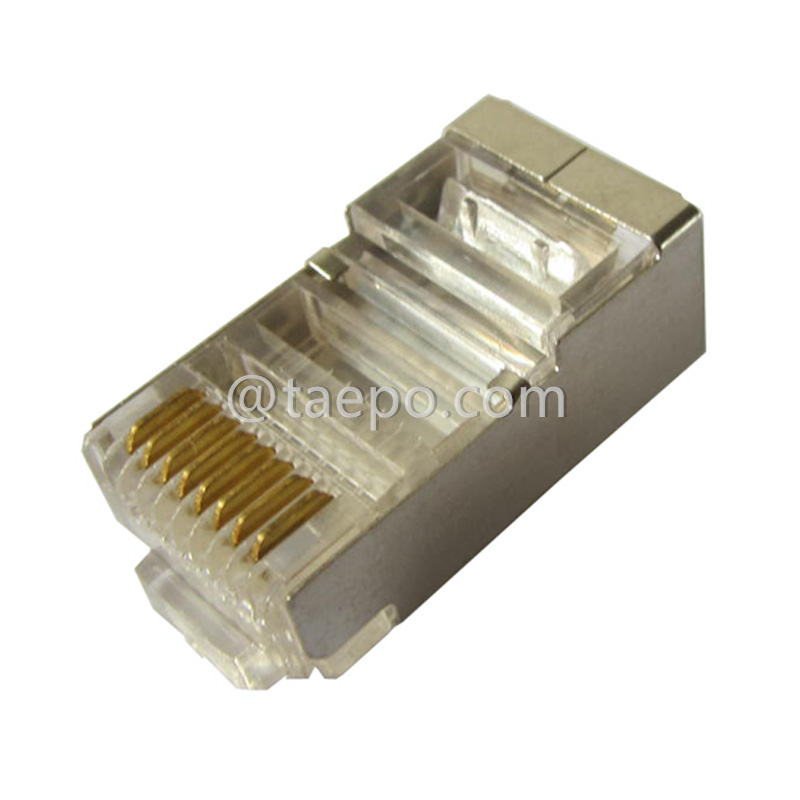

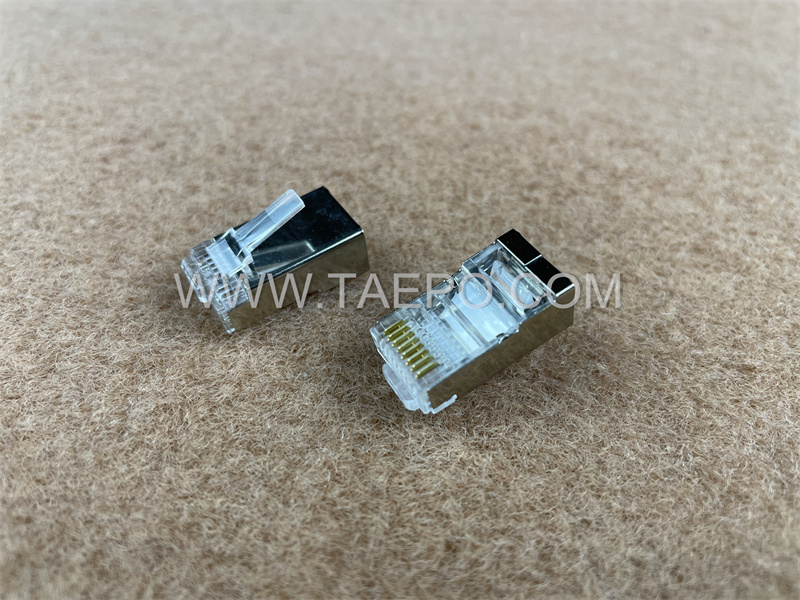

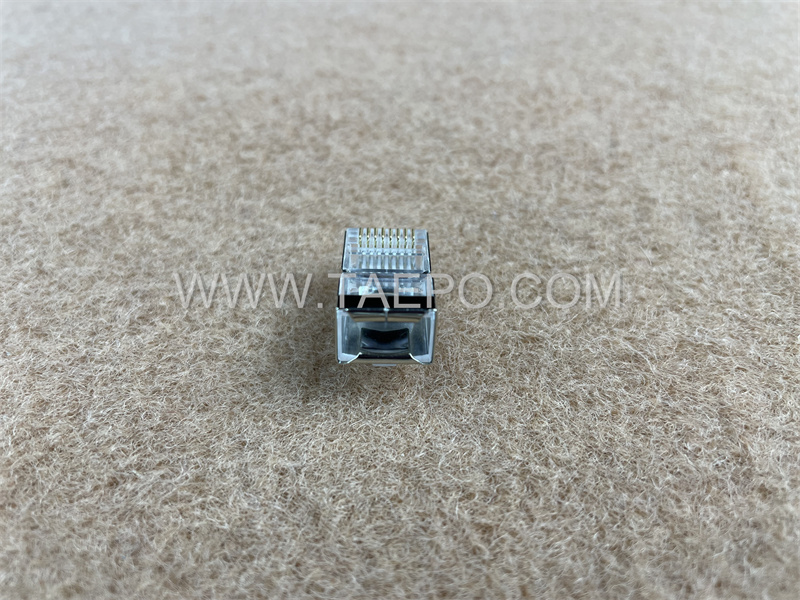

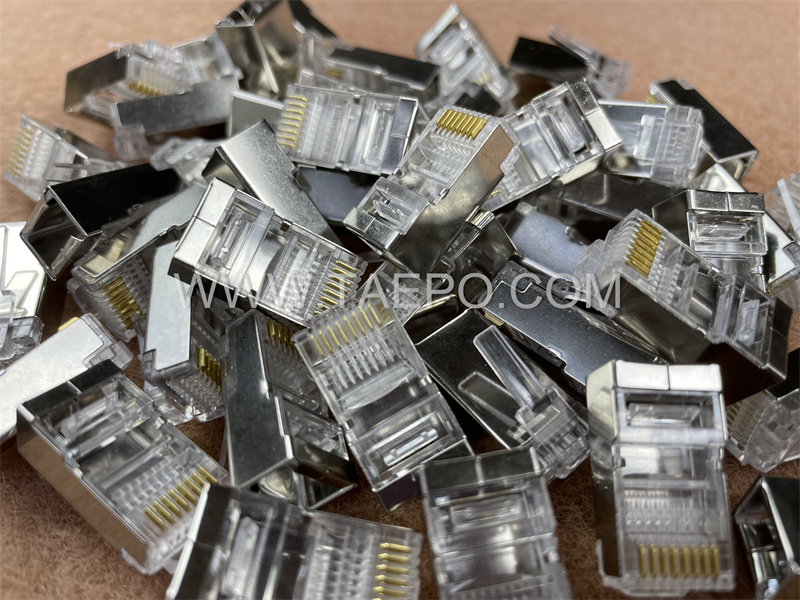

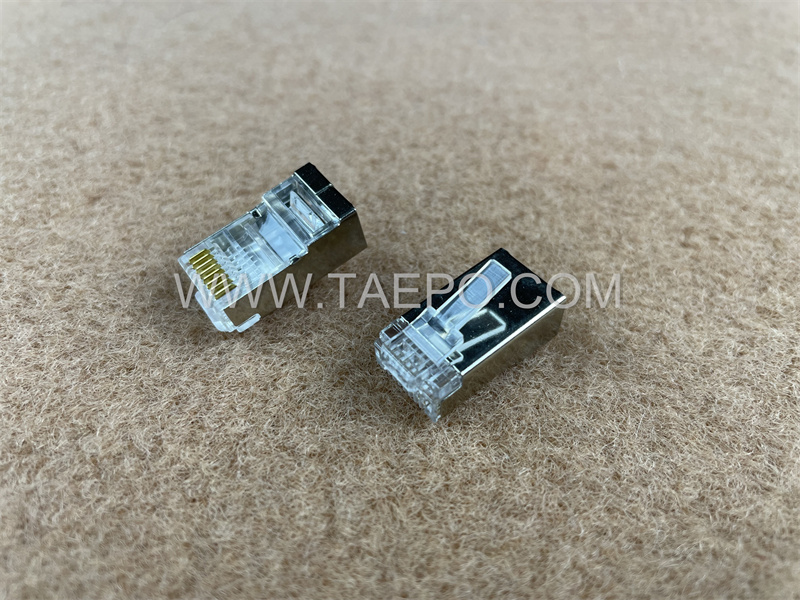

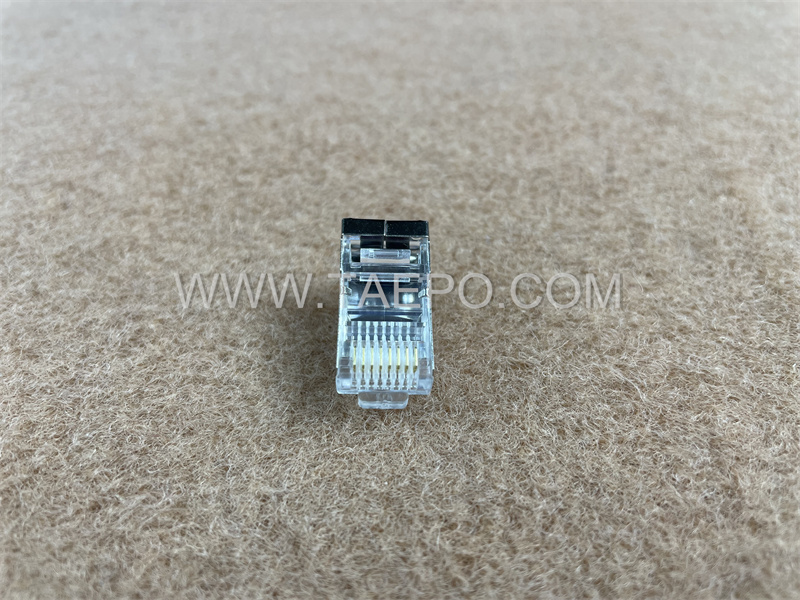

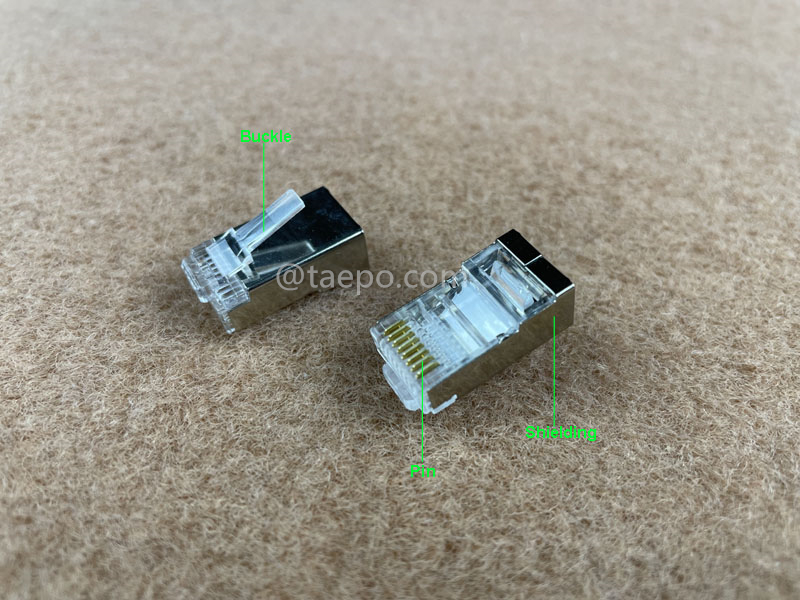

ILLUSTRATION PICTURES

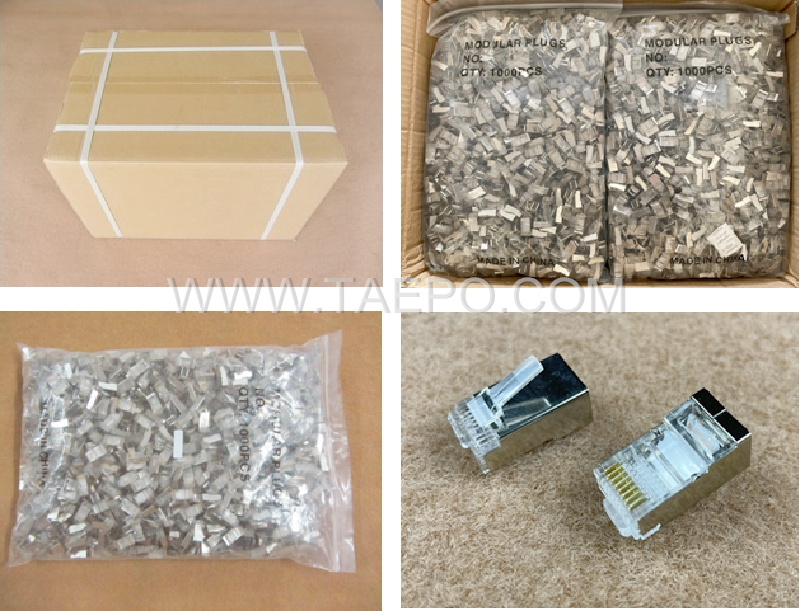

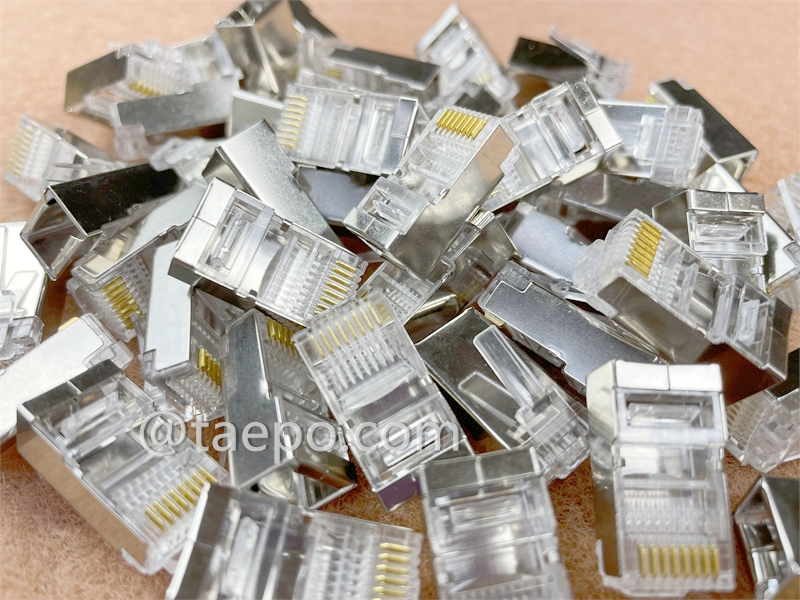

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5503-C6AS8 |
Modular plug, CAT6, RJ45, 8P8C, STP |
