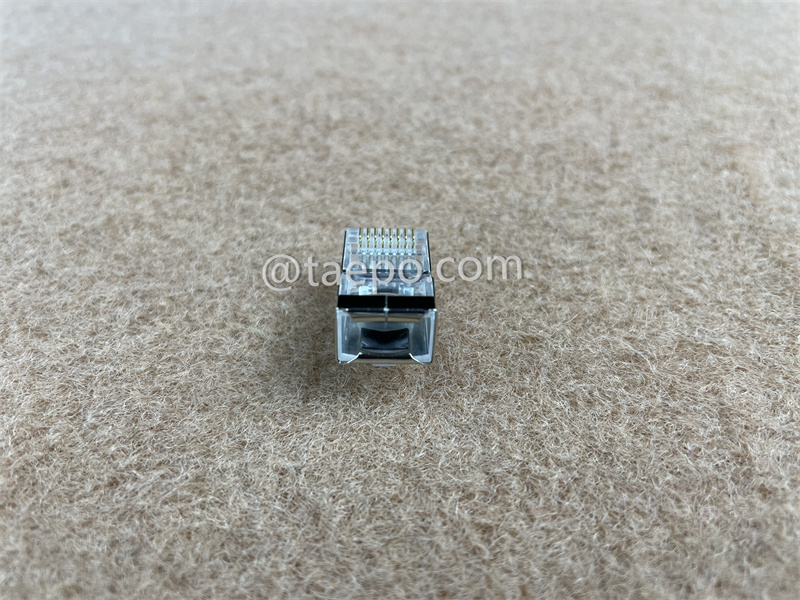

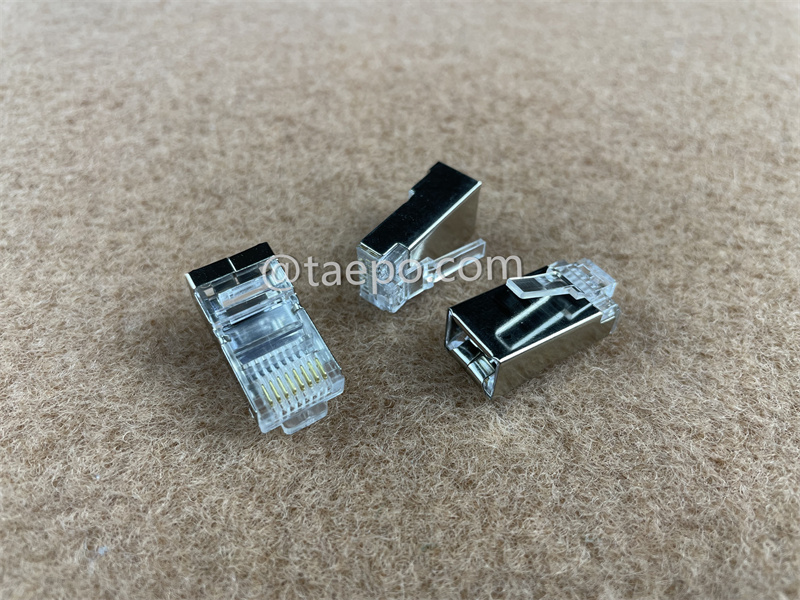

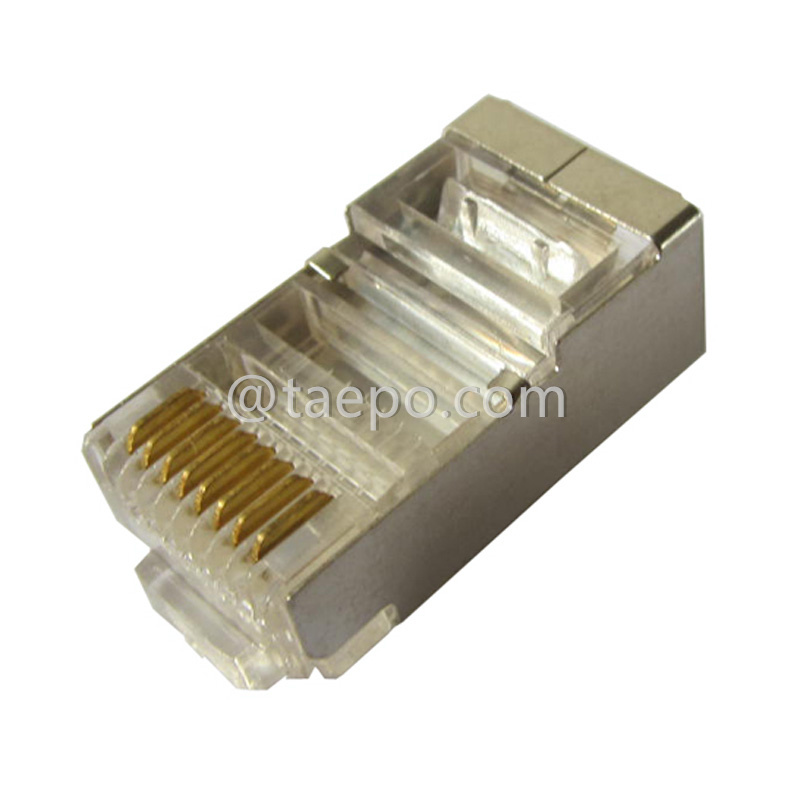

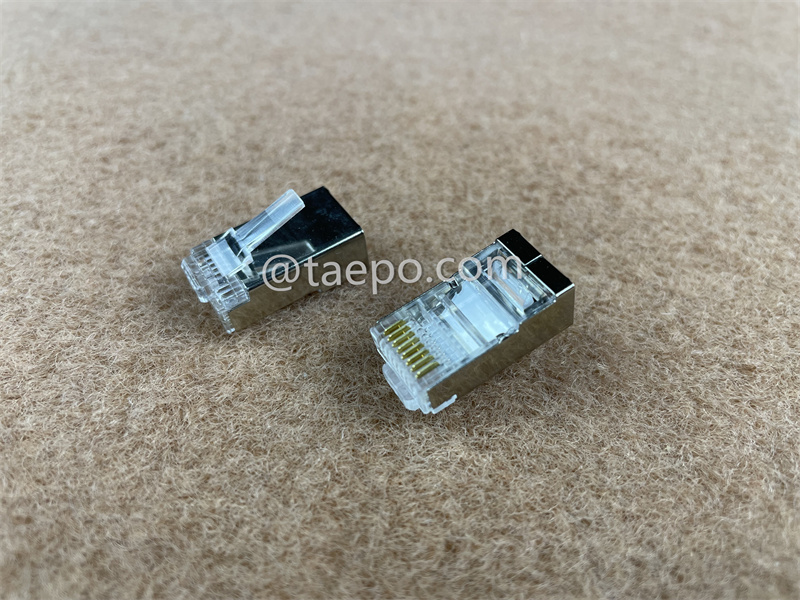

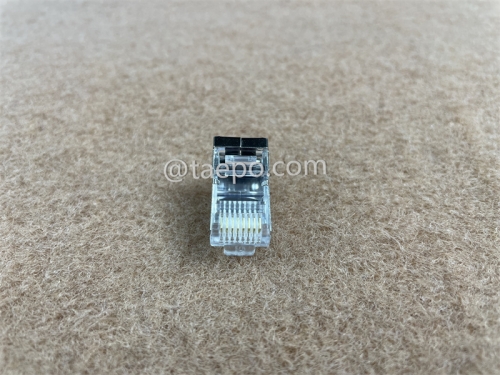

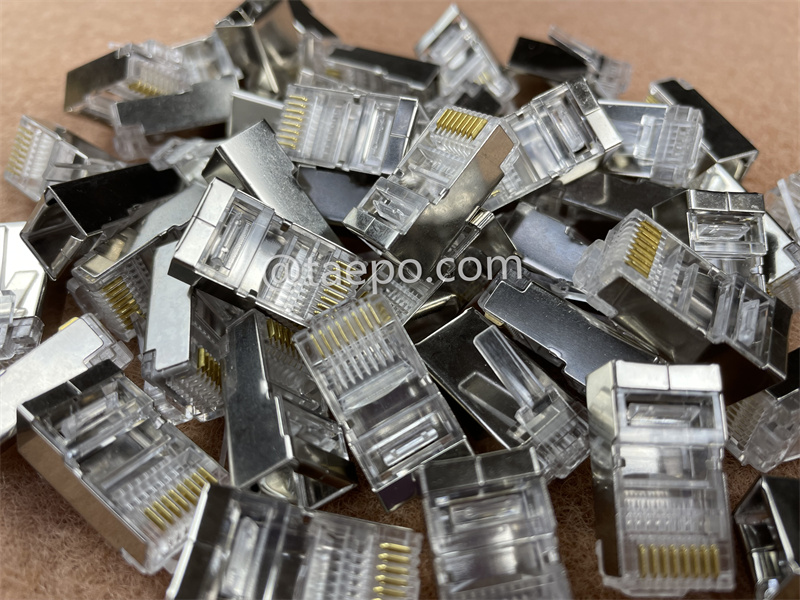

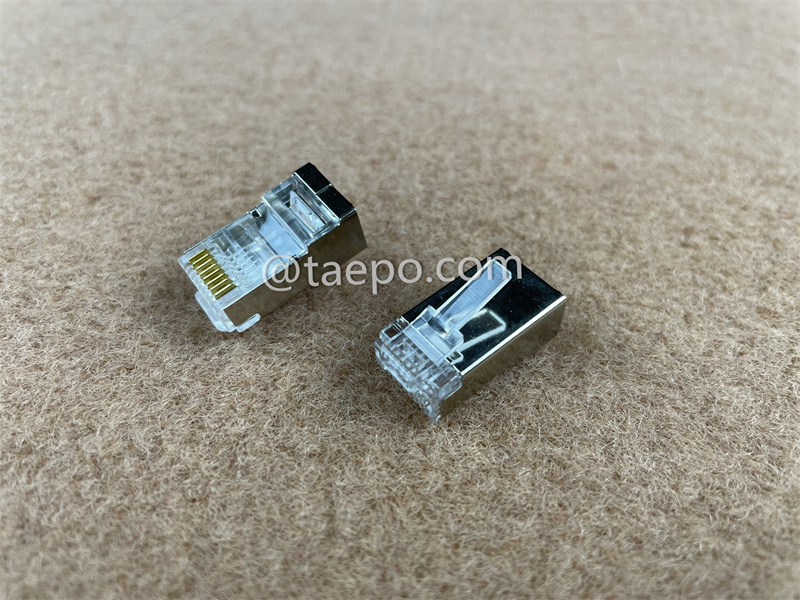

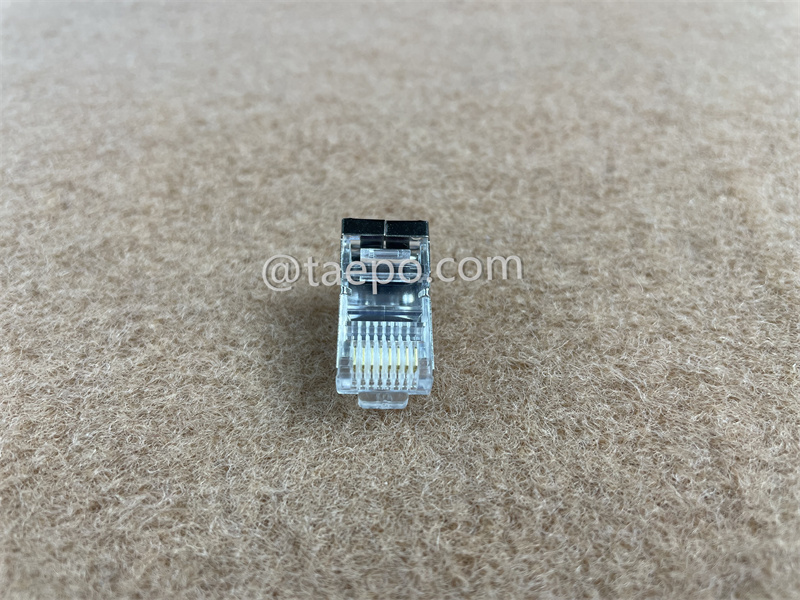

CAT5E RJ45 8P8C STP shielded network Modular plug

    Descriptions

A CAT5E RJ45 8P8C STP shielded network modular plug is a specific type of connector used in Ethernet networks, designed for Cat5e cables that are shielded twisted pair (STP). Here's a breakdown of its components:

CAT5E: This refers to the category of Ethernet cable it is designed for. Cat5e (Category 5e) cables are capable of transmitting data at speeds up to 1 Gigabit per second (Gbps) and are widely used in Ethernet networks.

RJ45: This is the type of connector used. RJ45 connectors are standard connectors used for Ethernet connections. They have 8 pins (8P) and are modular, meaning they can be easily connected and disconnected.

8P8C: Stands for 8 positions and 8 conductors, which is the standard configuration for Ethernet connectors like RJ45. Each of the 8 positions corresponds to one of the 8 wires inside the Ethernet cable.

STP (Shielded Twisted Pair): This indicates that the cable is shielded, which helps to reduce electromagnetic interference (EMI) and crosstalk between adjacent cables. The shield typically consists of foil or braided wire around the twisted pairs of wires inside the cable.

Modular Plug: This refers to the plastic housing that holds the connector pins in place and allows it to be inserted into an Ethernet port or jack.

In summary, a CAT5E RJ45 8P8C STP shielded network modular plug is used to terminate a shielded Cat5e Ethernet cable. It provides a reliable connection for Ethernet networks while reducing the risk of interference, making it suitable for environments where there may be electromagnetic noise that could affect data transmission.

    Main Features

The main feature of a CAT5E RJ45 8P8C STP shielded network modular plug is its ability to provide a robust and reliable connection in Ethernet networks, particularly in environments where electromagnetic interference (EMI) is a concern. Here are the key features summarized:

• Shielded Design (STP): The plug is designed for use with shielded twisted pair (STP) Cat5e cables. The shielding helps to minimize EMI and crosstalk, thereby improving the overall signal quality and reliability of data transmission.

• Compatibility: It is compatible with Cat5e Ethernet cables, which are capable of transmitting data at speeds up to 1 Gigabit per second (Gbps). This makes it suitable for a wide range of Ethernet applications, including home networks, offices, and data centers.

• RJ45 Connector: The RJ45 connector format is standardized and widely used in Ethernet networking equipment. It consists of 8 pins (8P8C), allowing it to connect to Ethernet ports and jacks securely.

• Modular Plug: The modular plug design allows for easy termination of the Ethernet cable. It typically includes features such as strain relief and latch mechanisms to ensure a secure connection and prevent accidental disconnections.

• Reliability: By reducing EMI and maintaining signal integrity, the shielded design of the plug enhances the reliability of Ethernet connections, particularly in environments with potential sources of electrical interference.

  In essence, the main feature of the CAT5E RJ45 8P8C STP shielded network modular plug is its ability to provide a stable, interference-resistant connection for Ethernet networks, ensuring consistent data transmission performance.

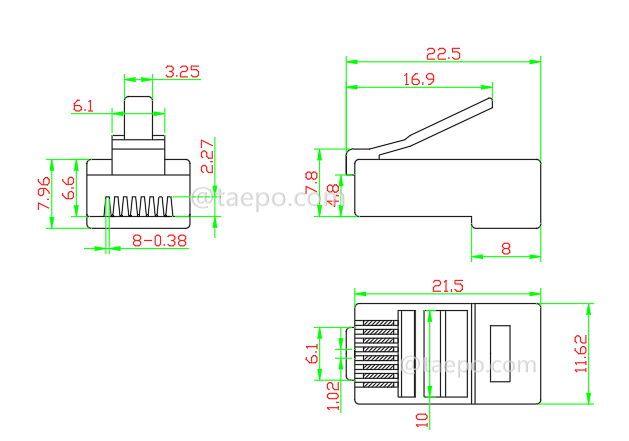

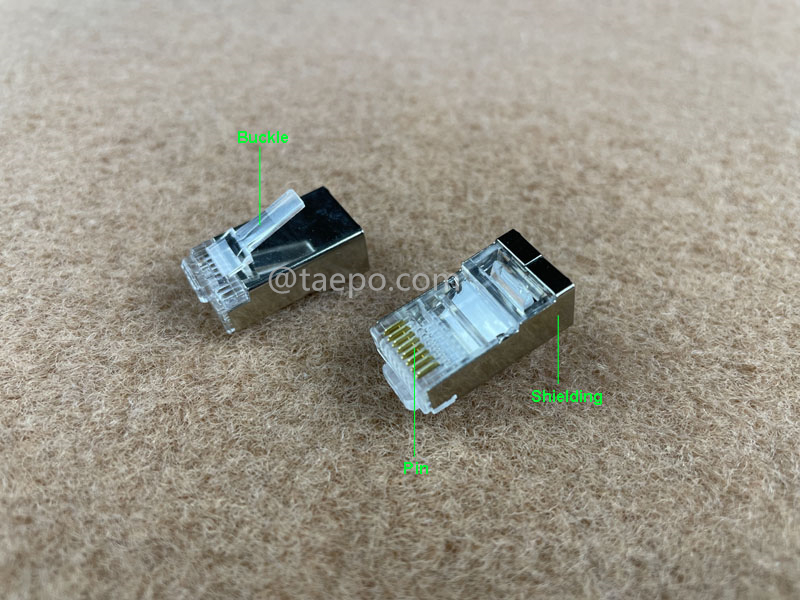

    Schematic Diagrams

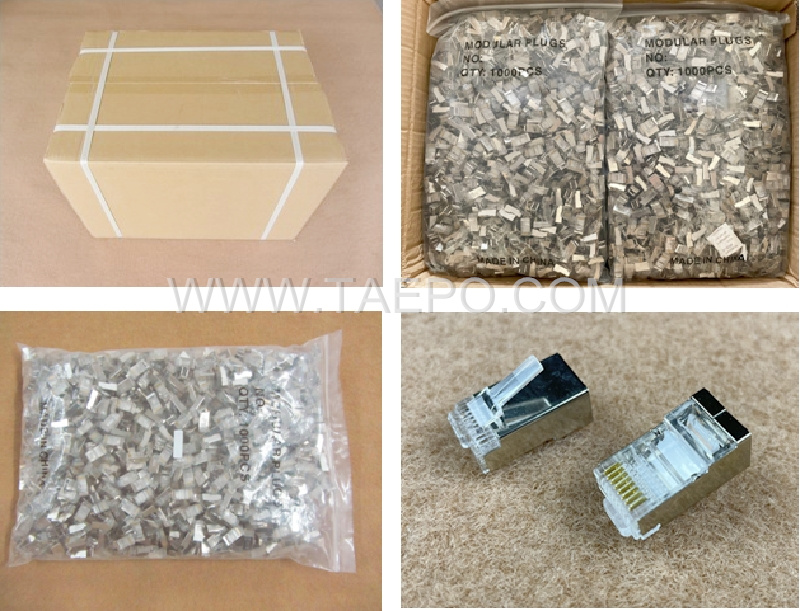

    Packing Pictures

    Order Data
