What does Modular Plug do?
DESCRIPTIONS
The CAT6 RJ45 modular plug (TP-5503-C6U8TF) with a tool-free design offers a hassle-free solution for quick and efficient network cable termination. This 8P8C (8-position, 8-contact) connector is engineered for unshielded twisted pair (UTP) cabling, making it a versatile option for home, office, and commercial installations. With a tool-free mechanism, this plug allows users to easily terminate CAT6 Ethernet cables without the need for traditional crimping tools, significantly reducing installation time and complexity.
Built to meet CAT6 performance standards, this plug ensures optimal data transmission with support for 10 Gigabit Ethernet (10000Base-T) applications. Its compact design is perfect for tight spaces, while the high-quality construction guarantees minimal signal interference and excellent durability. Ideal for both professional installers and DIY enthusiasts, this modular plug is a practical solution for creating custom-length network cables on-site.
Designed for ease of use, the plug’s snap-together assembly ensures a secure and reliable connection every time. Whether you're upgrading an existing network or setting up a new system, this tool-free modular plug is an efficient, user-friendly solution for high-speed networking applications.
MAIN FEATURES
- Tool-Free Design: No crimping tool required; ideal for quick and easy installations.
- CAT6 Rated: Meets CAT6 specifications for high-speed data transfer up to 10 Gbps.
- RJ45 Interface: Standard 8P8C configuration for Ethernet and networking.
- UTP Compatibility: Optimized for use with unshielded twisted pair cables.
- 10000Base-T Support: Suitable for Gigabit Ethernet applications.
- Quick Assembly: Snap-together design for fast and reliable cable terminations.
- Gold-Plated Contacts: Provides superior conductivity and corrosion resistance.
- Compact Size: Perfect for use in confined spaces like wall plates and patch panels.
- Low Crosstalk: Minimizes interference for clean signal transmission.
- 8P8C Standard: Ensures full Ethernet compatibility with 8 positions and 8 contacts.
- Visual Guide: Color-coded wiring guide simplifies termination and reduces errors.
- Durable Housing: Built to last, with a design that withstands frequent insertions and handling.
- Snagless Design: Protects the connector during cable pulls and installations.
- Stranded and Solid Cable Support: Compatible with both types of Ethernet cable.
- Transparent Cover: Allows for easy visual confirmation of wire placement before securing.
- Secure Latching Mechanism: Locks the connector firmly in place once inserted.
- Backward Compatible: Works with CAT5e cables and below.
- Heat-Resistant: Performs well in both indoor and outdoor installations.
- Minimal Insertion Loss: Provides high signal integrity with minimal data loss.

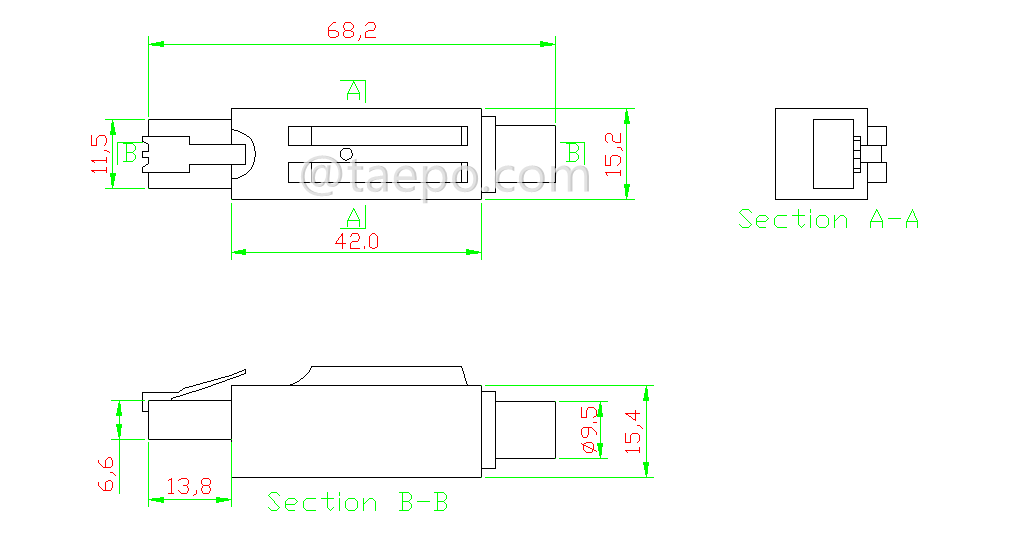

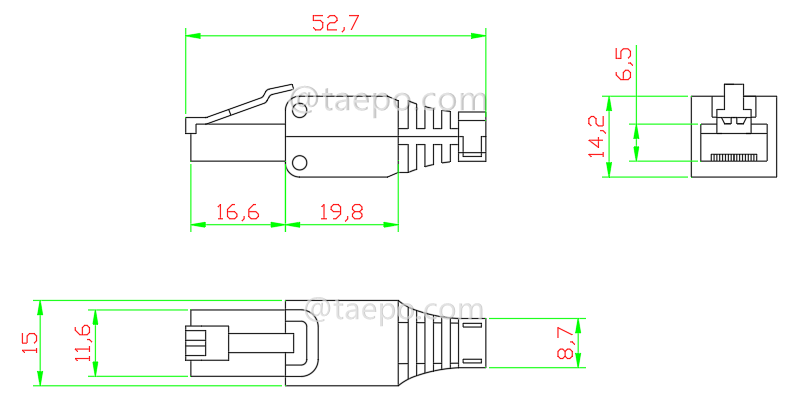

SCHEMATIC DIAGRAMS

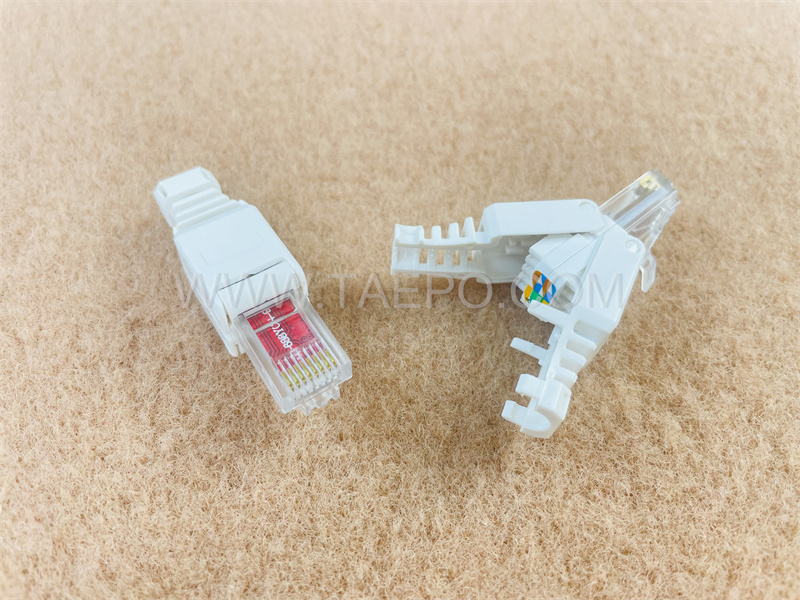

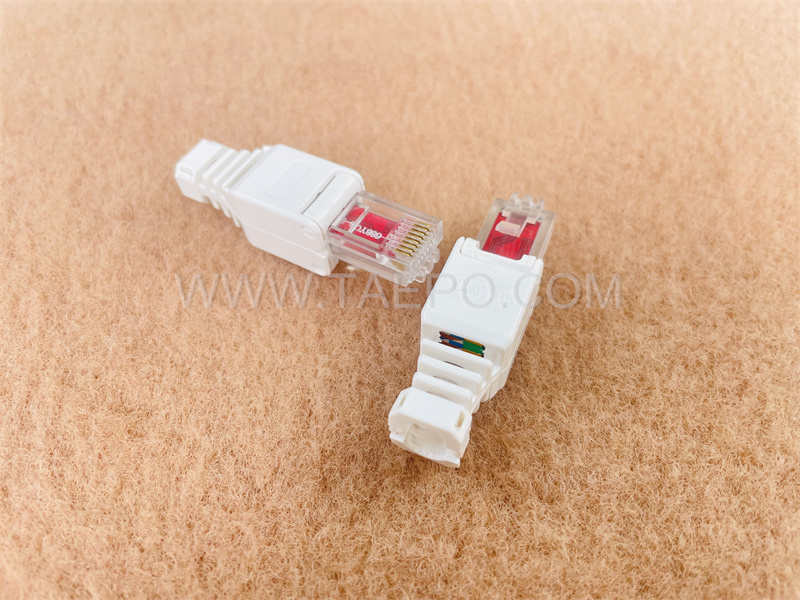

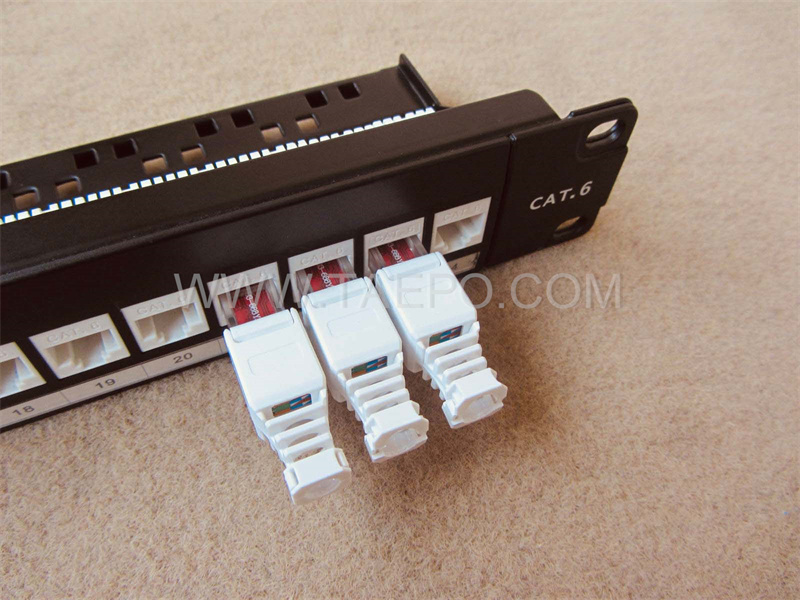

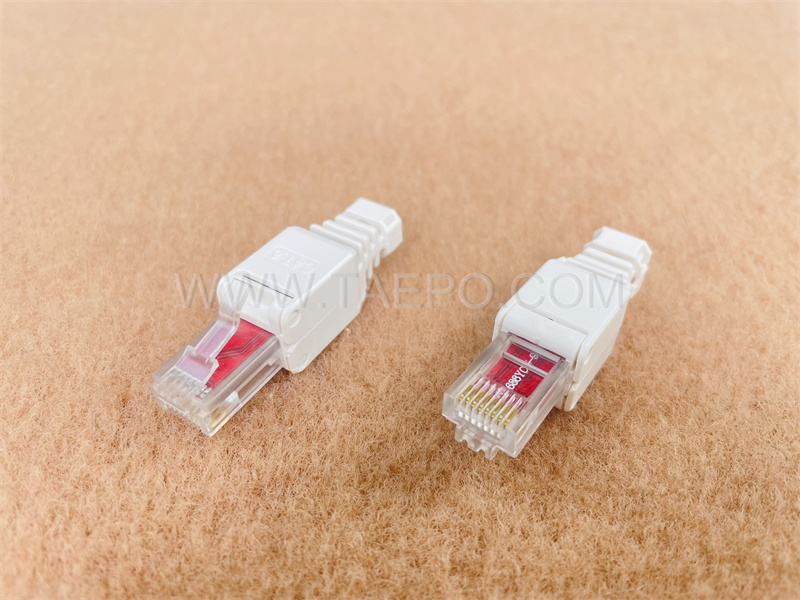

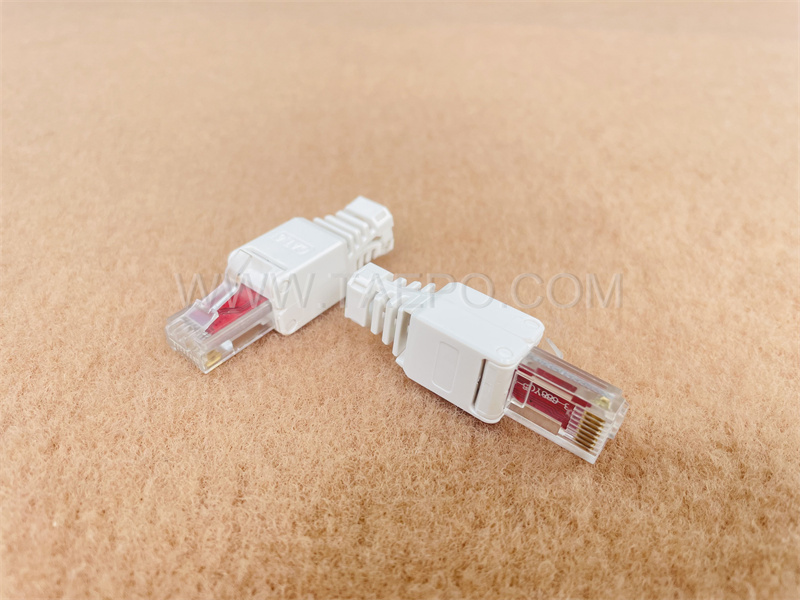

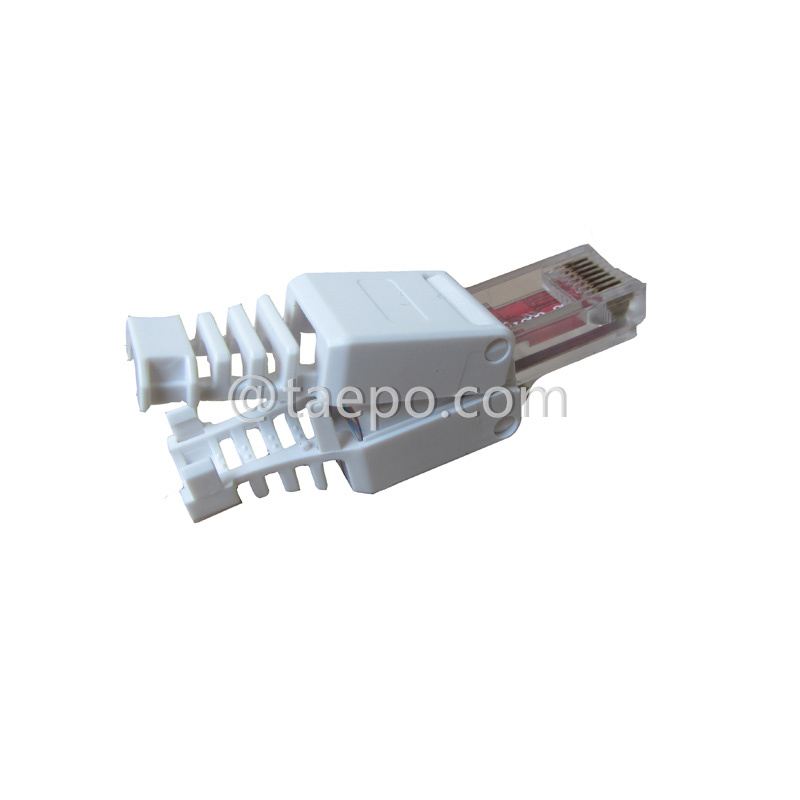

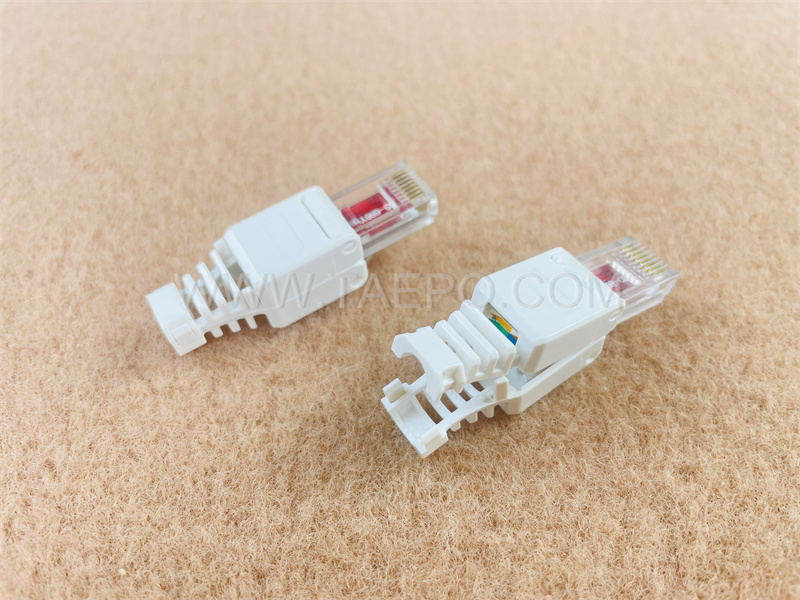

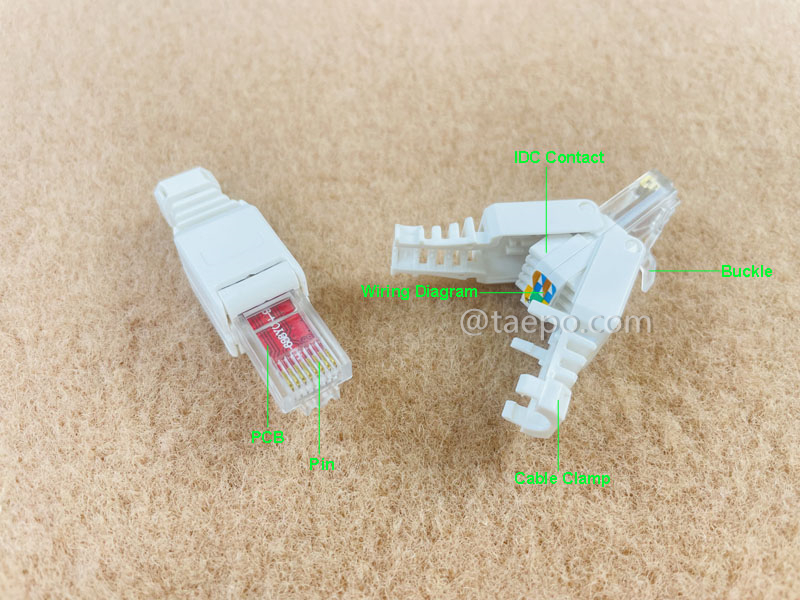

ILLUSTRATION PICTURES

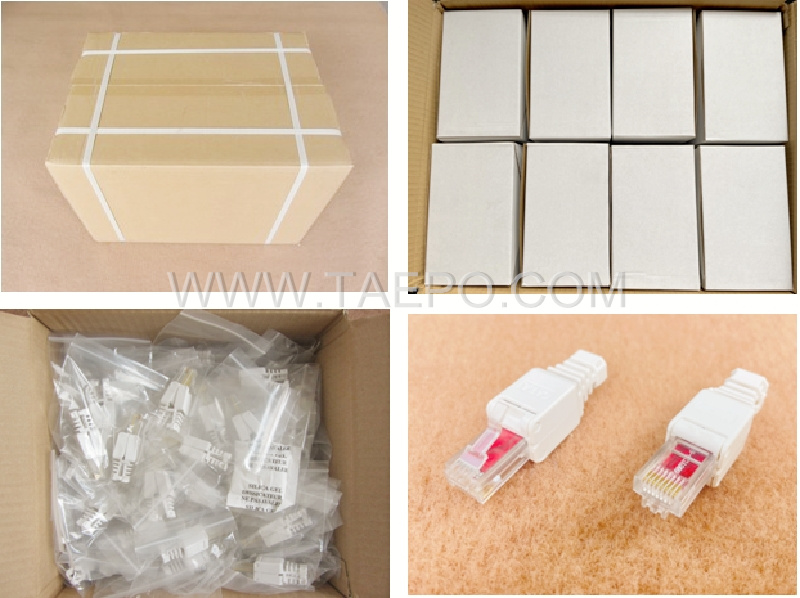

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5503-C6U8TF |
Modular plug, CAT6, RJ45, 8P8C, UTP, tool free |
RELATED PRODUCTS
TP-5501-C5EU-0010 LAN patch cord, CAT5E, UTP, RJ45-RJ45, 1m, bare copper

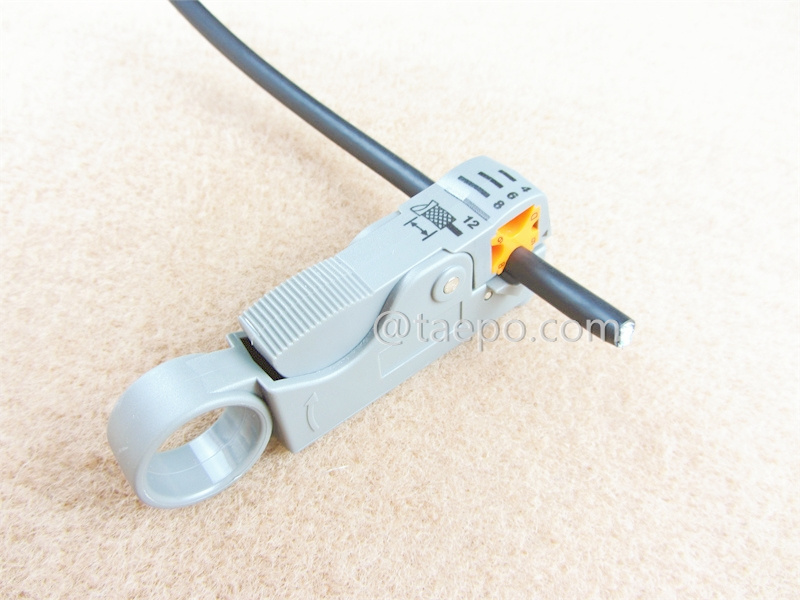

TP-5903-332 Coaxial cable stripper, 2-blade, for RG58/59/62/6/6QS/3C/4C/5C
