Descriptions

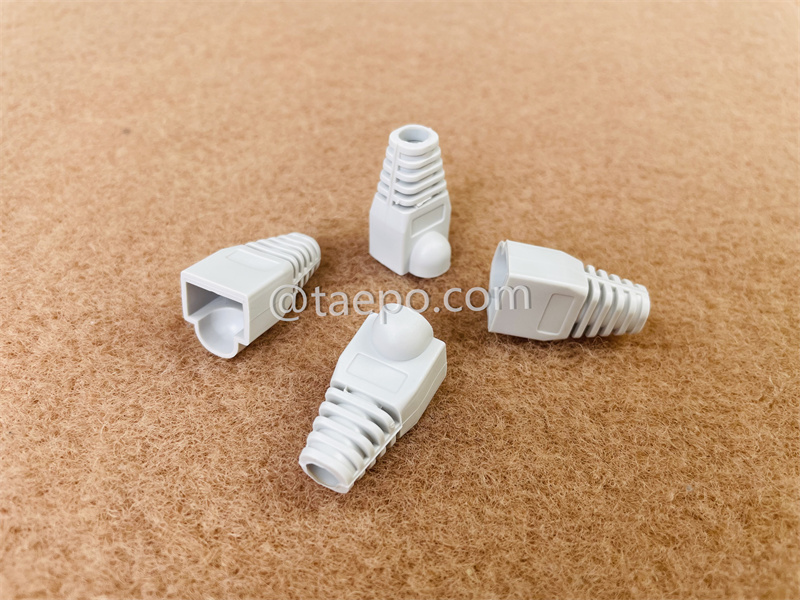

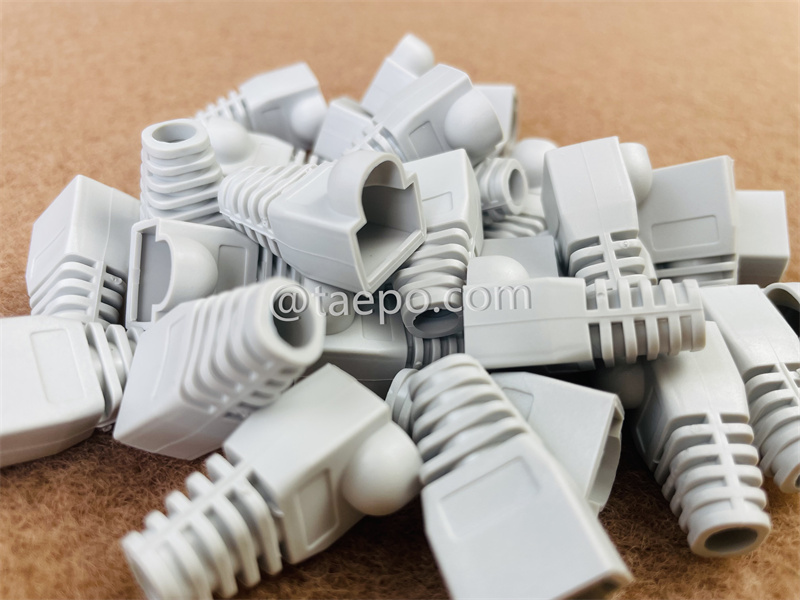

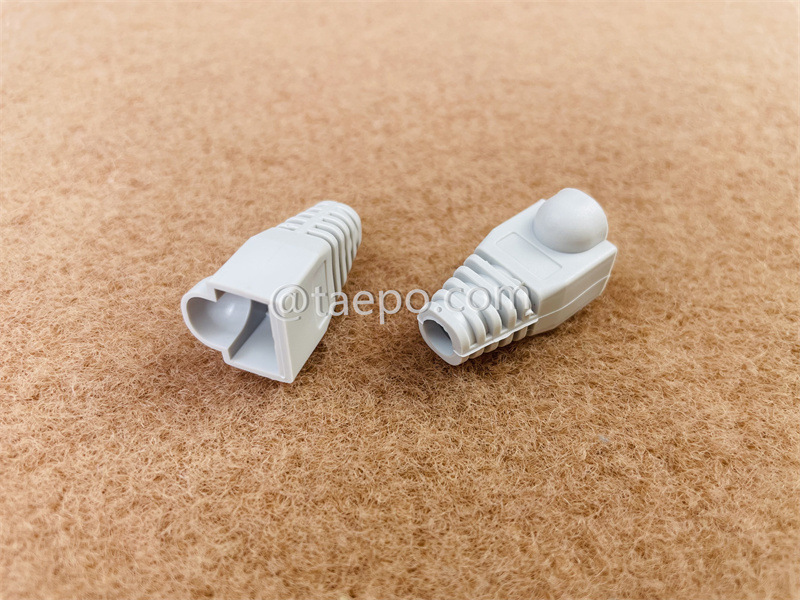

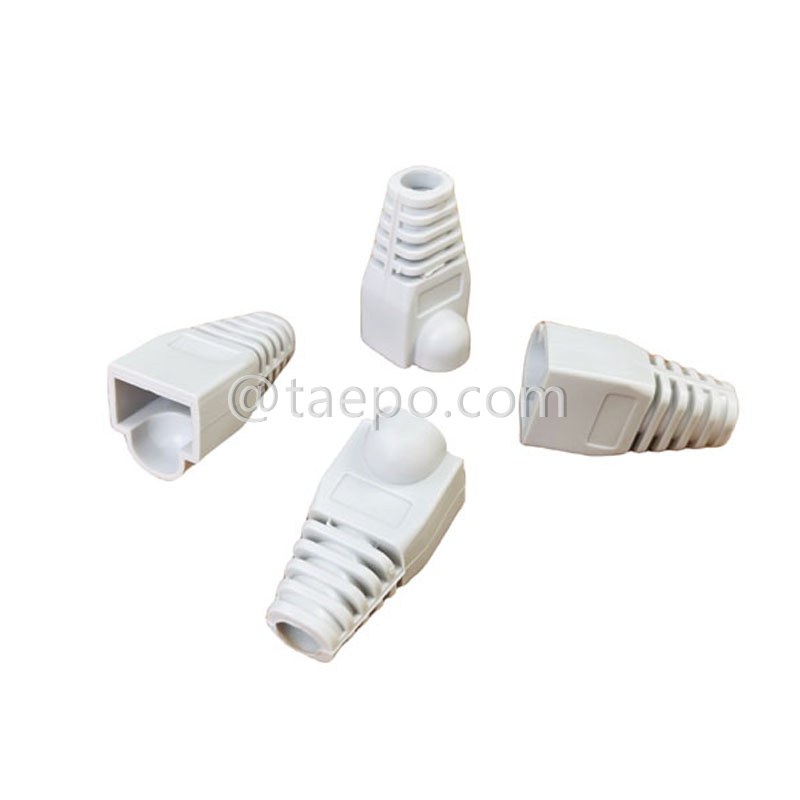

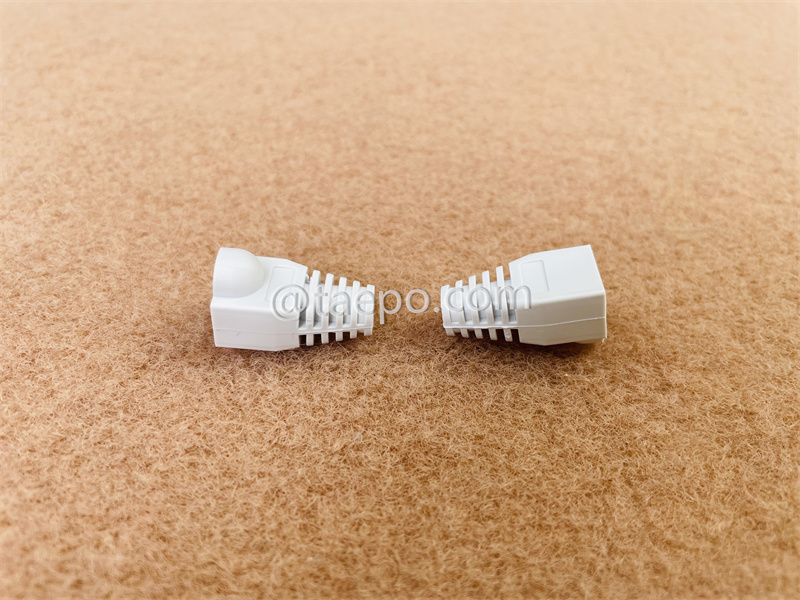

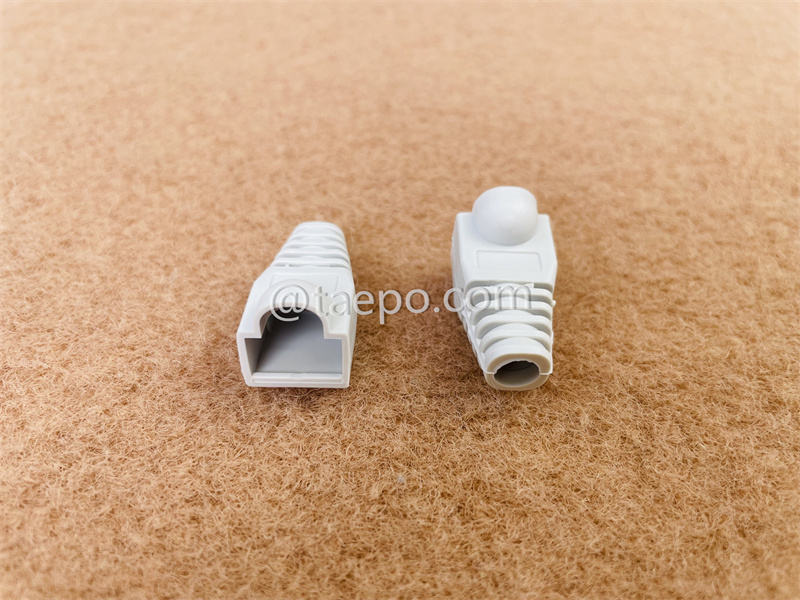

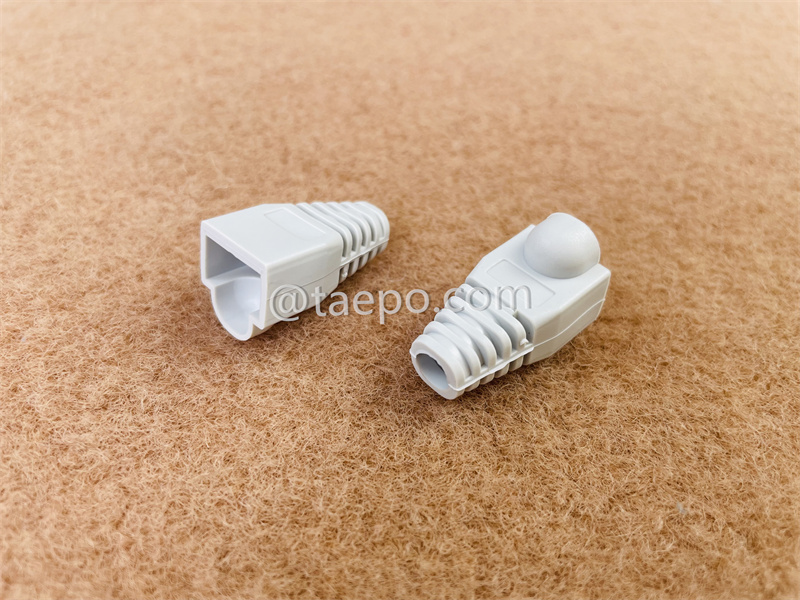

Modular plug boots (TP-5504) are small plastic covers that can be slipped over the ends of modular plugs to provide additional protection and strain relief for the cables. Here are some descriptions of modular plug boots:
Material: Modular plug boots are typically made of soft, flexible plastic, such as polyvinyl chloride (PVC), which allows them to stretch and conform to the shape of the modular plug.
Color: Modular plug boots are available in a variety of colors, including black, gray, blue, red, green, and yellow, which can be used to help identify different cables and connections.
Function: The main function of a modular plug boot is to provide additional protection and strain relief for the cables. The boot covers the end of the modular plug and helps to prevent the cable from bending or breaking at the point where it enters the plug.
Installation: Modular plug boots are easy to install and can be slipped over the end of the modular plug after the cable has been crimped onto the plug. The boot is then pushed down over the plug and onto the cable until it sits snugly against the plug.
Overall, modular plug boots are a useful accessory for anyone who works with data cables, as they can help to extend the life of the cables and ensure reliable connections.
Main Features
- Protection: Modular plug boots provide protection to the modular plug and cable by shielding them from dust, dirt, and other debris. They also prevent the cable from being bent or damaged at the point where it enters the plug.
- Strain relief: Modular plug boots offer strain relief to the cable, which helps to prevent damage and ensures a more secure connection. The boot helps to distribute the stress and tension along the length of the cable, rather than concentrating it at the point where it enters the plug.
- Flexibility: Modular plug boots are made of soft, flexible plastic that can be stretched and molded to fit snugly over the modular plug. This makes them adaptable to a range of different modular plugs and cable sizes.
- Color coding: Modular plug boots are available in different colors, which can be used to help identify different cables and connections. This is especially useful in situations where there are multiple cables and connections in a small space.
- Ease of use: Modular plug boots are easy to install and can be slipped over the end of the modular plug after the cable has been crimped onto the plug. They can also be removed and replaced as needed.
- Compatibility: Modular plug boots are designed to be compatible with specific types of modular plugs, including those used with Ethernet cables, telephone cables, and other types of data cables.

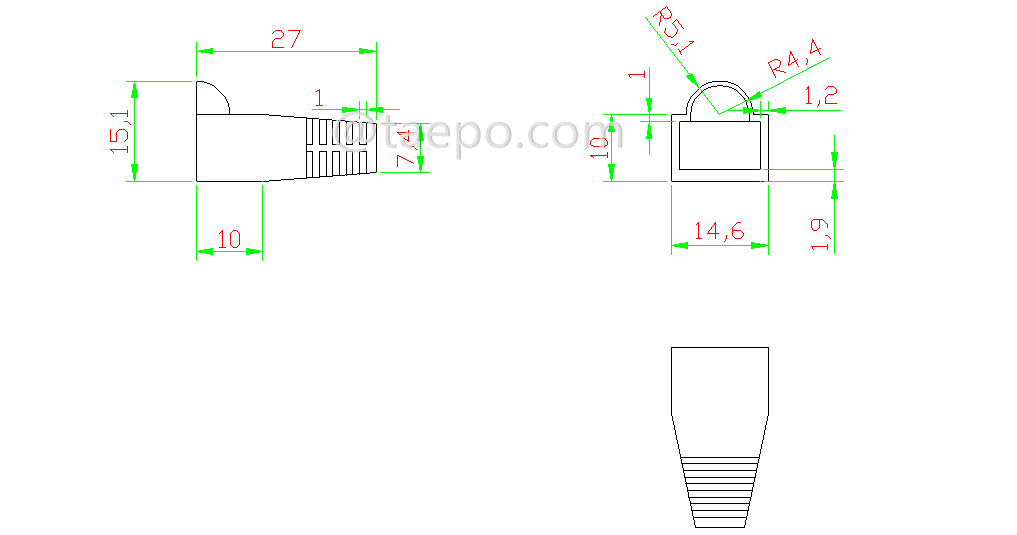

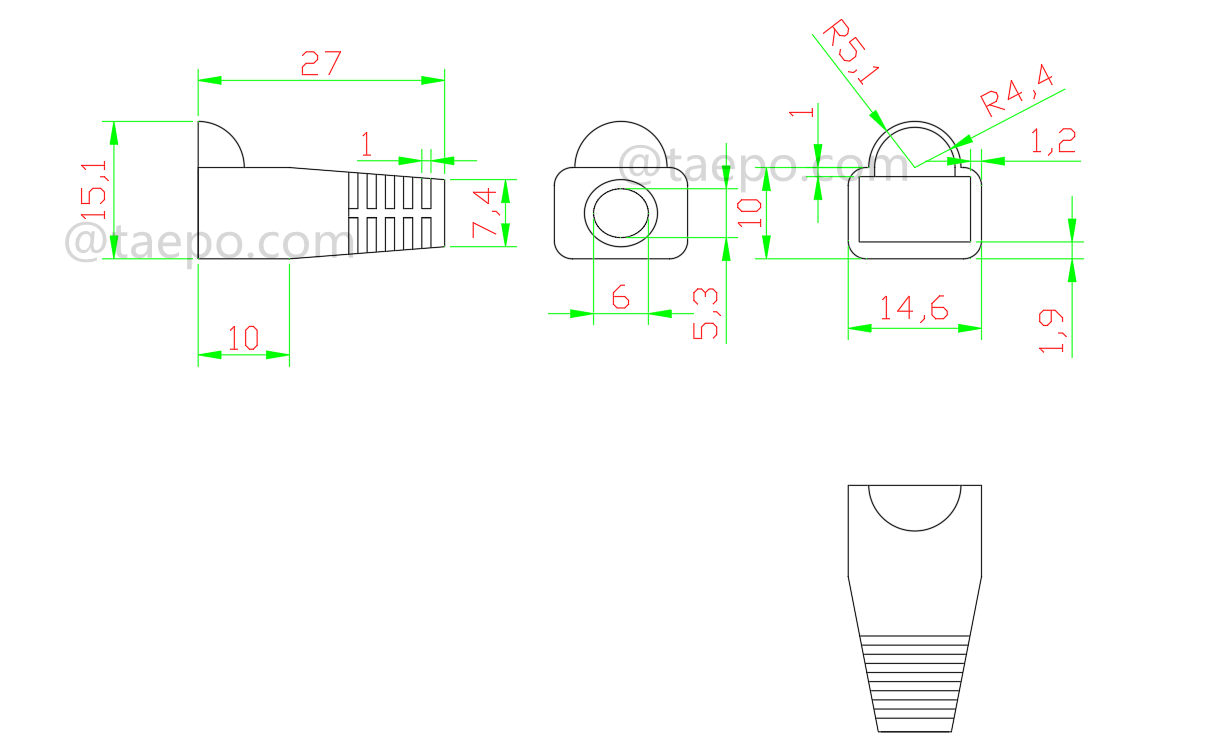

Schematic Diagrams

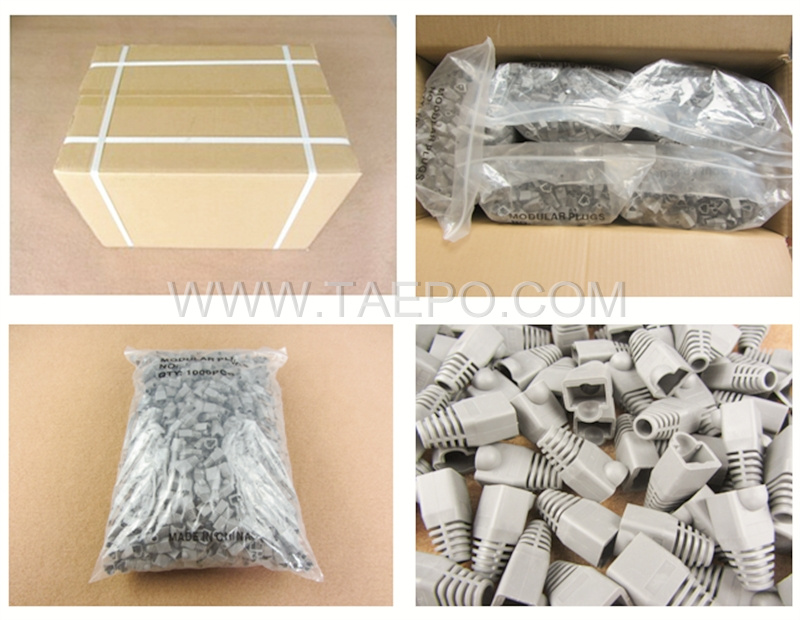

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-5504 |
Modular plug boots, grey color |
