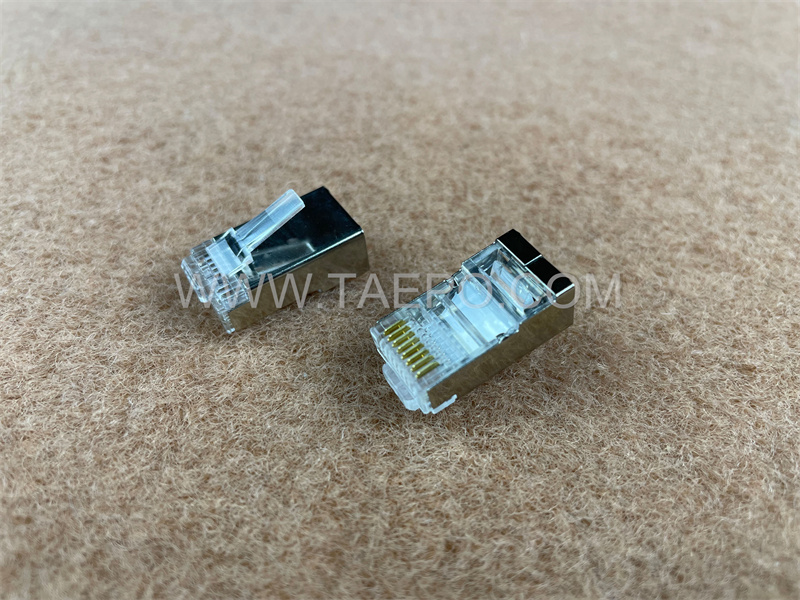

CAT6 RJ45 8P8C STP shielded network Modular plug

    Descriptions

A CAT6 RJ45 8P8C STP shielded network modular plug is a type of connector used for terminating CAT6 Ethernet cables in shielded twisted pair (STP) configurations.

Here's what each component means:

CAT6: CAT6 (Category 6) is a standardized cable used for Ethernet networks. It supports higher bandwidth and faster data transmission rates compared to CAT5 and CAT5e cables.

RJ45: RJ45 is the standard connector used for Ethernet networking. It has 8 pins (8P8C), where 8P8C stands for 8 positions and 8 contacts. Each pin corresponds to a specific wire inside the Ethernet cable.

STP: STP stands for Shielded Twisted Pair. In CAT6 STP cables, each pair of wires is individually shielded with foil or braided shielding to reduce electromagnetic interference (EMI) and crosstalk between pairs. The overall cable may also have an additional outer shielding layer.

Modular plug: The modular plug is the component that is crimped onto the end of the CAT6 cable to facilitate connection to networking devices such as computers, switches, routers, and hubs. For CAT6 STP cables, the modular plug is designed to maintain the shielding integrity of the cable to ensure effective EMI protection and maintain signal integrity.

In summary, a CAT6 RJ45 8P8C STP shielded network modular plug is specifically designed for terminating CAT6 Ethernet cables that are shielded (STP). It provides a connection point that preserves the shielding properties of the cable, which is crucial for environments where electromagnetic interference could degrade network performance or reliability. These plugs are essential for maintaining high-speed and reliable data transmission in demanding networking environments.

    Main Features

• The main feature of a CAT6 RJ45 8P8C STP shielded network modular plug lies in its ability to maintain the shielding integrity of the CAT6 STP (Shielded Twisted Pair) cable.

  Here are the key features explained:

• Shielded Twisted Pair (STP) Design: CAT6 STP cables have each pair of twisted wires individually shielded with foil or braided shielding. This shielding helps to minimize electromagnetic interference (EMI) and crosstalk between pairs, which can degrade signal quality and reliability in high-noise environments.

• Enhanced EMI Protection: The STP design of CAT6 cables, along with the shielded modular plug, provides enhanced protection against electromagnetic interference. This is particularly beneficial in environments with high electrical noise, such as industrial settings or locations with many electronic devices.

• Maintains Signal Integrity: By preserving the shielding through the modular plug, the connector ensures that the CAT6 cable maintains its signal integrity over longer distances and in challenging conditions. This helps in achieving reliable and consistent data transmission speeds, reducing the likelihood of data errors or packet loss.

• Compatibility with STP Cables: The CAT6 RJ45 8P8C STP shielded network modular plug is specifically designed to be compatible with CAT6 STP cables. It ensures a secure and reliable connection point that aligns with the shielding properties of the cable itself.

• Durability and Reliability: These modular plugs are constructed to meet the rigorous demands of professional networking installations. They typically feature robust materials and precise manufacturing to ensure durability and long-term reliability in network connections.

In essence, the main feature of a CAT6 RJ45 8P8C STP shielded network modular plug is its ability to preserve the shielding characteristics of CAT6 STP cables, thereby enhancing EMI protection and maintaining signal integrity for reliable Ethernet networking in environments where interference is a concern.

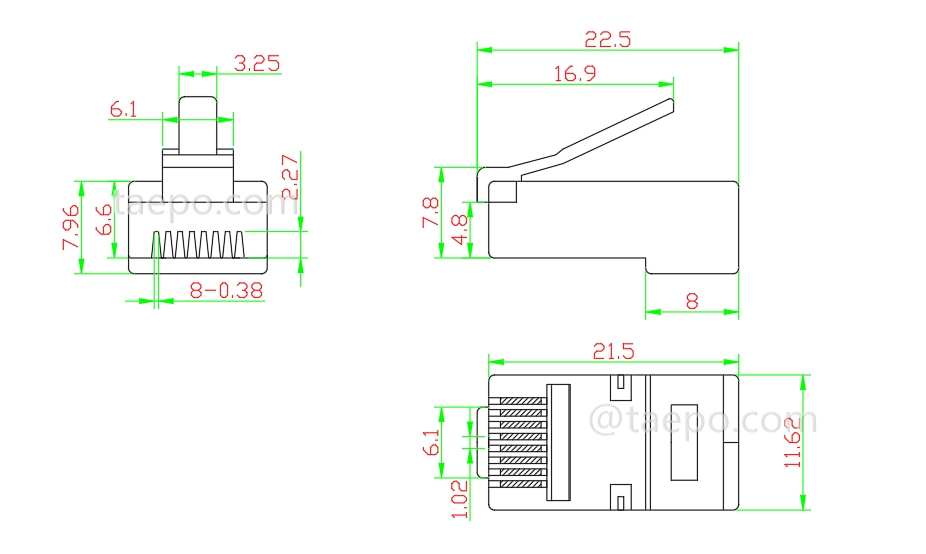

    Schematic Diagrams

    Packing Pictures

    Order Data
