Descriptions
A small manual 2-blade coaxial wire cable stripper designed for RG58/59/62/6/6QS/3C/4C/5C is a tool used for stripping the outer insulation and preparing coaxial cables for termination.
Here’s what each part of the description means:
Coaxial Cable: This refers to a type of electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. Coaxial cables are commonly used for transmitting radio frequency signals, such as for television signals, internet connections, and other data transmissions.
Wire Cable Stripper: This is a tool used to remove the outer insulation or sheath from a coaxial cable. It is specifically designed to handle the coaxial cable's construction, which typically includes an inner conductor, dielectric insulating layer, and outer metallic shield.
2-Blade: This indicates the stripping tool has two blades that are used to cut and remove the outer layers of the coaxial cable. The blades are designed to cut through the outer insulation without damaging the inner conductors or shield
-
Compatible Cable Types: The stripper is specified to work with several types of coaxial cables, including:
- RG58
- RG59
- RG62
- RG6
- RG6QS (Quad Shield)
- 3C (3-conductor)
- 4C (4-conductor)
- 5C (5-conductor)
These cable types vary in their construction and application, such as RG6 being commonly used for television and satellite connections, while RG58 is often used for thin Ethernet connections.
In summary, a small manual 2-blade coaxial wire cable stripper for RG58/59/62/6/6QS/3C/4C/5C is a tool designed for precise stripping of the outer insulation of various coaxial cable types, making it easier to prepare the cables for termination or connection to equipment. It's a crucial tool in the toolkit of technicians and installers working with telecommunications, networking, and audiovisual systems.
Main Features
The main features of a small manual 2-blade coaxial wire cable stripper for RG58/59/62/6/6QS/3C/4C/5C include:
Versatility: It is compatible with a wide range of coaxial cable types, including RG58, RG59, RG62, RG6, RG6QS (Quad Shield), and various multi-conductor cables (3C, 4C, 5C). This versatility allows it to handle different types of installations and applications.
Precision Stripping: The tool is designed to strip the outer insulation and shielding layers of coaxial cables cleanly and accurately. This ensures that the inner conductors and shielding are not damaged during the stripping process.
Ease of Use: It typically features a user-friendly design with adjustable blades or settings to accommodate different cable diameters and types. This makes it easier for technicians to prepare cables quickly and efficiently.
Durability: Good quality strippers are made from durable materials, ensuring longevity and reliability even with frequent use in various installation environments.
Compact Size: Being small and manual, it is portable and easy to carry around. This is particularly useful for field technicians who need to work in different locations.
Cost-Effectiveness: Manual coaxial cable strippers are often more affordable compared to automated or electronic versions, making them a cost-effective choice for many technicians and installers.
Overall, the main feature of a small manual 2-blade coaxial wire cable stripper is its ability to effectively and accurately strip various types of coaxial cables, providing essential preparation for termination or connection in telecommunications, networking, and audiovisual installations.

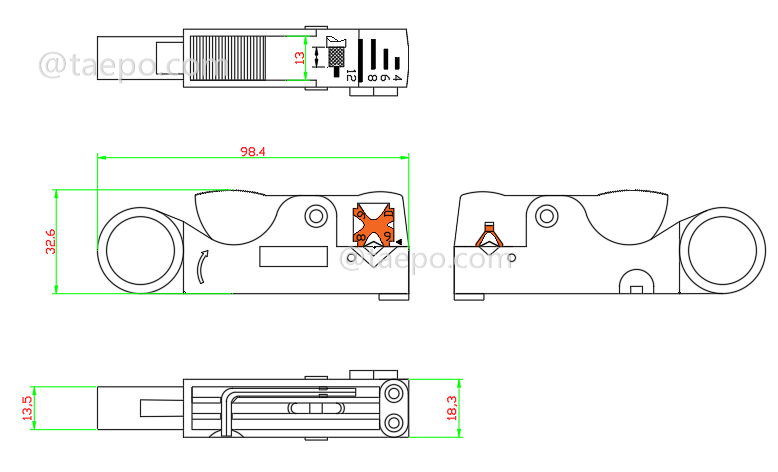

Schematic Diagrams
Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-5903-332 |
Coaxial cable stripper, 2-blade, for RG58/59/62/6/6QS/3C/4C/5C |
