What is Rack mounted ODF used for?
DESCRIPTIONS
Rack mounted optical distribution frame/ODF (TP-3202-24C) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, wiring, termination, adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.
The 3202 ODF is designed to provide a low-profile 1RU compact solution for termination of 24 simplex SC or up to 48 dual LC adapters. At less than 44.50 mm (1.75" height), the panel fits easily into one unit of rack space.

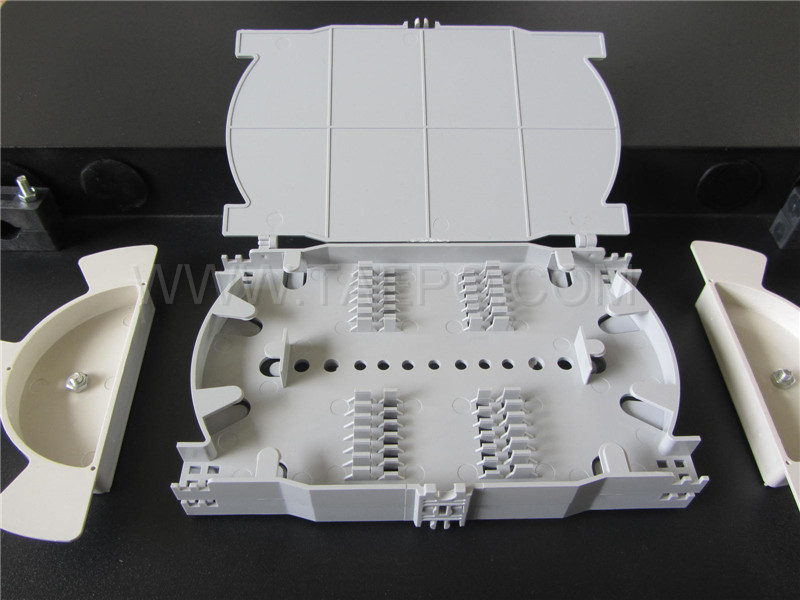

It consists of splice trays, patch panels, adapters, pigtails and the external housing. Splice tray is used for the function of splicing of the fiber cables and pigtails. Patch panel for the function of assembling fiber adapters for terminations. The box is made of cold rolling steel, with powder coating. The ODF is used only for indoor applications.
MAIN FEATURES
- 19-Inch Rack Mountable: Standard size for compatibility with most server and network racks.
- 1U Height: Slim design, saving rack space for other networking equipment.
- 24 Fiber Capacity: Accommodates up to 24 SC connectors for efficient high-density fiber management.
- Sliding Tray: Sliding mechanism allows easy access for installation and maintenance.
- No Guiding Rail: Simplified sliding design without the need for additional guiding rails.
- Cold-Rolled Steel Housing: Made from durable cold-rolled steel for structural integrity.
- Powder Coating: Powder-coated finish for enhanced corrosion and wear resistance.
- Dimensions: 485x200mm: Compact size, ideal for space-constrained installations.
- No Adapters Included: Flexibility to install adapters as per network specifications.
- No Pigtails Included: Allows for custom pigtail installation based on the fiber network setup.
- SC Connector Support: Compatible with industry-standard SC connectors for fiber optics.
- Optimized for Fiber Management: Designed to organize and protect fiber optic cables efficiently.

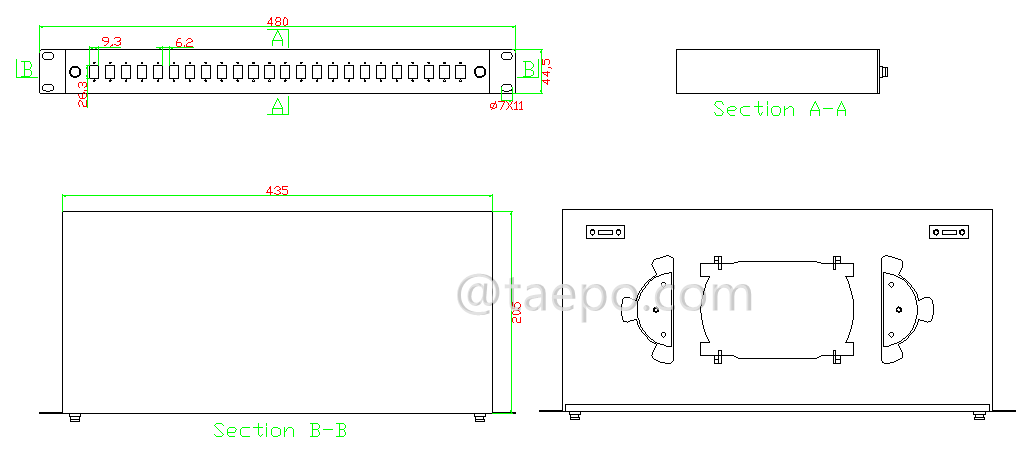

SCHEMATIC DIAGRAMS

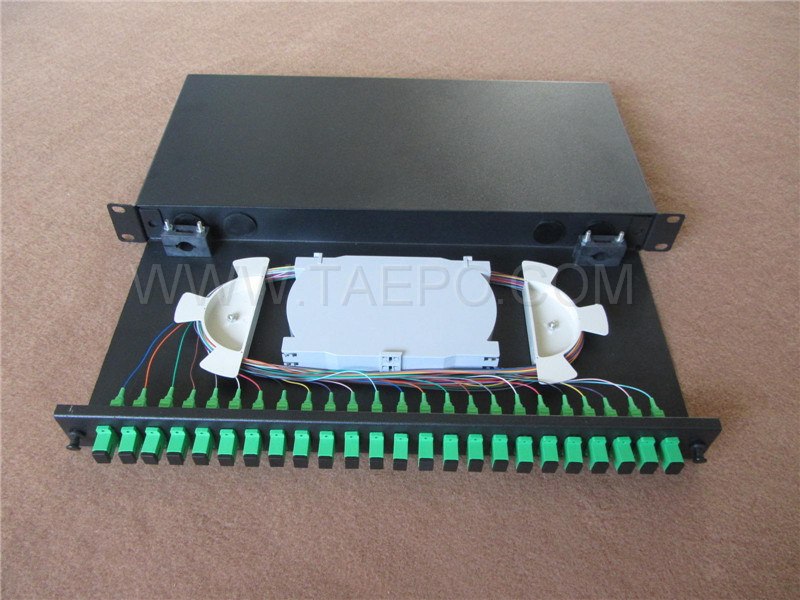

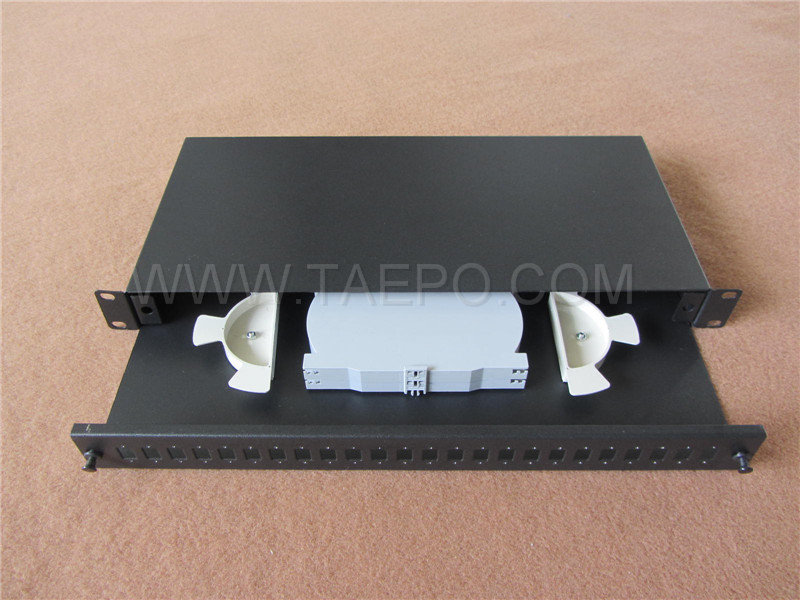

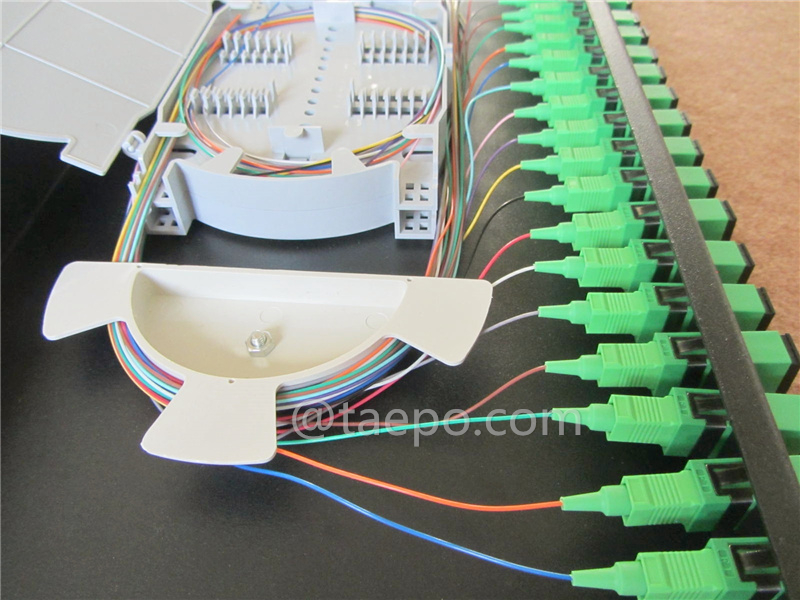

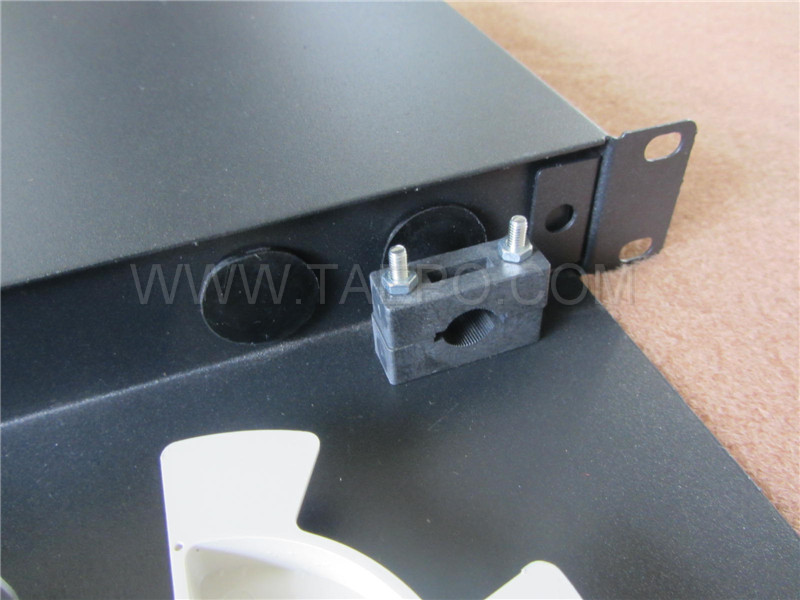

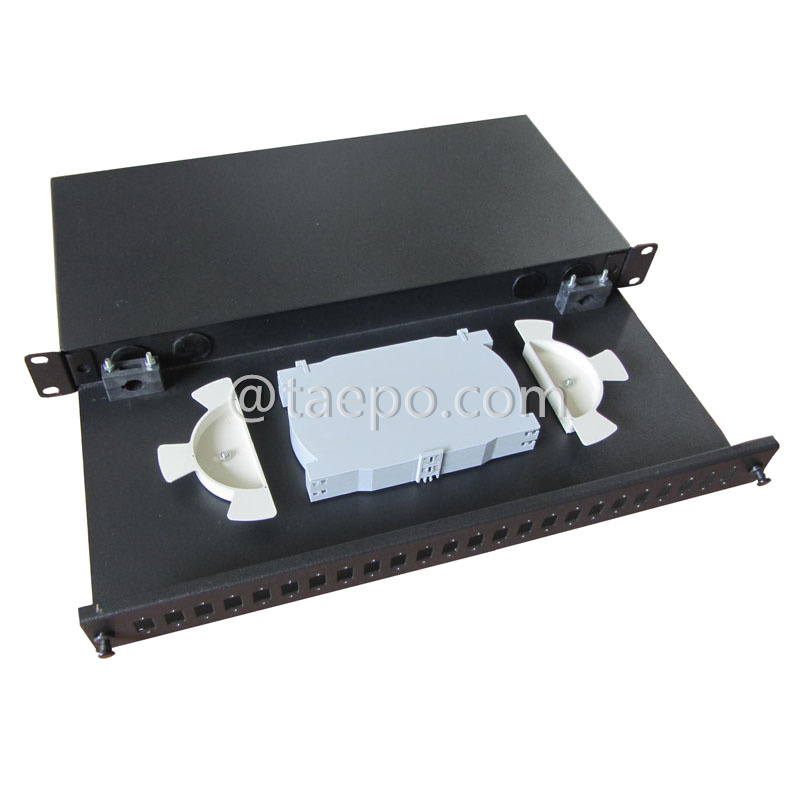

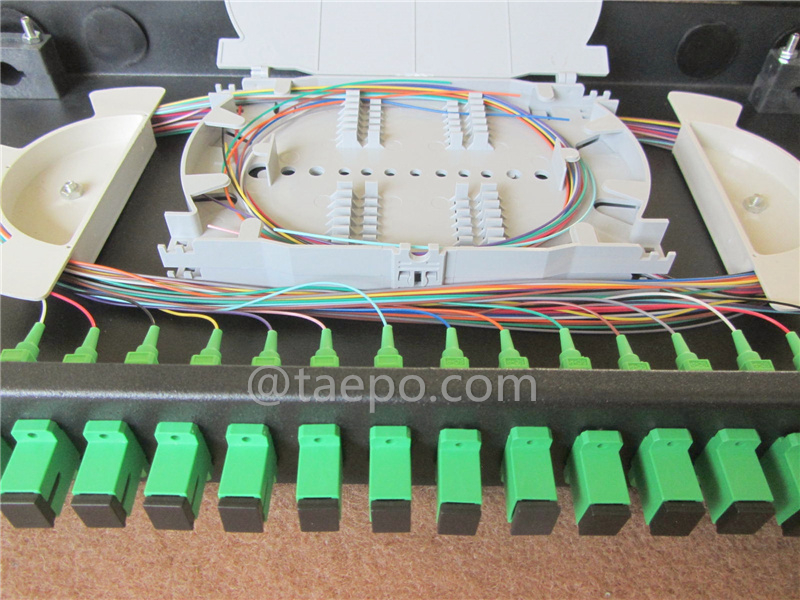

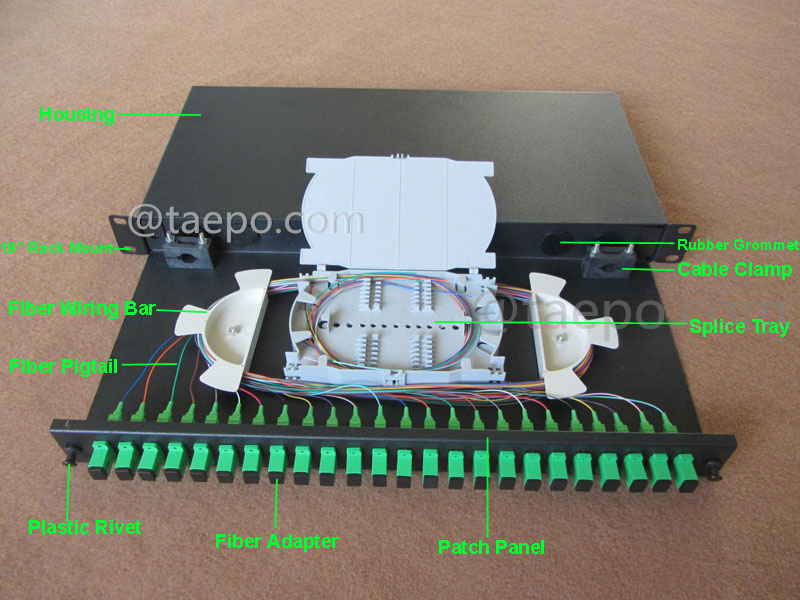

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-3202-24C |
Rack-mounted ODF, 19", 1U, SC, 24 fibers, sliding without guiding rail, cold rolling steel housing with powder coating, 485x200mm, without adapters, pigtails |
RELATED PRODUCTS
TP-3001-SM1SCASCA-LF Fiber optic adapter, singlemode, simplex, SC/APC-SC/APC
TP-3004-9SM1SCA09-0015 Fiber optic pigtail, singlemode 9/125um OS1, simplex, SC/APC, 0.9mm, 1.5m
TP-3202-48C Rack mounted ODF, 19", 1U, SC, 48 fibers, sliding without guiding rail, cold rolling steel housing with powder coating, 485x200mm, without adapters, pigtails
TP-3205-24D Rack mounted ODF, 19", 1U, SC, 24 fibers, metal guide rail sliding, cold rolling steel housing with powder coating
