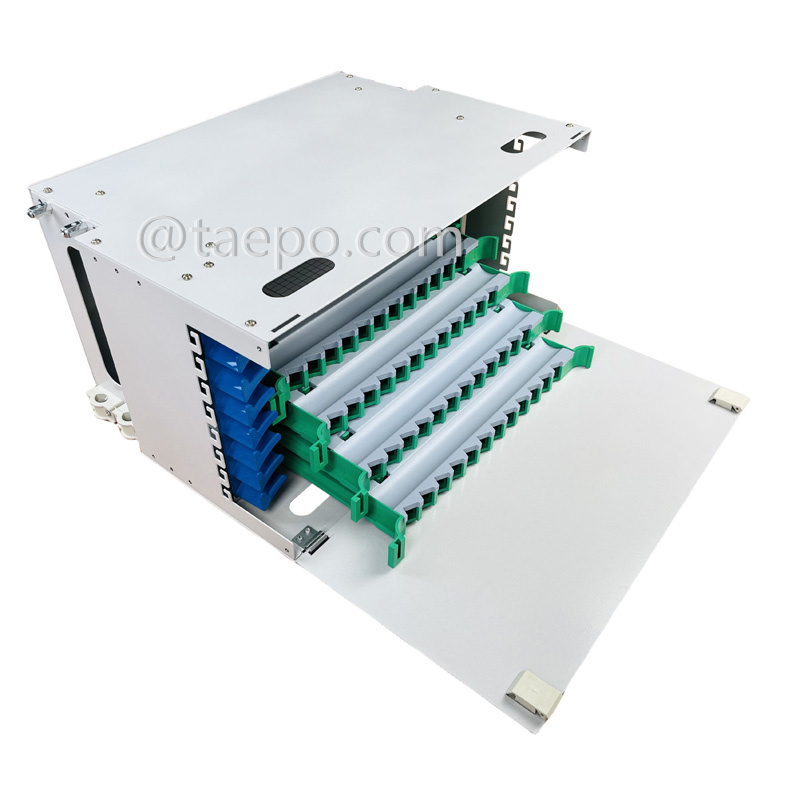

Rack mounted ODF, 19", SC, 96 fibers, plastic guide rail sliding, cold rolling steel housing with powder coating

TAEPO - Professional Chinese Manufacturer Delivering Rack Mounted ODF with Reliable Performance !
What does Rack Mounted ODF stand for?


    DESCRIPTIONS

The rack mounted optical distribution frame (TP-3204-96B) is a 19-inch unit designed for managing up to 96 fiber optic connections using SC connectors, making it suitable for large-scale, high-density fiber optic installations. The ODF features a plastic guide rail sliding system, allowing for smooth tray movement, which simplifies maintenance and installation. The cold-rolled steel housing with a powder-coated finish ensures that the ODF is robust, durable, and resistant to corrosion and wear, even in challenging environments.

With dimensions of 485x300x225mm, this ODF provides additional depth for enhanced cable management, accommodating the needs of complex fiber routing. Supplied without adapters or pigtails, this ODF offers flexibility, allowing users to select components according to their specific network requirements. Its compact design, combined with the plastic guide rail sliding mechanism, ensures efficient fiber management, making it an ideal choice for telecommunications, data centers, and enterprise network applications.

This ODF is engineered to offer reliable protection and organization for high-capacity fiber networks, supporting both performance and scalability.


    MAIN FEATURES

• 19-Inch Rack Mountable: Standard rack size for easy integration into 19-inch network racks.
• 96 Fiber Capacity: Accommodates up to 96 SC connectors for large-scale fiber optic installations.
• Plastic Guide Rail Sliding: Features a smooth plastic guide rail system for sliding tray access.
• Cold-Rolled Steel Housing: Durable housing made of cold-rolled steel for long-lasting performance.
• Powder Coating: Provides resistance to corrosion, scratches, and environmental wear.
• Dimensions: 485x300x225mm: Additional depth for improved cable management and ease of access.
• No Adapters Included: Allows custom selection of adapters based on network needs.
• No Pigtails Included: Flexibility to choose and install pigtails according to specific fiber configurations.
• SC Connector Compatibility: Supports SC connectors, widely used in fiber optic networks.
• User-Friendly Sliding Tray: Easy tray access for installation, maintenance, and expansion.
• Enhanced Cable Management: Provides efficient organization and protection of fiber cables.
• High-Density Fiber Support: Designed for large-scale fiber management in telecommunications and data centers.
• Durable Construction: Powder-coated finish ensures resistance to environmental factors and physical wear.
• Customizable Configuration: Allows for flexible network setups with the ability to add adapters and pigtails.
• Ventilated Design: Passive cooling via natural airflow prevents overheating.
• Space-Efficient: Compact design optimizes rack space while accommodating ahigh number of fibers.

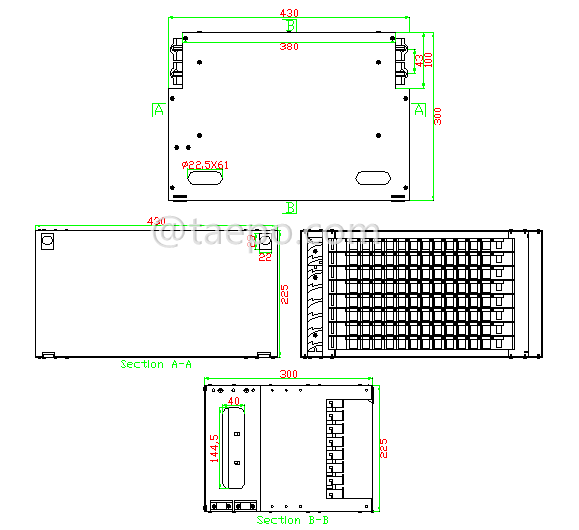

    SCHEMATIC DIAGRAMS

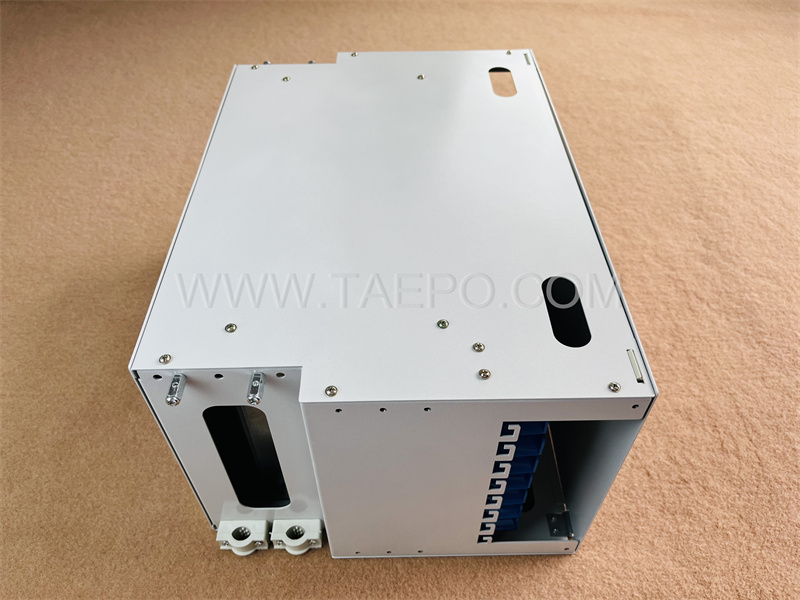

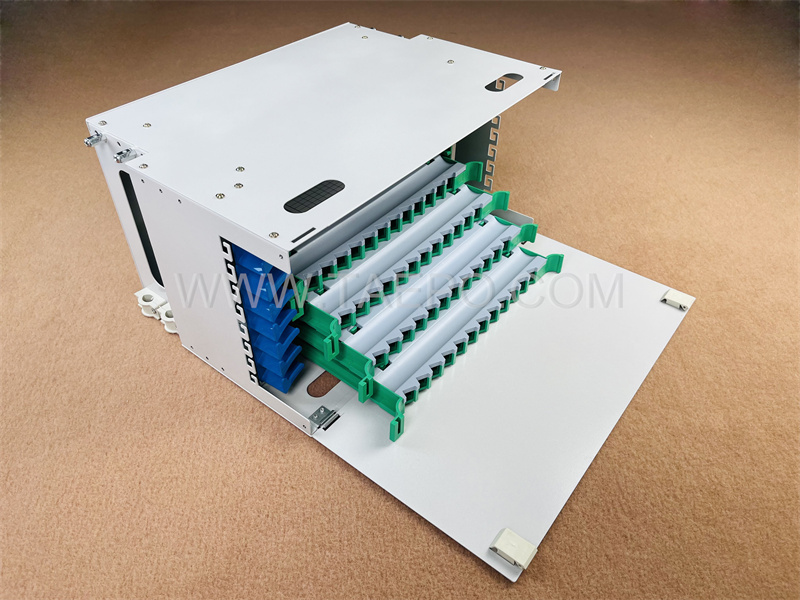

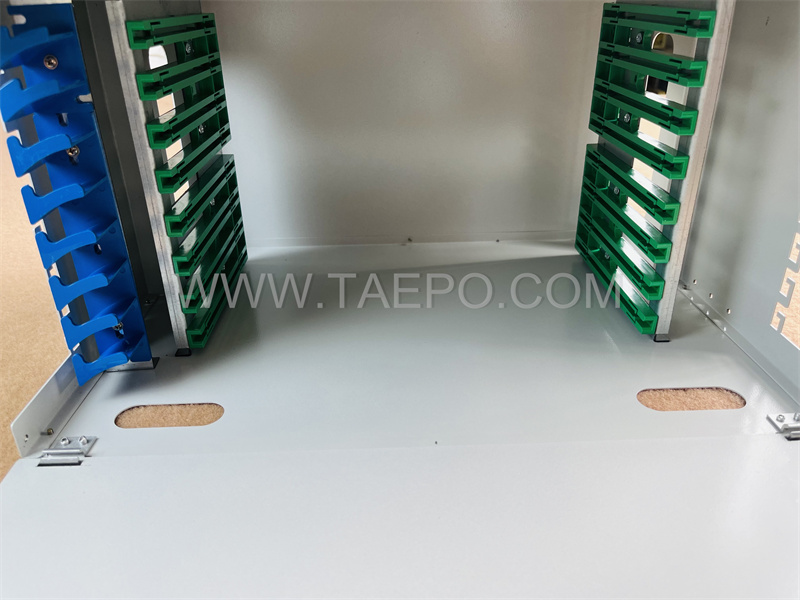

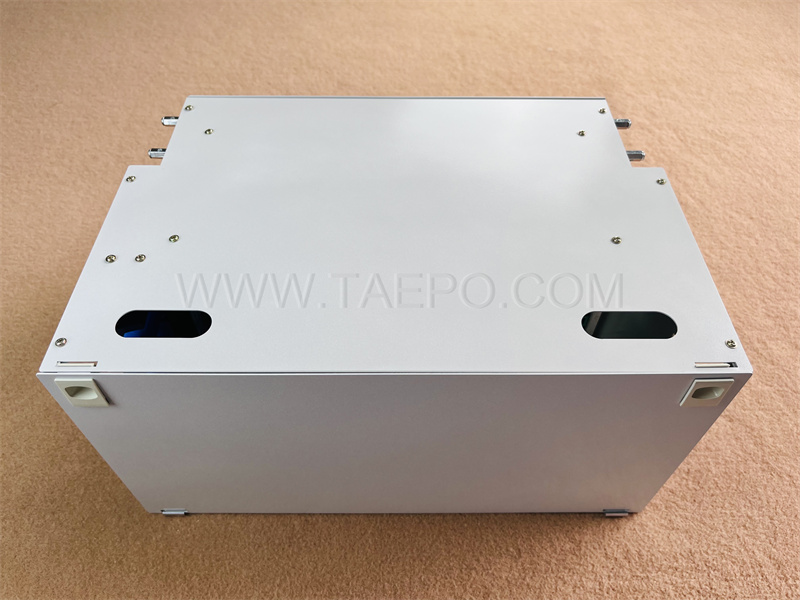

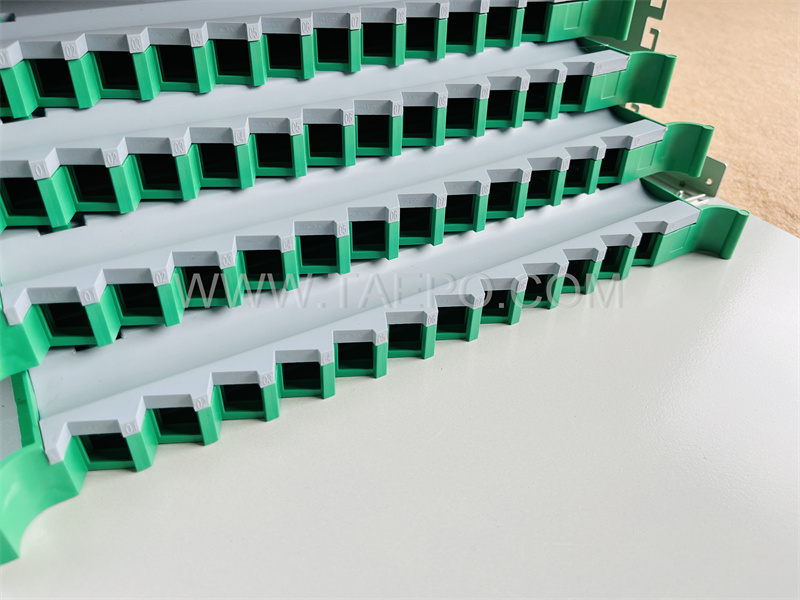

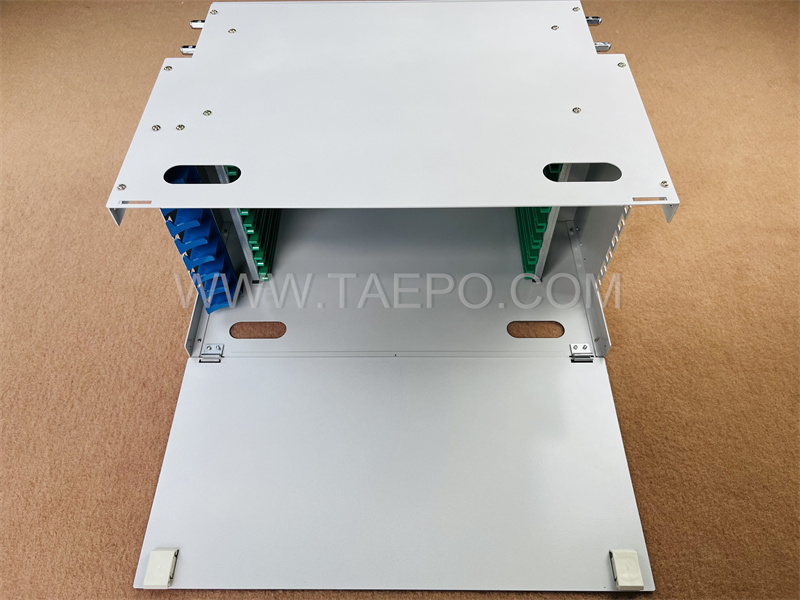

    ILLUSTRATION PICTURES

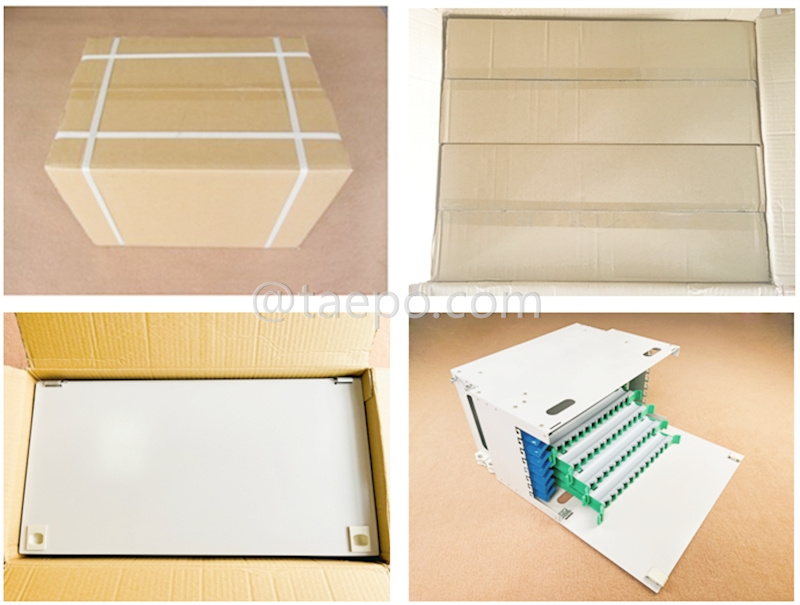

    PACKING PICTURES

    ORDER DATA
