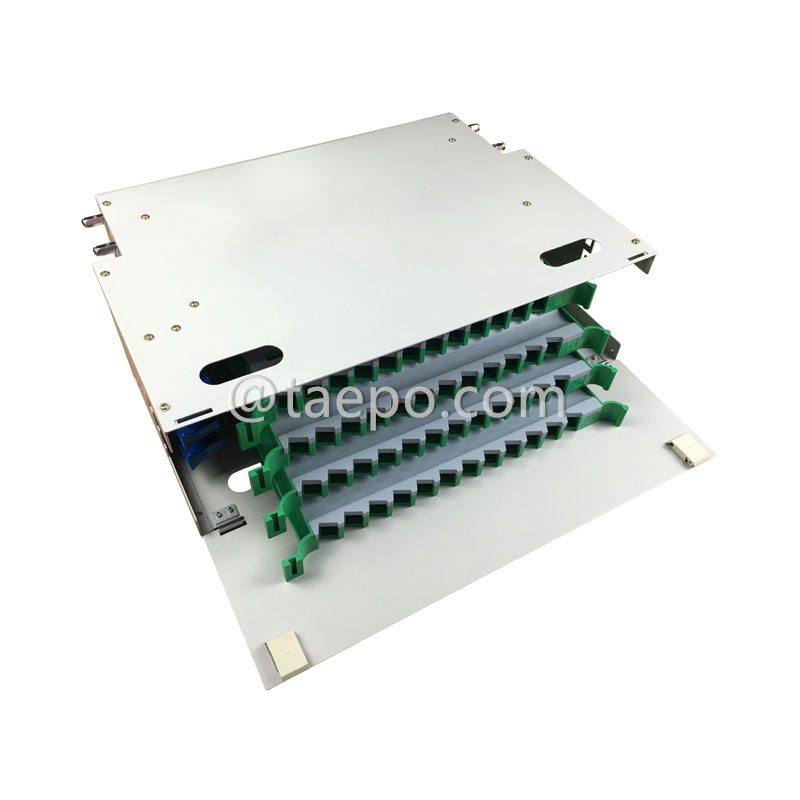

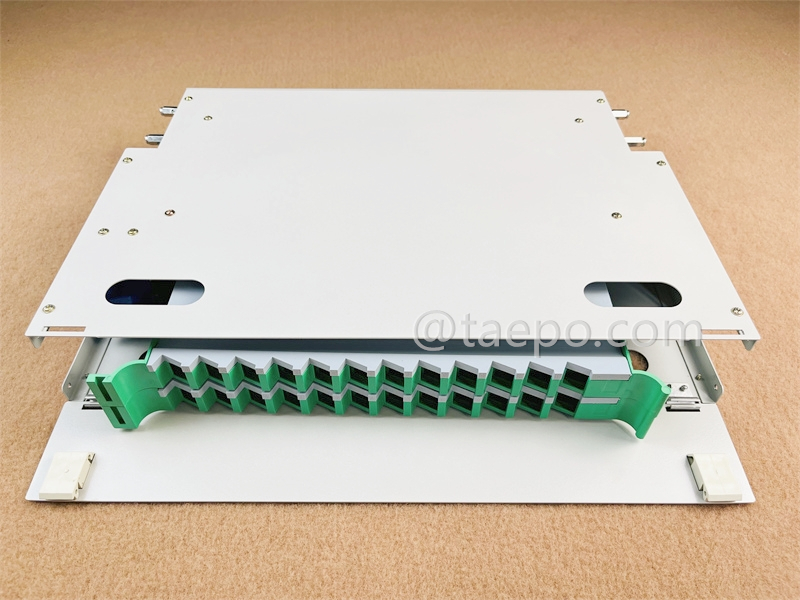

Rack mounted ODF, 19", SC, 48 fibers, plastic guide rail sliding, cold rolling steel housing with powder coating, 485x300x135mm, without adapters, pigtails

TAEPO - Your Trusted Chinese Manufacturer of Rack Mounted ODF with Professional Expertise !
What is Rack Mounted ODF used for?


    DESCRIPTIONS

The rack mounted optical distribution frame (TP-3204-48B) is a 19-inch, high-capacity solution designed for the management of up to 48 fiber optic connections using SC connectors. Featuring a plastic guide rail sliding system, this ODF allows for smooth and easy access to the fiber tray, simplifying installation, maintenance, and upgrades. The housing is constructed from cold-rolled steel and coated with a durable powder finish, ensuring long-term protection against corrosion, environmental factors, and physical wear.

With dimensions of 485x300x135mm, this ODF offers additional depth for improved cable management and accommodates high-density fiber configurations in telecommunications, data centers, and enterprise networks. The unit is supplied without adapters and pigtails, providing flexibility for custom configuration based on specific network needs. Its user-friendly sliding tray and compact design make it an ideal choice for large-scale fiber optic networks where reliability, organization, and ease of access are crucial.

This 48-fiber capacity ODF is engineered to meet the demands of modern networking environments, providing efficient fiber management while protecting fiber connections and ensuring system performance.

    MAIN FEATURES

• 19-Inch Rack Mountable: Standard 19-inch size for easy installation in network racks.
• 48 Fiber Capacity: Supports up to 48 SC connectors, ideal for high-density fiber optic installations.
• Plastic Guide Rail Sliding: Smooth sliding tray with plastic guide rails for easy access during maintenance.
• Cold-Rolled Steel Construction: Strong, durable steel housing for structural integrity.
• Powder Coating: Resistant to corrosion, scratches, and environmental wear.
• Dimensions: 485x300x135mm: Larger depth for enhanced cable management.
• No Adapters Included: Allows for custom adapter installation tailored to specific network requirements.
• No Pigtails Included: Flexibility to select and install pigtails as per the fiber optic configuration.
• SC Connector Support: Compatible with industry-standard SC connectors.
• User-Friendly Sliding Tray: Easy-to-use sliding tray for quick access to fiber optic connections.
• Enhanced Cable Protection: Designed to protect fibers from bending, stress, and physical damage.
• High-Density Fiber Management: Accommodates up to 48 fibers, ensuring organized and efficient fiber routing.
• Durable Design: Powder-coated finish ensures longevity in both controlled and harsh environments.
• Flexible Configuration: Customizable based on network demands, with adapters and pigtails installed as needed.
• Ventilated Design: Passive airflow design to prevent overheating and maintain optimal performance.
• Compact but Spacious: Provides ample room for cable management without consuming excessive rack space.
• Cost-Effective Solution: High-performance ODF at a competitive price, ideal for large networks.
• Reliable Performance: Ensures stable and protected fiber connections for minimal signal loss.

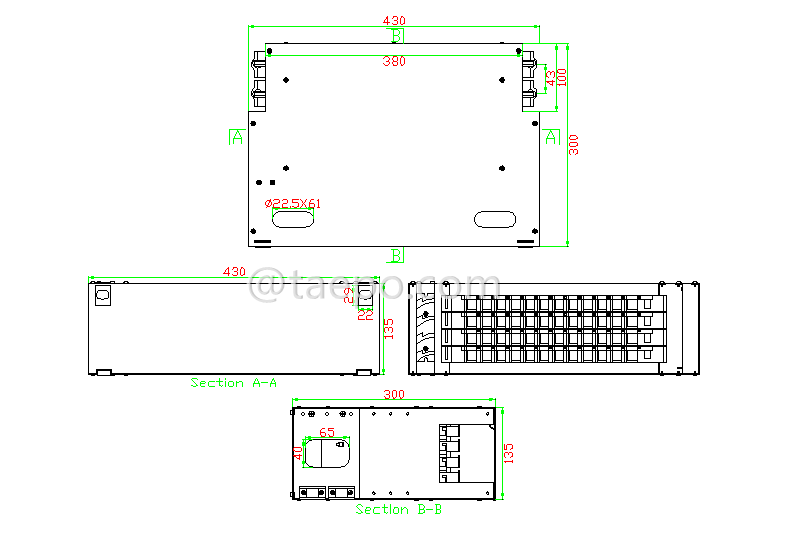

    SCHEMATIC DIAGRAMS

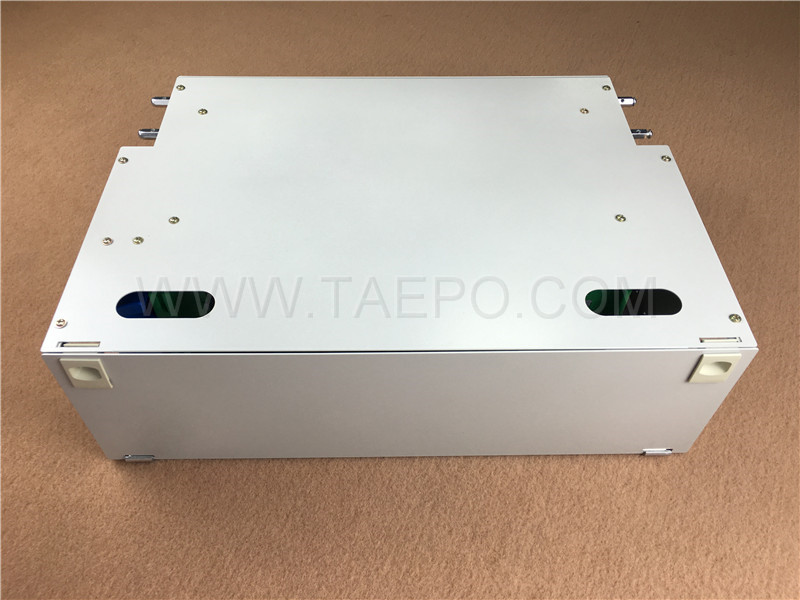

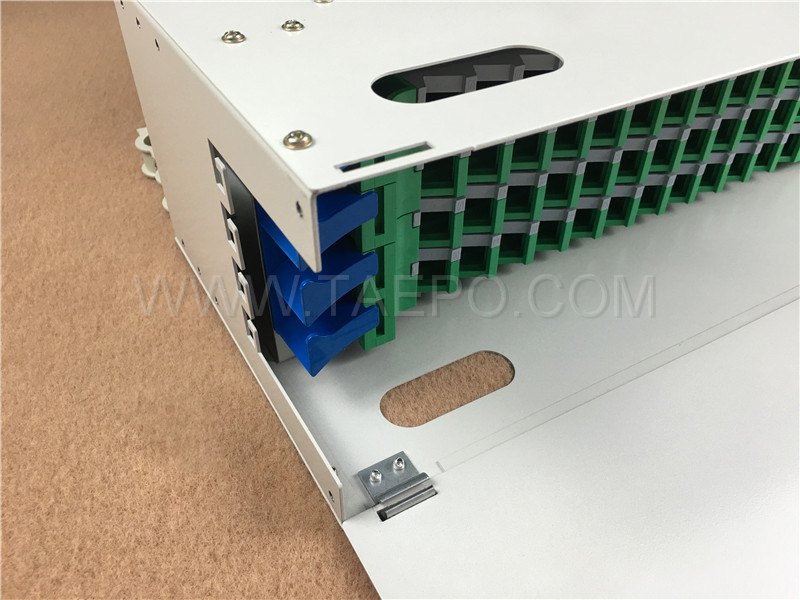

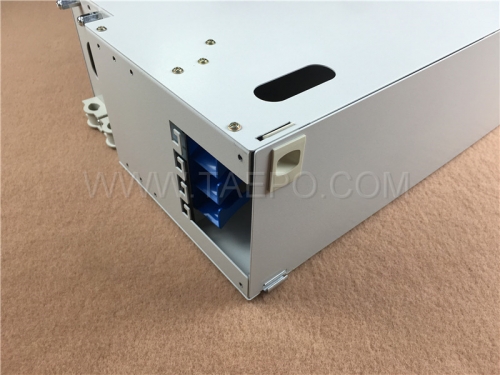

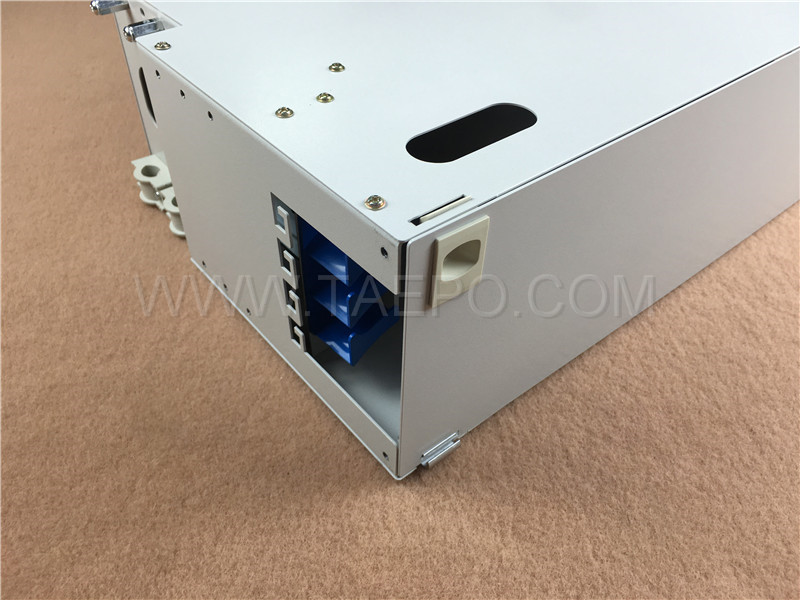

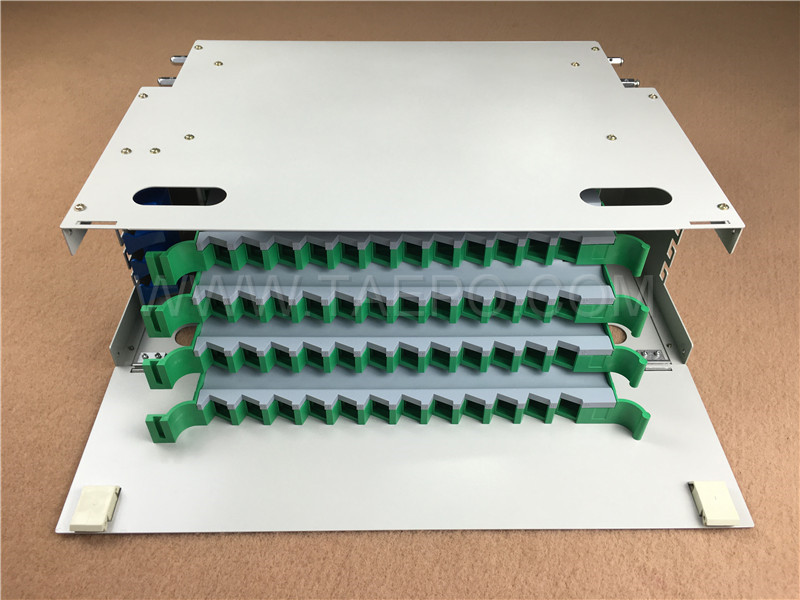

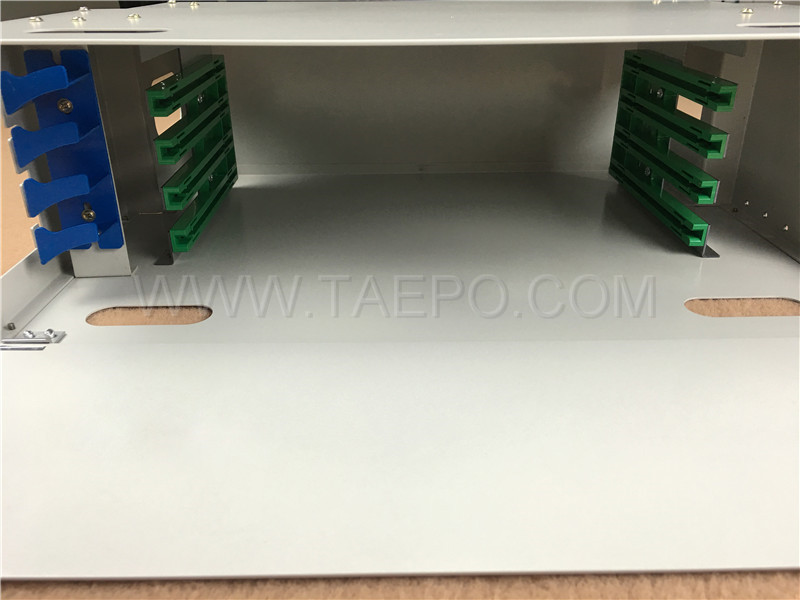

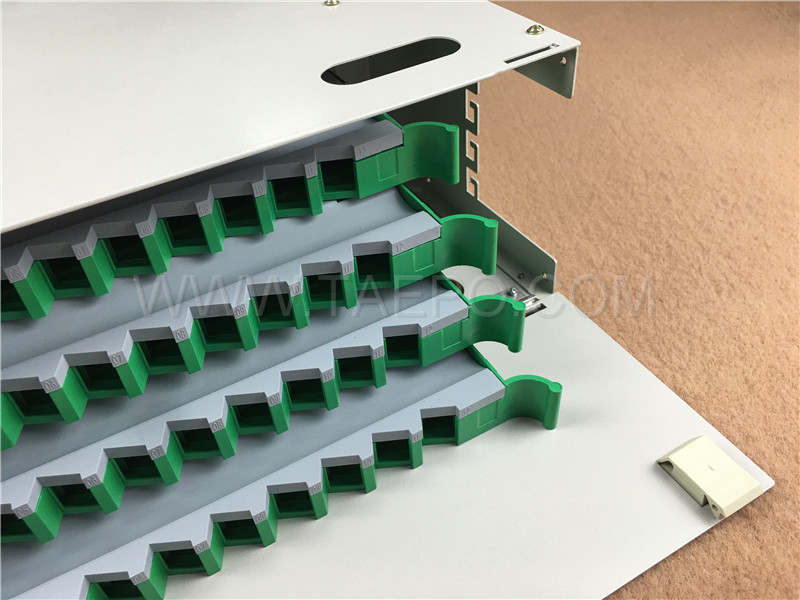

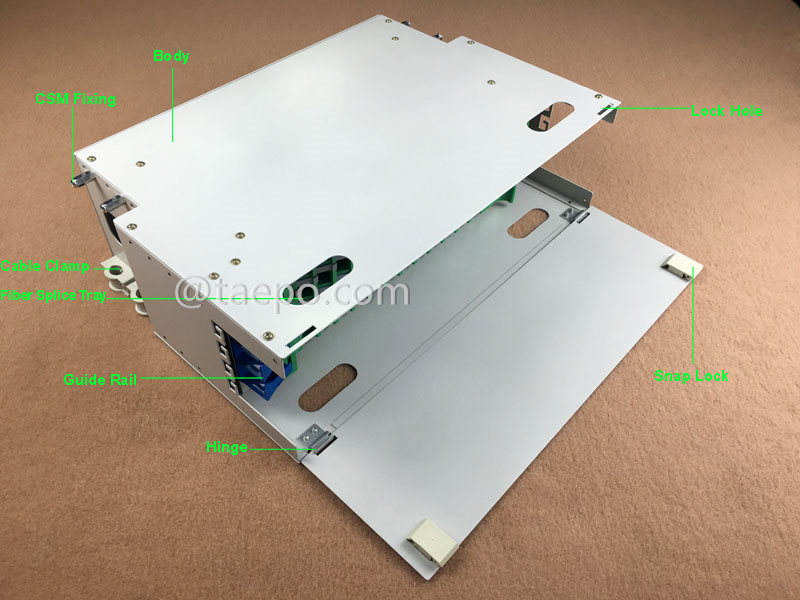

    ILLUSTRATION PICTURES

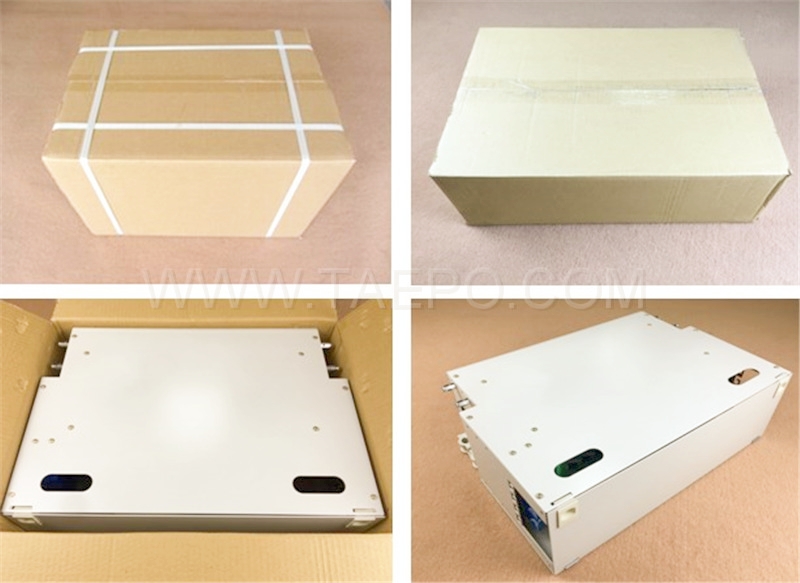

    PACKING PICTURES

    ORDER DATA
