Rack mounted ODF, 19", 4U, SC, 96 fibers, sliding without guiding rail, cold rolling steel housing with powder coating

TAEPO - Your Go-To Chinese Manufacturer for Rack mounted ODF, Professional Engineering Meets Timely Delivery !
What does Rack mounted ODF mean?

    DESCRIPTIONS

The rack mounted optical distribution frame (TP-3202-96C) is a 19-inch, 4U solution designed for high-capacity fiber optic cable management. It accommodates up to 96 fibers using SC connectors, making it ideal for large-scale telecommunications, data center, and enterprise network installations. The sliding tray design without guiding rails allows easy access for fiber maintenance, installations, and upgrades, making it highly efficient for network management in demanding environments.

Built with cold-rolled steel and finished with powder coating, this ODF offers enhanced durability and protection against environmental factors such as corrosion and physical damage. The compact dimensions of 485x200mm allow it to fit into standard 19-inch rack systems, optimizing space in environments where high-density cabling is required. With no pre-installed adapters or pigtails, users can customize the unit according to specific network needs, providing flexibility and scalability.

This 4U ODF is designed to provide efficient fiber organization and management while protecting the cables from damage, ensuring network reliability. It is an ideal solution for expanding fiber optic networks in large infrastructures, delivering high performance and streamlined operations.

    MAIN FEATURES

• 19-Inch Rack Mountable: Standardized size for easy integration into 19-inch racks.
• 4U Height: Larger 4U unit allows for high-capacity fiber management.
• 96 Fiber Capacity: Accommodates up to 96 SC connectors for extensive fiber optic installations.
• Sliding Tray: Smooth, easy-to-use sliding mechanism for quick access during maintenance.
• No Guiding Rail: Simplified design without the need for guiding rails.
• Cold-Rolled Steel Housing: Sturdy steel construction ensures long-term durability and protection.
• Powder Coating: Powder-coated finish provides resistance to corrosion, scratches, and wear.
• Dimensions: 485x200mm: Compact footprint for high-density networking environments.
• No Adapters Included: Users can install adapters according to specific network requirements.
• No Pigtails Included: Flexibility to select and install pigtails based on fiber network configuration.
• SC Connector Compatibility: Designed for SC connectors, widely used in fiber optic networks.
• Efficient Fiber Management: Maximizes space while organizing and protecting fiber connections.
• High Density: Supports high fiber density, ideal for large-scale or complex networks.
• User-Friendly Sliding Tray: Allows easy access for cable installation, maintenance, and upgrades.
• Enhanced Durability: Constructed to withstand environmental and mechanical stresses.
• Customizable Configuration: Flexibility in choosing adapters and pigtails tailored to project needs.

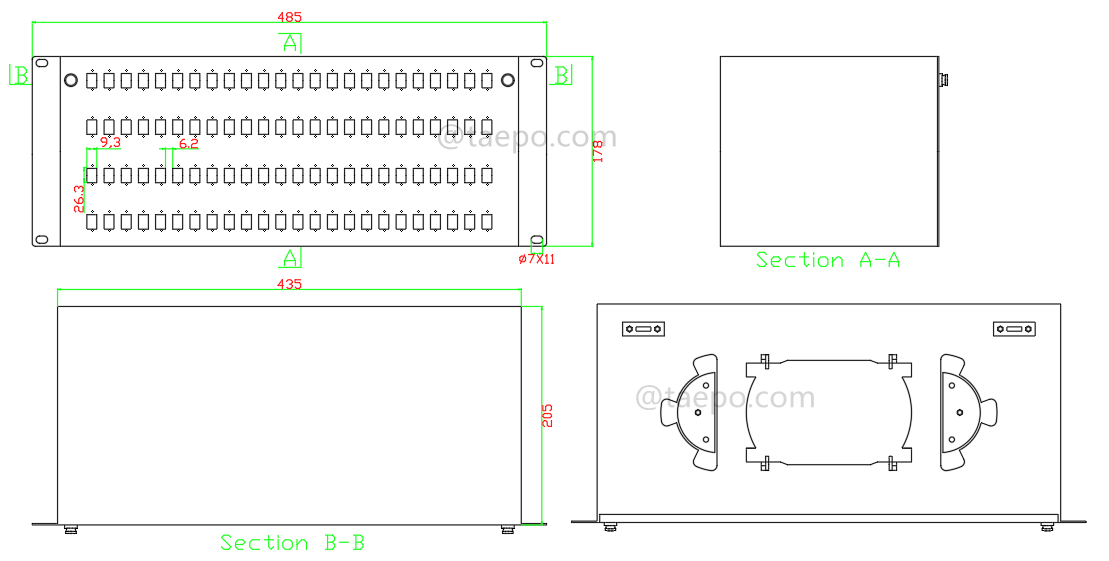

    SCHEMATIC DIAGRAMS

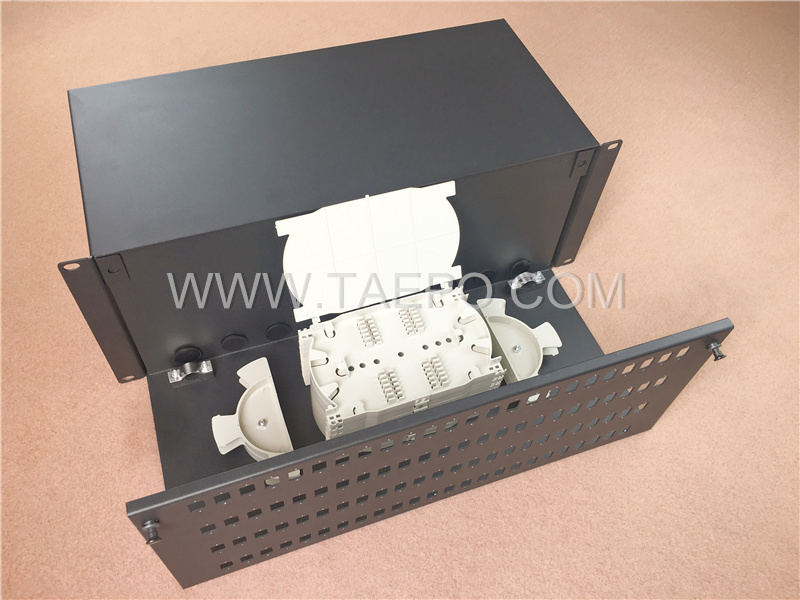

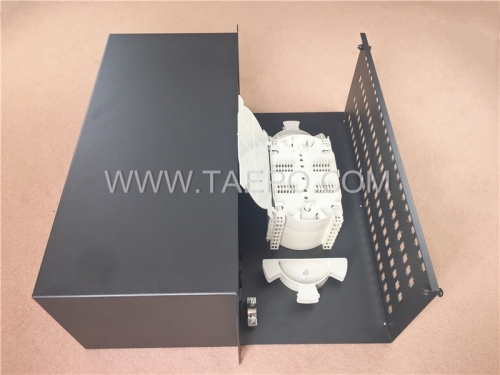

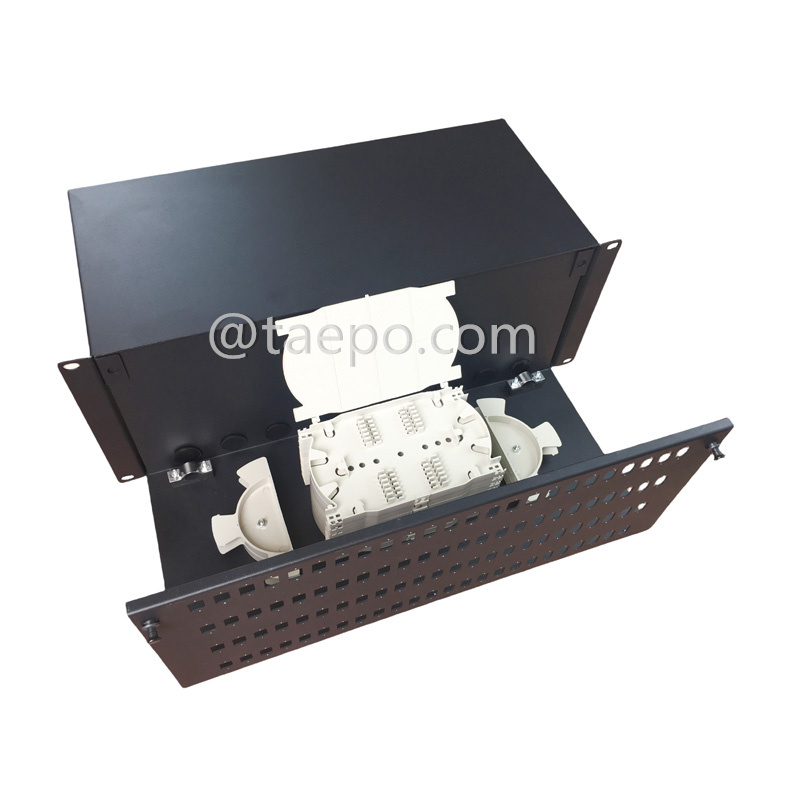

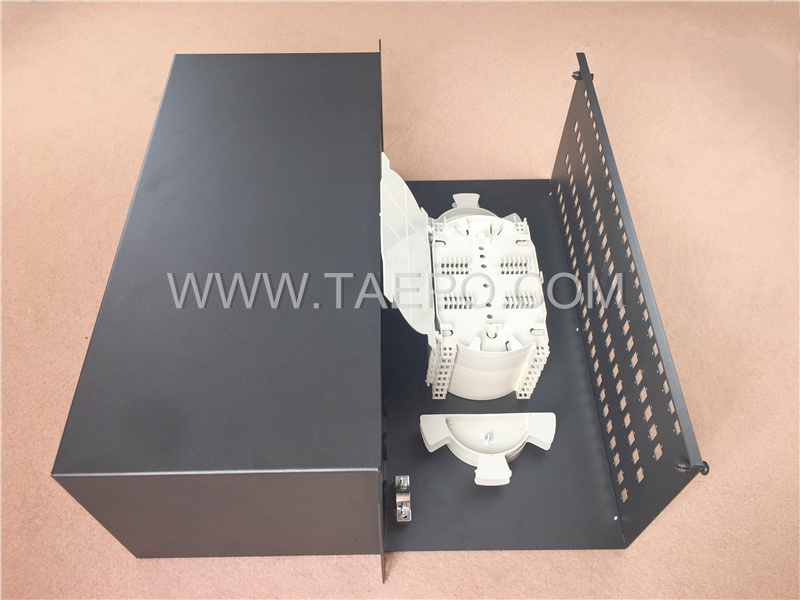

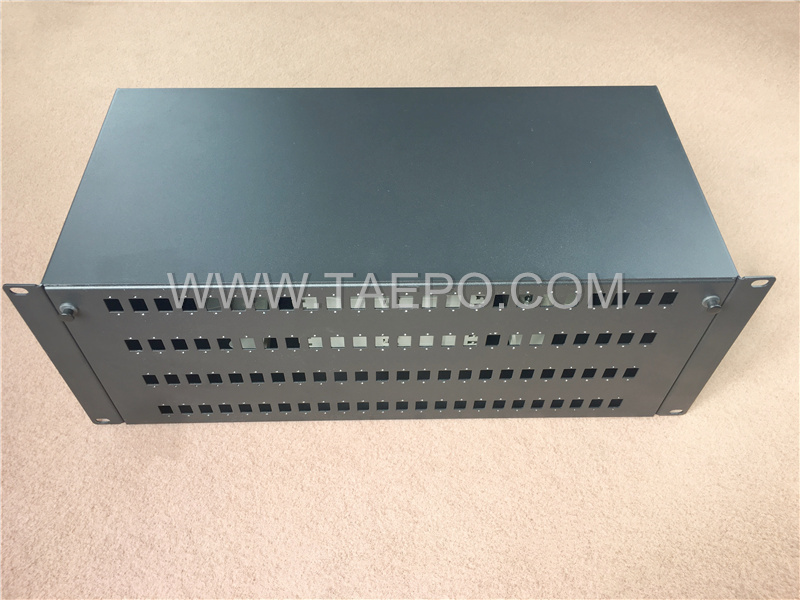

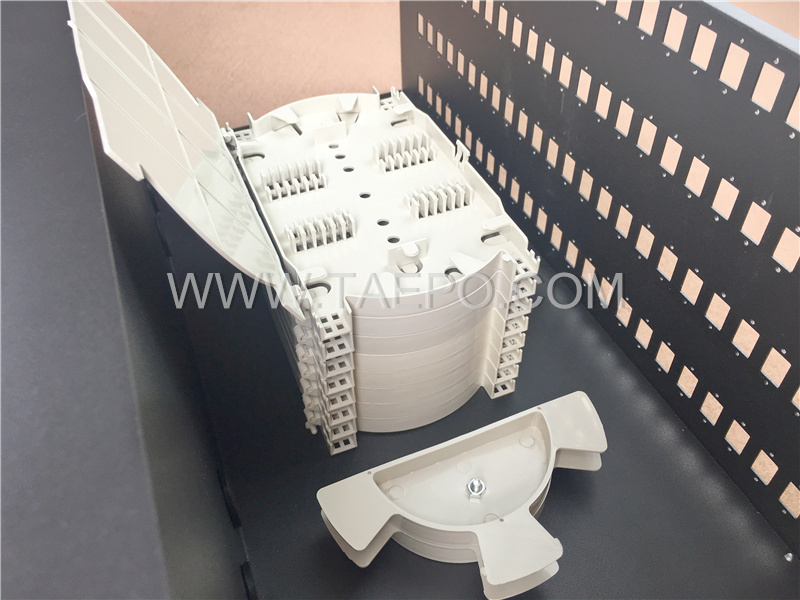

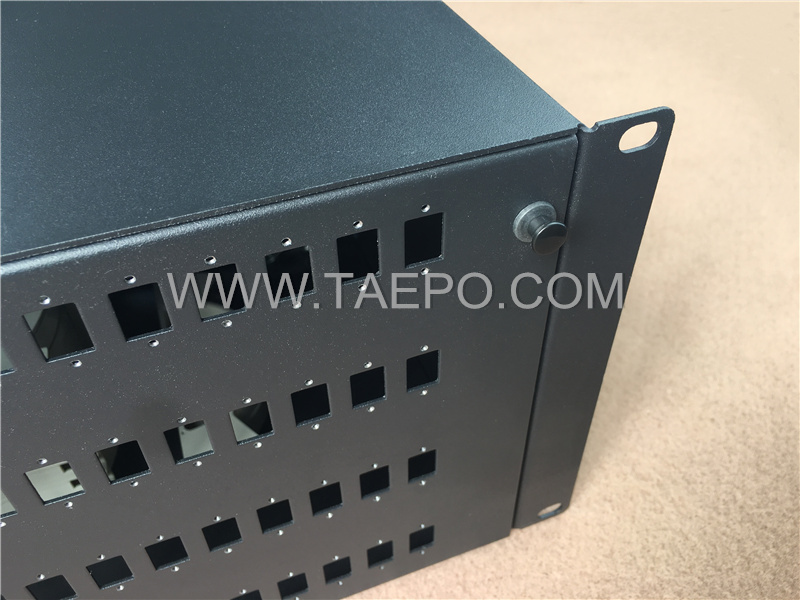

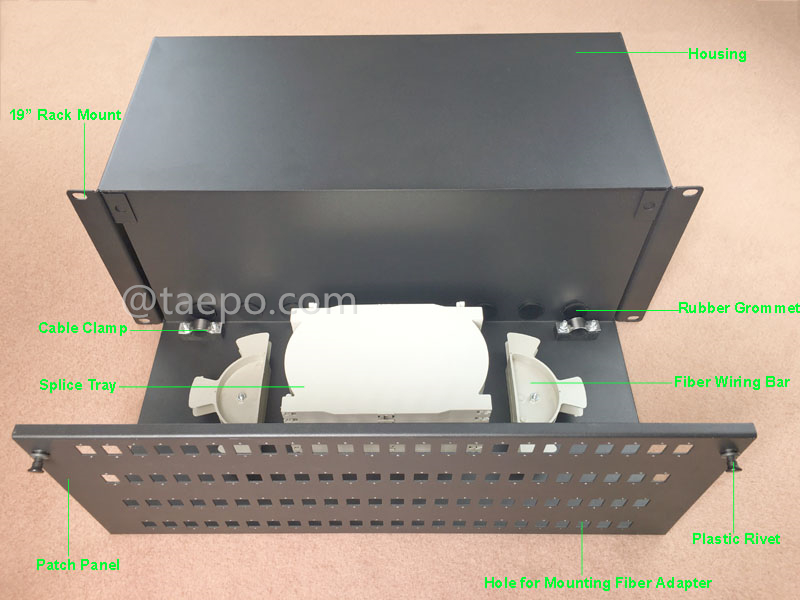

    ILLUSTRATION PICTURES

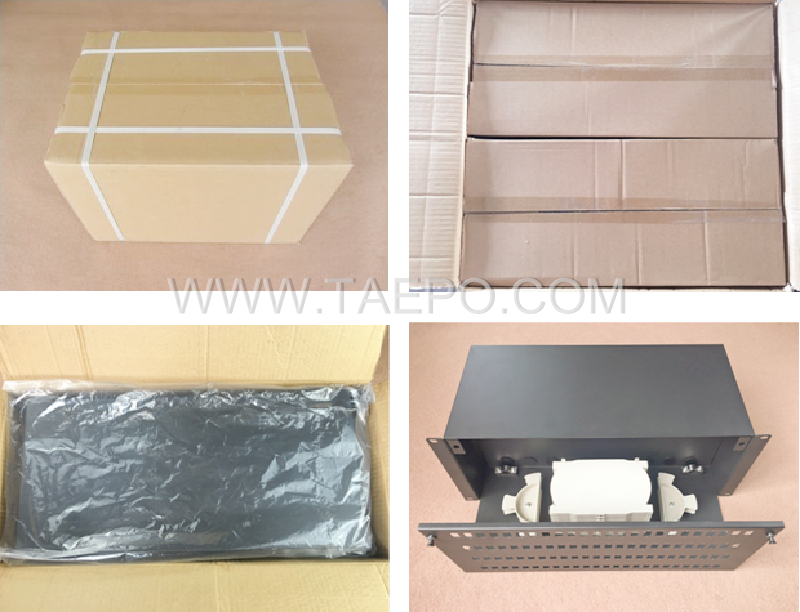

    PACKING PICTURES

    ORDER DATA
