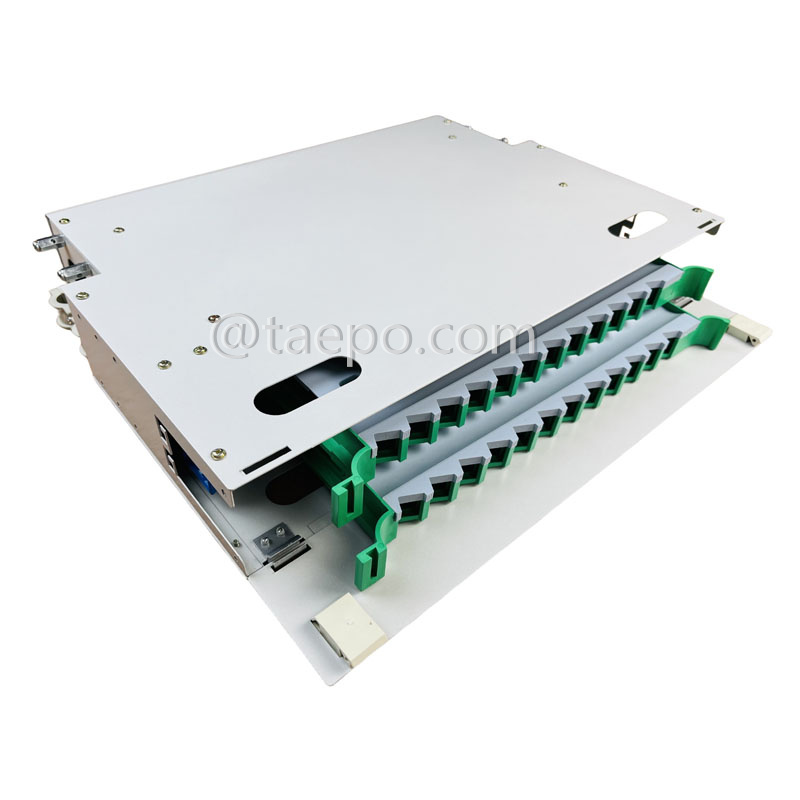

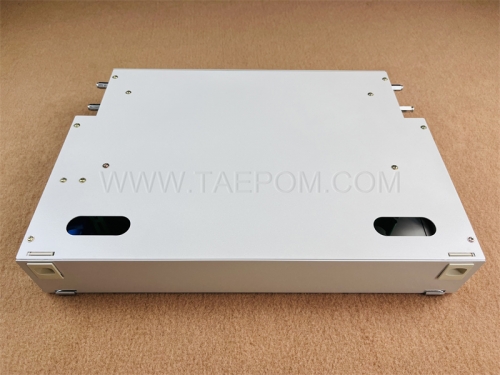

Rack mounted ODF, 19", SC, 24 fibers, plastic guide rail sliding, cold rolling steel housing with powder coating

TAEPO - Professional Chinese Manufacturer Delivering 19 Inch Rack Mounted ODF with Reliable Performance !
What does Rack Mounted ODF do?


    DESCRIPTIONS

The rack mounted optical distribution frame (TP-3204-24B) is a compact and efficient 19-inch unit designed for managing up to 24 fiber connections using SC connectors. Equipped with a sliding tray mounted on plastic guide rails, this ODF allows for easy access and maintenance of fiber optic cables. The cold-rolled steel housing with a durable powder-coated finish ensures the unit is resistant to corrosion, wear, and environmental factors, making it suitable for long-term use in both indoor and controlled environments.

With dimensions of 485x300x70mm, this ODF fits perfectly into standard 19-inch rack systems while providing additional depth for better cable management. The plastic guide rails make sliding operations smooth and effortless, allowing technicians to work quickly during installation or troubleshooting. As this unit is provided without adapters or pigtails, users can customize the configuration based on specific networking requirements, giving flexibility in component selection.

This ODF is ideal for medium-scale fiber optic installations in telecommunications, data centers, and enterprise networks, offering efficient cable organization and reliable protection in a compact design.

    MAIN FEATURES

• 19-Inch Rack Mountable: Standard size for easy installation into 19-inch network racks.
• 24 Fiber Capacity: Supports up to 24 SC connectors for fiber optic cabling.
• Plastic Guide Rail Sliding: Smooth sliding mechanism with plastic guide rails for easy tray access.
• Cold-Rolled Steel Housing: Made from durable cold-rolled steel for structural strength.
• Powder Coating: Resistant to corrosion, scratches, and environmental wear.
• Compact Design: Dimensions of 485x300x70mm for optimal space usage in rack systems.
• No Adapters Included: Allows for customizable adapter installation according to project needs.
• No Pigtails Included: Flexibility to choose pigtails based on specific fiber configurations.
• SC Connector Support: Compatible with standard SC connectors for fiber optics.
• User-Friendly Tray: Sliding tray mechanism makes it easy to install and maintain fiber cables.
• Enhanced Cable Management: Designed to provide organized fiber routing and protection.
• Durable Construction: Powder-coated steel ensures long-lasting protection in demanding environments.
• Efficient Fiber Organization: Keeps fiber optic cables secure and organized.
• Customizable Configuration: Users can configure the ODF according to specific network setups.
• Rack Compatibility: Fits seamlessly into any standard 19-inch rack for network and server setups.
• Minimal Maintenance: Durable construction requires less frequent maintenance or repairs.
• Cost-Effective Solution: Offers robust features at a reasonable cost, ideal for mid-sized installations.

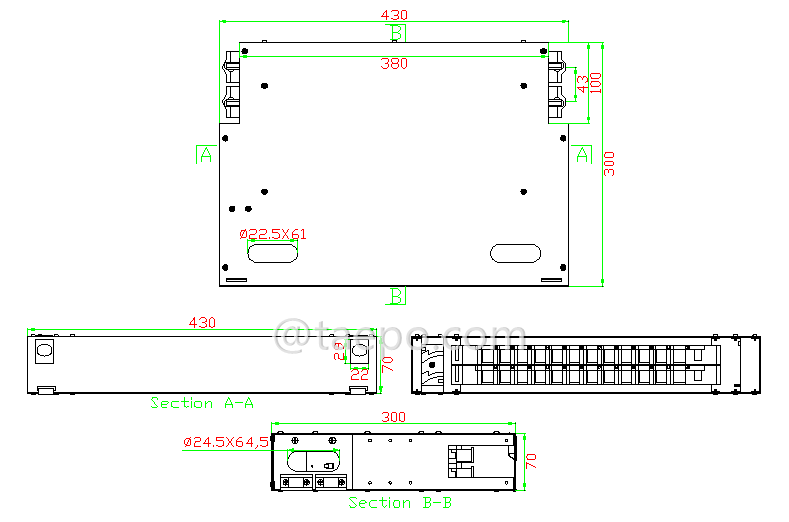

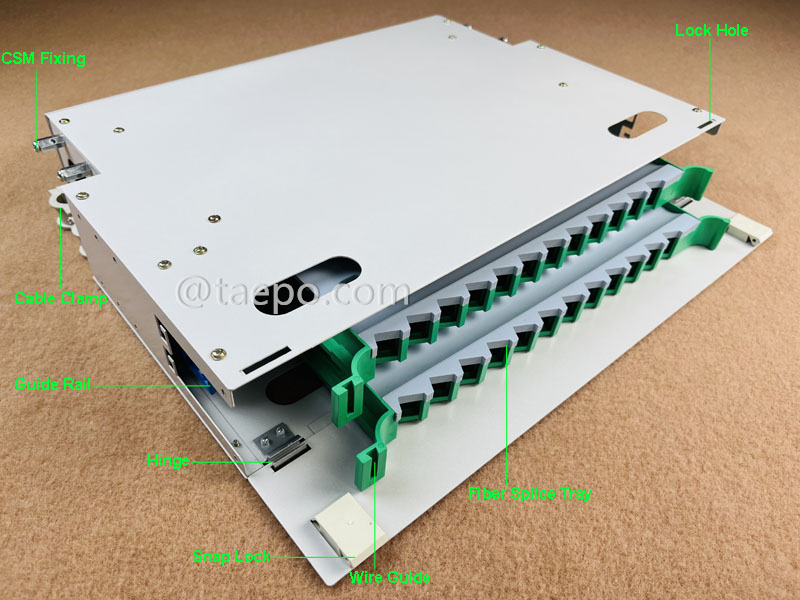

    SCHEMATIC DIAGRAMS

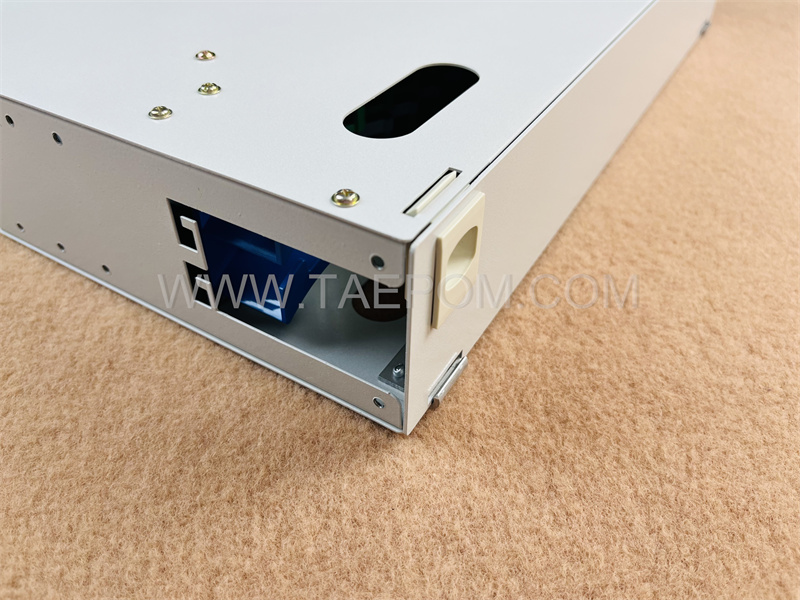

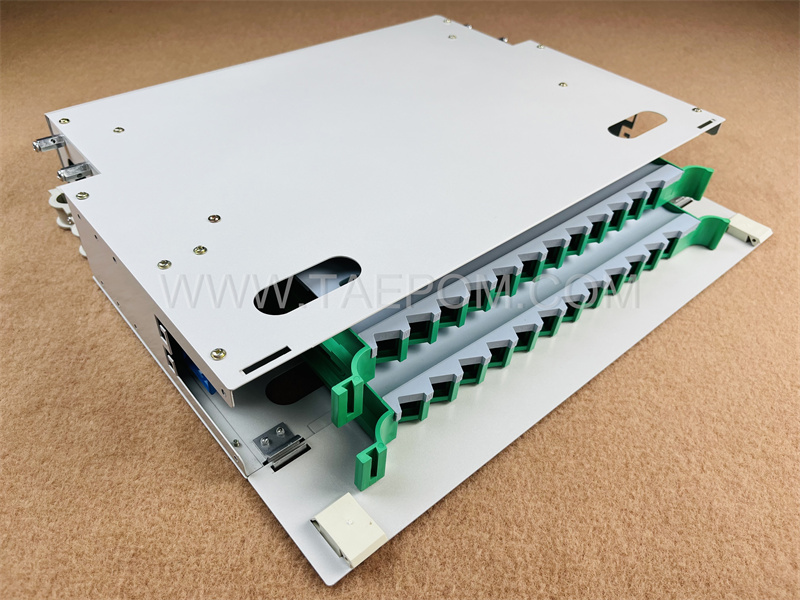

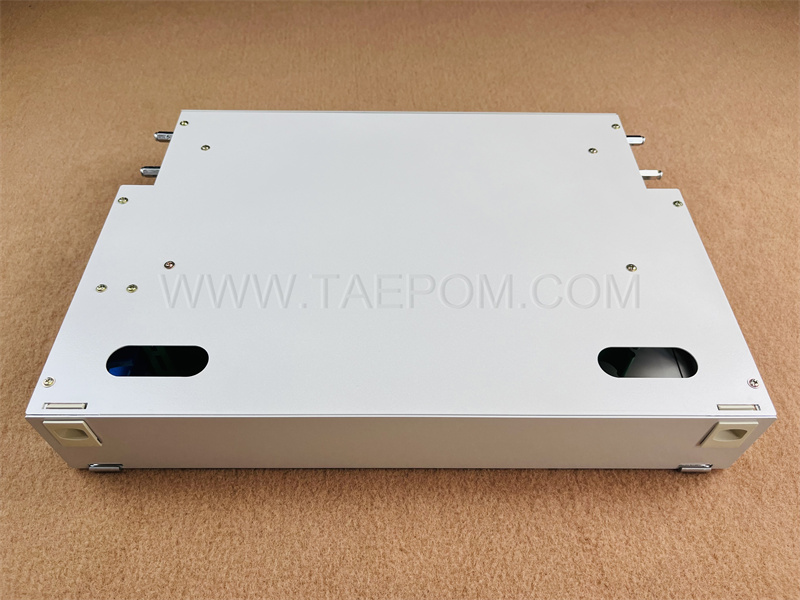

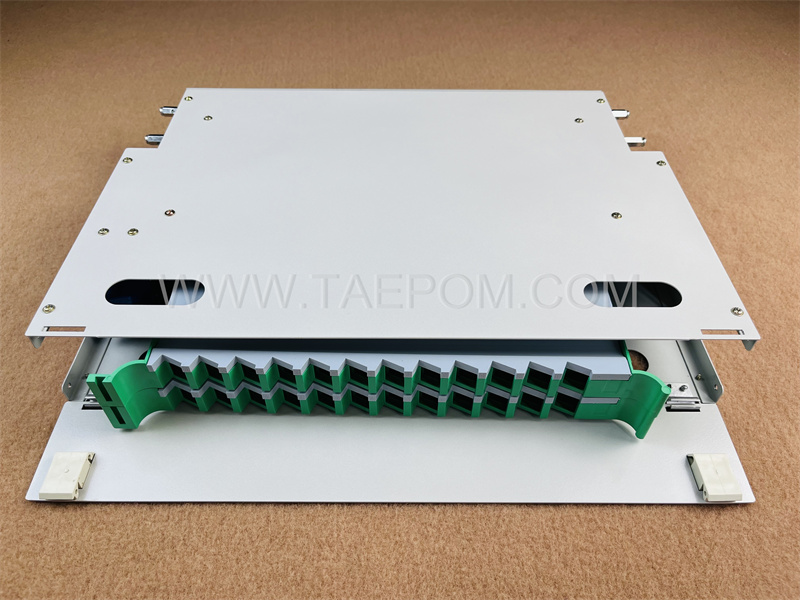

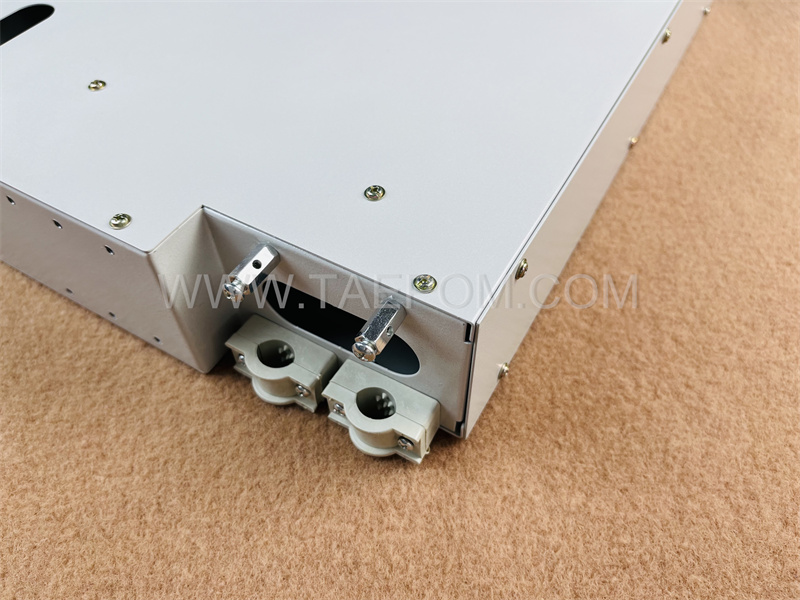

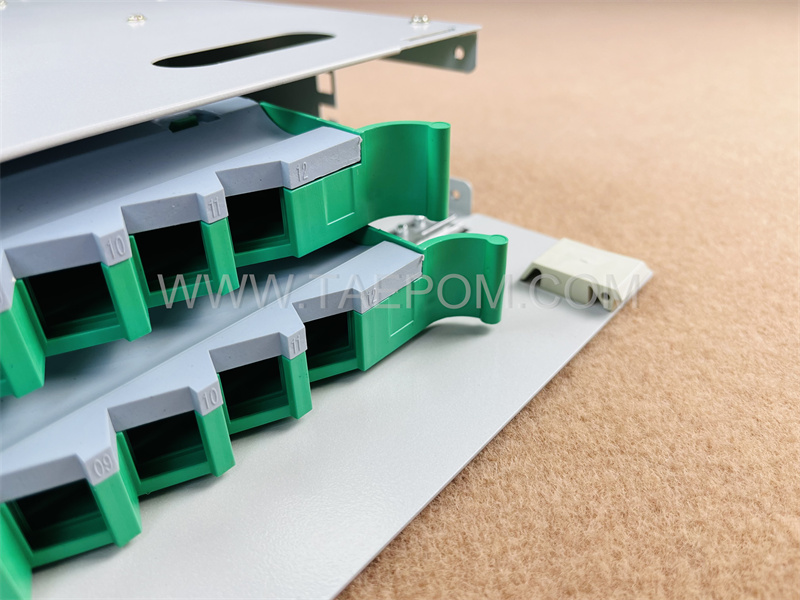

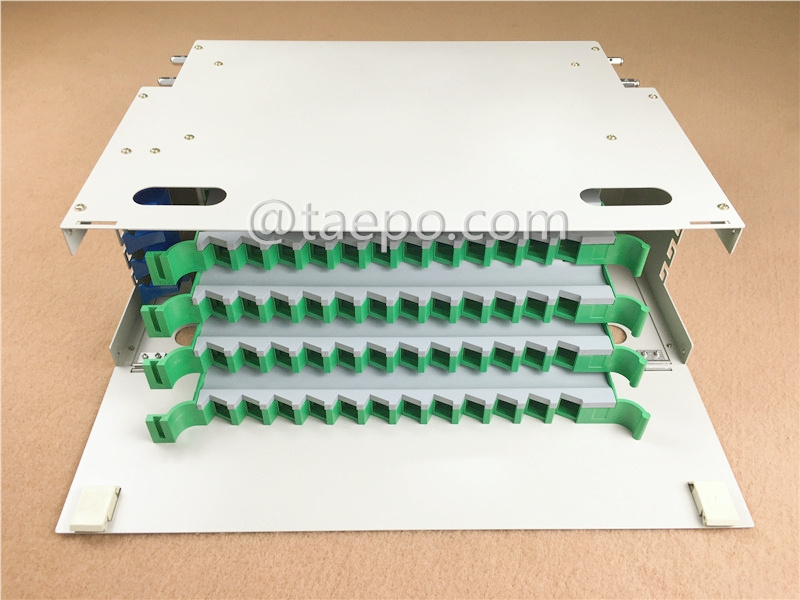

    ILLUSTRATION PICTURES

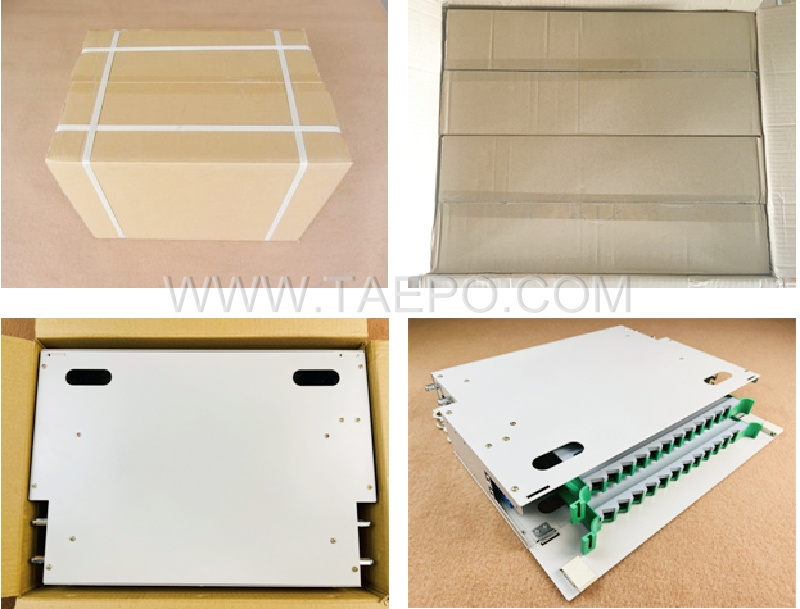

    PACKING PICTURES

    ORDER DATA
