Descriptions

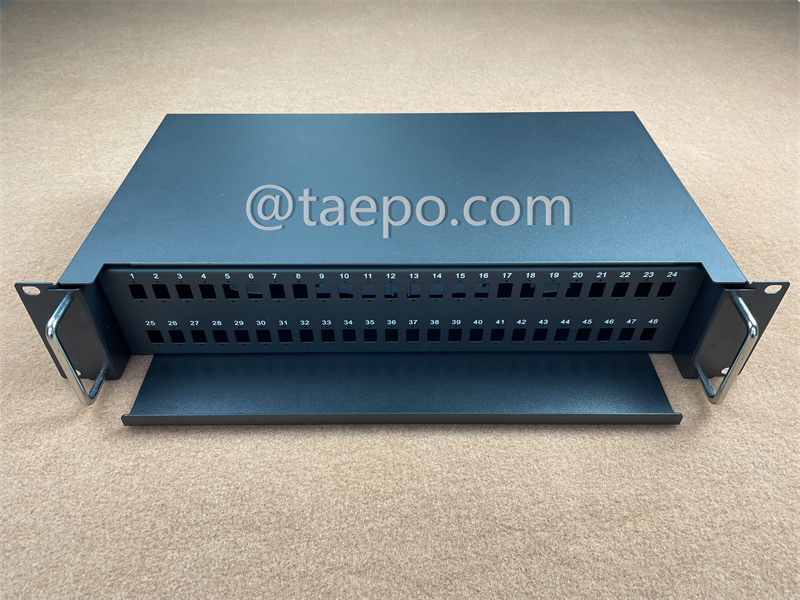

A Metal guide rail sliding 19" 2U SC 48 fibers Rack Mounted Optical Distribution Frame (ODF) is a specific type of ODF designed for organizing and managing fiber optic connections in a networking environment.
It is a networking component designed to fit within a standard 19-inch equipment rack. It features metal guide rails for sliding functionality, accommodates SC fiber optic connectors, has a capacity of up to 48 optical connections, and occupies 2U of vertical rack space. It's suitable for applications requiring easy access and maintenance of fiber optic connections.
Main Features

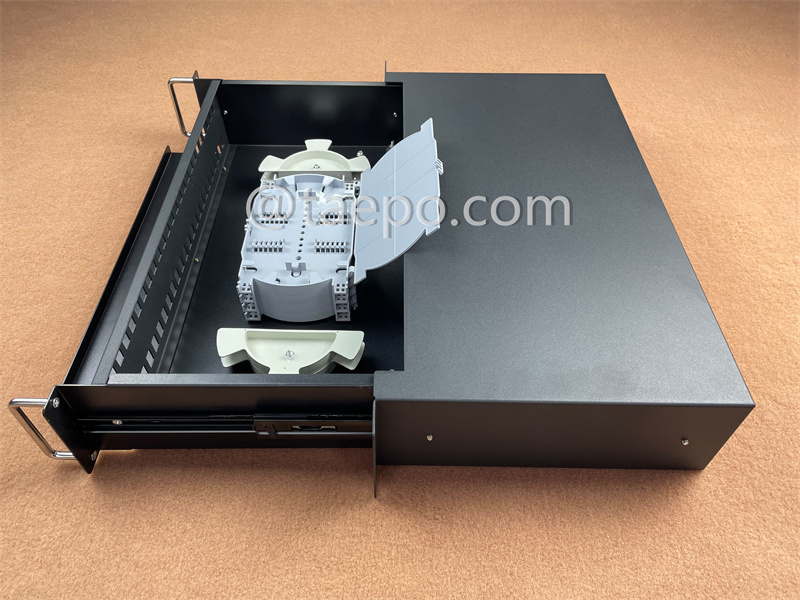

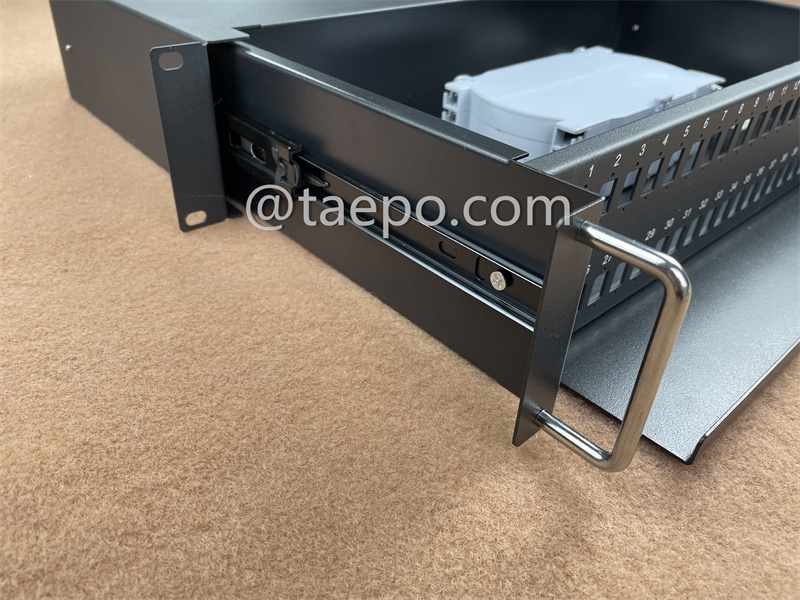

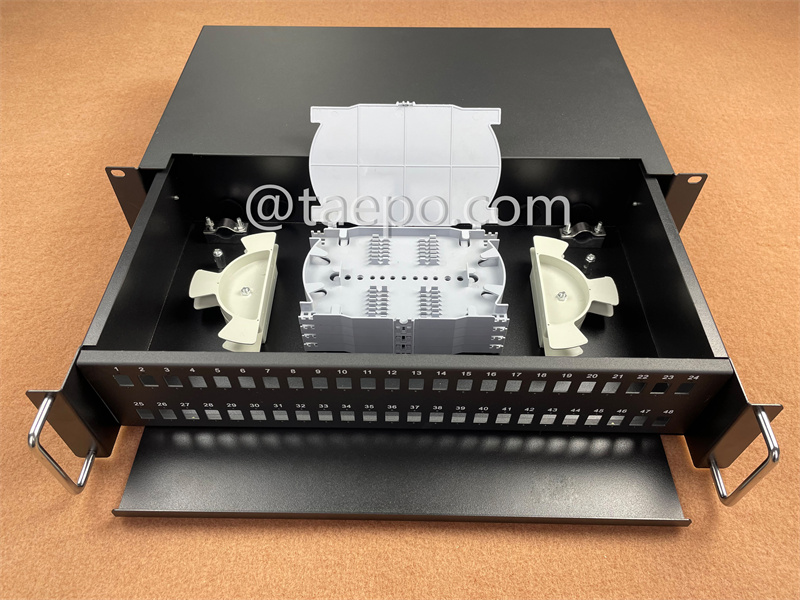

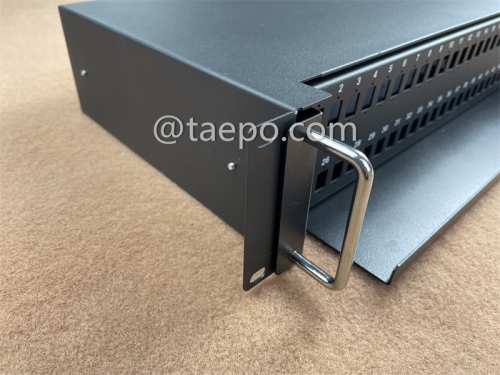

Metal guide rail sliding: This indicates that the ODF is equipped with metal guide rails that allow it to slide in and out of the equipment rack. This sliding feature facilitates easy access to the rear side of the ODF for maintenance, cable management, and connection adjustments without the need to fully remove the ODF from the rack.
19": Similar to previous descriptions, this denotes the width of the ODF, indicating that it is designed to fit within a standard 19-inch equipment rack. This width standardizes its compatibility with rack-mounted equipment commonly used in data centers, telecommunications facilities, and other networking environments.
2U: The "2U" designation refers to the height of the ODF in rack units (U). One rack unit is equal to 1.75 inches (44.45 mm) in height. Therefore, a 2U ODF would occupy 3.5 inches (approximately 88.9 mm) of vertical space on a standard equipment rack. This height specification provides information about the physical size of the ODF.

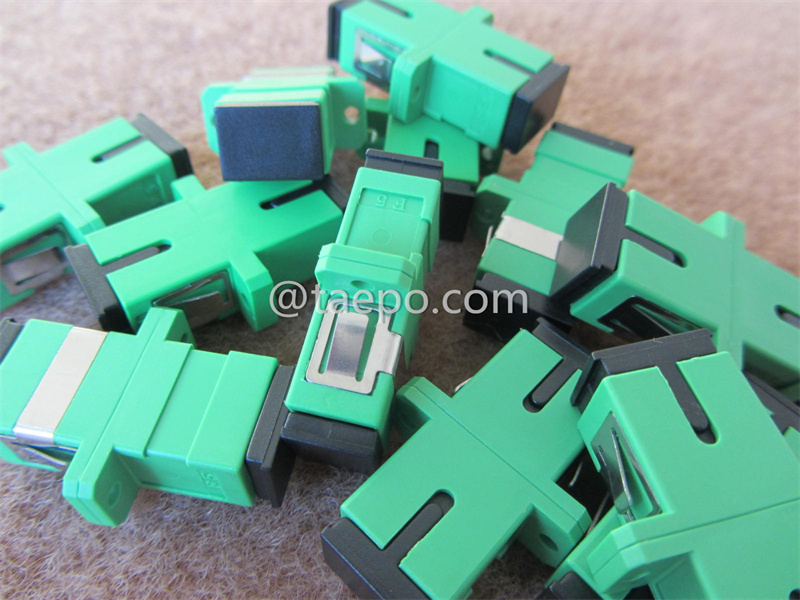

SC: SC stands for Subscriber Connector, which is a type of fiber optic connector widely used for connecting fiber optic cables. The mention of "SC" in the description suggests that the ODF is equipped to accommodate SC connectors for fiber optic connections.
48 fibers: This indicates the capacity of the ODF in terms of the number of individual optical fibers it can accommodate. In this case, the ODF can handle up to 48 separate optical connections. This capacity may vary depending on the density of the connectors and the arrangement within the ODF.
Rack mounted: As with previous descriptions, it means the ODF is designed to be mounted on a standard equipment rack. This facilitates easy installation and integration into existing network infrastructure.

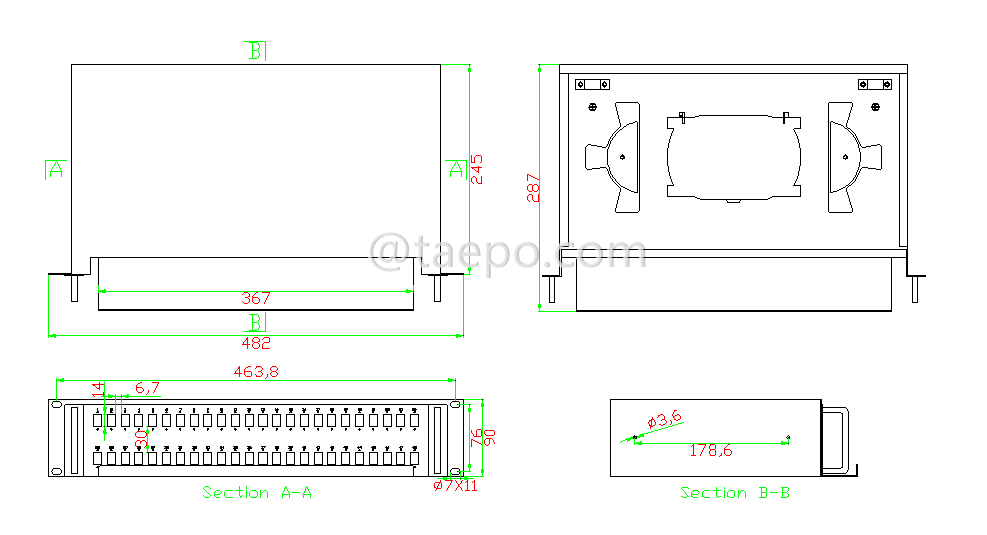

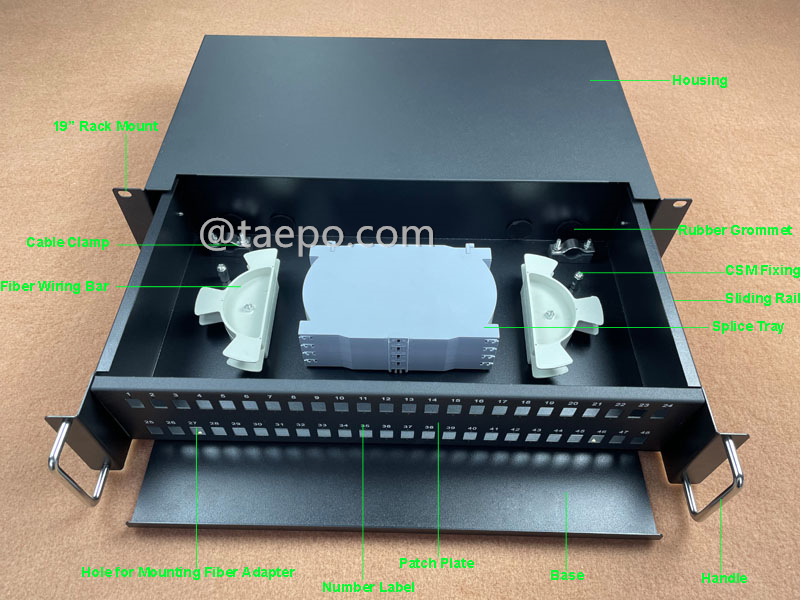

Schematic Diagrams
Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3205-48D |
Rack mounted ODF, 19", 2U, SC, 48 fibers, metal guide rail sliding, cold rolling steel housing with powder coating, 485x340mm, without adapters, pigtails |
