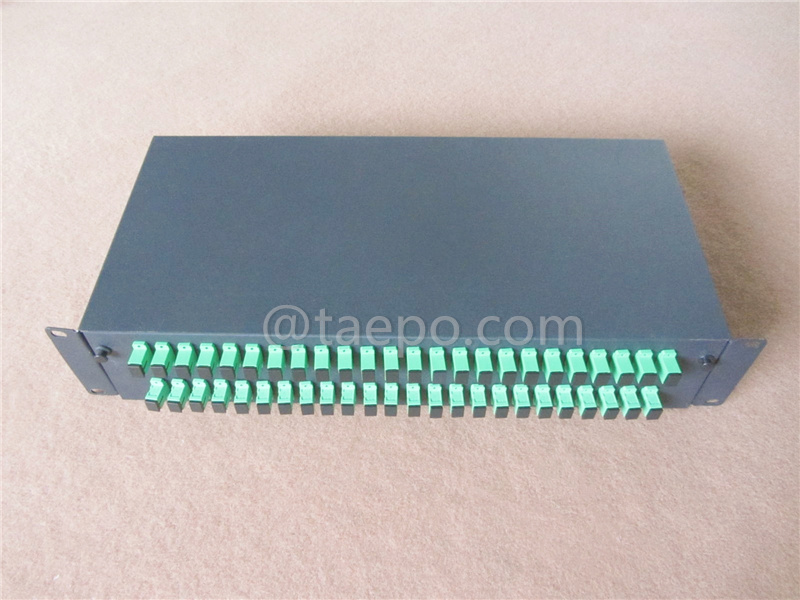

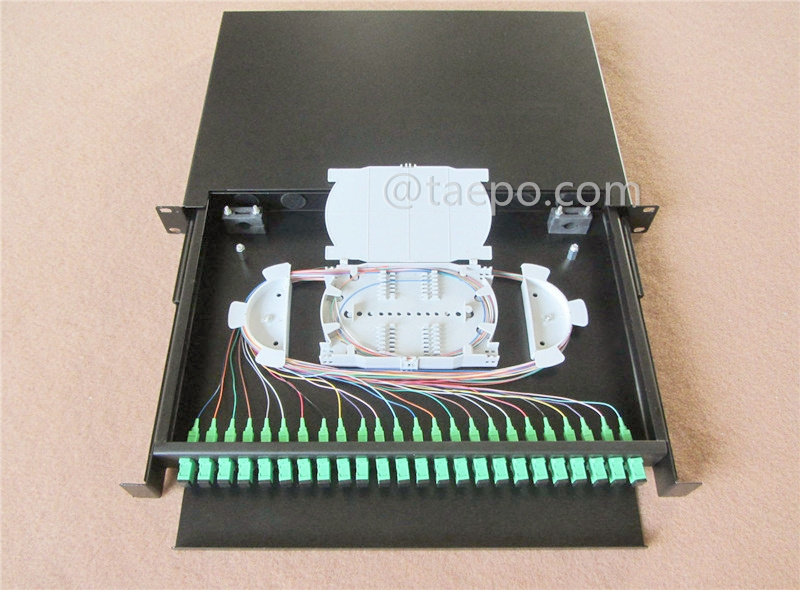

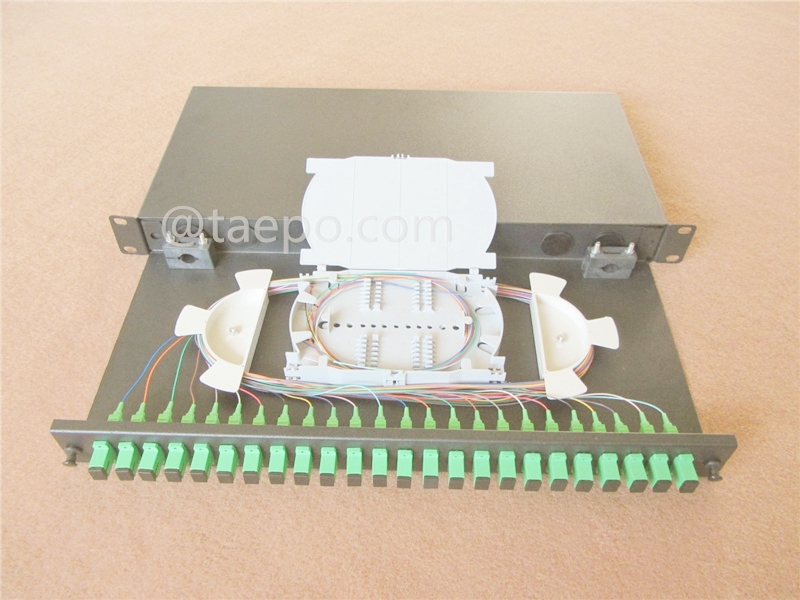

Rack mounted ODF, 19", 2U, SC, 48 fibers, sliding without guiding rail, cold rolling steel housing with powder coating

TAEPO - Your Professional Source for Rack Mounted ODF, Expert Chinese Manufacturing at Its Best !
What is Rack Mounted ODF used for?


    DESCRIPTIONS

Rack mounted optical distribution frame/ODF (TP-3202-48C) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, wiring, termination, adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.

The 3202 ODF is designed to provide a low-profile 2RU compact solution for termination of 48 simplex SC or up to 96 dual LC adapters. At less than 88.90 mm (3.5" height), the panel fits easily into one unit of rack space.

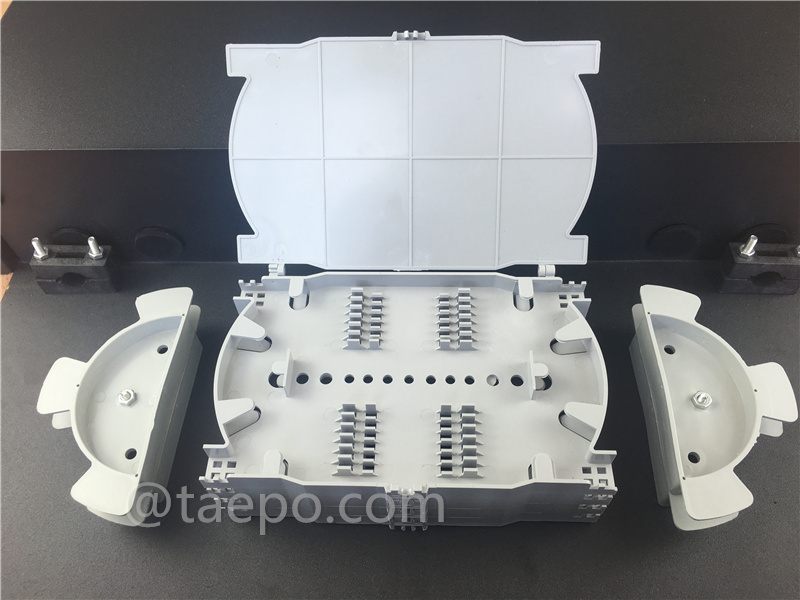

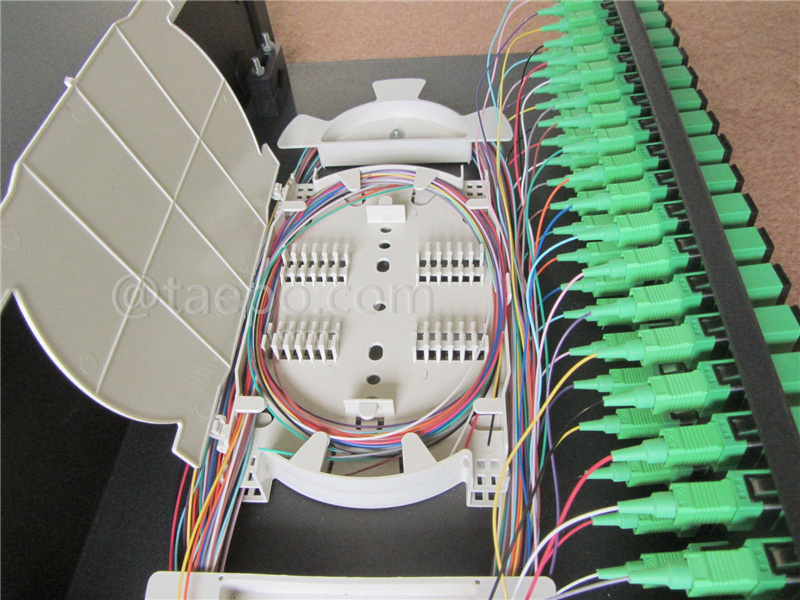

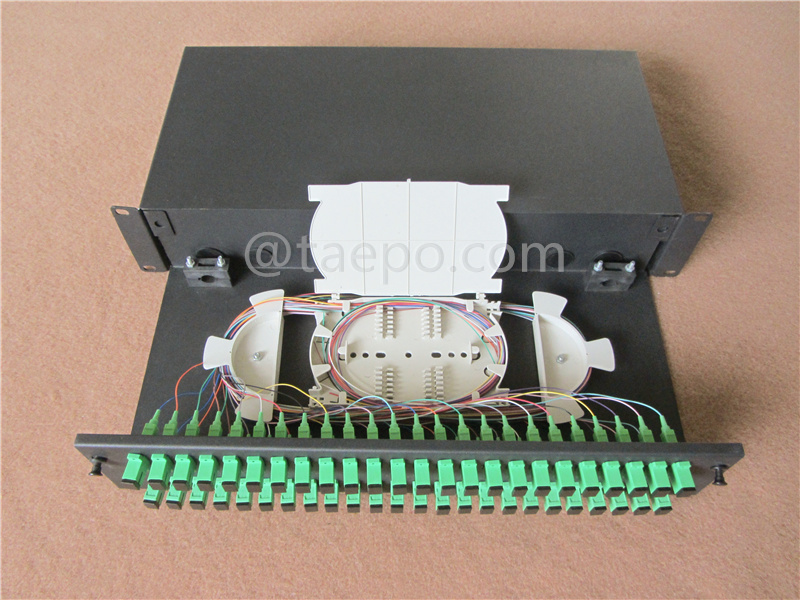

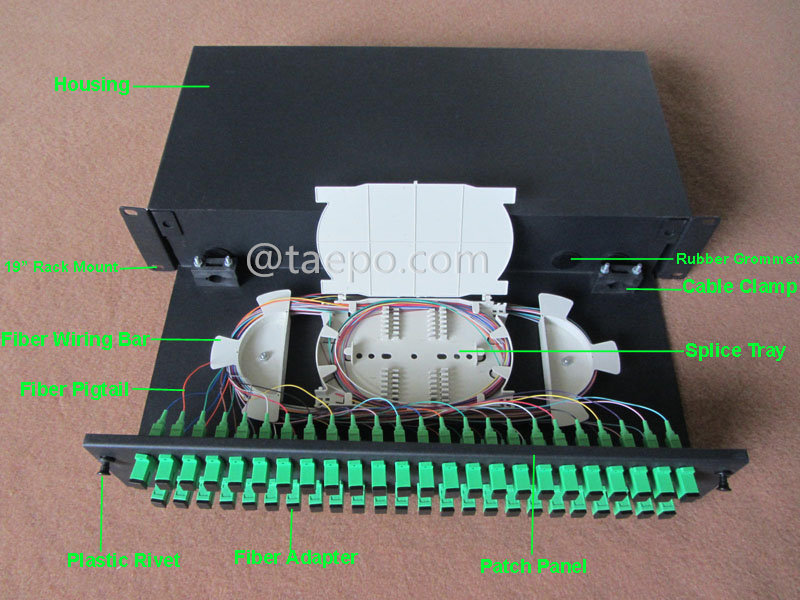

It consists of splice trays, patch panels, adapters, pigtails and the external housing. Splice tray is used for the function of splicing of the fiber cables and pigtails. Patch panel for the function of assembling fiber adapters for terminations. The box is made of cold rolling steel, with powder coating. The ODF is used only for indoor applications.

    MAIN FEATURES

• 19-Inch Rack Mountable: Standardized rack size for easy installation in 19-inch network racks.
• 2U Height: Medium-size unit that allows for efficient fiber management without occupying excessive rack space.
• 48 Fiber Capacity: Supports up to 48 SC connectors, perfect for medium-scale fiber installations.

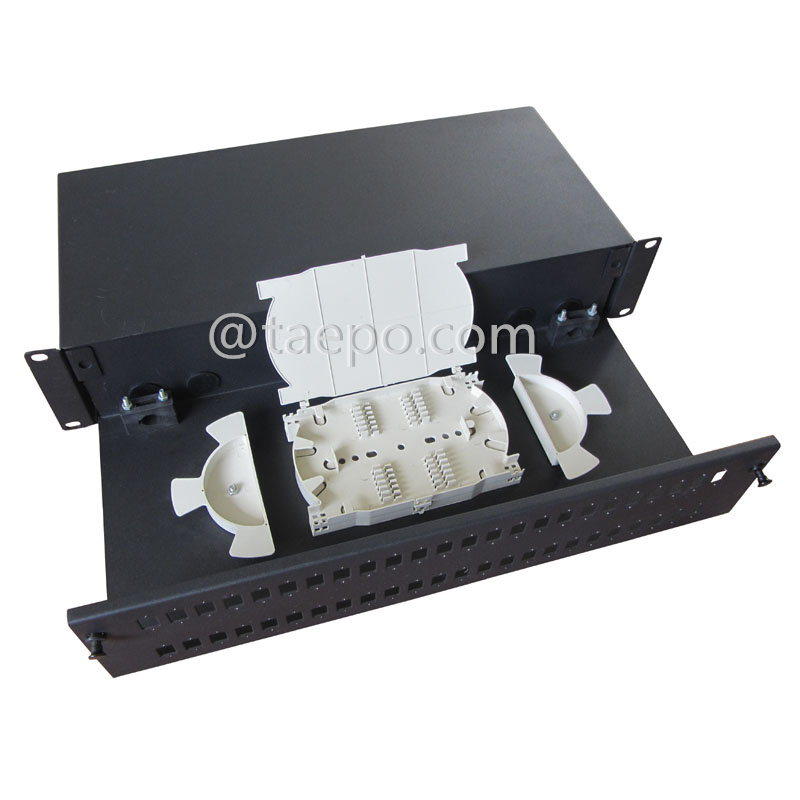

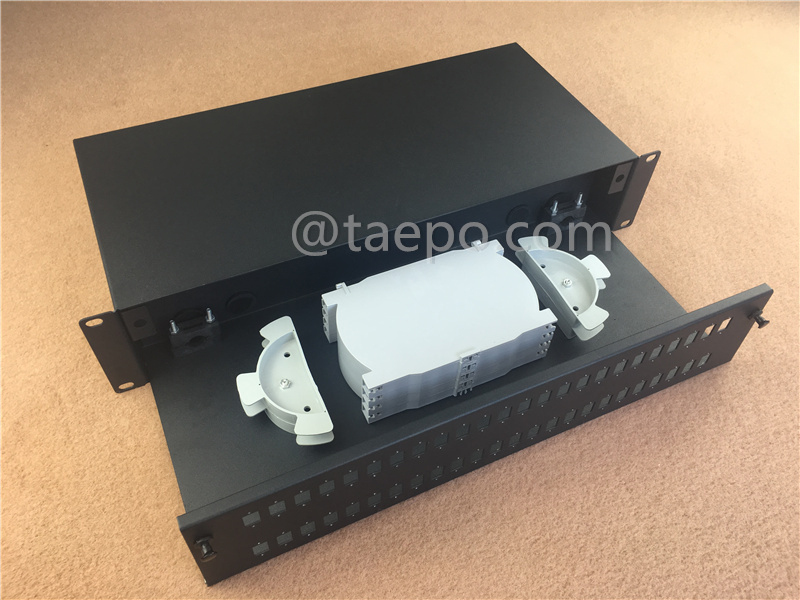

• Sliding Tray: Tray slides out easily for quick access during installation and maintenance.
• No Guiding Rail: Simple design without guiding rails for easy handling of the sliding mechanism.
• Cold-Rolled Steel Housing: Strong and durable construction for long-term usage.
• Powder Coating: Durable coating that provides resistance to corrosion and environmental wear.
• Dimensions: 485x200mm: Compact design for space-efficient installation in high-density environments.
• No Adapters Included: Provides flexibility to install adapters as needed, allowing for custom configurations.
• No Pigtails Included: Allows for customization of pigtails based on fiber network setup.
• SC Connector Compatibility: Designed for use with SC connectors, a common choice in fiber optics.
• High Density: Maximizes fiber capacity in a compact form factor.
• User-Friendly Sliding Tray: Smooth sliding operation for quick access to fibers during setup or service.
• Enhanced Cable Management: Keeps fiber cables organized and protected from damage.
• Durable Construction: Made for long-lasting use in both indoor and controlled environments.
• Customizable Configuration: Users can add adapters and pigtails to meet specific network needs.
• Ventilated Design: Passive cooling features help to prevent overheating and maintain optimal performance.
• Space-Efficient: Designed to fit into standard racks without taking up excessive space.

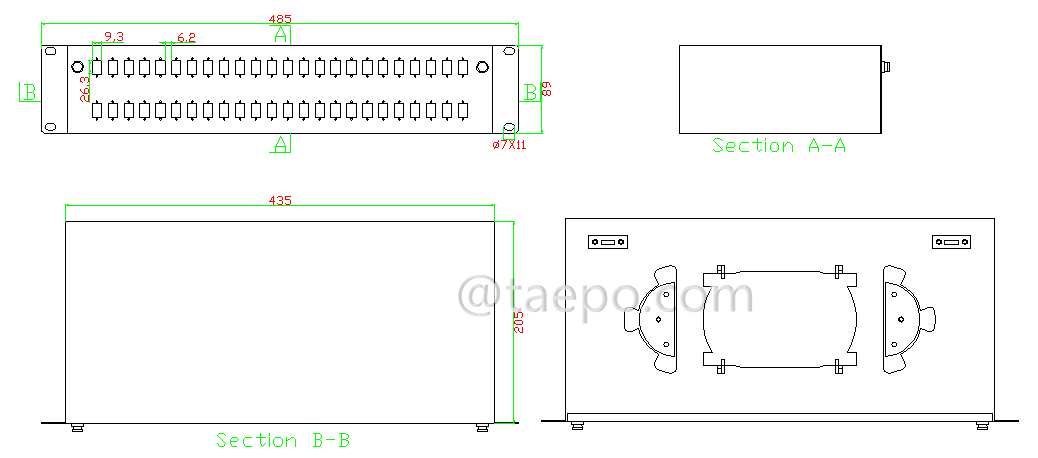

    SCHEMATIC DIAGRAMS

    SCHEMATIC DIAGRAMS

    PACKING PICTURES

    ORDER DATA
