Descriptions

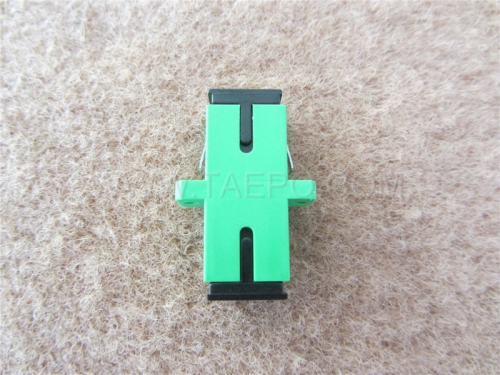

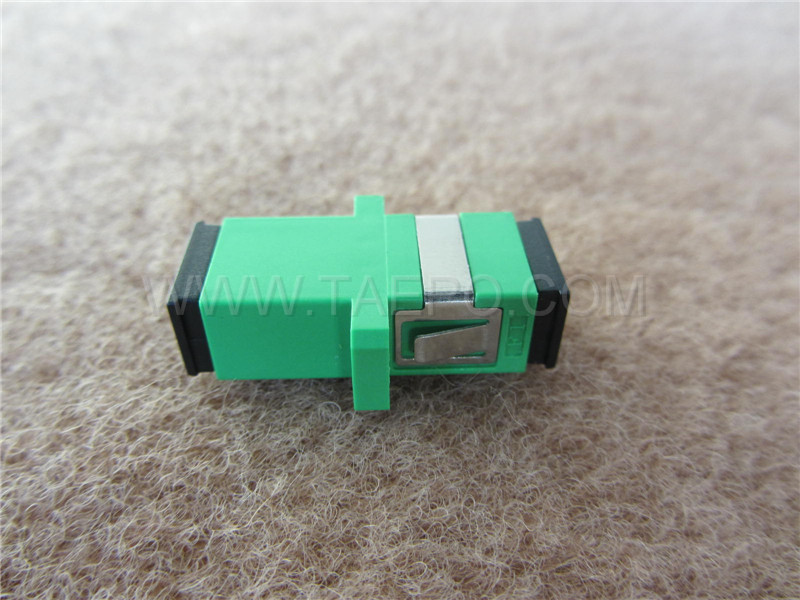

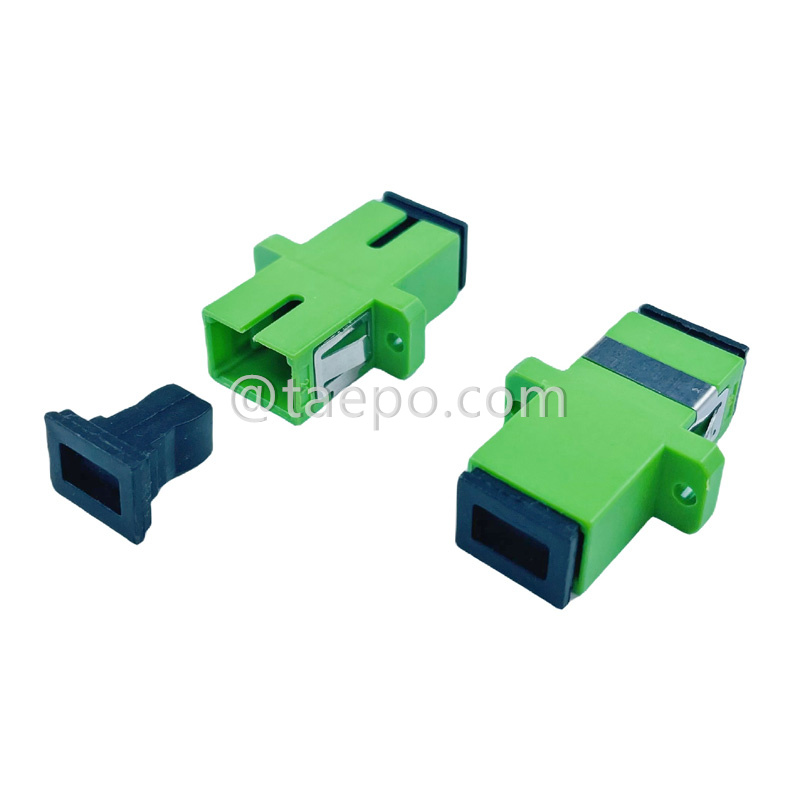

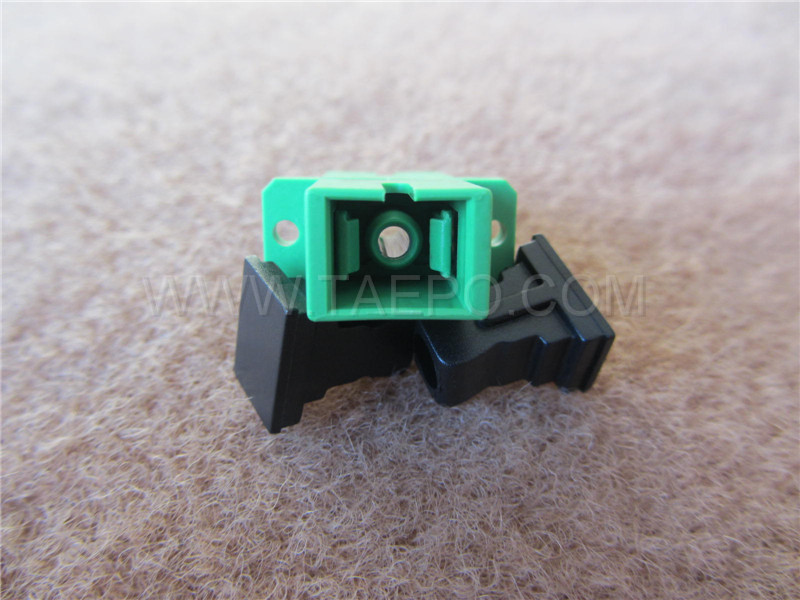

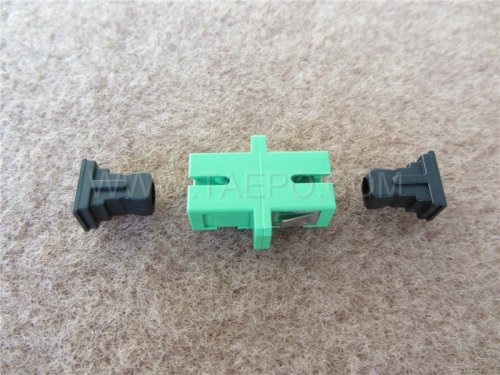

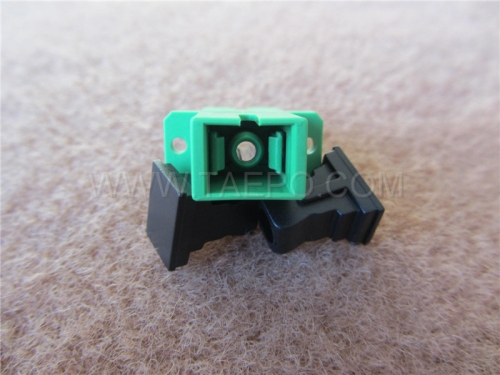

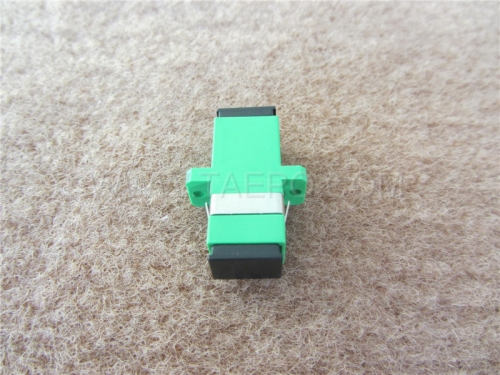

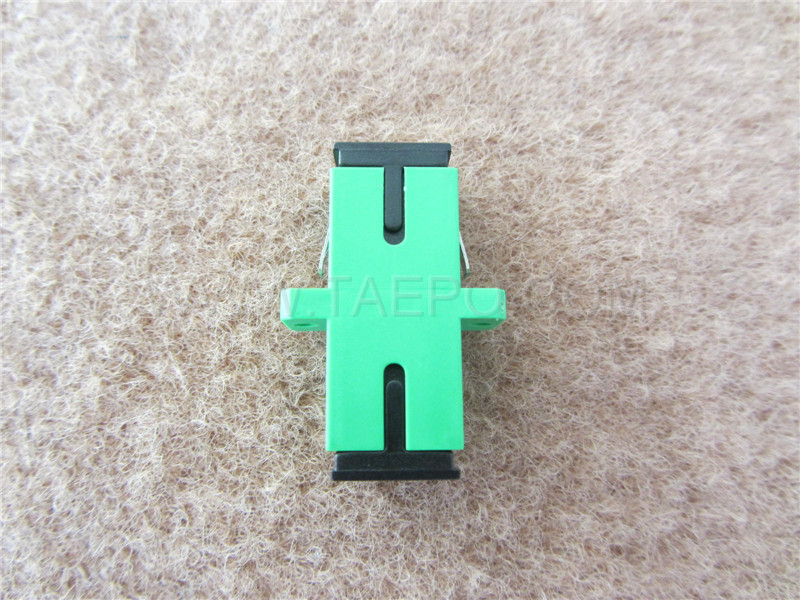

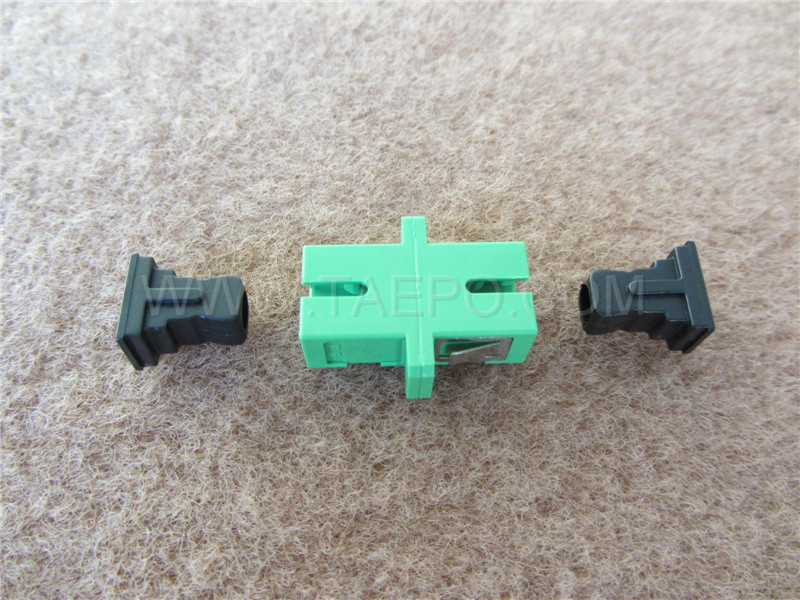

A Single Mode Simplex SC APC Fiber Optic Adapter is a device designed to connect two single-mode fiber optic cables with SC APC connectors. It ensures a secure and stable connection while minimizing signal loss, primarily used in long-distance, high-precision fiber optic networks.
Here’s a breakdown of the terminology:
Single Mode: Single-mode fiber is designed to carry light directly down the fiber in a single path, allowing for longer transmission distances and higher bandwidth over extended ranges. It is typically used in telecommunications and high-speed data transmission over long distances.
Simplex: Simplex means the adapter is designed for one fiber (single-core connection), supporting unidirectional data flow (data transmission in one direction only). This is often used where only a single light path is required.
SC (Subscriber Connector or Standard Connector): SC refers to the type of connector used. It has a square-shaped design with a push-pull mechanism, making it widely used in fiber optic systems due to its easy and secure connection features.
APC (Angled Physical Contact): APC refers to the type of polishing applied to the fiber end-face. APC connectors have an 8-degree angled surface, which significantly reduces reflection at the connection point. This minimizes signal degradation and is crucial for high-precision, long-distance applications.
The angled end-face of an APC connector makes it different from UPC (Ultra Physical Contact) connectors, as it provides even better performance in terms of return loss (the amount of light reflected back into the fiber).
Main Features
- Low Insertion and Return Loss: The APC connector's angled design ensures very low signal reflection and high return loss (typically -65 dB or better), which is important in long-distance networks.
- Simplex Design: Supports unidirectional communication through a single fiber, making it suitable for specific applications like certain telecom setups and optical distribution networks.
- SC Connector: Simple and durable push-pull mechanism for easy insertion and removal in high-density environments.
- Optimized for Long-Distance Transmission: Single-mode fiber is optimized for long-distance data transmission, often exceeding 10 km, making this adapter ideal for telecommunications, internet service providers (ISP), and high-precision optical networks.

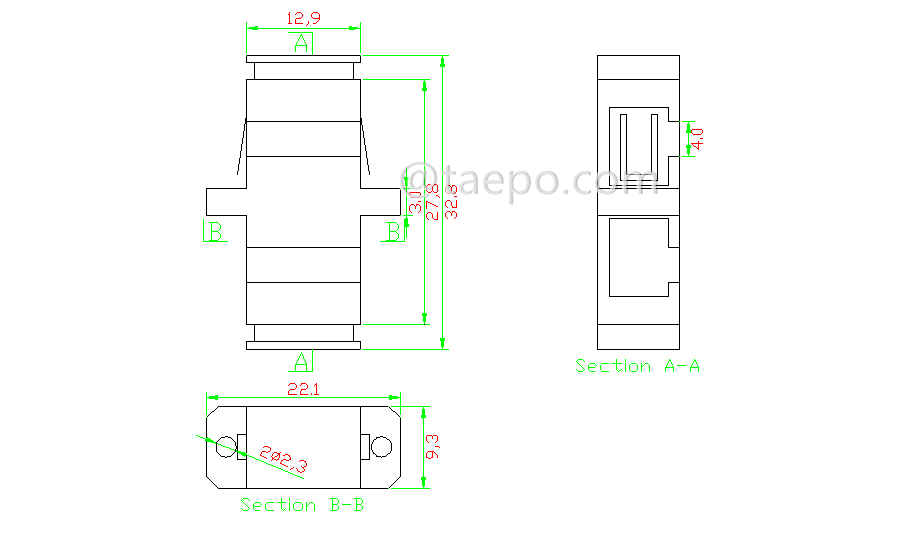

Schematic Diagrams

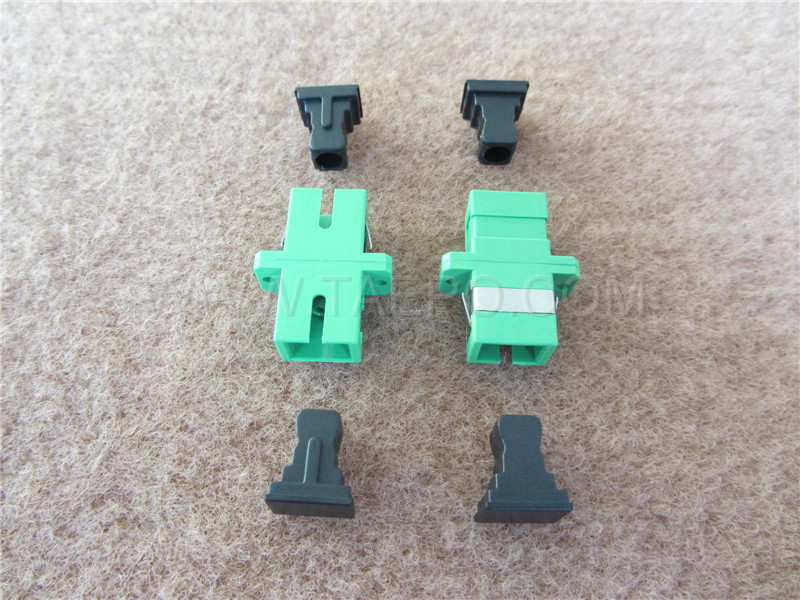

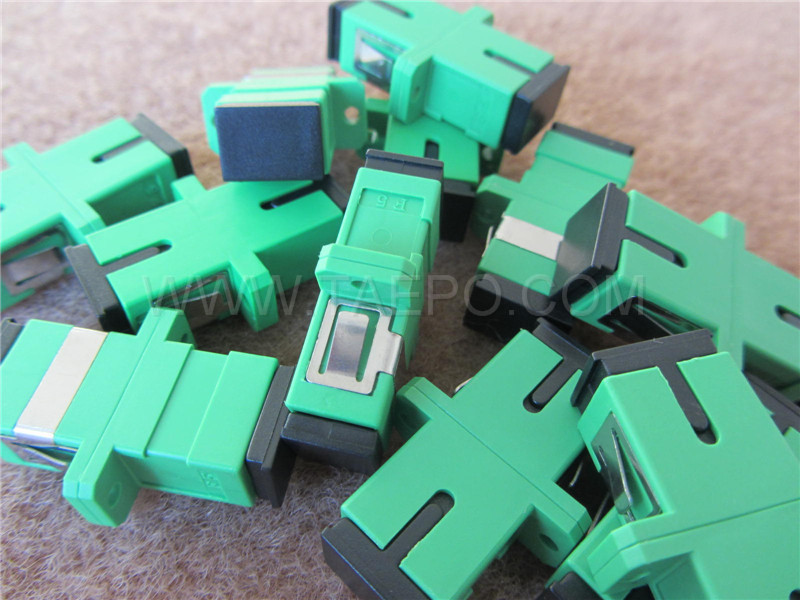

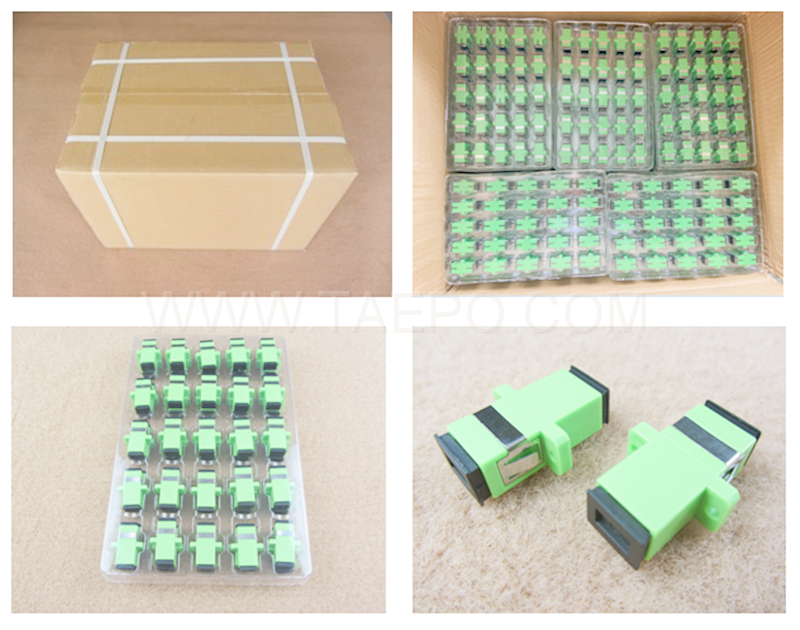

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3001-SM1SCASCA-LF |
Fiber optic adapter, singlemode, simplex, SC/APC-SC/APC |
