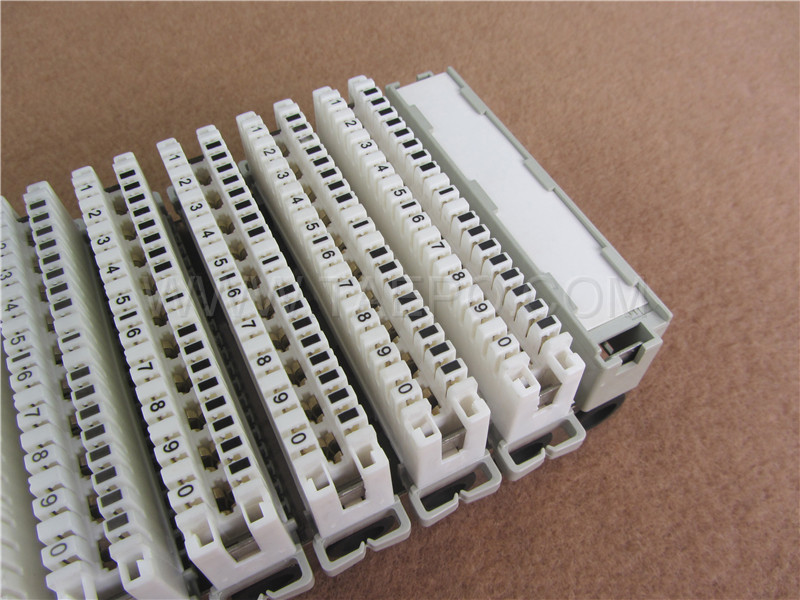

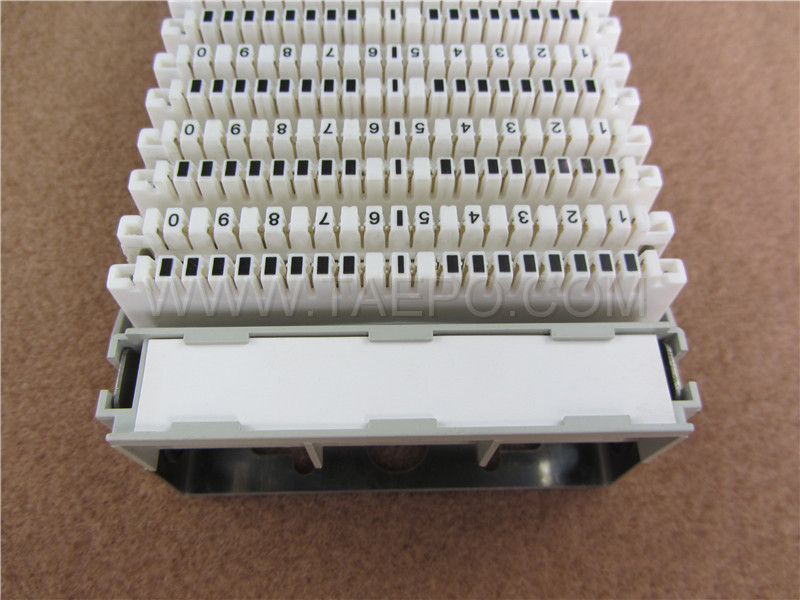

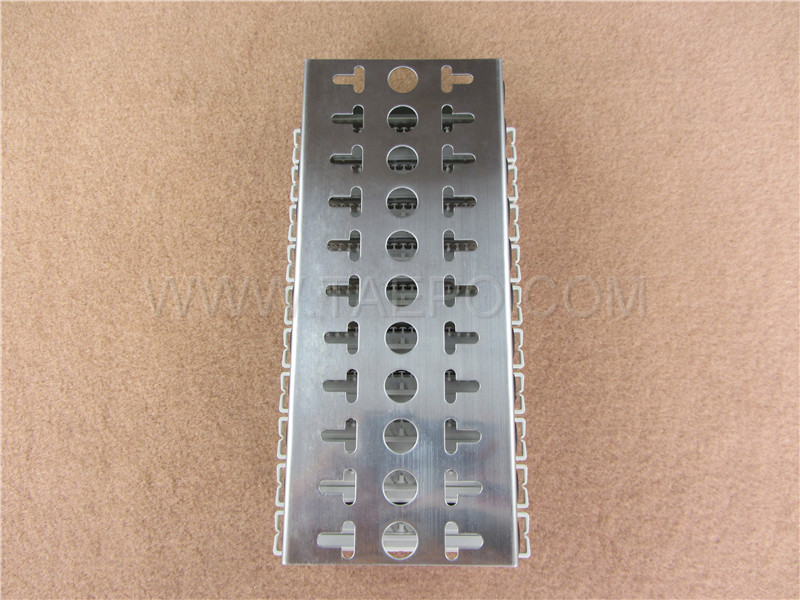

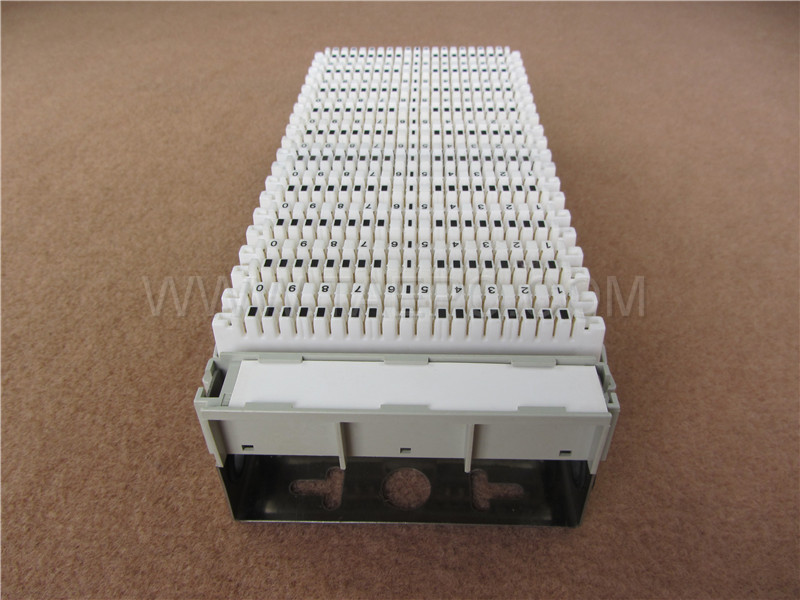

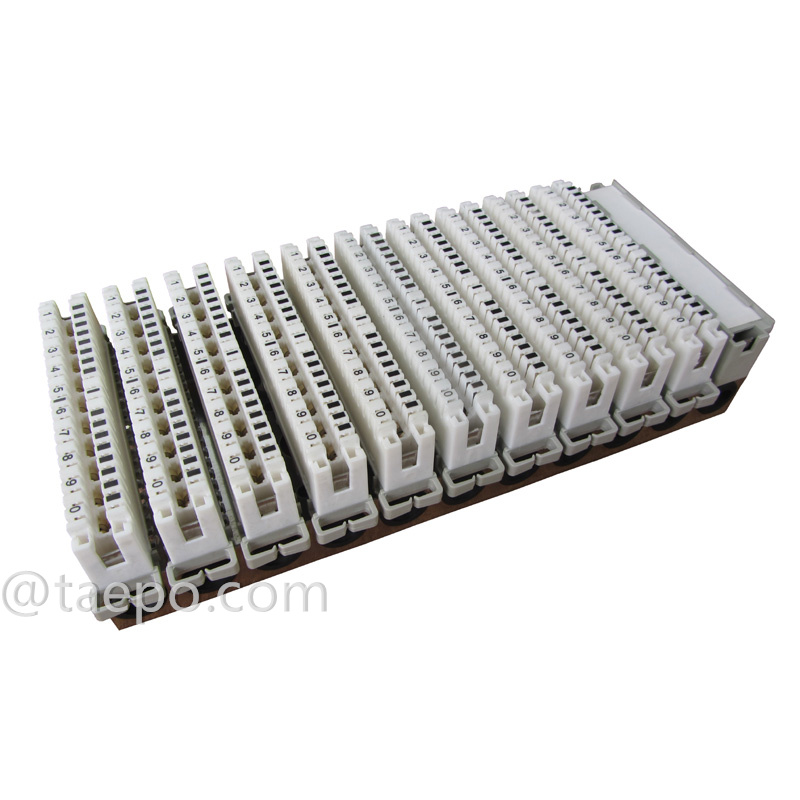

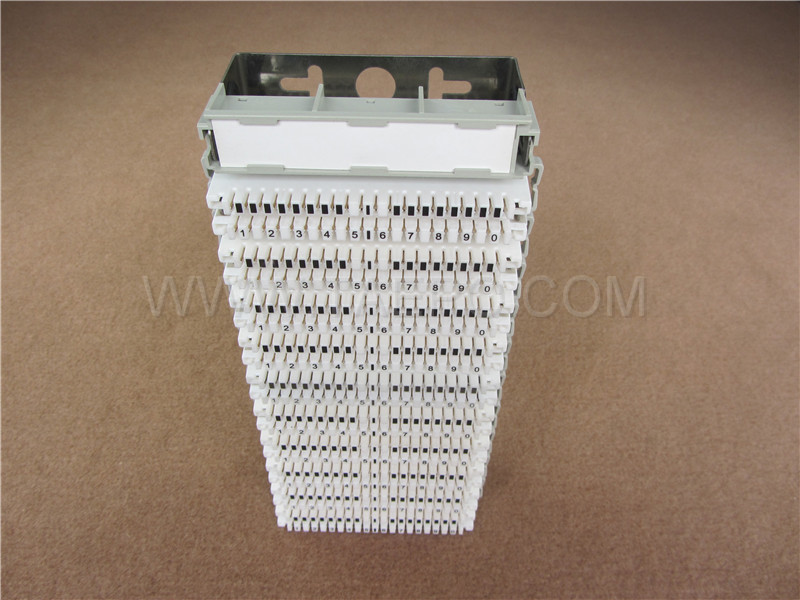

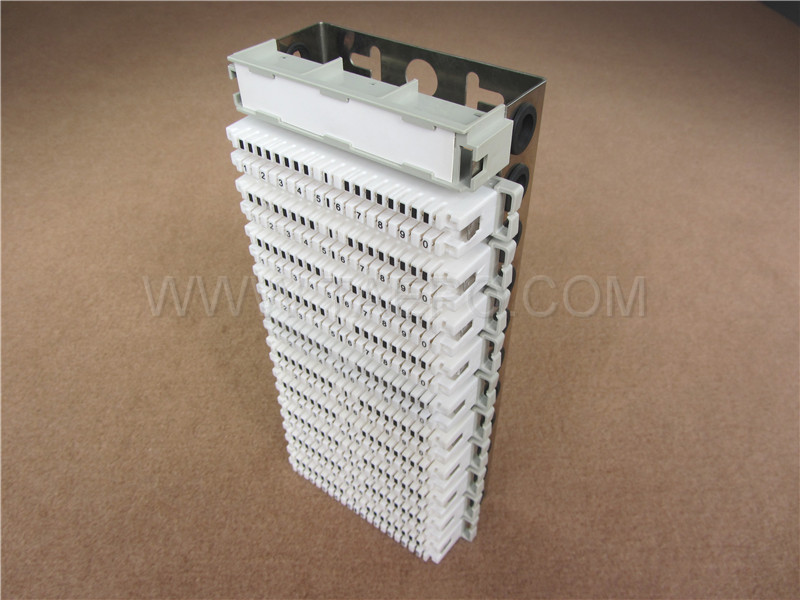

100 pairs krone terminal block with label holder

What is krone terminal block ?

    Descriptions

100 pairs krone terminal block with label holder (TP-1404-100B) is used throughout the distribution level, in the main distribution frames (MDF), in the cross connection cabinets (CCC) or in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

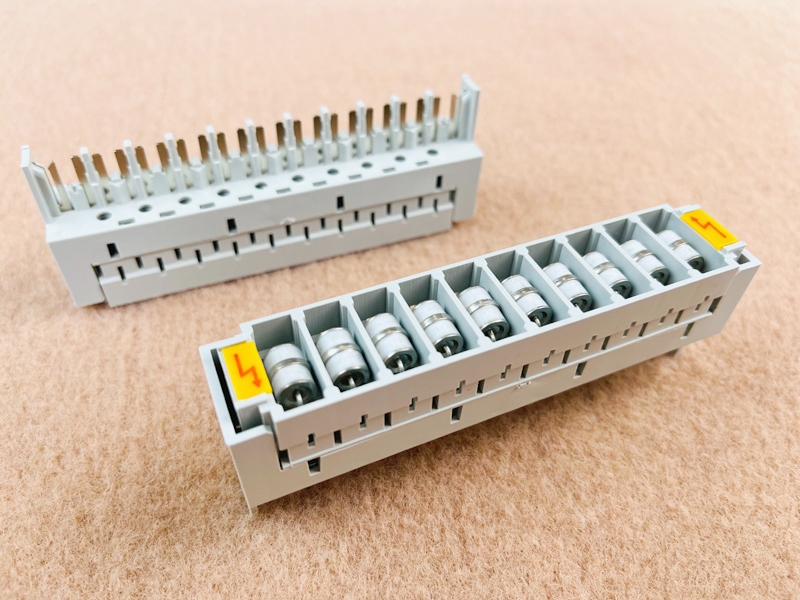

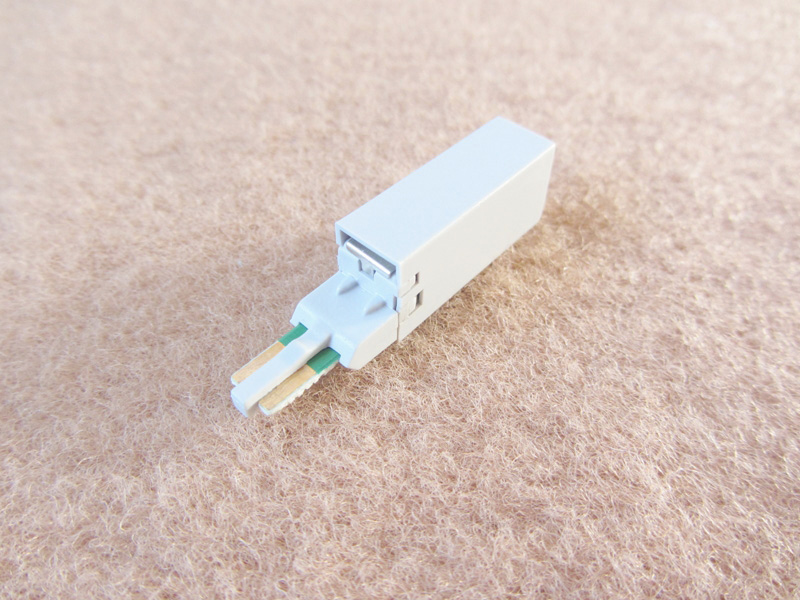

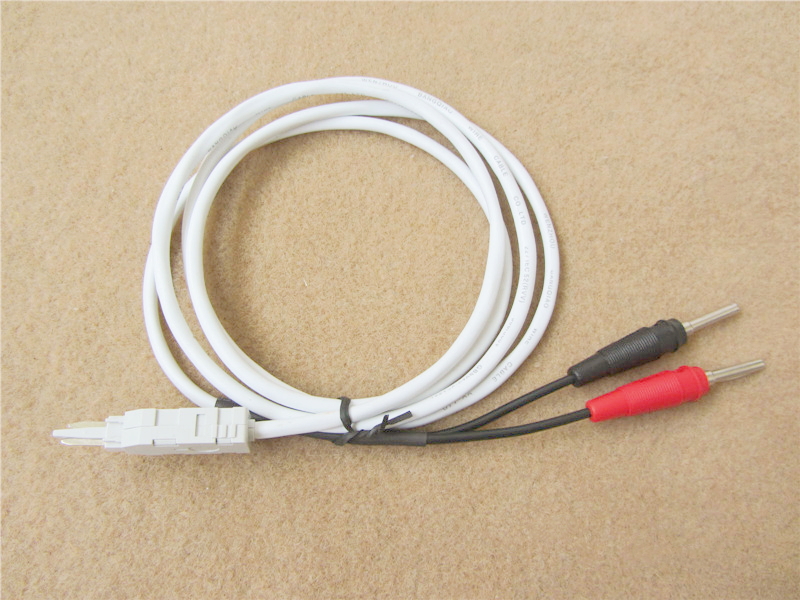

10 pairs LSA disconnection modules use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification. The center contact point can also be used for overvoltage or current protection.

    Main Features

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections

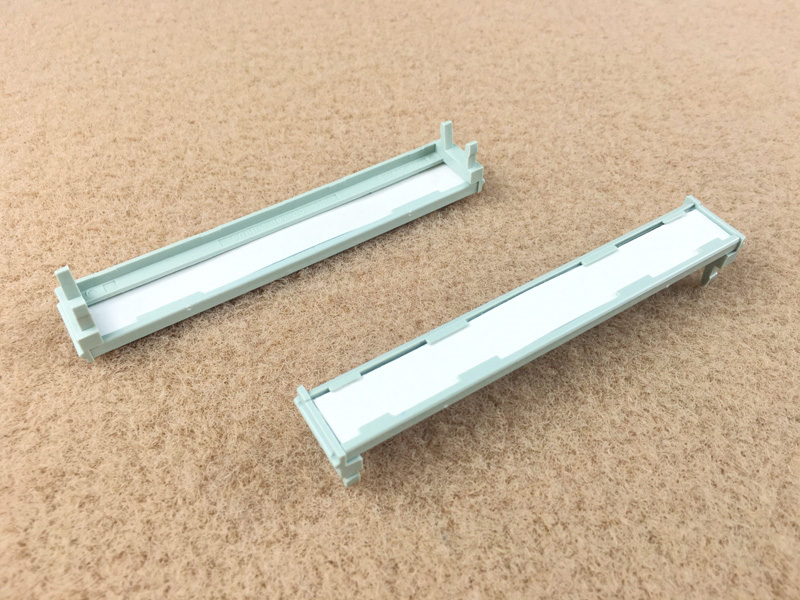

• Clear labeling

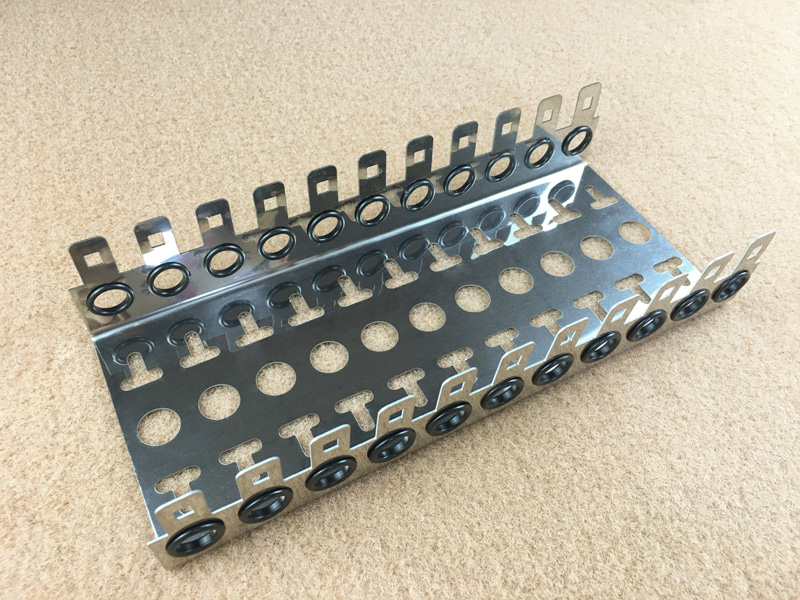

• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use

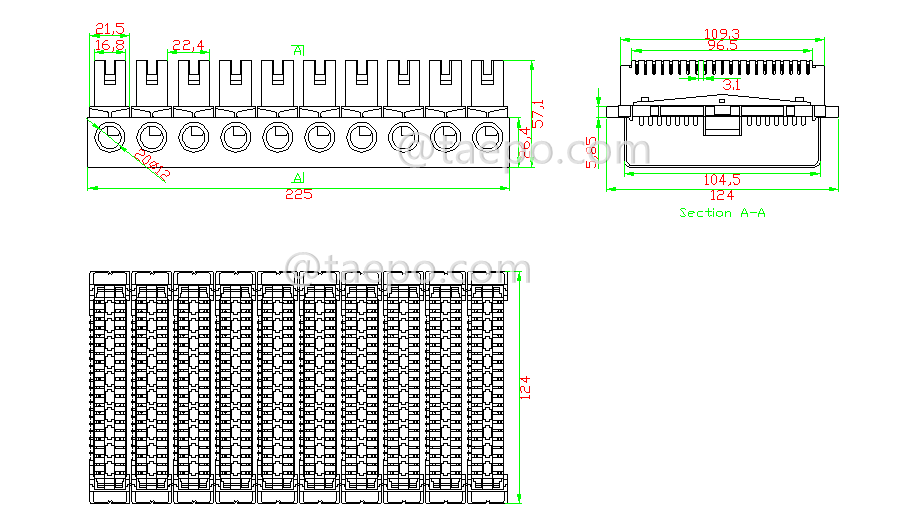

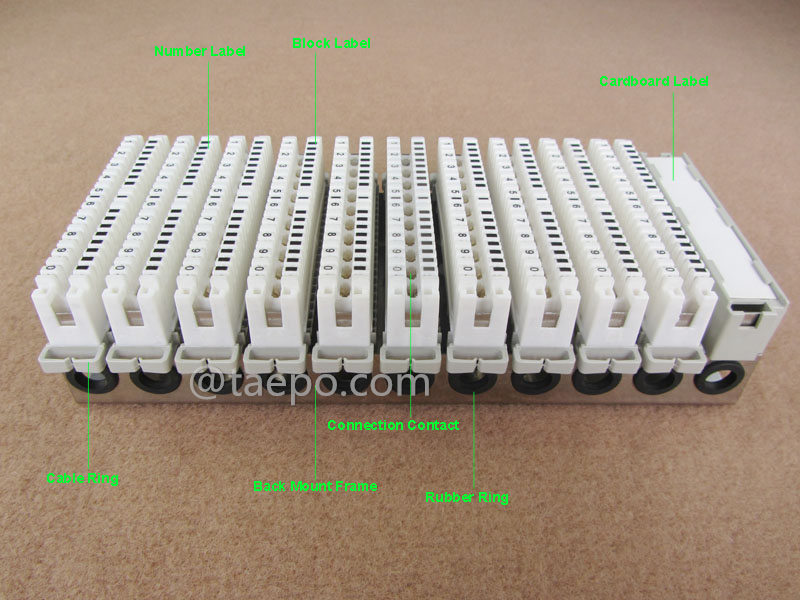

    Schematic Diagrams

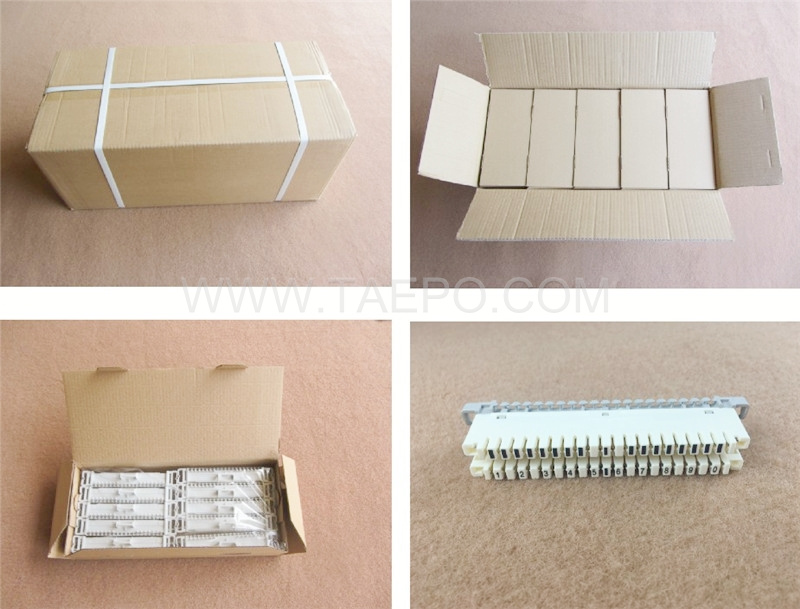

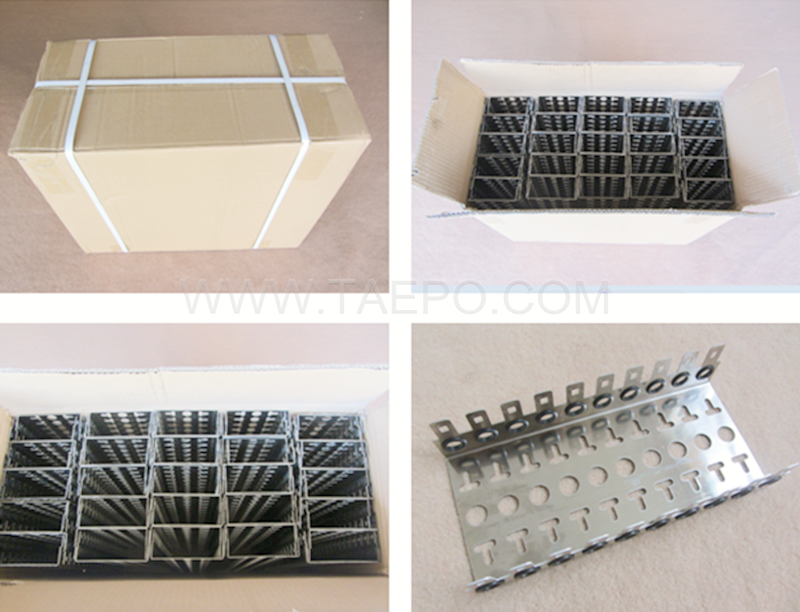

    Packing Pictures

    Order Data
