What Is a 4-pole SM Test Cord?
DESCRIPTIONS

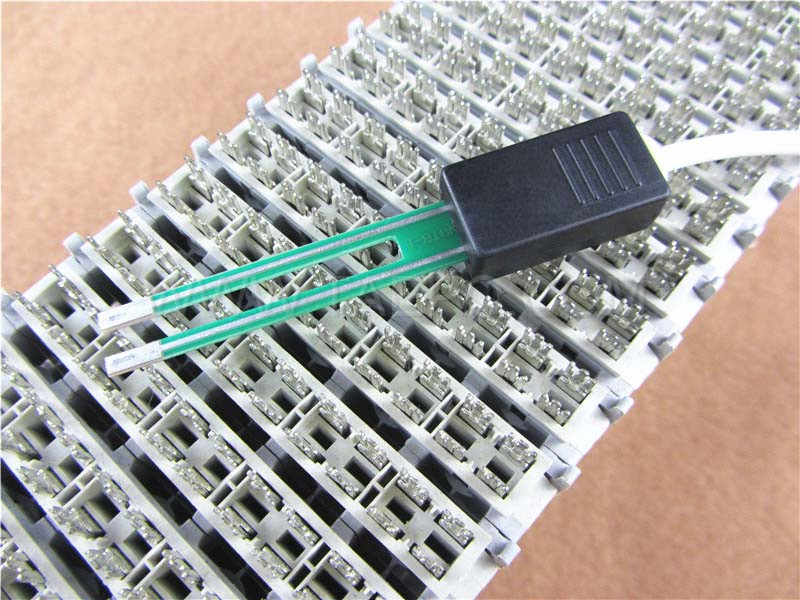

4-pole SM test cord with test plug to alligator clip (TP-1401-4TA) is used for testing the telephone line. The SM plug is used for inserting into the SM disconnection module, and the alligator clip for connecting to the telephone testing kit.

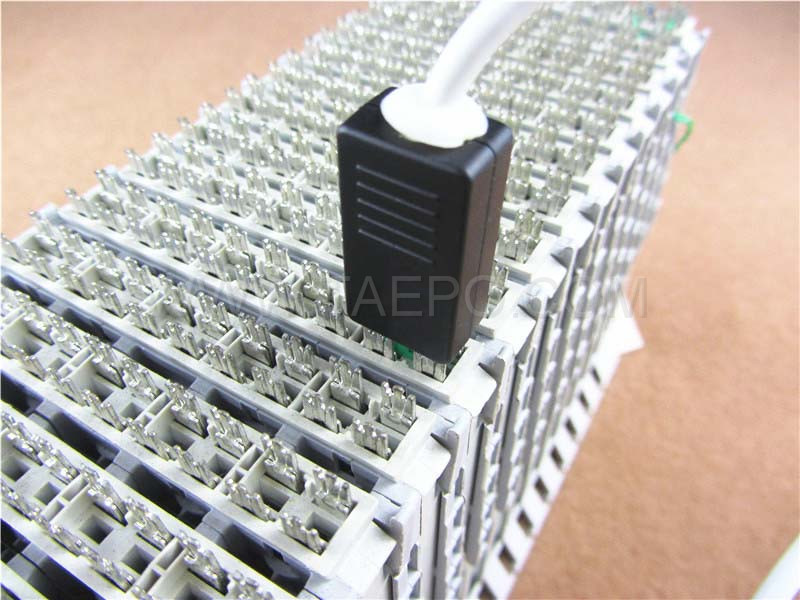

The grey 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.

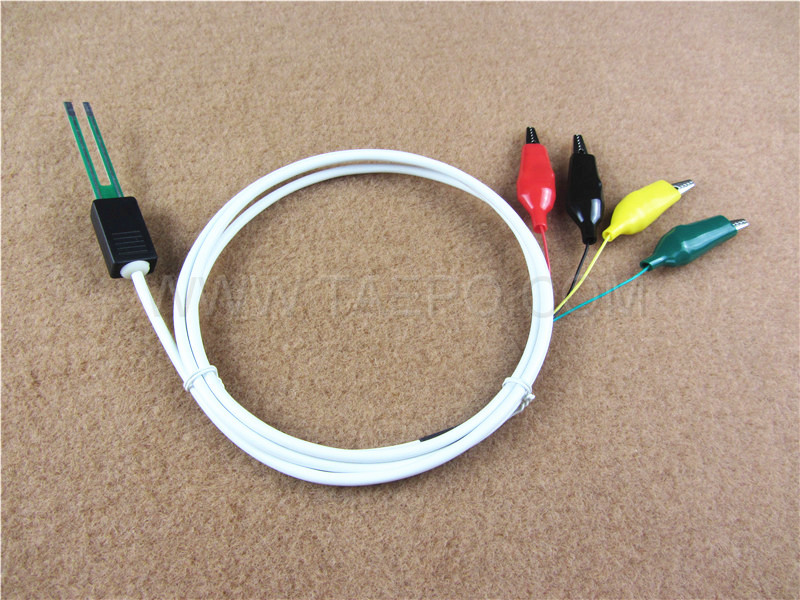

At 1.5 meters in length, the cord offers optimal reach for both front and back access within distribution frames without creating excess slack. The alligator clip end is engineered for strong grip and electrical stability, enabling attachment to various conductor sizes, bare wires, or test terminals during diagnostics or maintenance. Both ends are reinforced with molded strain reliefs to extend service life under repeated handling and bending.
Constructed with multi-strand copper conductors, a durable PVC jacket, and gold-plated plug contacts, the TP-1401-100 is built for consistent performance over thousands of use cycles. It is resistant to mechanical wear, moisture ingress, and environmental contaminants, making it suitable for use in exchange rooms, outdoor cabinets, or field repair kits.
MAIN FEATURES

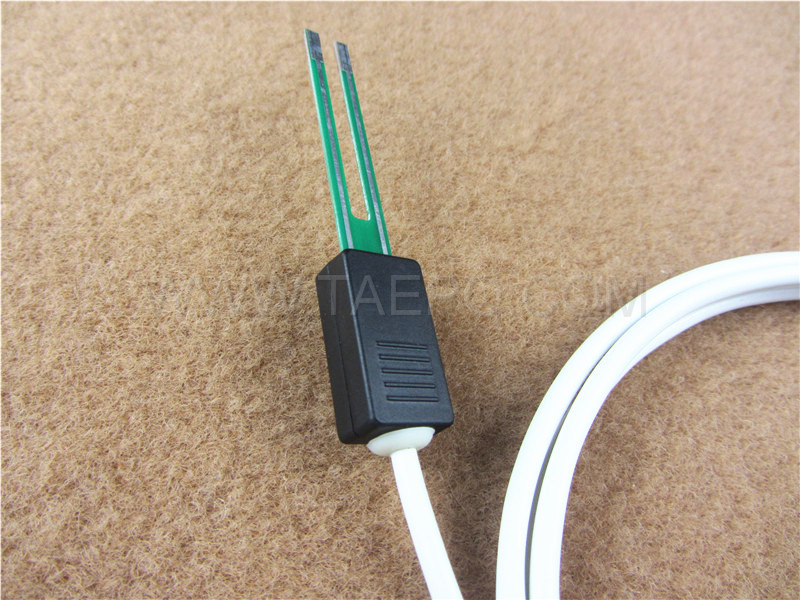

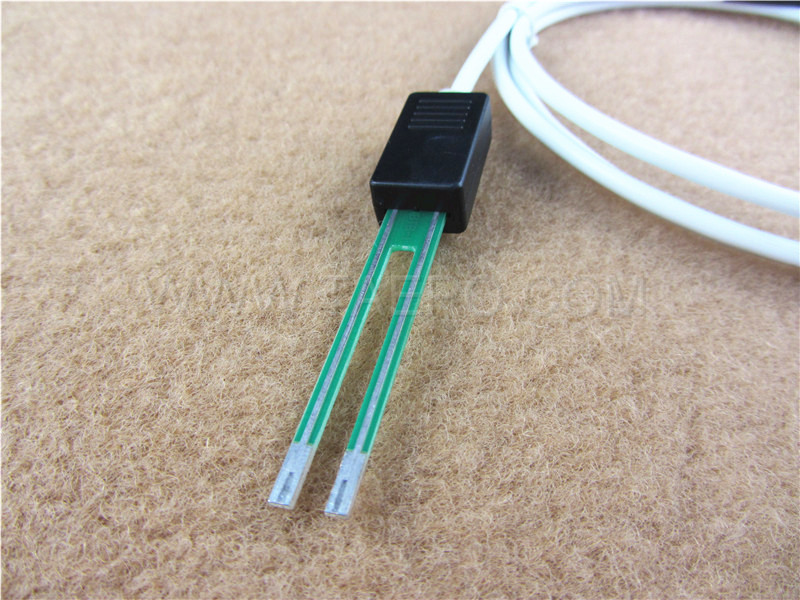

- SM Test Plug: One end is equipped with an SM test plug designed for secure connections to SM terminal blocks commonly used in telecommunications and networking.
- Alligator Clips: The opposite end features two alligator clips with serrated jaws for secure and temporary electrical connections.
- Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
- Safety: Alligator clips are coated to prevent accidental short circuits, ensuring safety during testing.
- Color Coding: The cords have color-coded insulation or markings to help technicians identify specific connections quickly, enhancing efficiency during testing and maintenance.

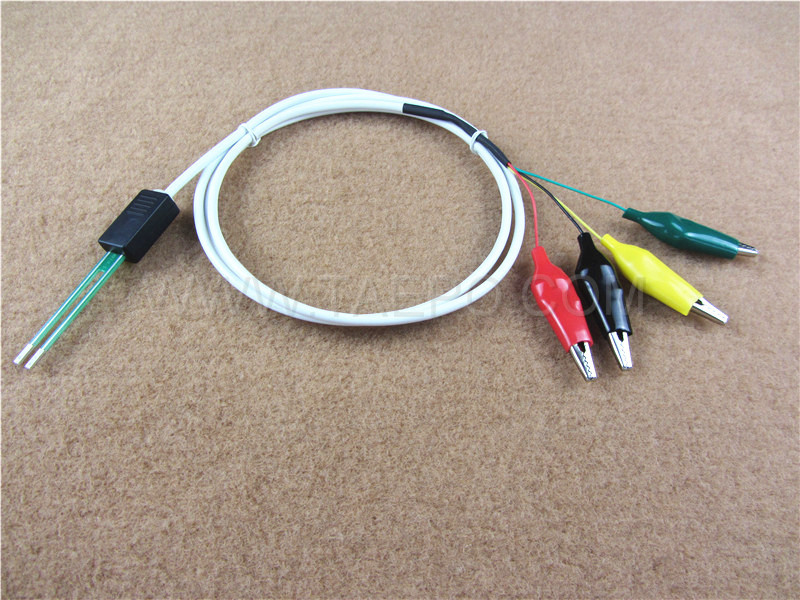

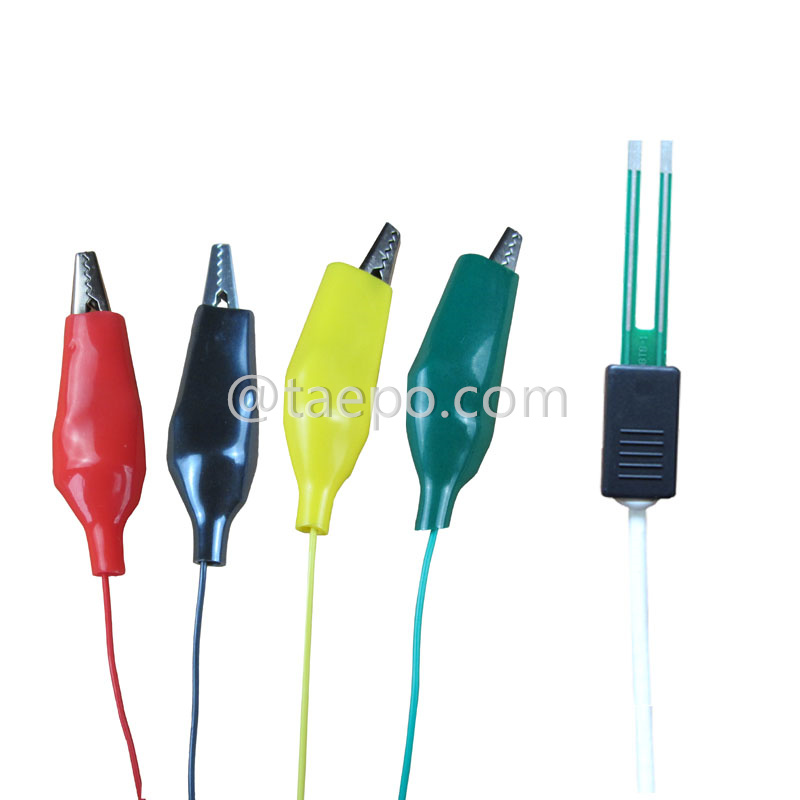

- Dual-Termination Design: Features an SM plug on one end and an alligator clip assembly on the other, allowing direct testing or connection to various conductor types, terminals, or bare wires.
- Strand Conductors: Stranded copper core provides both excellent electrical conductivity and flexibility, allowing the cord to be routed easily around obstacles without kinking.

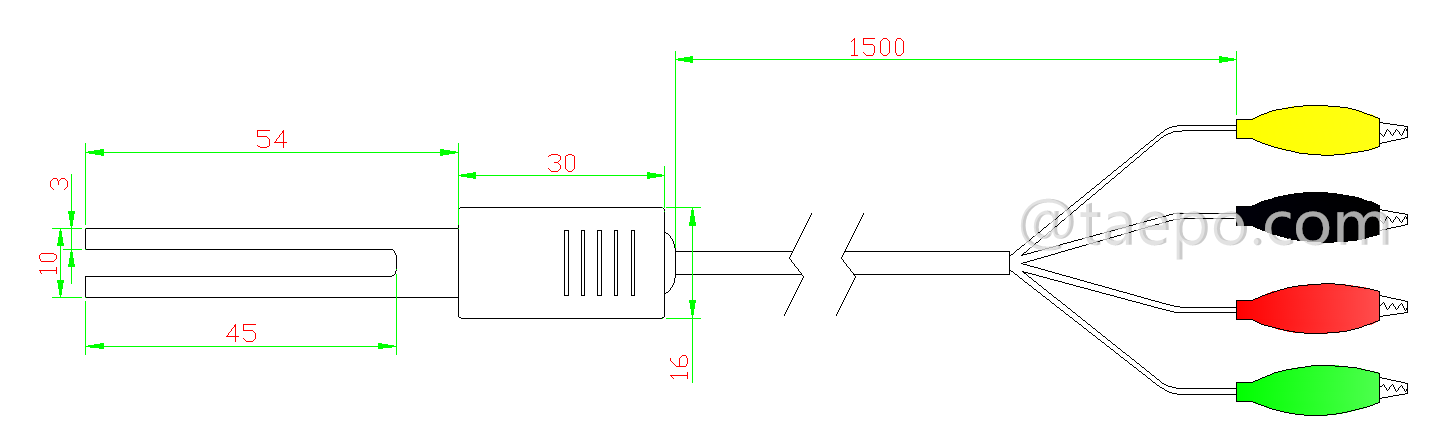

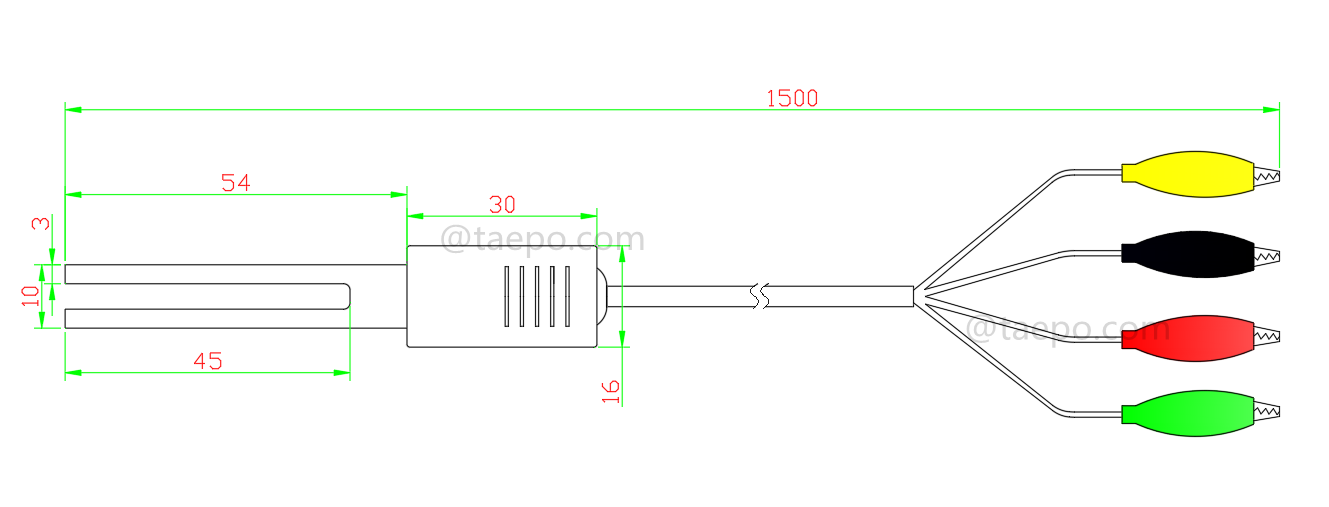

SCHEMATIC DIAGRAMS

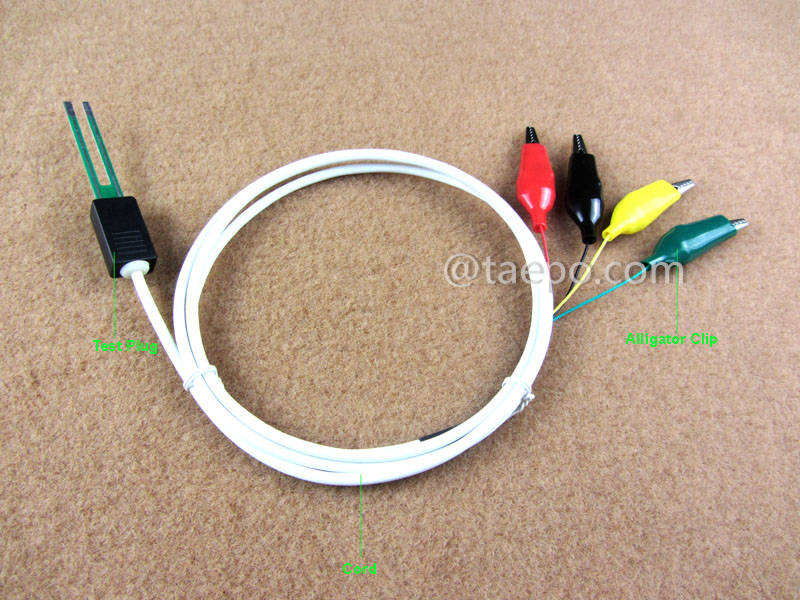

ILLUSTRATION PICTURES

PACKING PICTURES

ORDER DATA
Item No |
Descriptions |
TP-1401-4TA |
4-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71 #TP-1401-100, 1.5m |
