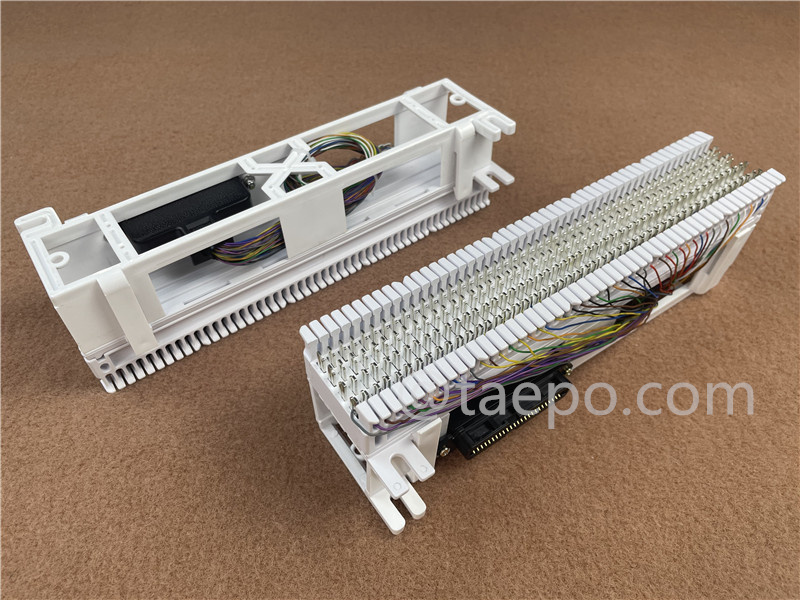

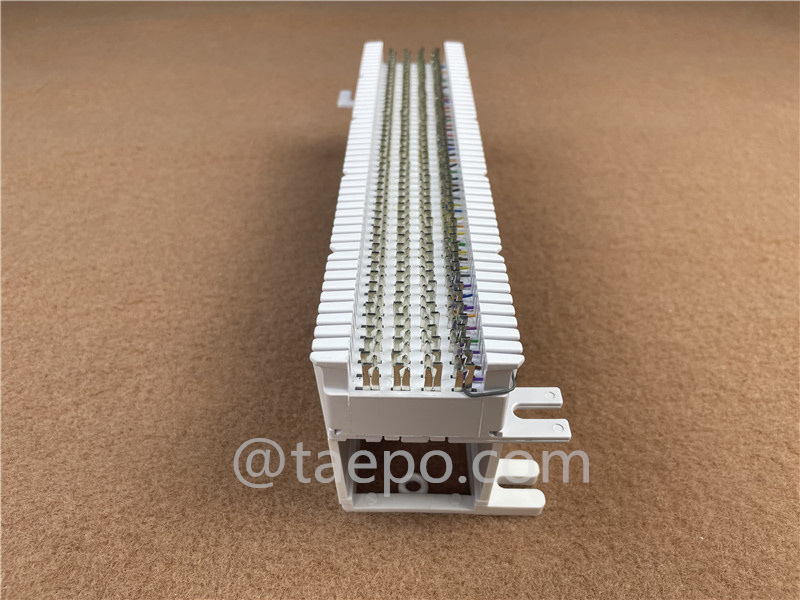

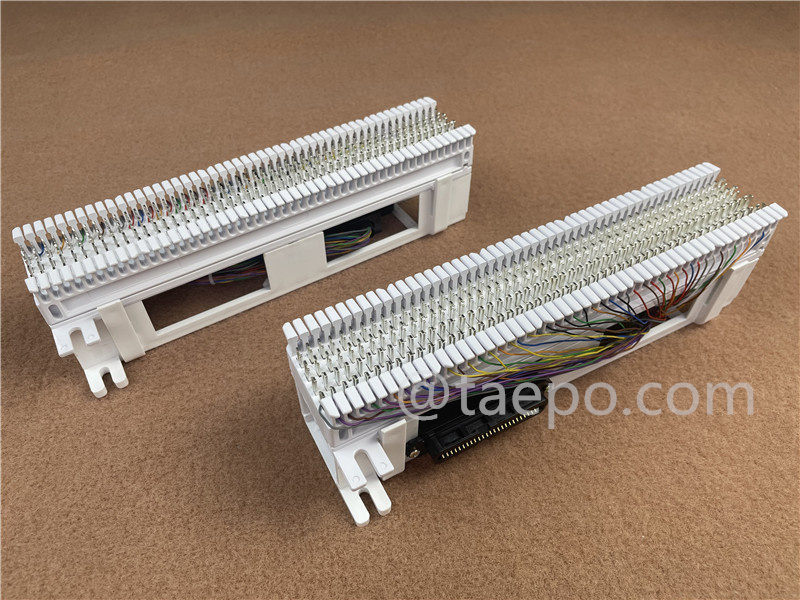

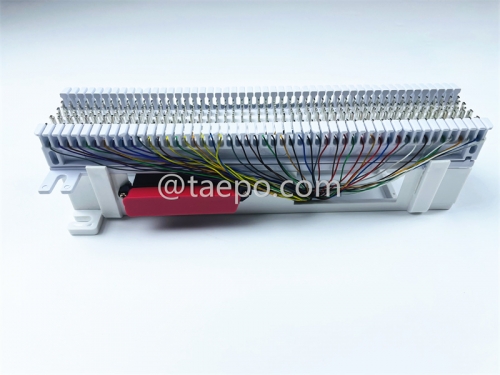

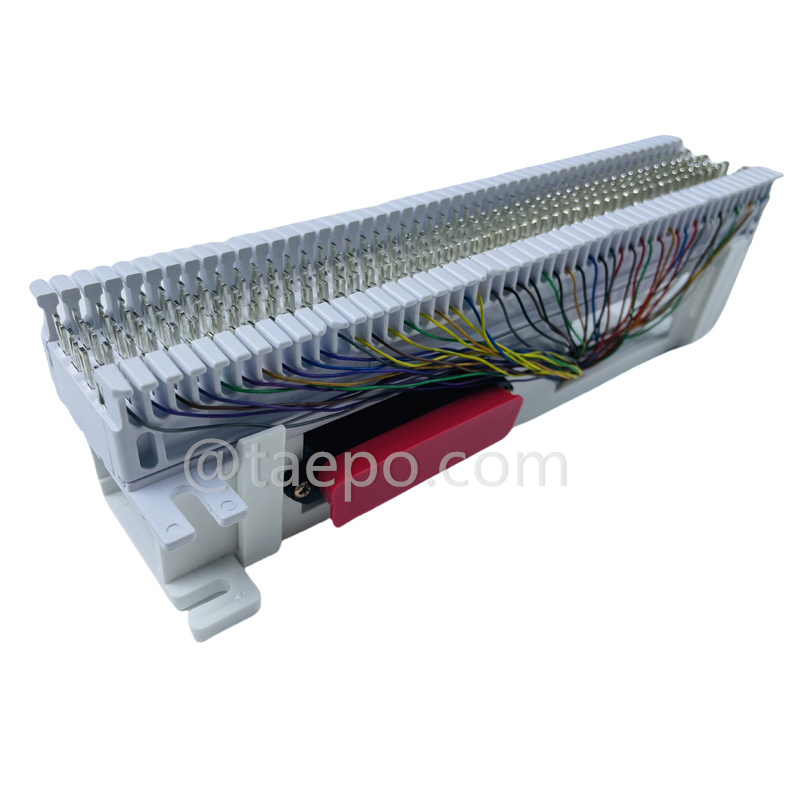

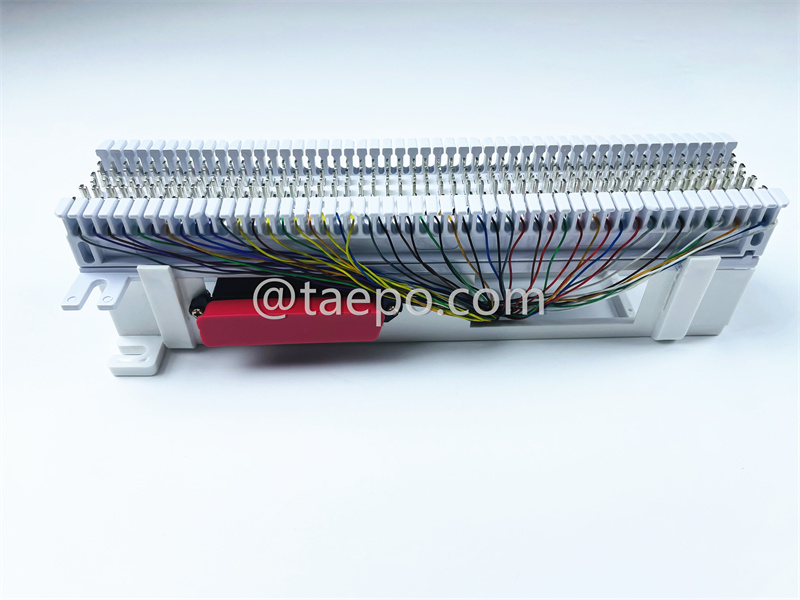

50 pairs S 66M wiring phone punch down block with 1 female 50 pin RJ21 connection

TAEPO -Your Professional 66 Wiring Punch Down Block Manufacturer In China.
Get the Competitive Price from TAEPO Now !

    Descriptions

Qustion 1: What is "50 pairs S 66M wiring phone punch down block " ?
Answer : The 50-pair S 66M wiring phone punch down block is a type of telecommunications termination block used to organize and connect multiple pairs of wires, typically for telephone and low-speed data applications.

The 50-pair S 66M block offers organized cable management, secure connections, and flexible cross-connect options, making it a popular choice in commercial and industrial telecommunications applications. Its durability and design make it ideal for installations where multiple phone or data lines need to be connected and managed in a centralized, organized way.

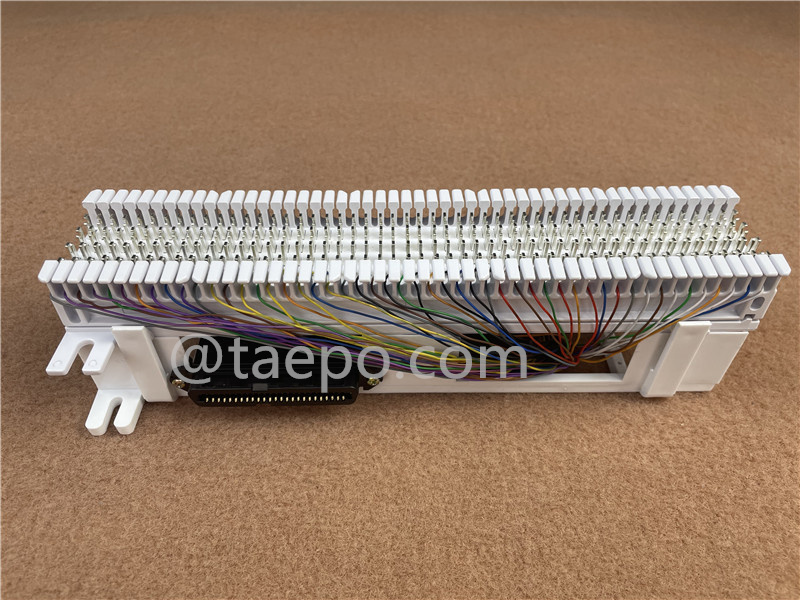

TAEPO's item no is : TP-1403-50B 50 pairs S 66M wiring phone punch down block with 1 female 50 pin RJ21 connection

Qustion 2: How does "50 pairs S 66M wiring phone punch down block" work ?
Answer : The "50-pair S 66M wiring punch down block" is a widely used type of termination block in telecommunications, particularly for telephone and data line connections. It organizes, terminates, and connects multiple wires, typically used in voice and low-speed data applications.

Here’s a detailed look at how it works:

1. Installation and Mounting

• Physical Setup: The 66M block is mounted onto a wall or a wiring rack in a central location, such as a telecom closet. It’s a compact and organized way to manage large numbers of connections, with each block able to handle up to 50 pairs (100 individual wires).

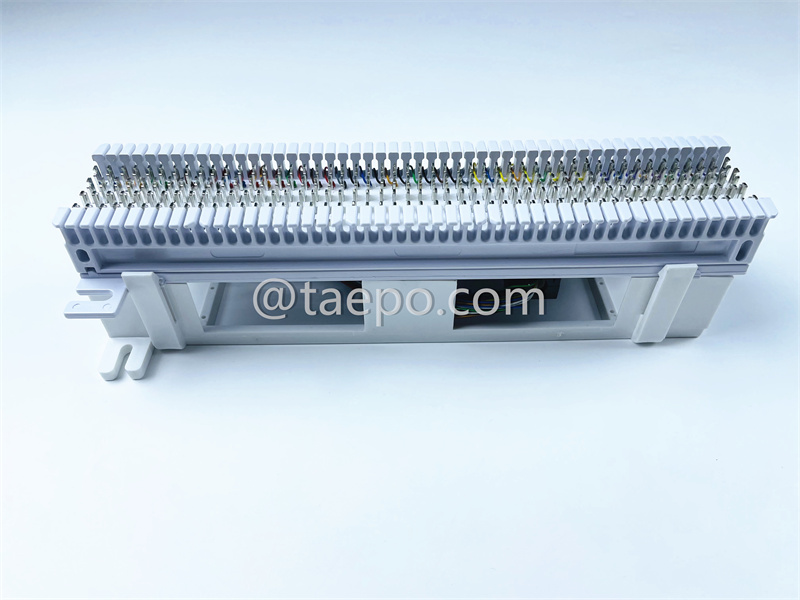

• Row Layout: The block has rows of metal connectors, typically organized into two sides (left and right), with each row corresponding to a single line (or wire pair).

2. Cable Termination with Punch Down Tool

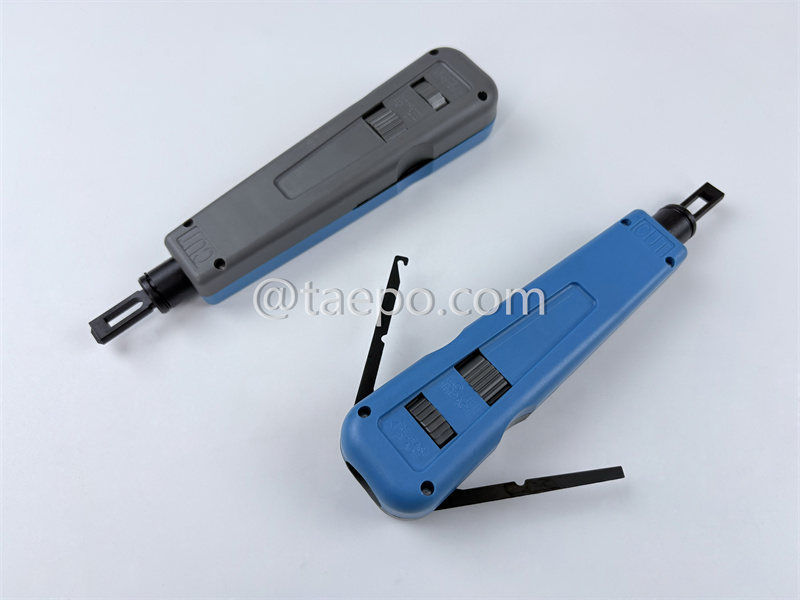

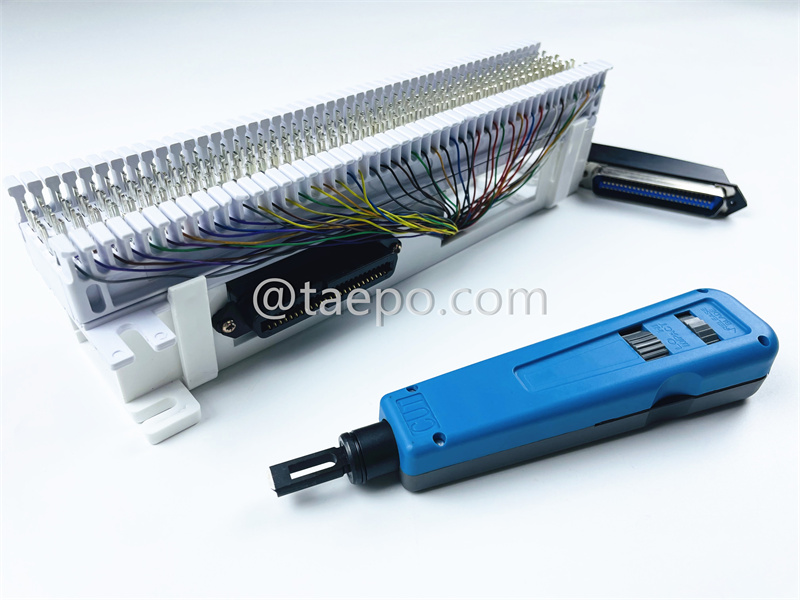

• Punch Down Tool Use: Wires are terminated (connected) by pressing them into the block’s metal connectors using a punch down tool. This tool pushes the wire into the metal contacts, which pierce the insulation and establish a secure electrical connection.

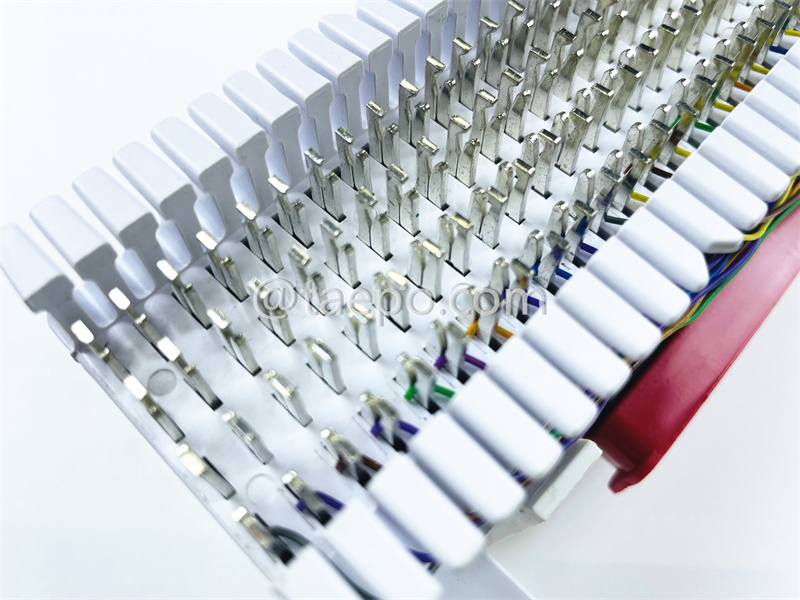

• IDC (Insulation Displacement Connection): The connectors use an IDC design, which pierces the wire insulation upon insertion, creating a solid and reliable connection without the need for stripping the wire.
• Securing Pairs: Each pair of wires (typically used for each phone line) is punched down in a corresponding slot on the block.

3. Organization and Labeling

• Wire Pair Organization: The 66M block is organized into 50 rows, each row handling one pair of wires (typically two wires per telephone line). This allows for organized cable management, which is particularly useful for installations with multiple phone lines.
• Color Coding and Labeling: The wires are often color-coded, allowing technicians to easily identify lines. The block can also be labeled for quick identification, which aids in troubleshooting and future modifications.

4. Signal Distribution and Cross-Connects

• Jumpers and Cross-Connections: The left and right sides of each row are often used for cross-connecting wires. Short jumper wires (also punched down) can link one set of connections to another, enabling routing or connecting specific lines to specific devices or networks.
• Distribution Panel Functionality: In larger systems, the 66M block serves as a distribution point, where connections can be made to different parts of a building or network infrastructure.

5. Testing and Maintenance

• Easy Testing: The design allows technicians to test individual lines by attaching test clips or leads directly to the block, making it simple to diagnose issues.
• Simple Maintenance: Any damaged lines or connections can be easily re-terminated by repunching the wires, or moved by using the cross-connect options.

6. Expansion and Reconfiguration

• Adding New Lines: Adding new connections or rearranging existing ones is straightforward on a 66M block. By adding more wires and re-punching connections, the system can be expanded as needed.
• Modular Reconfiguration: Cross-connections and jumpers can be adjusted to change the routing or function of individual lines without disturbing the primary wiring.

7. Usage in Telecommunications Systems

• Voice and Data Support: Although primarily used for analog voice systems, 66M blocks can also support low-speed data lines, like DSL. However, for higher-speed data, other block types (such as 110 blocks) are often preferred.

Overall, the 50-pair S 66M punch down block is an effective and organized solution for managing multiple telephone or low-speed data lines, providing reliable connections and making it easier for technicians to handle, maintain, and expand communication systems.

    Main Features

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Modular design and installations
• Gas tight connection
• One push wire insertion

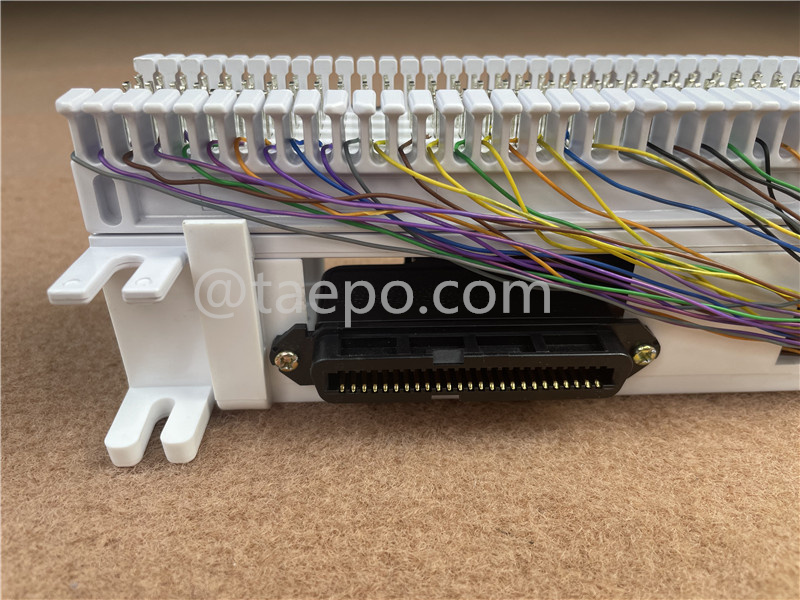

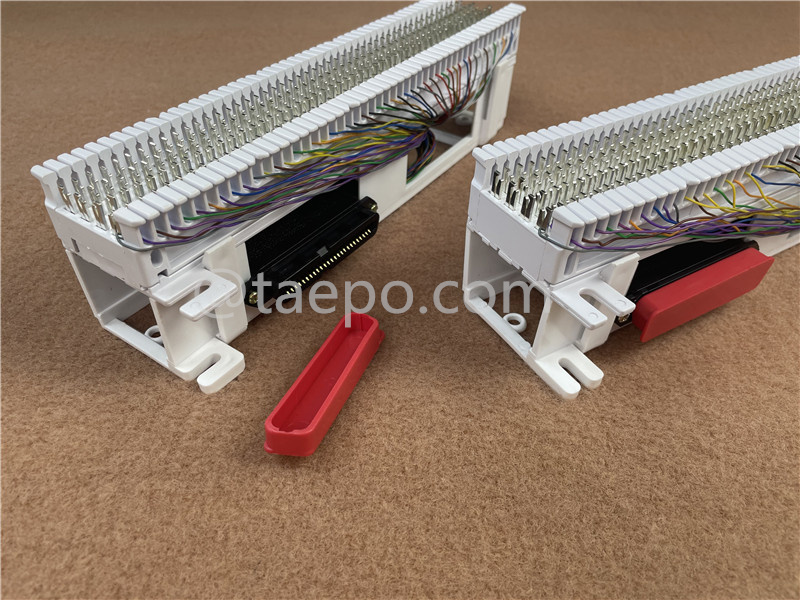

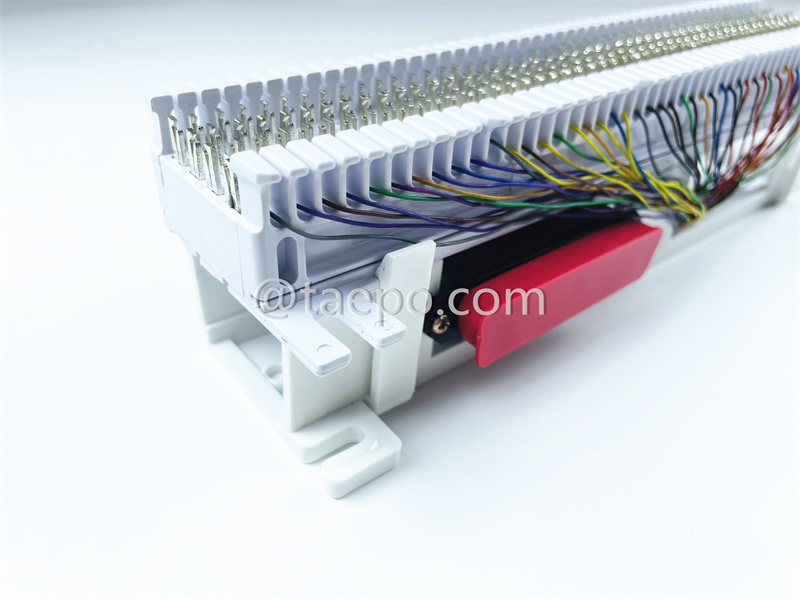

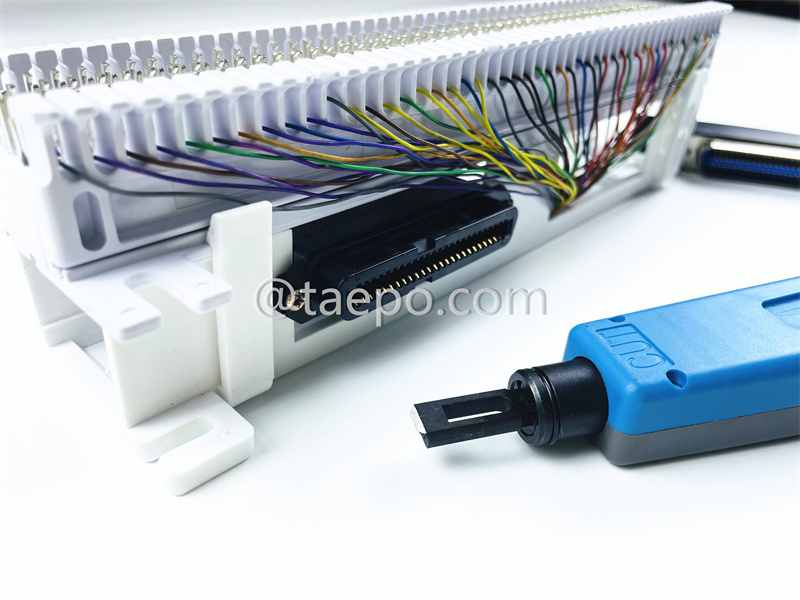

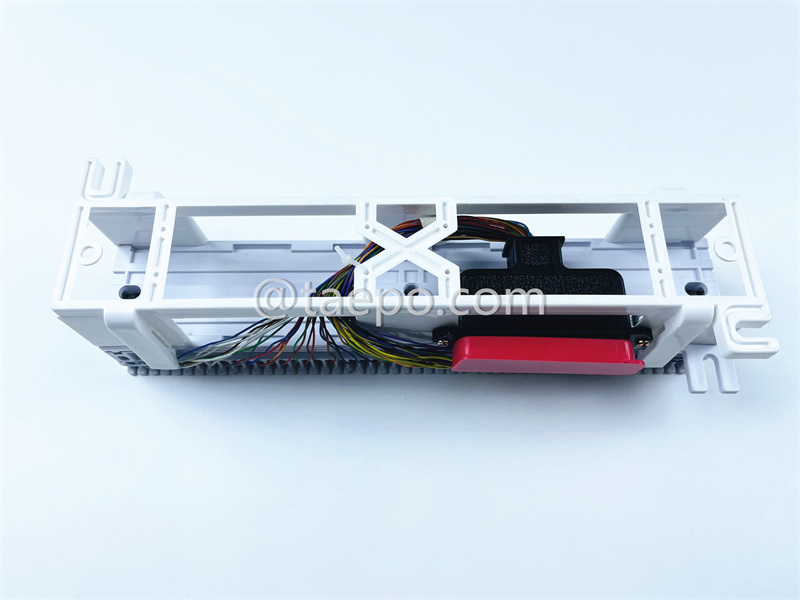

• One prewired female amphenol connectors facilitate installation and saves time.
• Designed for data, voice, PBX systems, and low voltage telecom equipment.
• Performance exceeds Category 5e connecting hardware requirements specified in TIA/EIA-568-B. 2
• Durable and strong high impact flame retardant material.

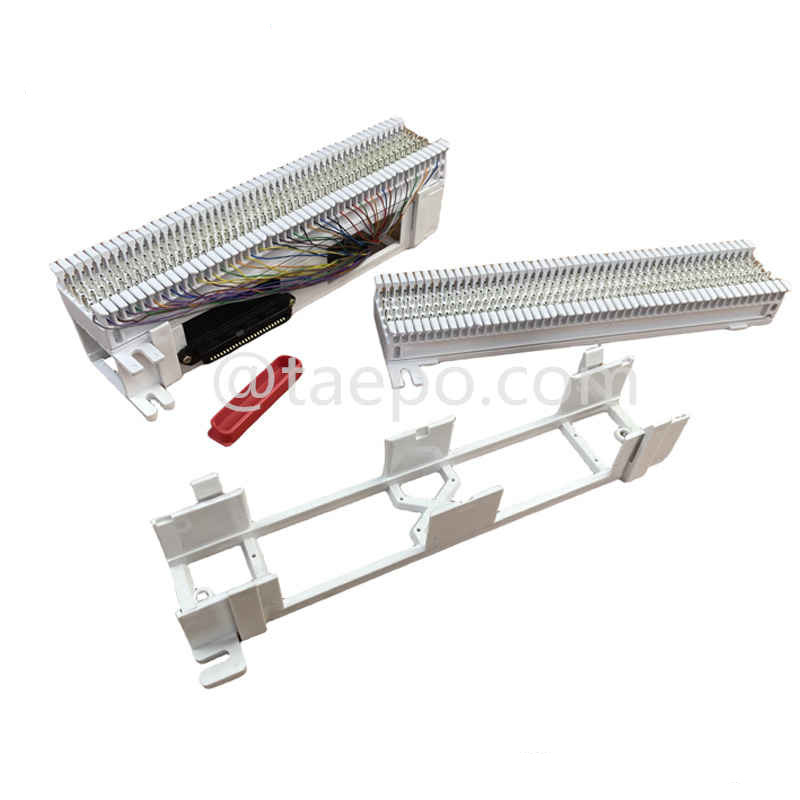

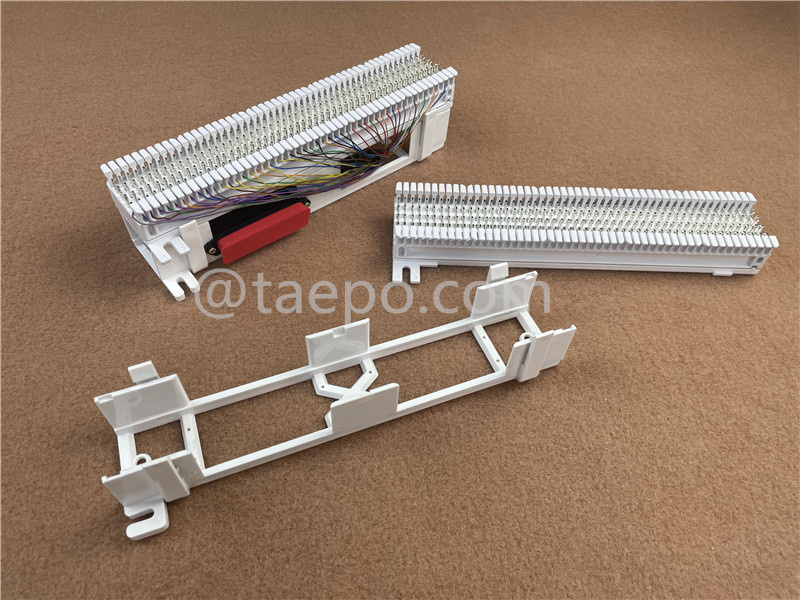

• Includes removable 89D mounting bracket for wall mounting.
• Accommodates 66 wiring block bridging clips.
• Accepts 22-26 AWG.

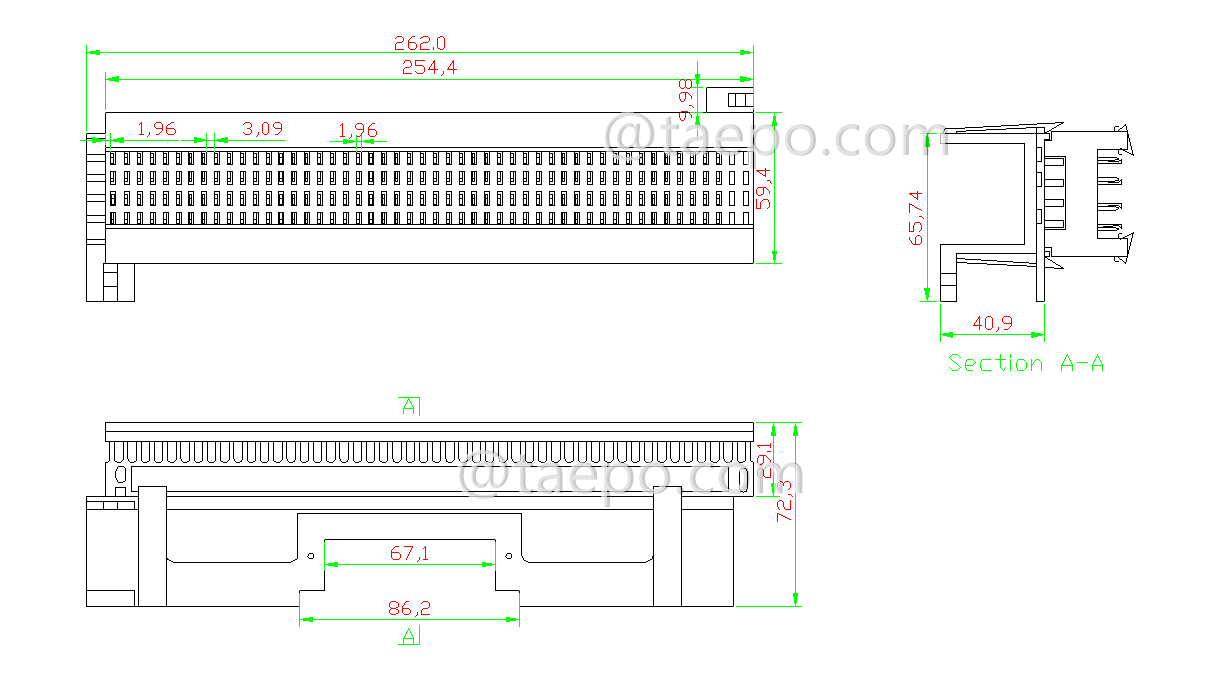

    Schematic Diagrams

    Packing Pictures

    Order Data
