What Does 10 Pairs Earth Bar Mean?
DESCRIPTIONS

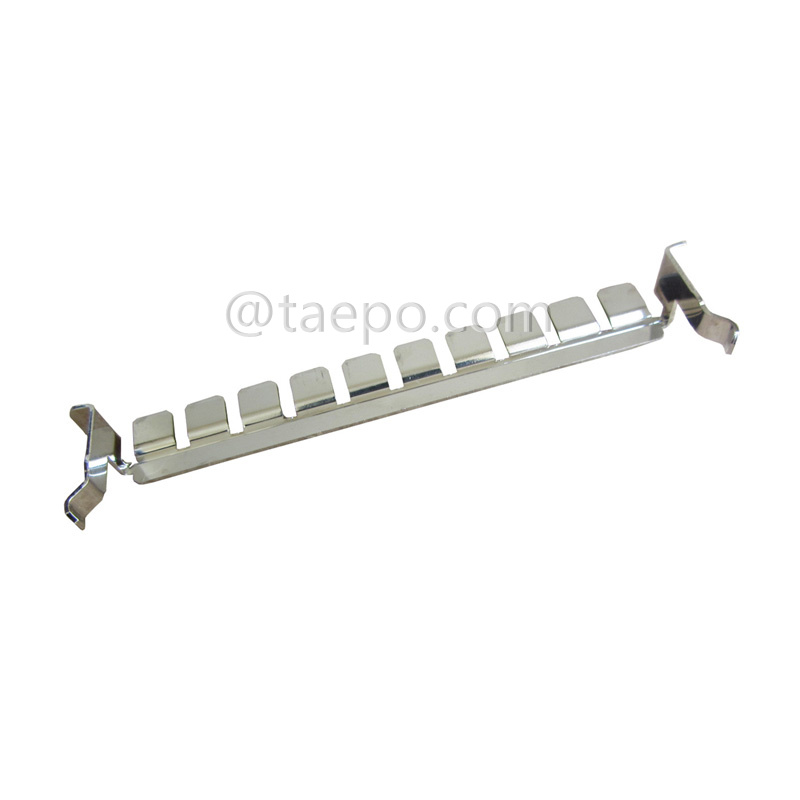

10 pairs earth bar for LSA module (TP-1242-10) is used on the LSA disconnection module, and 1 pair protectors are used mounted onto the earth bar for against over-voltage and over-current protection.
The function is to allow the current drain from the protection module when voltage surges occur. The main component of the product is brass, 0.80 mm thick, which guarantees good electrical conductivity between the module and the rack, during its useful life. With a view to ensuring protection against corrosion, it is covered with a layer of nickel which ensure its weather resistance.

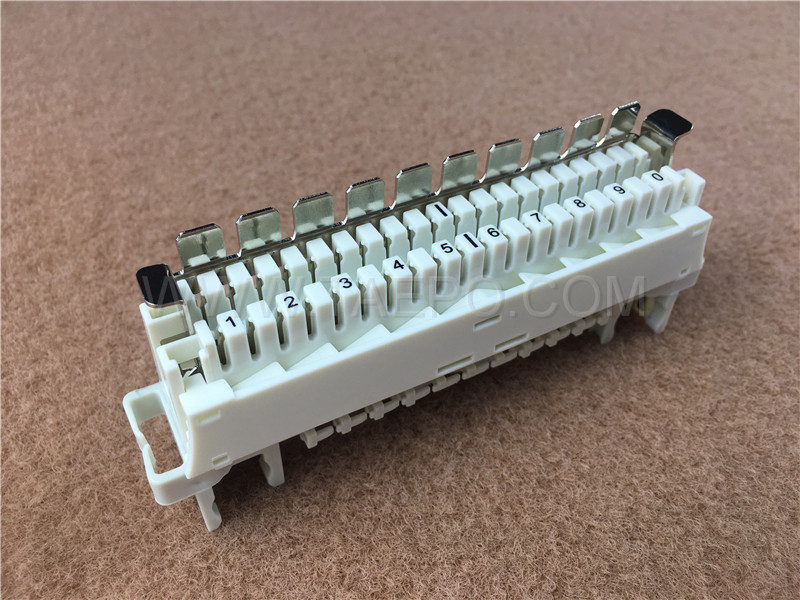

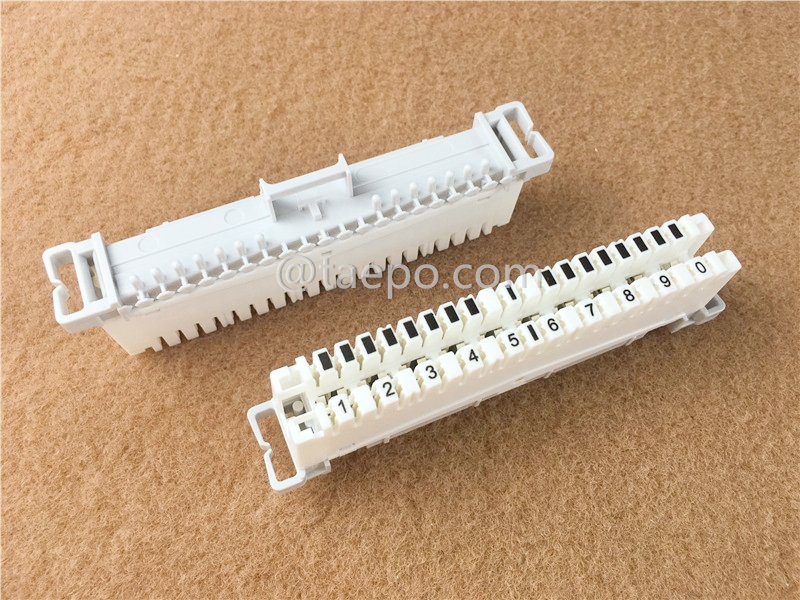

There are 2 types of LSA disconnection module. One is non-profile type, by mouting the earth bar onto the non-profile module, and mouting the module to the back mount frame, the earth bar will collide into the back mount frame for earthing.

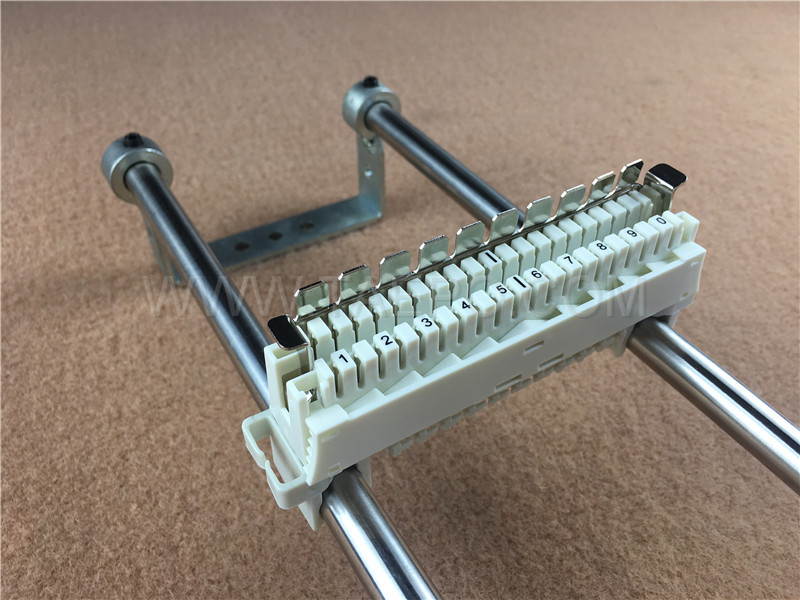

The other is profile type LSA disconnection module, mouting the earth bar and 2pcs earth clips onto the module, and mount onto the profile rod for earthing.
MAIN FEATURES
- Grounding and Bonding: The primary function of this earth bar is to provide a secure and low-resistance path for grounding and bonding. It helps dissipate electrical currents, reduce the risk of electrical shock, and protect equipment from surges or faults.
- Modularity: Offer modularity to allow for scalability and expansion of grounding connections as needed.
- User-Friendly Design: Designed with user-friendliness in mind, ensuring straightforward installation and maintenance procedures.
- Surge Protection: Include provisions for connecting surge protection devices to safeguard equipment from electrical surges and transient voltage events.
- Corrosion Resistance: Constructed with corrosion-resistant materials or coatings to ensure long-term durability, especially in challenging environments.
- High-conductivity Material: Made from brass or copper alloy for low-resistance current flow and high durability.
- Standard Interface: Compatible with LSA IDC module spacing and contact alignment.
- Surge Discharge Function: Provides direct earthing path to safely dissipate overvoltage and transient surges.
- Electroplated Surface: Nickel or tin plating enhances corrosion resistance and conductivity.
- Maintenance Free: No moving parts; once installed, requires no ongoing servicing.
- Easy Replacement: Can be swapped without disturbing adjacent LSA modules.
- Surge Suppression Compatible: Interfaces with gas discharge modules or arrestors.
- 10-Pair Grounding Capacity: Supports grounding for up to 10 telecom pairs.

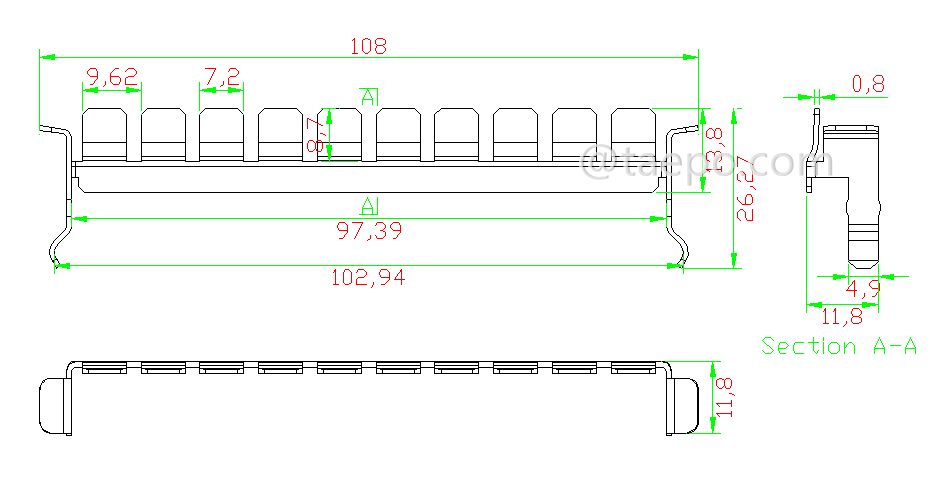

SCHEMATIC DIAGRAMS

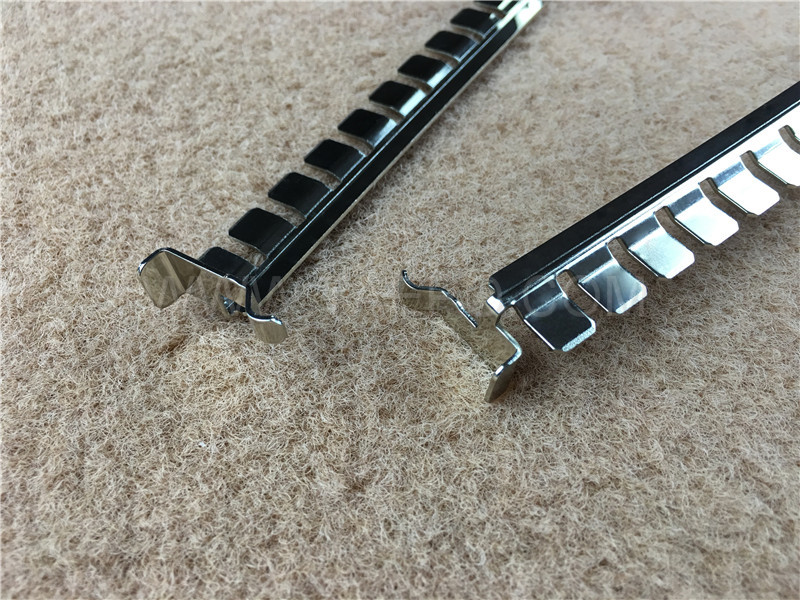

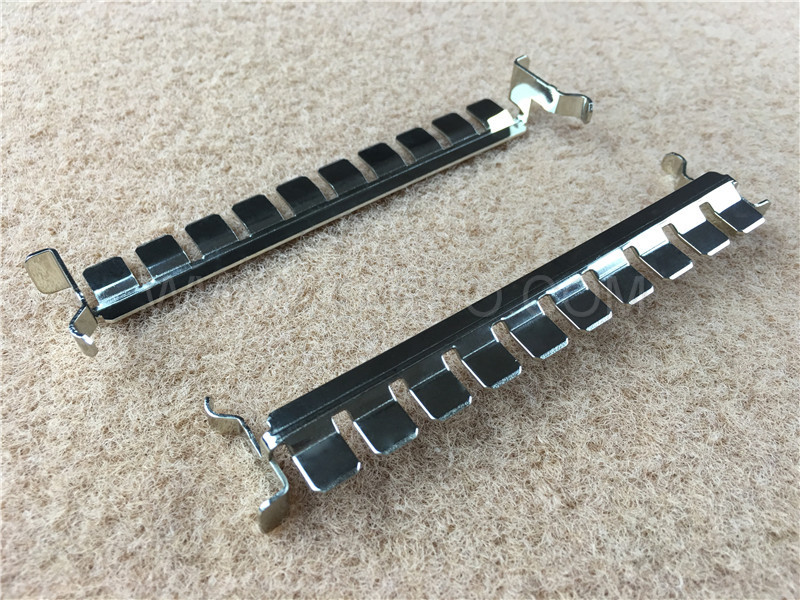

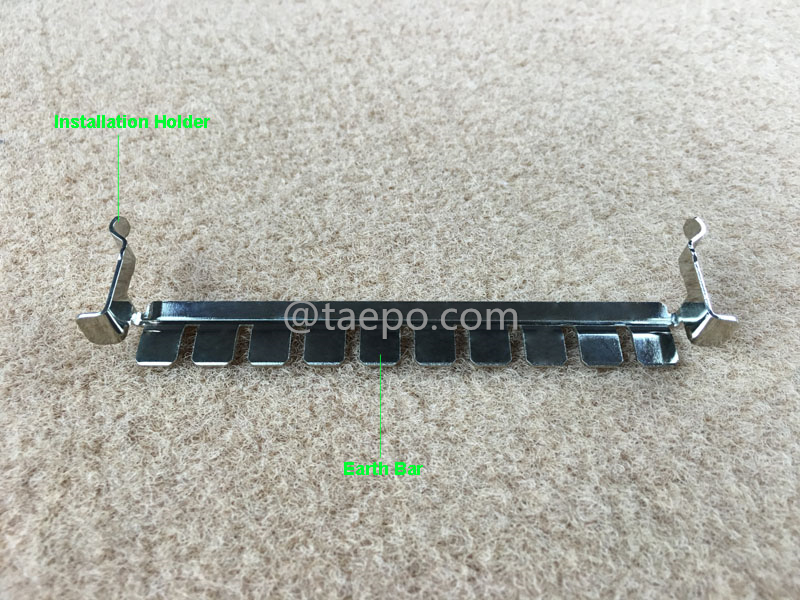

ILLUSTRATION PICTURES

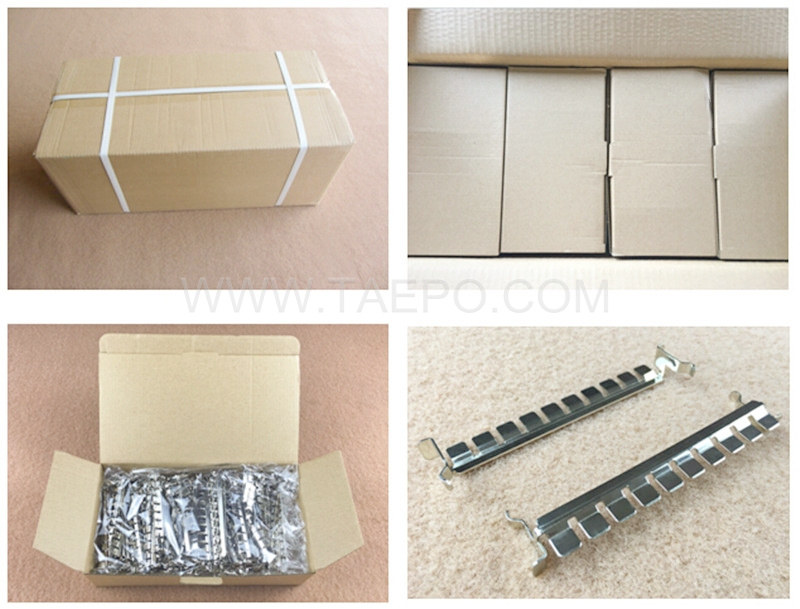

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1242-10 |
10 pairs earth bar for LSA module |
