10 pairs 3 pole over voltage LSA protection magazine with GDT arrester

    Descriptions

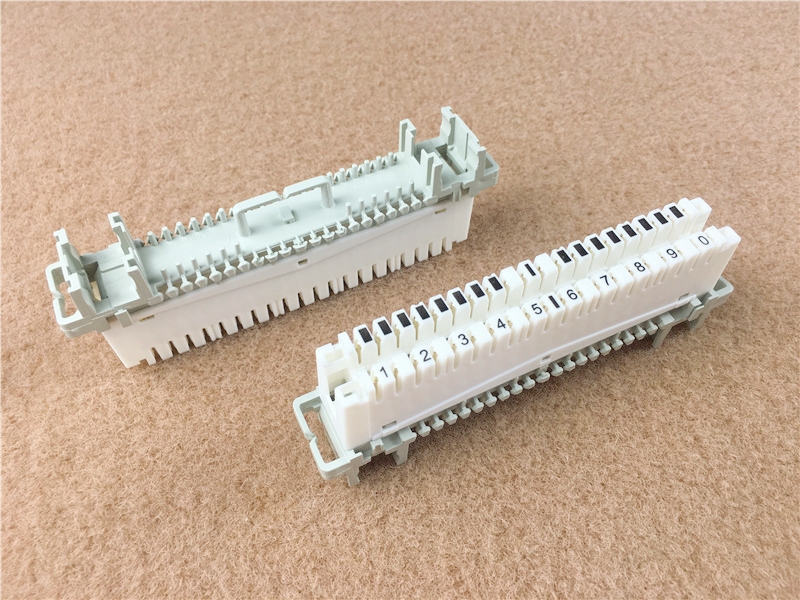

Regarding line surge arresters lsa market, we TAEPO have TP-1502-10P3G MDF over-voltage protection magazine is used for LSA modules ( you can visit details here ), which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage, for mainly as follows:

1) The surge voltage caused by lightning on or around the outside lines.

2) The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.

3)  The outside line directly collides against a 220 V power line.

The housing of the magazine is flame retardant, high temperature resistance and aging resistance. It is 10 pair modular design magazine.

Question : How does " a 10 pairs 3 pole over voltage LSA protection magazine " Work ?
Answer : The "10 pairs 3 pole over voltage LSA protection magazine" refers to a type of surge protection device used in telecommunications systems, particularly for protecting data lines from overvoltage conditions, such as those caused by lightning strikes or power surges.

Here's a basic overview of how it works:

1. Configuration: The term "10 pairs" indicates that the device can protect up to 10 pairs of wires (usually twisted pairs) simultaneously. "3 pole" typically means that it uses three elements for each pair to provide protection against voltage spikes.

2. Surge Protection Components: Inside the magazine, there are various components like gas discharge tubes (GDTs), metal oxide varistors (MOVs), or transient voltage suppression (TVS) diodes. These components work together to divert excess voltage away from the protected equipment.

3. Operation: When an overvoltage condition occurs, the protective components react by shunting the excess voltage to the ground. This prevents the surge from reaching sensitive equipment connected to the communication lines.

4. Installation: These protection magazines are typically installed in a distribution frame or termination point where communication lines enter a facility. They provide a centralized point for surge protection, making maintenance and replacement easier.

5. Compliance and Standards: Many such devices are designed to meet specific industry standards for performance and safety, ensuring reliable operation in various conditions.

This type of protection is crucial for maintaining the integrity of communication systems, especially in areas prone to electrical surges.


    Main Features

1)  Modular 10 pair design

2)  Easy installations

3)  Maintenance free

4)  Graded 3 point protection

5)  Fail Safe (FS) function

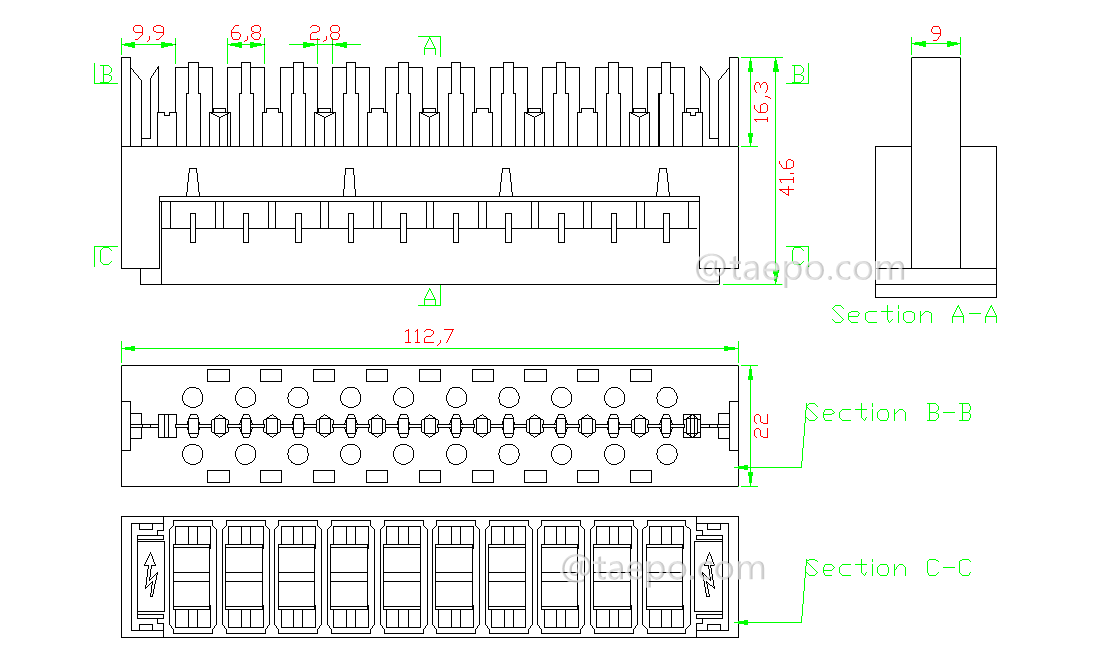

    Schematic Diagrams

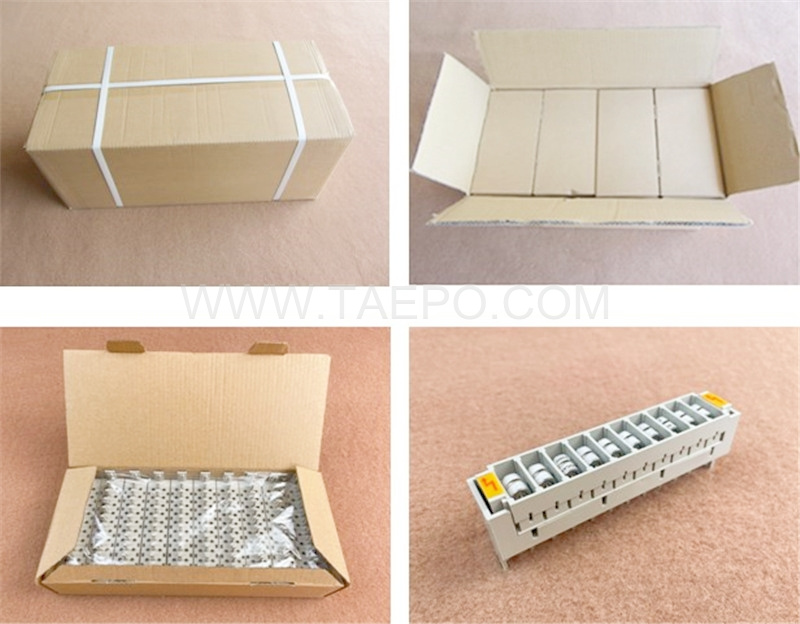

    Packing Pictures
