Descriptions

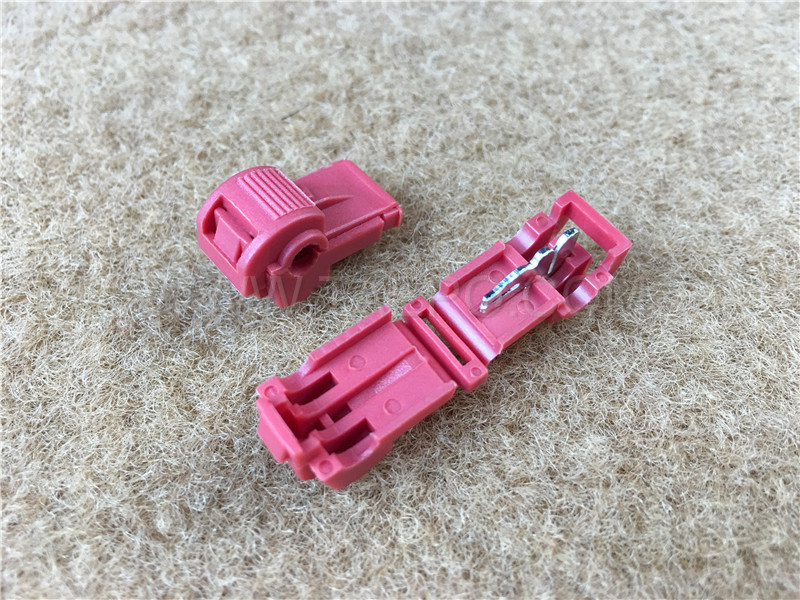

951 self-Stripping Electrical Tap Connectors (TP-1310-951) to electrically tap into a wire in mid-span without cutting or stripping the wire. Connector then mates with a 6.35mm male tab, making a reusable quick-connect wiring termination.
Self-stripping electrical tap connectors, also known as self-stripping wire splice connectors or self-stripping T-tap connectors, are electrical connectors designed for joining or tapping into an existing wire without the need to manually strip the wire insulation. These connectors are commonly used in various electrical and automotive applications for quick and convenient wire connections.
The most distinctive feature of these connectors is their self-stripping capability. They have a mechanism that automatically strips the wire insulation when the connector is crimped or tightened. This eliminates the need for a separate wire stripping tool, simplifying the installation process.
Main Features
- Self-Stripping Design: These connectors are specifically designed to automatically strip the wire insulation when the connector is crimped or tightened, eliminating the need for manual wire stripping. This feature simplifies and speeds up the installation process.
- Tap Connection: Self-stripping tap connectors are primarily used for creating secure electrical connections by tapping into an existing wire (the "run") to add a new branch circuit or device (the "tap"). They are ideal for expanding or modifying electrical circuits.
- Wire Compatibility: These connectors are designed to work with specific wire sizes and types, ensuring compatibility and a secure connection. It's important to select the correct connector size for the wire being used.
- Insulation Material: Many self-stripping connectors come equipped with built-in insulation materials or covers to protect the connection from moisture, physical damage, and accidental contact, enhancing safety and code compliance.
- Ease of Installation: Self-stripping tap connectors are known for their ease of installation. They require minimal tools and can often be installed by hand, making them accessible to both DIY enthusiasts and professionals.
- Reusability: Some self-stripping connectors can be disassembled and reused, offering flexibility in modifying or expanding electrical circuits.
- Applications: These connectors are commonly used in automotive wiring, household electrical repairs, lighting installations, electrical panels, and control systems where quick and reliable wire connections are required.

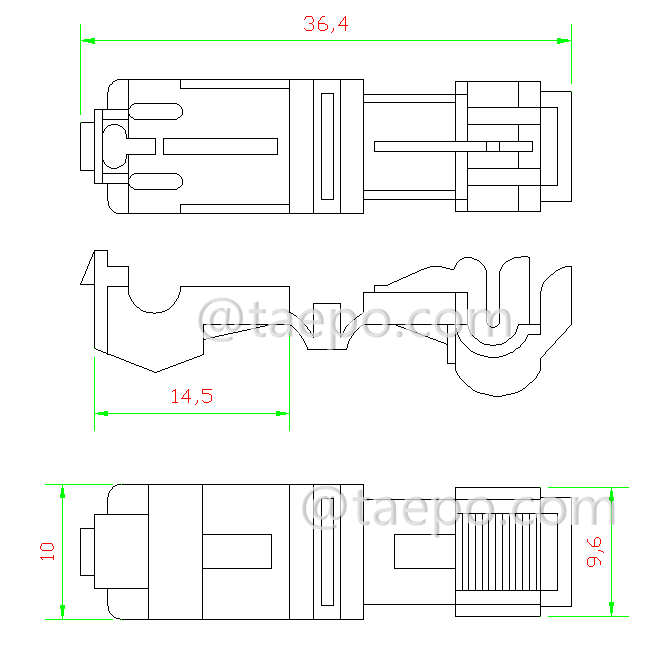

Schematic Diagrams
Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-1310-951 |
951 self-stripping electrical tap connectors, 1-wire, AWG22-18 conductor, single pin, red |
