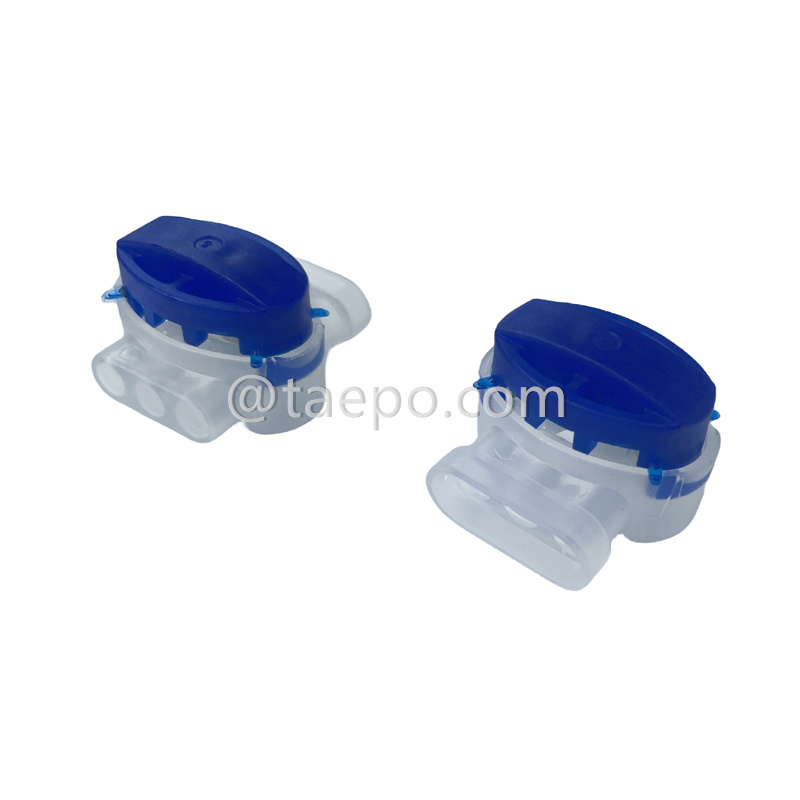

314 self-stripping electrical connector, 3-wire, AWG22-14 conductor, max insulation 3.8mm, dual pins, gel filled

Item No.: TP-1310-314 02
Connect the electrial wires | 3 wires AWG22-14 conductor | Max insulation 3.8mm | Dual pins | Gel filled
  • Color: White base, blue cap
  • Brand: Neutral / OEM / TAEPO
  • Packing: 25pcs/blister, 100blisters/ctn, 36.5*38.5*49cm/ctn, gw12.5kg/ctn
  • MOQ: 5000pcs
  • Delivery: 2-4 weeks
  • Description

    TAEPO - Your Professional Source for 314 Self-stripping Electrical Connector, Expert Chinese Manufacturing at Its Best!
    What Exaclty Is a
    314 Self-stripping Electrical Connector
    ?


        DESCRIPTIONS


    314 self-stripping electrical connector (TP-1310-314), often referred to as a "tap connector" or "self-tapping connector," is a device used in electrical applications to create a secure and reliable connection between two or more wires without the need for stripping insulation from the wires beforehand. These connectors are commonly used in automotive, electrical, and electronic applications where quick and efficient wire connections are required.

    It is grease filled, protecting against corrosion in damp conditions. Handles 22-14 AWG solid or stranded wire. Self-stripping U contacts for mechanical strength and electrical conductivity. It is recommended to use the crimping tool (TP-5940-998).

    Overall, self-stripping electrical connectors offer a convenient and efficient solution for making electrical connections, especially in situations where traditional wire stripping methods may be cumbersome or impractical. They contribute to improved installation efficiency and reduced labor costs in various electrical and electronic applications.



        MAIN FEATURES


    • Self-Stripping IDC Mechanism: Uses insulation displacement contact technology, meaning wires do not require stripping before insertioncontacts pierce the insulation and connect directly to the copper core.
    • Crimping Mechanism: Self-stripping connectors include a built-in spring crimping mechanism to secure the wire and maintain a strong electrical connection.
    • Wide Conductor Range Compatibility: Compatible with copper wires from AWG 22 to AWG 14, allowing usage across various wiring standards, from telecom signal cables to control circuits.
    • Quick Installation: They are designed for quick and efficient installation, which is crucial in applications where time is a critical factor.
    • Pre-Filled with Waterproof Gel: The inner cavity is filled with a petroleum-based sealing gel that surrounds and protects contacts, preventing corrosion from moisture, dirt, and chemical exposure.
    • Cost-Efficiency: They are often cost-effective solutions for making electrical connections, saving both time and labor costs.
    • Three-Wire Joining Capacity: Accommodates up to three copper conductors in a single connection, allowing star-shaped splices or branch circuits with minimal effort and compact design.


        SCHEMATIC DIAGRAMS



    drawing for 314 self-stripping electrical connector, 3-wire, AWG22-14 conductor, max insulation 3.8mm, dual pins, gel filled

        ILLUSTRATION PICTURES

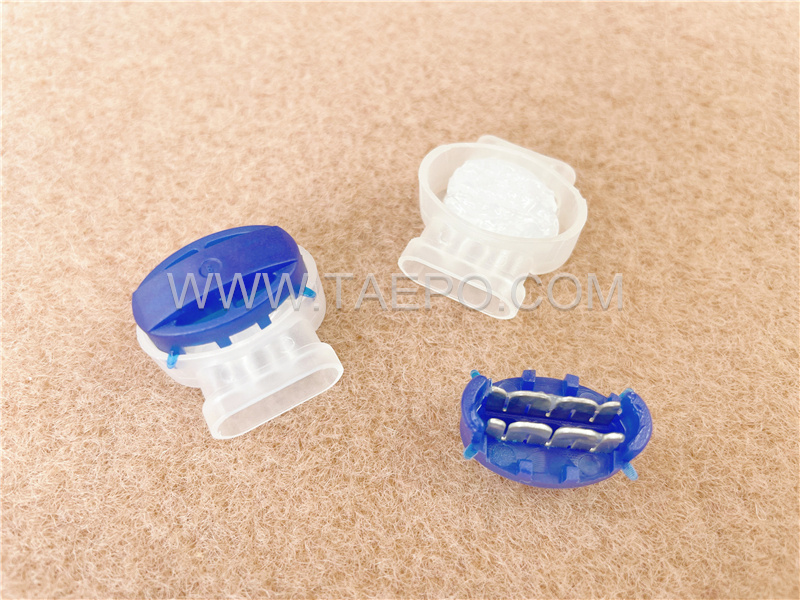

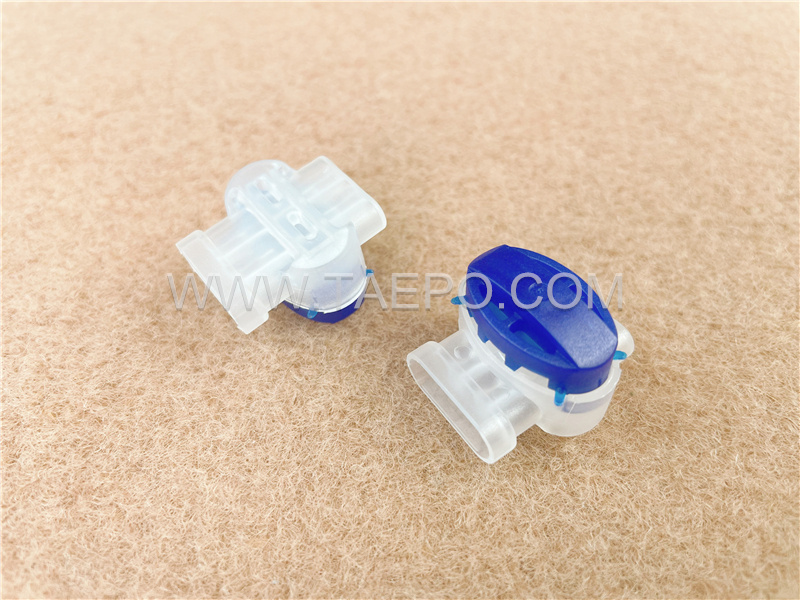

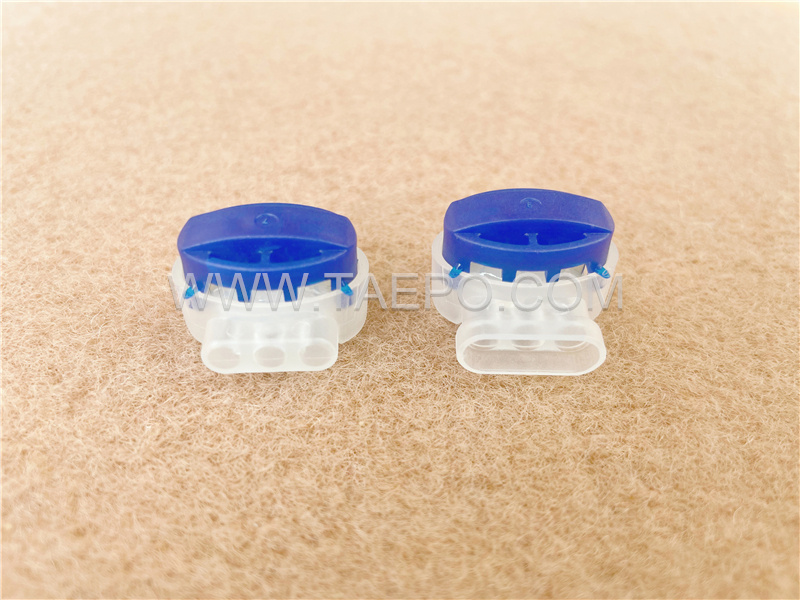

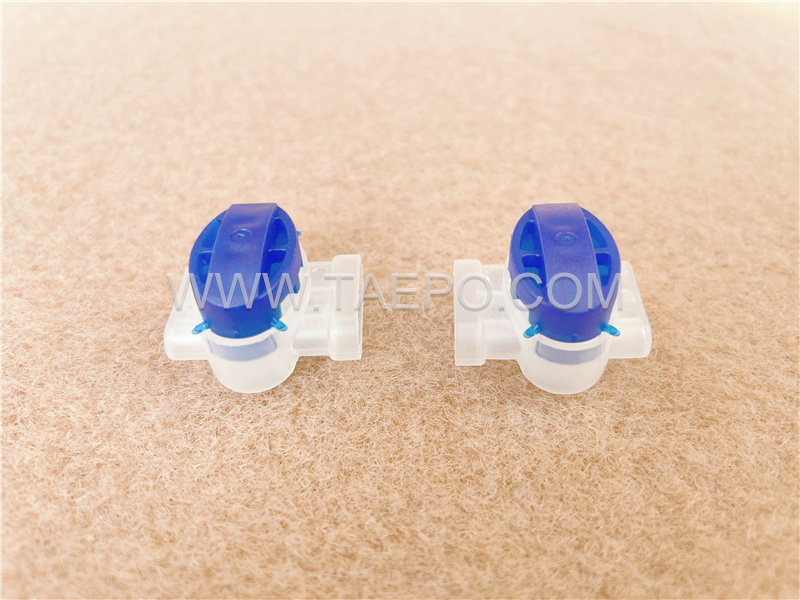

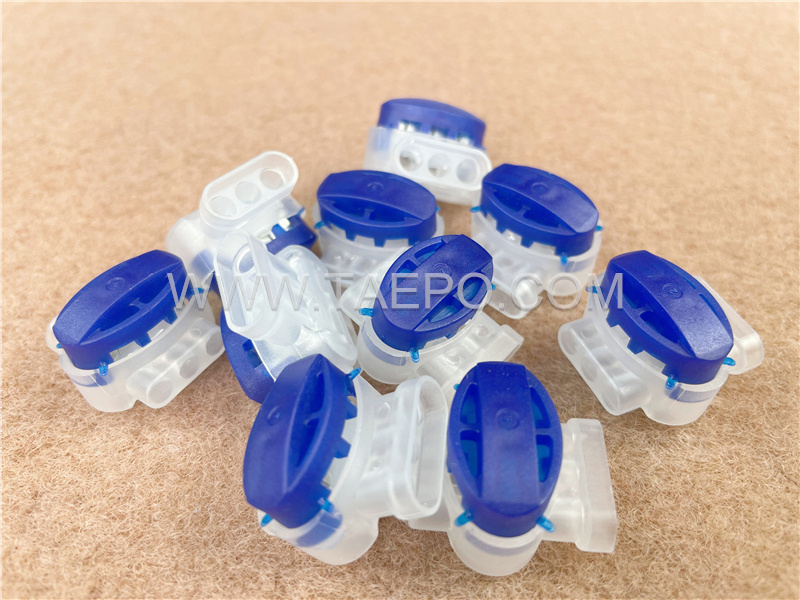

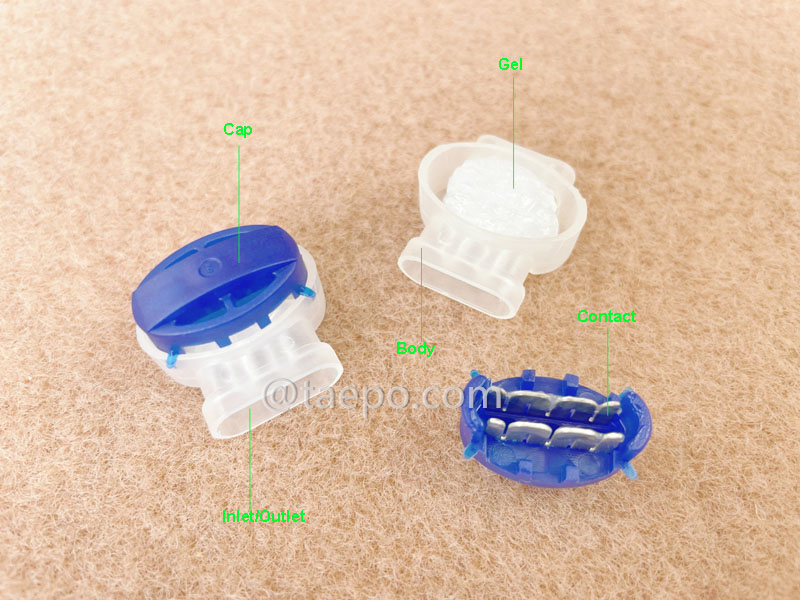

    illustration for 314 self-stripping electrical connector, 3-wire, AWG22-14 conductor, max insulation 3.8mm, dual pins, gel filled

        PACKING PICTURES

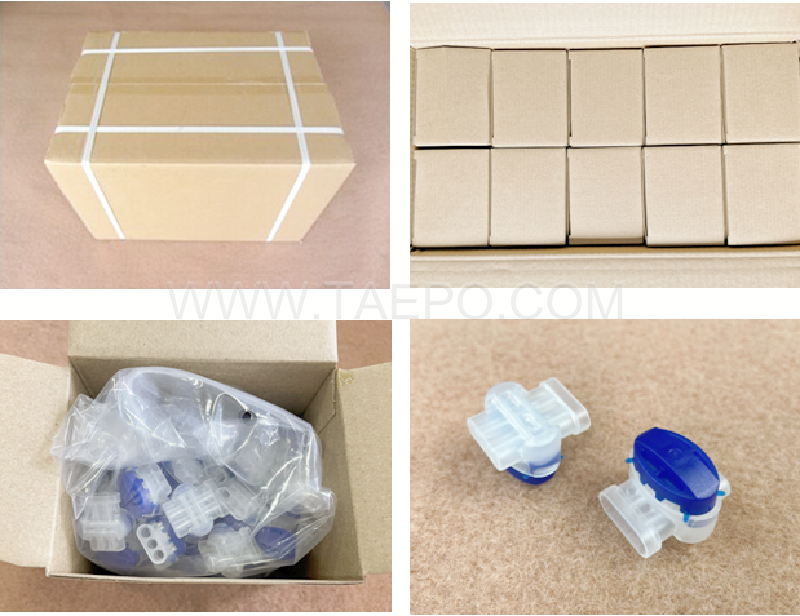

    packing picture for 314 self-stripping electrical connector, 3-wire, AWG22-14 conductor, max insulation 3.8mm, dual pins, gel filled


        ORDER DATA

    Item No Descriptions
    TP-1310-314 314 self-stripping electrical connector, 3-wire, AWG22-14 conductor, max insulation 3.8mm, dual pins, gel filled

        RELATED PRODUCTS

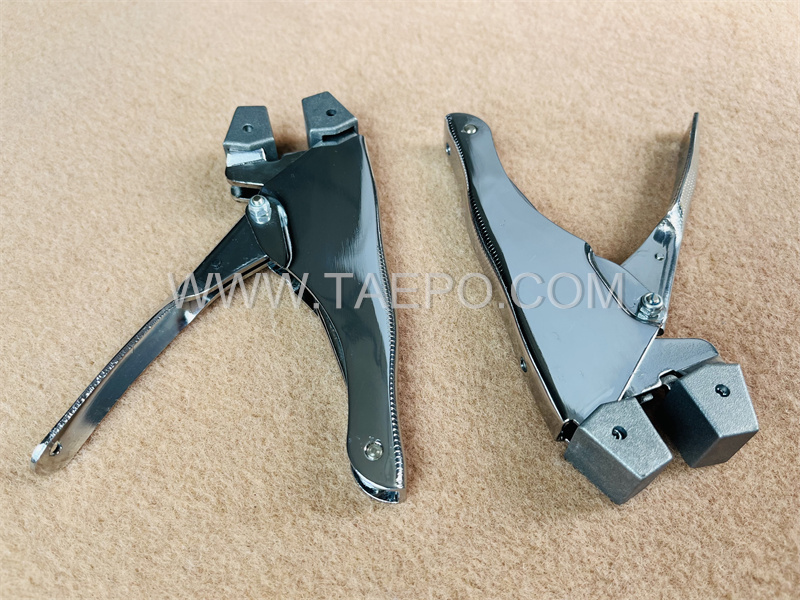

    Crimping tool for big wire connectors
