3m scotchlok idc ur2 K3 connector with CE Certificate

    Descriptions

TAEPO - Your Professional UR2 Connector Manufacturer In China !

What is a UR2 connector?

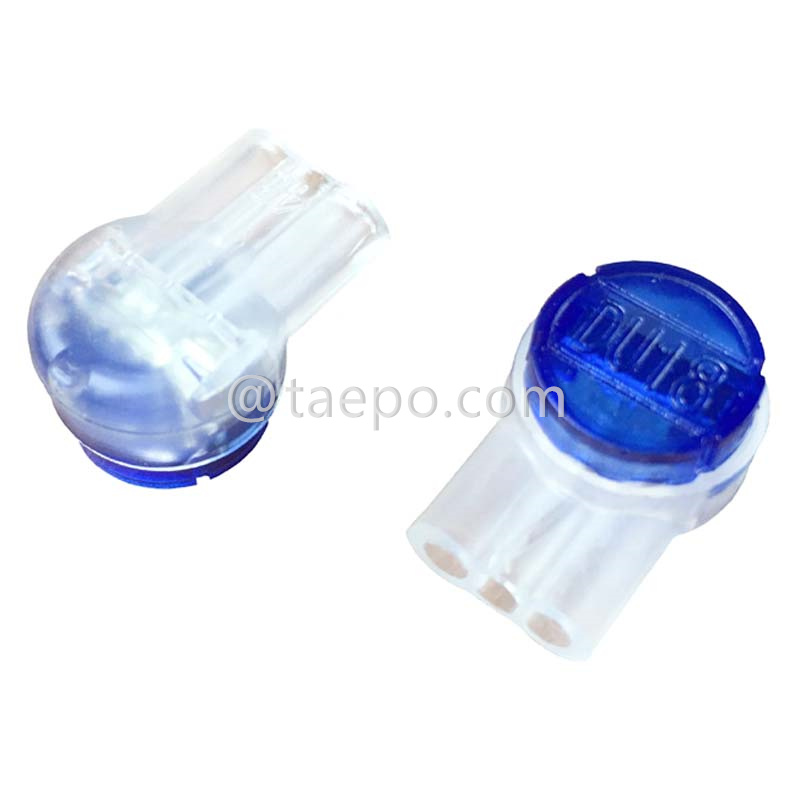

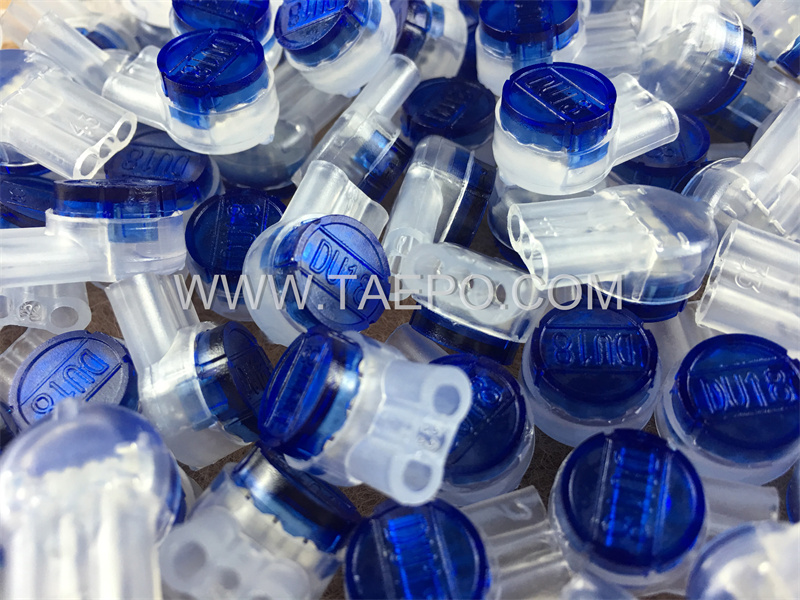

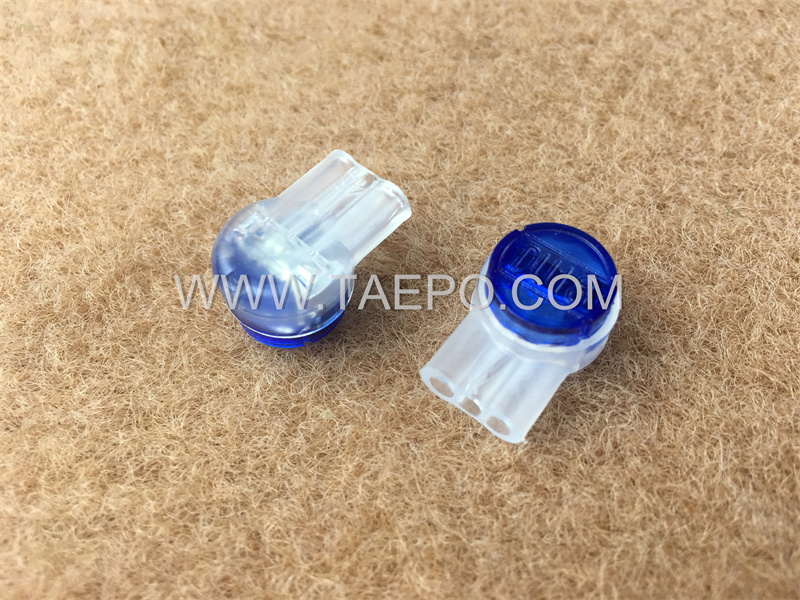

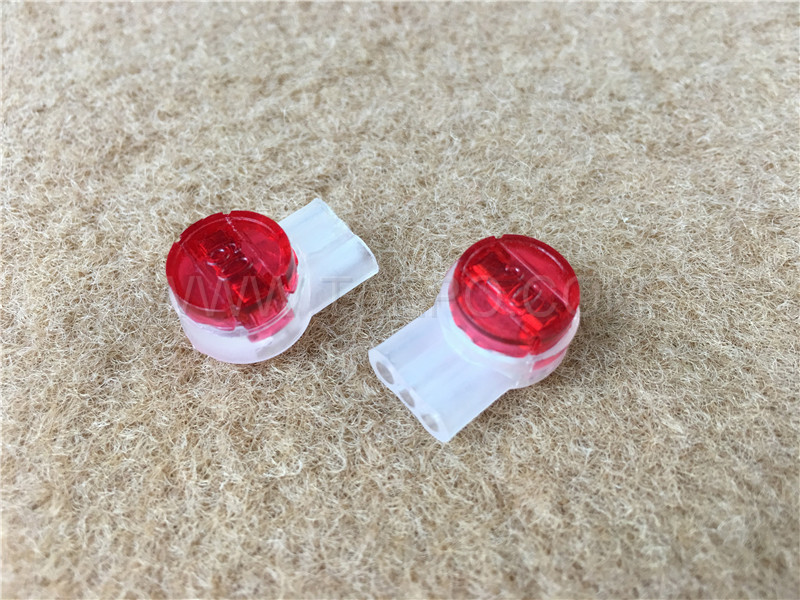

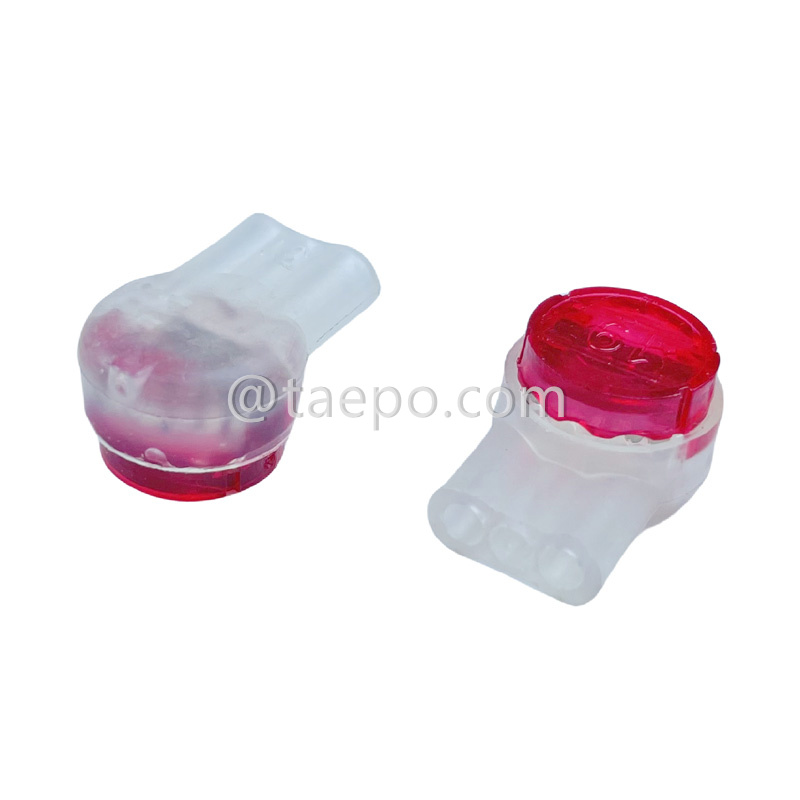

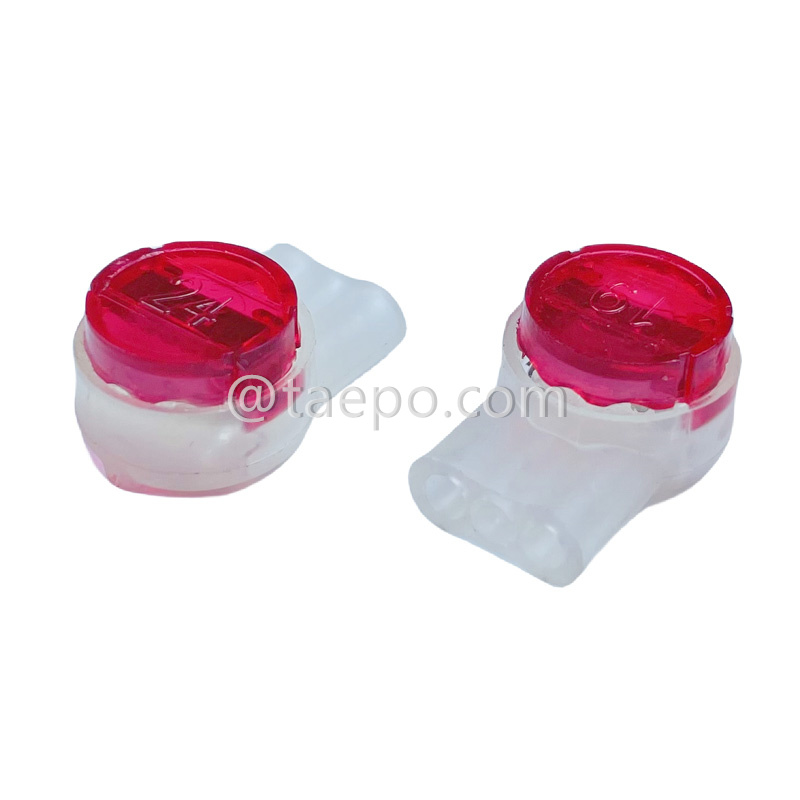

3m scotchlok idc K3 UR2 connectors (TP-1310-UR2), the small size of the UR2 connector reduces the splicing bundle O.D. The connector’s three ports accept three solid or stranded copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311, You can visit details here )

It is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.9mm solid copper cables with max insulation diameters 2.08mm.

The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts.

    Main Features

• Insulation Displacement Connection
• No Wire-stripping, screw and solder free
• Reliable connections
• Gas tight connection
• One crimping wire connection
• Robust long-term environmental stability
• Translucent material-less mistakes

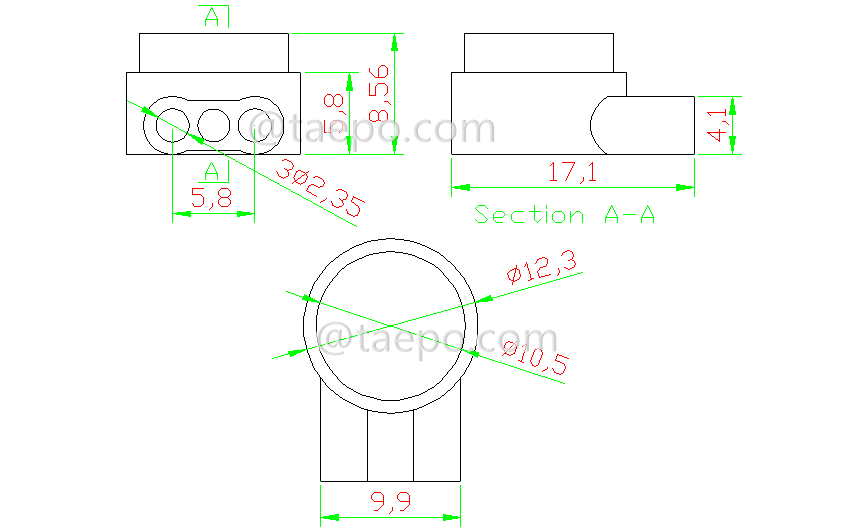

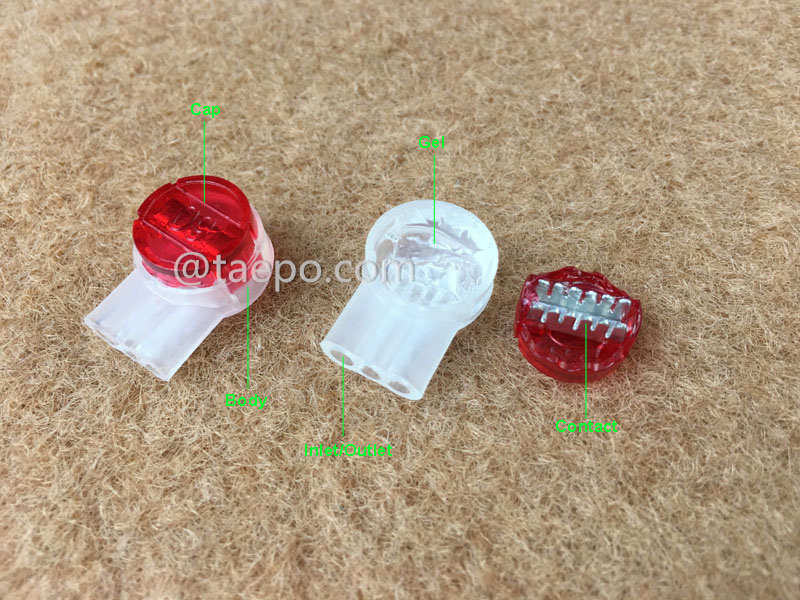

    Schematic Diagrams

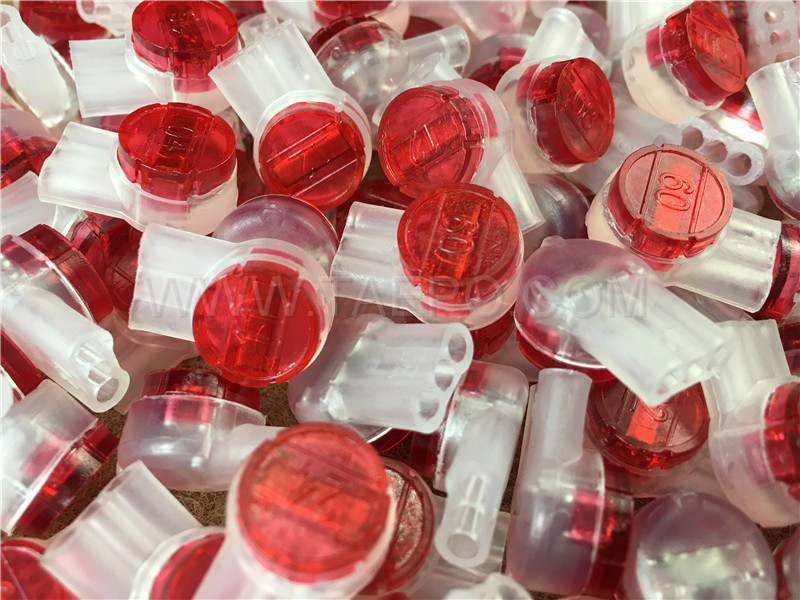

    Packing Pictures

    Order Data
