What Is UY2 Butt Connector Used for?
DESCRIPTIONS
UY2 butt connector (TP-1310-UY2) the small size of the UY2 connector reduces the splicing bundle O.D. to a minimum. The connector’s two ports accept two solid or stranded copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311)
It is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.9mm solid copper cables with max insulation diameters 2.08mm.
The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts. Its pre-filled gel ensures long-lasting moisture resistance and environmental protection, making it ideal for harsh outdoor conditions and buried cable environments. Installation is quick and tool-friendly, usually requiring only standard crimping pliers, without the need to strip wire insulation.
MAIN FEATURES
- IDC Design: Employs a dual-blade insulation displacement design, ensuring a secure connection without stripping wire insulation. This design minimizes signal loss and ensures a gas-tight connection.
- Compatibility: Compatible with solid copper conductors ranging from 19 AWG to 26 AWG, offering versatility for various wire gauges typically used in telecom installations.
- Moisture Resistance: Incorporates a gel-filled body that provides moisture resistance, enhancing reliability in outdoor or humid environments, preventing corrosion and signal degradation.
- Dual-Bladed Contacts: Consists of dual-bladed contacts that puncture the wire insulation to establish a secure electrical connection.
- Transparent Base: Offers partial visual confirmation of wire insertion and contact, minimizing splicing errors.

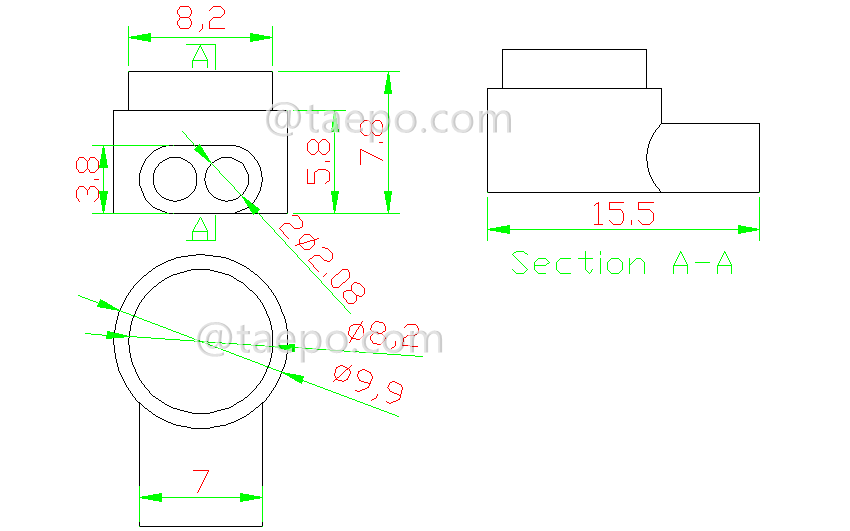

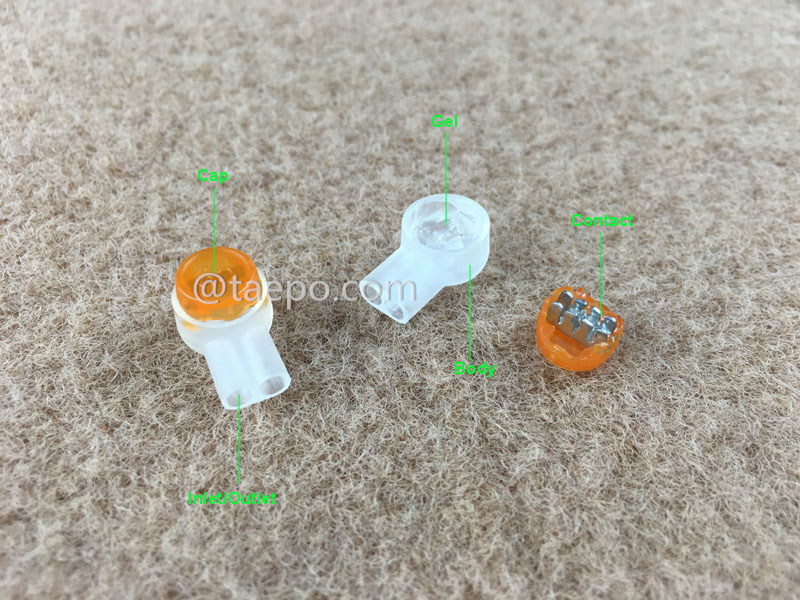

SCHEMATIC DIAGRAMS

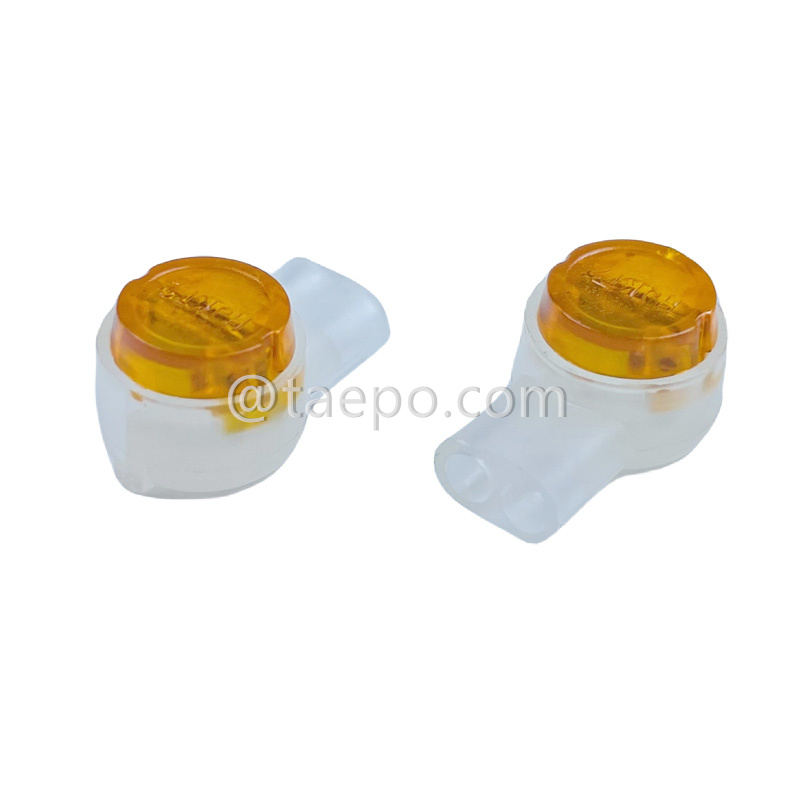

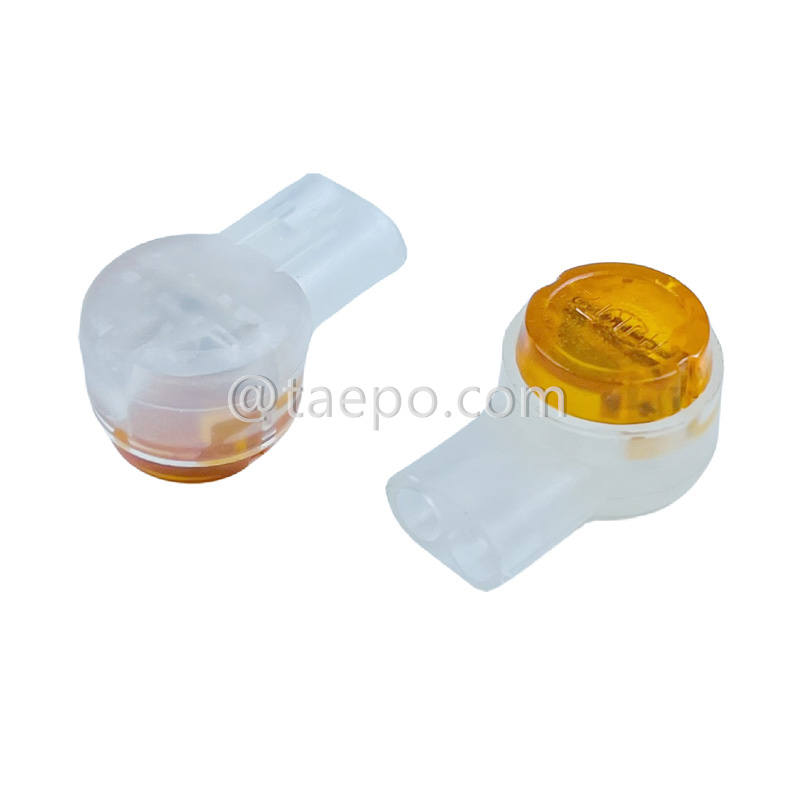

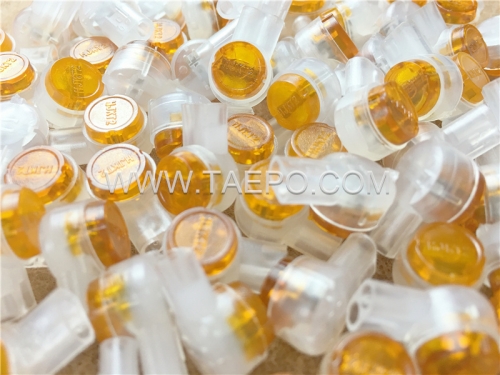

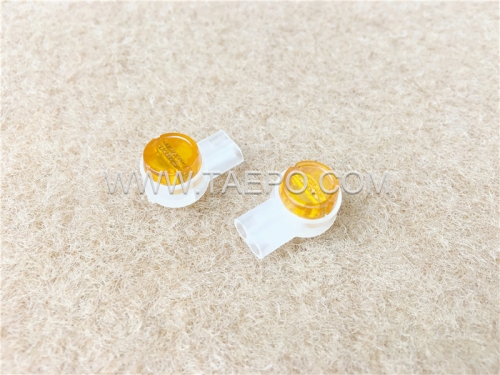

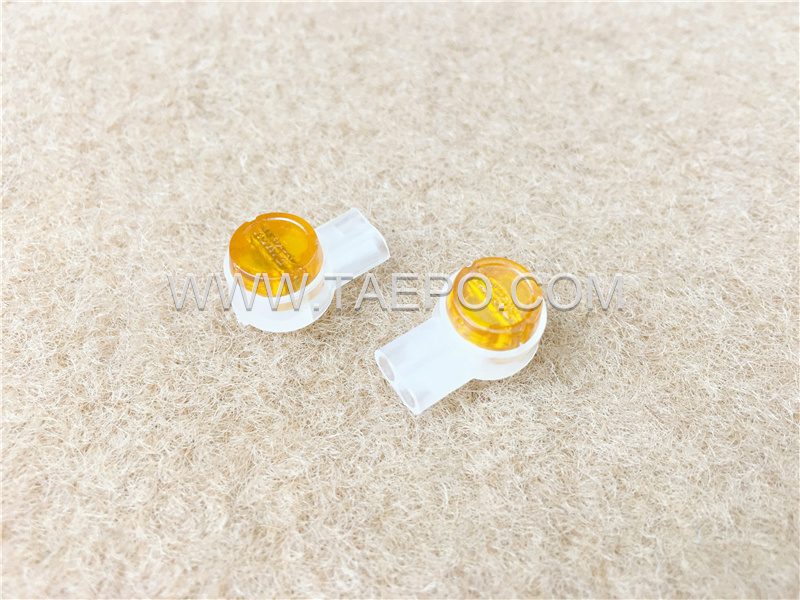

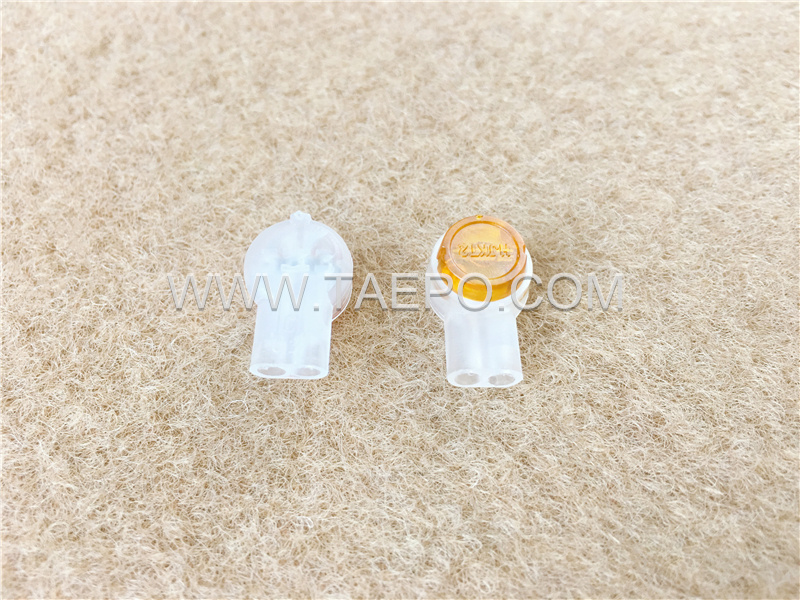

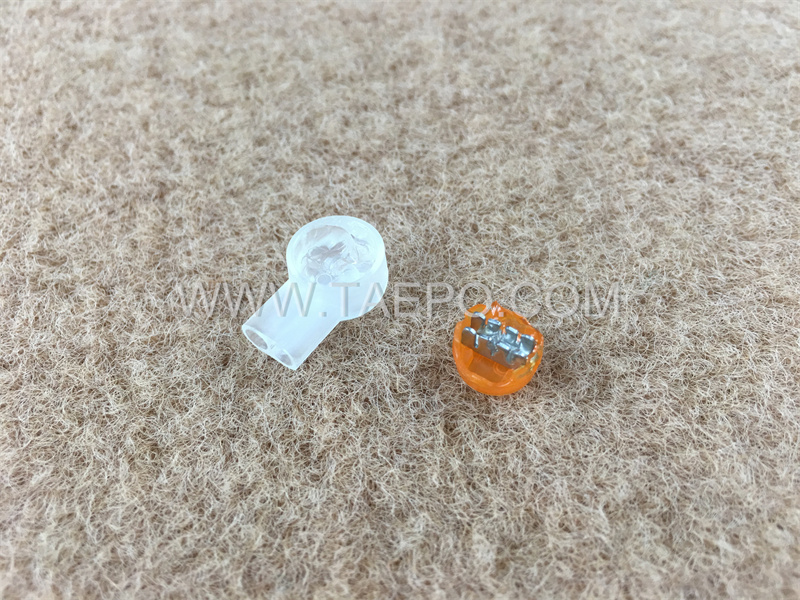

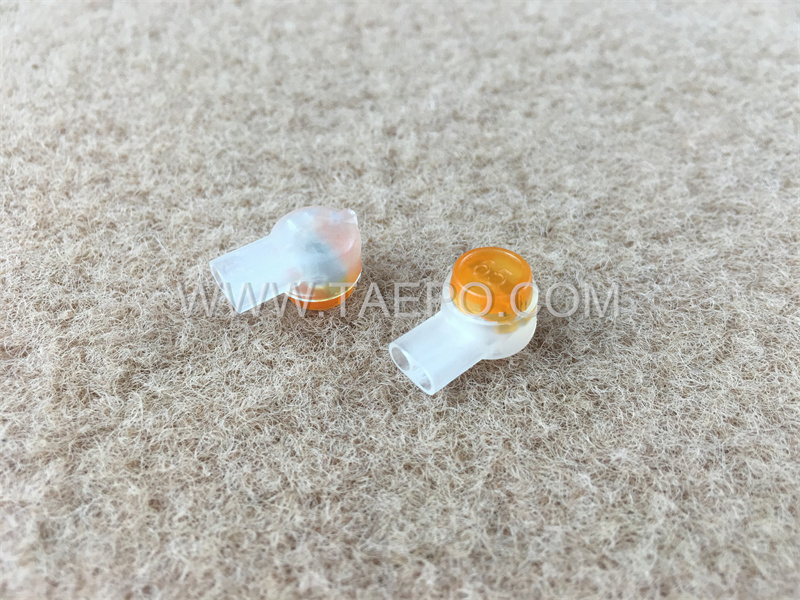

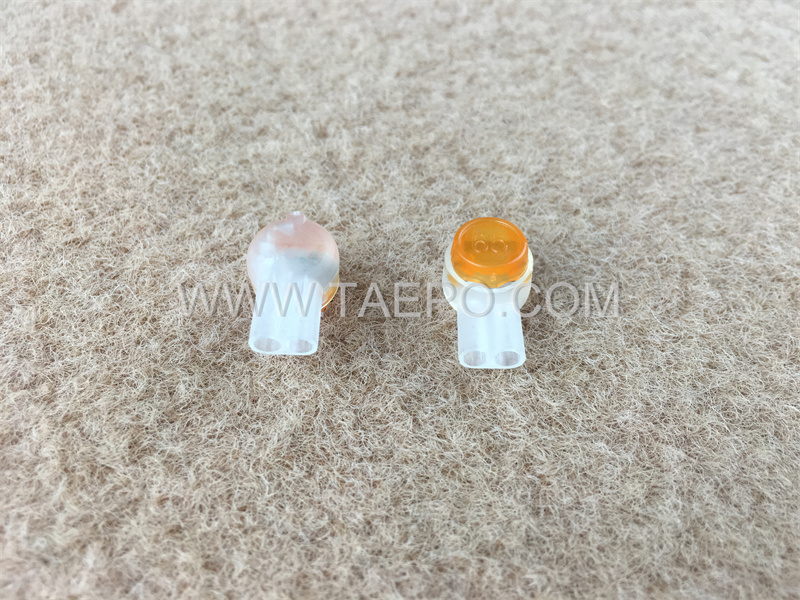

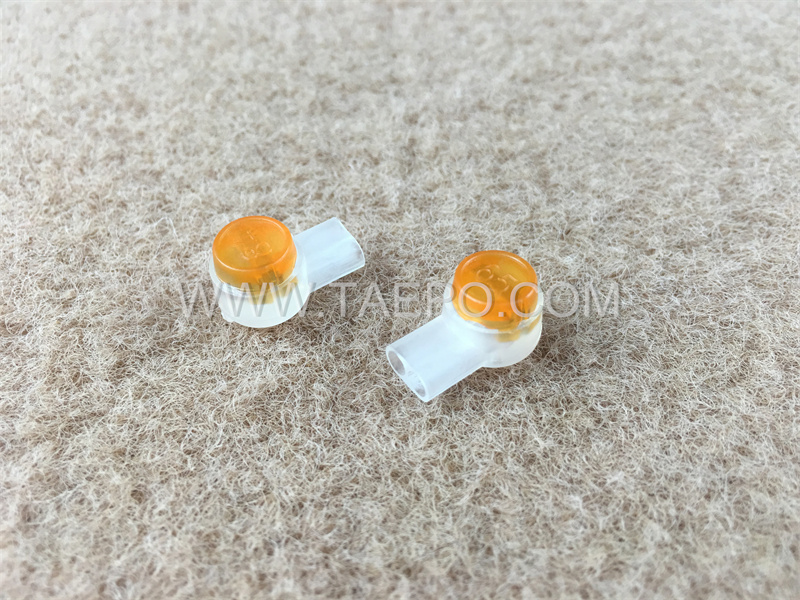

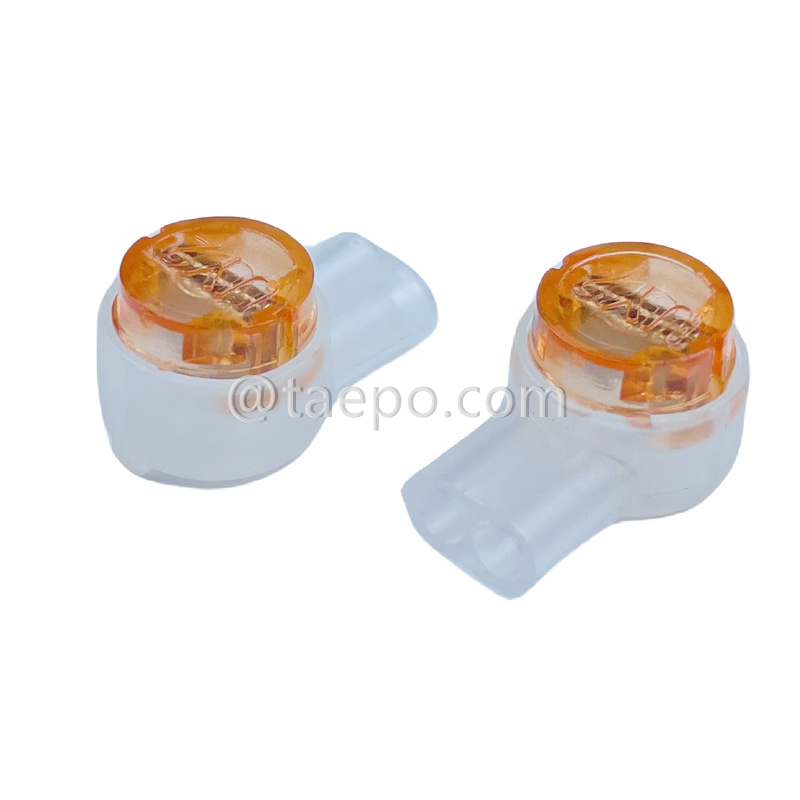

ILLUSTRATION PICTURES

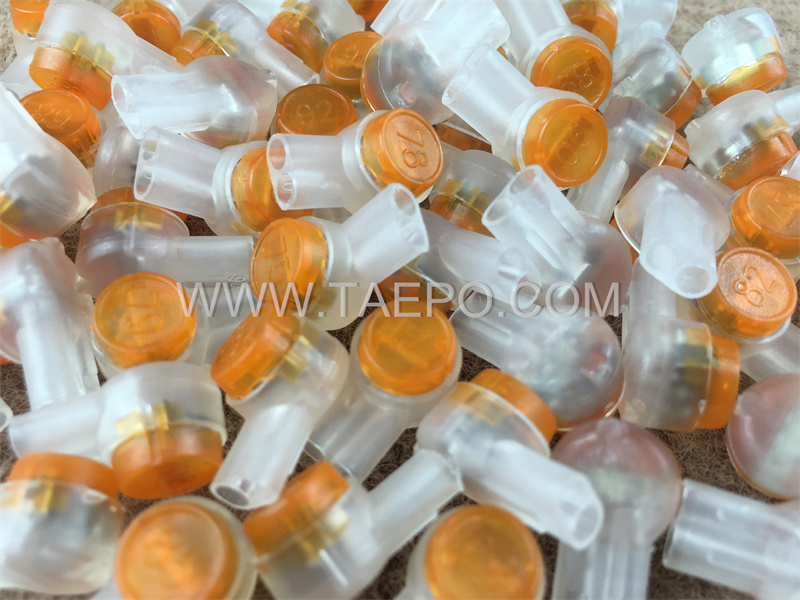

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1310-UY2 |
UY2 butt connector, 2-wire, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins, gel filled |
RELATED PRODUCTS
TP-5931-311 Crimping tool for small wire connectors
