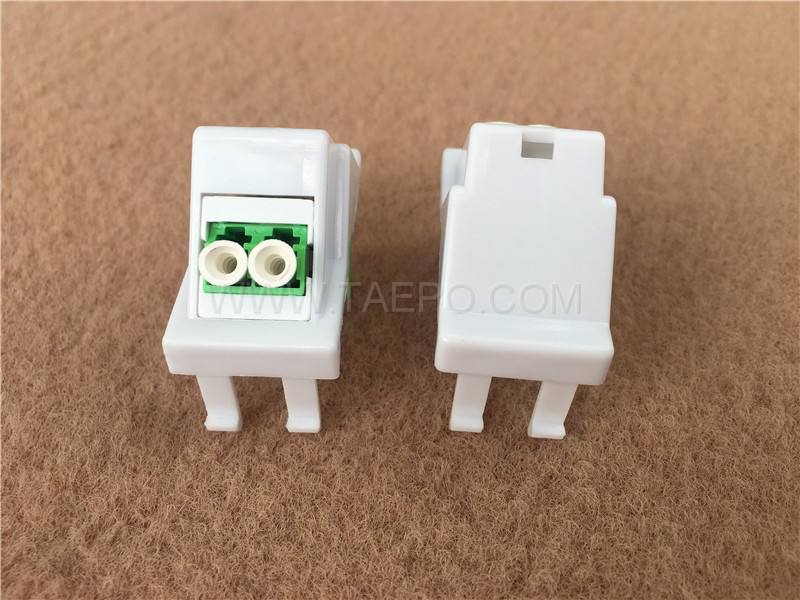

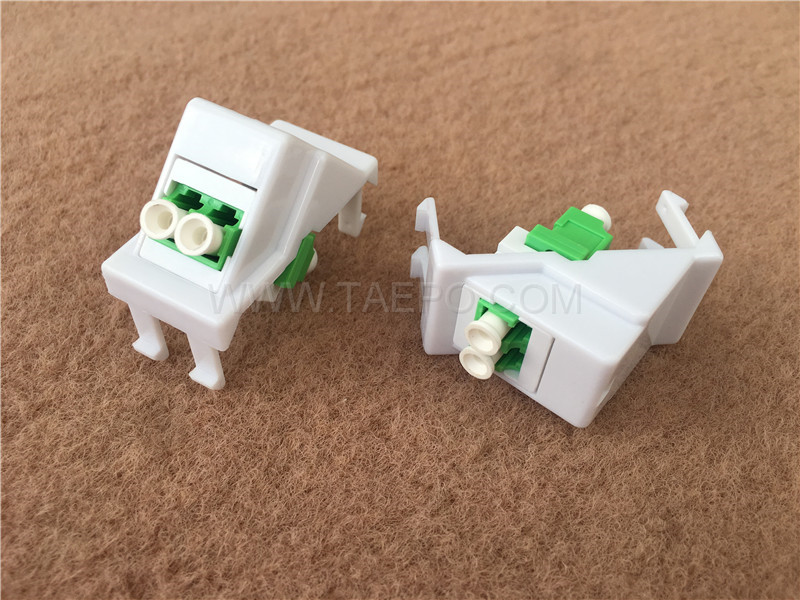

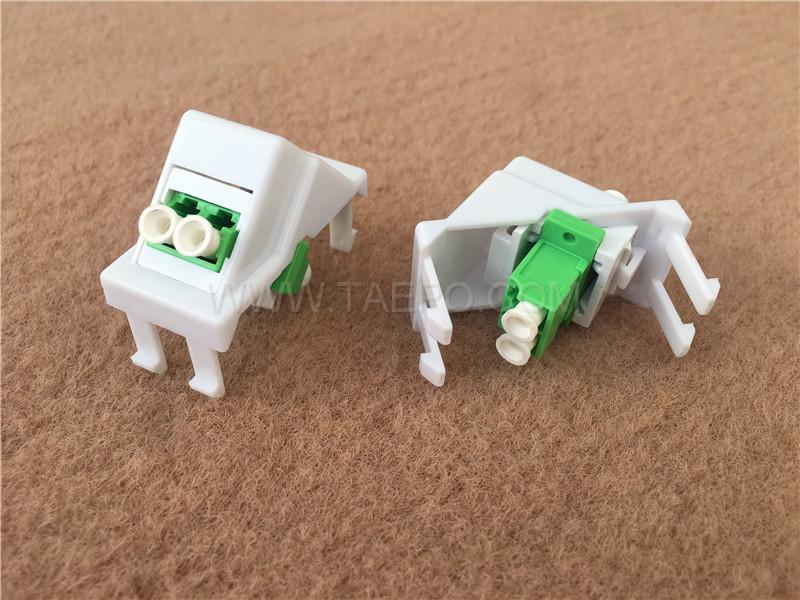

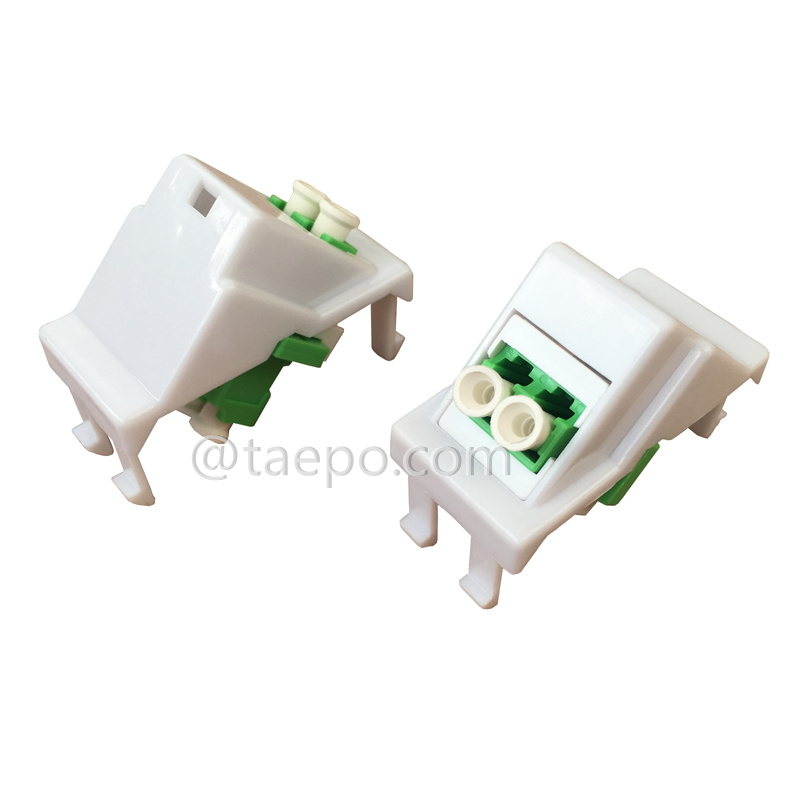

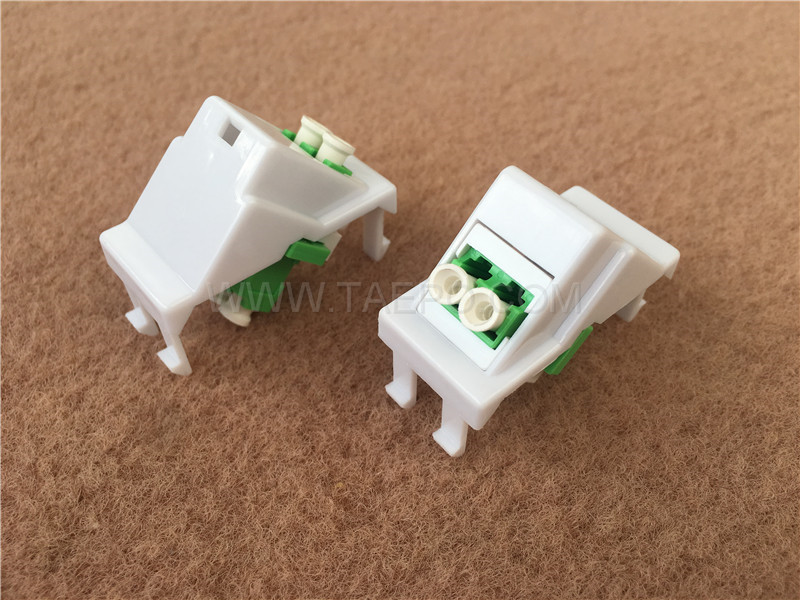

Plastic insert with LC APC duplex coupler for ethernet wall Network outlet

    Descriptions

A Plastic insert with an LC APC duplex coupler for an Ethernet wall network outlet is a component used in fiber-optic network installations.

Here’s a breakdown of what each part refers to:

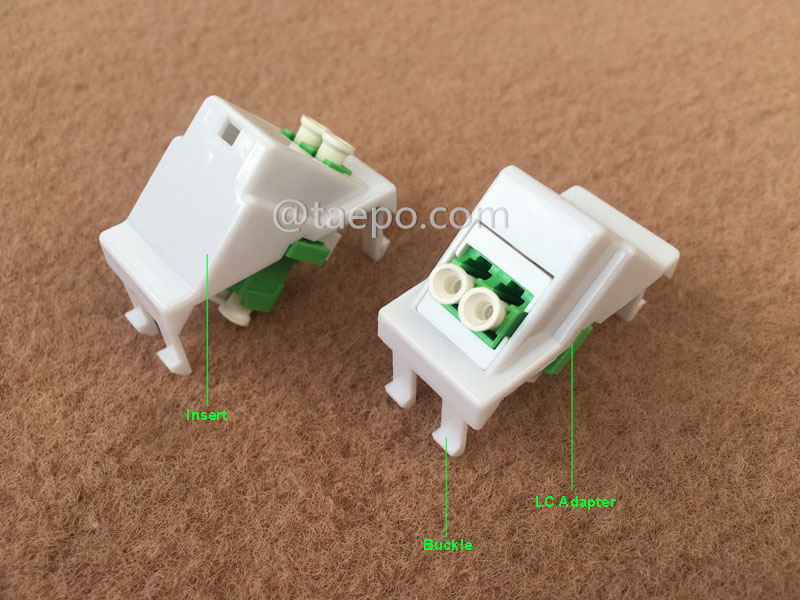

Plastic Insert:This refers to the physical piece, often made of durable plastic, that fits into a network outlet or wall plate. It holds and secures the network connection points (like fiber couplers or keystone jacks), providing a neat and organized interface on the wall.

LC APC Duplex Coupler:

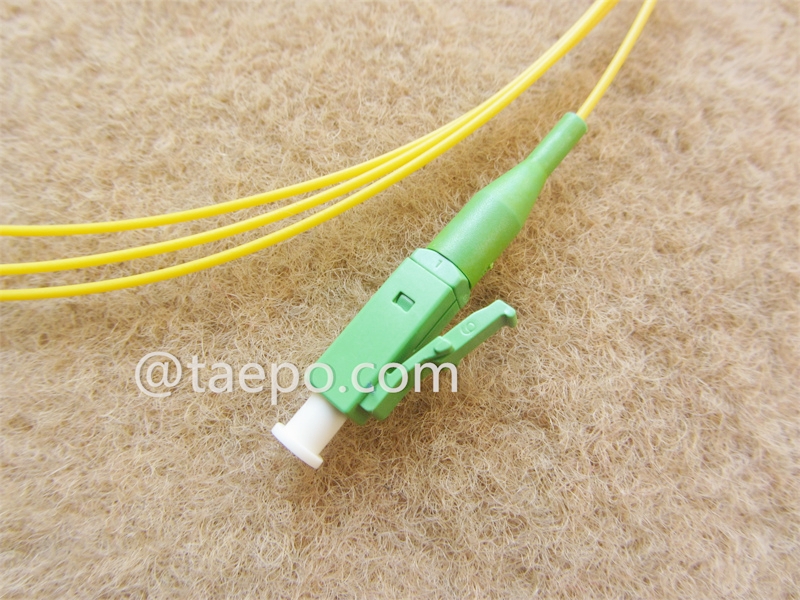

LC (Lucent Connector): A type of small form-factor fiber-optic connector that is commonly used for high-density networking setups. LC connectors are widely used in both data centers and telecommunications for fiber-optic connections.

APC (Angled Physical Contact): A type of fiber-optic connector polish that features an angled endface. The angle (typically 8 degrees) helps to reduce signal loss and back reflection, making it ideal for high-performance and long-distance fiber optic connections.

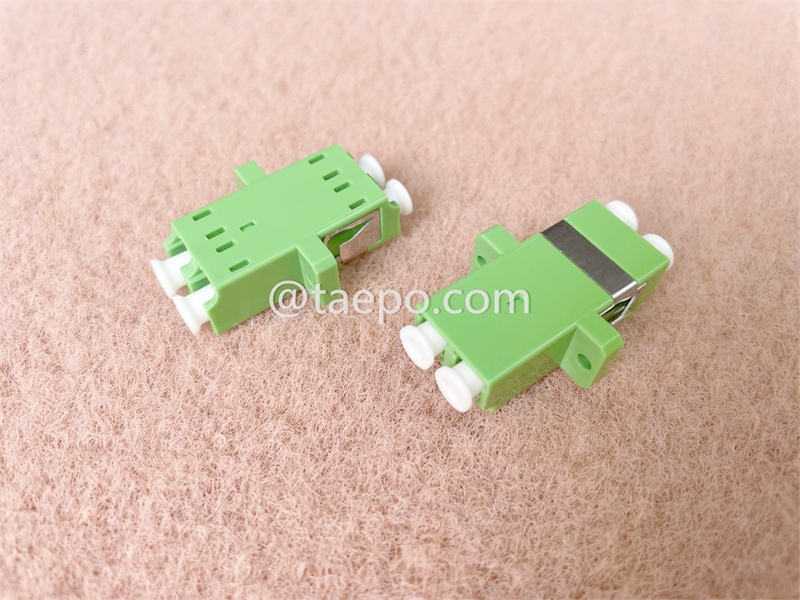

Duplex Coupler: This is a fiber-optic coupler that connects two LC APC connectors at the same time, allowing for the simultaneous transmission and reception of data (duplex communication). Duplex means that two fibers are used—one for transmitting and one for receiving signals.

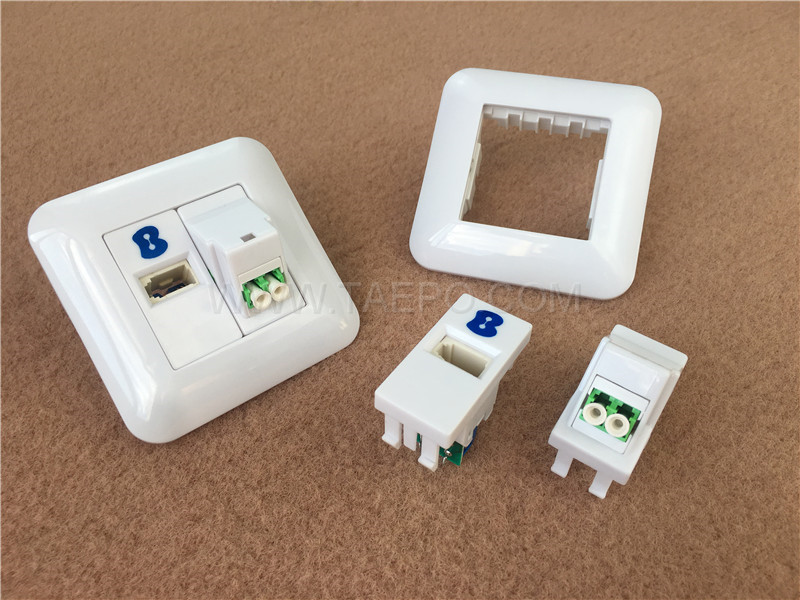

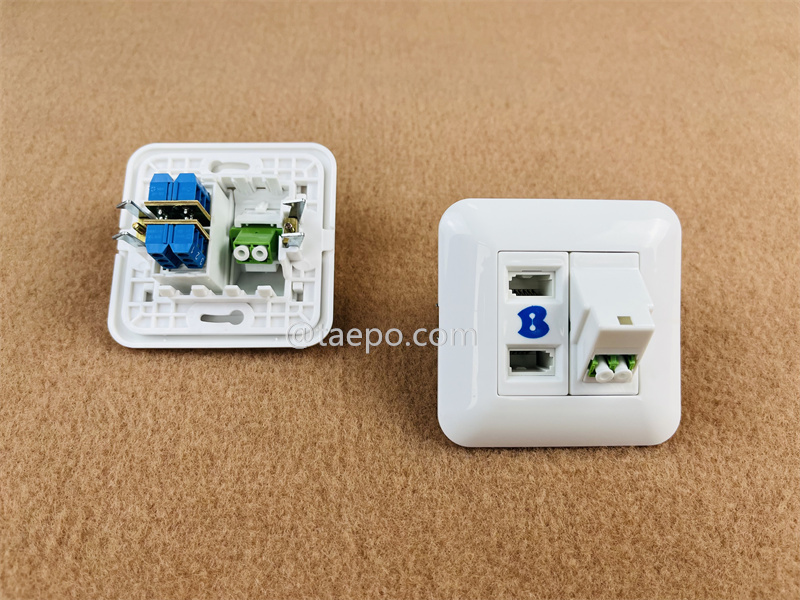

Use in Ethernet Wall Network Outlet: The plastic insert holds the LC APC duplex coupler securely within the wall outlet. The coupler is used to connect fiber-optic cables that carry Ethernet signals using optical fiber, rather than traditional copper Ethernet cables. Fiber-optic Ethernet allows for faster data speeds and longer transmission distances compared to copper-based Ethernet (like CAT5e or CAT6).

    Main Features

The main feature of a Plastic Insert with an LC APC Duplex Coupler for an Ethernet wall network outlet is to provide a secure and efficient connection point for fiber-optic cables in a network setup, particularly in situations requiring high-speed, low-loss data transmission over long distances.

Key Features:

Fiber-Optic Compatibility: The LC APC duplex coupler allows fiber-optic cables to be connected and transmitted through the outlet, offering higher data speeds and longer transmission distances than traditional copper cables.

Low Signal Loss: The APC (Angled Physical Contact) polish of the connectors minimizes back reflection and insertion loss, ensuring high-performance signal transmission with reduced errors and better signal quality, especially in high-frequency applications.

Duplex Communication: It supports duplex transmission, meaning it can handle two fibers—one for sending and one for receiving data—allowing for full-duplex communication, which is faster and more efficient than half-duplex systems.

Compact LC Connectors: The LC connectors are small form-factor connectors, which allow for higher port density in networking environments, especially data centers or locations with limited space.

Neat Installation: The plastic insert ensures the coupler is securely installed in a wall plate, creating a tidy, organized, and professional-looking network outlet.

Interference-Free: Since it's used with fiber-optic cabling, the connection is immune to electromagnetic interference (EMI), making it suitable for areas with high electrical noise.

In summary, the main feature of this component is its ability to provide a high-performance, low-loss fiber-optic connection in a structured network, ensuring fast, reliable data transmission for environments requiring advanced networking solutions.

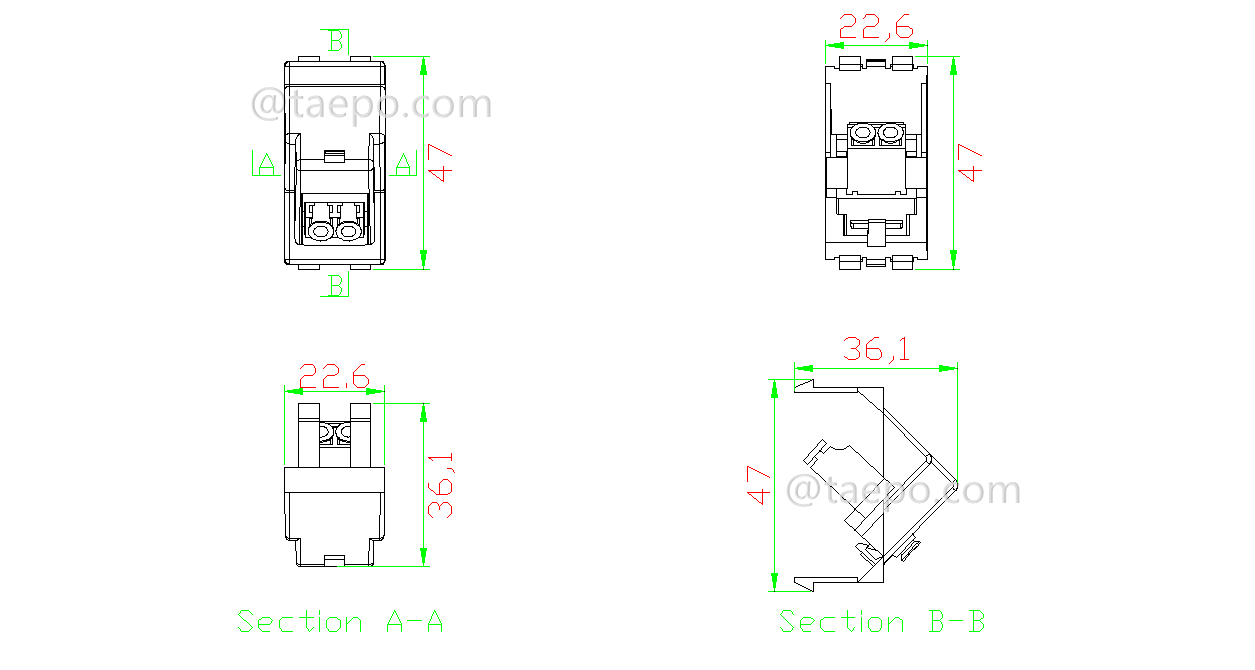

    Schematic Diagrams

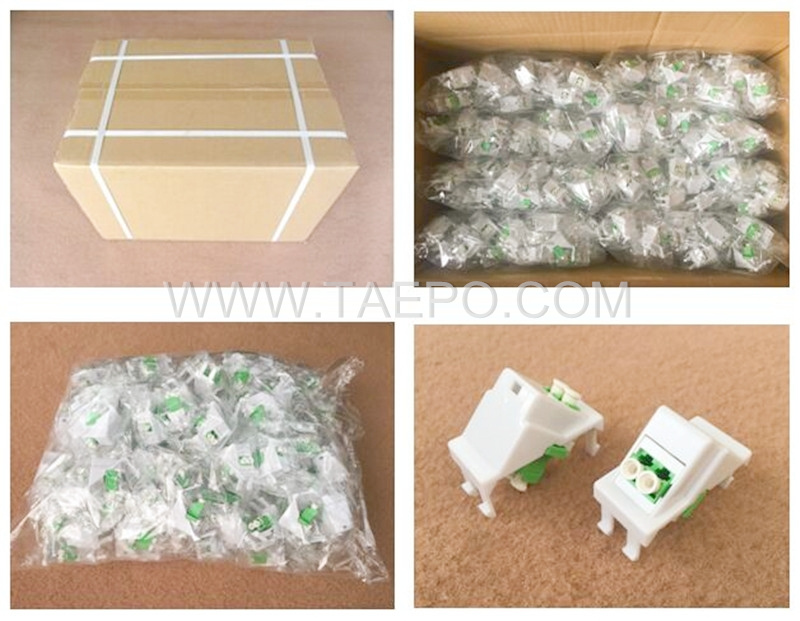

    Packing Pictures

    Order Data
