Descriptions

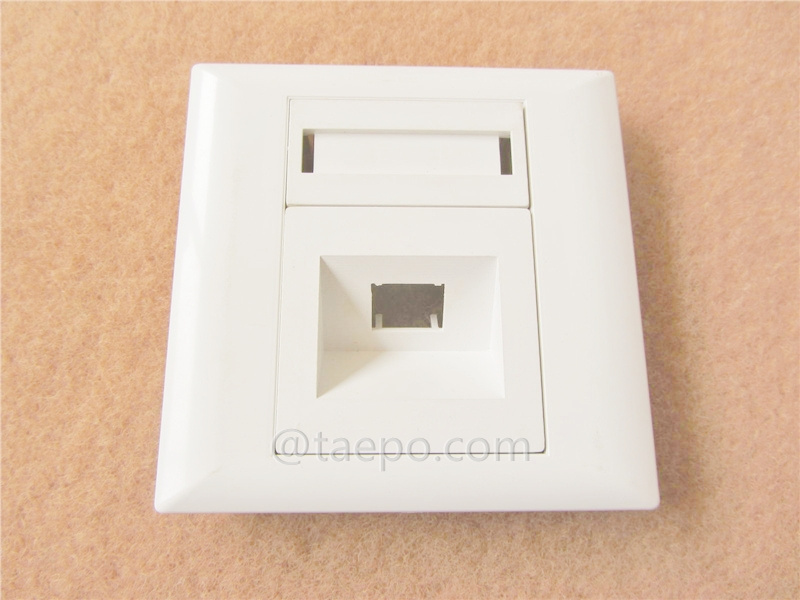

An 86x86mm fiber optic faceplate for simplex SC adapters is a component used in fiber optic network installations. It provides a neat and accessible termination point for fiber optic cables within indoor environments such as homes, offices, or commercial spaces.
Here’s a detailed description:
Components
Dimensions:
86x86mm: This faceplate measures 86 millimeters by 86 millimeters, which is a standard size compatible with common wall outlet boxes used for electrical outlets and switches.
Material:
Durable Construction: Typically made from high-quality plastic or metal to ensure durability and protection for the fiber optic connectors.
Adapter Type:
Simplex SC Adapter: Designed to accommodate simplex SC adapters. Simplex means that each adapter holds a single SC fiber optic connector, allowing for one fiber connection per adapter slot.
SC (Subscriber Connector): The SC connector is a popular type of fiber optic connector known for its snap-in mechanism, providing a secure and reliable connection.
Ports:
Single Port Configuration: Each faceplate typically features one port designed to hold a simplex SC adapter, facilitating one fiber optic connection.
Applications:
Home Installations: Used in homes for terminating fiber optic cables, often for high-speed internet connections.
Office Use: Ideal for office environments, providing a neat and accessible fiber termination point for network connections.
Commercial Buildings: Suitable for commercial spaces where organized and secure fiber optic terminations are required.
Telecom Networks: Utilized by telecom companies to provide fiber optic termination points at customer premises.
Main Features
Fiber Termination:
Secure Termination Point: Provides a secure and stable termination point for fiber optic cables, ensuring reliable connectivity.
Organization:
Cable Management: Helps in organizing and managing fiber optic cables, reducing clutter and the risk of cable damage.
Protection:
Environmental Protection: Shields the fiber optic connectors from dust, dirt, and physical damage, maintaining the integrity of the connections.
Wall Mounting:
Standard Wall Outlet Boxes: The faceplate fits standard 86x86mm wall outlet boxes, making it easy to install in existing locations used for electrical or network outlets.
Ease of Access:
User-Friendly Design: Facilitates easy access for technicians or users to connect or disconnect fiber optic cables as needed.
In summary, an 86x86mm fiber optic faceplate for simplex SC adapters is an essential component for indoor fiber optic installations. It provides a standardized, organized, and protective termination point for fiber optic cables, enhancing the reliability, aesthetics, and manageability of fiber optic network installations.

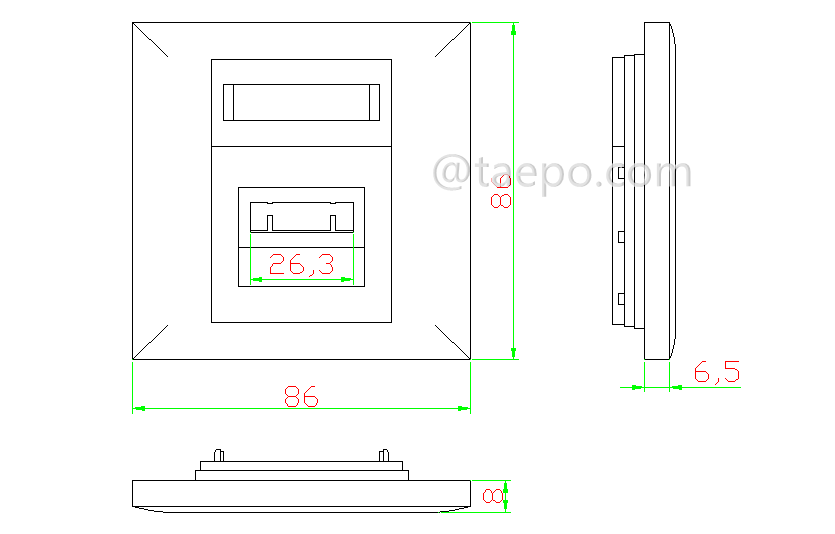

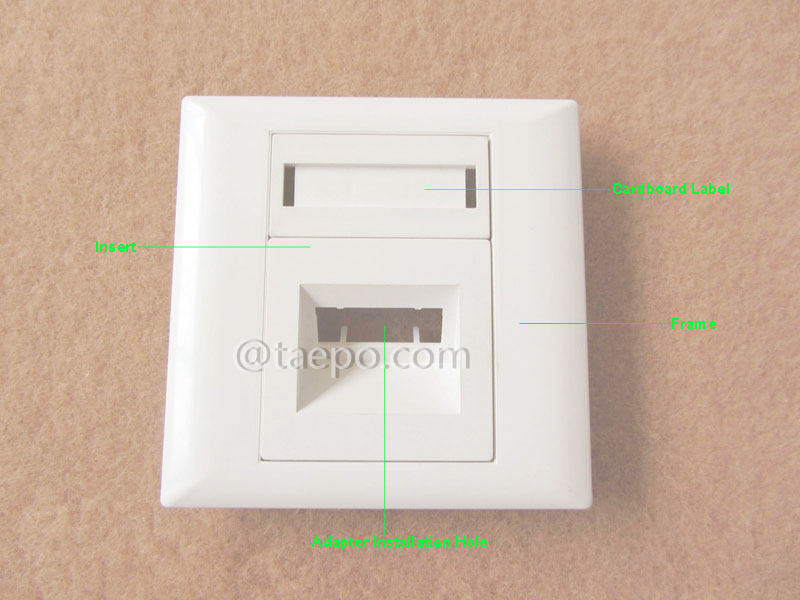

Schematic Diagrams

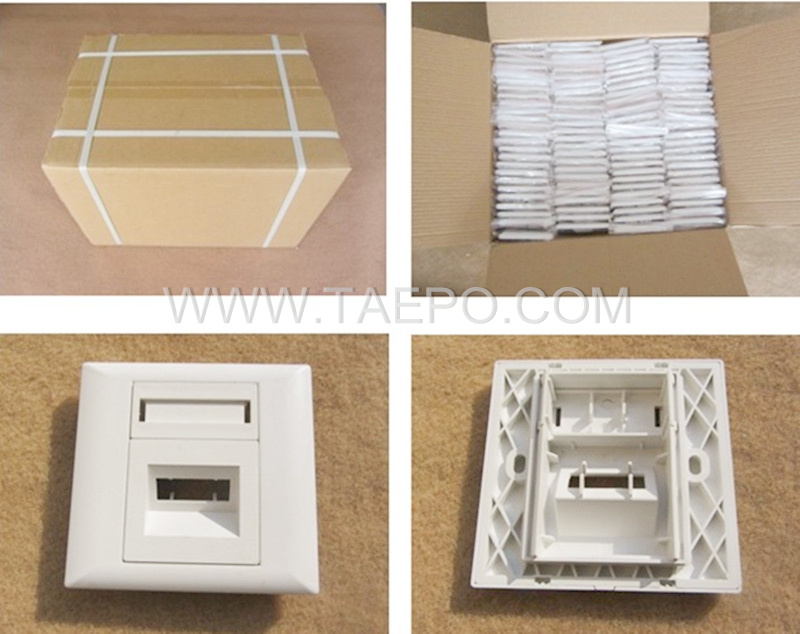

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3312-2SC |

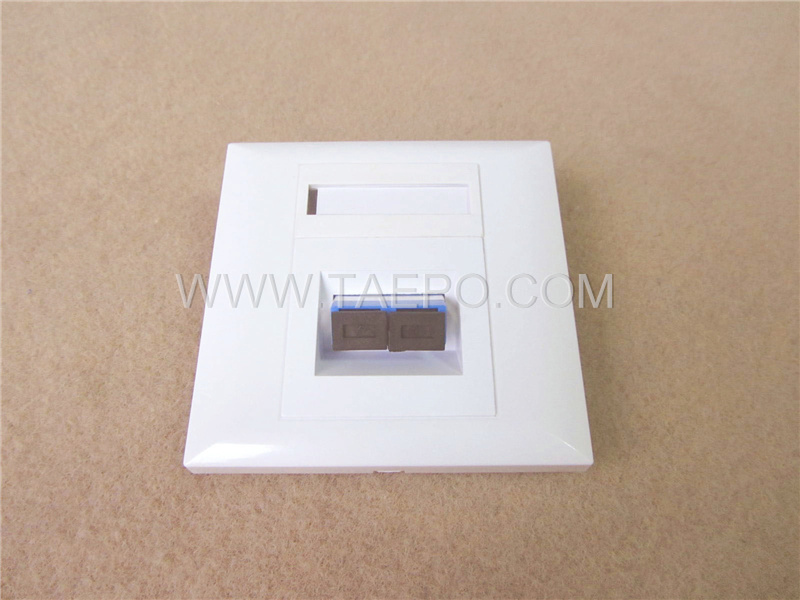

Fiber optic faceplate, duplex, SC, 86x86mm |
