Descriptions
Question 1 : What is a Fiber Optic Wall Outlet ?
Answer: A fiber optic wall outlet is also called as "fiber faceplate", it is a small fiber termination box which is installed in a wall for terminating fiber optic cables.

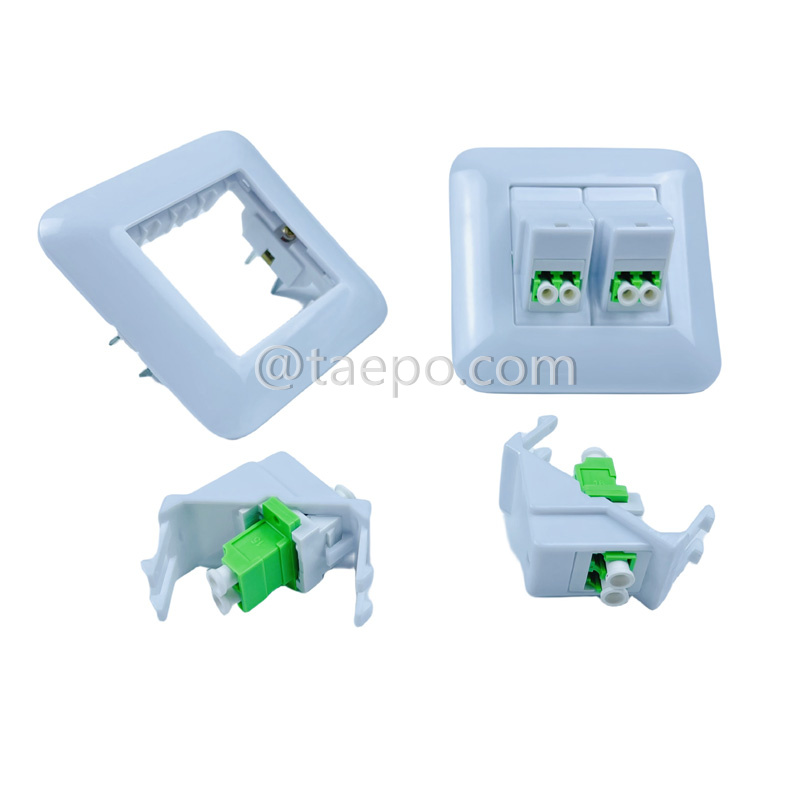

TAEPO's Fiber Optic Wall Outlet Box with LC APC Adapter for 4 fibers is a device used in fiber optic network installations to provide a secure and organized point for terminating and managing multiple fiber optic connections.
It is a versatile and efficient solution for managing multiple fiber optic connections, providing high-performance connectivity, ease of installation, and reliable protection for fiber optic terminations in various environments.
Question 2 : How does a Fiber OPtic Wall Outlet work ?
Answer: A fiber optic wall outlet works by providing a secure termination point for fiber optic cables and facilitating connections to network devices.
Here’s how it typically functions:
Cable Termination:
The fiber optic cables are brought to the wall outlet where they are stripped of their protective coatings, and the fibers are cleaved to create clean, flat ends. These cleaved fibers are then terminated inside the outlet using appropriate connectors (e.g., LC, SC) that fit into the outlet's ports.
Connection to Devices:
The outlet has one or more connector ports that allow devices, such as routers, switches, or computers, to connect directly to the fiber network. Users can plug in patch cables into these ports to establish a connection with their network equipment.
Light Transmission:
Once connected, the optical signal transmitted through the fiber from the network passes through the outlet and into the connected devices. The outlet helps maintain the integrity of the signal.
Protection and Management:
The wall outlet is designed to protect the delicate fiber connections from environmental factors such as dust and moisture. Many outlets include features for managing cables, such as strain relief and organization, to prevent tangling and ensure a neat installation.
Access and Maintenance:
The design often allows for easy access to the internal connections for troubleshooting, upgrades, or maintenance. Users can typically remove the cover to access the fibers or connectors inside.
In summary, a fiber optic wall outlet acts as a critical interface that enables the connection of fiber optic cables to end-user devices, facilitating efficient data transmission while providing protection and organization.
Main Features
Wall-Mountable Design:
Designed for mounting on walls, providing a neat and accessible termination point for fiber optic cables within homes, offices, or other buildings.
LC APC Adapters:
LC (Lucent Connector): Known for its small form factor, making it ideal for high-density installations.
APC (Angled Physical Contact): Features an angled ferrule end face to reduce back reflection and improve signal quality.
Quad Configuration: Equipped with adapters to accommodate up to four LC APC fiber optic connections.
High-Performance Connectivity: Ensures low insertion loss and high return loss, essential for maintaining high-quality signal transmission in fiber optic networks.
Ease of Installation and Maintenance: The adapters facilitate quick and secure connections and disconnections, making it easy for technicians to install and maintain fiber optic links. Typically includes features such as snap-in installation for the adapters.
Compact and Aesthetic Design: The box is designed to be compact and visually unobtrusive, blending seamlessly with typical home or office environments.
Cable Management: Includes features for organizing and securing fiber optic cables inside the box, reducing the risk of damage and maintaining a clean installation. May include splice trays or holders to manage fiber splices and excess cable lengths.
Protection and Durability: Provides physical protection for fiber optic terminations, shielding them from dust, dirt, and physical damage. The housing is typically made from durable plastic or metal, ensuring long-lasting performance.
Versatility: Suitable for various applications, including FTTH (Fiber to the Home), LAN (Local Area Network) setups, data centers, and other environments requiring reliable and organized fiber optic connections.
Compatibility: Compatible with standard LC APC connectors, ensuring interoperability with a wide range of fiber optic cables and equipment.

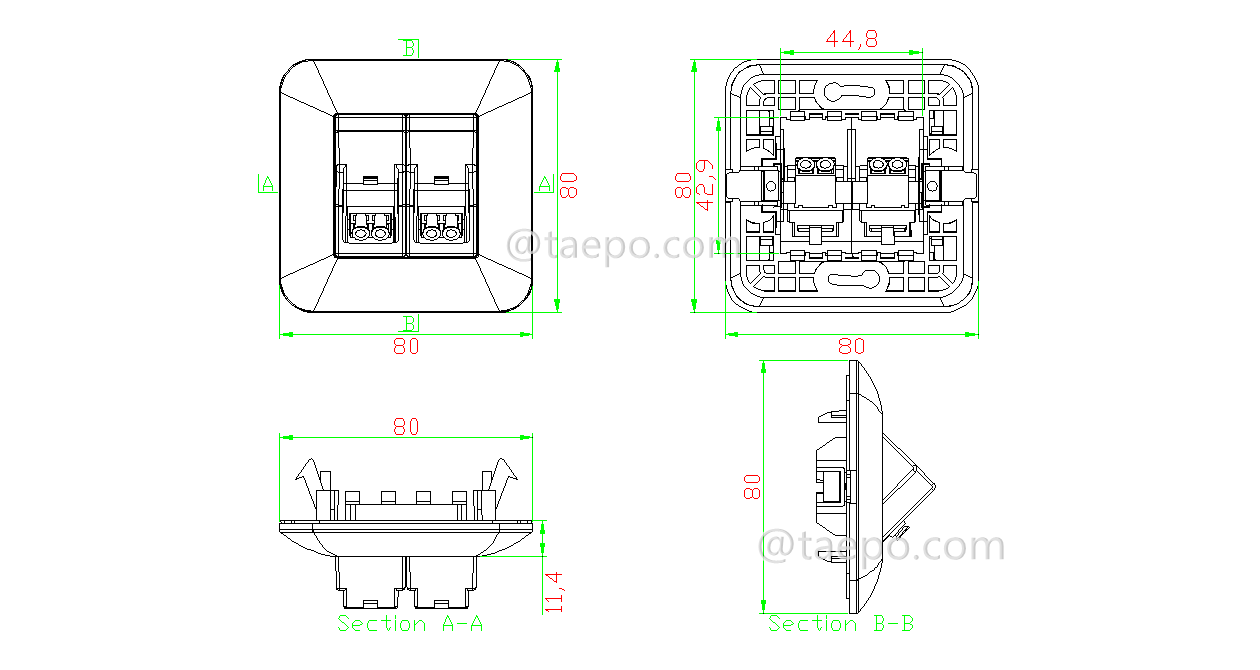

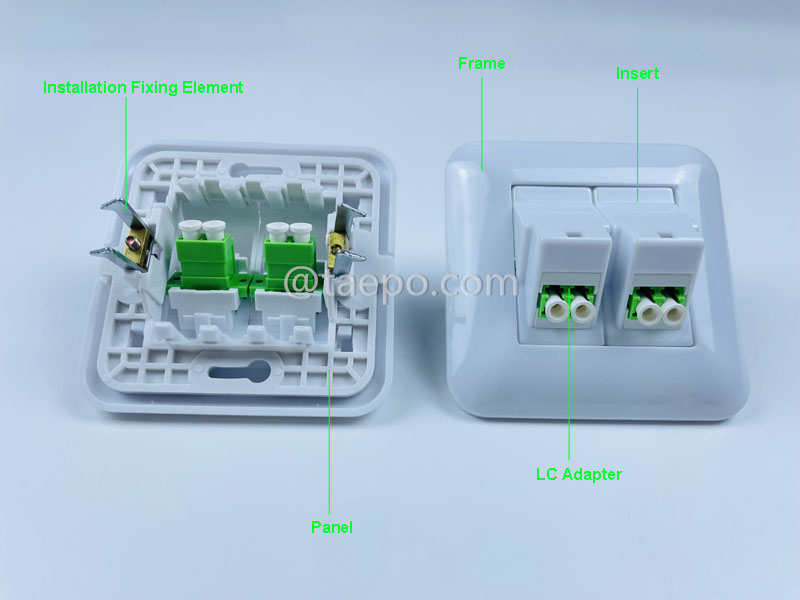

Schematic Diagrams

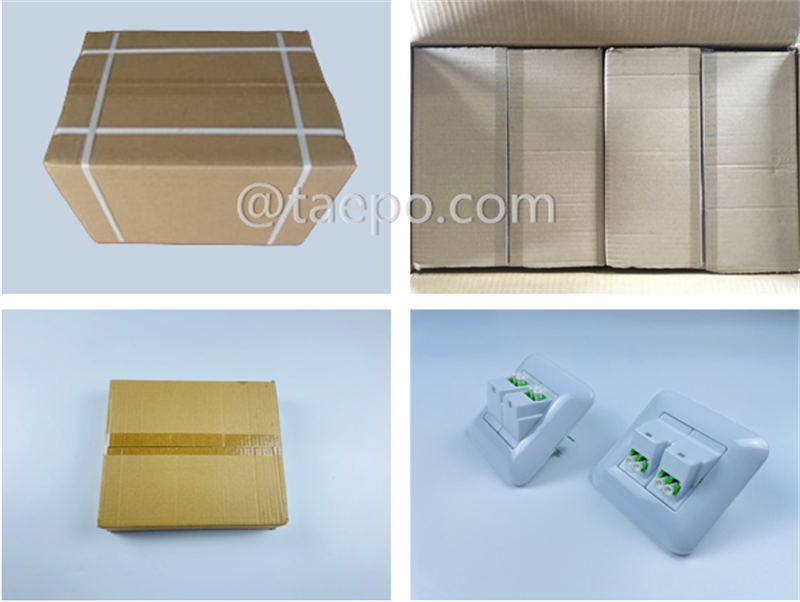

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3327-4LCB |
Fiber outlet LC/APC 4 fibers |
