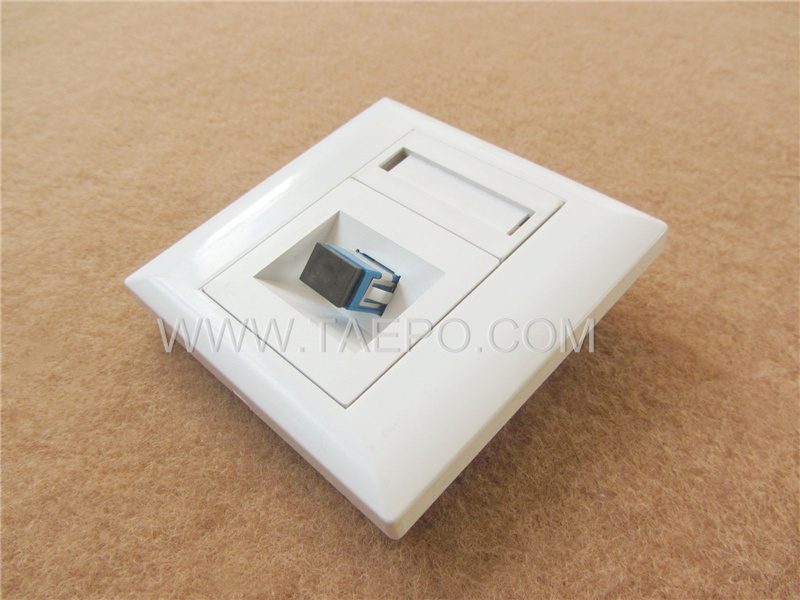

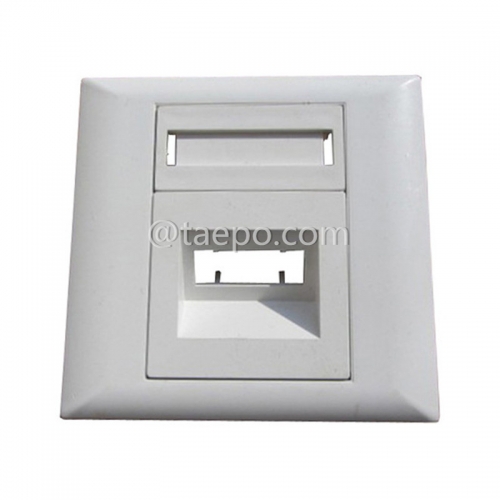

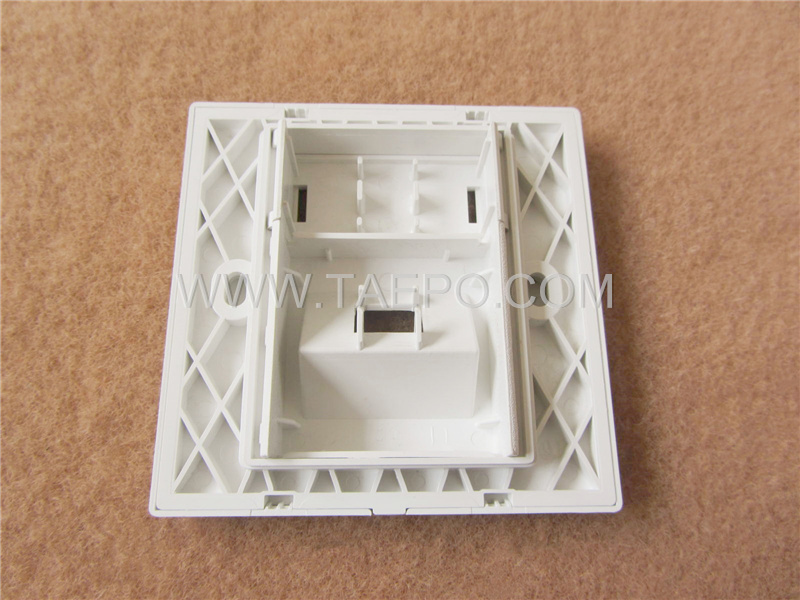

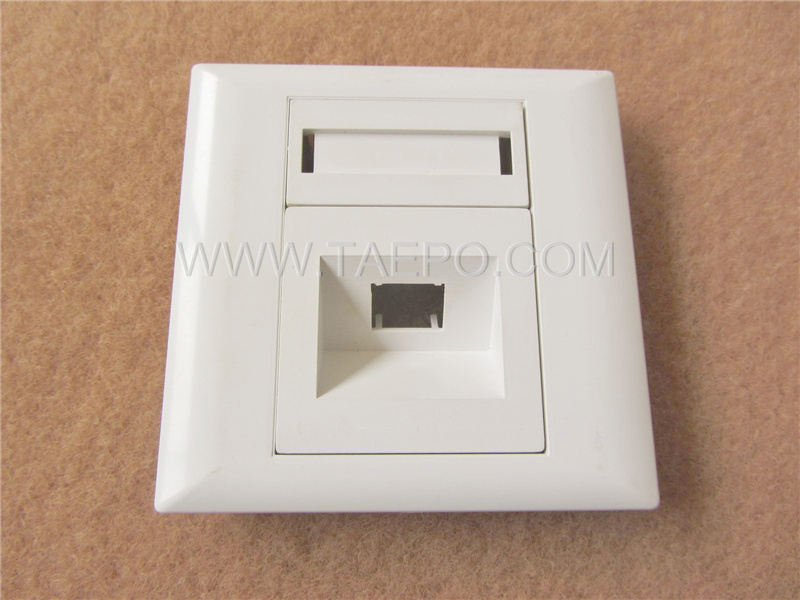

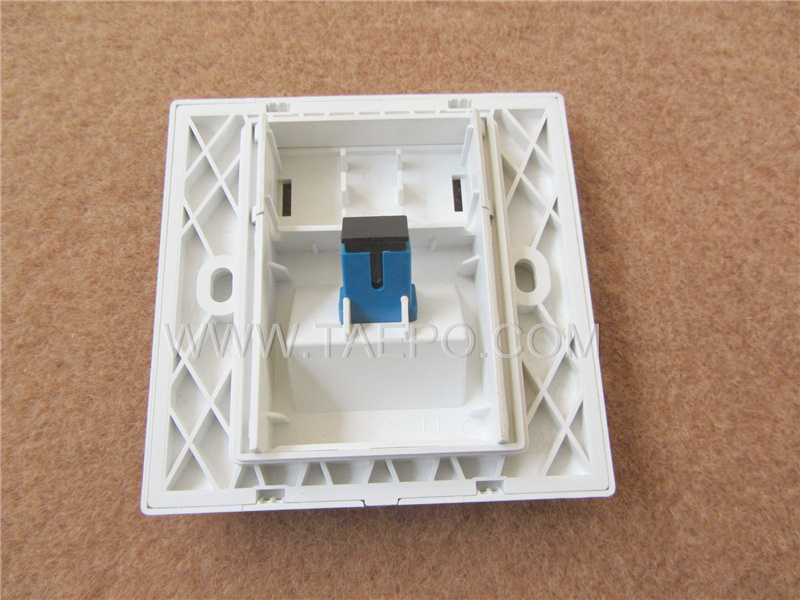

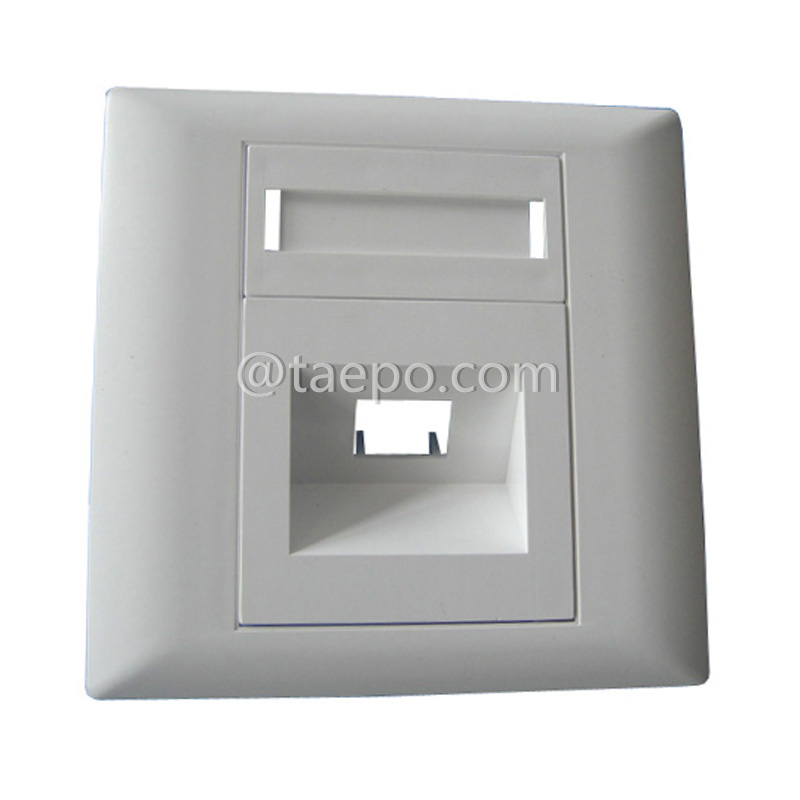

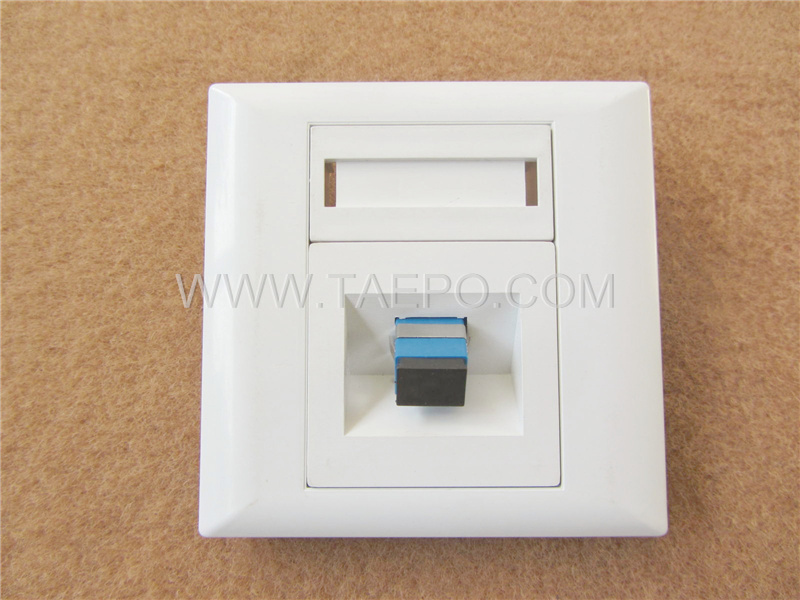

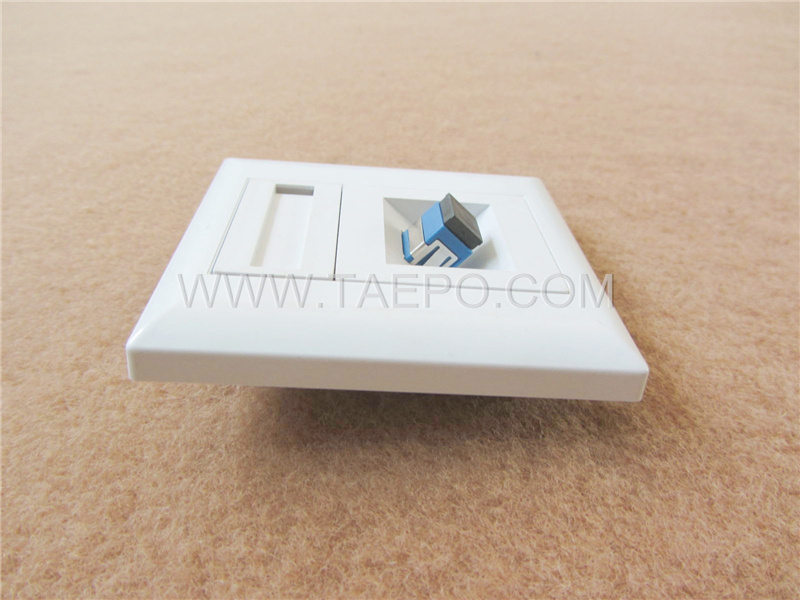

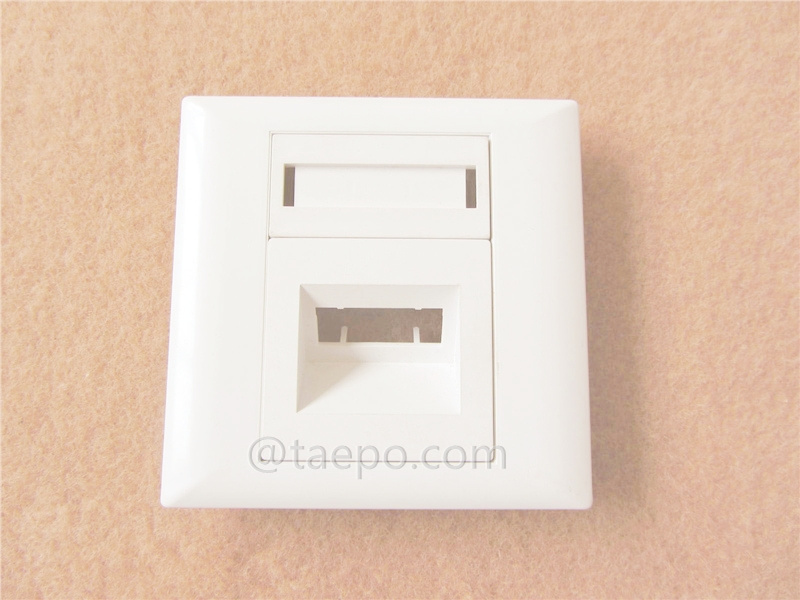

86x86mm Fiber optic faceplate for duplex SC adapter

    Descriptions

An 86x86mm fiber optic faceplate for a duplex SC adapter is a type of network installation hardware used in fiber optic communication systems. It is designed to provide a clean, organized, and accessible termination point for fiber optic cables in indoor environments, typically in residential, office, or commercial settings.

Here’s a detailed explanation of its components and applications:

Components :

Dimensions:
86x86mm: This indicates the size of the faceplate, which is 86 millimeters by 86 millimeters. This is a standard size that fits into common wall outlet boxes and is similar in size to many electrical faceplates used for power outlets or light switches.
Material:
Plastic or Metal: These faceplates are usually made from durable plastic or metal to provide a sturdy mounting surface and protect the fiber optic connectors.
Duplex SC Adapter:
SC Adapter: The faceplate is designed to hold duplex SC adapters. SC (Subscriber Connector) adapters are used to connect SC fiber optic connectors, which are commonly used in fiber optic communication.
Duplex: This means that the faceplate can accommodate two SC connectors in a single adapter slot, allowing for two fiber connections in the same space.Ports:
Two Ports: The duplex configuration provides two ports for fiber optic connections. These ports allow for the insertion of SC connectors for connecting fiber optic cables.

Applications:
Home Networks: Used in home fiber optic installations to provide a neat and accessible termination point for fiber optic internet connections.
Office Buildings: Used in office environments to terminate fiber optic cables for high-speed internet and other network services.
Commercial Spaces: Installed in commercial buildings for various fiber optic applications.
Telecom Networks: Used by telecommunications companies to provide termination points for fiber optic cables in customer premises.



    Main Features

Standard Size:
Compatibility: The 86x86mm size is compatible with standard wall outlets, making it versatile and easy to use in various settings.
Neat Appearance:
Aesthetic: Provides a clean and professional look, which is particularly important in visible areas like offices or living rooms.
Easy Maintenance:
Access: Allows for easy maintenance and upgrades, facilitating quick and straightforward fiber optic cable management.

In summary, an 86x86mm fiber optic faceplate for a duplex SC adapter is a useful piece of hardware for managing fiber optic connections in indoor environments. It provides a standardized, organized, and protective termination point for fiber optic cables, enhancing the reliability and aesthetics of fiber optic installations.

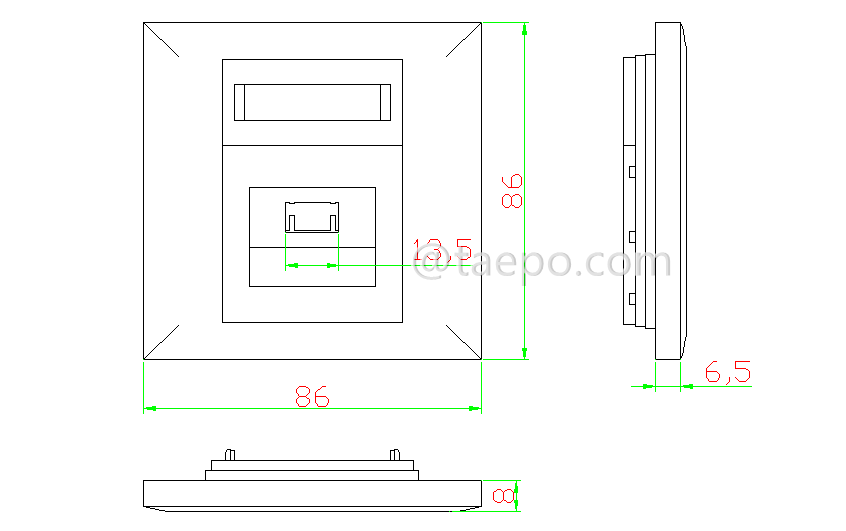

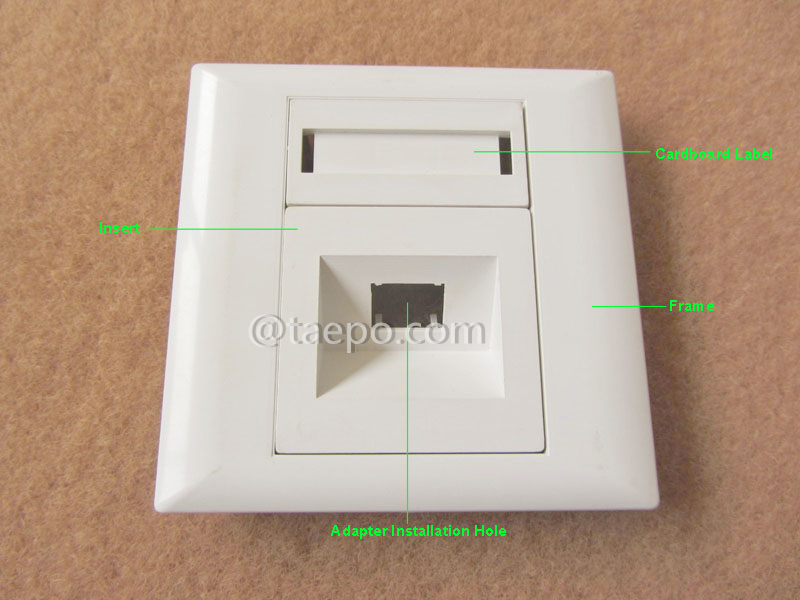

    Schematic Diagrams

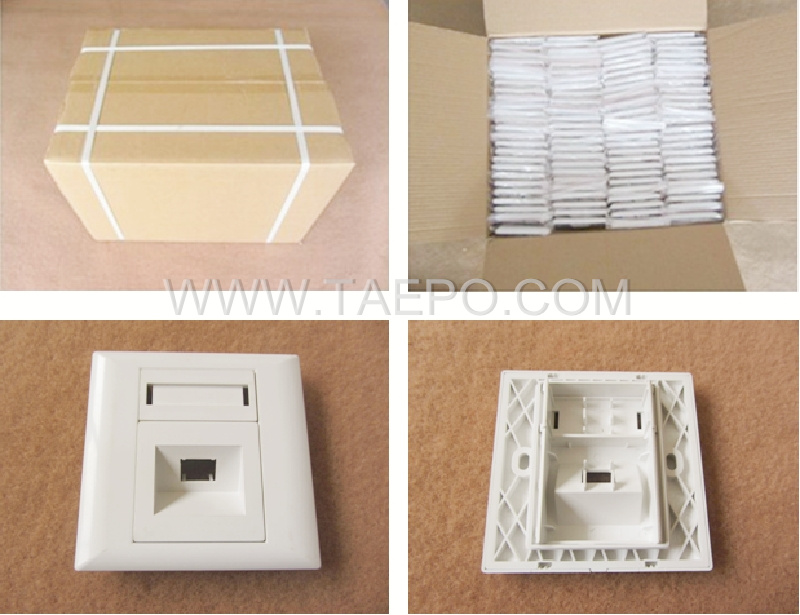

    Packing Pictures

    Order Data
