Descriptions

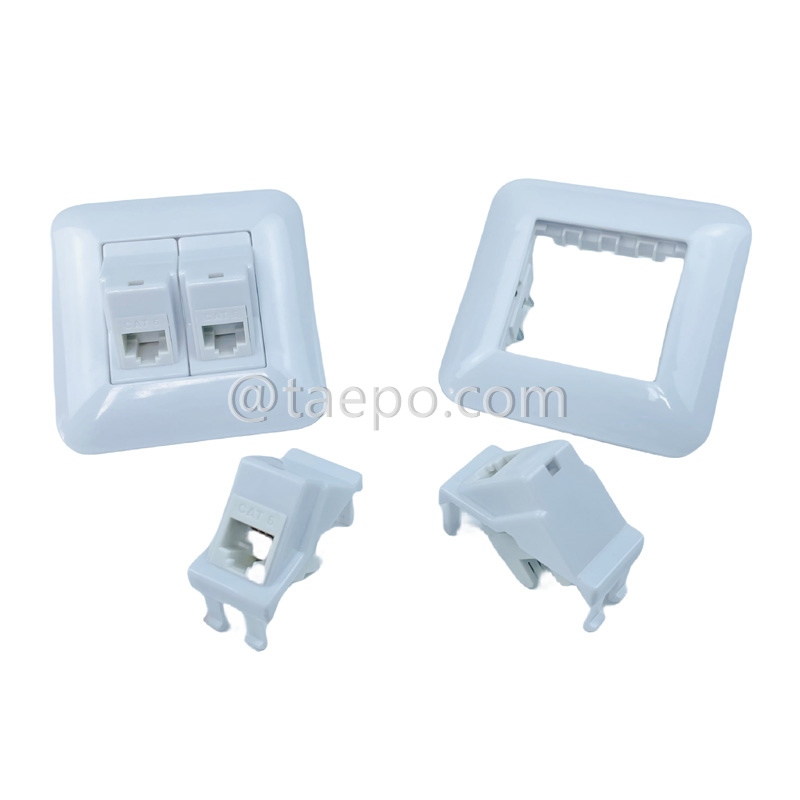

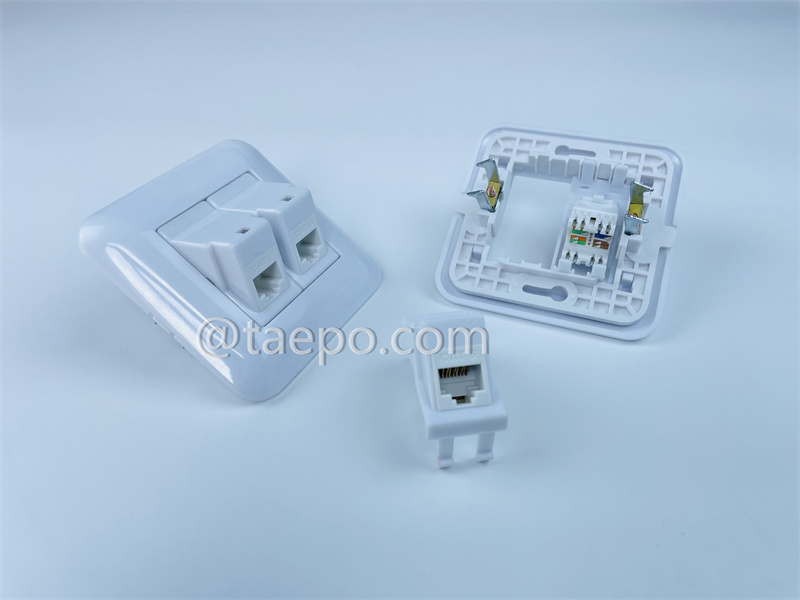

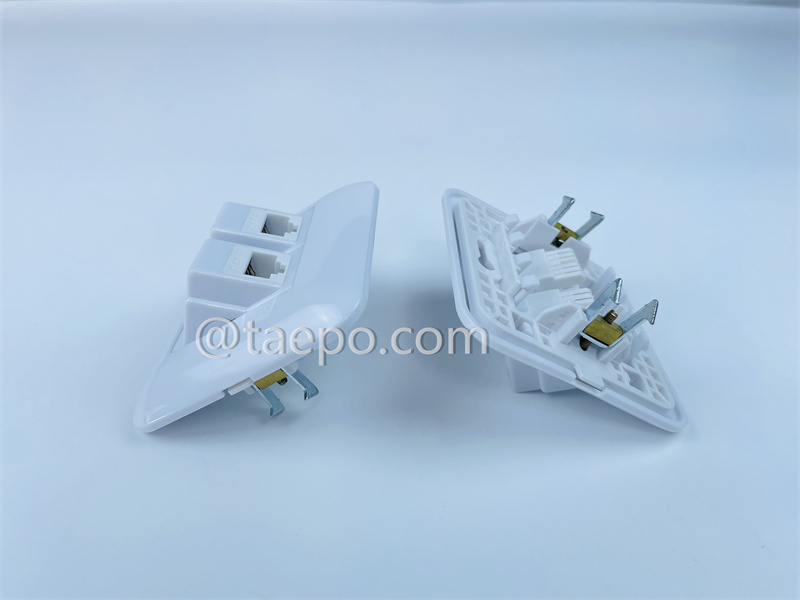

A network outlet with 2 ports is designed to hold keystone jacks, typically mounted on a wall or in a patch panel.
The 2 port faceplate allows for two keystone jacks (like the CAT6 UTP 8P8C) to be installed, providing connection points for two Ethernet cables.
Explanation of the Components of 2 Port Keystone Jack CAT6 UTP 8P8C:
Keystone Jack: A modular connector designed for Ethernet (RJ45) cables, supporting Category 6 (CAT6) unshielded twisted pair (UTP) cabling.
CAT6: Supports data transfer rates up to 1 Gbps (Gigabit Ethernet) and is commonly used for LAN connections.
8P8C (8 Position 8 Contact): Refers to the RJ45 connector with 8 positions and 8 conductors for carrying data over Ethernet.
Network Outlet (Faceplate): A network outlet with 2 ports is designed to hold keystone jacks, typically mounted on a wall or in a patch panel.
The 2 port faceplate allows for two keystone jacks (like the CAT6 UTP 8P8C) to be installed, providing connection points for two Ethernet cables.
Main Features
The main feature of a network outlet compatible with a 2 Port Keystone Jack CAT6 UTP 8P8C is its ability to house and connect two individual keystone jacks, which are typically used for terminating Ethernet cables (e.g., CAT5e, CAT6, or CAT6a). The outlet provides a tidy and organized way to install network cabling in a structured cabling system. Key aspects include:
Compatibility with CAT6 Keystone Jacks: Designed to fit CAT6 UTP (Unshielded Twisted Pair) jacks, ensuring high-speed Ethernet data transmission up to 1 Gbps or even higher, depending on the standard.
8P8C Configuration: The 8P8C (8-position, 8-conductor) design refers to the RJ45 connector standard used in Ethernet networking, where all 8 pins are utilized for data transmission.
Dual Port Setup: The outlet accommodates two keystone jacks, allowing for two network connections, often used for multiple devices or redundancy.
Modular and Replaceable: The keystone jacks are modular and can be easily swapped or replaced without needing to rewire the entire outlet.
Clean Finish: The outlet provides a professional look, organizing the keystone jacks neatly in a wall-mounted faceplate.
This type of outlet is commonly used in home and business networking environments to support fast and reliable data connections for computers, servers, and other networked devices.

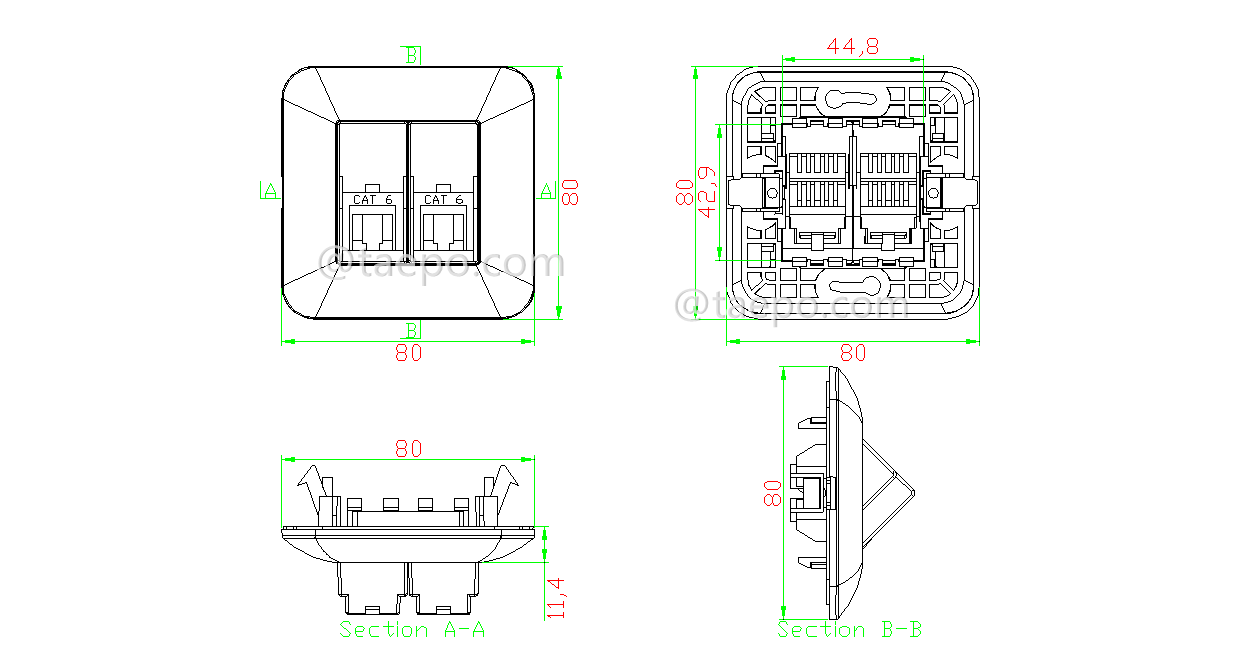

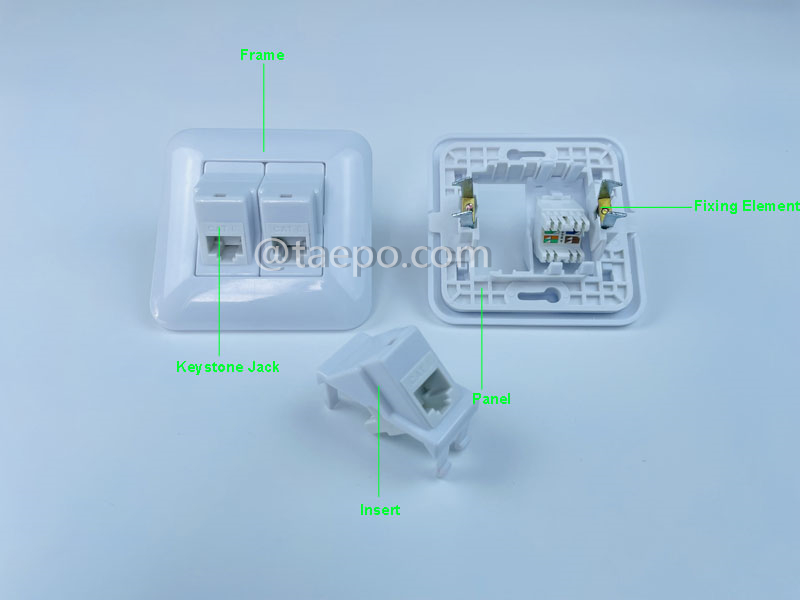

Schematic Diagrams

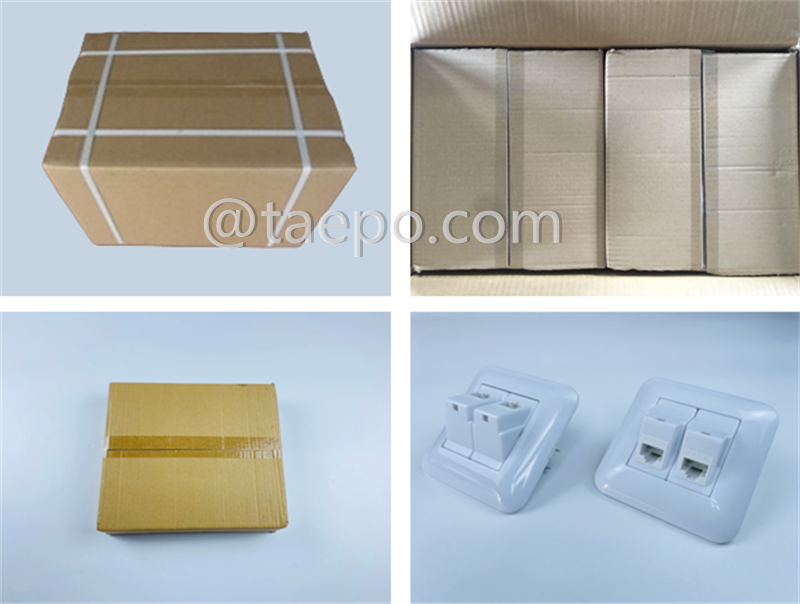

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3327-2C6U8 |
Network outlet 2-port keystone jack CAT6 UTP 8P8C |
