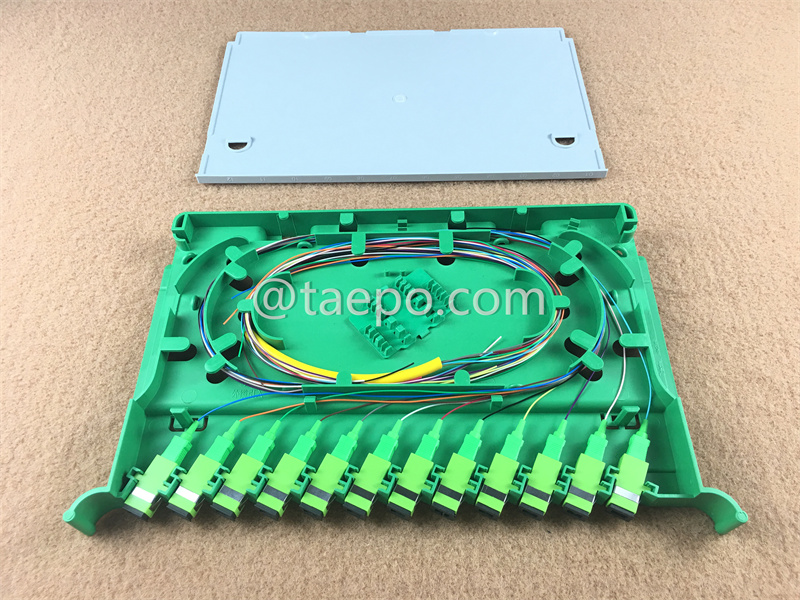

Fiber splice and patch tray, single tray, 12 fibers, for SC adapters, adapters 45 degree mounted, plastic, with snap-on cover

TAEPO - Specialized in Fiber Splice and Patch Tray, Your Professional Chinese Manufacturing Partner !
What does Fiber Splice and Patch Tray do?

    DESCRIPTIONS

Splice & patch trays (TP-3101-12B) are designed to hold individual or mass fusion spliced fibers. They are are located at intermediate points along a route where cables are required to be joined between the fiber optic cables and the pigtails.

These trays are typically installed within fiber optic enclosures and patch panels. They hold up to 12 splices sleeves. Each tray provides space for mounting fiber splice protectors and excess fiber.

Light and beautiful plastic structure, for easy operations and convenient installation, Modular structure makes the storage enlarging conveniently, 45 degree installation of adapters, preventing eyes from harm of laser and ensuring the fiber bending radius.

    MAIN FEATURES

• ODF System: Designed for splicing and patching in ODF system.
• 12 Fibers Capacity: Accommodates up to 12 fiber splices, ideal for small to medium installations.
• SC Adapters: Compatible with standard SC adapters for easy fiber termination and connection.

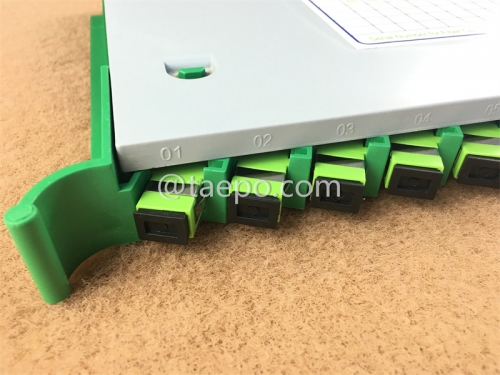

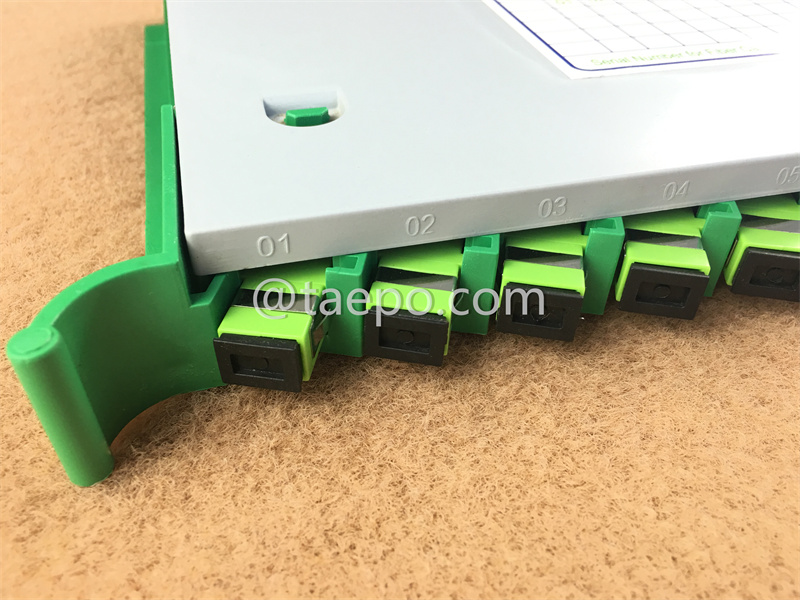

• 45-Degree Mounted Adapters: Angled adapter slots reduce stress on fibers and ensure optimal performance.
• Durable Plastic Construction: Made from high-quality plastic for long-lasting use and environmental resistance.
• Compact Size: Small footprint design (300x180x25mm) for space-efficient installations.
• Snap-On Cover: Protects fibers and splices from dust, contaminants, and physical damage.
• Easy Cable Management: Integrated routing paths keep fibers organized and minimize risk of signal disruption.
• Flexible Mounting Options: Compatible with most standard distribution frames and enclosures.
• Enhanced Fiber Protection: Keeps fibers secured and properly aligned during operations.
• Minimal Signal Loss: Angled adapters help reduce bending losses, maintaining signal integrity.
• Dust-Free Enclosure: Snap-on cover helps keep fibers free from dust and debris.
• Supports Fusion Splicing: Compatible with fusion splicing for high-performance fiber connections.

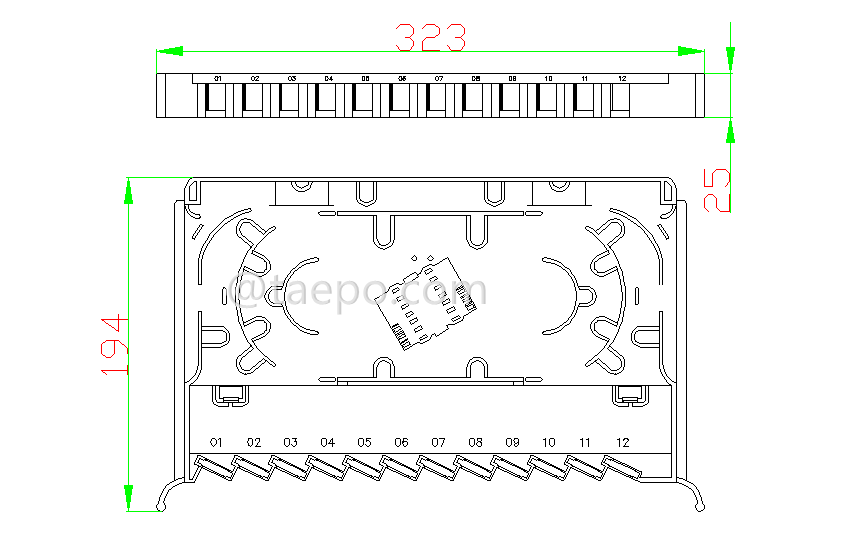

    SCHEMATIC DIAGRAMS

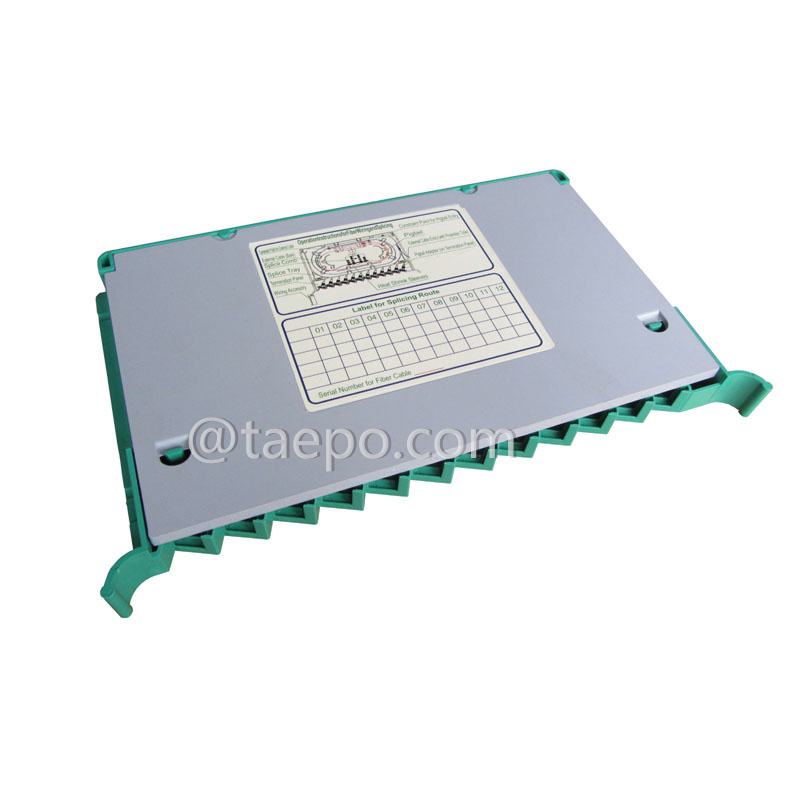

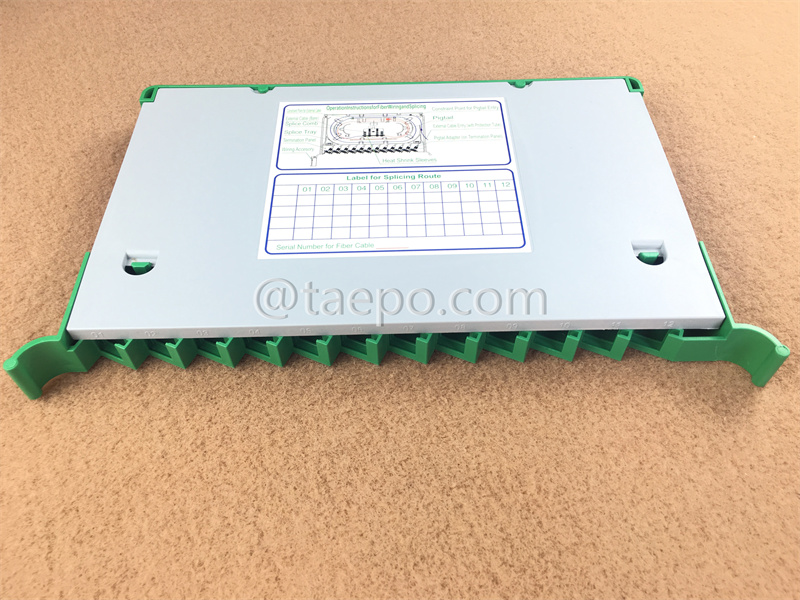

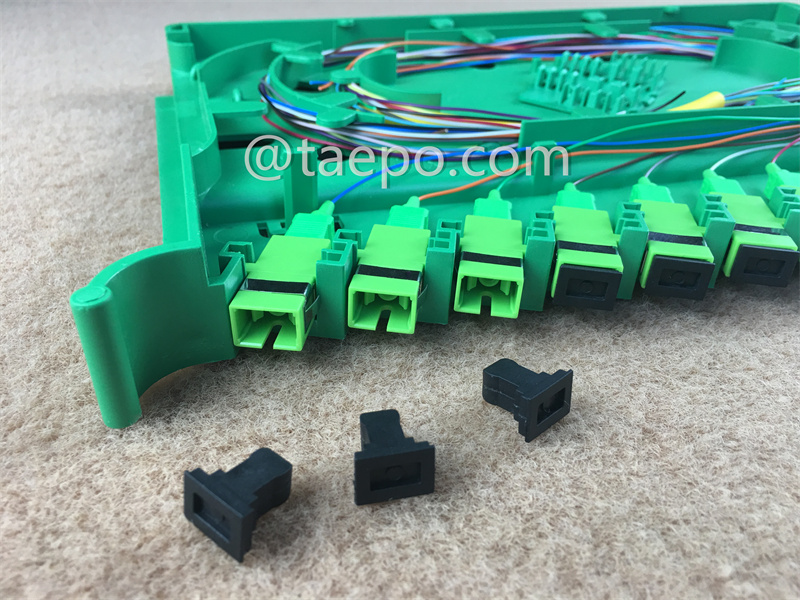

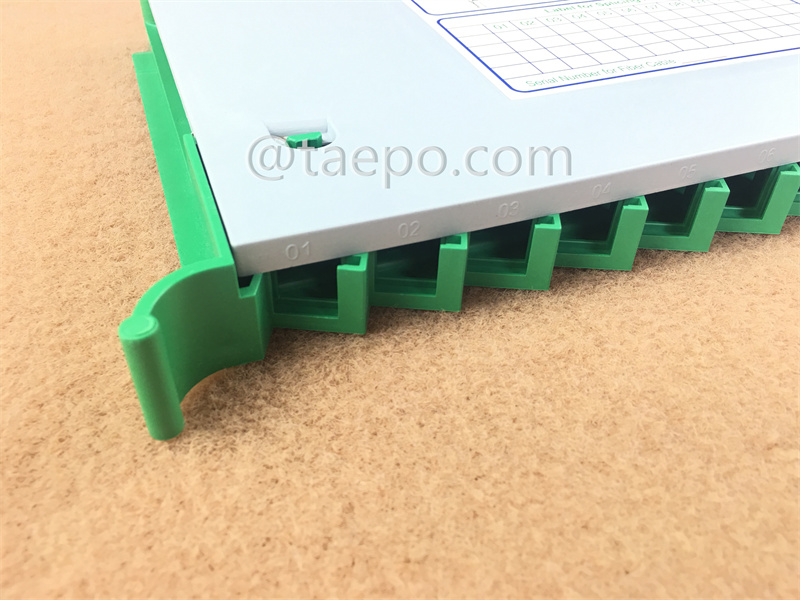

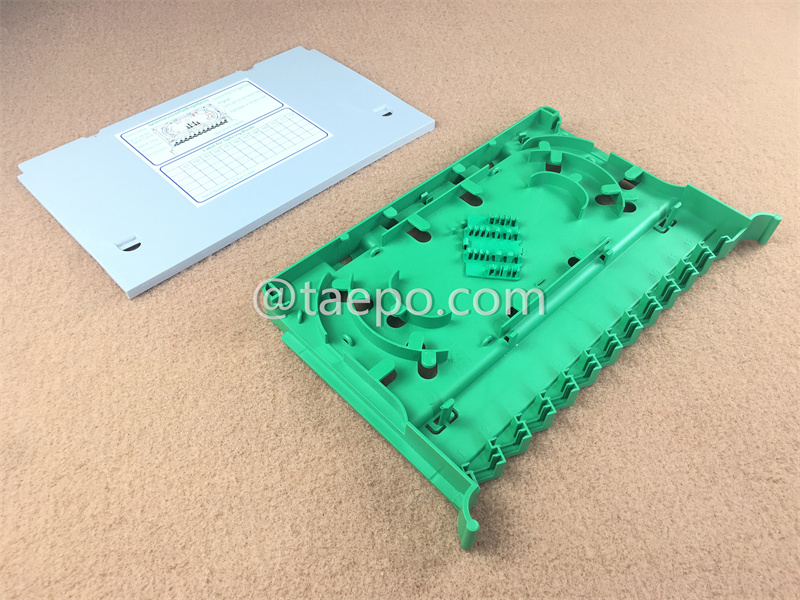

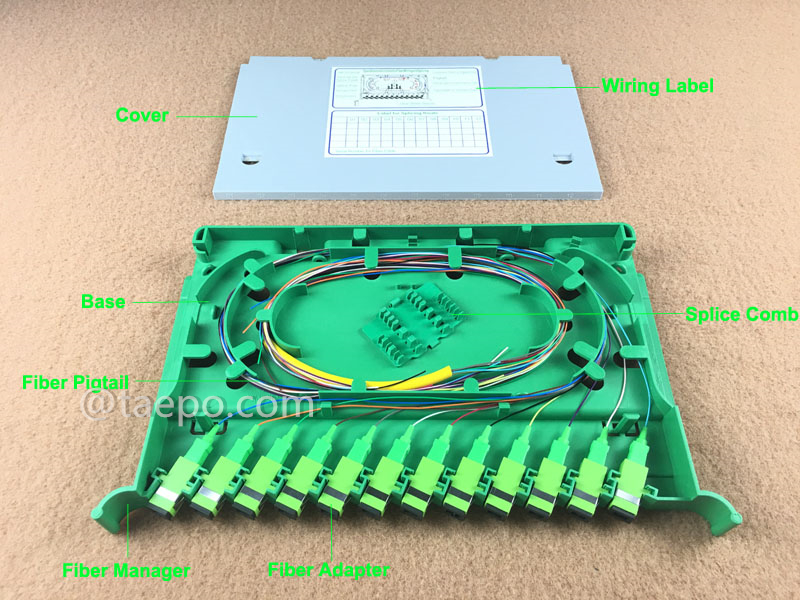

    ILLUSTRATION PICTURES

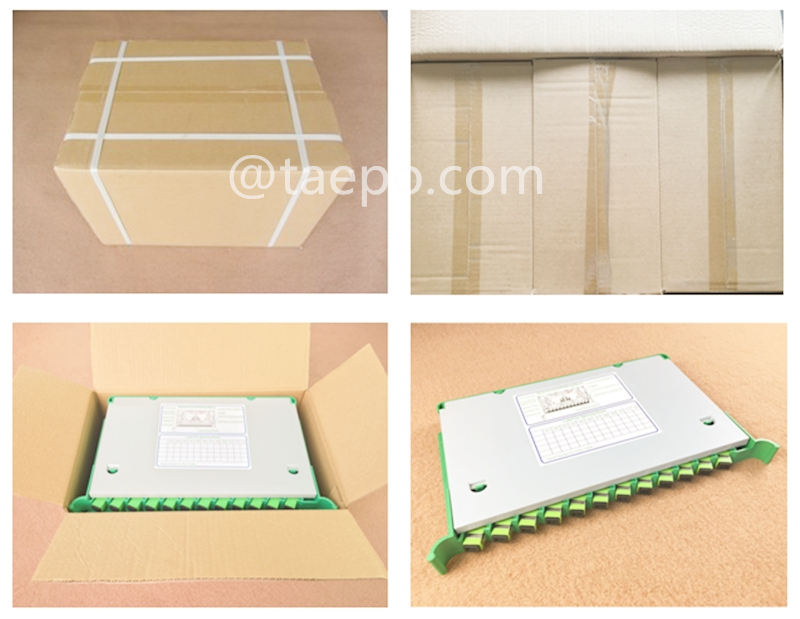

    PACKING PICTURES

    ORDER DATA
