What is Fiber Splice Tray used for?
DESCRIPTIONS
The fiber splice tray (TP-3124-24B) is a versatile solution designed to accommodate up to 24 fiber optic splices, making it suitable for medium-to-large fiber management applications. Its size of 225x117x17mm provides ample space for organizing and protecting fibers, ensuring that splicing operations are conducted efficiently and with minimal disruption. Made from high-quality, lightweight plastic, this tray offers durability and robustness, safeguarding delicate splices against physical damage and environmental factors.
This tray supports both fusion and mechanical splicing, keeping splices organized and ensuring proper fiber bend radius to avoid signal degradation. Its large surface area and efficient design allow for clear visibility of all splices, streamlining inspection, maintenance, and troubleshooting procedures. The tray is ideal for use in both indoor and outdoor installations, whether in data centers, telecommunications networks, or fiber optic distribution cabinets.
Engineered for modern fiber optic infrastructure projects, this 24-fiber splice tray ensures the longevity and protection of critical fiber connections. It provides a reliable, easy-to-install solution for professionals, offering peace of mind in maintaining the performance and integrity of high-capacity fiber optic networks.
MAIN FEATURES
- Ensure the bending radii greater than 40mm.
- 24-Fiber Capacity: Designed to hold up to 24 fusion or mechanical splices.
- Large Size: Measures 225x117x17mm, offering spacious fiber organization.
- Durable Plastic Construction: Made from lightweight, high-strength plastic for extended service life.
- Efficient Fiber Management: Offers ample space for neat fiber routing and storage.
- Compatible with Various Enclosures: Fits a range of fiber optic enclosures, from wall-mounted units to distribution cabinets.
- Splice Protection: Safeguards fibers from dust, environmental factors, and physical damage.
- Supports Fusion and Mechanical Splicing: Versatile for different splicing methods.
- Bend Radius Management: Maintains proper bend radius to prevent signal loss or attenuation.
- Transparent Cover: Provides quick, convenient access for inspection and maintenance.
- Heat-Shrink Sleeve Storage: Designated areas for heat-shrink splice protectors.
- Stackable Design: Stackable for installations requiring higher capacity.
- Cable Routing Features: Integrated slots and guides ensure organized fiber routing.
- Snap-On Lid: Secure cover protects fiber splices while allowing easy access when needed.
- Indoor and Outdoor Use: Suitable for various installation environments, from indoor closets to outdoor distribution units.
- Dust-Resistant: Keeps fibers clean and protected from dust and debris.
- Vibration-Resistant: Designed to withstand minor vibrations without affecting splice integrity.
- Quick Installation: Pre-drilled mounting holes allowfor fast and easy installation.

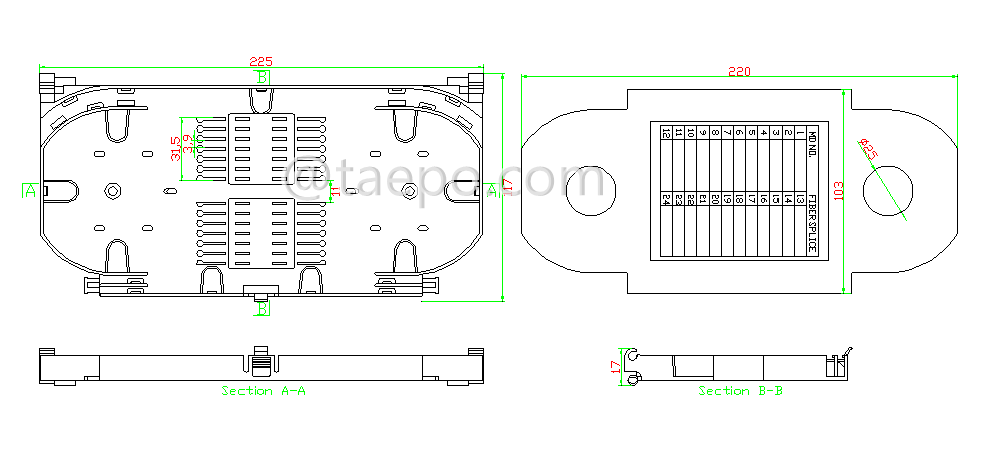

SCHEMATIC DIAGRAMS

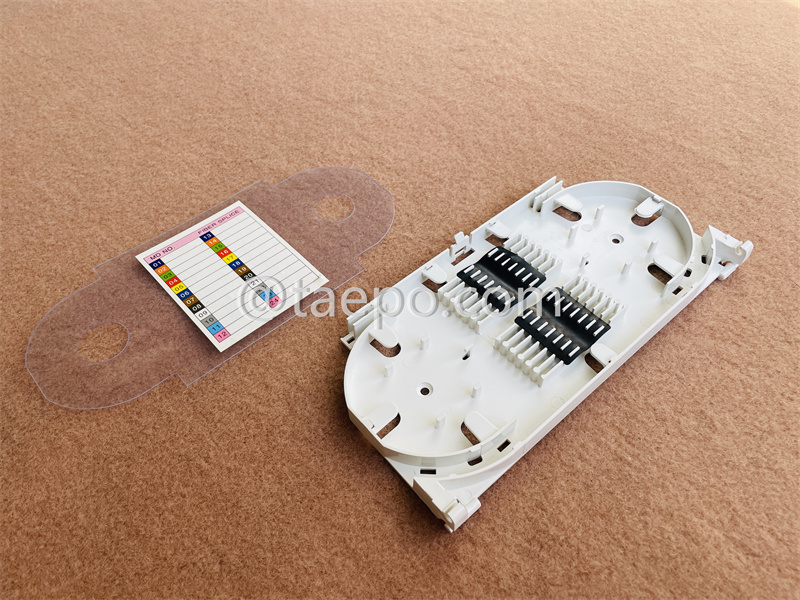

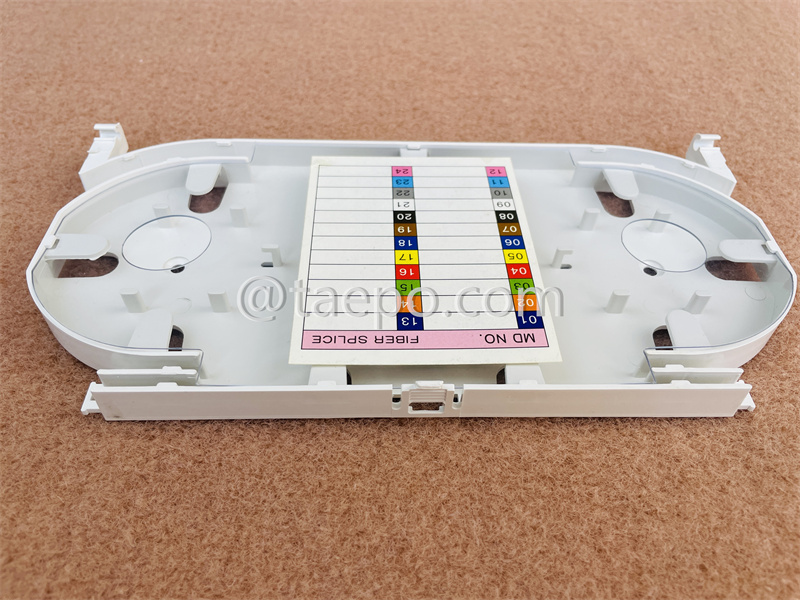

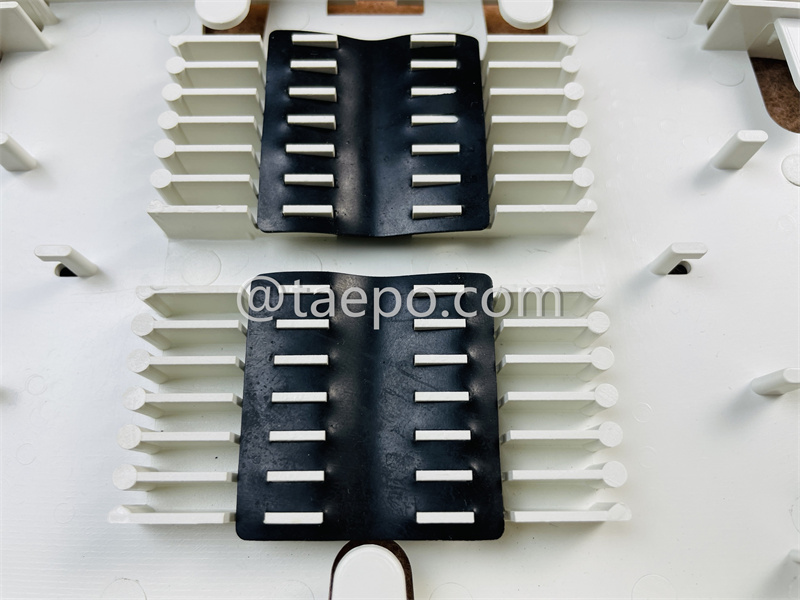

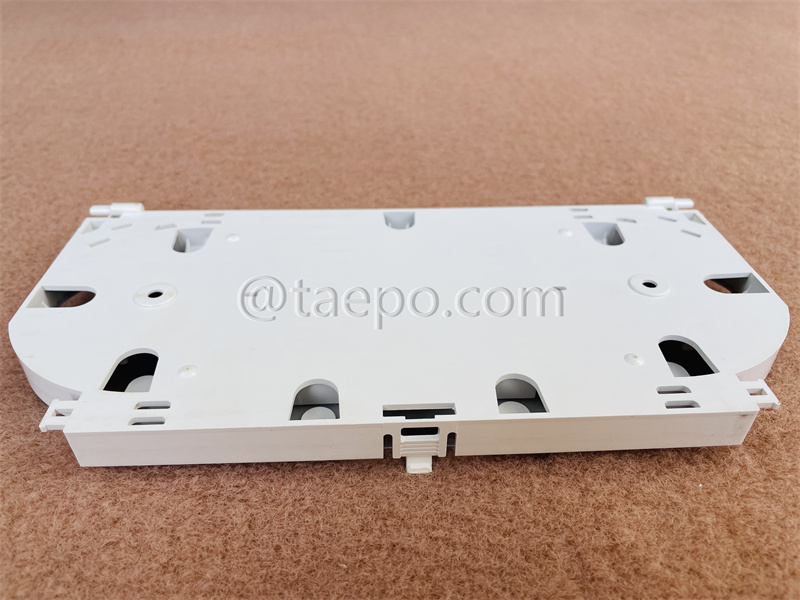

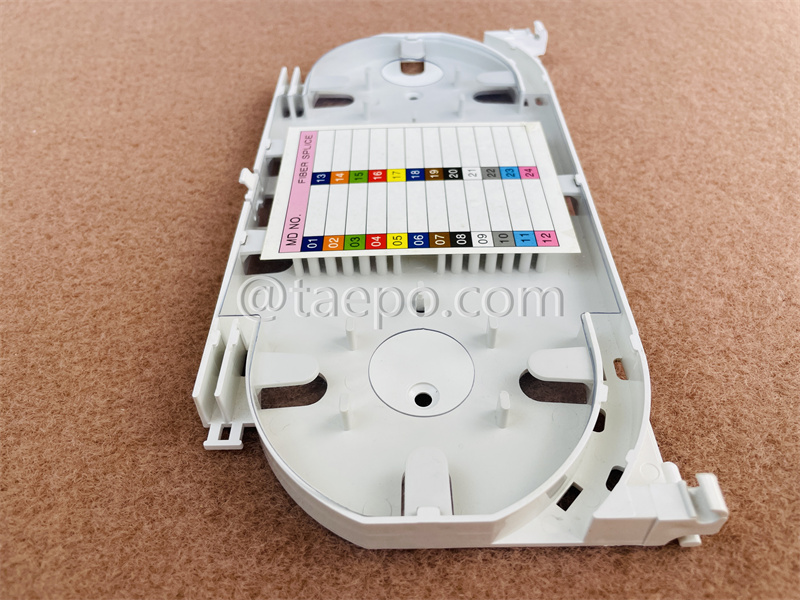

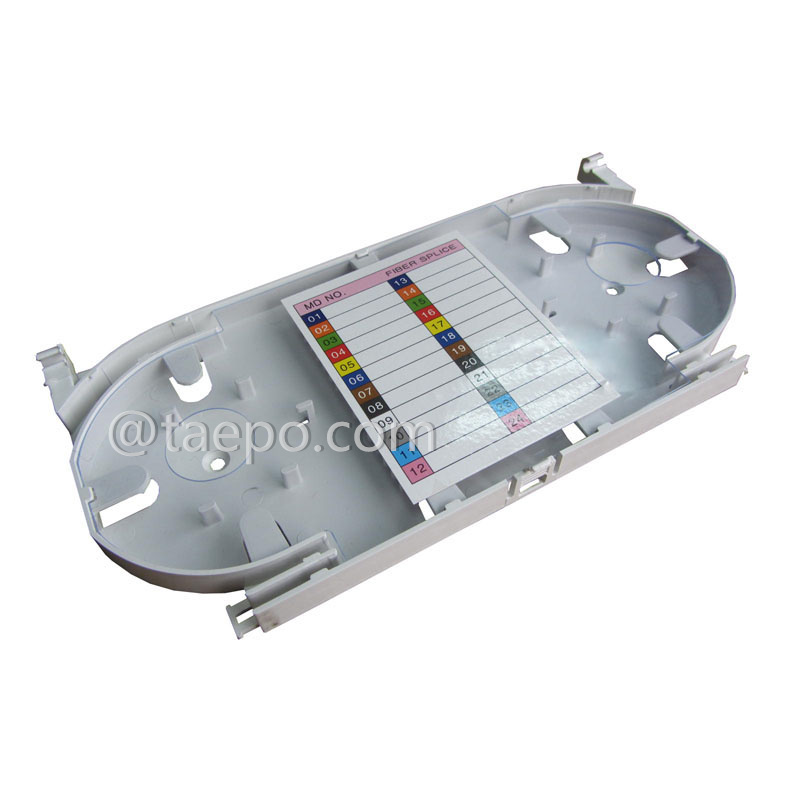

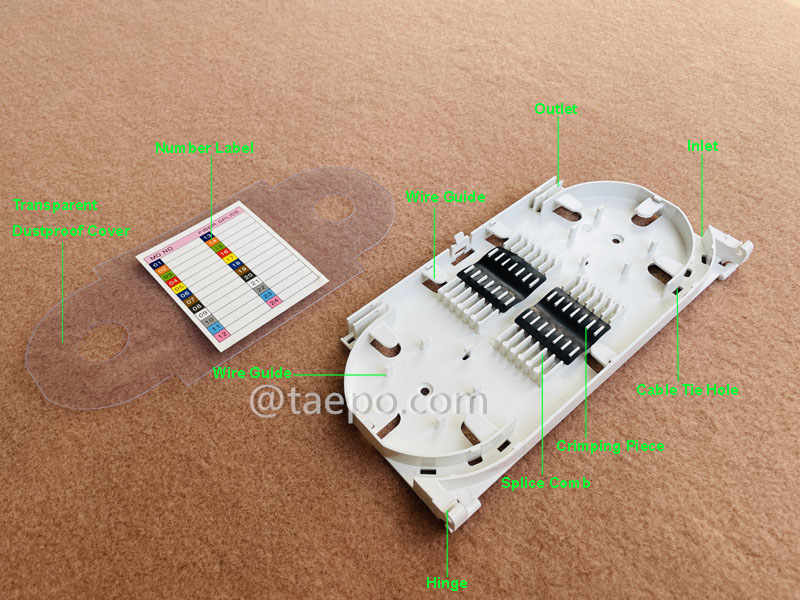

ILLUSTRATION PICTURES

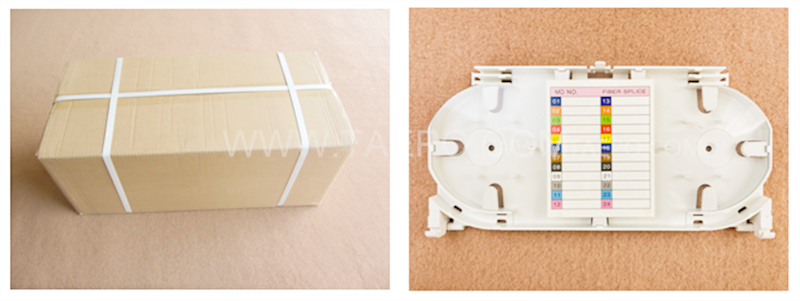

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-3124-24B |
Fiber optic splice tray, 24 fibers, 224(L) x 108(W) x 12.5(H)mm |
