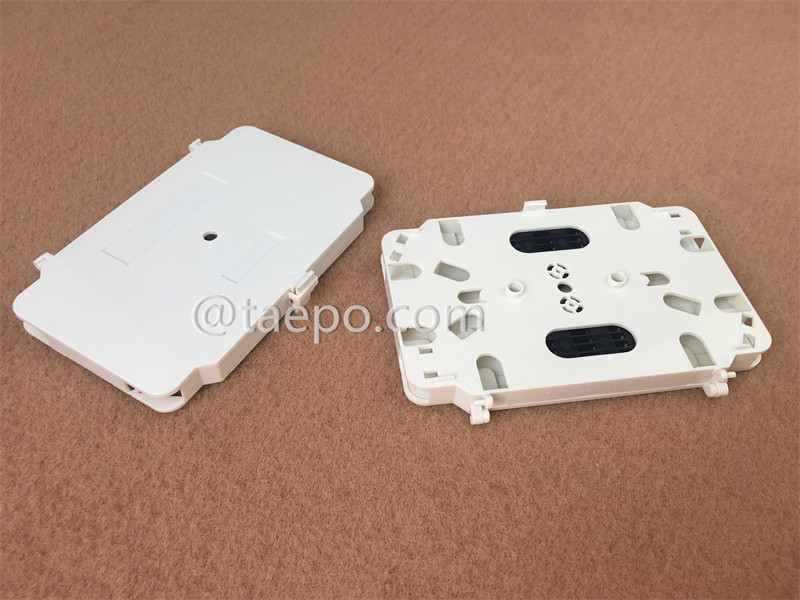

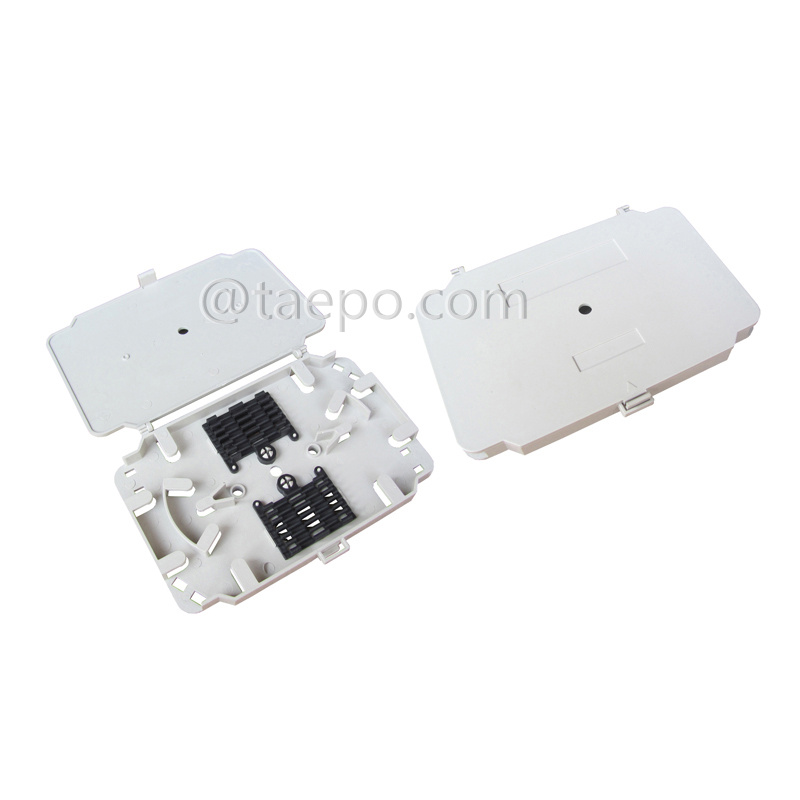

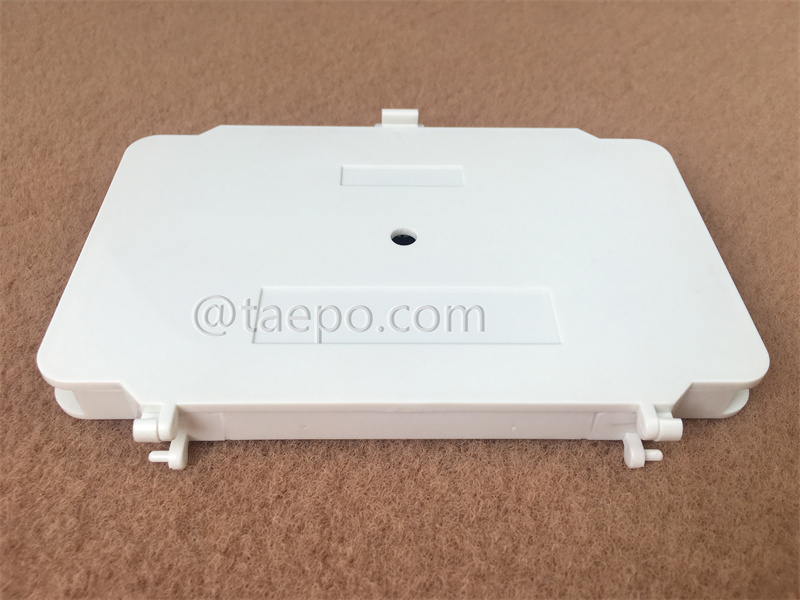

Fiber splice tray, 12 fibers

TAEPO - Your Professional Source for Fiber Optic Splice Tray, Expert Chinese Manufacturing at Its Best !
What is Fiber Optic Splice Tray used for?


    DESCRIPTIONS

A fiber splice tray (TP-3114-12) is an essential tool for organizing and protecting fiber optic splices, and the 12-fiber splice tray with dimensions of 140x90x10mm is particularly suited for compact installations. This tray provides a secure environment for up to 12 fiber splices, ensuring that they remain organized and protected from external stress, bending, and mechanical impact. The tray is designed to fit within fiber optic enclosures, cabinets, or distribution frames and serves as an important component in maintaining the performance and reliability of fiber optic networks.

Made from durable materials, this splice tray is lightweight yet robust, making it suitable for use in data centers, telecommunications networks, and industrial installations. The compact 140x90x10mm dimensions allow for easy integration into space-constrained environments, while its internal organization system helps to neatly route fibers and protect the splices from damage. Additionally, the tray includes provisions for securing fiber splices with heat shrink sleeves.

This fiber splice tray provides clear labeling for easy identification and maintenance of the fibers, making it a user-friendly solution for both installation and future servicing. It is compatible with a wide range of fiber optic enclosures and is designed to ensure the longevity of fiber optic connections in both indoor and outdoor applications.

    MAIN FEATURES

• Supports 12 Fiber Splices: Holds up to 12 splices securely, ideal for small to medium fiber optic installations.
• Compact Dimensions (140x90x10mm): Suitable for installations with limited space.
• Internal Fiber Organization: Neatly routes and organizes fibers for optimal management.
• Splice Protection: Prevents damage to fiber splices from bending, stress, and mechanical impact.
• Heat Shrink Splice Compatibility: Accommodates the of splice protection.
• Fits in Standard Enclosures: Compatible with most fiber optic enclosures and cabinets.
• Snap-On Lid: Securely closes to protect fibers while allowing easy access when needed.
• Cable Management Slots: Integrated slots for proper cable routing and securement.
• Stackable Design: Multiple trays can be stacked in larger enclosures for expanded capacity.
• Anti-Static Material: Reduces static buildup, protecting sensitive fiber components.
• Rounded Edges: Minimizes the risk of damage to fibers during installation and maintenance.
• Multiple Mounting Options: Can be mounted using adhesive strips and screws.

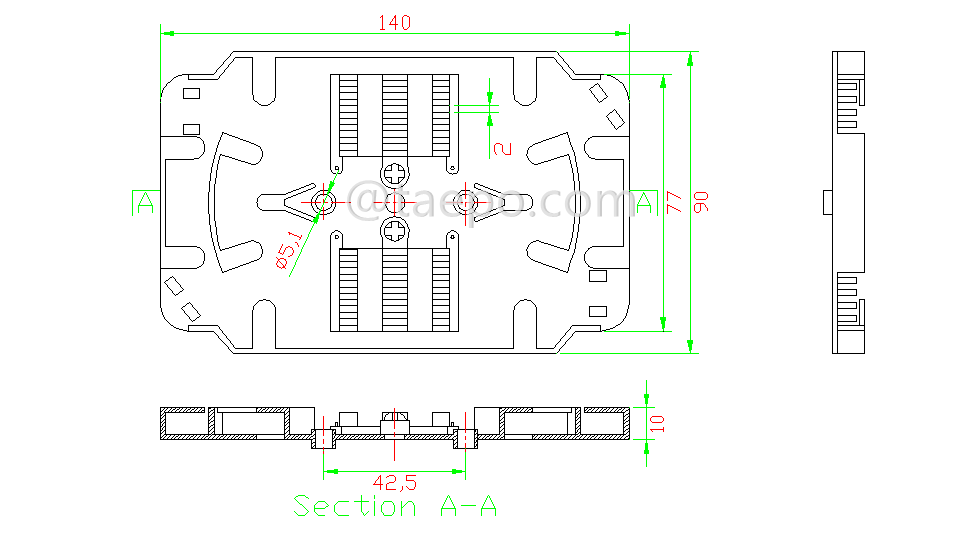

    SCHEMATIC DIAGRAMS

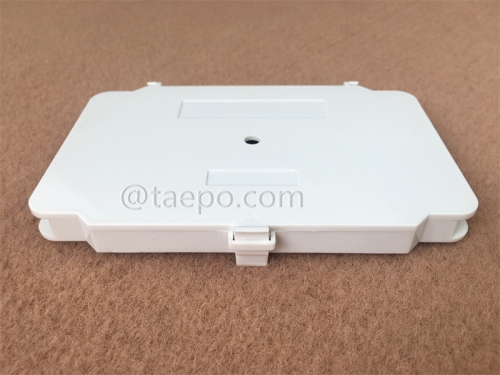

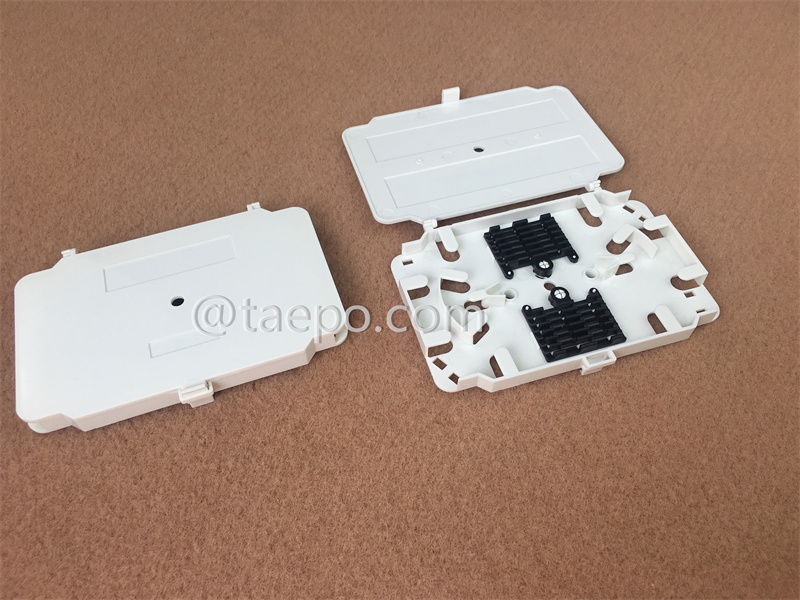

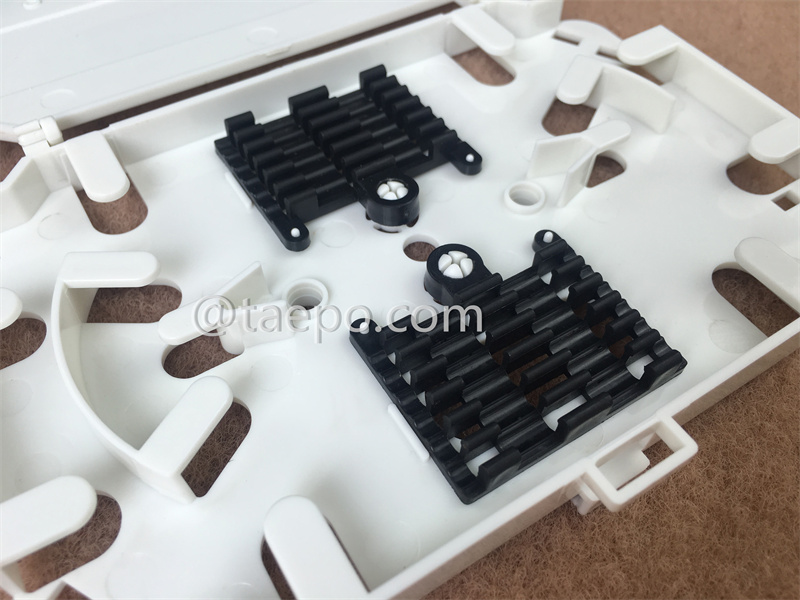

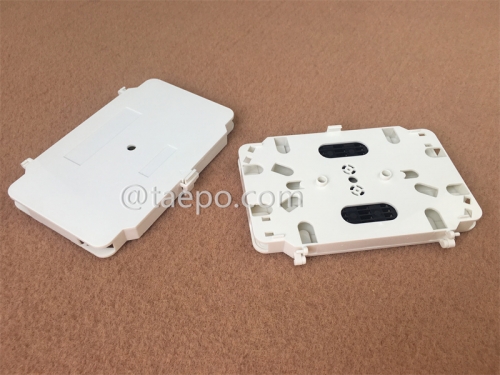

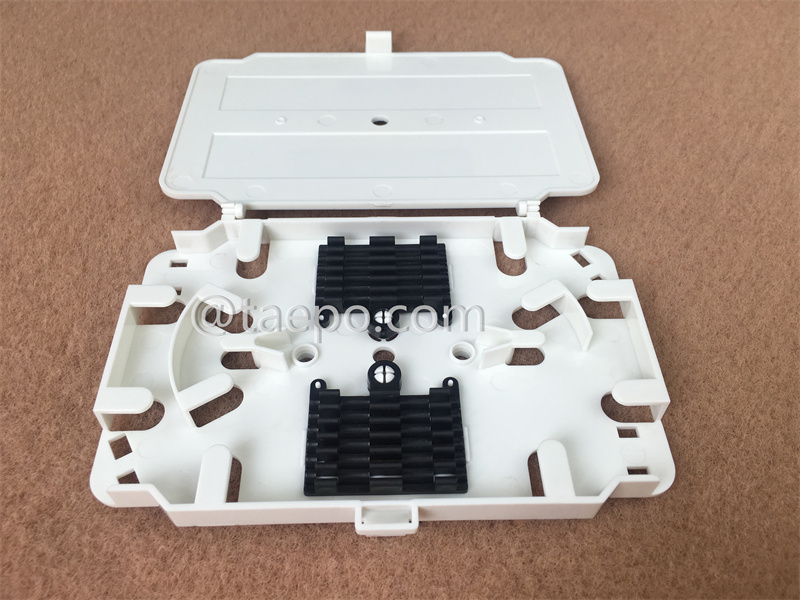

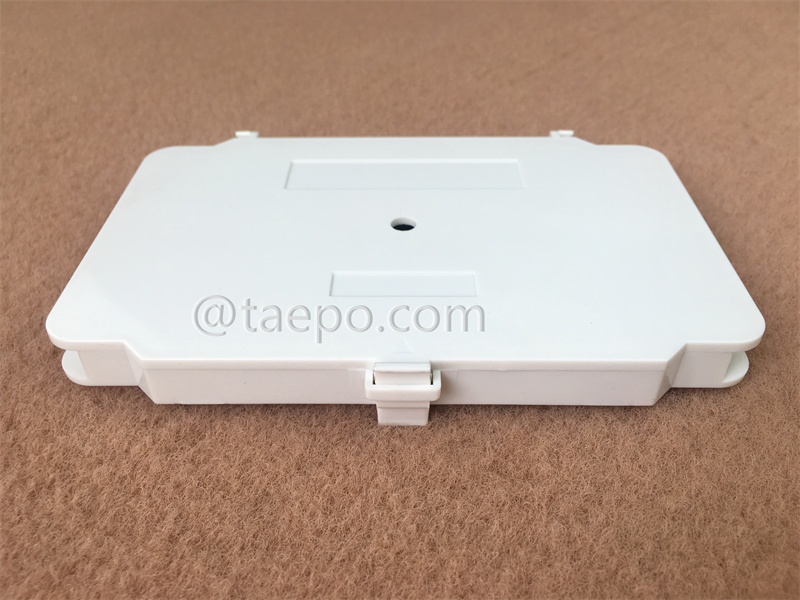

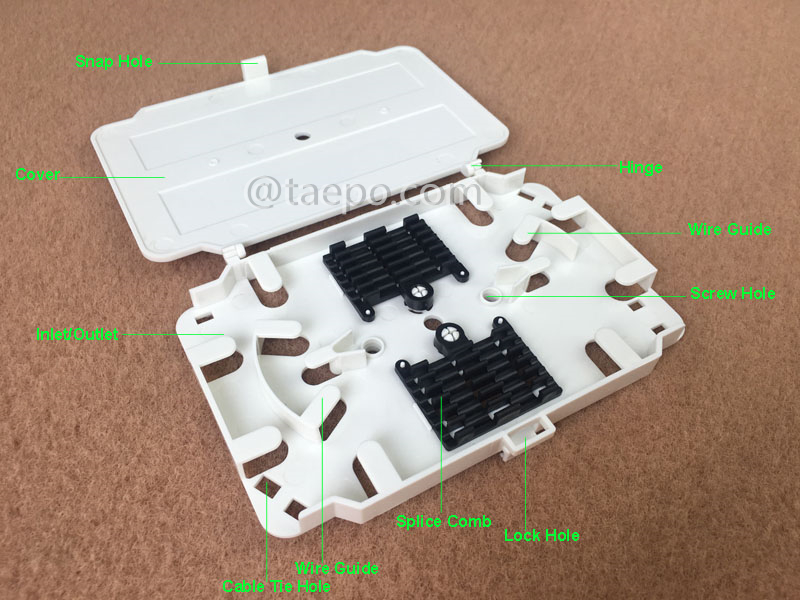

    ILLUSTRATION PICTURES

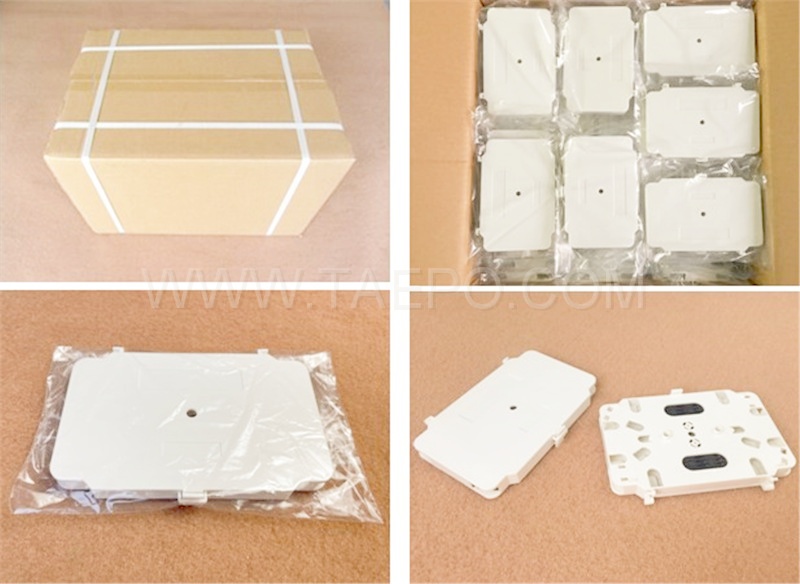

    PACKING PICTURES

    ORDER DATA
