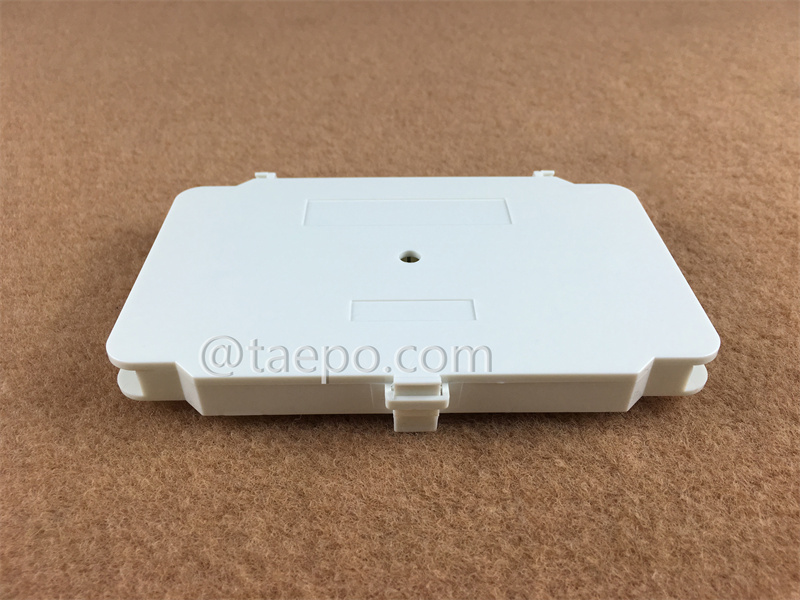

Fiber splice tray, 12 fibers

TAEPO - Specialized in Fiber Optic Splice Tray, Your Professional Chinese Manufacturing Partner !
What does Fiber Optic Splice Tray do?

   DESCRIPTIONS

The fiber splice tray (TP-3114-12B) designed for 12 fibers with dimensions of 140x90x10mm is an efficient and compact solution for organizing and protecting fiber optic splices. It offers a structured space to safely house spliced fibers, ensuring that they are protected from mechanical stress, bending, and environmental hazards. This tray is suitable for use in various telecommunications and networking environments, including data centers, fiber distribution frames, and outdoor enclosures.

Built from durable, high-quality materials, the tray can securely accommodate up to 12 fiber splices while maintaining a slim profile that fits easily into compact enclosures. The tray includes internal guides and slots to manage fiber routing efficiently, minimizing the risk of fiber bending or damage during and after installation. Its snap-on lid further enhances protection, making it ideal for both indoor and outdoor applications.

The fiber splice tray is compatible with a range of fiber types, including single-mode and multi-mode fibers, and supports both heat shrink. With provisions for fiber identification and management, this tray ensures easy access and maintenance, allowing for quick identification of fiber splices during repairs or upgrades.


    MAIN FEATURES

• Holds 12 Fiber Splices: Provides secure space for up to 12 splices.
• Compact Size (140x90x10mm): Designed to fit into confined or crowded enclosures.
• Durable Construction: Made from impact-resistant, high-strength materials.
• Effective Fiber Management: Internal guides and slots to organize fiber routing and prevent bending.
• Snap-On Lid: Protects fibers and splices from dust, moisture, and mechanical stress.
• Splice Type Compatibility: Supports both heat shrink and mechanical splices.
• Fiber Capacity: Suitable for both single-mode and multi-mode fibers.
• Labeling Provisions: Allows for easy identification of fibers during maintenance.
• Vibration Resistant: Keeps fibers secure even in high-vibration environments.
• Stackable Design: Multiple trays can be stacked in enclosures to increase capacity.
• Cable Routing Slots: Integrated slots for neat and organized cable management.
• Anti-Static: Reduces static buildup that could affect fiber performance.
• Rounded Edges: Designed to protect fibers from cuts or abrasions.
• Moisture Resistant: Protects splices from water and humidity when installed in sealed enclosures.
• Compatible with Standard Enclosures: Fits within most fiber optic cabinets and distribution frames.
• Tool-Free Access: Easily accessible for quick installation and maintenance without specialized tools.
• Pre-Marked Labels: Includes spaces for marking and identifying fibers during splicing.

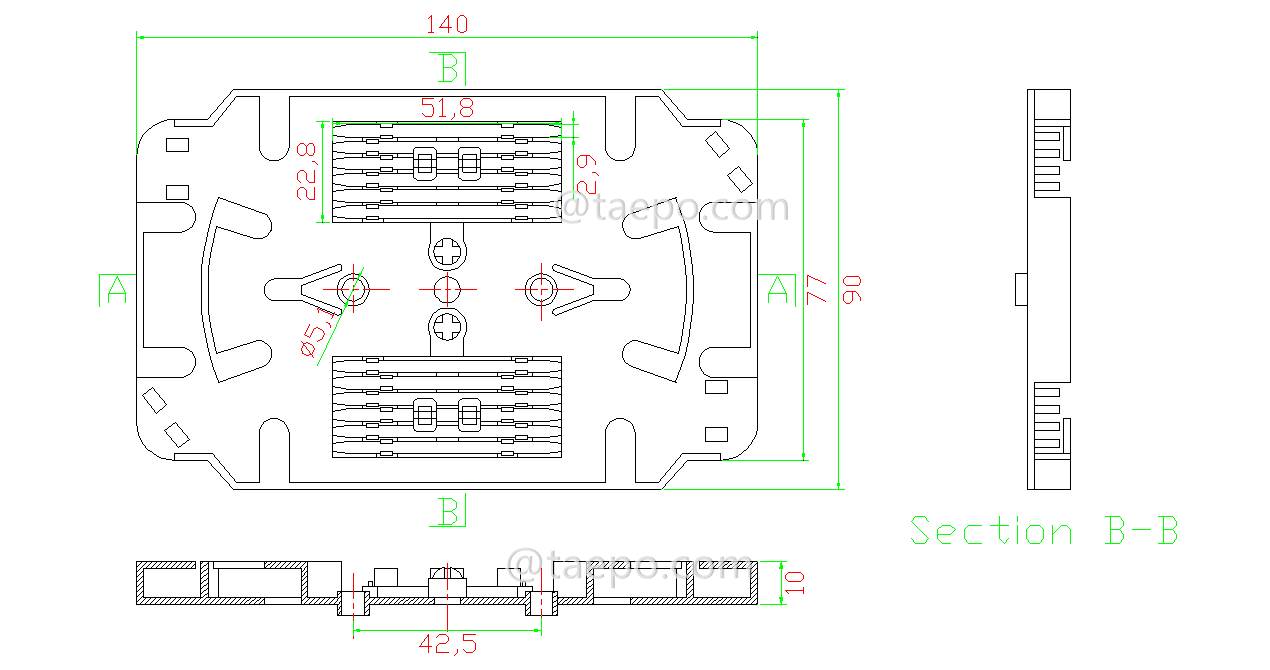

    SCHEMATIC DIAGRAMS

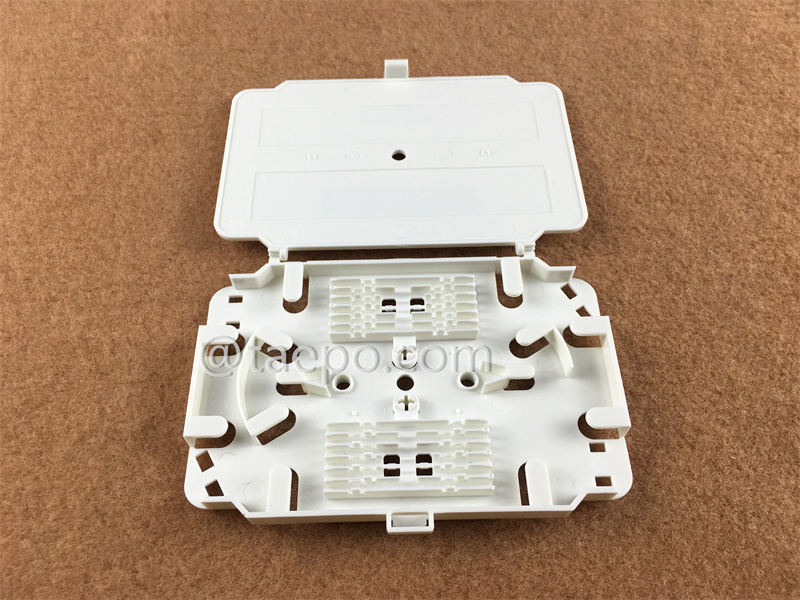

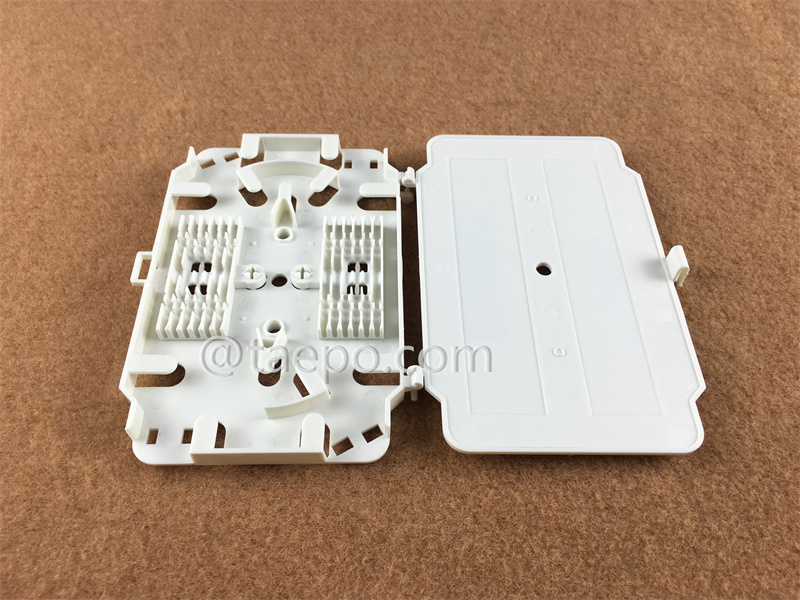

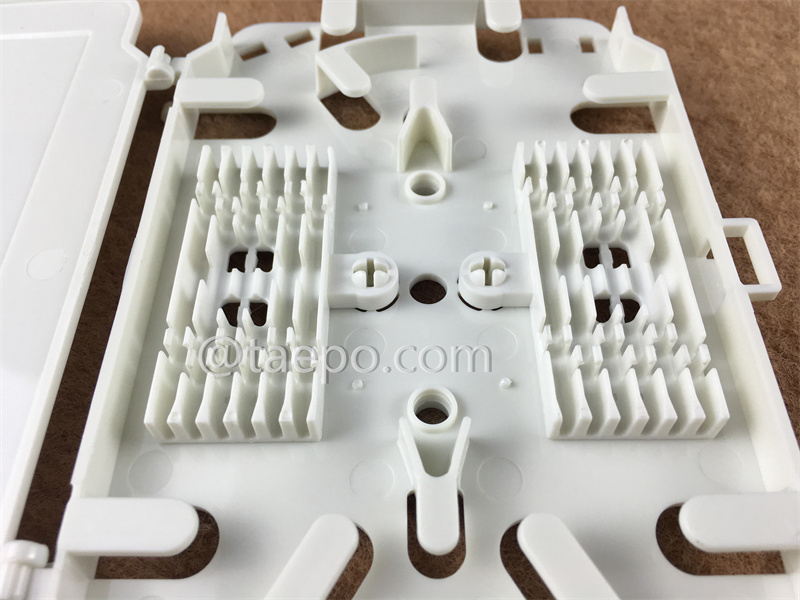

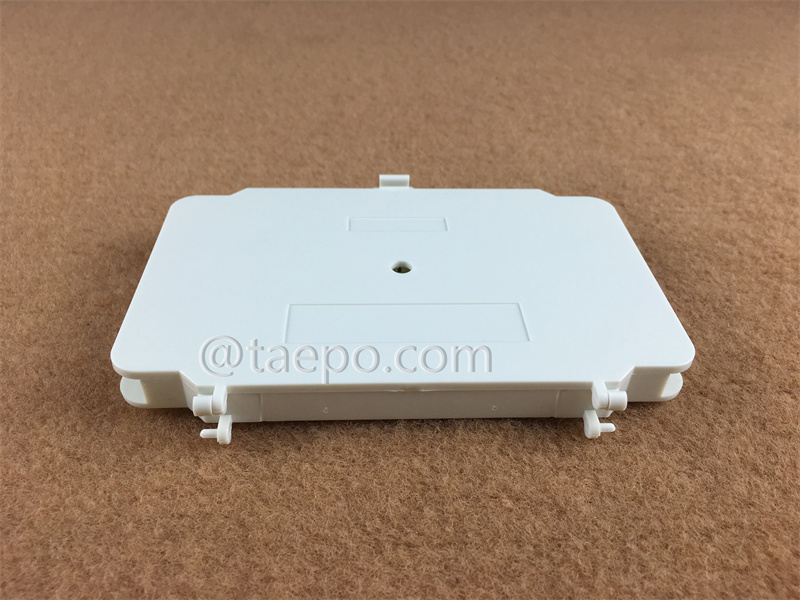

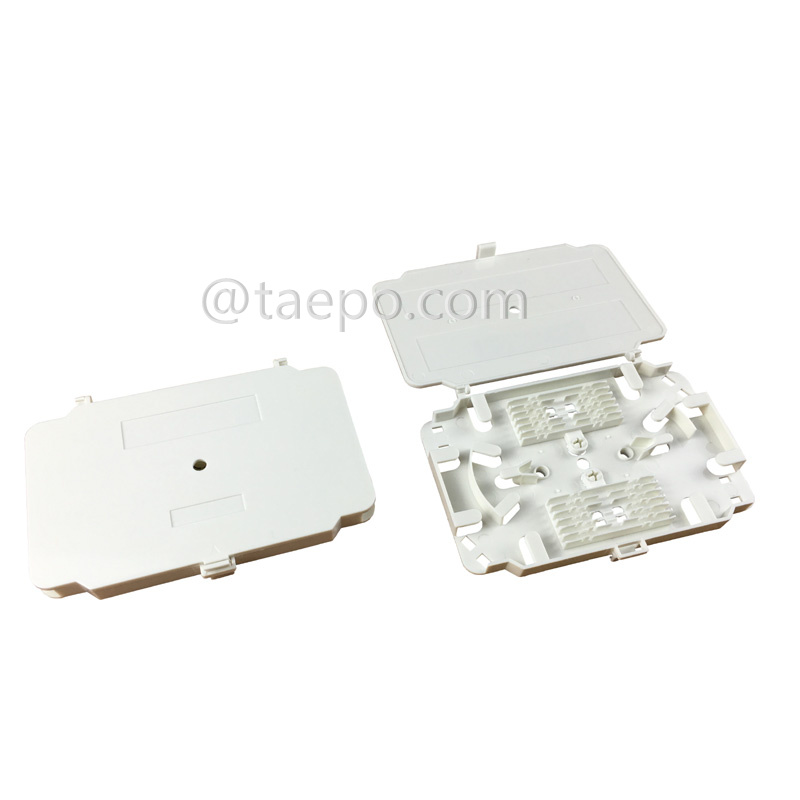

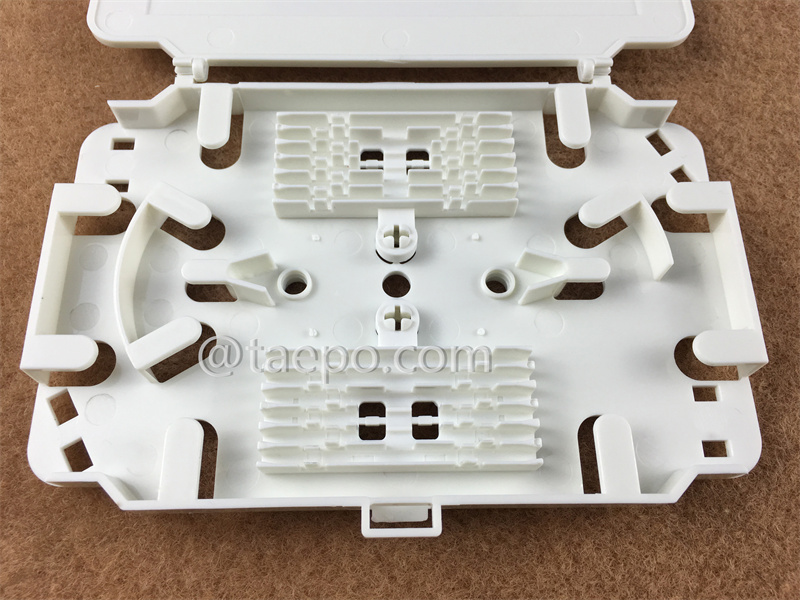

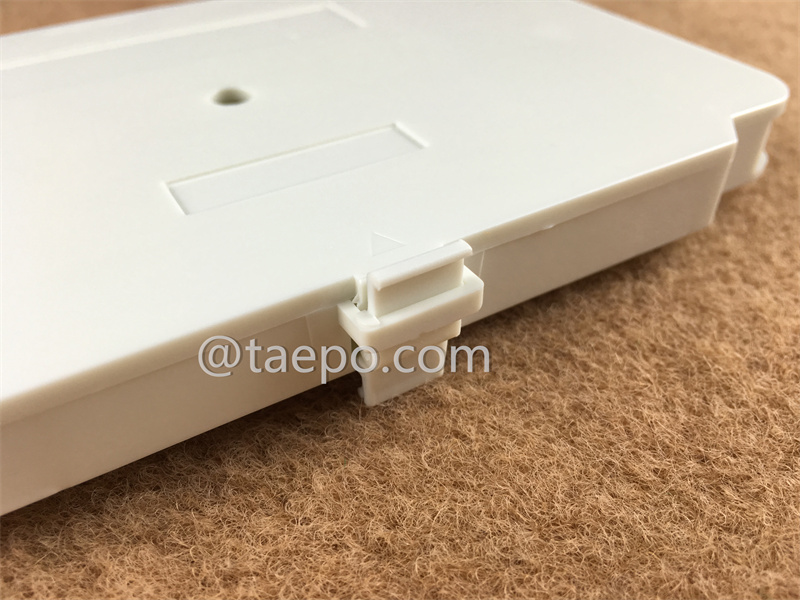

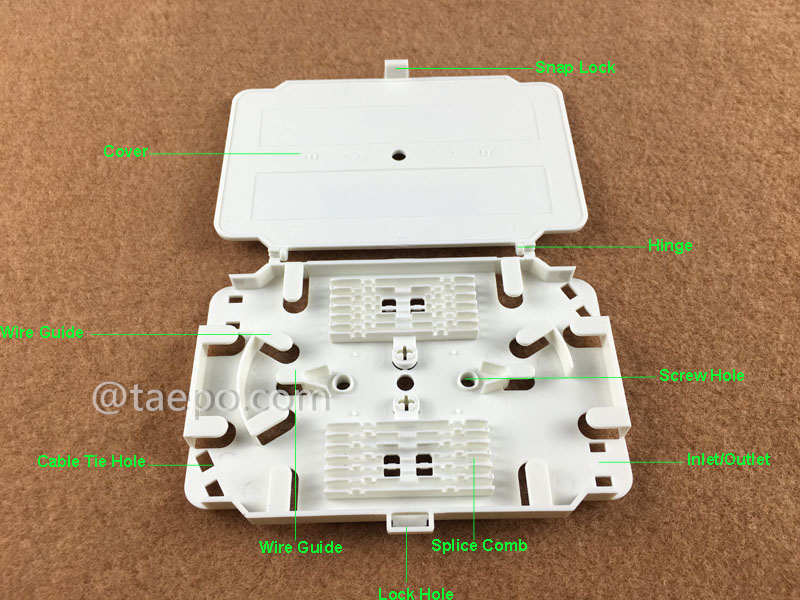

    ILLUSTRATION PICTURES

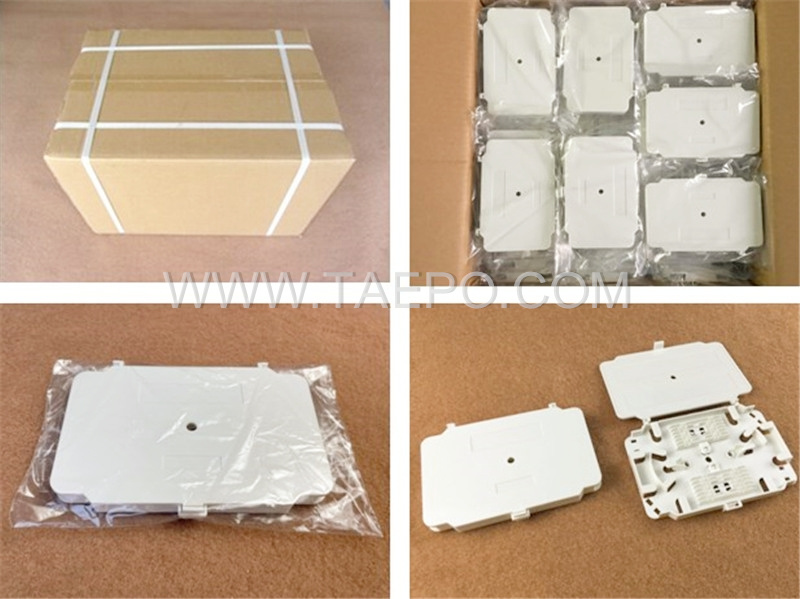

    PACKING PICTURES

    ORDER DATA
