72 ports splitter terminal block

TAEPO - Professional Chinese Manufacturer Delivering Splitter Terminal Block with Reliable Performance!
What is a 72 ports splitter terminal block ?

    DESCRIPTIONS

72 ports splitter terminal block (TP-1415-72) simplifies the interconnection and deployment of broadband equipment in central offices and remote locations, supporting ADSL2+ and VDSL. The innovative product design provides unique features designed to meet operators’ expectations for current mass broadband or NGN deployment with expected lower installation costs.

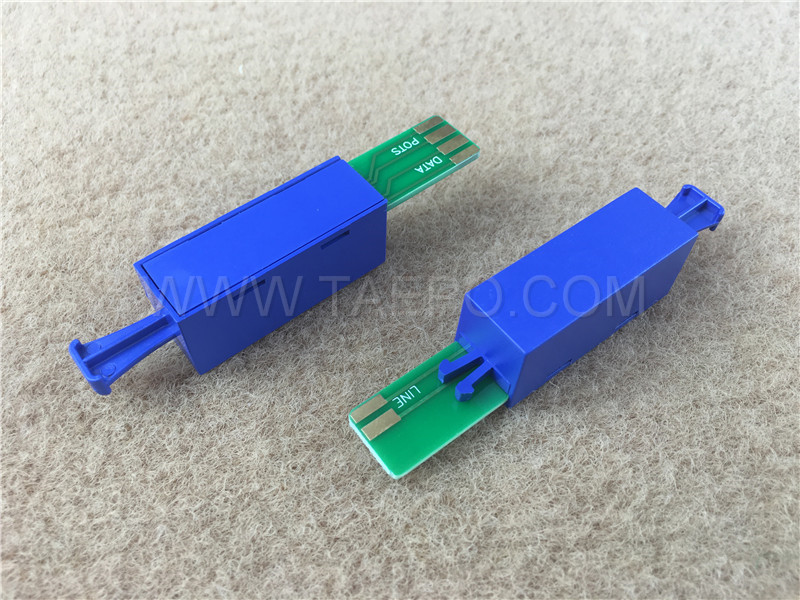

The MDF splitter terminal block uses a normally closed two piece contact, with a convenient disconnection feature. The splitter block can be rotated with max angle 90 degree. xDSL splitters will be inserted from the rear side.

The 72 Ports Splitter Terminal Block is a high-performance component designed to manage and distribute telecommunication signals across up to 72 separate connections. This terminal block is ideal for use in network and telephone systems where signal splitting is necessary to connect multiple devices or services. The block features a robust construction with a durable plastic housing, ensuring long-term reliability and resistance to environmental stresses.

Internally, the terminal block utilizes precision-machined contacts that provide stable and reliable connections. The design incorporates splitters that effectively divide the incoming signal into multiple outputs, ensuring consistent signal distribution without degradation. The compact form factor of the block allows for efficient use of space, making it suitable for both small and large-scale installations.


    MAIN FEATURES

• High-Density Capacity: Supports 72 subscriber pairs in a single block, allowing telecom operators to efficiently manage large numbers of users from one centralized unit.
• Multi-Standard Compatibility: Designed to support ADSL, ADSL2+, VDSL, and VDSL2 technologies, ensuring future-proof compatibility with broadband upgrades.
• MDF Integration: Can be mounted directly into Main Distribution Frames alongside disconnection blocks for seamless network integration.
• IDF Deployment: Suitable for use in intermediate distribution points and remote cabinets, extending its application beyond central offices.
• Modular Design: Constructed with a modular housing that allows for flexible installation, expansion, or replacement of splitter units.
• Front Access Terminals: All terminations and connections are accessible from the front, simplifying technician work and reducing installation time.

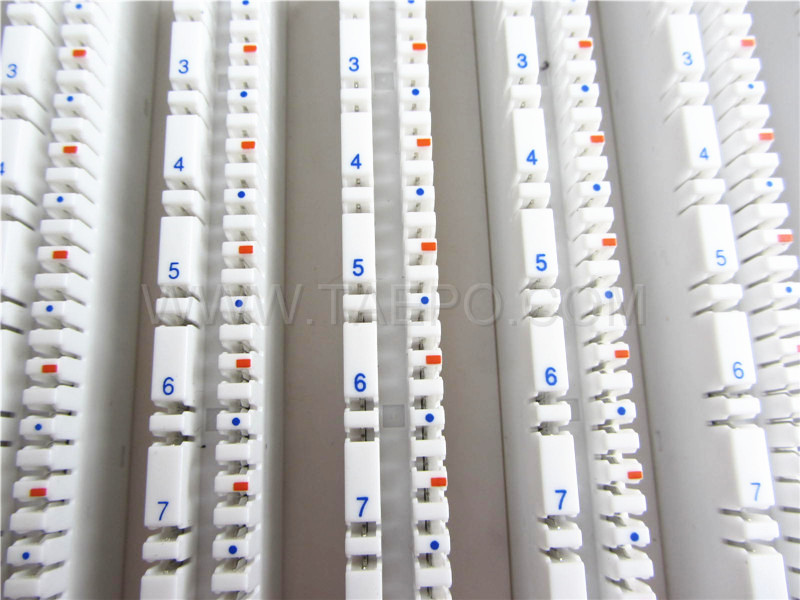

• Clear Pair Labeling: Each of the 72 pairs is marked with clear identification numbers, minimizing errors during cross-connection or testing.
• Cross-Connect Ready: Compatible with jumper wires and patch cords, enabling quick rerouting of subscriber lines.

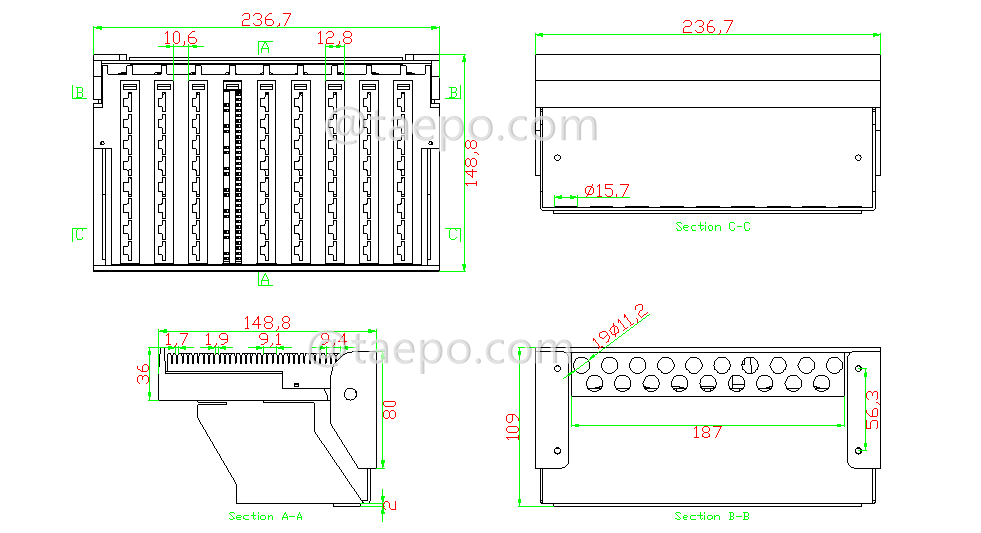

    SCHEMATIC DIAGRAMS

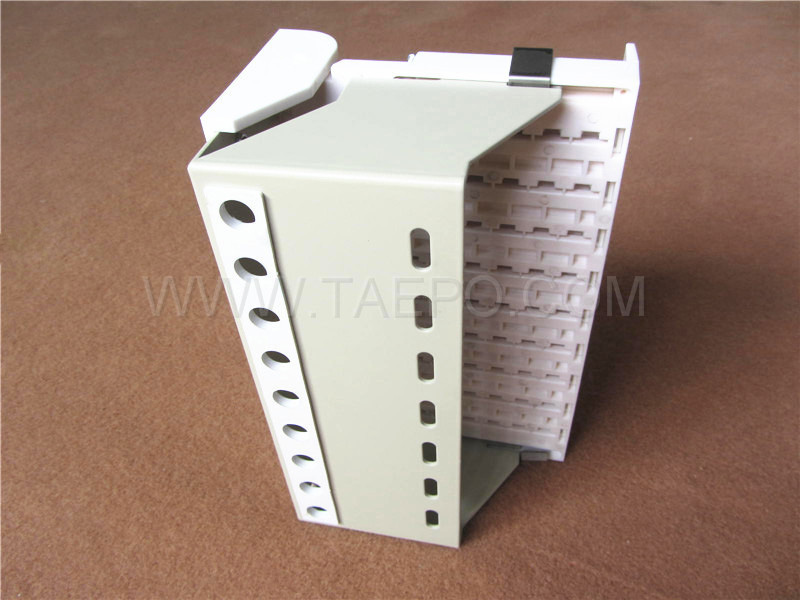

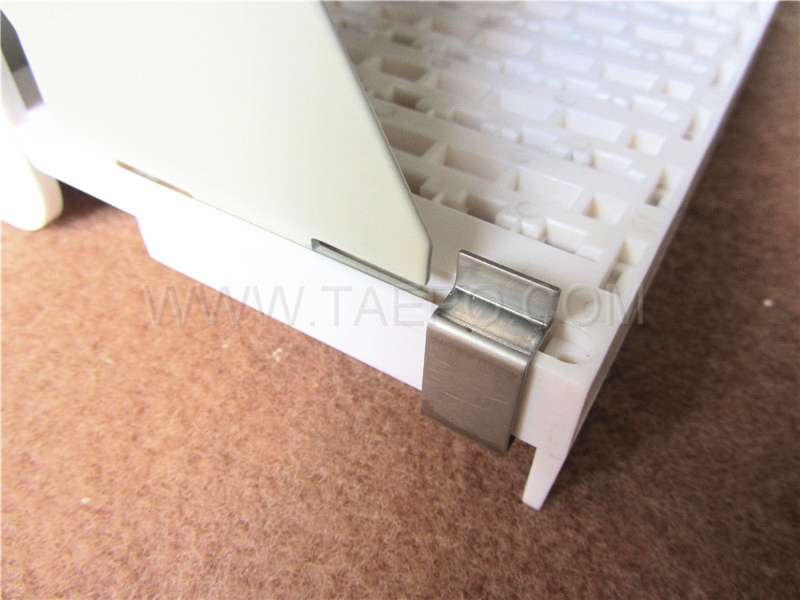

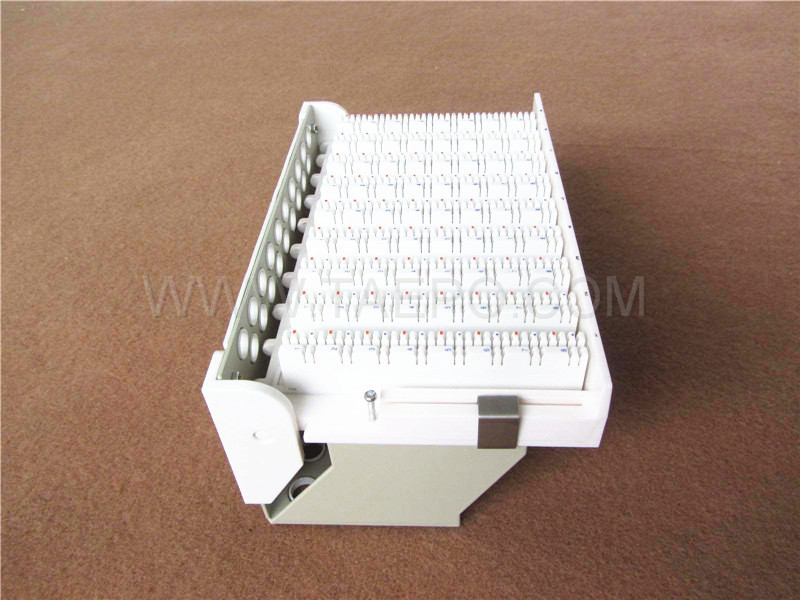

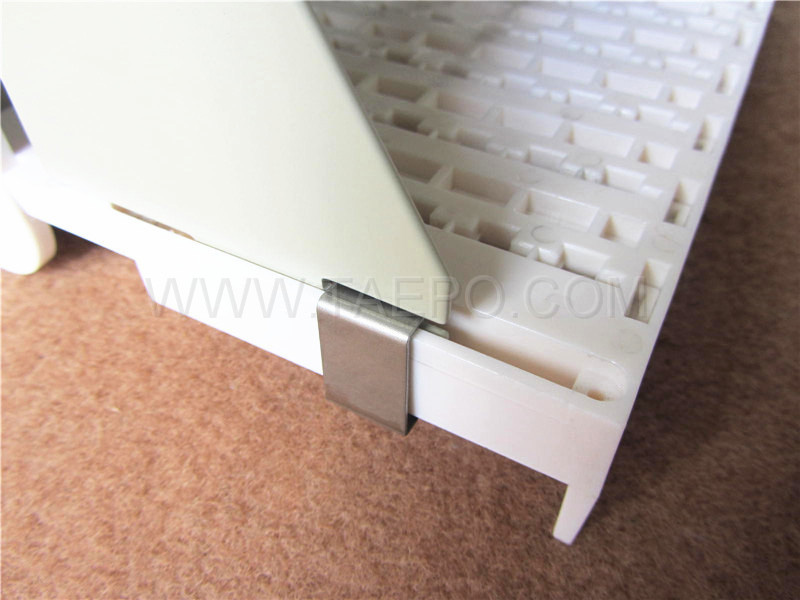

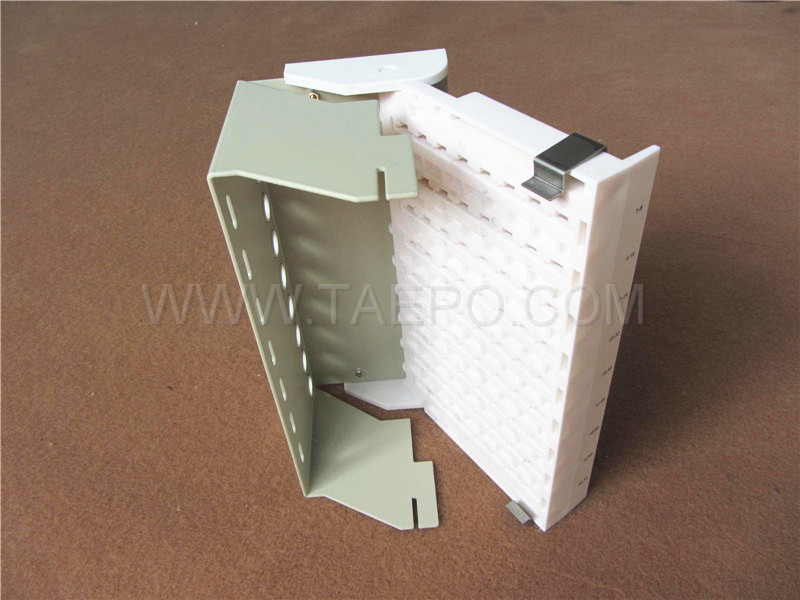

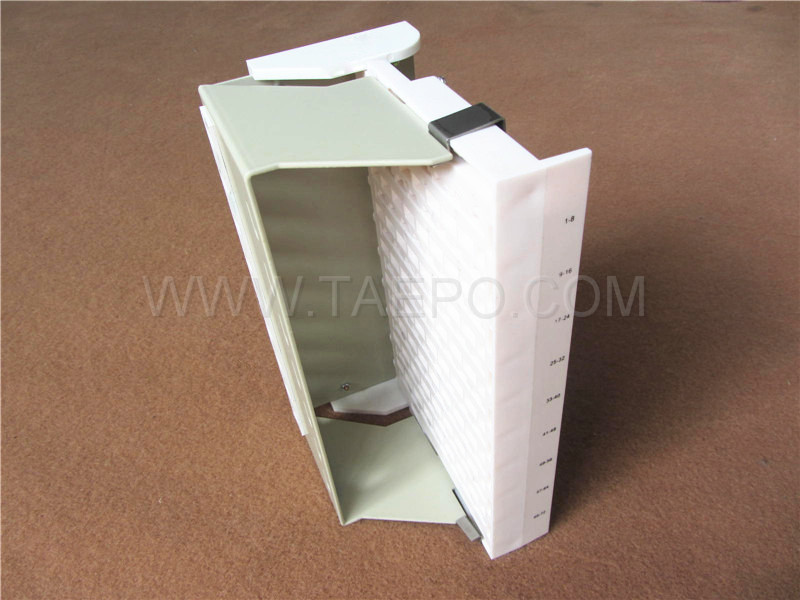

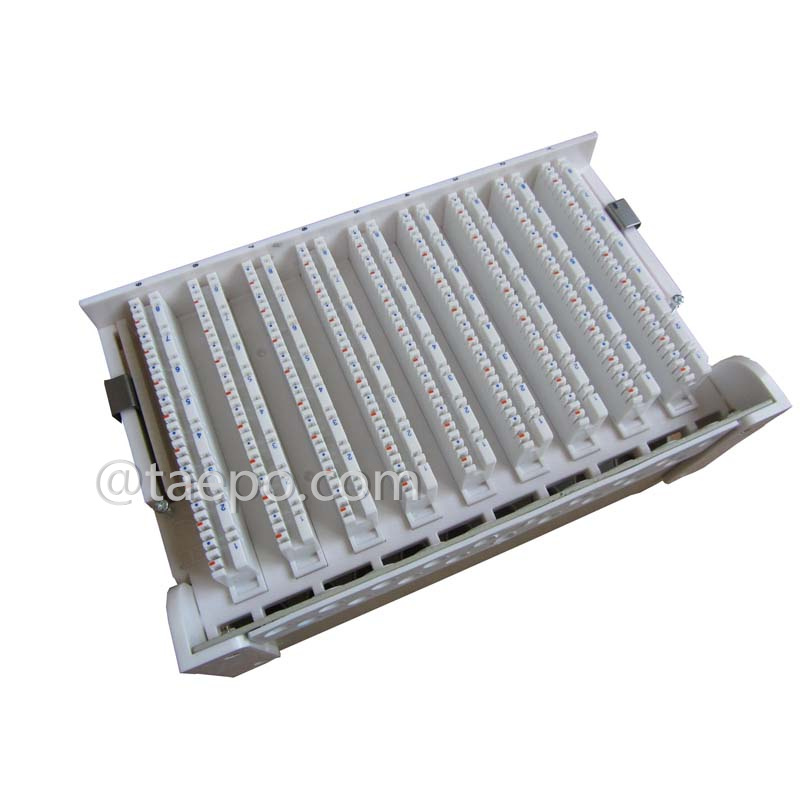

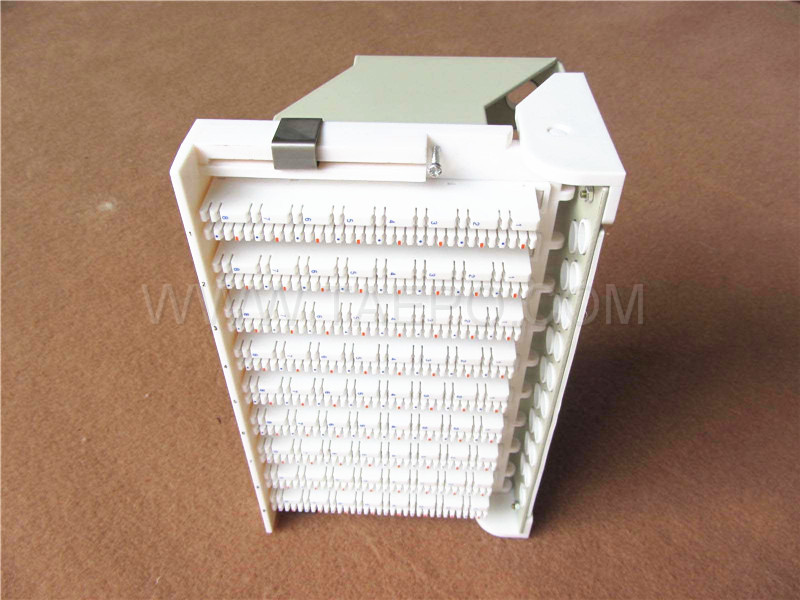

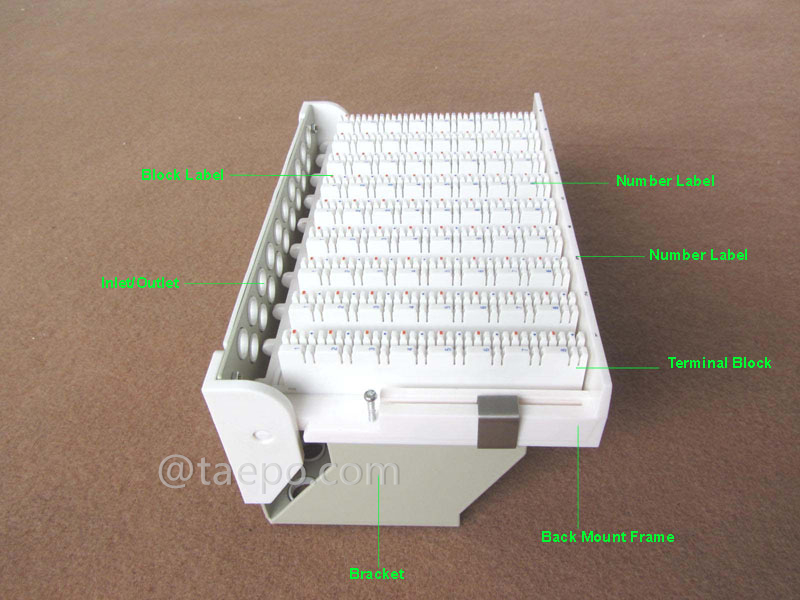

    ILLUSTRATION PICTURES

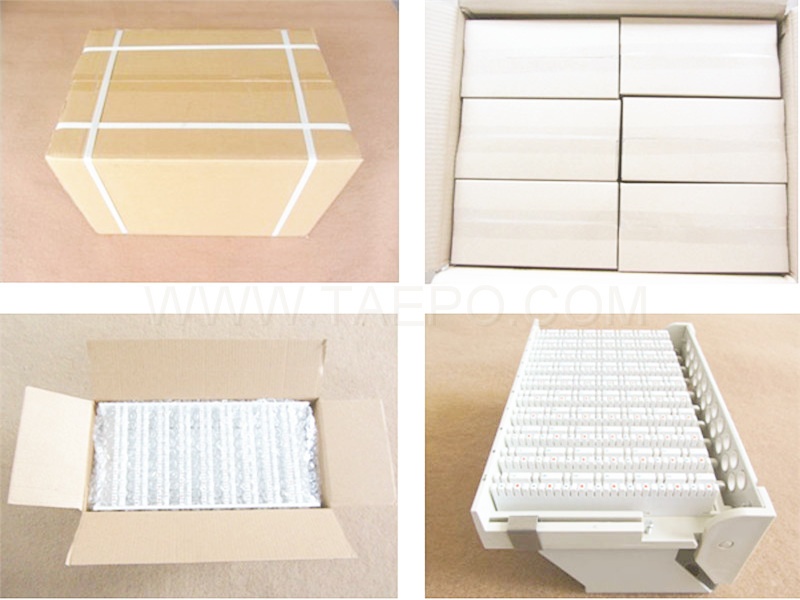

    PACKING PICTURES

    ORDER DATA
