What is Patch Panel used for?
DESCRIPTIONS
The 50-port patch panel (TP-5311-50C3U) is designed to support voice and low-speed data transmission networks, built to CAT3 standards. It is ideal for telecommunication applications, such as PBX systems, telephone wiring, and other analog communication networks that require reliable performance and high-density connectivity. With 50 RJ45 ports, this patch panel offers a dense, space-saving solution for voice-based infrastructure, allowing efficient organization and management of numerous connections in a single rack unit.
This patch panel fits into a standard 19-inch equipment rack and utilizes only 1U of vertical space, making it suitable for environments where rack space is limited. The Unshielded Twisted Pair (UTP) design provides a cost-effective solution, eliminating the need for grounding and shielding, which is typically unnecessary in voice applications. The CAT3 classification ensures that the patch panel is optimized for telephony and other legacy communication systems, delivering consistent voice quality.
Constructed from durable materials with gold-plated contacts, this patch panel offers longevity and reliable signal transmission. The ports are clearly labeled, allowing easy identification during installation and maintenance. The design is simple, efficient, and best suited for legacy systems and office environments with extensive voice communication needs.
MAIN FEATURES
- Standard 19” rack mounting
- 50 RJ45 ports for high-density voice and telecommunication systems.
- CAT3 compliant for voice and low-speed data applications.
- Unshielded Twisted Pair (UTP) design for simpler, cost-effective installations.
- 19-inch rack-mountable, fits standard equipment racks.
- 1U height, optimizing rack space usage.
- Ideal for PBX systems, telephone wiring, and analog voice networks.
- Gold-plated contacts for enhanced durability and signal transmission.
- Pre-labeled ports for easy and organized identification.
- Supports standard telephone lines and CAT3 cabling.
- Durable metal construction for long-term use.
- No need for shielding or grounding, simplifying installation.
- Compatible with 24-26 AWG cables.
- Simple front-access design for easier maintenance and cable management.
- Compact and lightweight, suitable for telecommunications closets and office environments.
- Supports low-speed data rates up to 10 Mbps.
- Black powder-coated finish for added durability and a clean aesthetic.
- Cost-efficient solution for voice-dedicated networks and structured cabling.

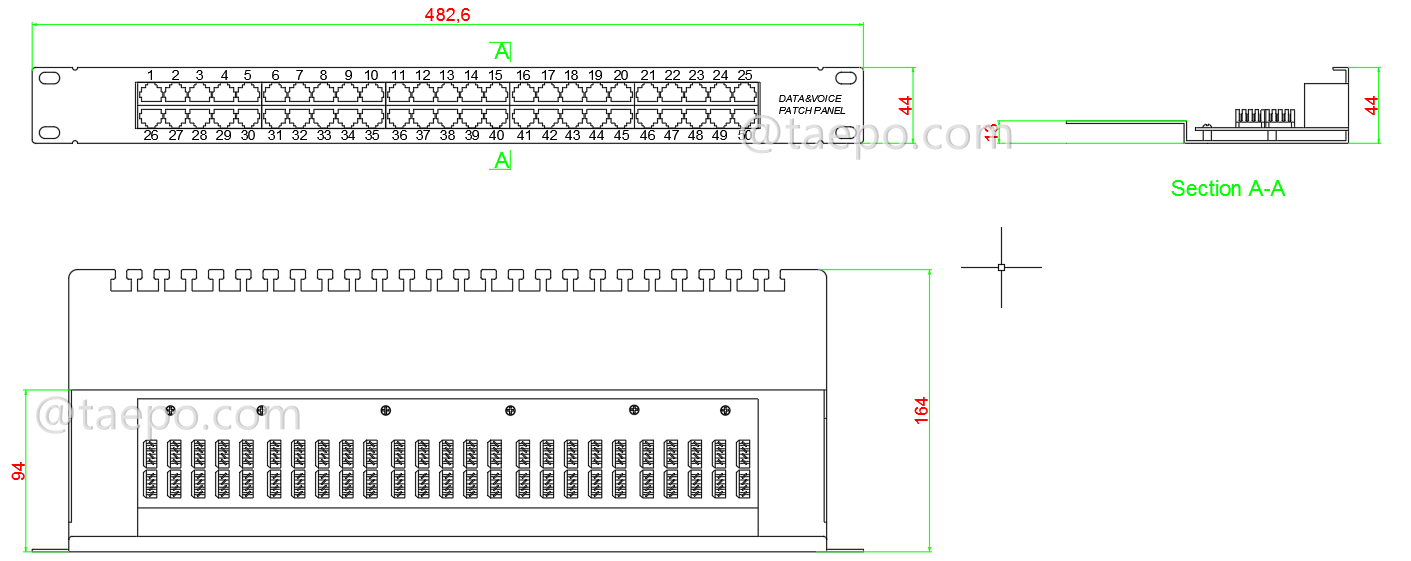

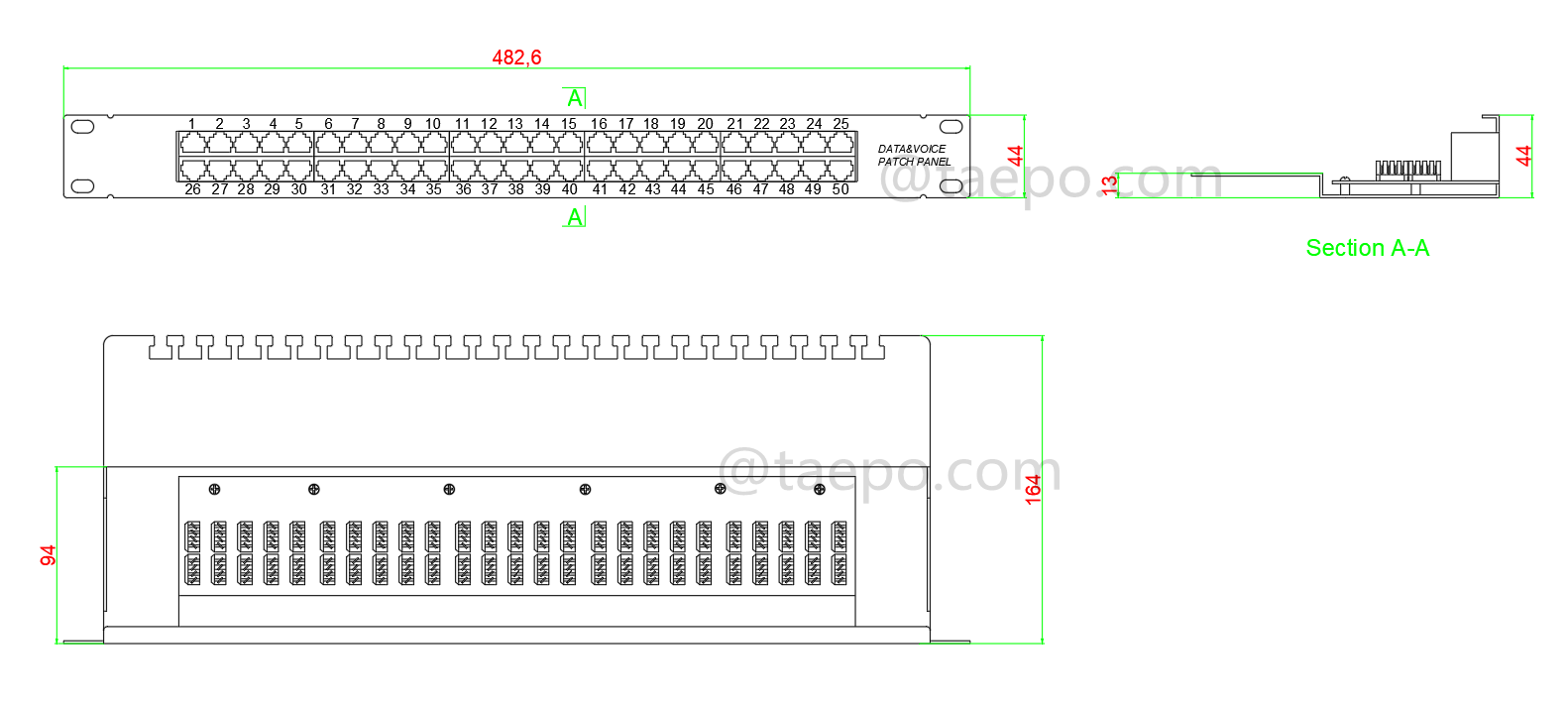

SCHEMATIC DIAGRAMS

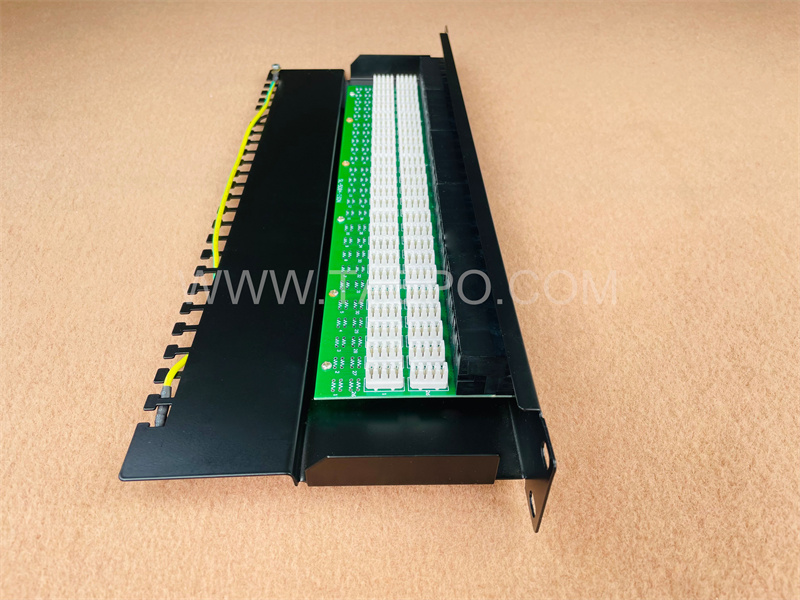

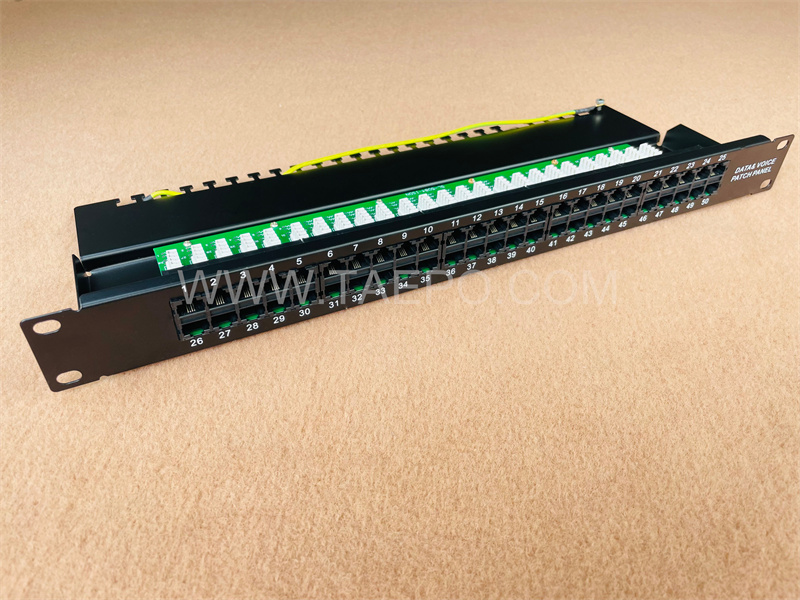

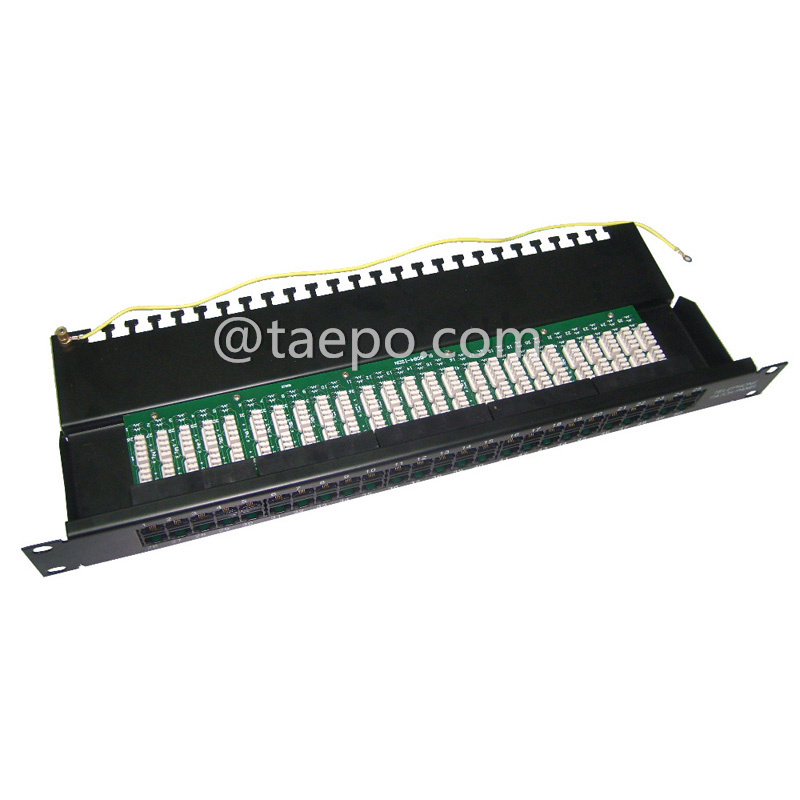

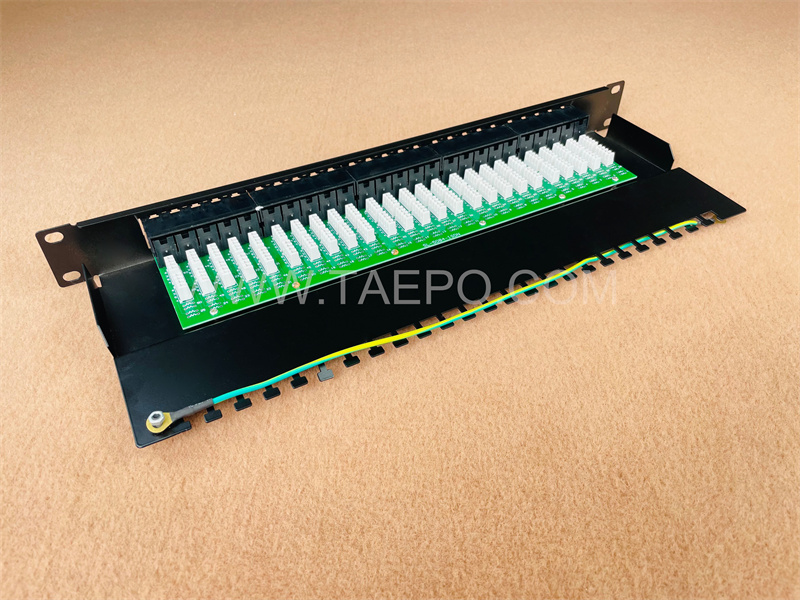

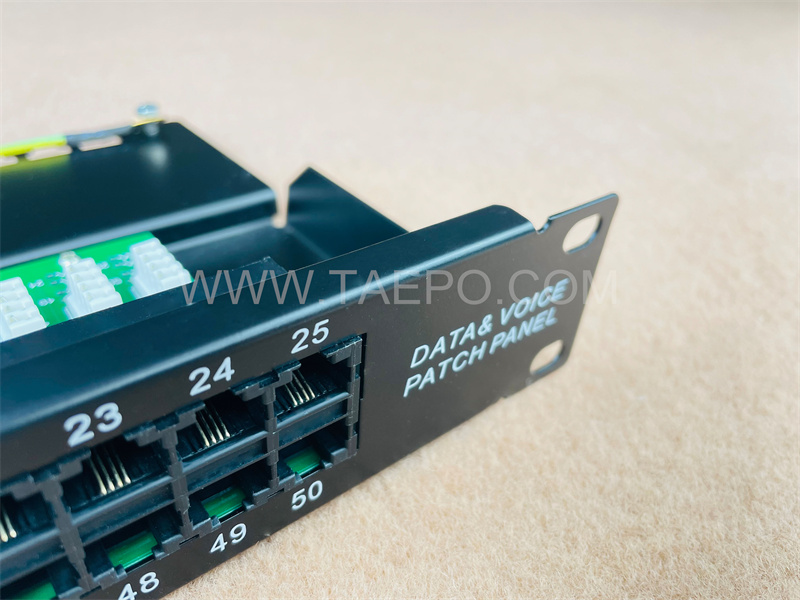

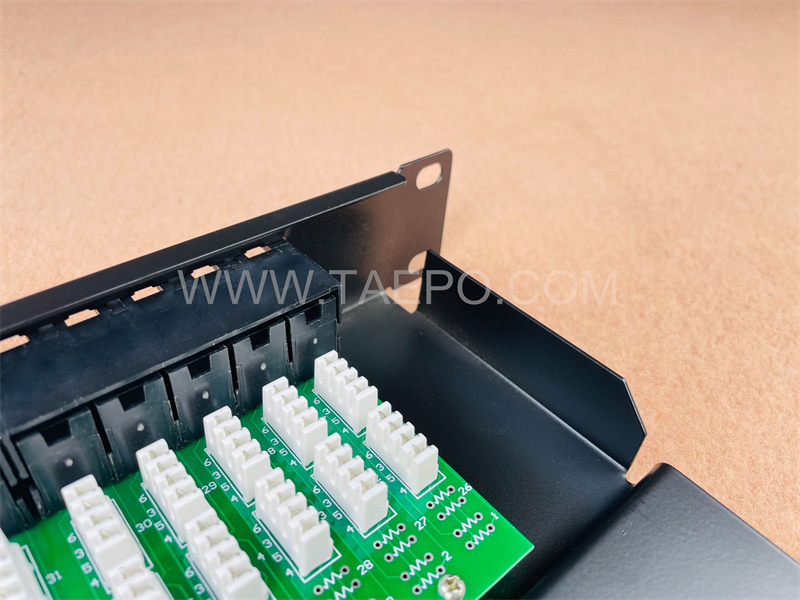

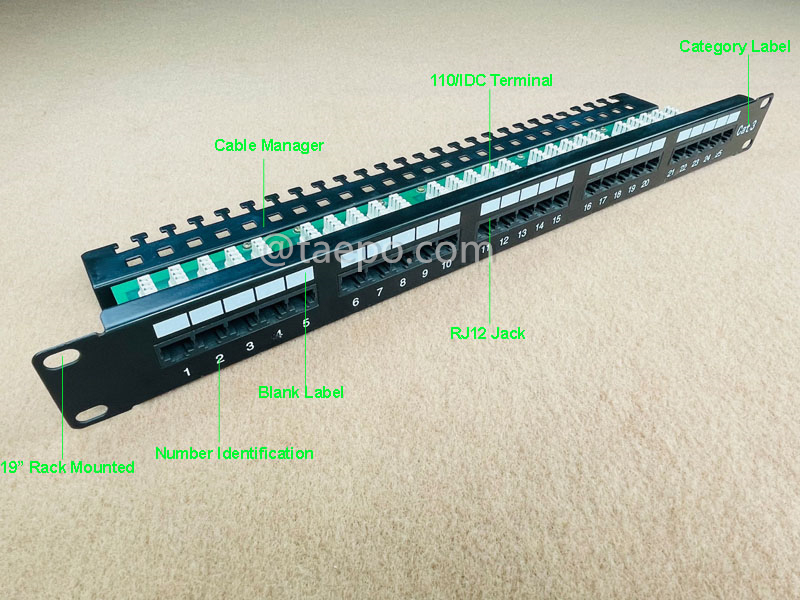

ILLUSTRATION PICTURES

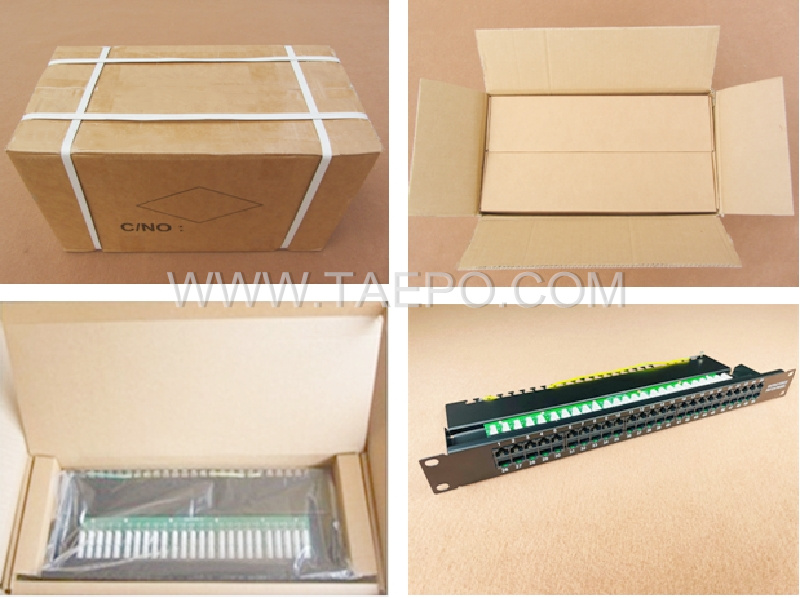

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5311-50C3U |
50-port patch panel, CAT3, RJ45, UTP, 19", 1U |
