Home > Structured Cabling > Patch Panel
24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19 24-port patch panel, CAT6, RJ45, UTP, 19

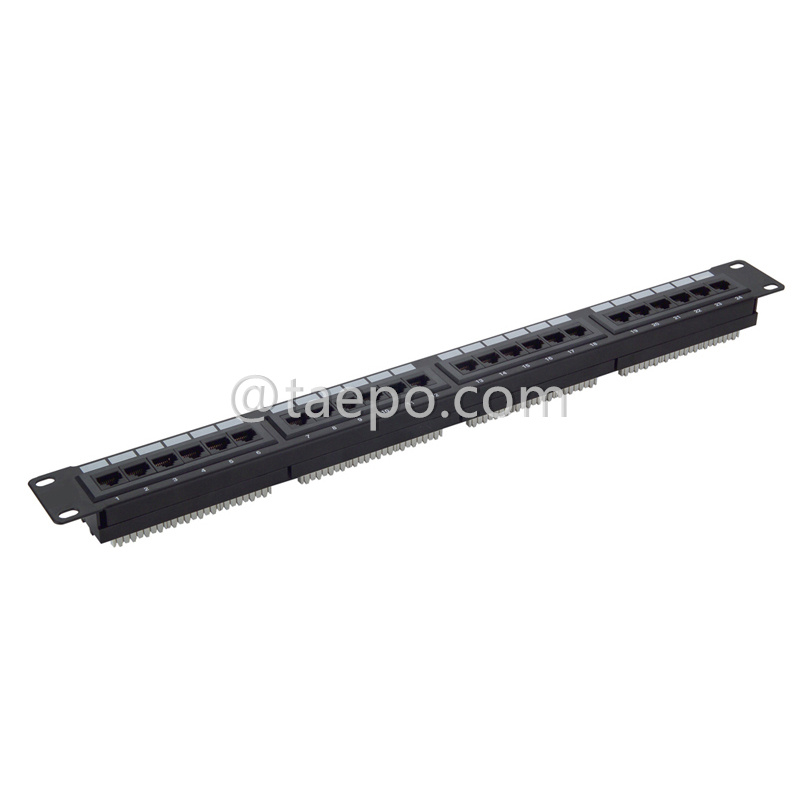

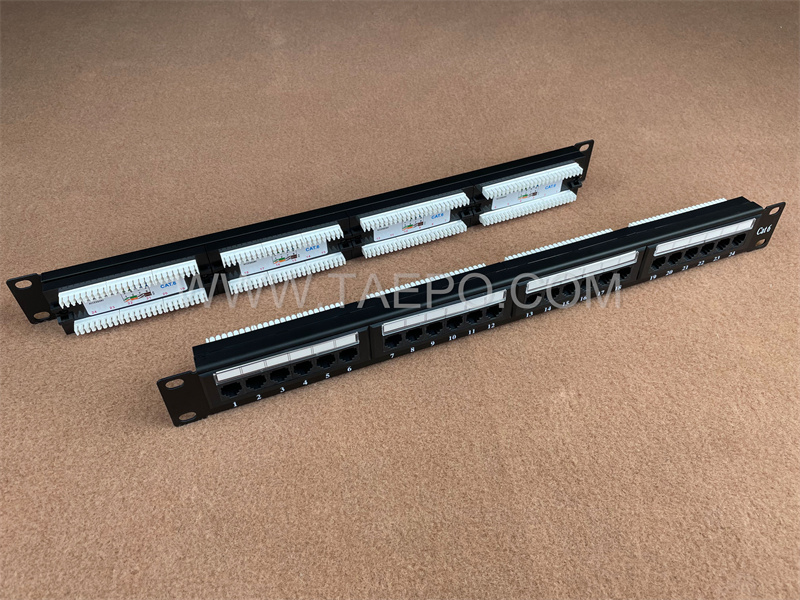

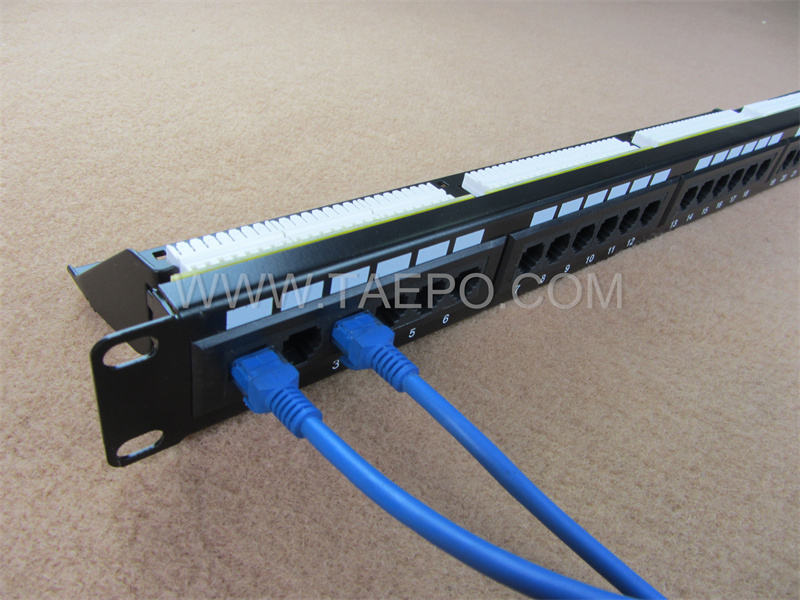

24-port patch panel, CAT6, RJ45, UTP, 19", 1U

Item No.: TP-5302-24C6U
This patch panel is a  component in modern networking environments, providing structured and organized connectivity for Ethernet networks.
  • Color: Black
  • Brand: Neutral / OEM / TAEPO
  • Packing: 1pc/box, 20bpcs/ctn, 11.3kg/ctn, 50*25*24cm/ctn
  • MOQ: 1000pcs
  • Delivery: 7-14 days
    • INQUIRY
    Description

    TAEPO - Your Trusted Chinese Manufacturer of Patch Panel with Professional Expertise !
    What is Patch Panel used for?


        DESCRIPTIONS

    24-port patch panels CAT6 RJ45 UTP (TP-5302-24C6U) exceed ANSI/TIA requirements for Category 6 component performance and may be terminated with either single-wire or 5-pair tools. Panels support both T568A/B wiring standards.

    Organize up to 24 Cat6 patch cables, providing the perfect solution for any LAN application. The 1U patch panel offers RJ45 downward tilted ports and 110/IDC dual type termination.
    24 ports ensure a wide range of plug-n-play options. The clear numbering on both the front and back of each panel gives you a quick and easy way to identify cable runs and the high density 19in panel design will save you valuable space in on the rack.




        MAIN FEATURES

    • Standard 19” rack mounting
    • Heavy duty design
    • Clear identification
    • 110 and IDC dual connection
    • Gold plating over nickel
    • Gas tight connection
    • Robust long-term environmental stability
    • 24 CAT6 RJ45 ports for UTP connections.
    • Compliant with TIA/EIA-568-C.2 standards.
    • Supports 1 Gbps and 10 Gbps Ethernet over CAT6 cables.
    • 1U rack height for space-saving installation.
    • Color-coded T568A and T568B wiring diagram for ease of use.
    • Gold-plated contacts for enhanced signal quality.
    • Numbered ports for quick identification and organization.
    • Unshielded twisted pair (UTP) design for easy installation.
    • Durable metal construction for enhanced durability.
    • Black powder-coated finish to resist corrosion and wear.
    • Rear termination with 110/IDC punch-down connectors.
    • Supports PoE (Power over Ethernet) applications.
    • Low-profile design reduces interference and crosstalk.
    • Easy maintenance and port replacement.
    • Compatible with CAT5e, CAT6, and CAT6a cables.
    • Grounding lug provided for enhanced safety.
    • Tool-less mounting system for quick installation.



        SCHEMATIC DIAGRAMS

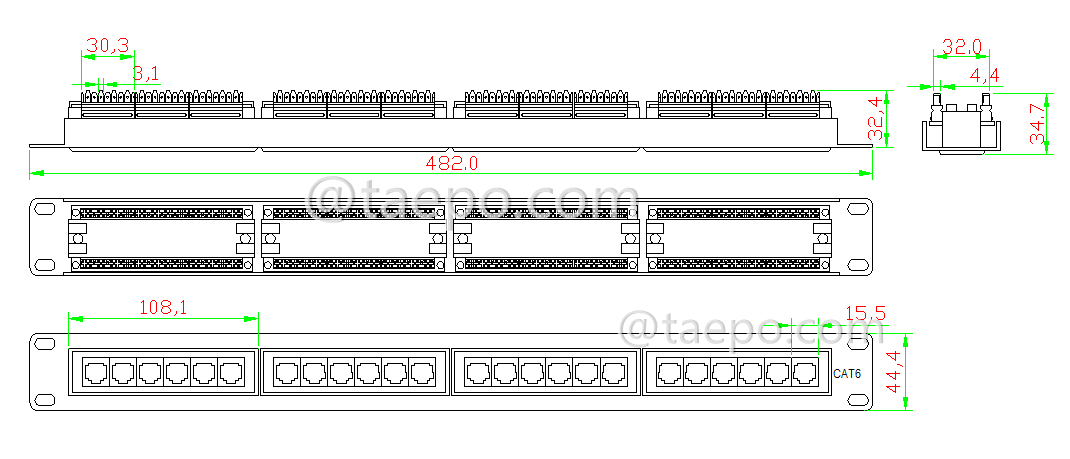

    Drawing for 24-port patch panel, CAT6, RJ45, UTP, 19

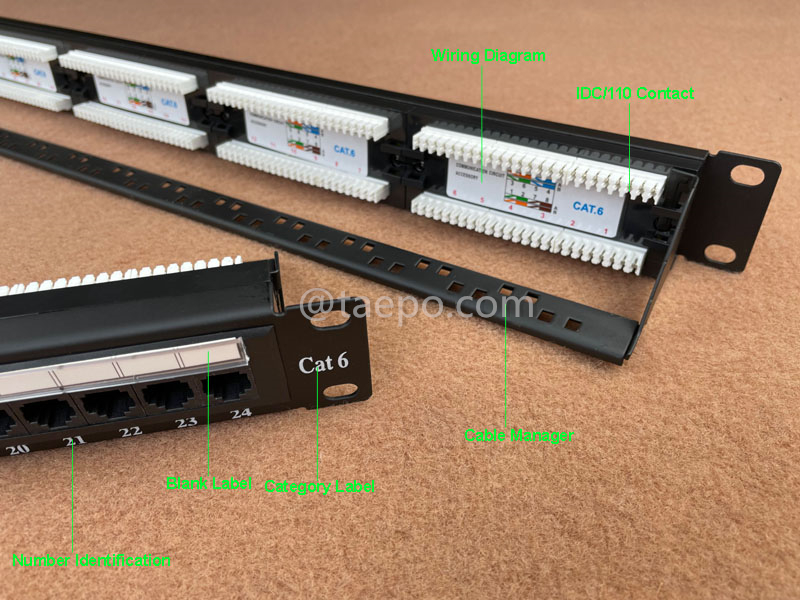

       ILLUSTRATION PICTURES

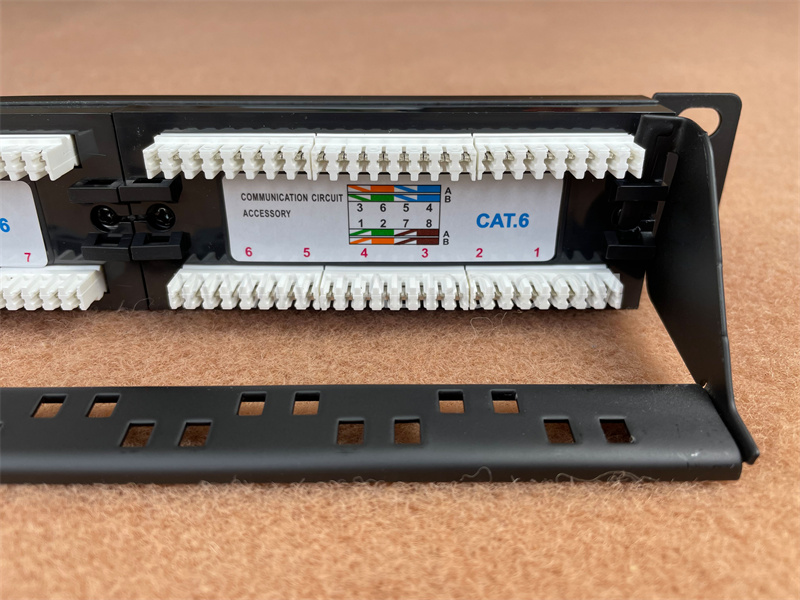

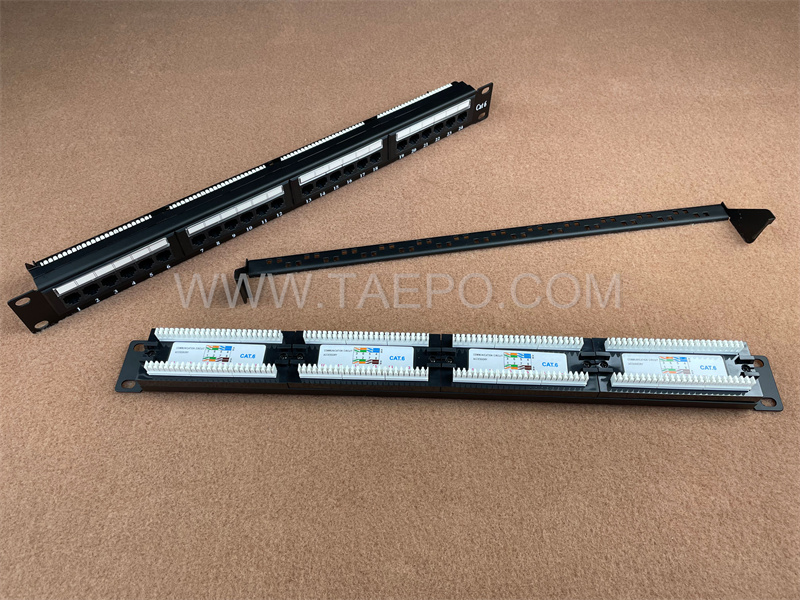

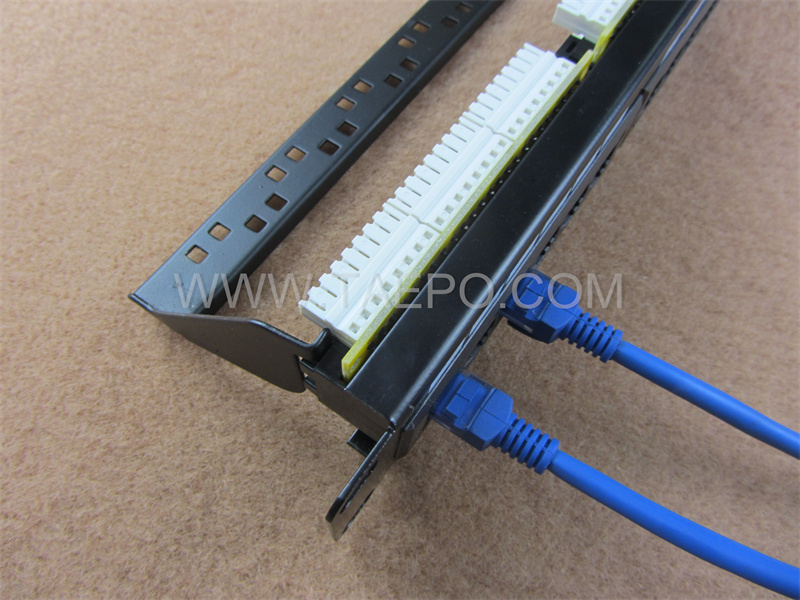

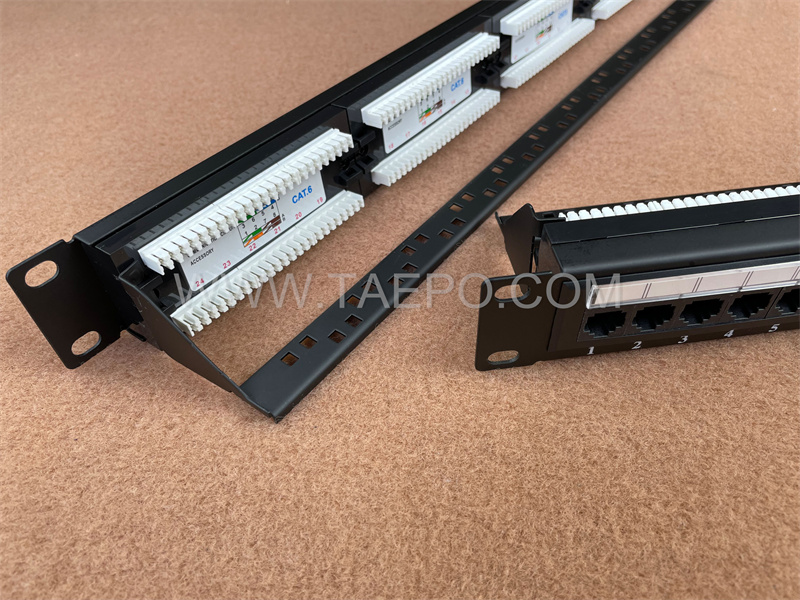

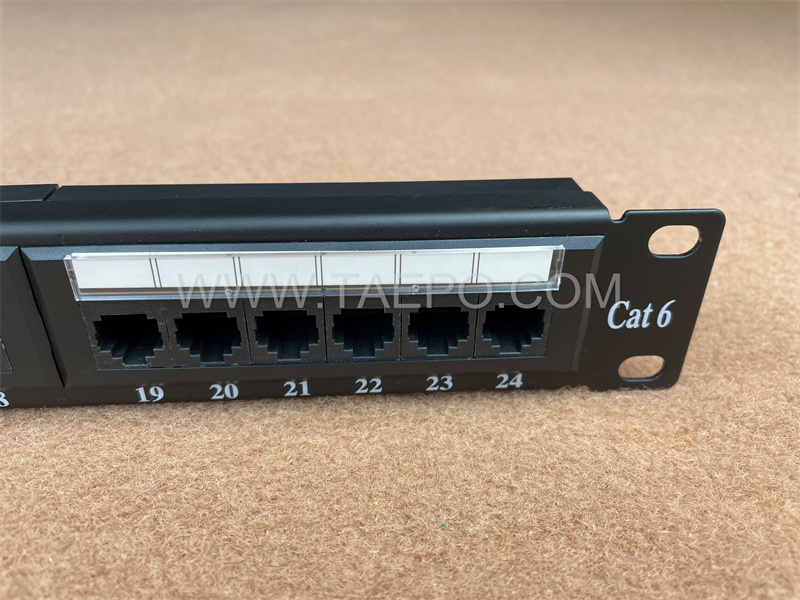

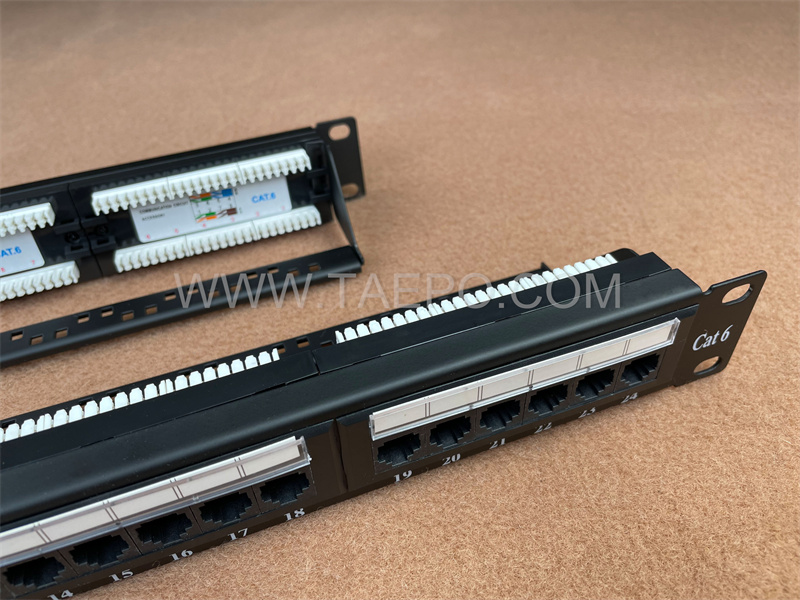

    Illustration pictures for 24-port patch panel, CAT6, RJ45, UTP, 19

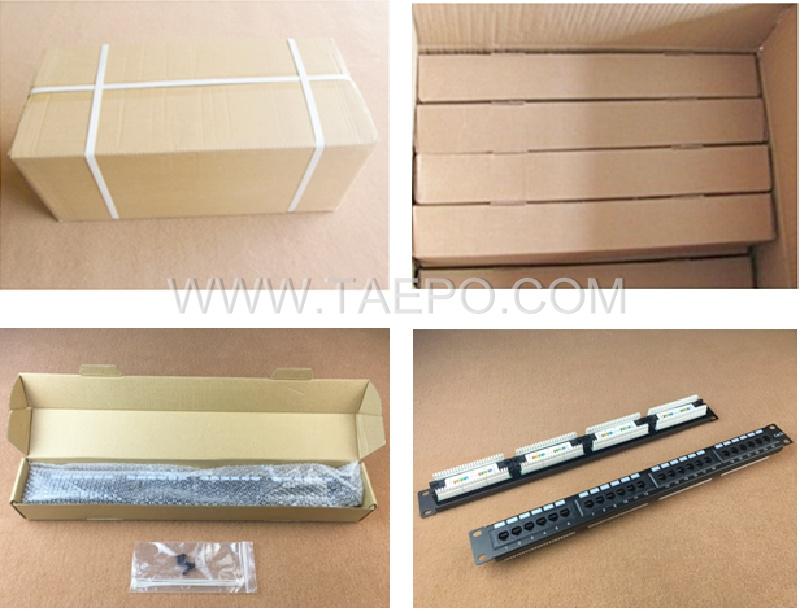

        PACKING PICTURES

    Packing pictures for 24-port patch panel, CAT6, RJ45, UTP, 19


        ORDER DATA

    Item No Descriptions
    TP-5302-24C6U 24-port patch panel, CAT6, RJ45, UTP, 19", 1U

        RELATED PRODUCTS

    12-port patch panel, CAT6, RJ45, UTP, 10 LAN cable stripper
    LAN patch cord, CAT6, UTP, RJ45-RJ45, 1mPunch down tool, 110 blade

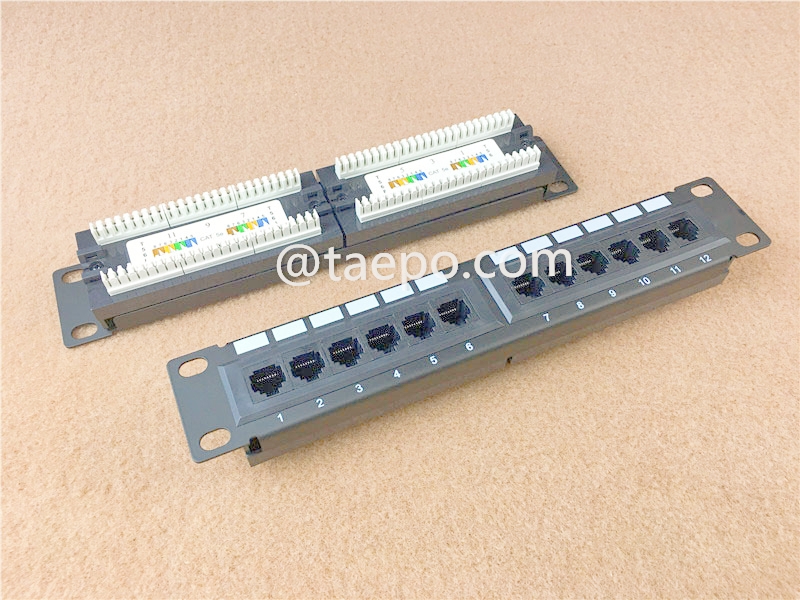

    TP-5302-12C6U  12-port patch panel, CAT6, RJ45, UTP, 10", 1U

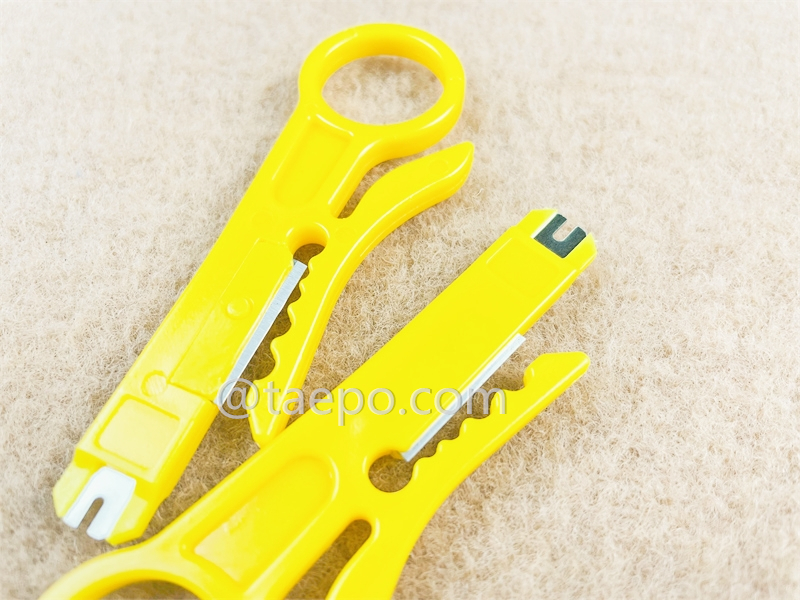

    TP-5901-318  LAN cable stripper
