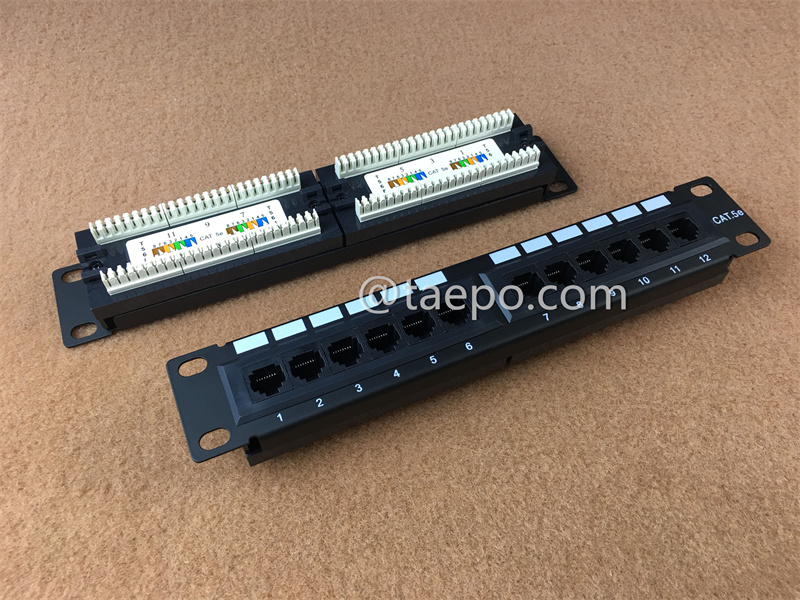

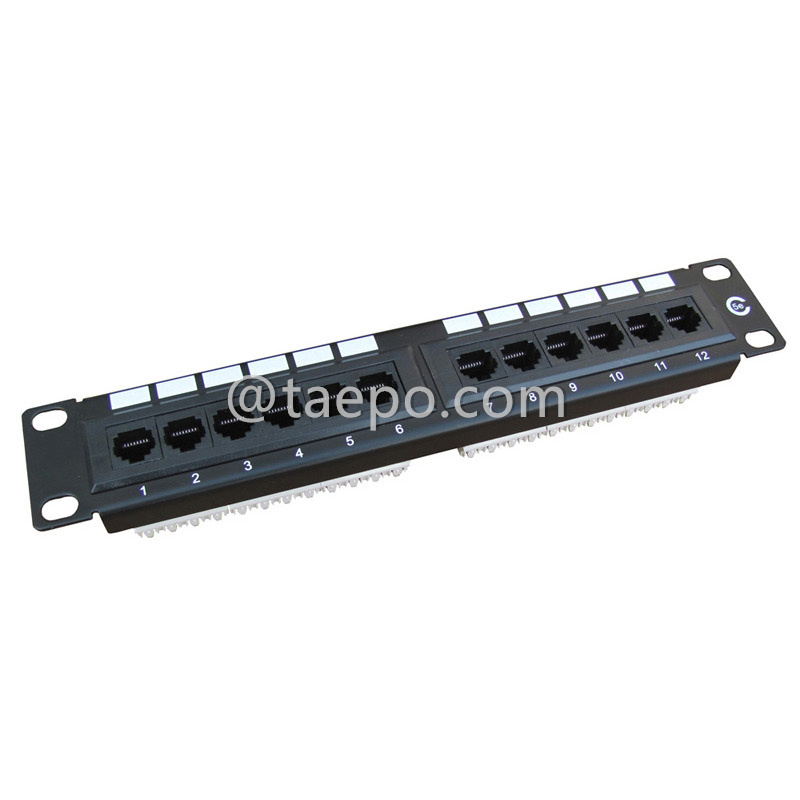

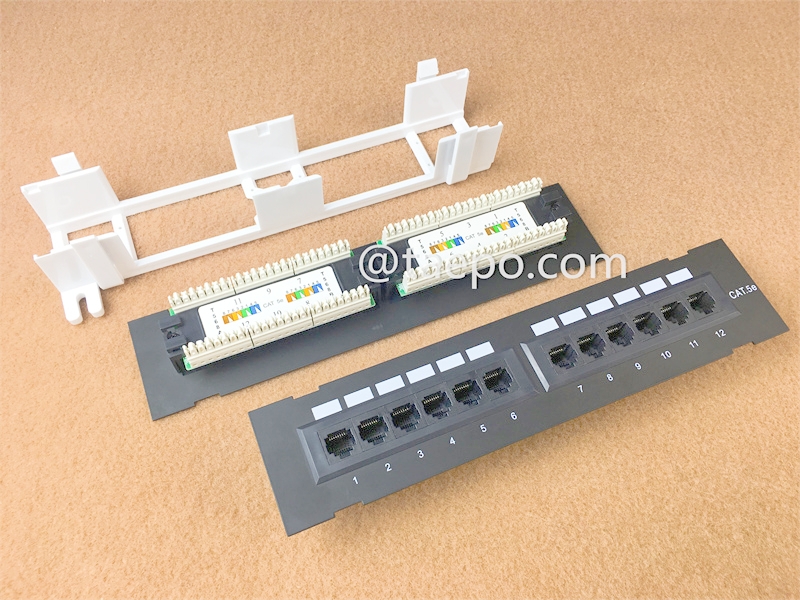

10 inch 1U CAT5E RJ45 UTP 12 port network patch panel

    Descriptions

A "10 inch 1U CAT5E RJ45 UTP 12 port network patch panel" is a piece of networking equipment designed to organize and manage network connections in small-scale or compact network setups.

Here's a breakdown of its description:

10 inch: This refers to the width of the patch panel, indicating that it is designed to fit into a 10-inch equipment rack. 10-inch racks are smaller and often used in environments where space is limited, such as small offices or home networking setups.

1U: The "1U" designation signifies that the patch panel occupies one rack unit of vertical space when mounted in a rack. This is a standard height measurement used in rack-mounted equipment, with 1U equal to 1.75 inches.

CAT5E: This indicates the category of Ethernet cable supported by the patch panel. CAT5E (Category 5 Enhanced) cables are commonly used for Ethernet networking and support data transfer rates of up to 1 Gbps.

RJ45 UTP: RJ45 is the standard connector used for Ethernet connections, and "UTP" stands for Unshielded Twisted Pair, indicating the type of cable used. Unshielded twisted pair cables are the most common type of Ethernet cables and are suitable for most networking environments.

12 Port: The patch panel has 12 ports, providing connectivity for up to 12 Ethernet devices or connections. Each port typically corresponds to one network cable connection.

Network Patch Panel: This panel serves as a central location for connecting and managing network cables in a structured and organized manner. It allows for easy identification, troubleshooting, and maintenance of network connections.


In summary, the "10 inch 1U CAT5E RJ45 UTP 12 port network patch panel" is a compact and efficient solution for organizing and managing network connections in small-scale network setups, such as home networks, small offices, or branch offices. It supports CAT5E Ethernet cables and provides connectivity for up to 12 devices or connections.

    Main Features

The main features of a "10 inch 1U CAT5E RJ45 UTP 12 port network patch panel" include:


Compact Design: The patch panel is designed to fit into a 10-inch equipment rack, making it suitable for installations where space is limited. Additionally, occupying only 1U of vertical space, it maximizes rack space utilization.

Ease of Installation: The patch panel is designed for easy installation, with mounting hardware included for rack mounting. It also typically features punch-down or keystone-style connectors for easy termination of Ethernet cables.

Versatility: While designed for CAT5E Ethernet cables, the patch panel may also be compatible with lower categories of Ethernet cables, providing versatility in network installations.


Overall, the main features of a "10 inch 1U CAT5E RJ45 UTP 12 port network patch panel"  around its compact design, compatibility with CAT5E Ethernet cables, organization of network connections, and ease of installation, making it an efficient solution for small-scale network setups.

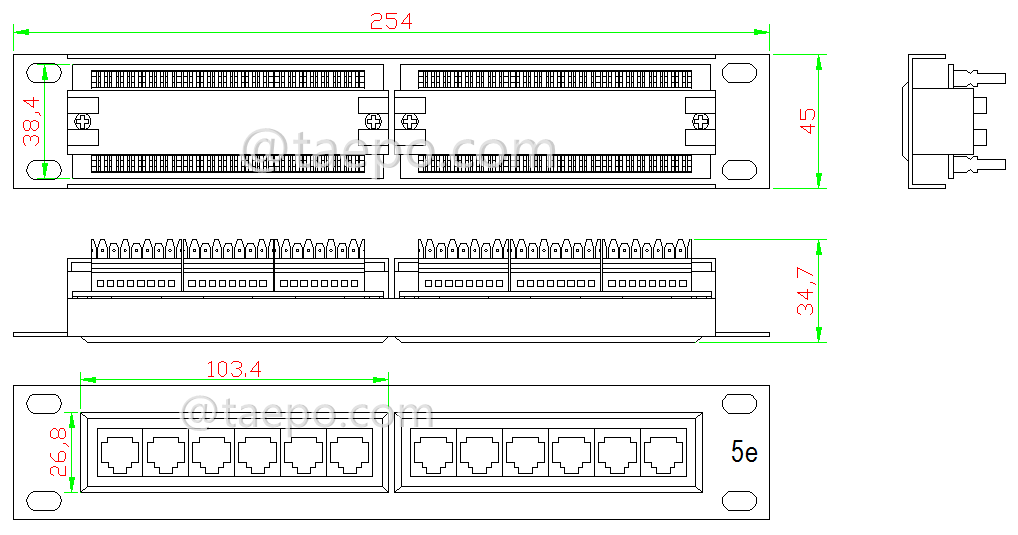

    Schematic Diagrams

    Packing Pictures

    Order Data
