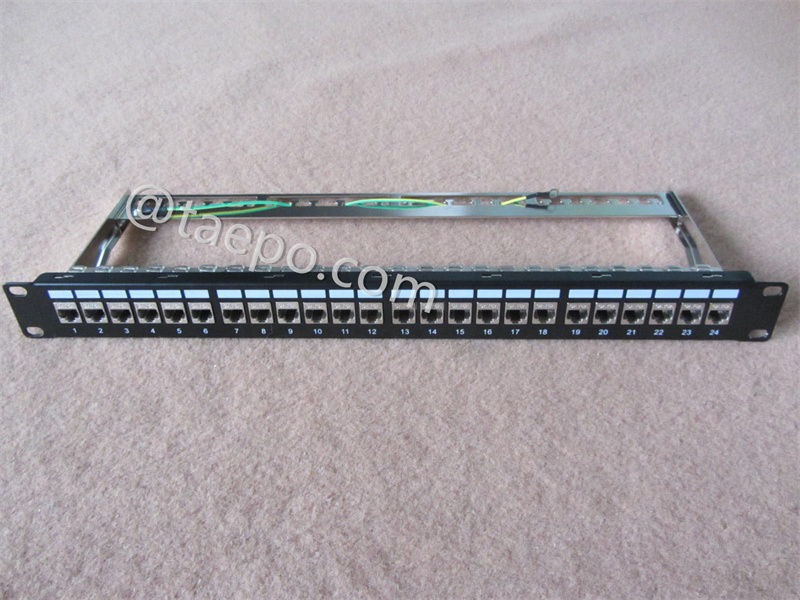

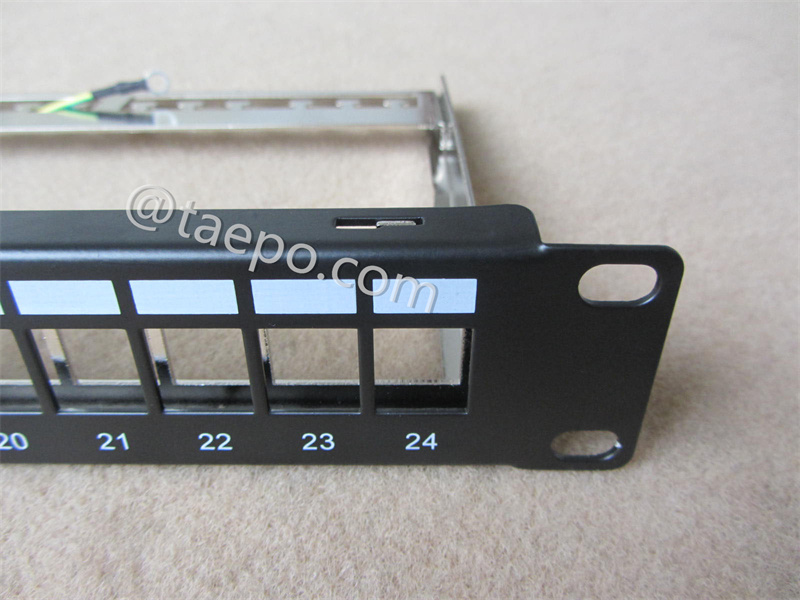

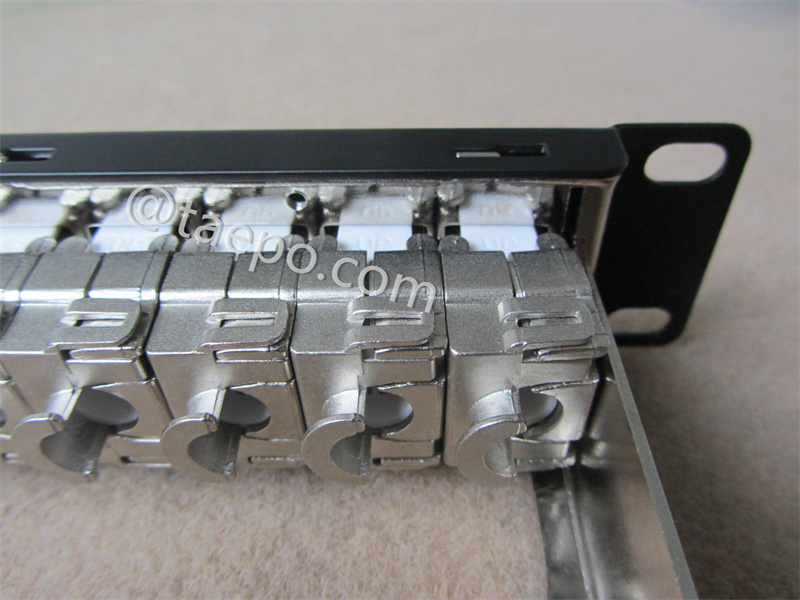

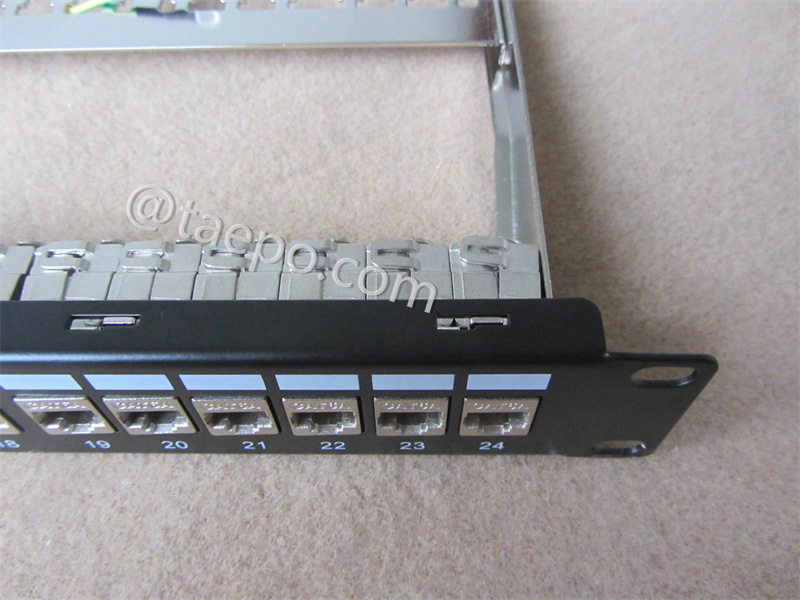

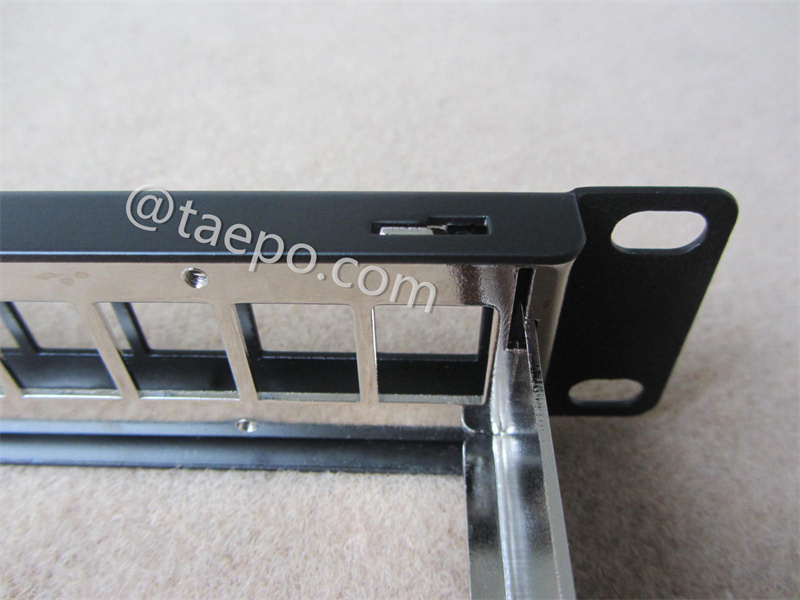

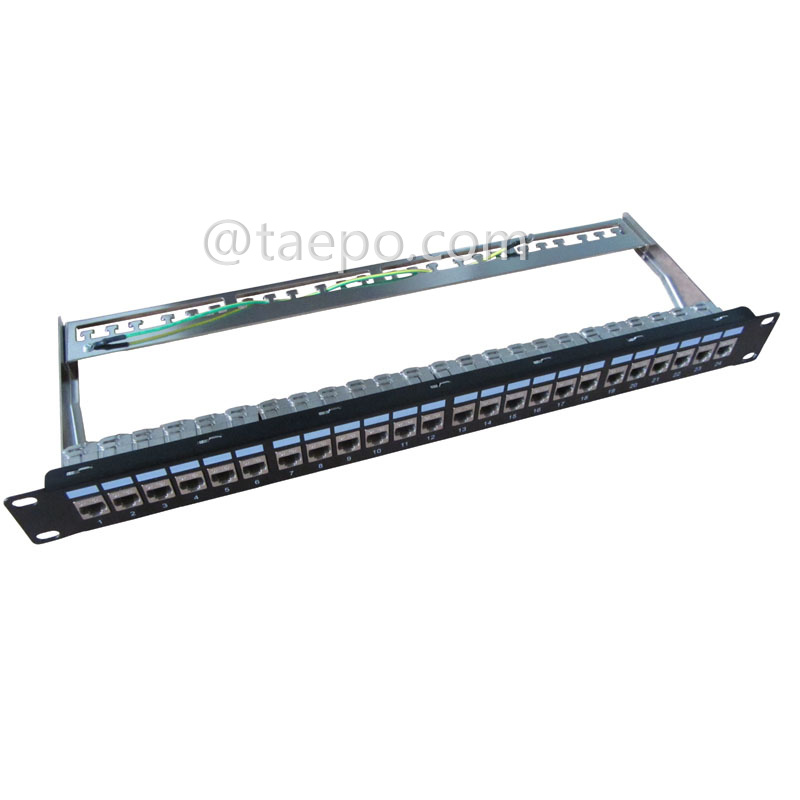

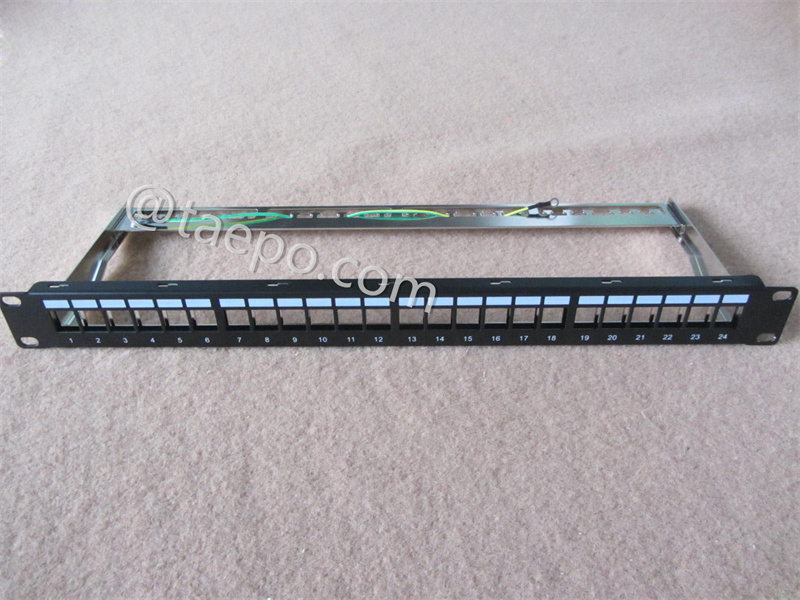

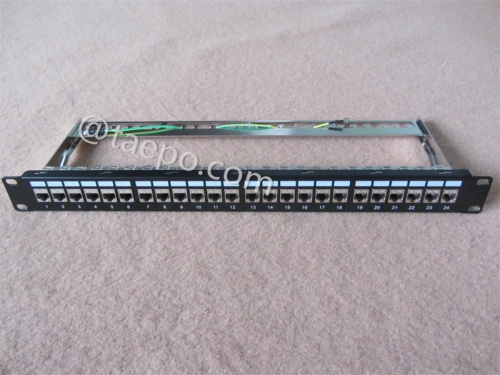

19 inch 1U 24 port CAT6A RJ45 STP shielded network server rack patch panel with cable manager and keystone

    Descriptions

A 19-inch 1U 24-port CAT6A RJ45 STP shielded network server rack patch panel with cable manager and keystone is a piece of equipment used in networking setups to organize and manage network connections.

Let's break down its components:

19-inch Rack Mounting: This indicates the width of the panel, which is designed to fit into a standard 19-inch equipment rack.

1U Height: The "1U" stands for "1 Rack Unit," which is a standard measurement for the height of equipment mounted in a rack. 1U is approximately 1.75 inches in height.

24-port CAT6A RJ45: This specifies the number of ports (24) and the type of ports (RJ45) used for Ethernet connections. CAT6A refers to the category of Ethernet cable used, which supports higher data transfer rates and is often used in demanding network environments.

STP Shielded: STP stands for Shielded Twisted Pair. This indicates that the ports are shielded to reduce electromagnetic interference, which can be especially important in environments with a lot of electrical noise.

Network Server Rack Patch Panel: This panel serves as a central location for connecting network cables from various devices (servers, switches, routers, etc.) in a neat and organized manner. It simplifies cable management and troubleshooting.

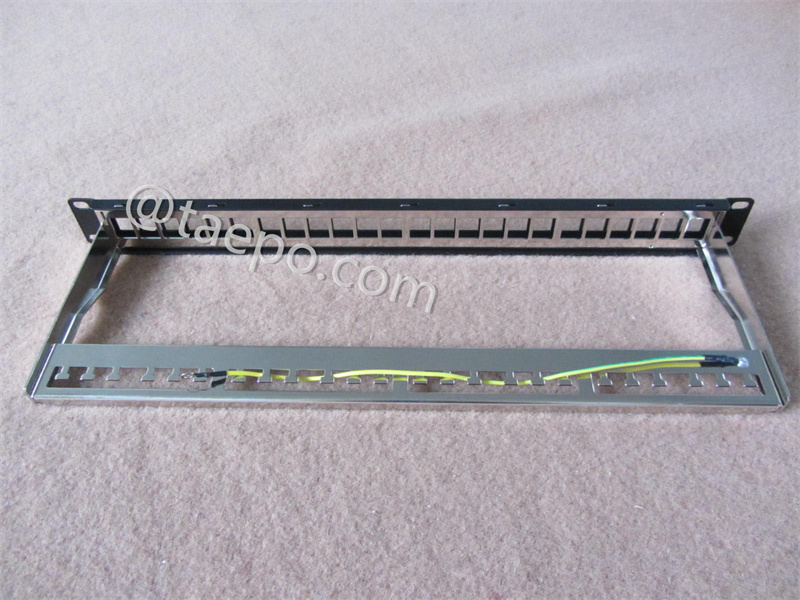

Cable Manager: This is a component that helps organize and route cables neatly within the rack, reducing clutter and making it easier to identify and manage connections.

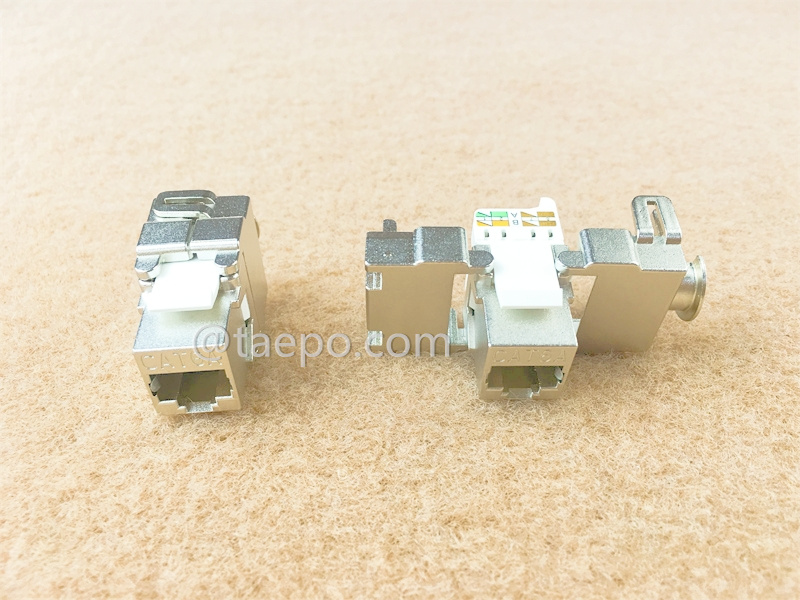

Keystone: Keystones are modular inserts used for various types of connections, such as Ethernet, HDMI, or coaxial. They snap into compatible patch panels, providing flexibility for different types of connections in the network setup.


Overall, this patch panel provides a convenient and efficient solution for managing network connections in server racks, especially in environments where high-speed and reliable networking are crucial.

    Main Features

The main feature of this 19-inch 1U 24-port CAT6A RJ45 STP shielded network server rack patch panel with cable manager and keystone is its comprehensive solution for organizing and managing network connections within a server rack.

Some of the key features include:

High Port Density: With 24 ports in a 1U form factor, this patch panel maximizes the number of connections that can be accommodated within a limited rack space, making it ideal for environments with multiple network devices.

CAT6A Compatibility: The patch panel supports CAT6A Ethernet cables, which are capable of delivering high-speed data transfer rates and are suitable for demanding network applications.

STP Shielding: The shielded twisted pair design helps minimize electromagnetic interference, ensuring reliable network performance even in noisy environments.

Rack Mountable: Designed to fit into standard 19-inch equipment racks, this patch panel can be easily integrated into existing server rack setups.

Cable Management: The included cable manager assists in organizing and routing cables neatly within the rack, reducing cable clutter and simplifying maintenance and troubleshooting tasks.

Keystone Compatibility: The ability to use keystone modules provides flexibility for accommodating various types of connections, allowing for customization based on specific networking needs.


Overall, the main feature of this patch panel is its ability to streamline network connectivity within a server rack, providing a robust and efficient solution for managing multiple network connections in a compact space.

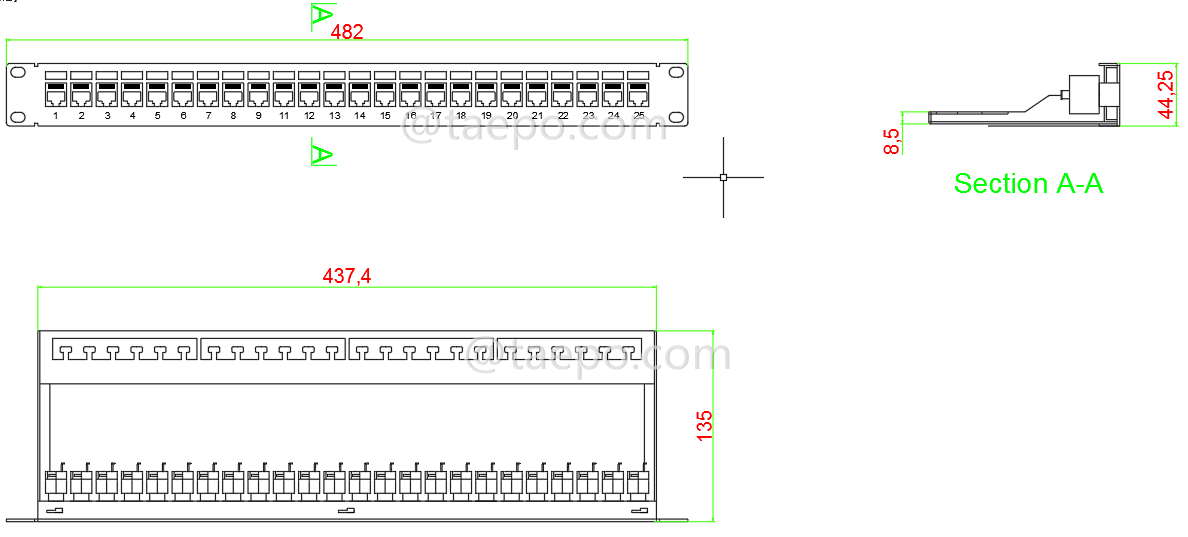

    Schematic Diagrams

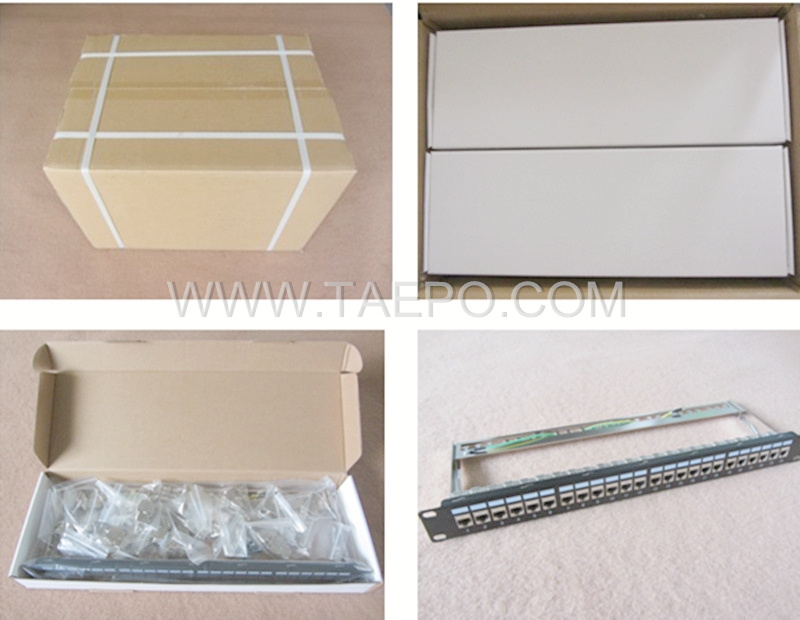

    Packing Pictures

    Order Data
