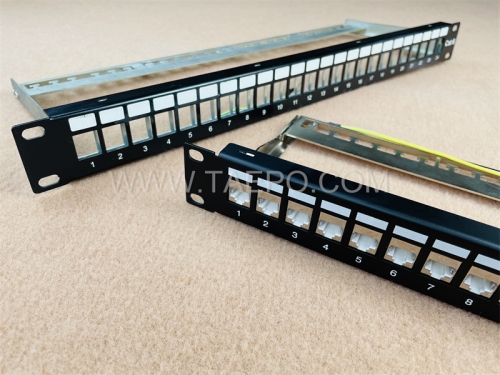

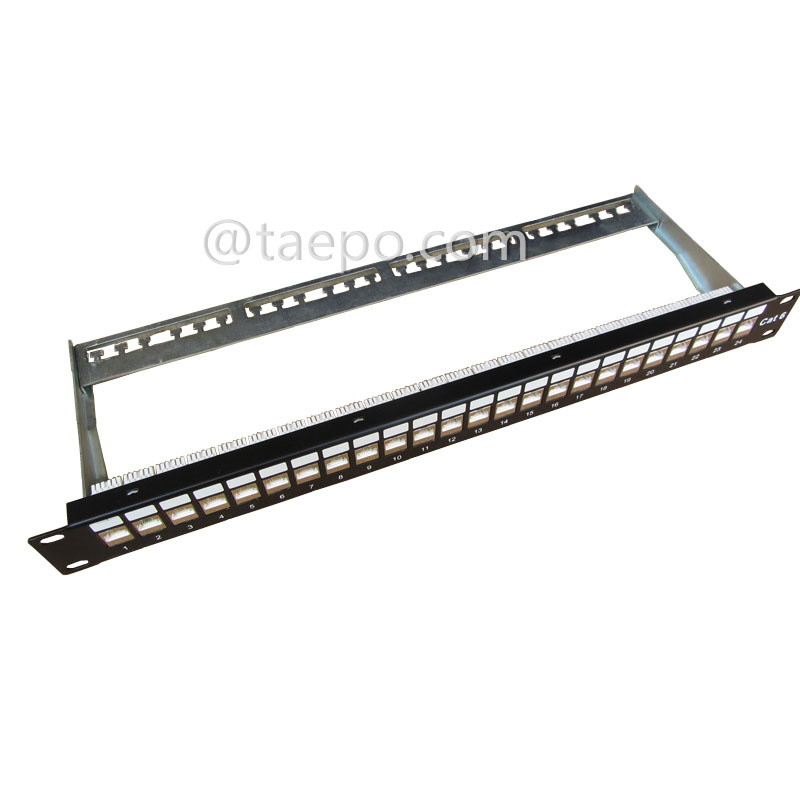

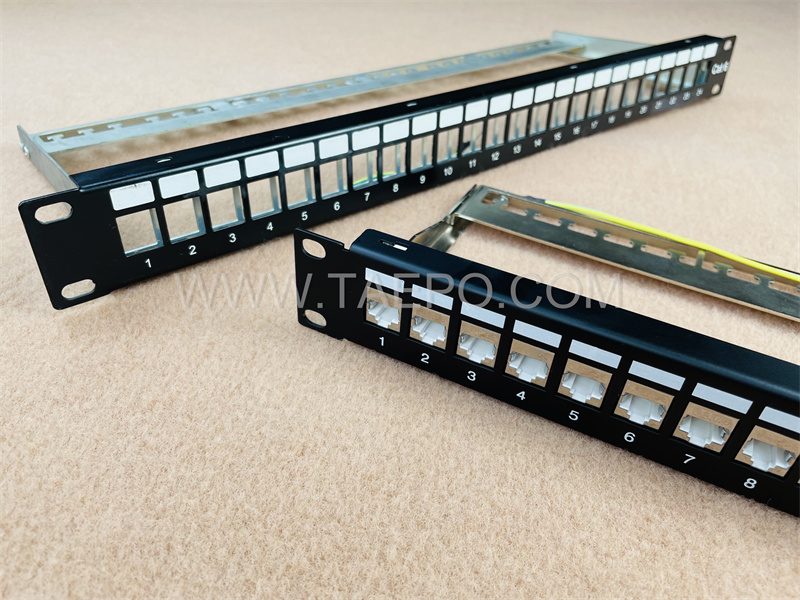

19 inch 1U 24 port CAT 6 STP network patch panel with cable manager and Keystone Jack

    Descriptions

A 19-inch 1U 24-port CAT 6 STP (Shielded Twisted Pair) network patch panel with cable manager and Keystone Jacks is a piece of networking equipment typically used in data centers, server rooms, or network distribution points.

Here’s what each component typically entails:

19-inch Rack Mountable: This means the patch panel is designed to fit into standard 19-inch server racks or cabinets, which are common in data center environments.

1U Height: The "1U" (1 Rack Unit) height indicates that the patch panel takes up 1 rack unit of vertical space in the rack. This is equivalent to 1.75 inches (44.45 mm) in height.

24 Port: This specifies the number of ports available on the patch panel. Each port is where a network cable (in this case, CAT 6 STP cables) can be terminated.

CAT 6 STP: CAT 6 (Category 6) is a standard for Ethernet cables, capable of transmitting data at speeds up to 1 Gigabit per second. STP (Shielded Twisted Pair) cables have additional shielding to reduce electromagnetic interference (EMI) and crosstalk.

Network Patch Panel: A patch panel is used to organize and manage network cables. It allows cables to be terminated, creating a structured and easily manageable connection point for network devices.

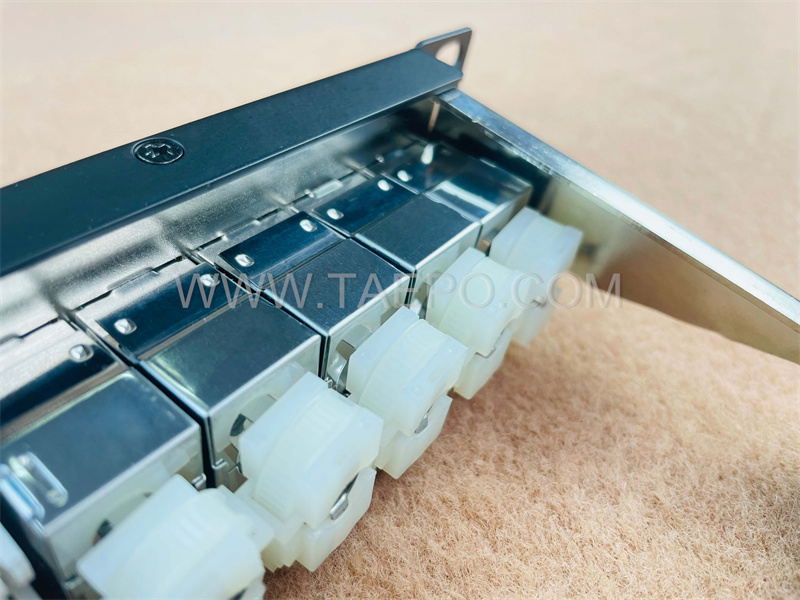

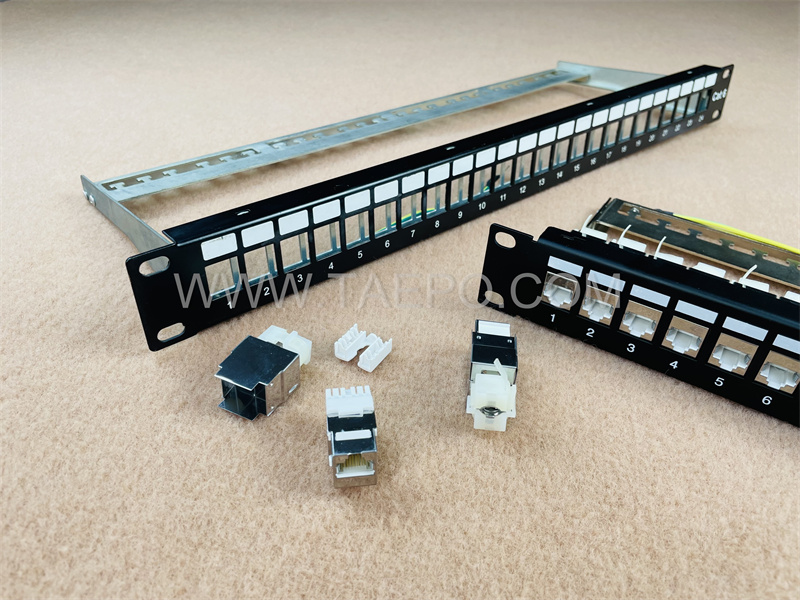

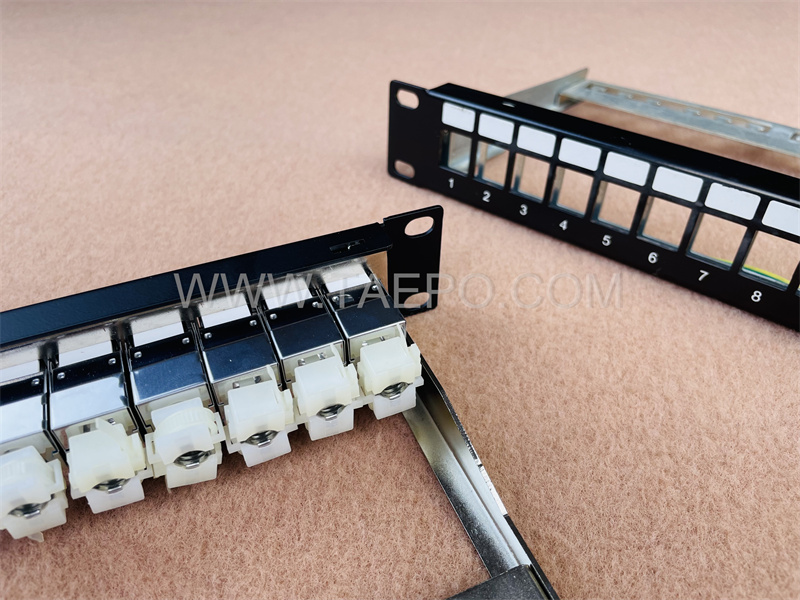

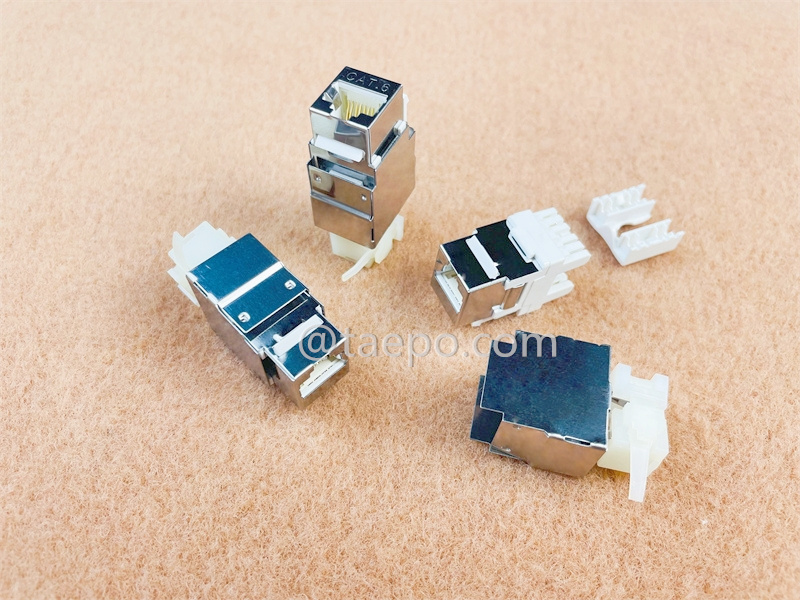

Keystone Jacks: Keystone jacks are modular connectors used with patch panels. They snap into place and provide a standardized interface for connecting Ethernet cables.

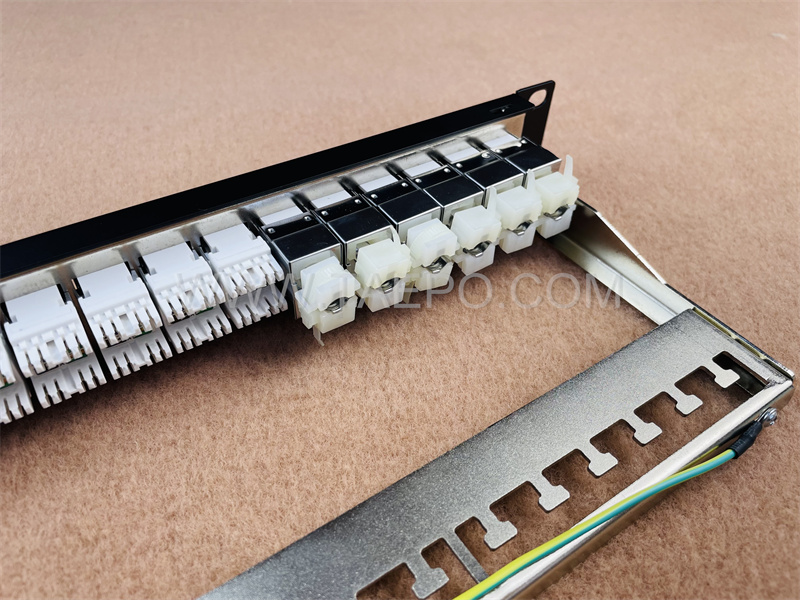

Cable Manager: This helps organize and route cables neatly within the rack, improving cable management and reducing the risk of tangling or damage.

This type of patch panel setup is ideal for ensuring efficient network connectivity, minimizing interference, and providing a tidy and accessible networking infrastructure in a professional IT environment.

    Main Features

The main feature of a 19-inch 1U 24-port CAT 6 STP network patch panel with cable manager and Keystone Jacks is its ability to provide organized and efficient network connectivity within a server rack or data center environment.

Here are the key features that make it stand out:

• Structured Cable Management: The inclusion of a cable manager helps keep cables organized and neatly routed within the rack. This reduces clutter, minimizes the risk of cable damage, and makes it easier to trace and manage connections.

• High-Density Port Configuration: With 24 ports in a 1U space, this patch panel offers a high-density solution for terminating network connections. It maximizes the use of rack space, allowing for more efficient use of networking resources.

• CAT 6 STP Compatibility: CAT 6 STP cables provide enhanced performance by reducing electromagnetic interference (EMI) and crosstalk. This ensures reliable data transmission at high speeds, making it suitable for demanding networking applications.

• Versatility with Keystone Jacks: Keystone jacks provide a modular and flexible way to connect Ethernet cables. They allow for easy customization and future upgrades by enabling different types of connectors (e.g., RJ45 for Ethernet, RJ11 for telephone) to be inserted into the patch panel.

• Rack Mountable Design: Designed to fit into standard 19-inch server racks or cabinets (1U height), the patch panel integrates seamlessly into existing network infrastructure. This standardized form factor ensures compatibility with a wide range of rack-mounted equipment.

• Durability and Reliability: Constructed with quality materials and components, the patch panel offers durability and reliability in maintaining network connections. This is crucial for maintaining uptime and minimizing network disruptions.

  In summary, the main feature of this patch panel is its ability to provide a robust, organized, and high-performance networking solution suitable for professional IT environments where efficient cable management and reliable network connectivity are essential.

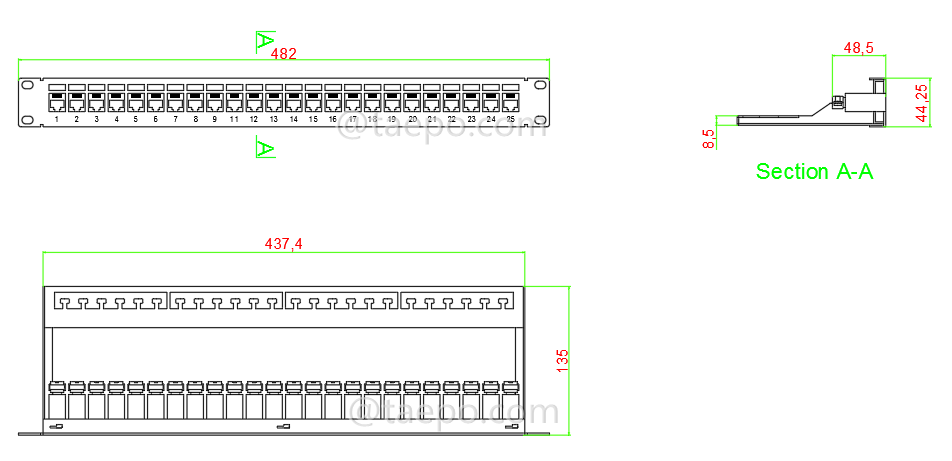

    Schematic Diagrams

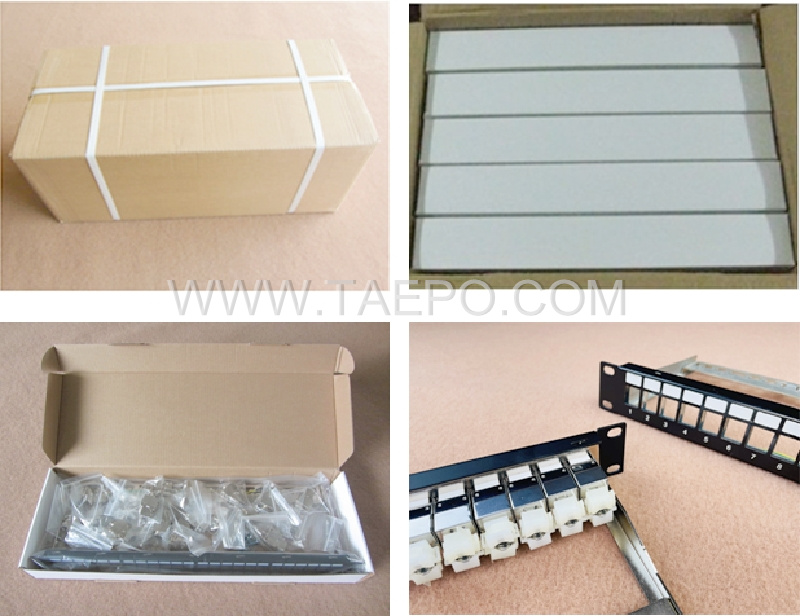

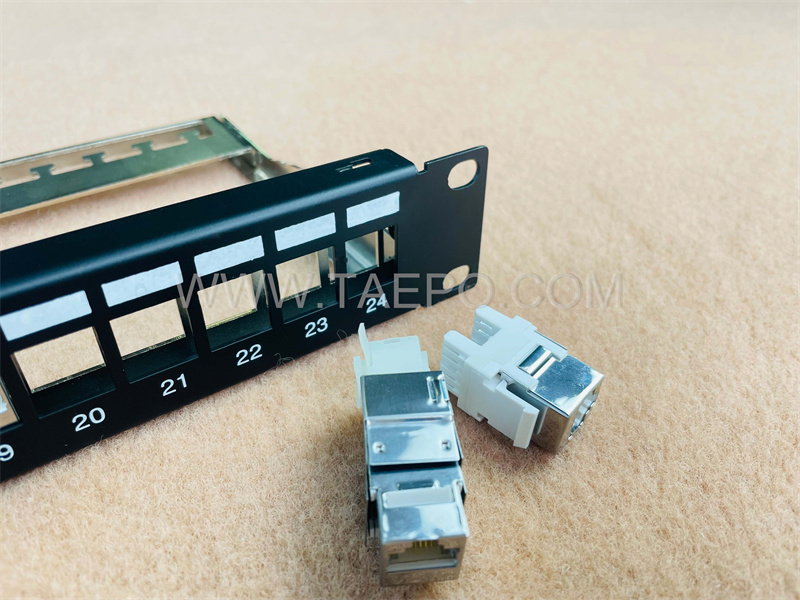

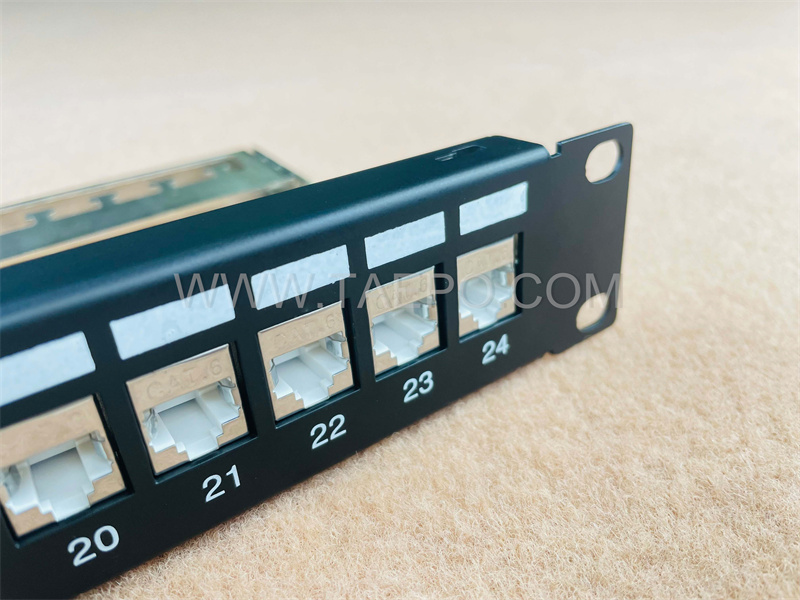

    Packing Pictures

    Order Data
