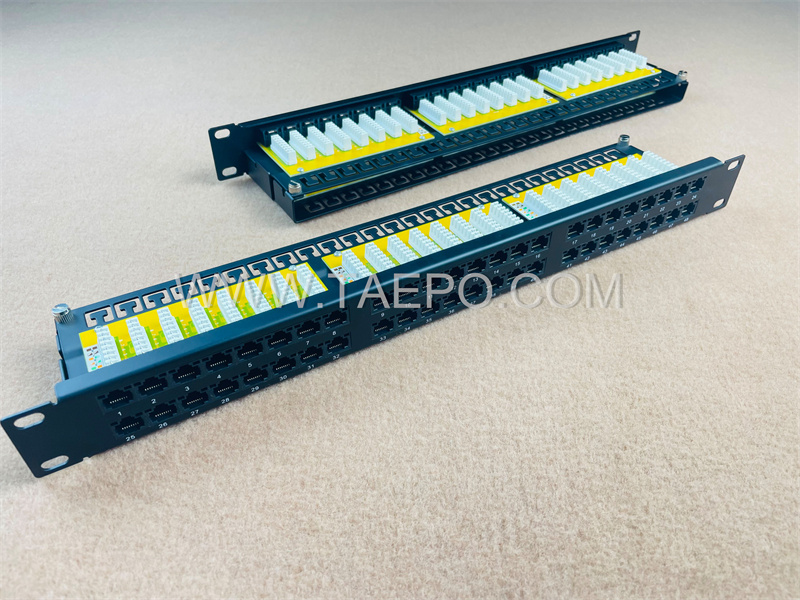

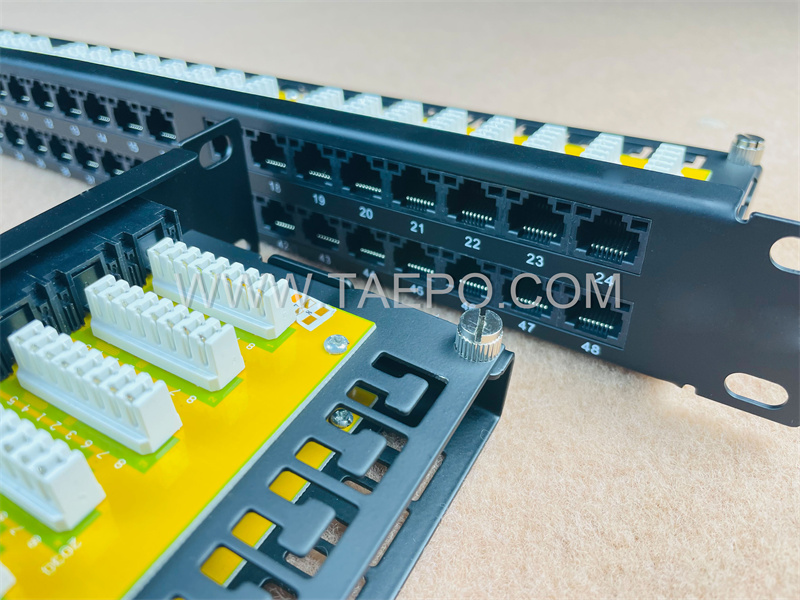

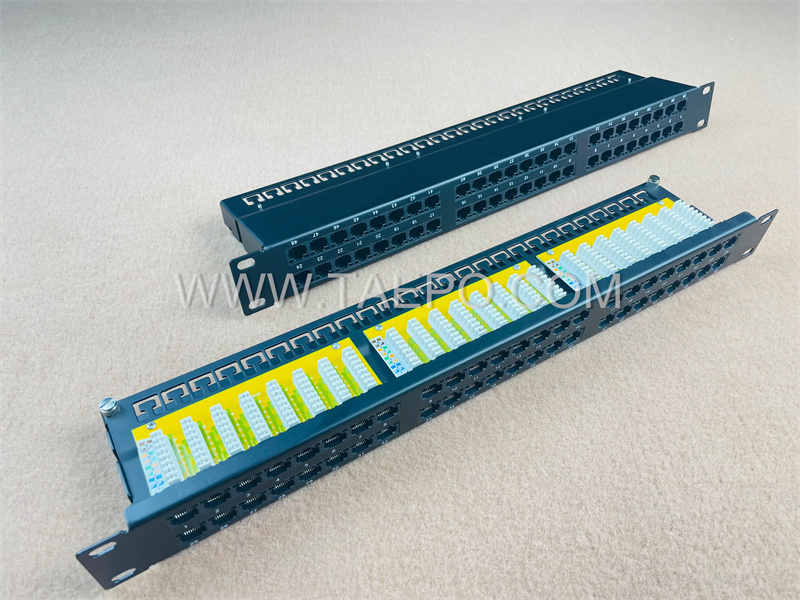

19 inch 1U rack mount 48 port CAT6 UTP patch panel with IDC terminal and bracket

    Descriptions

A 19-inch 1U rack-mounted patch panel featuring 48 RJ45 ports, designed for use with CAT6 unshielded twisted pair (UTP) cables. The patch panel includes IDC (Insulation Displacement Contact) terminals for easy and reliable cable termination and comes with a mounting bracket for secure installation in standard server racks. This high-density patch panel is ideal for managing large numbers of network connections in data centers, office networks, and telecommunications rooms, ensuring organized cable management and optimal network performance."

This type of patch panel is essential for efficiently managing and organizing high-density network environments, providing a reliable and easy-to-maintain solution for modern networking needs.

    Main Features

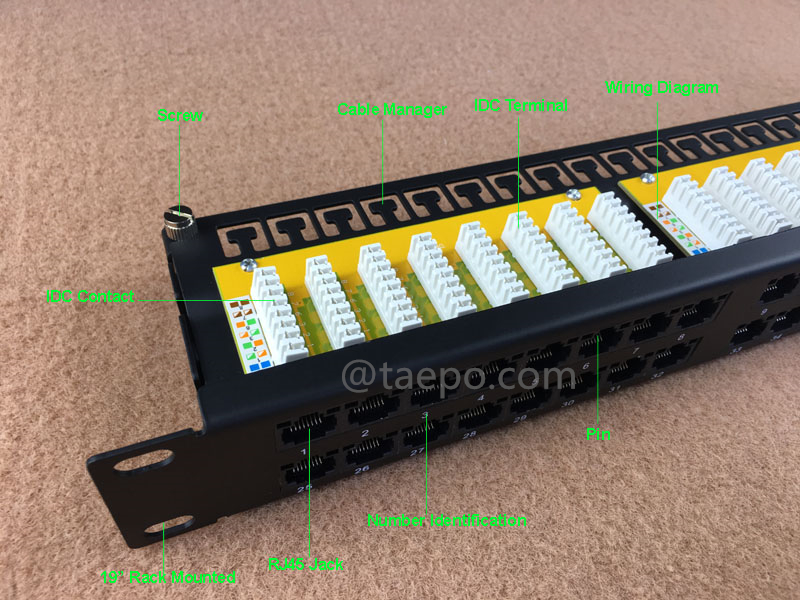

Key Features and Components

19-inch Width: This is a standardized size for rack-mounted equipment, allowing the patch panel to fit into standard 19-inch server racks and enclosures.

1U Height: "1U" refers to one rack unit, which is 1.75 inches in height. This denotes the vertical space the patch panel occupies in a rack.

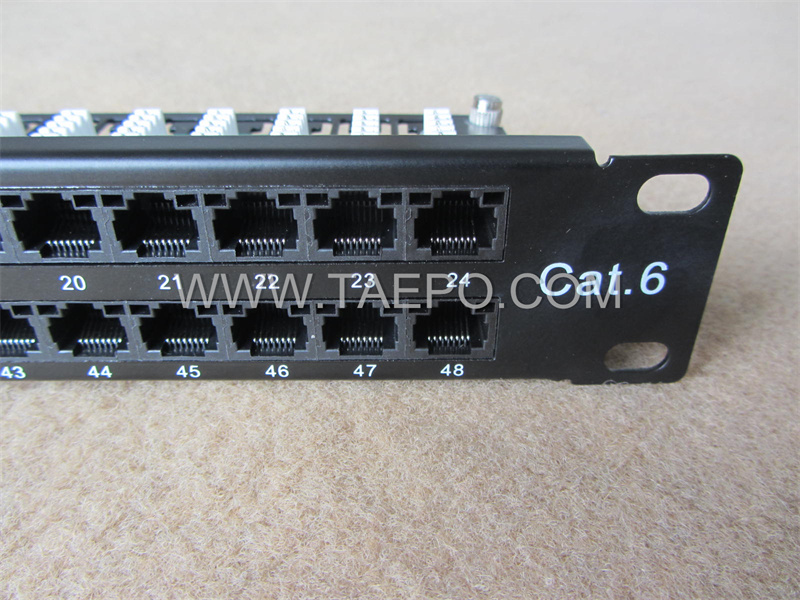

48 Ports: The patch panel features 48 RJ45 ports, providing termination points for up to 48 individual Ethernet cables. This high port density is ideal for environments that require numerous connections.

CAT6 Compatibility: Designed to support Category 6 (CAT6) cabling, which can handle data transfer rates up to 10 Gbps over distances of up to 55 meters and 1 Gbps up to 100 meters. CAT6 cables offer better performance and less crosstalk compared to CAT5e cables.

UTP (Unshielded Twisted Pair): The patch panel is designed for use with UTP cables, which do not have additional shielding. UTP is commonly used in many network environments due to its flexibility and cost-effectiveness.

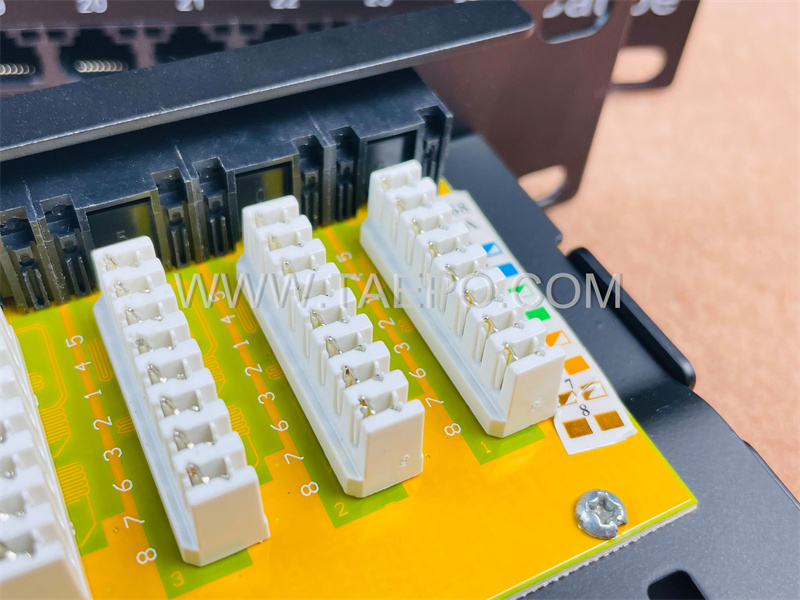

IDC (Insulation Displacement Contact) Terminals: IDC terminals are used for making reliable, gas-tight connections without the need to strip the insulation from the wire. These terminals are located at the back of the patch panel and are used to terminate the horizontal cabling coming from the wall outlets or other network devices.

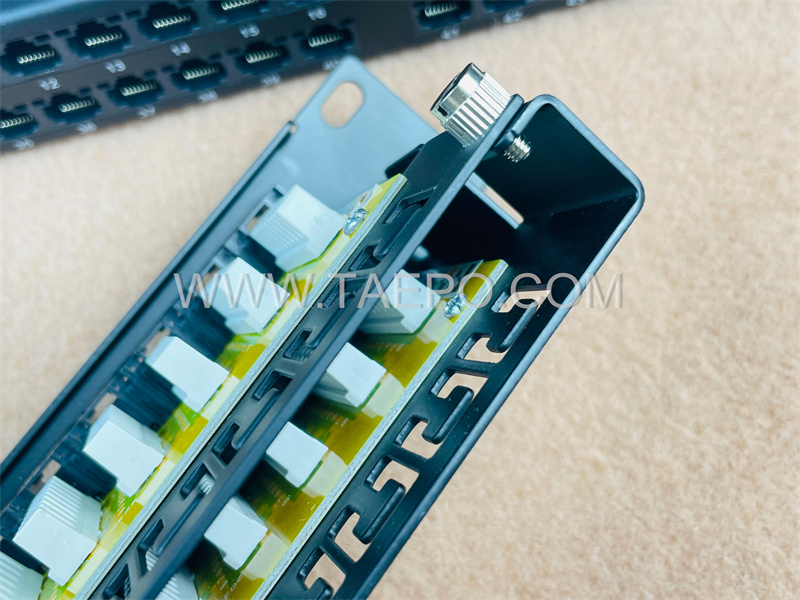

Bracket: The patch panel typically includes a mounting bracket or ears, allowing it to be securely installed in a standard 19-inch rack or cabinet.

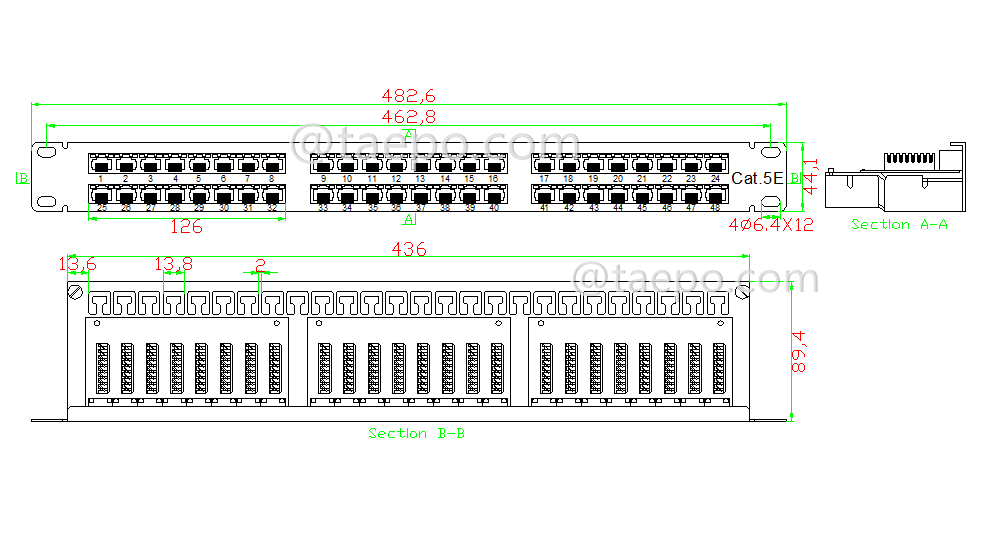

    Schematic Diagrams

    Packing Pictures

    Order Data
