What is Patch Panel used for?
DESCRIPTIONS
The 48-port blank patch panel (TP-5315-48S) for STP keystone jacks is a high-performance solution designed for structured cabling in environments where data integrity and protection from interference are paramount. This blank panel allows the installation of up to 48 STP keystone jacks (such as CAT6, CAT6a, or CAT7), providing full flexibility to customize the network configuration based on specific requirements. The patch panel fits into a standard 19-inch rack, utilizing only 1U of rack space, making it a compact yet scalable solution for network and server rooms.
The STP compatibility ensures superior protection against electromagnetic interference (EMI) and crosstalk, making this patch panel ideal for environments with high data traffic or areas with electrical interference. The robust, fully shielded metal frame and back ensure that all connections maintain high-speed data transmission while reducing noise interference. Clearly numbered ports make it easy to organize and maintain cable runs, and the panel's modular design supports easy reconfiguration and maintenance as network needs evolve.
This patch panel is suited for data centers, enterprise networks, and other mission-critical environments where shielding and network performance are essential. By allowing for the installation of shielded keystone jacks, it provides a reliable, future-proof solution that meets the demands of modern high-speed Ethernet applications.
MAIN FEATURES
- 48 blank ports for customizable STP keystone jack installations.
- Compatible with shielded keystone jacks (CAT6, CAT6a, CAT7).
- Fully shielded metal frame for EMI and crosstalk reduction.
- Occupies only 1U of rack space in a standard 19-inch rack.
- Ideal for high-density, high-performance network setups.
- Modular design supports flexible network expansion.
- Clearly numbered ports for easy identification and maintenance.
- Integrated rear grounding bar for enhanced electrical protection.
- Supports both solid and stranded shielded cables.
- Rear cable tie-down points for organized cable management.
- Easy installation and removal of keystone jacks.
- Black powder-coated finish for a professional look.
- Compatible with T568A and T568B wiring schemes.
- Designed for use in shielded twisted pair (STP) cabling systems.
- Fits in standard equipment racks and cabinets.
- Provides superior protection in electrically noisy environments.
- Ideal for data centers, corporate networks, and high-performance applications.

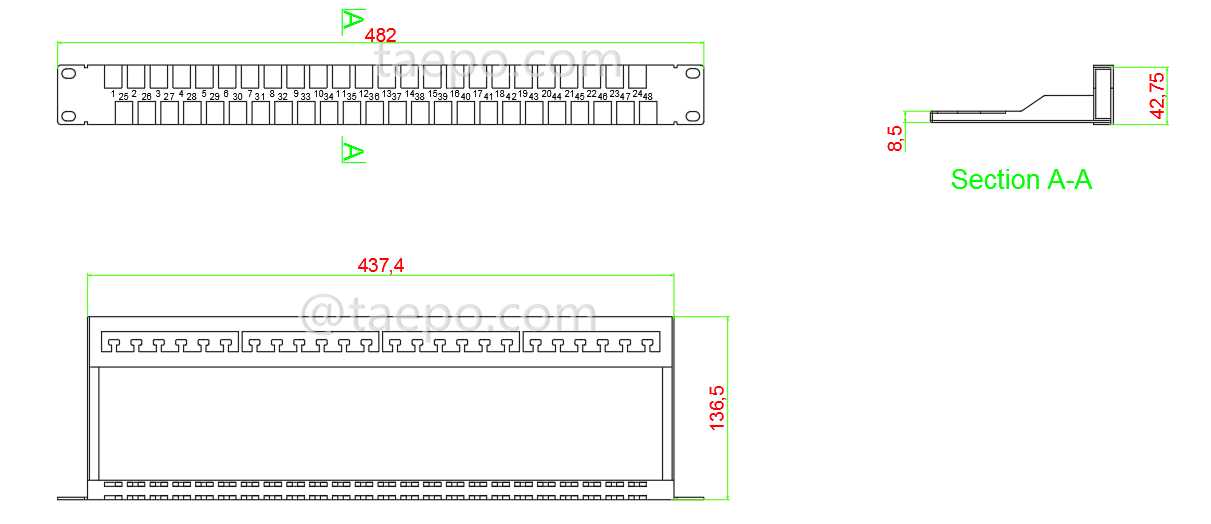

SCHEMATIC DIAGRAMS

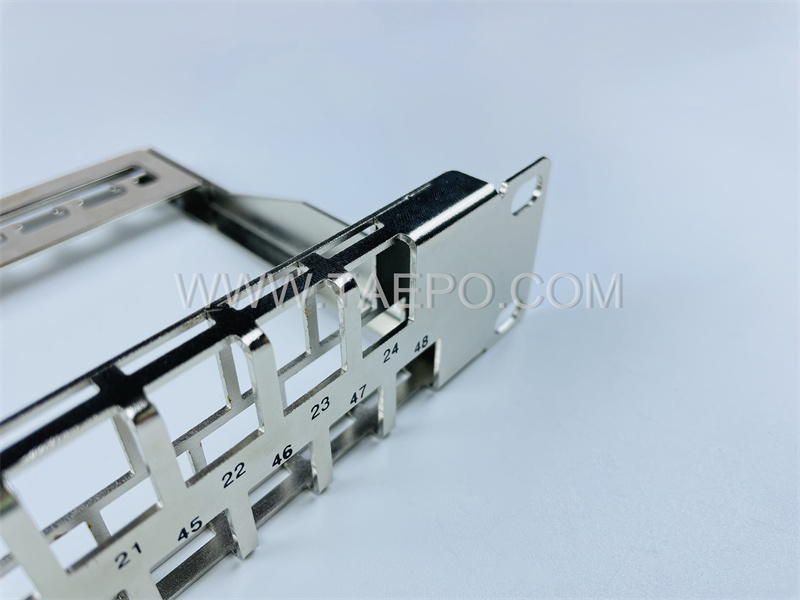

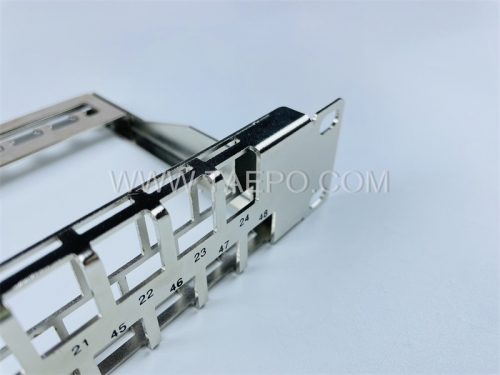

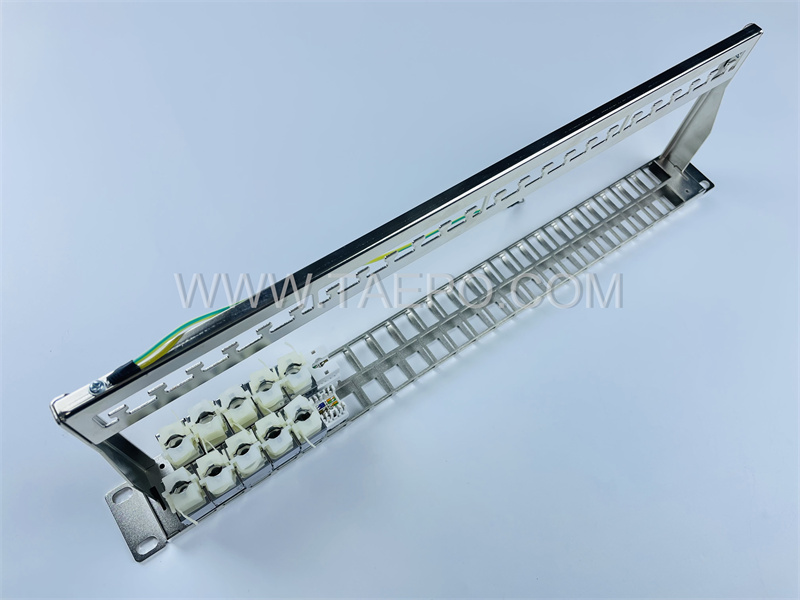

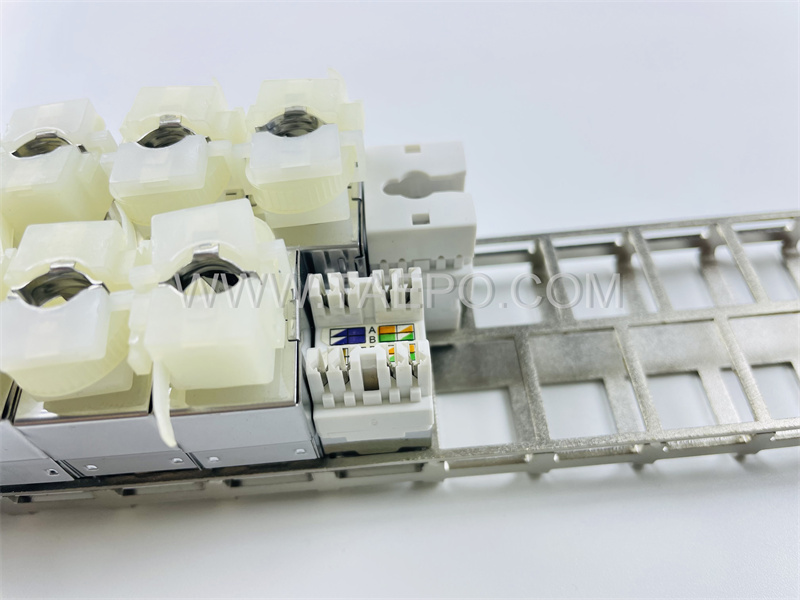

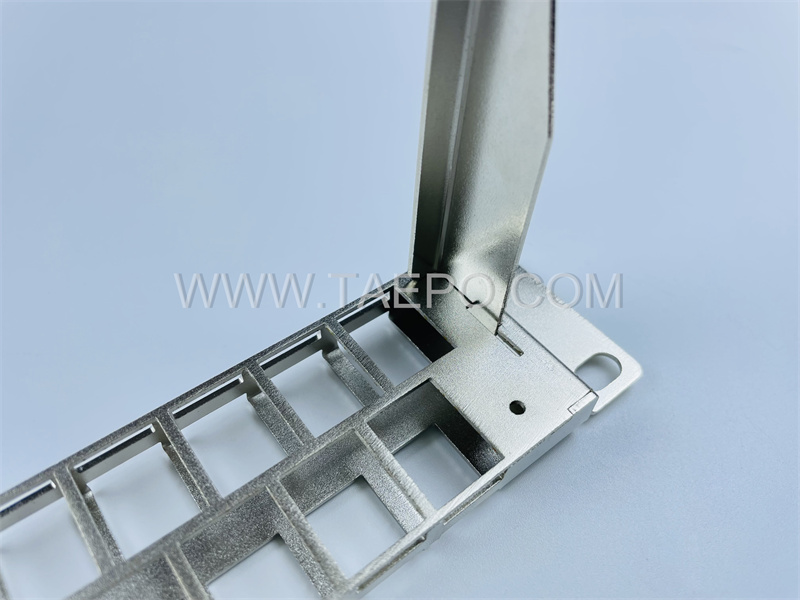

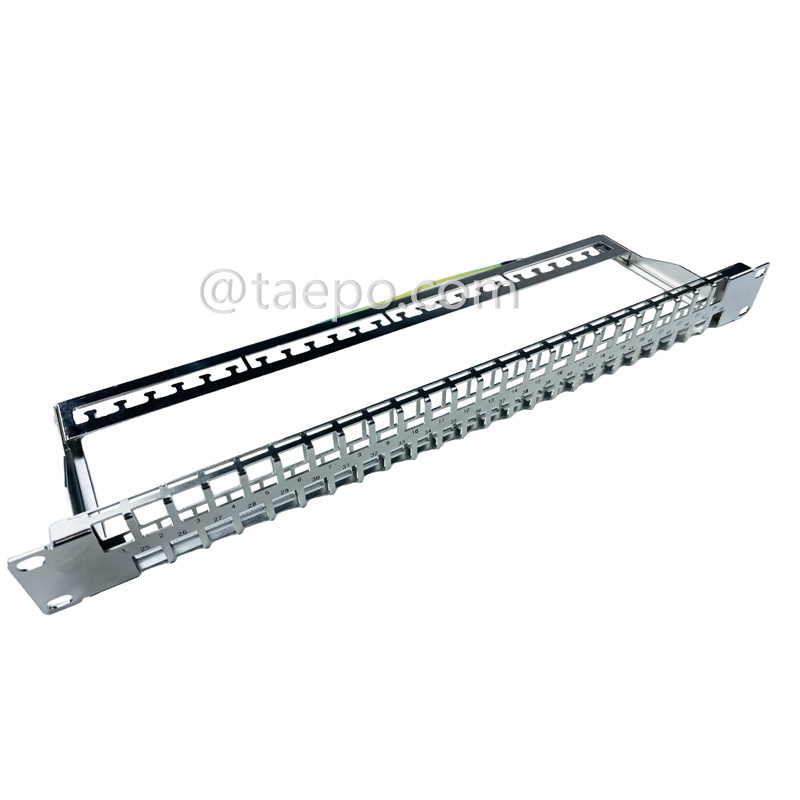

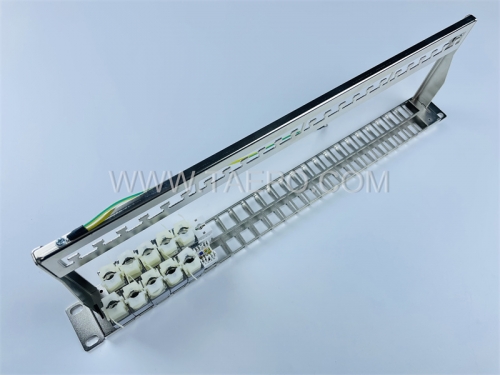

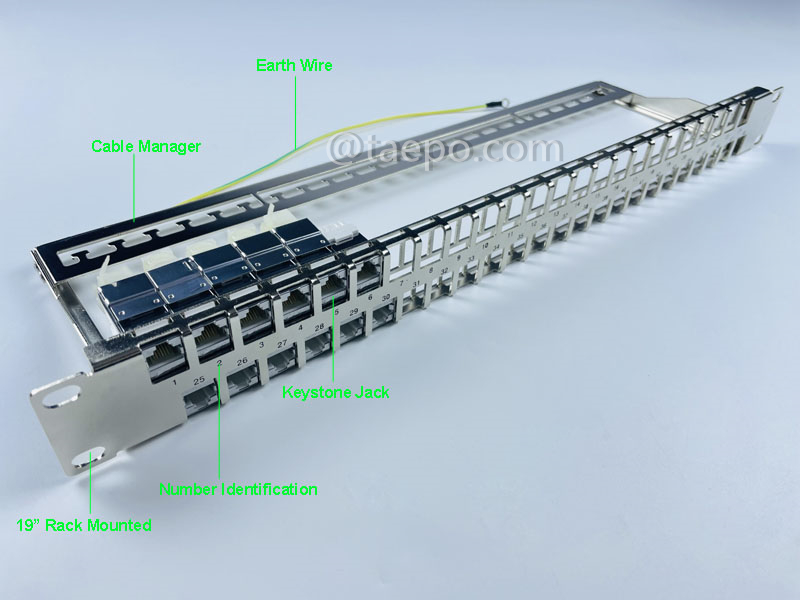

ILLUSTRATION PICTURES

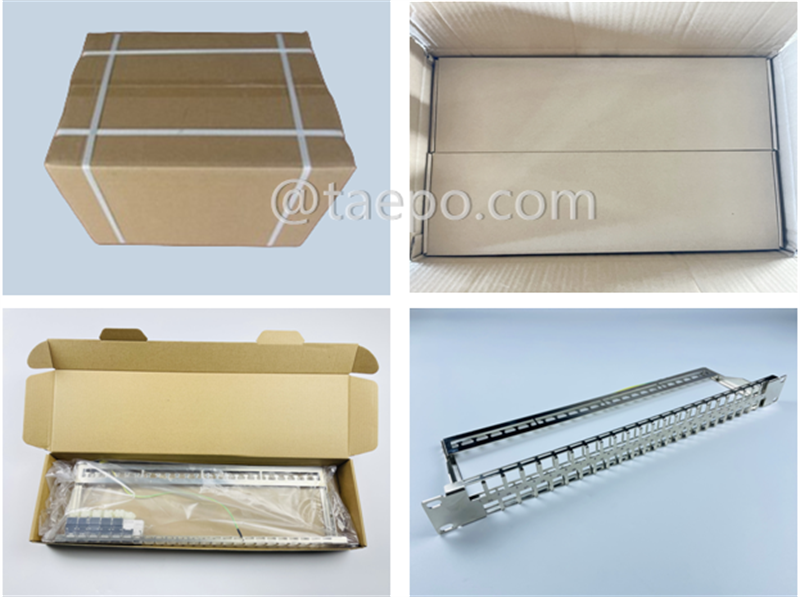

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5315-48S |
48-port patch panel, blank, for UTP keystone jack, 19", 1U |
RELATED PRODUCTS

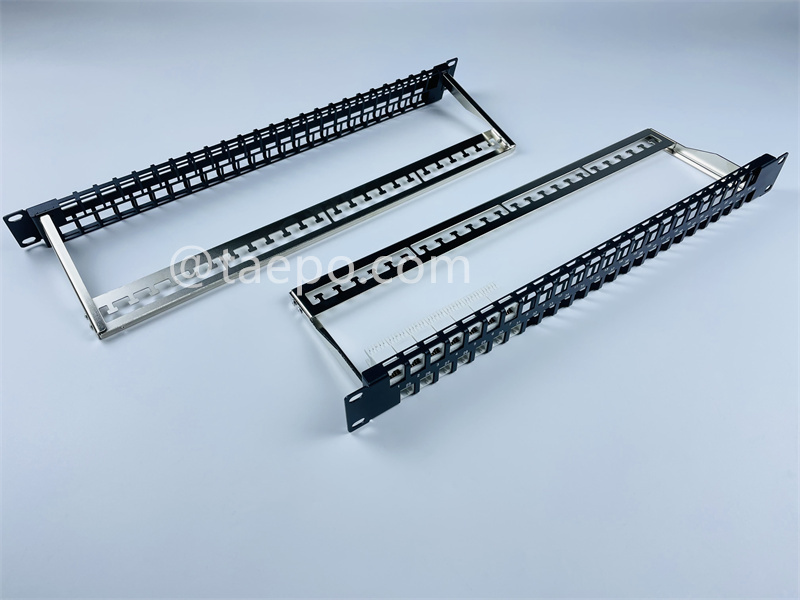

TP-5315-48 48-port patch panel, blank, for UTP keystone jack, 19", 1U
TP-5209-C6S8 Keystone jack, CAT6, STP, 8P8C, 180 degree, AP style

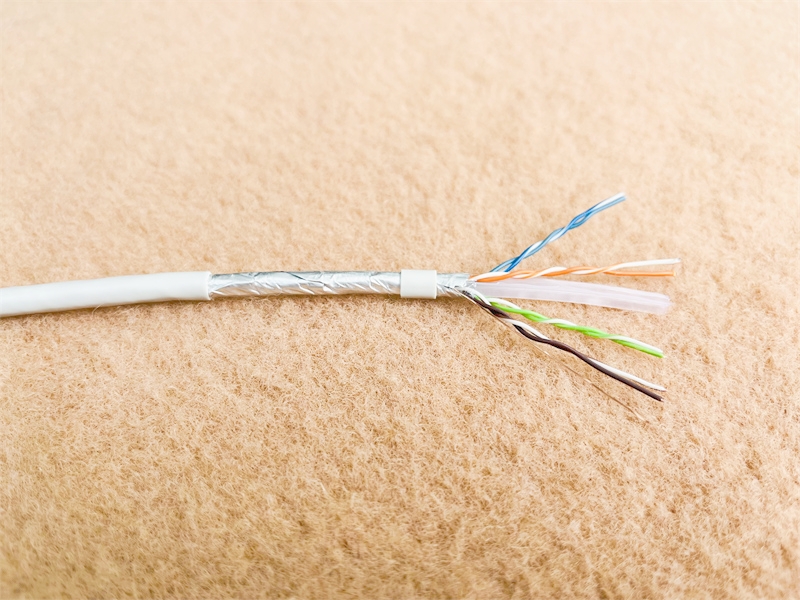

TP-LAN-C6F4 LAN cable, CAT6, FTP, 4 pairs, bare copper, AWG23, solid coductor, 305m/roll

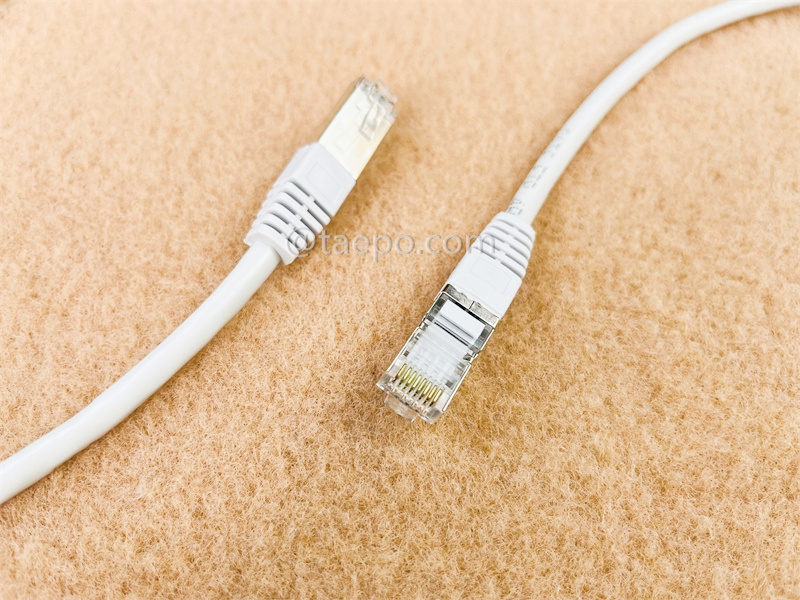

TP-5501-C6F-0010 LAN patch cord, CAT6, FTP, RJ45-RJ45, 1m
