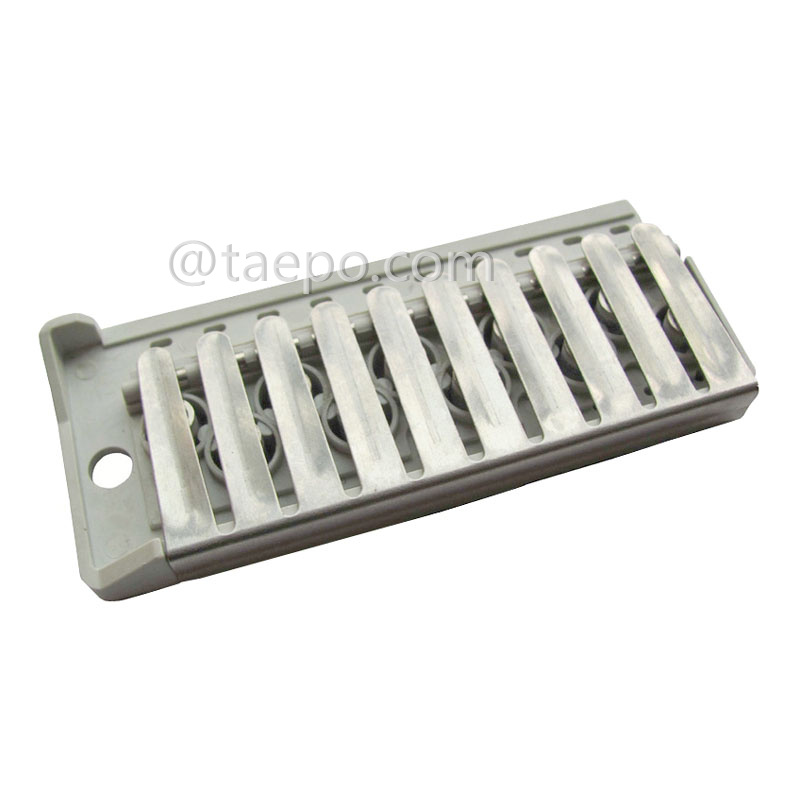

5 pairs over-voltage protection magazine for MDF disconnection block 71 #TP-1401-100, with 2 pole GDT arrester

Item No.: TP-1503-5
Used for MDF terminal block # TP-1401-100 |  flame retardant, high temperature resistance , aging resistance | 5 pair modular
  • Color: Grey or Black
  • Brand: Neutral / OEM / TAEPO
  • Packing: 400pcs/ctn, 20kg/ctn
  • MOQ: 5000 pcs
  • Delivery: 15-30 days
  • Description

    TAEPO - Your Trusted Chinese Manufacturer of 5 pairs over-voltage protection magazine with Professional Expertise!
    What is 5 pairs over-voltage protection magazine used for?

        DESCRIPTIONS


    5 pairs over-voltage protection magazine (TP-1503-5) is used for MDF disconnection block 71, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage, for mainly as follows:

    • The surge voltage caused by lightning on or around the outside lines.
    • The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
    • The outside line directly collides against a 220 V power line.


    The housing of the magazine is flame retardant, high temperature resistance and aging resistance. It is 5 pair modular design magazine.





        MAIN FEATURES


    • Modular 5 Pair Design: The magazine is structured to accommodate five pairs in a modular format, allowing flexible integration into MDF disconnection block 71 systems. This design simplifies expansion and ensures efficient use of available space.
    • Easy Installations: Engineered for quick and straightforward mounting, the unit minimizes installation time and does not require special tools, making it highly convenient for field technicians.
    • Maintenance Free: Built with durable materials and a robust structure, the protection magazine operates reliably without the need for regular servicing, reducing long-term operational costs.
    • Graded 3 Point Protection: The inclusion of a graded three-point protection system ensures multi-level defense against over-voltage, enhancing reliability and safeguarding sensitive telecommunication circuits.
    • Fail Safe (FS) Function: Designed with a fail-safe mechanism, the device provides an added layer of security by defaulting to a protective state under fault conditions, preventing network damage.
    • Fast Response Time: The over-voltage protection responds rapidly to electrical surges, minimizing exposure time and reducing the likelihood of circuit failure or equipment damage.
    • High Current Rating: Capable of withstanding high surge currents, the magazine ensures consistent performance even during significant transient events, maintaining system stability.
    • High Insulation Resistance: The unit offers excellent insulation resistance, which reduces leakage currents and ensures reliable electrical isolation between contacts, improving long-term safety.



        INSTALLATION VIDEOS




        SCHEMATIC DIAGRAMS

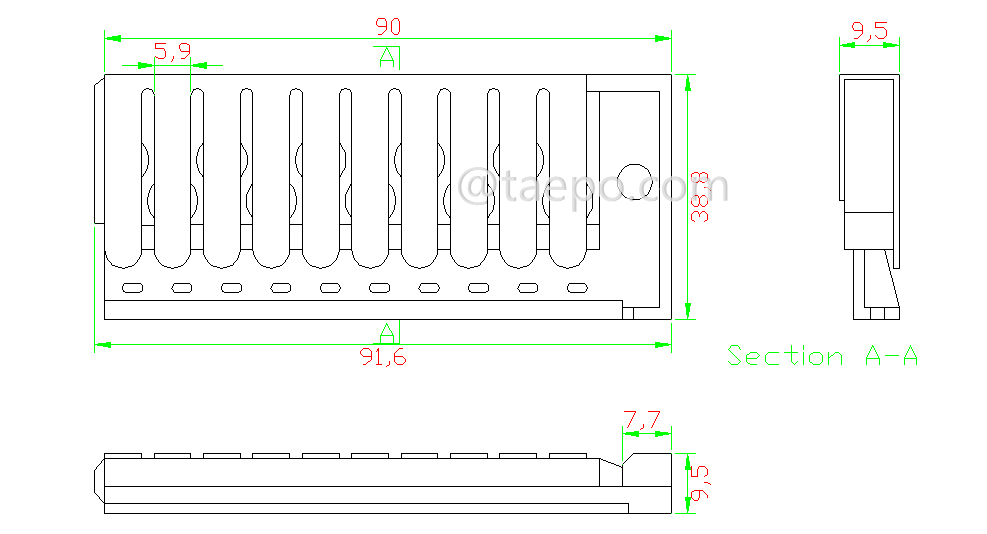

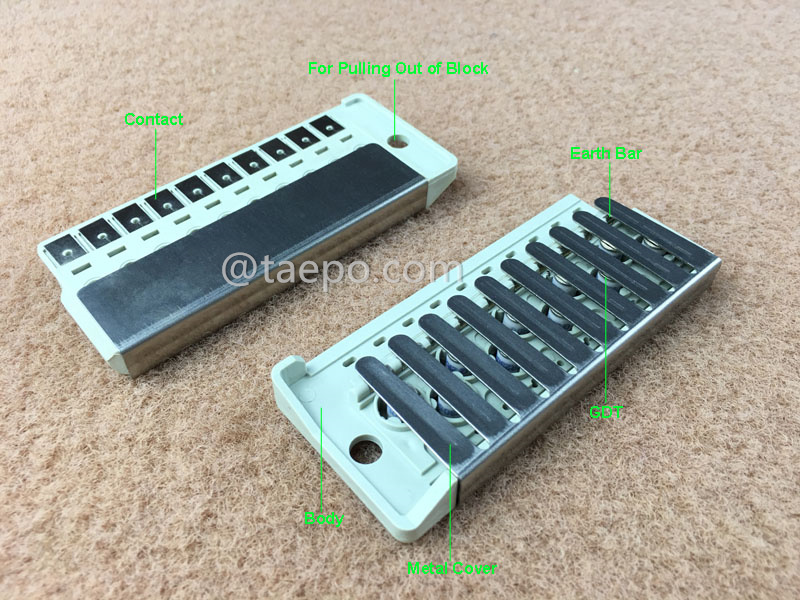

    Drawing for  5 pairs over-voltage protection magazine


        ILLUSTRATION PICTURES

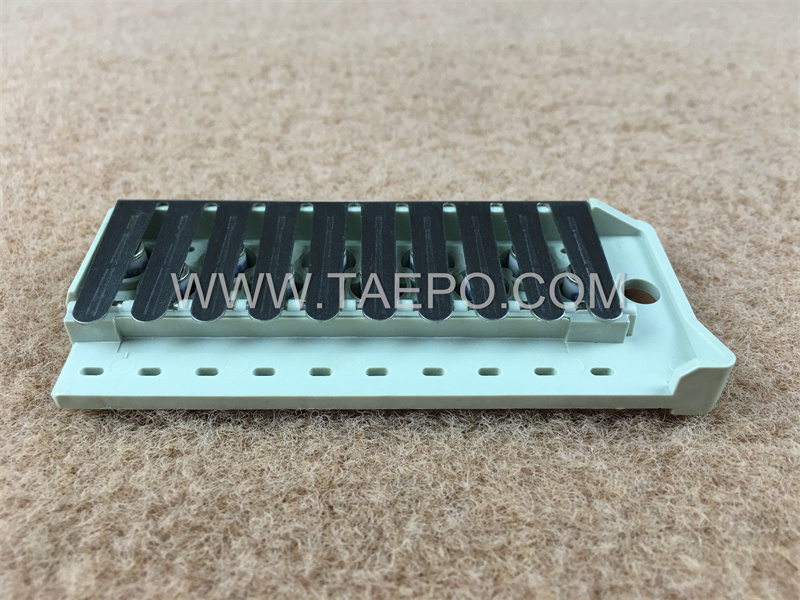

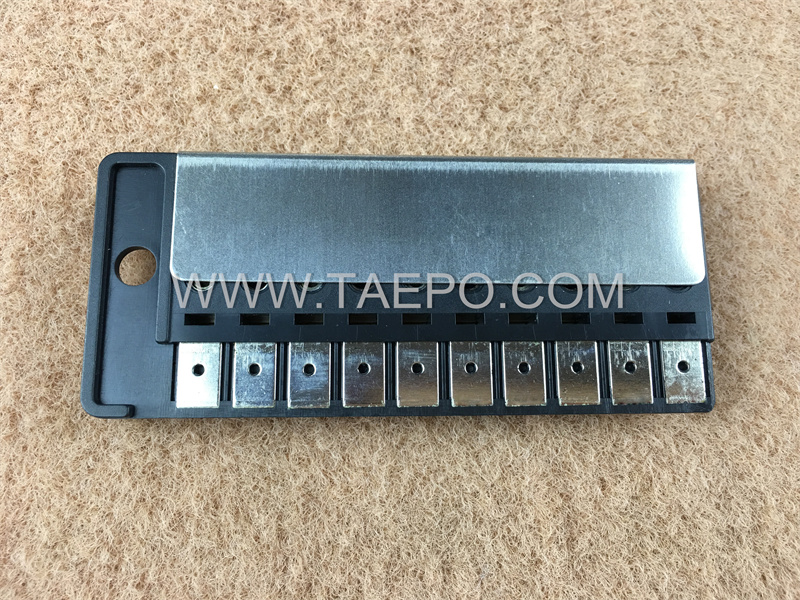

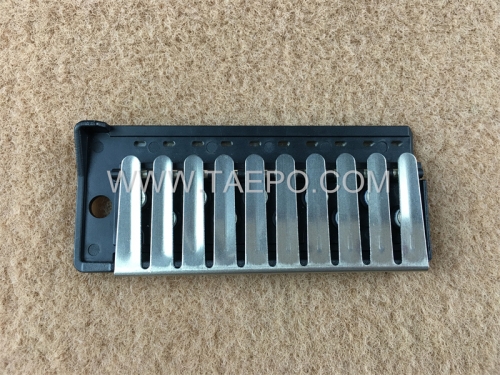

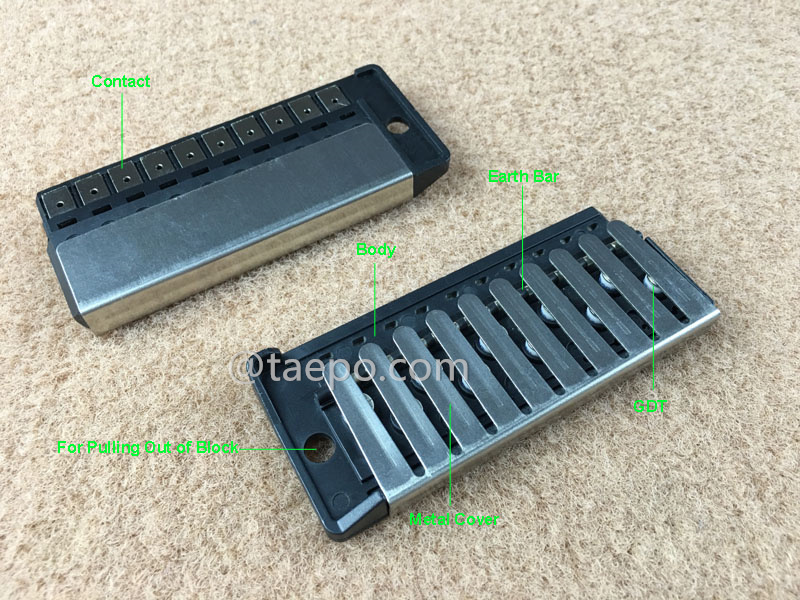

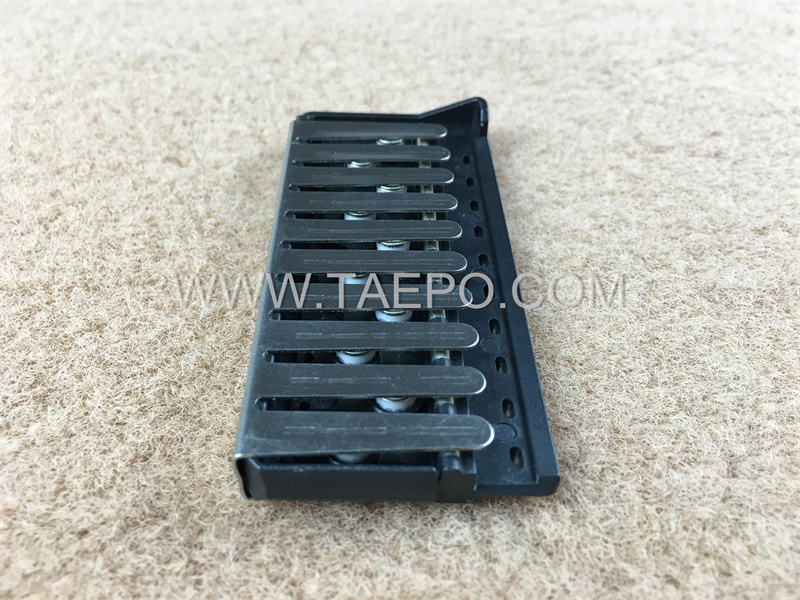

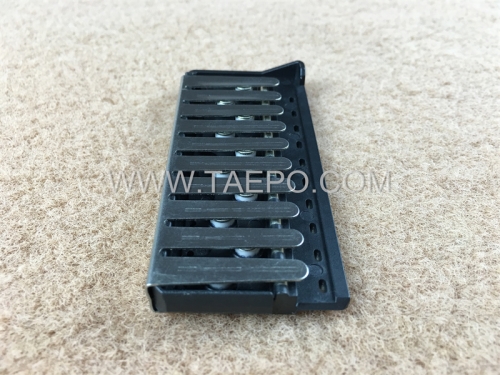

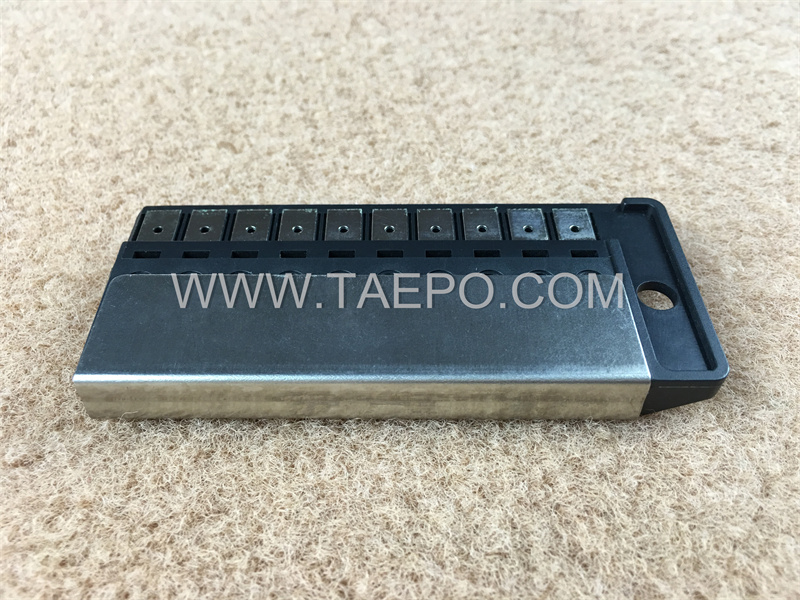

    Illustration pictures for 5 pairs over-voltage protection magazine

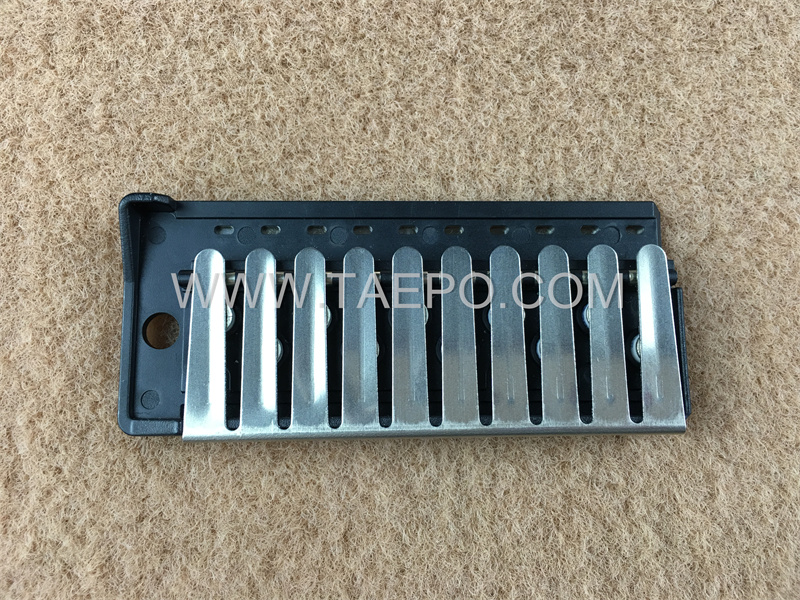

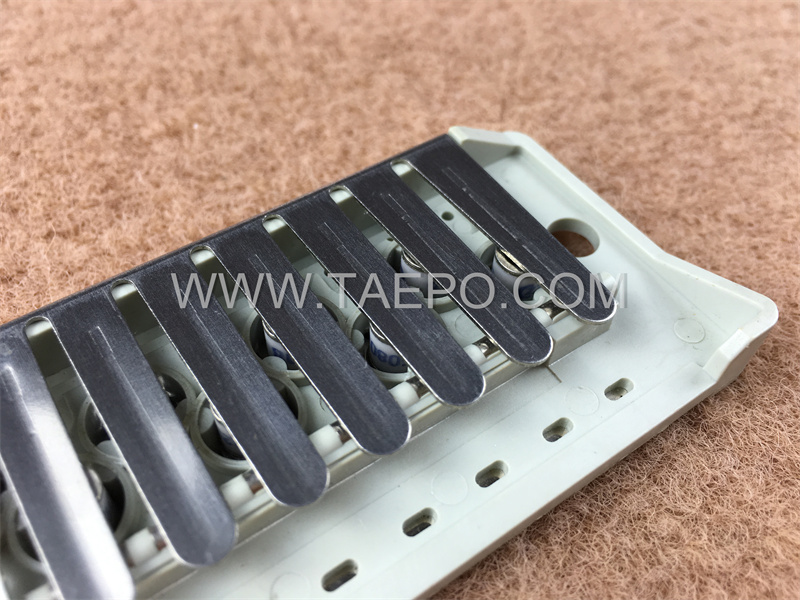

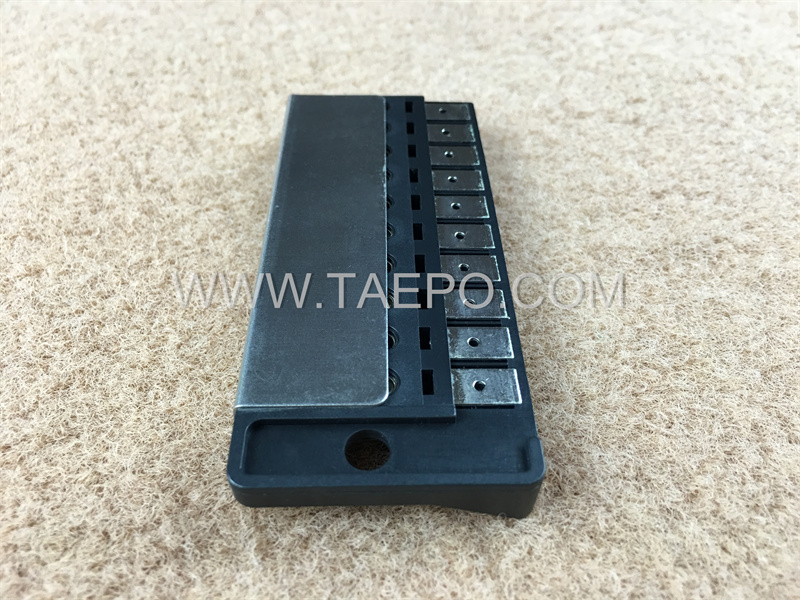

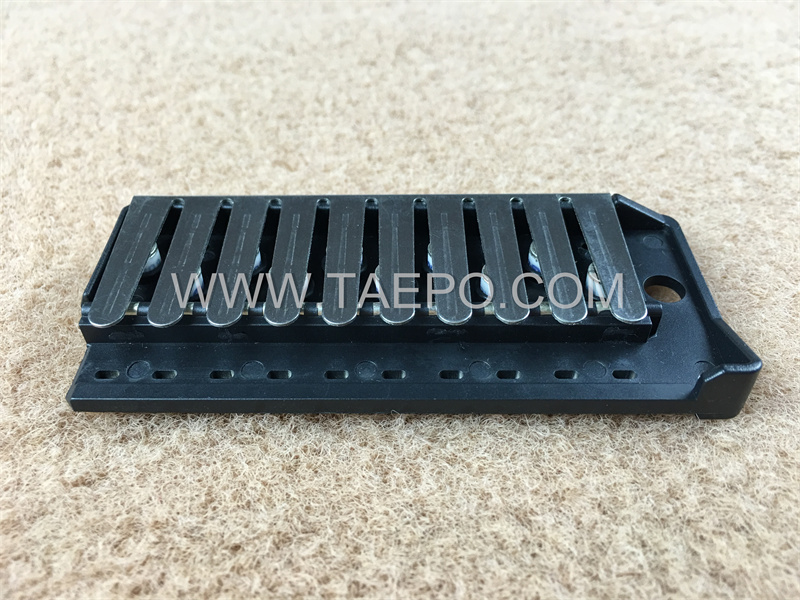

    Illustration pictures for 5 pairs over-voltage protection magazine


        PACKING PICTURES

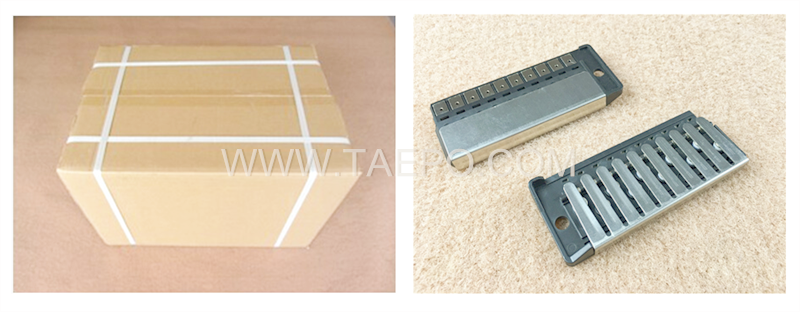

    Packing pictures for 5 pairs over-voltage protection magazine

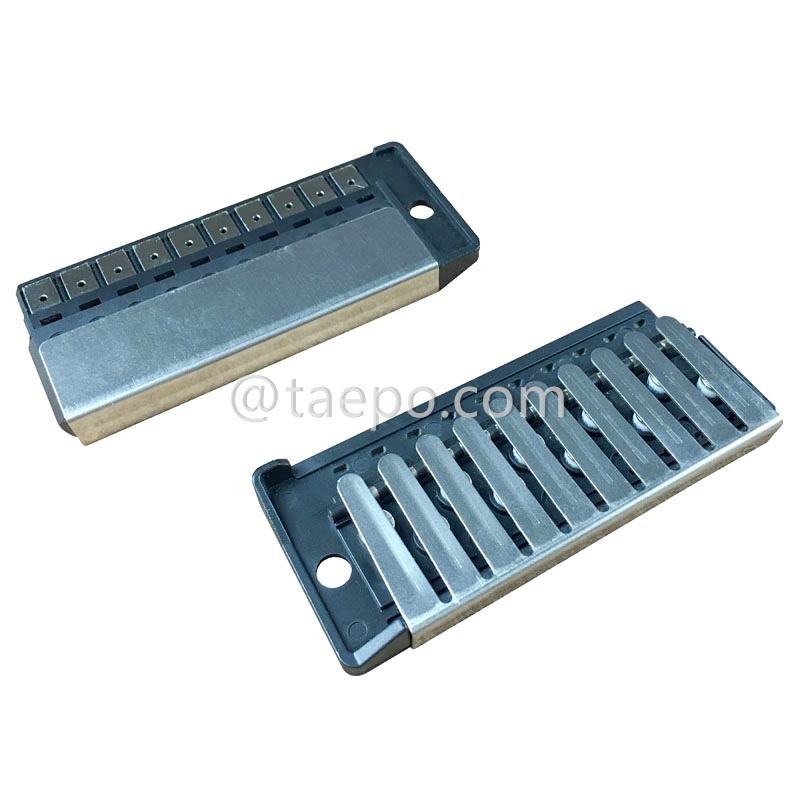

    Packing pictures for 5 pairs over-voltage protection magazine




        ORDER DATA

    Item No Descriptions
    TP-1503-5 5 pairs over-voltage protection magazine for MDF disconnection block 71 #TP-1401-100, with 2-pole GDT arrester


        RELATED PRODUCTS
    100 pairs MDF disconnection block 71Insertion tool for MDF disconnection block 71 #TP-1401-100, red & grey, with plastic chunk2-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71
    4-pole SM test cord, with test plug to alligator clip for MDF disconnection block 712-pole SM connection cord, with test plug test plug for MDF disconnection block 71 4-pole SM connection cord, with test plug test plug for MDF disconnection block 71
    TP-1401-100  100 pairs MDF disconnection block 71

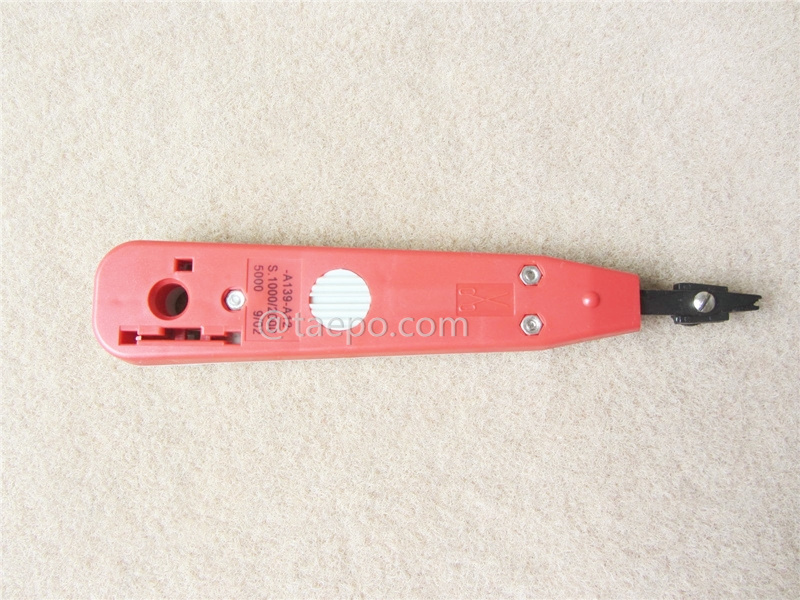

    TP-5905-C  Insertion tool for MDF disconnection block 71 #TP-1401-100, red & grey, with plastic chunk

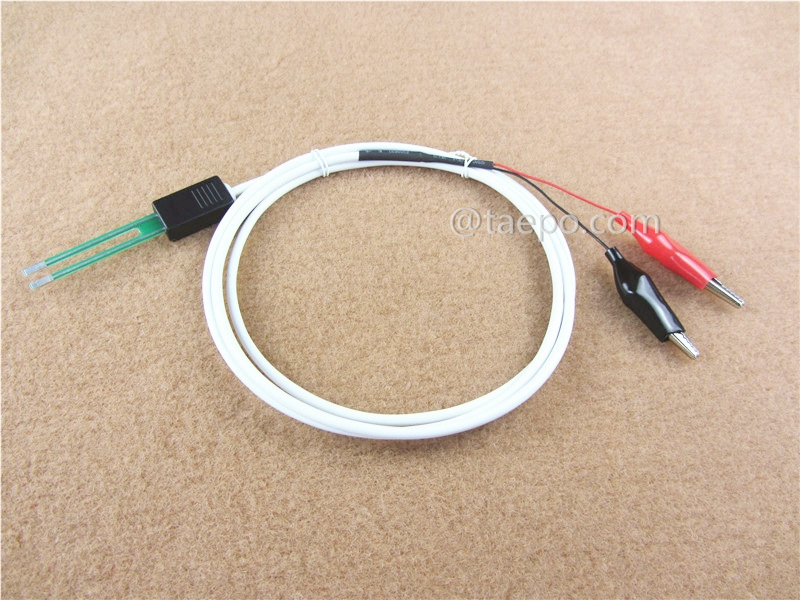

    TP-1401-2TA  2-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71

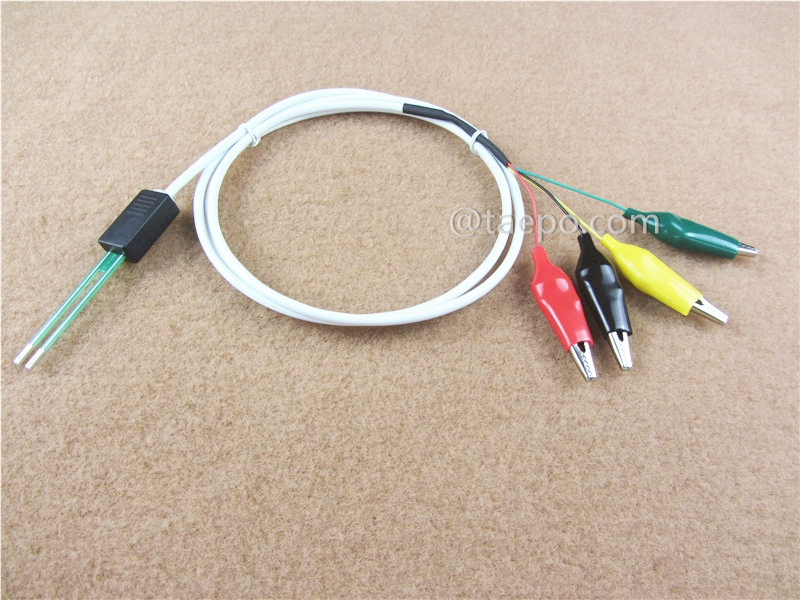

    TP-1401-4TA  4-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71
    TP-1401-2TT  2-pole SM connection cord, with test plug test plug for MDF disconnection block 71
    TP-1401-4TT  4-pole SM connection cord, with test plug test plug for MDF disconnection block 71
