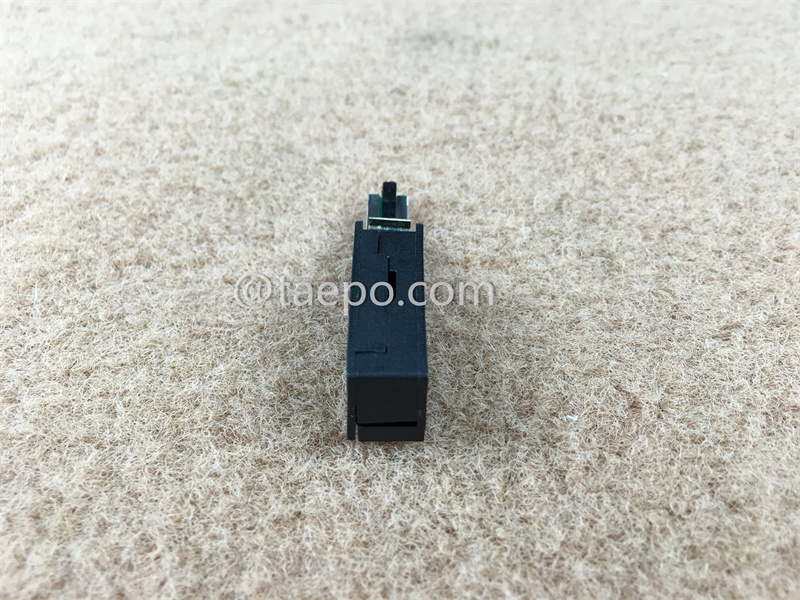

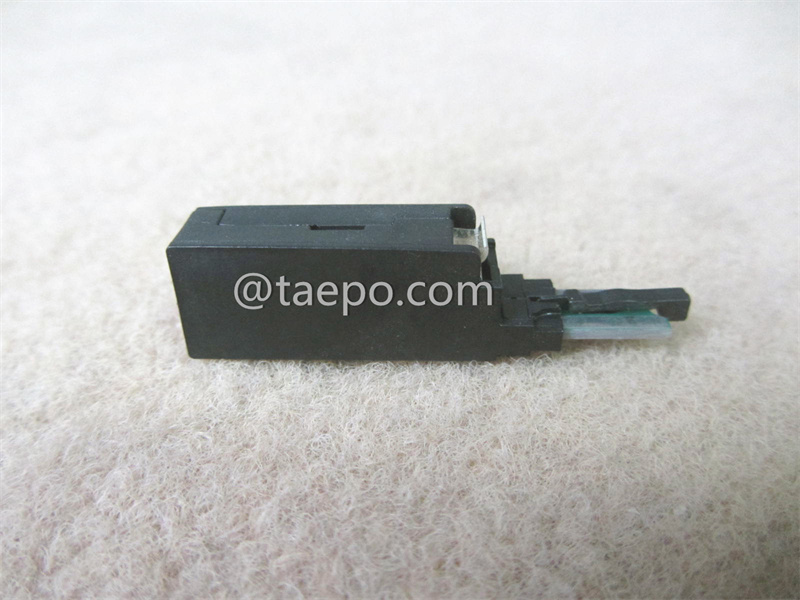

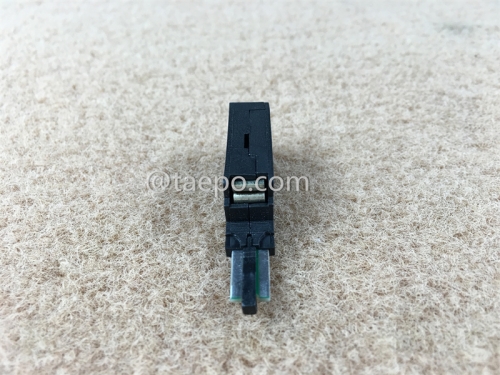

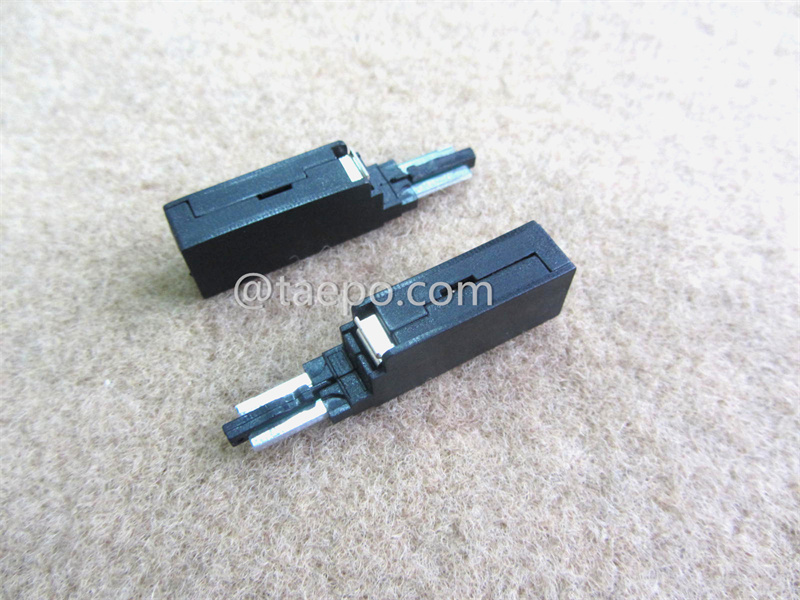

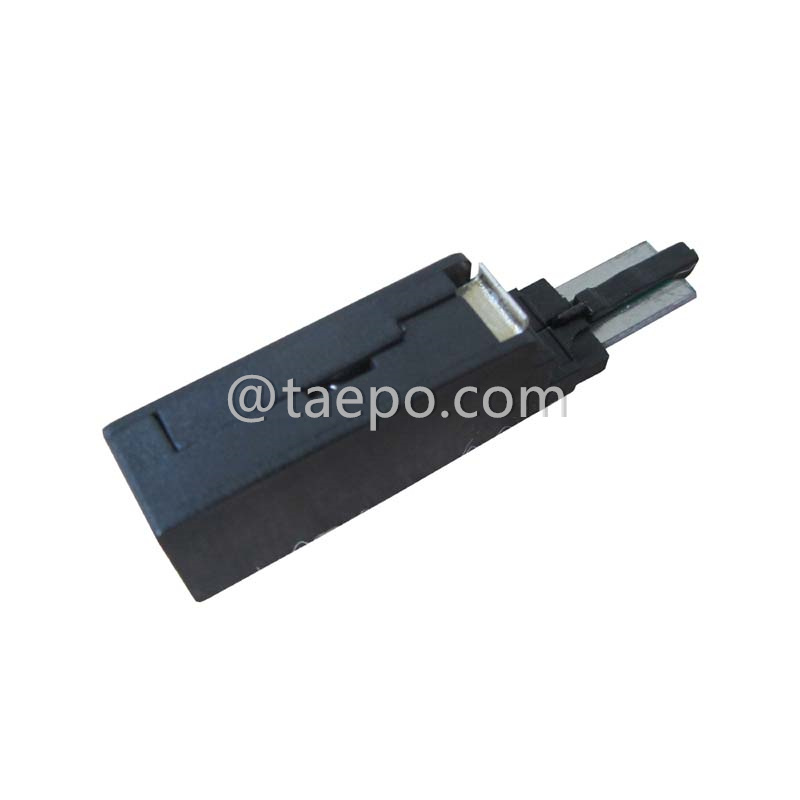

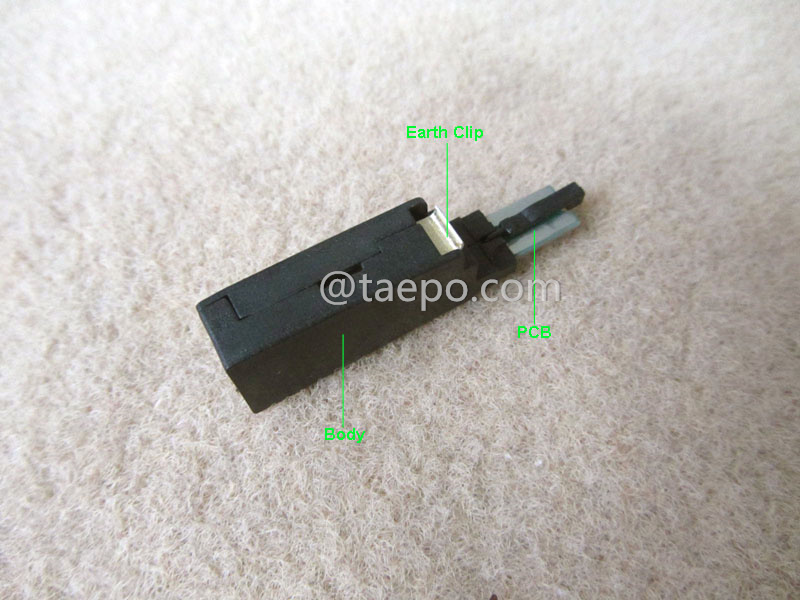

1 pair MDF protector for LSA module against over voltage protection

Item No.: TP-1520-1G
The 1 pair MDF protector is an essential component in protecting telecommunication systems from potential damage due to voltage spikes, ensuring the longevity and reliability of the equipment.
  • Color: Black
  • Brand: Neutral / OEM / TAEPO
  • Packing: 50pcs/box, 24boxes/ctn=1200pcs/ctn, 7kg/ctn, 52*32*23cm/ctn
  • MOQ: 10000pcs
  • Delivery: 15-30 days
  • Description

        Descriptions


    1 pairs MDF protector (TP-1520-1G) is used for LSA modules, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage, for mainly as follows:

    • The surge voltage caused by lightning on or around the outside lines.
    • The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
    • The outside line directly collides against a 220 V power line.


    The housing of the protector is flame retardant, high temperature resistance and aging resistance. It is 1 pair modular design protector, also called Mini PEI.





        Main Features


    • Modular single pair design
    • Easy installations
    • Maintenance free
    • Reliable connections
    • Graded 3 point protection
    • Fail Safe (FS) function
    • Robust long-term environmental stability
    • Flame retardant performance
    • Total front operations

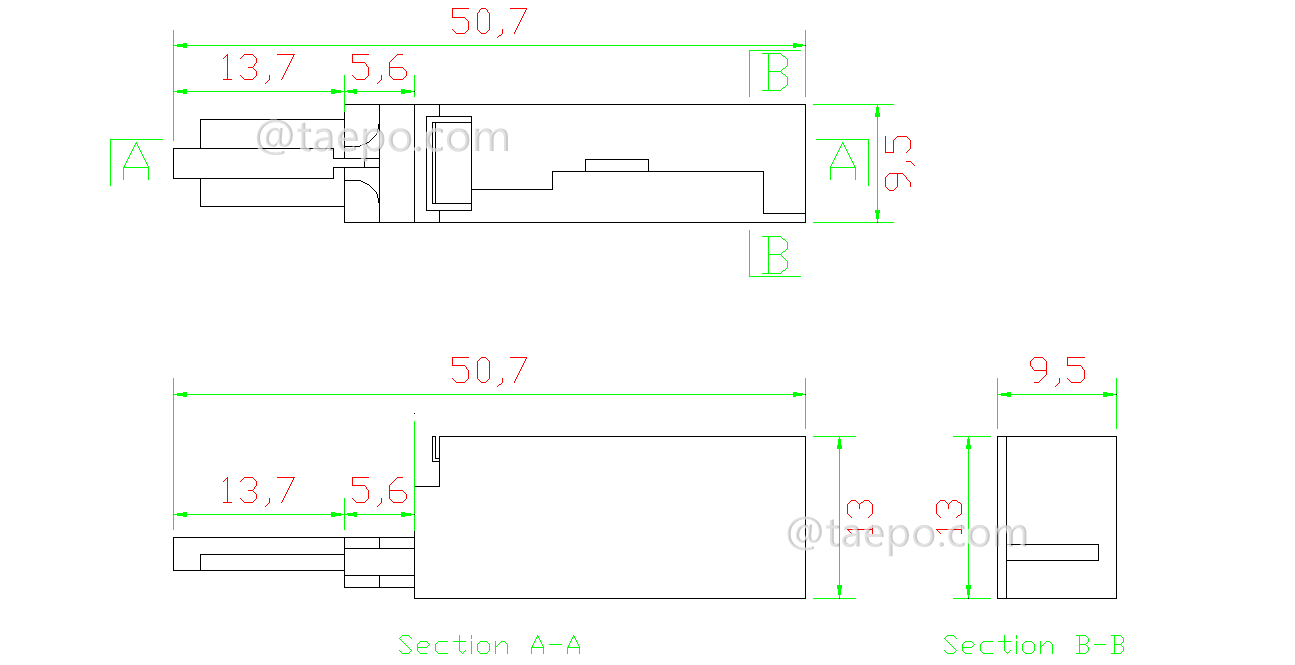

        Schematic Diagrams

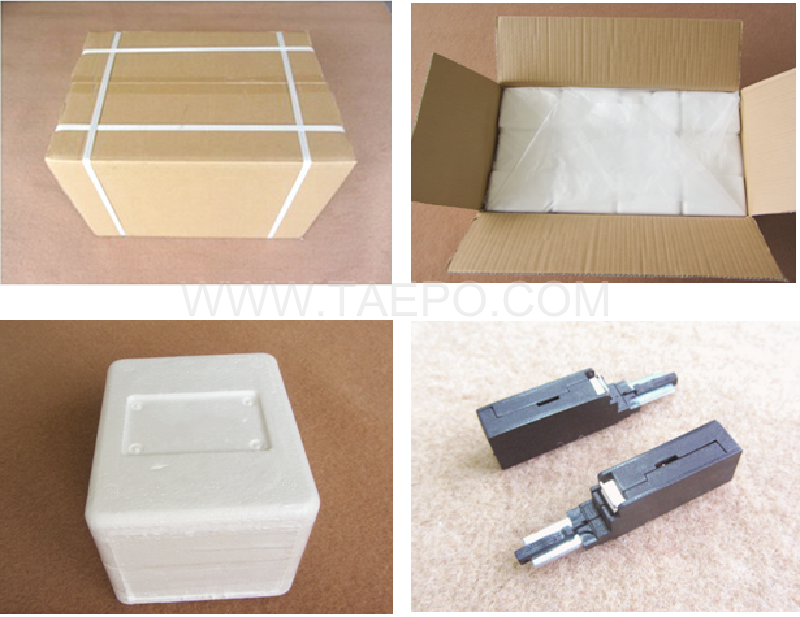

        Packing Pictures







        Order Data



    Item No Descriptions
    TP-1520-1G                         1 pair MDF protector for LSA module, against over-voltage protection
