1 pair MDF protector for STG module, against over-voltage protection

TAEPO - Your Professional MDF protector for STG module Manufacturer in China !
What is a MDF protector for STG module?

    DESCRIPTIONS

1 pair MDF protector for STG module (TP-1509-1C) is used for STG modules, which forms the protection circuit for the protection of exchange room equipment and personnel against over voltage and over current, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.


The housing of the protector is flame retardant, high temperature resistance and aging resistance. It is 1 pair modular design protector. Its compact form factor ensures compatibility with high-density cabling environments. Reliable, field-tested, and compliant with major telecom standards, this protector supports network integrity across a wide temperature range and is suitable for both indoor and sheltered outdoor environments.

    MAIN FEATURES

• Modular Single Pair Design: Designed to protect and manage a single pair of lines within a modular system, offering flexibility and scalability for telecommunication networks.
• Reliable Connections: Ensures secure and consistent connectivity, reducing risks of signal loss and performance interruptions during operation.
• Easy Installations: Simplified structure allows quick and hassle-free installation without the need for special tools, minimizing downtime.
• Maintenance Free: Built for long-term operation with no need for regular maintenance, saving both time and cost in service applications.
• Graded 3 Point Protection: Offers three-stage surge and over-voltage protection for improved safety.
• Fail Safe (FS) Function: Integrated fail-safe mechanism guarantees continued operation even under extreme fault conditions, preventing damage to equipment.
• Front Pluggable Single Pair Protector: Allows easy front-side insertion and replacement of protector modules, improving accessibility and service convenience.
• Non-Radioactive: Constructed with safe materials free of radioactive components, ensuring compliance with environmental and safety standards.
• Low Insertion Loss: Engineered to maintain high signal integrity by minimizing insertion loss, preserving transmission quality.
• Excellent Response to Fast Rising Transients: Delivers quick reaction to sudden surge events, protecting sensitive circuits from damage.
• Ultra Low Capacitance: Designed with very low capacitance levels, making it suitable for high-speed data and broadband transmission applications.

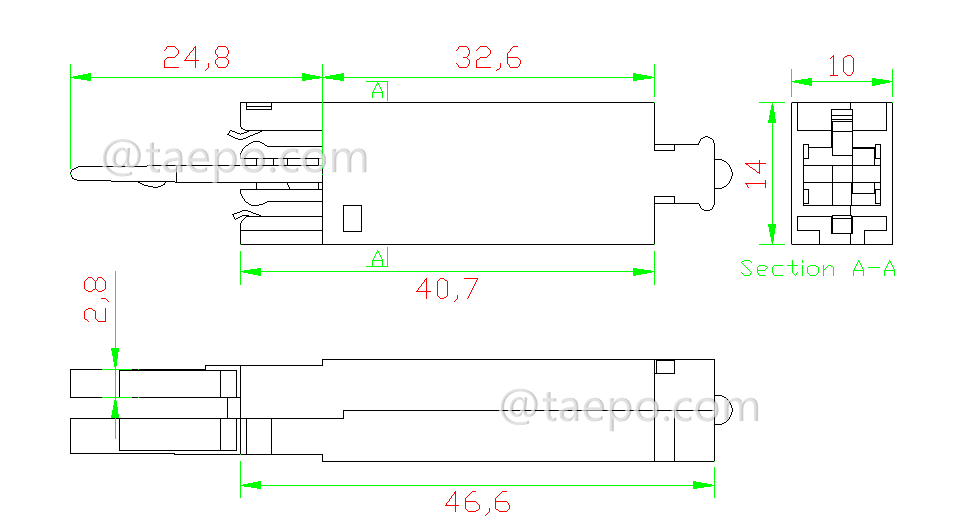

    SCHEMATIC DIAGRAMS

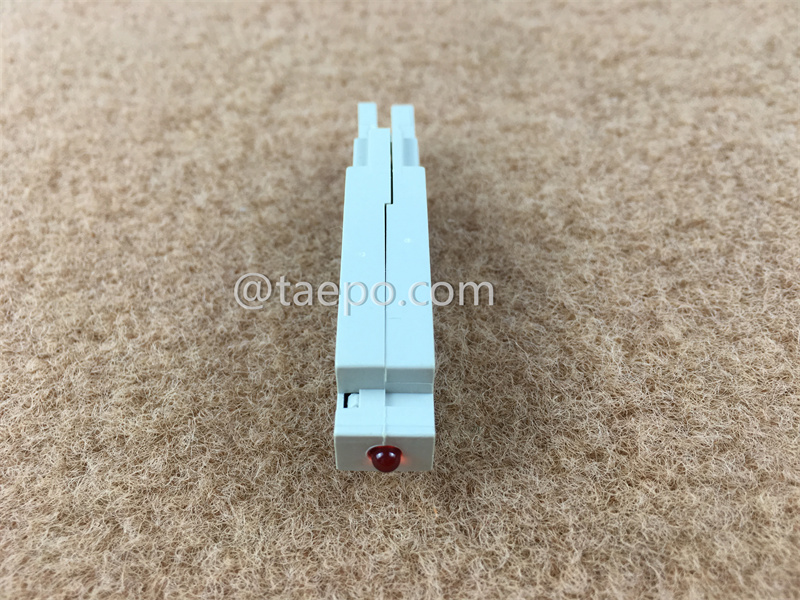

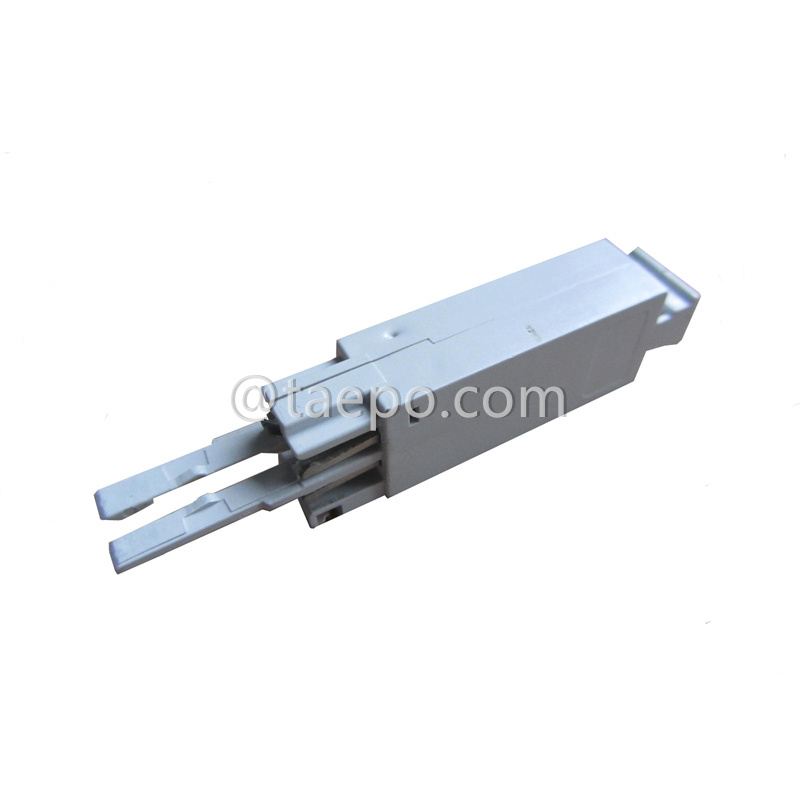

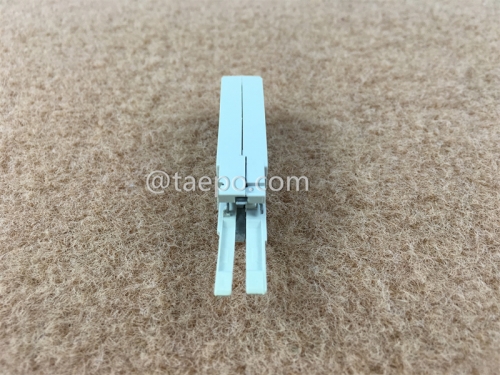

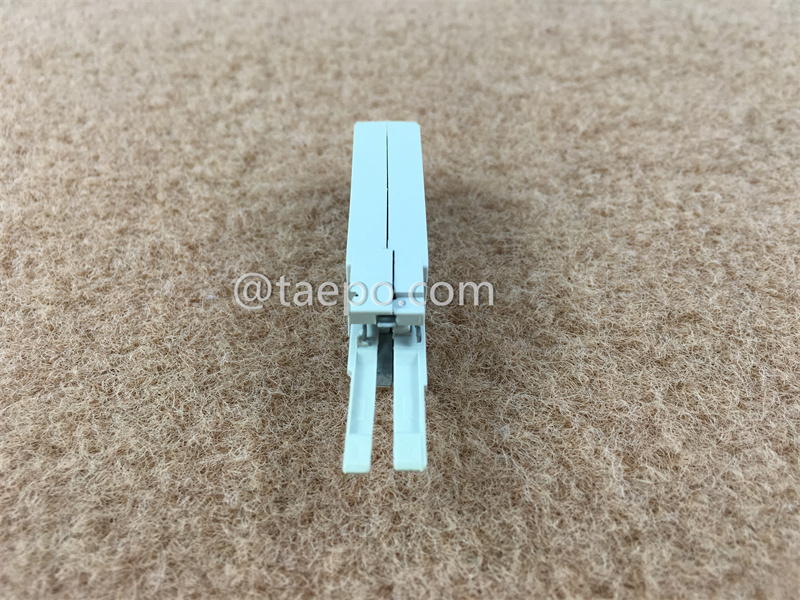

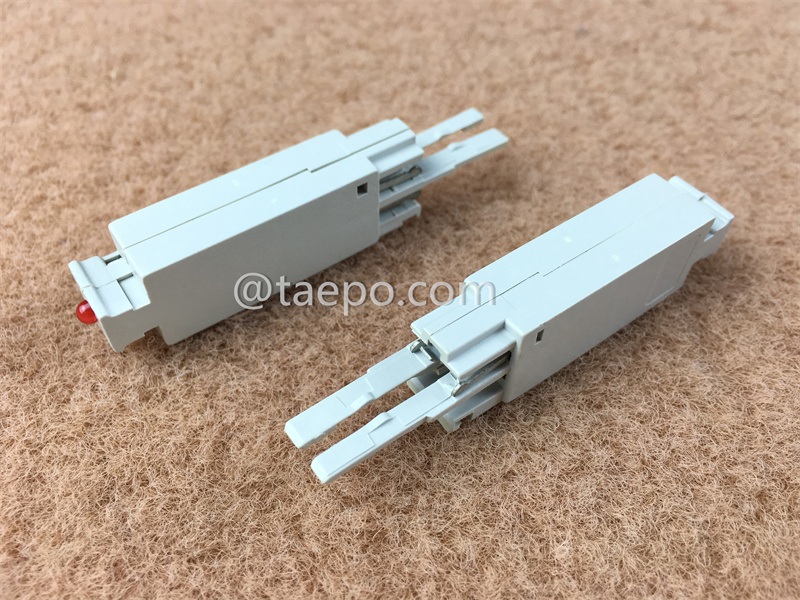

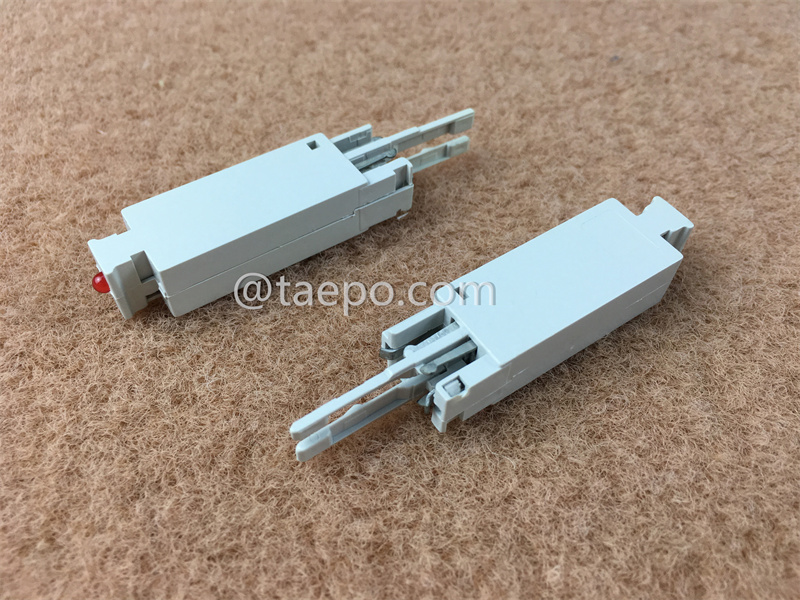

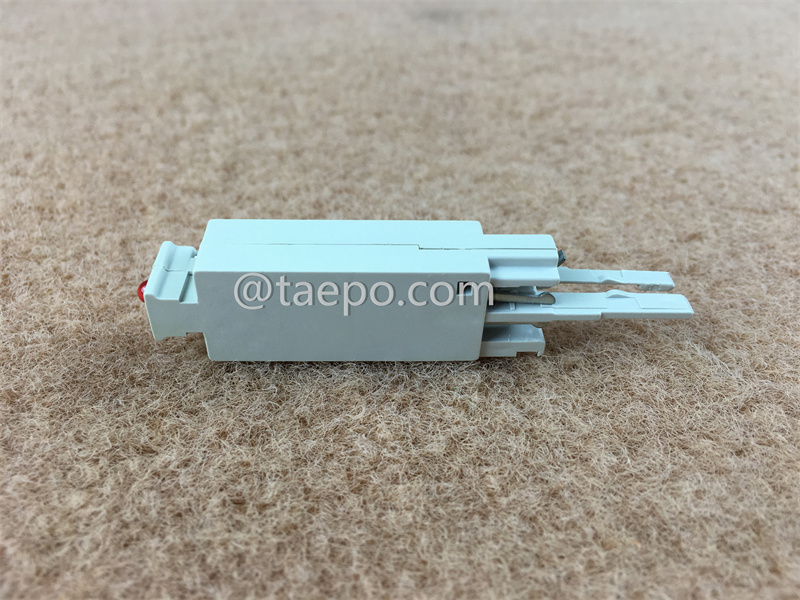

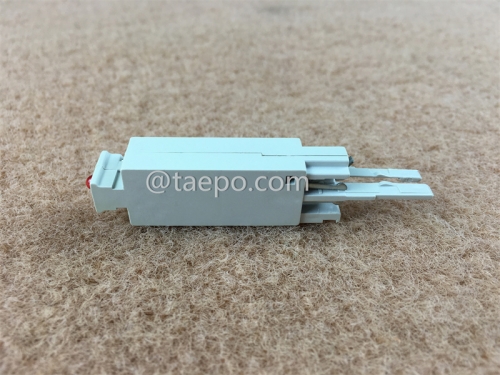

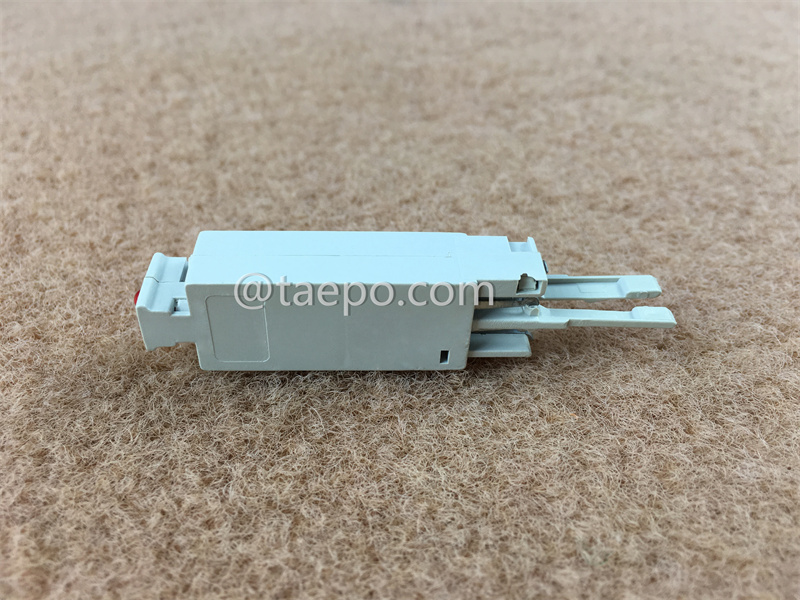

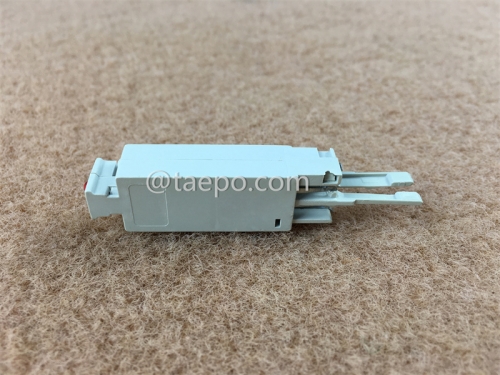

    ILLUSTRATION PICTURES

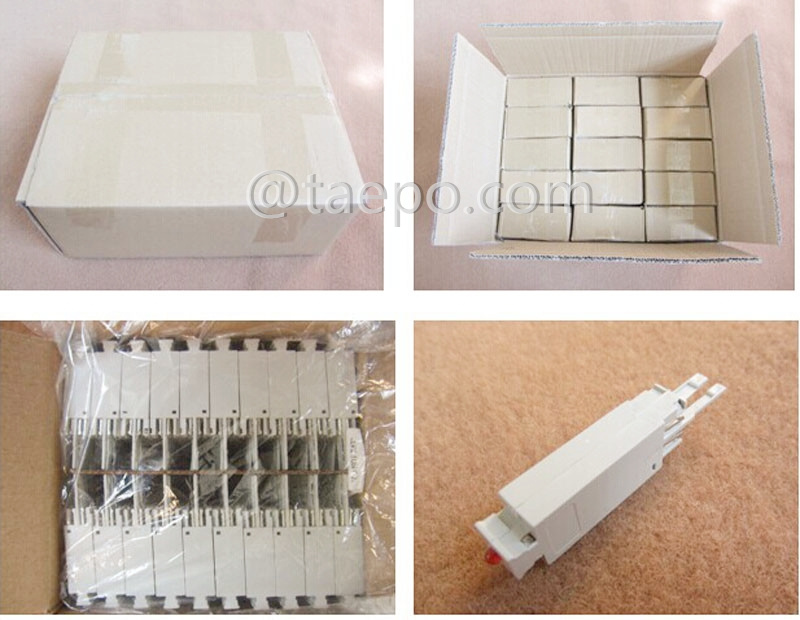

    PACKING PICTURES

    ORDER DATA
